WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal injury,
or loss of life.
PL600HYLA/PL600HYLB
60,000BTU/Hr
PN750HYLA/PN750HYLB
75,000BTU/Hr
Manually Controlled
OWNER’S OPERATION AND INSTALLATION MANUAL
IMPORTANT: Read this owner’s manual
carefully and completely before trying to
assemble, operate, or service this heater.
WARNING: Improper installation, adjustment,
alteration, service, or maintenance can cause
injury or property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
-Shut off supply to the appliance.
-Extenguish any open flames.
-Immediately call your gas supplier. Follow
the gas supplier’s instructions.
-If you can not reach your gas supplier, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
Save this manual for future reference.
Installer: Leave this manual with customer.
WARNING: For Outdoor Use Only. Do not
use for cooking

2
GENERAL INFORMATION
These instructions are intended as a general guide and do not supersede national or local codes in anyway.
Authorities having jurisdiction should be consulted before installation.
Installation and provision for combustion and ventilation air must confirm with the national Fuel Gas Code. This
campfire has been tested to, and complies with IAS 4-96 1997, U, S, Requirements for Outdoor Gas Fireplace
TABLE OF CONTENTS
GENERAL INFORMATION……………………………………………………………….........2
SAFETY INFORMATION………………………………………………………………...........3
INSTALLATION .……………………………………………………………………..……....... 5
OPERATING HEATER ………………………………………………..…………………........7
MAINTENANCE AND STORAGE ……………………………………………………..........8
PRODUCT FEATURES……………………………………………………………………......9
SPECIFICATION…………………………………………………………….........…………...10
TROUBLESHOOTING……………………………………………………………………... ..10
PARTS LIST…………………………………………………………… …………………….....11
WARRANTY………………………………………………………………………………….....end
Liquid propane units are designed and certified for use only with house-
hold liquid propane supply period. Do not use “portable” propane tanks of
less than 100-lbs, Capacity, LP units cannot be operated with 20-lb. Propane
tanks commonly used with portable, liquid propane gas grills.

3
SAFETY INFORMATION
THISGASAPPLIANCEISDESIGNEDFOROUTDOORUSEONLY.
IT IS NOT INTENDED FOR INSTALLATION IN ANY BUIDING,
GARAGE.ORENCLOSEDSTRUCTION.ITISNOTINTENDEDFOR
INSTALLATIONINORONRECREATIONALVEHICLESORBOATS.
WARNING: Follow all gas leak procedures in
this manual, prior to operation.
WARNING: Fuels used in gas fired appliances,
and the products of combustion of such fuels,
contain chemicals know to the State of California
to cause cancer, birth defects and /or other
reproductive harm. This warning is issued pursuant
to California Health & Safety Code Sec.25249.1
DO NOT ATTEMPT TO DISCONNECT THE GAS OR ANY
GASFITTINGWHILETHISAPPLIANCEISINOPERATION.
Inspect the gas connections of this appliance prior to
each use. Do not operate the unit if there is a gas leak
present.
Do not put anything flammable, on or around or be-
neath the campfire.
NEVER Leave the campfire unattended while in
operation.
NEVER Allow children to operate this appliance.
NEVER Lean over the campfire or place ,hand or fin-
gers on the screen cover or near flame.
NEVER Use liquid propane gas in a natural gas unit,
or natural gas in a liquid propane unit. Gas conver-
sions SHOULD ONLY BE DONE BY A QUALIFIED
SERVICE TECHNICIAN. DO NOT use charcoal bri-
quettes or lighter fluid in any campfire.
Storage of this appliance indoors is permissible only if
the gas is disconnected.
PROPER CLEARANCES FROM COMBUSTIBLE, CON-
STRUCTION AND MATERIALS MUST BE MAINTAINED
FROM ALL SIDES, TOP AND BOTTOM OF THIS
APPLIANCE.
THIS APPLIANCE SHOULD NEVER BE PLACED ON
ANY COMBUSTIBLE SURFACE.
THISAPPLIANCESHOULD NEVER BE PLACEDUNDER
ANYCOMBUSTIBLECONSTRUCTIONORMATERIALS.
THIS APPLIANCE SHOULD NEVER BE PLACED
CLOSER THAN FORTY-EIGHT (48”) INCHES FROM
ANYSIDE TOANY COMBUSTIBLE CONSTRUCTION
ORMATERIALS.
Location
Your campfire can be installed on a flat, stable surface,
away from any combustible materials or construction.
(See FIgure 13)
Place unit on any level, outdoor, non combustible
surface.
NOTE: Do not place this appliance on grass or dirt
area , this may prevent proper venting.
HARD PIPING TO UNIT WITHOUT GAS PROXIMITY
1. TURN OFF THE GAS SUPPLY SYSTEM
NOTE: All gas connections (except for brass to
brass) require the following:
Clean pipe threads using either a wire brush or steel
wool. Apply Teflon tape or pipe dope to the steel
fittings before making any connection.
BE CAREFUL! Make sure all gas connections are
snug, but not over tighten!
2. Extend the gas supply system using1/2” black iron
pipe from current house supply. This may be ac-
complished by a teeing off” or tapping into a con-
venient gas line connection; installing the neces-
sary pipe for the distance required; and then in-
stalling a manual valve at exterior house wall. If
pipe is to pass though a foundation or house wall,
make sure to re-seal the area around the pipe with
weather sealant.
3. From manual valve, extend piping to the campfire.
While this appliance is not in use, the gas must be
turned off at the gas supply.
While this appliance is not in use, it should be covered
to protect it from weather and other adverse elements.

4
Note :If pipe is to be placed in an underground trench,
check with local codes for required depth and mate-
rial construction.

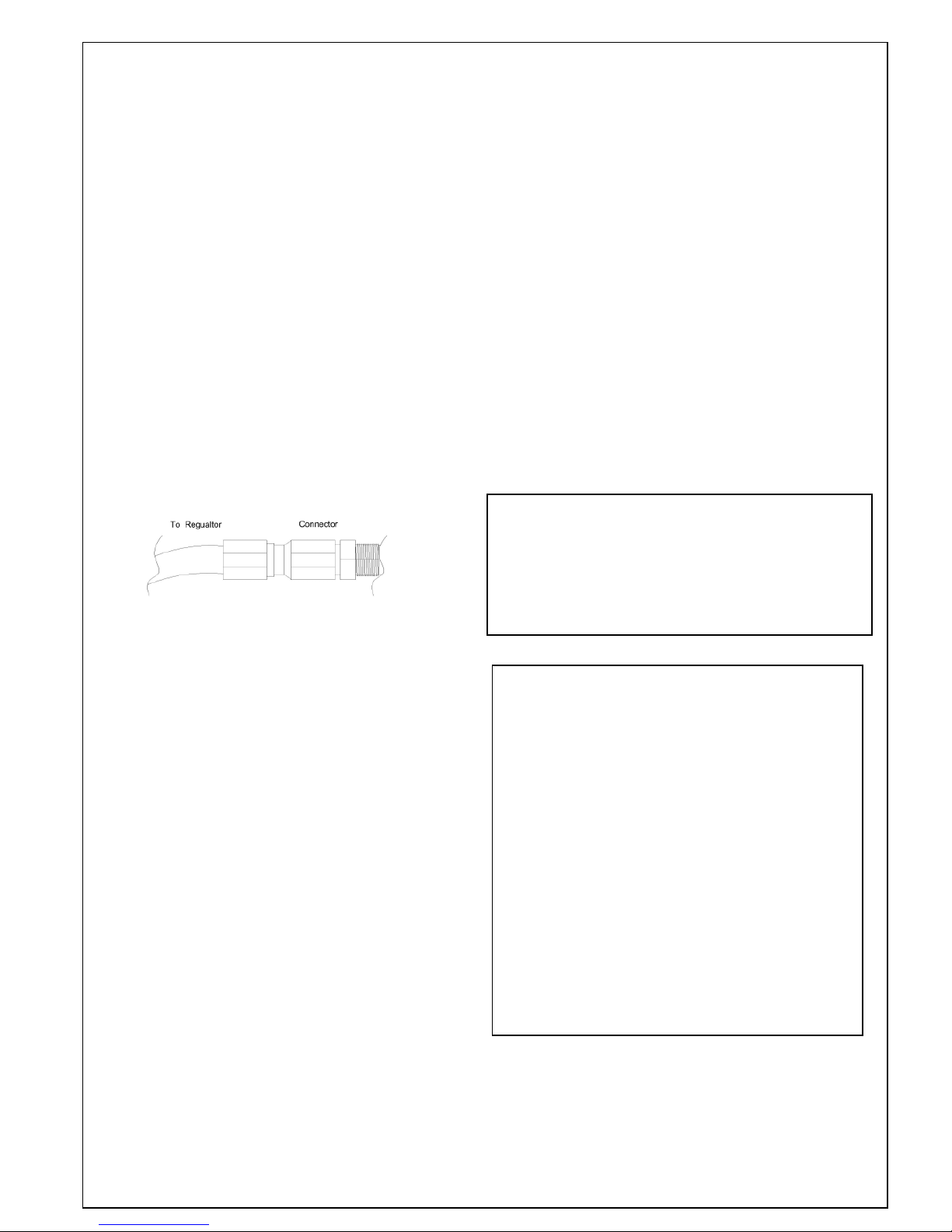

4. Connect the 3/8” male flare brass fitting (furnished
with campfire) to the 1/2” steel piping making sure
to clean the pipe threads and use Teflon tape or pipe
dope.(FLEX LINE NOT SUPPLIED)
5. Connect the 1/2” female X 3/8” male flare brass
fitting to the 3/8” female brass flare fitting, as
sembled on the right side of the gas line, of the
right side of the campfire.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
Young children should be carefully supervised when
they are in the area of the appliance.
Never leave the appliance unattended during
operation.
Clothing or other flammable materials should not
be placed on or near the appliance.
∙Any guard or other protective device removed for
servicing the appliance must be replaced prior to
operating the appliance
∙Installation and repair should be done by a quali-
fied service person.. The appliance should be in-
spected before use and at least annually by a quali-
fied service person. More frequent cleaning may
be required as necessary. It is imperative the con-
trol compartment, burners and circulating air pas-
sageways of the appliance be kept clean.
∙Inspect the fuel supply connection before each use
of the appliance.
IMPORTANT: Installation of natural gas and LP
should be done by a qualified installer, service
agency or gas supplier.
The appliance and its manual shutoff valve must
be disconnected from the gas supply piping sys-
tem during any pressure testing of the system
at test pressures in excess of 1/2 psig (3.5kPa).
This appliance must be isolated from the gas
supply piping system by closing its manual
shutoff valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig (3.5kPa).
Location Continue
NOTE: Brass to brassw connections do not require
teflon tape or pipe dope.
(Note: show drawing of hard piping installation.
Storage of this appliance indoors is permissible only
if it has been disconnected from its fuel supply. (natural
gas line or LP gas)
LOCAL CODES
Install and use heater with care. Follow all local codes.
In the absence of local codes, use the latest edition of
The National Fuel Gas Code, ANSZ223.1, also known
as NFPA54*.
Available from :
American National Standards Institute, INC.
1430 Broadway, New York, NY10018
National Fire Protection Association, INC.
Battery march Park Quincy. MA 02269
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
control system and any gas control which has been
under water.

5
Installation
LOGS LIST
PL600HYLA PN750HYLA
FIG 2 The LOG sets for PL600HYLA/ PN750HYLA
PL600HYLB PN750HYLB
FIG 3 The LOG sets for PL600HYLB/ PN750HYLB

6
Installation continue
Check to make sure you have the correct parts before
assembling.
. Logs: 5
Caution: Some of the steel edges may be
sharp. Please use caution when assembling
the unit.
INSTALLATIONINSTRUCTIONS:
1. Remove log from inside the box. Please note each log fits
the number marked on foam package.
2. Next remove campfire from box.
3. You may use bricks or blocks to create your sur-
round to place your campfire on.
4. Make sure that the campfire is placed on a flat
surface.
5. Check the log piece (FIG-4).
Fig.-4 Check the log piece
6. Make sure that the logs were installed correctly.
(FIG.-5).(Base logs are pre-installed.)
Fig.-5 Install and check the base logs
7. Install the No.#1 log as indicated on base log .Fix
the log on the bracket by the screw .
(FIG.-6).
Fig. 6 Install the LOG #1
8. Install the No.#2 log as indicated on base log.
(FIG.-7).
Fig. -7 install the LOG #2
9. Install the No.#3 log as indicated on the base log
( FIG.-8).
Fig. -8 install the LOG #3

7
Installation (continue)
11. install the No. # 4 log as indicated on the base
(FIG.-9).
Fig. -9 Install the LOG #4
12. Install the No. #5 Log as indicated on the base log
(FIG. 10).
FIG. -10 Insatll the LOG #5

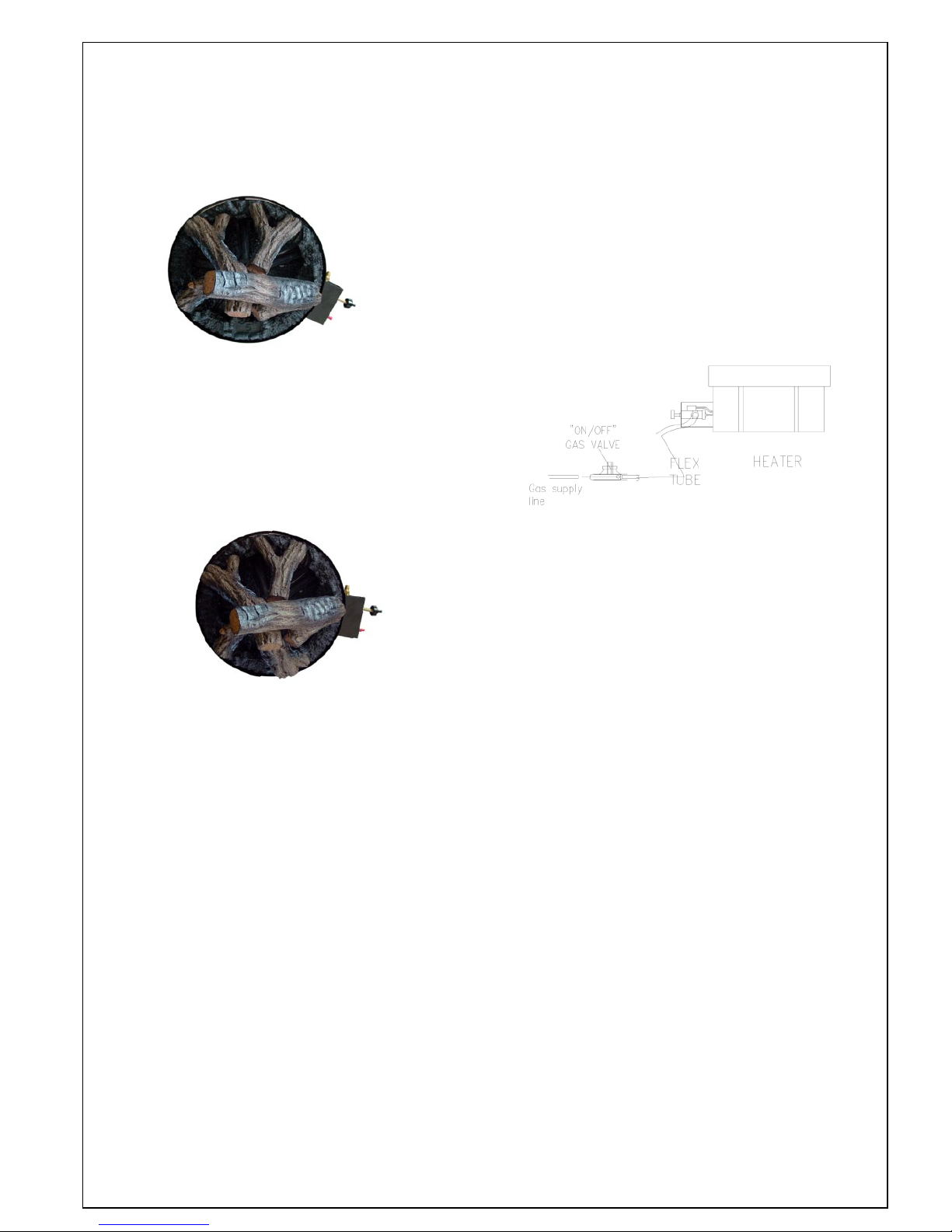

CONNECTING TO GAS SUPPLY
Note: Apply a mixture of liquid soap and water to all
joints. Do not use an open flame. Bubbles forming
show a leak. Check all connections for leaks
immediately.
FUEL REQUIREMENTS:
Natural gas models
l - Connect the ON/OFF gas valve of the appliance
to the incoming gas supply line. See Figure 10. -
- Make certain all gas connections are right.
- Turn the ON/OFF valve at the appliance slowly
to the “ON” position. Use a soap and water
solution to test for leaks.
Fig. 11 Natural gas burner assembly
OPERATING HEATER
Your campfire burener is build to operate with natural
gas or build for LP gas.
This appliance is lit a piezo ignitor, follow these instruc-
tions exactly when lighting the campfire. BEFORE
LIGHTING, smell arround the appliance the appliance
area for gas. Be sure to smell to next to the ground as
liquid propane gas heavier than air and will settle to the
ground.
Follow adaptable lighting instructions. Apply soap solu-
tion to all joints. Bubbles forming indicates a leak. Do
not use a match or an open flame to detect leak. Light
heater after ensuring that no gas leak exists.

8

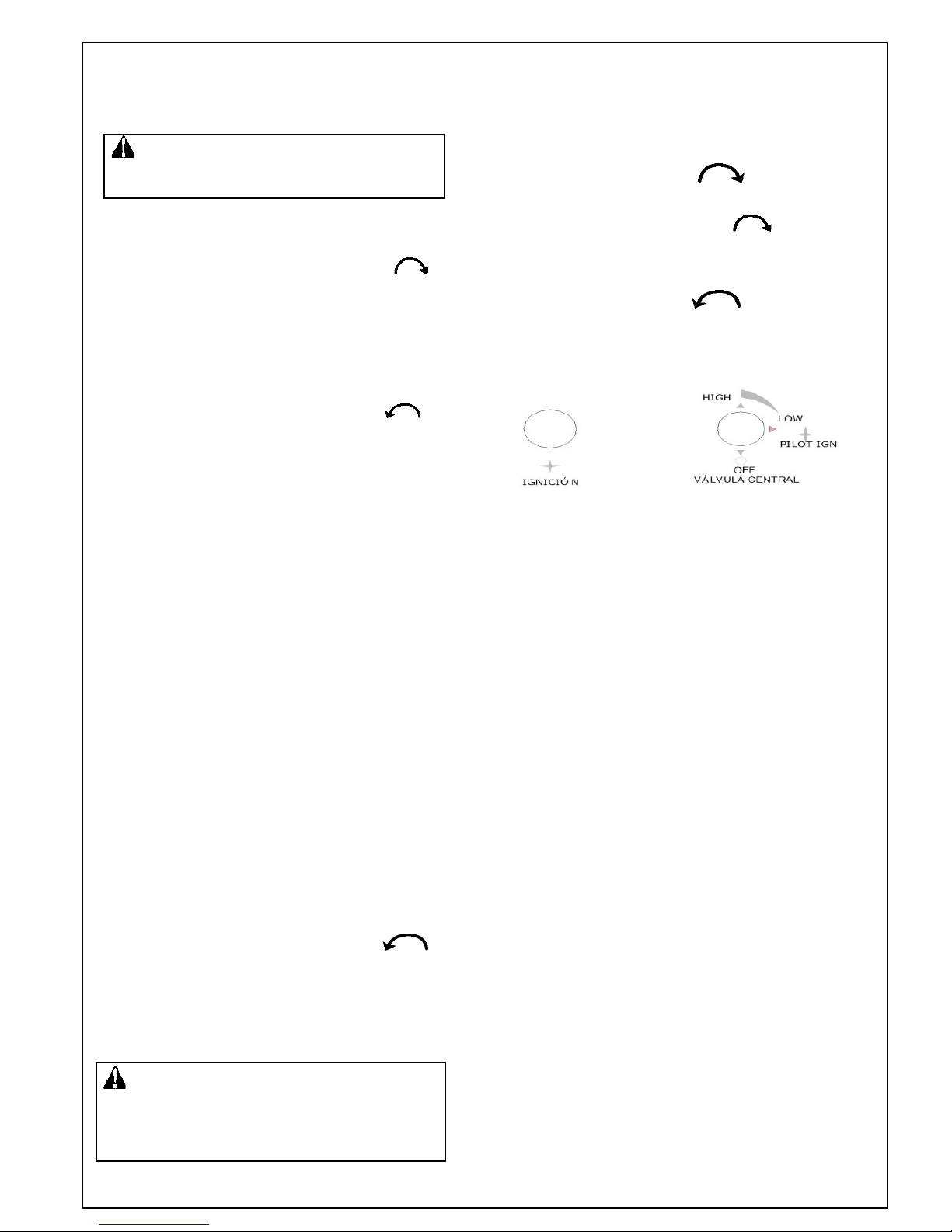

LIGHTING INSTRUCTIONS
WARNING:FOR YOUR SAFETY READ
BEFOR LIGHTING
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Press in and turn control knob clockwise 90
degree to the OFF position.
4. Wait five (5) minutes to clear out any gas. Then
smell for gas around log set and near floor. If you
smell gas, STOP! Follow the safety information
above. If you don’t smell gas, go on to the next step.
5. Turn control knob counterclockwise 90
degree to the PILOT position and press in. Keep con-
trol knob pressed in for five(5) seconds.
Note: You may be running this log set for first time
after hooking up to gas supply. If so, the control
knob may need to be pressed in for 30 seconds.
This will allow air to bleed from the gas system.
6. With control knob pressed in, push down and re-
lease ignitor button. This will light the pilot. The pi-
lot is attached to the side of the front burner. If
needed, keep pressing ignitor button until pilot
lights.
NOTE: If pilot does not stay lit, contact a qualified
service person or PRO-COM’s 800# on the back
of this manual. Until repairs are made, light pilot
with the piezo.
7. Keep control knob pressed in for 30 seconds after
lighting pilot. After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7.
If control knob does not pop up when released, con-
tact a qualified service person or PRO-COM’s 800#
on the back of this manual.
8. Turn control knob counterclockwise 90
degree to the ON position. Burner should light. If
burner does not light, call a qualified service person
or PRO-COM’s 800# on the back of this manual.
Fig12 The operationg board
MAINTENANCE AND STORAGE
1. Storage of an appliance indoors is permissible
only if the gas supply system is disconnected and
removed from the appliance. .
2. Have the heater inspected by qualified service
man before each use or at least annually.
3. Check the POL fitting for any damage before each
use and replace if any damage is found.
4. Spiders and insects can nest and live in outdoor
appliances, especially in the burners and orifices.
This will interrupt the normal flow of LP gas to
the heater and can be a very dangerous situation.
Inspect for insect infiltration of burner/orifice when
one of the following occurs:
A. The smell of gas along with predominating yel-
low tipping of the burner flames.
B. Heater can not reach desired temperature.
C. Uneven burner flow.
D. Burner makes popping noises during normal
use or shutdown.
5. Adopt rainproof cover (provided with the heater)
to avoid rust of heater when not in use.
WARNING: If you do not follow these in-
structions exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life.
TO TURN OFF GAS TO APPLIANCE
Shutting Off Appliance
1. Turn control knob clockwise 90 degrees to
the PILOT position.
2. Press in and turn control knob clockwise 90
degrees to OFF position.
Shutting Off Burner Only (pilot stays lit)
Turn control knob clockwise 90 degrees to the
PILOT position.

9
PRODUCT FEATURES
SAFETY PILOT
The heater has a pilot with a safety shutoff system.
The safety pilot is a required feature for outdoor
heaters. It shuts off the heater if flame is extinguished
by rough wind.
PIEZO IGNITION SYSTEM
This heater has a piezo igniter. This system requires
no matches, batteries, or other sources to light heater.
*Option Screen*
For Your safety
You may purchase the screen to maintain a clearance
around the campfire
CAUTION
PLEASE DO NOT TOUCH SCREEN OR PLACE ANY
OBJECTS ON SCREEN WHILE BURNER IS ON
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
from SCREEN to avoid burns or clothing ignition,
SERVICE INDICATIONS:
A hazardous condition may result if a heater has been
modified or is not functioning properly. When the
heater is working properly:
1. The flame is essentially yellow.
2. There is no strong disagreeable odor, eye burn-
ing or other physical discomfort.
3. No smoke or soot exists internal or external to the
campfire.
4. No unplanned or unexplained shut down of the
heater occur.
REPLACEMENT
REPLACEMENTPARTS:
Note: Use only original replacement parts. This will
protect your warranty coverage for parts replaced un-
der warranty.
PARTS UNDERWARRANTY:
Contact authorized dealers of this product. If they can’t
supply original replacement part(s) call PRO-COM’s
Technical Service Department at 1-877-886-5989 for
referral information.
When calling PRO-COM or your dealer, have ready
Your name
Your address
Model and serial numbers of your heater
How heater was malfunctioning
Type of gas used (propane/LP or natural gas)
Warranty card
Usually, we will ask you to return the defective
part back to retail store.
PARTS NOT UNDER WARRANTY:
Contact authorized dealers of this product or Parts
Central if they can’t supply original replacement part
(s) Call PRO-COM’s Parts Department at 1-877-886-
5989 for referral information.
When calling PRO-COM, have ready
Model number of your heater
The replacement part number
FIG. 13 The screen
VALVE CONTROL SYSTEM
This heater has a control valve to control the gas flow,
with the control valve, you can chose the proper flame
of the fire.

10
ACCESSORIES
In the U.S.A., Input BTU shall be derated 4%(1 orifice
size) per 1000ft, for above 2000ft.. In Canada, input BTU
shall be derated 10% (2 orifice size) at altitudes from
2000ft.to 4500ft..
TROUBLESHOOTING
POSSIBLE CAUSE
1. Air in gas lines.
2. Inlet gas pressure is too low.
3. Gas supply turned off.
4. Air passageway on heater blocked.
5. Burner orifice clogged.
6. Control knob not in ING/ON position.
7. Control knob not fully pressed in while
in ING/ON position.
1. Ignitor electrode positioned wrong.
2. Ignitor broken.
3. Broken ignitor cable.
4. Ignitor electrode not connected to ignitor cable.
1. Damaged thermocouple.
2. Thermocouple electrode corrosion.
3. Damaged control valve.
4. Control knob not pressed long enough.
5. Thermocouple connection loose at control valve.
6. Pilot flame not touching thermocouple.
When ignitor buttons
pressed in, there is no
spark at safety Pilot.
OBSERVED PROBLEM
Burner does not light
Burner fire does not last.
REMEDY
1. Continue holding down control knob.
Repeat igniting operation until air is
removed.
2. Check gas pressure.
3. Fully open gas supply.
4. Check air passageway.
5. Clean burner.
6. Turn control knob to ING/ON position.
7. Press down control knob.
1. Reposition ignitor.
2. Replace pilot
3. Replace ignitor cable.
4. Connect electrode to ignitor cable.
1.Replace thermocouple.
2. Clean thermocouple electrode.
3. Replace control valve.
4. After pilot lights, keep control knob
pressed in for 30 seconds.
5. Hand tighten connection or replace
thermocouple.
6. Contact qualified service man.
HIGH ALTITUDE DERATE
Purchase the accessories from your local dealer or
Parts Central. If they cannot supply these accessories
call PRO-COM’s Sales Department at 1-877-886-5989
for referral information. You can also write to the ad-
dress listed on the back page of this manual.
SPECIFICATIONS
Model L600HYLA/B PN750HYLA/B
Btu (LP/NG) 60.000 75.000
Gas Type LP NG
Ignition Piezo Piezo
Inlet Gas Pressure* (In. of water)
Maximum 14” 10.5”
Minimum 11” 5.5”
Dimensions, Inches (H x W x D)
Stove 17 3/4” x22 7/8”x18 1/8” 17 3/4” x22 7/8”x18 1/8”
Carton 15” x25 ”x20 1/4” 15” x25 ”x20 1/4”
Weight, Lbs
Stove 32/33 32/ 33
Shipping Weight 55/58 55/ 58
* For purpose of shipment adjustment.
Minimum clearances: Bottom: (This appliance may not be place on any combustible materials)
Top: 8 FT. (2.4m)
Side /walls (around): 48 inch (1220mm)

11

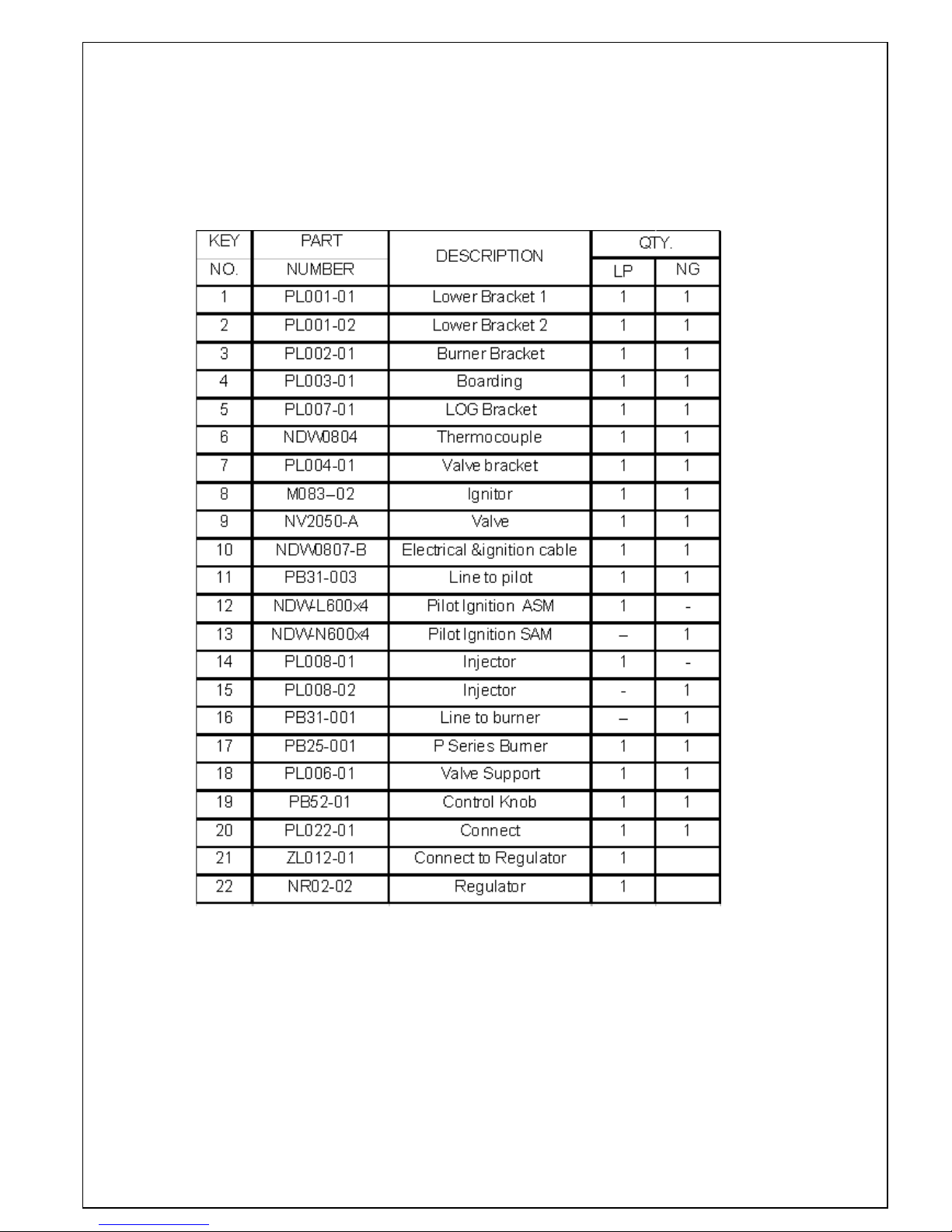

PARTS LIST
PL600HYLA/PL600HYLB
PN750HYLA/PN750HYLB

12
ILLUSTRATED
PARTS BREAKDOWN
PL600HYLA / PL600HYLB
PN750HYLA / PN750HYLB

13
WARRANTY INFOR ATION
KEEPTHIS WARRANTY
Always specify model and serial numbers when communicating with PRO-COM.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We
make no other warranty, expressed or implied.
LIMITEDWARRANTYPRO-COMOUTDOORCAMPFIRE
PRO-COM warrants this product to be free from defects in materials and components for one (1) years from the date of first purchase, provided
that the product has been properly installed, operated and maintained in accordance with all applicable instructions, to make a claim under this
warranty, the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper
operating condition and an allowance for labor when provided by a PRO-COM Authorized Service Center. Warranty part(s) MUST be obtained
through authorized dealers of this product and/or PRO-COM who will provide original factory replacement parts. Failure to use original factory
replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions
furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear or parts that fail or become damaged as
a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transporta-
tion and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.
TOTHE FULLEXTENTALLOWED BY THE LAW OF THE JURISDICTIONTHAT GOVERNSTHE SALE OF THE PRODUCT, THIS EXPRESS WAR-
RANTY EXCLUDESANYANDALL OTHER EXPRESSED WARRANTIESAND LIMITSTHE DURATION OFANYANDALLIMPLIED WARRANTIES
INCLUDINGWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSETOONE(1)YEARONALLCOMPONENTSFROM
THE DATE OF FIRST PURCHASE. NANJING PRO-COM’S LIABILITY IS HEREBYLIMITED TO THE PURCHASE PRICE OF THE PRODUCTAND
NANJINGPRO-COMSHALLNOTBELIABLEFORANYOTHERDAMAGESWHATSOEVERINCLUDINGINDIRECT.ACCIDENTALORCONSEQUEN-
TIALDAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of accidental or consequential damages,
the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.
This warranty gives you specific legal right, and you may also have other rights that vary from state to state.
For information about this warranty please write to:
PatentPending
PRO-COM TOLL- FREE NUMBER: 1- 877- 886- 5989
NANJINGPRO-COM ELECTRIC APPLIANCE CO., LTD.
#6CHUANGYEROAD, HIGH NEW TECHNOLOGY&DEVELOPMENT ZONE,
GREATBRIDGEROADNORTH,NANJING,210061,CHINA.
Model:
Serial No.
Date Purchased
