Profi-AirBrush AB01117 User manual

Version 23.06
AIRBRUSH GUNS
AIRBRUSH-PISTOLEN
de
Technical changes, misprints and mistakes reserved! Newest information about our products can be found online
Technische Änderungen, Druckfehler und Irrtümer vorbehalten! Aktuelle Informationen zu unseren Produkten nden Sie auf:
http://www.pro-pumpe.de
Profi-AirBrush Double-Action-Gun 128 D 0,35
(Artikelnr: AB01117)
Profi-AirBrush Double-Action-Gun 134 D 0,3
(Artikelnr: AB01115)
Profi-AirBrush Double-Action-Gun 182 D 0,5
(Artikelnr: AB01111)
Profi-AirBrush Double-Action-Gun 130 D 0,3
(Artikelnr: AB01116)
Profi-AirBrush Double-Action-Gun 134s
(Artikelnr: AB01121)
Profi-AirBrush Double-Action-Gun 180 D 0,2-C
(Artikelnr: AB01112-C)
GB
OPERATING INSTRUCTIONS
DE
BEDIENUNGSANLEITUNG
Profi-AirBrush Double-Action-Gun 134s mit
Druckluftschlauch (Artikelnr: AB01121S-1)
Profi-AirBrush Single-Action-Gun 138 D 0,8
(Artikelnr: AB01114)

Contents
1. Introduction ............................................................................................................................................................. 2
2. In general ................................................................................................................................................................ 2
3. Ranges of application ............................................................................................................................................. 2
4. Important ................................................................................................................................................................ 3
5. How it works ............................................................................................................................................................ 3
6. Commissioning ....................................................................................................................................................... 4
7. Cleaning and care .................................................................................................................................................. 4
8. Maintenance ........................................................................................................................................................... 5
9. Safety instructions .................................................................................................................................................. 5
10. Guarentees ............................................................................................................................................................. 5
11. Recognising and repairing of mistakes ................................................................................................................... 6
12. EU Declaration of Conformity ................................................................................................................................. 6
Allgemeiner Hinweis
Please read the user manual before using the airbrush gun
SAFETY INSTRUCTION AND WARNINGS
1. INTRODUCTION
We would like to congratulate you on the purchase of your airbrush gun. We appreciate your trust. That‘s why func-
tional security and operational safety stands on rst place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the airbrush components. Failure to follow the
instructions and safety precautions can result in injury or property damage. Please keep this manual with
the instructions and safety instructions carefully in order to at any time you can restore them.
2. IN GENERAL
The airbrush guns are developed according to the newest stand of technology, manufactured with much care and go
under strict intensive controls.
Make sure after unpacking that the data given on the type label match with the included operating instructions. In the
case of doubt is not to be used. Transport damages are immediately to be reported to the package distributor on the
shipping invoice and to us in written form.
3. RANGES OF APPLICATION
Airbrush guns can be used in:
l Bodypainting
l Fingernail painting
l Cosmetic
l Craftwork spraying
lAnd much more
lt can be also used for providing air source for medical, environment protect, breed aquatics Indnstrial, food
Industrial, chemical industrial, laboratory and so on.
2 English

4. Important note: please pay attention before commissioning the airbrush!
l The air hoses for airbrush guns are air-tight. Sealing of the screw connections can be carried out with Teon tape. The
rubber seals are to be checked regularly and replaced if necessary.
l Connect the air hose, the airbrush gun to the 1/8 „port on the compressor tting.
In order to avoid leaks, the screw connection of the air hose should always be sealed with Teon tape.
l Before starting up, especially after cleaning or after repairs, check the tightness of all connecting elements as well as the
tightness of the unit and the hoses..
l Please, note that in dependence of the device used (compressor/gun) the color must be diluted.
l Your airbrush gun must be cleaned thoroughly after each color change, otherwise the residual color mixes with the
newly lled color.
Moreover, the very ne nozzle will be clogged by dried ink. The gun should be cleaned with thinner and water.
Especially the nozzles, which are subject to wear, will have longer lifetime by careful cleaning .
l Please, inform yourself in the literature or on the Internet about the working methods and techniques before
starting work .
l Please, check the funktion of the gun with clean water. Is the function correctly given, the technology of the gun
is perfect.
l Please connect compressor, hose and gun always tight. Avoid oscillatingly opening (constant on and o󰀨) of the
compressor in order to reduce wear and to save energy.
l We sell only tested products. These are strictly for personal use.
l Claims for damages for improper disassembly and cleaning can not be accepted.
l Complaints about contaminated airbrush guns with paint,residues, could not be recognized.
5. HOW IT WORKS
5.a The airbrush gun is a two-stage atomizer according to the principle of a jet pump using compressed air as a
propellant. With the airbrush gun, any liquid paint with ne pigment, suitable for airbrush guns, can be applied to all
substrates, depending on the nozzle size. Acrylic paints, watercolor paints, textile paints and dilute oil paints are easy
to apply. The working pressure is usually between 1.5 and 3 bar. The higher the pressure is set, the ner the ink is
atomized. In order to deliberately create uneven surfaces, e.g. In order to display sand, one can set the pressure
very deliberately very low.
English 3

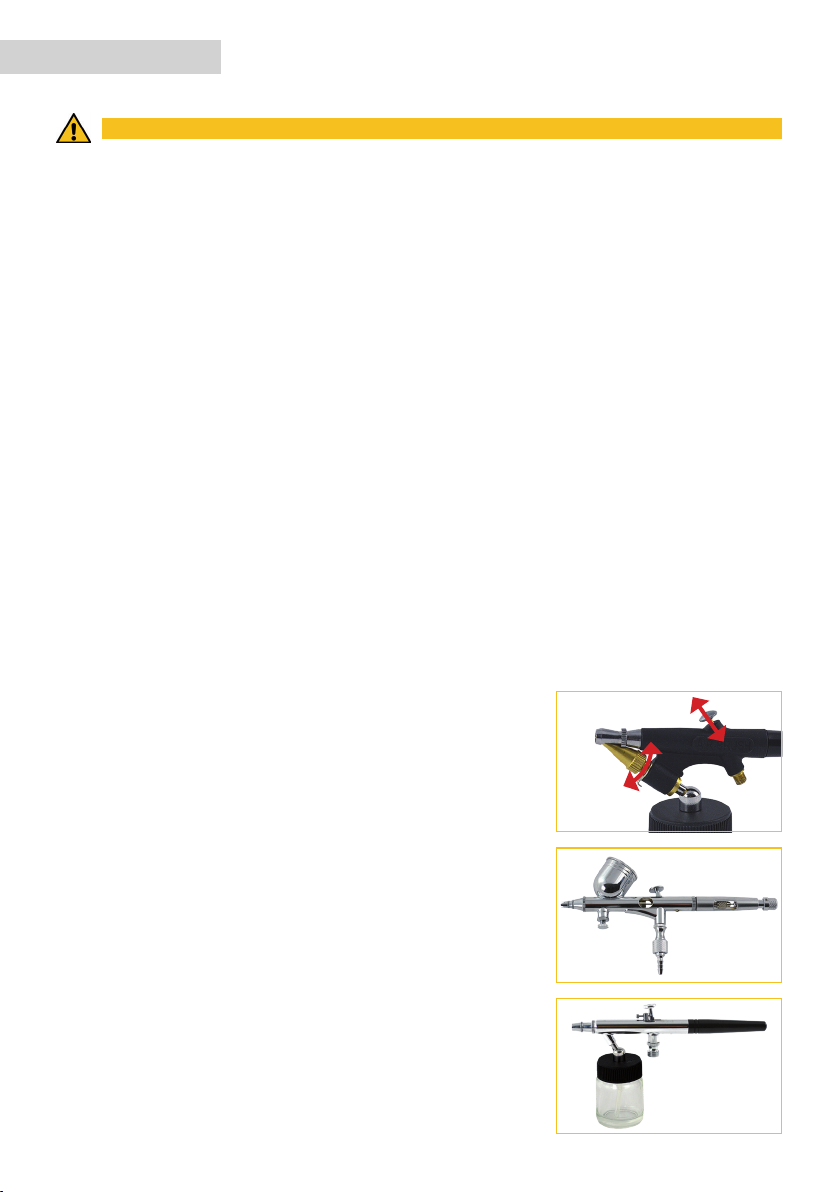

Single Action: With the airbrush single-action gun, you can conveniently
regulate the air pressure with the lever.
Double Action: With the airbrush double-action gun, you can regulate both
the air pressure and the amount of paint with just one lever.
5.b Flowing gun:
From an overhead paint cup, the spray material ows through the gravity to the
paint nozzle. This inow is supported by the suction e󰀨ect of the compressed air.
5.c Suction cup gun:
The color is here in a hanging suction cup, into which a riser protrudes. The
atomizer air owing past the paint nozzle causes a vacuum, whereby the
material is sucked out of the container.
Control lever
color quantity
regulating screw

6. COMMISSIONING

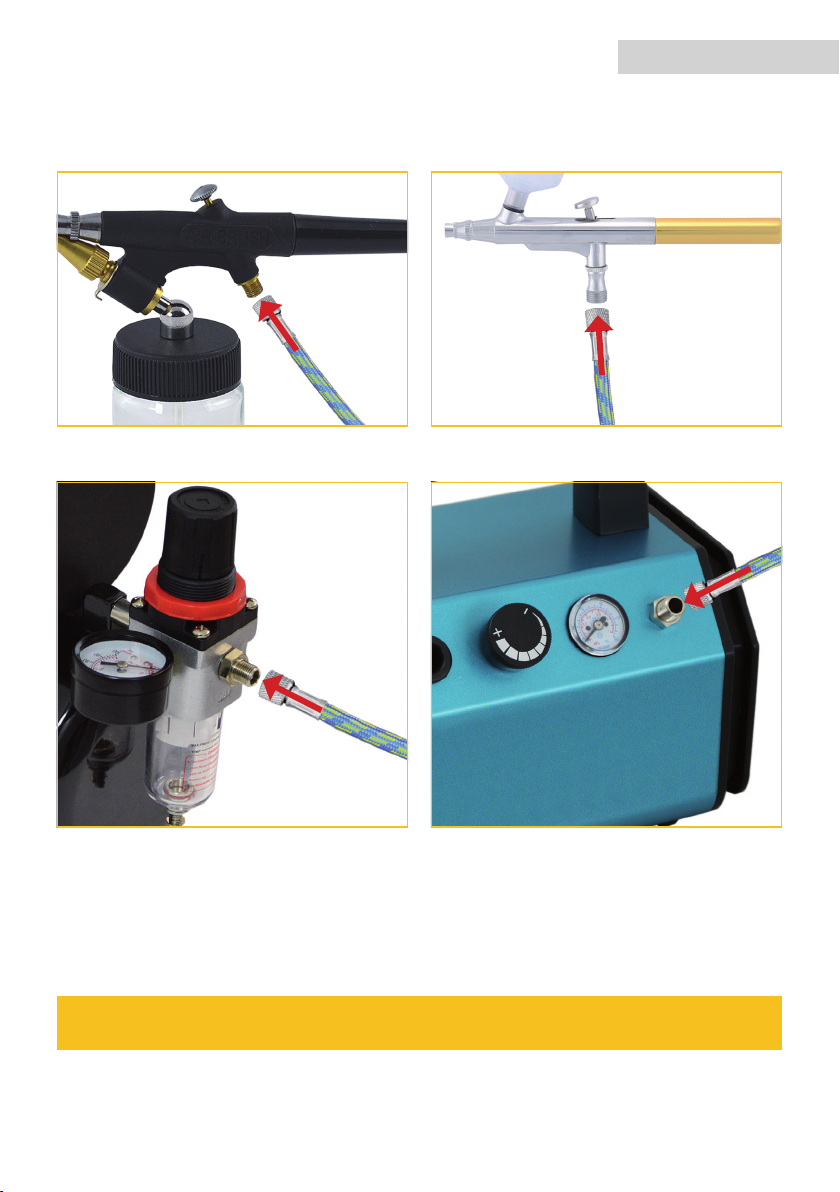

6.a Connect the airbrush gun to the pressure hose (illustrations as an example and depending on airbrush model).
6.b Then screw the air hose with airbrush gun to a suitable compressor. (Illustrations as an example and depending on the
compressor model).
6.c Fill the container of the airbrush gun with an appropriately diluted color.
7. CLEANING AND CARE
l Rinse the gun‘s paint dispensers with water or thinner, depending on the paint used.
l Clean the air nozzle with a brush or a brush. Do not immerse the nozzle in thinner.
l To clean the nozzles, use only the appropriate cleaning needles. Under no circumstances try to clean clogged
openings with improper objects, since even the slightest damage can cause a change in the spray performance.
Your airbrush gun must be thoroughly cleaned after every color change. The gun should be regularly clea-
ned, depending on the paint used, with a suitable thinner, AEROCLEAN RAPID from Schmincke (available
in the pro-airbrush-shop) or water.
Especially the nozzles, which are subject to wear, remain functional by careful cleaning longer.
4 English

9. SAFETY INSTRUCTIONS
l Keep away from children! It‘s not a toy!
l The airbrush gun must not be operated by persons under the inuence of alcohol, drugs or medication.
l It is NOT recommended to carry out any technical modications on your own. Firstly, it is not ensured
whether this modication is technically awless, in addition, the guarantee claim is forfeited.
l Observe the ambient temperature between +5 and + 40 ° C
l Never pull the hose
l Never expose the appliance to dust, acid, vapors, explosive or combustible gases or atmospheric agents
(rain, sun, fog, snow).
l Avoid cross-sectional constriction in the hose or cable
l The airbrush gun must not be used if it is damaged.
The manufacturer declares,
l No responsibility in the case of accidents or damages resulting from negligence or disregard of the instructions in
this manual
lReject any responsibility for damage resulting from improper use of the equipment
8. MAINTENANCE
The maintenance and servicing work must be carried out according to our operating instructions, the corresponding
safety regulations must be observed.
The airbrush has to be cleaned IMMEDIATELY after use with suitable solvents and dry with compressed air.
No deposits may form in the gun. In the presence of any external deposits in the airbrush gun and a dama-
ge picture, which can be attributed to it, the claim for legal warranty does not apply.
l Change the nozzle set
Always change the complete nozzle set if you want to change the nozzle size. These parts, consisting of nozzle
and color needle, are supplied as a complete set. Mount the ink nozzle before inserting the color needle.
The following checks should be carried out regularly:
l Clean guide lines (e.g., no bend)
l Check for leaks
10. GUARANTEE REGULATIONS / STATUTORY WARRANTY
The statutory guarantee (new and unused goods) exists for all manufacturing and material defects. In such cases we
accept the exchange or repair of the airbrush gun.
Shipping costs and consequential damages are borne by us only insofar as we are legally obliged to do so.
We provide our services in Germany. Return costs from abroad can only be accepted insofar as we are legally
obliged to do so in Germany (or as far as EU law is applicable in Germany).
The warranty does not apply to:
l Material wear (e.g., gaskets)
l Unjustied interventions or changes in the airbrush gun
l Damages by sel󰀨ault
lImproper servicing and improper use
l Not performed cleaning / dried paint
Moreover, we give no damage compensation for secondary damages!
English 5
