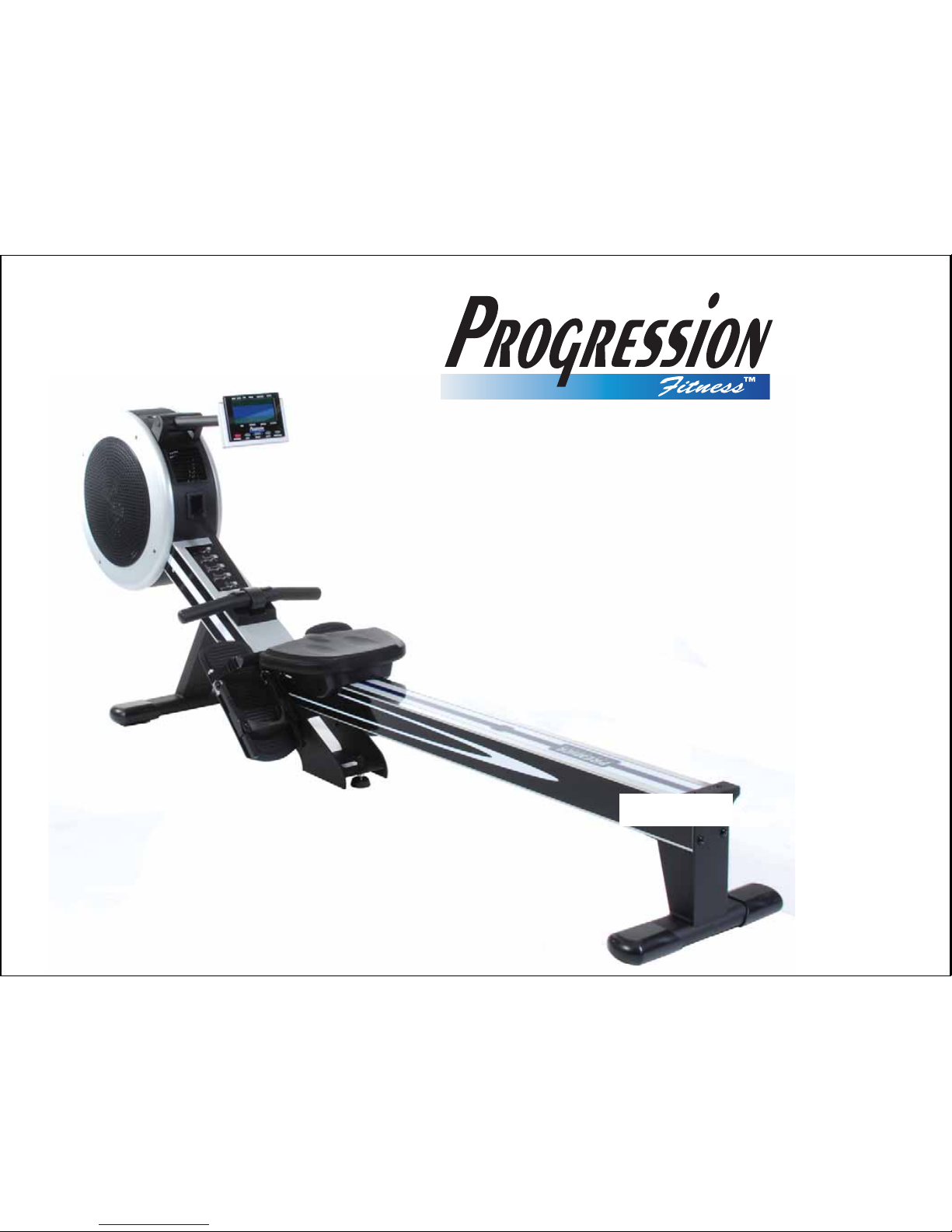

Progression Fitness R200 User manual

R200 Rowing Machine
OWNERS MANUAL

INTRODUCTION
TABLE OF CONTENTS
IMPORTANT INFORMATION
Medical / Safety
Care and Maintenance
General Information
GENERAL PARTS IDENTIFICATION
SETTING UP YOUR R200 Premier Rower
Getting on Safely
Heel Support Pre Adjustment
Foot Strap Adjustment
Heel Support Adjustment
Computer Angle Adjustment
Air Vent Adjustment
Handle Bar Holder
Foot Strap Release
CORRECT ROWING GUIDE
COMPUTER INSTRUCTIONS
Congratulations!
Welcome to the world of the R200 Premier Rower .
The
R200 Premier Rower is one of the finest and most com-
prehensive rowing machines available.
By choosing R200 Premier Rower, you have made a
decision that will improve the health and fitness and well being
for you and your family. Being fit and healthy will improve your
energy levels and your quality of life.
Cardiovascular training is vital for all ages and the R200
Premier Rower provides a more effective workout, producing
better results and will encourage you to reach your fitness
goals and maintain the body you have always wanted.
All you need to do is to spend 15 to 30 minutes three times a
week to start seeing the benefits of a regular exercise program
on the R200 Premier Rower.
We want you to enjoy the full benefits of your exercise program
and so we recommend that you read this manual thoroughly
and by doing so you will:
Save valuable exercise time in the long run.
Exercise safely and more effectively.
Learn proper techniques.
Be able to better define your fitness goals.
11
INTRODUCTION TABLE OF CONTENTS
page 1
page 1
page 2
page 2
page 2
page 2
page 3
page 4
page 4
page 4
page 5
page 5
page 5
page 6
page 6
page 7~8
page 9~13

Read this Owner's Manual safety instructions
thoroughly to familiarize yourself with the R200
Premier Rower before using it.
Before beginning any exercise program, consult your
physician. He or she can help evaluate your present
fitness level and determine the exercise program that
is the most appropriate for your age and physical
condition.
If you experience any pain or tightness in your chest,
irregular heartbeat, shortness of breath, faintness, or
unusual discomfort upon exercising, stop and consult a
physician.
Adult supervision is required at all times when children
are o n o r near t he R20 0 Premier Rower.
Unsupervised children should keep away from the
equipment at all times.
Keep fingers and limbs, loose clothing and hair away
from moving parts.
Before each workout on your R200 Premier Rower
we advise that a Precautionary Safety Check is wise.
All equipment should be Safety Checked for wear and
damage. If you find any damage or defective
components STOP using the R200 Premier Rower
IMMEDIATELY. Replace defective components
immediately and/or keep the equipment out of use until
repaired. For repair help - see General Information on
this page.
Care should be taken when getting ON or OFF your
page 4.
Wear comfortable, lightweight, well-ventilated clothing
to help sweat evaporate. Make sure your shoes fit you
properly and provide external and lateral stability
support to prevent ankle and knee injuries. Wear
cross-training, walking or running shoes.
It's very important not to become dehydrated. Your
body needs water lost during exercise.
Don't forget to warm-up and cool-down. Limbering up
"cold" muscles and cooling down after exercise are
important injury-prevention measures.
Use only the accessory attachments recommended by
the manufacturer. DO NOT attempt to modify or alter
IMPORTANT INFORMATION - PLEASE READ Failure to read and follow the safety instructions below may result in serious injury.
2
Medical / Safety Care and Maintenance General Information
Your is made of the highest
quality materials, it is still important that you take care
of your R200 Premier Rower on a regular basis.
Your R200 Premier Rower is for indoor use only
and should NOT be used or stored in damp areas. Wipe
all perspiration from your R200 Premier Rower
after each use.
SEAT ROLLERS - ALUMINUM BEAM [part#001,118]
These parts are easily damaged by dust and dirt and
should be cleaned regularly. The SEAT ROLLERS
[118] are hidden so all you can do is clean the
ALUMINUM BEAM [001].Using a damp cloth wipe the
top of the ALUMINUM BEAM [001].Pay special
attention to the outside edges. Check and remove any
black spots.
DRIVE STRAP [part#709]
The DRIVE STRAP [709] is made of high quality nylon
webbing which is extremely strong making it almost
impossible to break. Even so it is important to check
the DRIVE STRAP [709] for wear. Check for nicks or
cuts and fraying that may weaken the integrity. Also
check that the stitching at the handle bar end is intact.
If any of these symptoms are found discontinue use
immediately and contact your dealer for a replacement
DRIVE STRAP [709].
FOOT REST Assembly
[part#014,126,127,128,143,319,360,710]
The FOOT REST Assembly has alot of moving parts. It
is essential that these parts be in good condition at all
times. Check that the FOOT STRAP BUCKLE firmly
holds the FOOT STRAP. Check that the HEEL
SUPPORT [126] self locking system is working
correctly. Make sure that all Bolts are tight and firm. If
any defects are found discontinue use immediately and
contact your dealer for replacement parts.
All FASTENERS [Nuts, Bolts, and Screws]
Alot of these parts are assembled by the consumer and
should be checked regularly. Make sure that all Nuts,
Bolts and Screws are tight and firm.
R200 Premier Rower
For safety, inspect your R200 Premier Rower on a
regular basis. When used in a commercial environment
safety check and clean every day. When used in a
domestic environment safety check and clean before
use.
Components most Susceptible to Wear
The R200 Premier Rower is designed for light
commercial use ONLY and should not be used in a full
commercial, therapeutic or medical environment.
The official maximum load is 150kg.
The R200 Premier Rower has been tested and
certified according to EN 957-1 and EN 957-7, Class
S.A.
In the unlikely event that your R200 Premier
Rower needs servicing, repairs or something is
missing or broken then contact your dealer as soon as
possible. They should be able to help you immediately
with any and all problems you have. If for any reason
that you are unsatisfied with the level of service or are
unhappy with their cooperation, then you can contact
the manufacturer directly at the following contact
details.
INFINITI FITNESS SYSTEMS
No.5 Chauguei 1st. ST.,
Taichung
Taiwan
TEL: [phone]
FAX: [phone]~8
E-mail: [email protected]
Web site: www.infinitifit.com
It is important to keep your purchase receipt !
You may be asked to produce it too authenticate your
Warranty.
The Warranty terms are provided by your dealer.
DO NOT attempt to modify or alter your R200 Premier
Rower as it will be considered tampering and will invalidate
your warranty.
Please continue to read the Owner's Manual and all
safety instructions thoroughly to familiarize yourself
with the R200 Premier Rower before using it.
DESIGNERS NOTE: The return spring on the
R200 Premier Rower has been designed with the
lightest possible force. There is more than sufficient
spring tension to recoil the DRIVE STRAP ASSEMBLY
[709] regardless of the return speed of the handle to
the start position.
The reason for the light return spring is to give the user
an improved level of exercise by increasing the benefit
to the hamstring group of muscles at the rear of the
thigh. This muscle group is called upon when the user
moves the seat forward.
We have faithfully duplicated the “normal” rowing
action one would get when rowing on water where the
oar is not pulled forward.
R200 Premier Rower. Please follow the instructions on
your R200 Premier Rower as injury may result.

R200 Premier Rower GENERAL PARTS IDENTIFICATION
The R200 represents over a decade of research and development and
incorporates all the latest technology and long standing consumer requests.
3
r
e
p
r
e
s
e
n
t
s
o
v
e
r
a
d
e
c
a
d
e
o
f
r
e
s
e
a
r
c
h
a
n
d
d
e
v
e
l
o
p
m
e
n
t
a
n
d
a
l
l
t
h
e
l
a
t
e
s
t t
e
c
h
n
o
l
o
g
y
a
n
d
l
o
n
g
s
t
a
n
d
i
n
g
c
o
n
s
u
m
e
r r
e
q
u
e
s
t
s
.
COMPUTER
COMPUTER ARM
ADJUSTABLE AIR VENTS
WHEEL CAP
STANDARD CAP
CARRIAGE
SEAT
ALUMINUM BEAM
FOOT RESTS
FOOT STRAPS
FRONT
STABILIZER
REAR
STABILIZER
HEEL SUPPORTS
HANDLEBAR
DRIVE STRAP
HANDLEBAR HOLDER
FULL AUTO CONTROLLED AIR MAGNETIC RESISTANCE SYSTEM
ANGLED FOOT RESTS WITH PIVOTING HEEL SUPPORTS
FULL STROKE FOR TALL PEOPLE (WITHIN REASON)
IMPROVED ERGONOMICALLY DESIGNED HANDLE
STRONG, STABLE WELL ENGINEERED FRAME
BUILT IN CHEST BAND RECEIVER
TUV GERMAN GS APPROVED
15 COMPUTER PROGRAMS
ADJUSTABLE AIR VENTS
The R200 represents over a decade of research and development and
incorporates all the latest technology and long standing consumer requests.

SETTING UP YOUR R200 Premier Rower
4
Getting on Safely
Getting on safely is a simple procedure. Just be careful that
the SEAT [119] is directly underneath you before sitting down.
1) Straddle the ALUMINUM BEAM [001].
Correctly position the SEAT [119] beneath you.
Sit down taking care that the SEAT [119] has not moved.
3)
2)
119
001
Heel Support Pre Adjustment
There are ten heel support settings clearly numbered.
Before exercising move the HEEL SUPPORT [126] to setting
number one.
1) Squeeze the HEEL SUPPORT LEVERS to release the
locking mechanism.
Slide the HEEL SUPPORT [126] to setting number one.
Release the HEEL SUPPORT LEVERS to engage the
locking mechanism.
3)
2)
HEEL SUPPORT
126
Foot Strap Adjustment
The correct position for the FOOT STRAP [710] is across the
top of the foot just below the toes. Approximately across the
toe pivot joints.
Ensure the FOOT STRAP [710] is tight.
1) With the HEEL SUPPORT [126] at setting number one,
slide your feet underneath the FOOT STRAP [710].
The correct position for the FOOT STRAP [710] is across
the top of the foot just below the toes. Approximately
across the toe pivot joints.
Pull the FOOT STRAP [710] tight as shown in the above
diagram.
3)
2)
710710
