  9. ProjectErgo KANGAROO User manual

ProjectErgo KANGAROO User manual

THE
KANGAROO -
ASSEMBLY
INSTRUCTIONS
Ass
EMBLY
PARTS
usT
A. (6) Black Screw Covers
B. (2) 1/
4-20
x 3.
50
Hex Head Bolts
C.
(1) 5/ 32
Allen
Wrench
D.
(2) Fender Washers
E.
(2)
Acorn
Nuts
F.
(3) 1/
4-20
x 7/8
BHCS
G.
(2)
Thick
Black Washers
H. (1) 7/ 16 Wrench
I.
(2) Locking Star Washers
Lifting
assembly
should
be
flat
against
the
base
when
tight.
Single Button Screw
Step 1: Lay
the
lifting
assembly
on a solid surface
with
the
back side
up
as
shown. Notice
the
single Button Head Bolt
and
the
Threads
of
the
Spring in
the
assembly
union
. DO NOT
LOOSEN
THE
SINGLE
BUTTON HEAD BOLT.
Step
2:
Now
notice
the
(2) oversized holes in
the
Base
Plate. The Single Button Head Bolt and
the
Threads
of
the
Spring
will
go
into
these oversized holes.
Step
3:
With
the
Base
Plate
over
hanging
the
table
about
2 inches,
hold
the
Lifting
Assembly
above
the
Base
Plate
and
align
the
Single Button Bolt and
the
Spring
Threads
into
the
oversized holes. Place one 1/
4-20
x 7/8
BHCS
through
the
base plate
to
screw in
the
lifting
assembly.
Step 4:
Insert
and
thread
the
other
(2) 1/
4-20
x 7/ 8
BHCS
through
the
Base
Plate and
into
the
Lifting
Assembly
.
Once all (3)
bolts
are
threaded
in,
tighten
securely
with
the
5/ 32 allen
wrench
.
Lifting
Assembly
should
be
flat
against
the
Base.
P.
1
THE
KANGAROO
STEPS
5,
6, 7
1/
4-20
x 3.50
Hex Head Bolt
STEP
8
Fender
Washer
(1)
Horizontal
Rail
Step
8:
Lift the Work Surface up and align
the holes in the Horizontal
Rail
with
the (2)
1/
4-20
x 3.50 Hex Head Bolts.
Push
the
Work Surface
onto
the Hex Head Bolts
until
the threads
of
the bolts come
through
the
Horizontal Rail.
Ass
EM
BL
v INSTRUCTIONS
Step
5:
Put (1) Locking Star Washer on each
of
the 1/4
-20
x
3.50 Hex Head Bolts.
Step
6:
Insert the (2) 1/
4-20
x 3.50 Hex Head Bolts
through
the holes in the Vertical
Rail
Step
7:
Put (1) Fender Washer on the each
of
the 1/
4-20
x
3.50 Hex Head Bolts on the
other
side
of
the Vertical Rail.
STEP
9
Step
9:
Put (1) Black
Washer and (1) Acorn Nut
on the end
of
each
of
the
Hex Head Bolts. Using the
7/ 16 wrench tighten the
Acorn Nuts securely.
STEP
10
Black Washers
Step 10: Remove the (4) 1/
4-20
x 1.0 hex head bolts and (4)
washers
from
the
bottom
of
the
Monitor
Lifting Assembly.
STEP
11, 12
Step
11
: Position the
Monitor
Shelf below
the
lifting
assemble
and align the holes in
the
Monitor
Shelf
with
the threaded holes in
the
Monitor
Lifting Assembly.
Step 1
2:
Thread the
(4) hex head bolts
into
the threaded
holes in the
Monitor
Lifting Assembly
to
secure the
Monitor
shelf
to
the unit. Tighten securely
with
a 7
/16
wrench.
P.
2
THE
KANGAROO
Maximum
Size
LCD
Monitor
24" and 15 lbs
Any questions
about
The Kangaroo
Contact
us
at
info
@
ergodesktop
.com
optimal
location
for
support
leg
The Kangaroo
is
designed
to
hold
your
laptop
or
LCD
monitor
on the
monitor
shelf
and
your
keyboard and mouse on the main
work
surface.
Your Kangaroo
is
shipped in the down
position
with
both
the
monitor
shelf
brake
and the main brakes tightened. The Kangaroo
has (2) springs
that
assist in raising
your
unit
to
the standing
position
and
work
best when
your
laptop
or
monitor
and keyboard are in
place. This reduces the
amount
of
pressure
needed
to
lower the unit.
Always push
down
with
both
hands on
the
horizontal
rear rail
when
lowering
the
main
work
surface.
How TO
UsE
THE
KANGAROO
To raise the Kangaroo, loosen the
main brake
(C)
and
lift
the main
work
surface on the sides
(D
&
D)
.
To raise the Monitor, loosen the
monitor
brake
(A)
and
lift
the
monitor
shelf.
To lower the Kangaroo, loosen the
main brake
(C)
and lean
into
the
unit
using
your
upper
body
weight
pushing down
with
both hands on
the
horizontal
bar at the rear
of
the
main
horizontal
work
surface
(B
&
B)
.
To Lower the
monitor
shelf, loosen
the
monitor
brake
(A)
and push down
with
one
or
two
hands on the
monitor
shelf.
A.
Monitor
Brake
B.
Work
Surface Rail
C.
Main Brake
D.
Main
Work
Surface

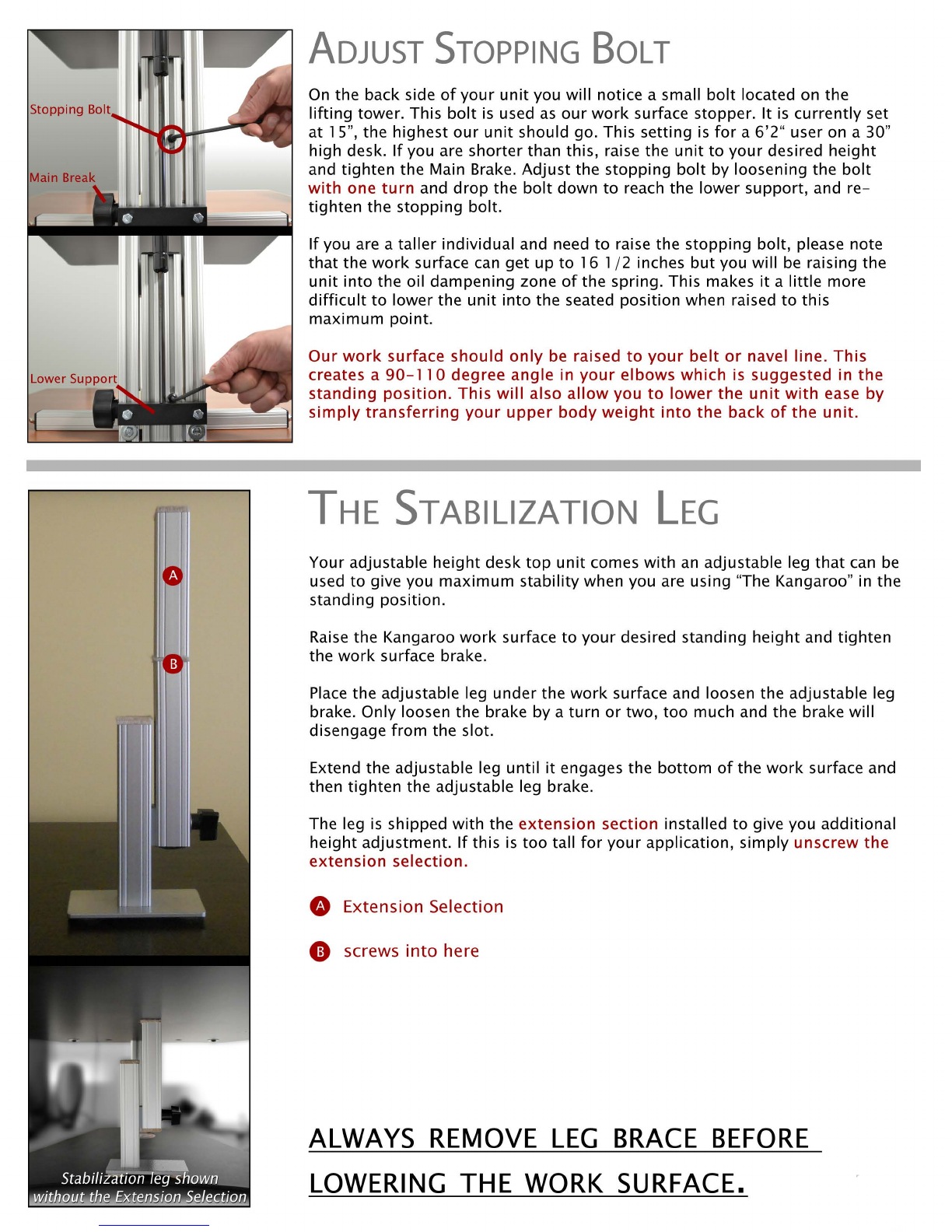

ADJUST STOPPING BOLT
On
the back side
of
your
unit
you will notice a small bolt located on the
lifting tower. This
bolt
is
used
as
our
work
surface stopper. It
is
currently set
at 1
5'',
the highest
our
unit
should go. This setting
is
for
a 6'2" user
on
a 30"
high desk.
If
you are shorter than this, raise the
unit
to
your desired height
and tighten the Main Brake. Adjust the stopping
bolt
by loosening the bolt
with
one
turn
and
drop
the bolt down
to
reach the lower support, and
re-
tighten the stopping bolt.
If
you
are
a taller individual and need
to
raise the stopping bolt, please note
that the
work
surface
can
get up
to
16 1/ 2 inches but you will
be
raising the
unit
into the oil dampening zone
of
the spring. This makes
it
a little more
difficult
to
lower the
unit
into the seated position when raised
to
this
maximum point.
Our
work
surface should
only
be
raised
to
your
belt
or
navel line.
This
creates a
90-11
0 degree angle in
your
elbows which is suggested in the
standing
position
. This
will
also
allow
you
to
lower
the
unit
with
ease by
simply
transferring
your
upper
body
weight
into
the back
of
the
unit
.
THE
STABILIZATION LEG
Your adjustable height desk
top
unit
comes with
an
adjustable leg that
can
be
used
to
give you maximum stability when you
are
using "The Kangaroo"
in
the
standing position.
Raise
the Kangaroo
work
surface
to
your desired standing height and tighten
the
work
surface brake.
Place
the adjustable leg under the
work
surface and loosen the adjustable leg
brake. Only loosen the brake by a turn
or
two, too much and the brake will
disengage from the slot.
Extend the adjustable leg until
it
engages the bottom
of
the
work
surface and
then tighten the adjustable leg brake.
The leg
is
shipped with the
extension
section installed to give you additional
height adjustment.
If
this
is
too
tall
for
your application, simply unscrew the
extension
selection.
0 Extension Selection
G screws
into
here
ALWAYS
REMOVE
LEG
BRACE
BEFORE
LOWERING
THE
WORK
SURFACE.
