ProLights TABLEDC User manual

USER MANUAL
MANUALE UTENTE
EN - IT
REVOLUTIONARY FULL COLOUR EVENT
BATTERY TABLE LAMP
TABLEDC

TABLEDC
2
All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it
REV.04-10/19

1
TABLEDC
TABLE OF CONTENTS Safety
General instructionsGeneral instructions
Warnings and installation precautionsWarnings and installation precautions
1 Introduction
1. 1 Technical drawing1. 1 Technical drawing
1. 2 Operating elements and connections1. 2 Operating elements and connections
2 Installation
2. 1 Mounting2. 1 Mounting
3 Functions and settings
3. 1 Operation3. 1 Operation
3. 2 Basic setup3. 2 Basic setup
3. 3 Recharge3. 3 Recharge
3. 4 Menu structure3. 4 Menu structure
3. 5 DMX addressing3. 5 DMX addressing
3. 6 DMX mode3. 6 DMX mode
3. 7 DMX conguration3. 7 DMX conguration
3. 8 Wireless setting3. 8 Wireless setting
3. 9 Display setting3. 9 Display setting
3. 10 IR setup3. 10 IR setup
3. 11 Lamp setting3. 11 Lamp setting
3. 12 Fixture information3. 12 Fixture information
3. 13 Wireless operation3. 13 Wireless operation
3. 14 DMX channels3. 14 DMX channels
4 Maintenance
4. 1 Maintenance and cleaning the unit4. 1 Maintenance and cleaning the unit
2
2
3
4
5
6
6
6
7
8
8
9
9
9
10
10
10
11
12
15

TABLEDC
2
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• Supply voltage of this product is DC24V; never connect directly to AC220V. Leave servicing to skilled
personnel only. Never make any modications on the unit not described in this instruction manual,
otherwise you will risk an electric shock.
• Connection of the power adapter must be made to a power supply system tted with ecient earth-
ing (Class I appliance according to standard EN 60598-1). It is, moreover, recommended to protect the
supply lines of the units from indirect contact and/or shorting to earth by using appropriately sized
residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electri-
cal installer. Check that the voltage correspond to those for which the unit is designed as given on the
electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places subject to excessive humidity.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
• This product was designed and built strictly for the use indicated in this documentation. Any other use,
• not expressly indicated here, could compromise the good condition/operation of the product and/or
be a source of danger.
• We decline any liability deriving from improper use of the product.

3
TABLEDC
- 1 - INTRODUCTION
1.1 TECHINCAL DRAWING
Technical drawing TABLEDW-Pack
Technical drawing TABLEDW
Fig.1

TABLEDC
4
1.2 OPERATING ELEMENTS AND CONNECTIONS
1. TOP LED & PCB with removable cover
2. Tube / extension - junction system for
connecting two pipes to extend the height,
and battery compartment.
3. Metal plate.
4. Display OLED with display and 4 button used
to access the control panel functions and
manage them.
5. LED
6. ON/OFF SWITCH.
7. Wireless receiver
8. Magnetic base for mounting on metal
surfaces
Fig.3
1
2
3
45
7
6
8

5
TABLEDC
- 2 - INSTALLATION
2.1 MOUNTING
TABLED can be placed on a solid oor with xing possibility through the magnetic base that can be placed
on the table or under the tablecloth.
Moreover, thanks to the joint system to connect 2 pipes, the height can be extended.
The location area should have enough stability to support at least 10 times the weight of the unit.
Please take care to respect all warnings regarding safety
Fig.3
PLATE
MAGNETIC BASE
BATTERY TUBE
LED & PCB
TOP COVER

TABLEDC
6
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Switch on the TABLED with the power switch. The unit is ready for operation and can be operated via a
DMX controller or it independently performs its show program in succession.
After operation, switch o the unit with the power switch.
3.2 BASIC SETUP
The TABLED has a OLED display and 4 buttons for access to the functions of the control panel (g. 5).
MENU ENTER UP DOWN
Used to access the menu or
to return a previous menu
option
Used to select and store the
current menu or conrm the
current function value or
option within a menu
Button to select the values
in ascending order of the
function
Button to select the values
in descending order of the
function
Fig.5 - Functions of the buttons
3.3 RECHARGE
To recharge TABLED:
• connect the unit to the special battery charger through the lower connector
• connect the battery charger to the power supply
NOTE - The charging time are 4 h and autonomy is 12h

7
TABLEDC
3.4 MENU STRUCTURE
MENU
1CONNECT ðDMX Address ð001 - 512
ðDMX mode ðBASIC 4 Ch
STANDARD 7 Ch
EXTENDED 10 Ch
ADVANCED 12 Ch
ðWireless ðReceive On/O ðOn
O
Receive connect ðNo
Yes
ðIR Setting ðOn
O
2SETUP ðScreen ðBacklight ðOn
10s
20s
30s
ðKey lock ðNo
Yes
3ADVANCED ðDimmer mode ðO
Dimmer 1
Dimmer 2
Dimmer 3
ðWhite Balance ðAdjust
O
ðAdjust ðRed ð000 - 255
Green ð000 - 255
Blue ð000 - 255
ðFactory Reload ðNo
Yes
4INFORMATIOJN ðFixture time ð9999 H
Version ðV 1.0
5STAND ALONE ðSequence ðShow 1
ðspeed (1-100)
Show 2
Show 3
Show 4

TABLEDC
8
3.5 DMX ADDRESSING
To be able to operate the TABLED with a light controller, set the unit DMX start address for the rst DMX
channel. To set the start address refer to following procedure:
• Use the UP/DOWN button until the display reads [DMX Address] and then press the ENTER button to
conrm
• Press the UP/DOWN button to select the value [d 1-512] and then press the ENTER button .
If e. g. address 33 on the controller is provided for controlling the function of the rst DMX channel, adjust
the start address 33 on the TABLED.
The other functions of the light eect panel are then automatically assigned to the following addresses.
An example with the start address 33 is shown in the page 13.
DMX
Channels
number
Start address
(example)
Busy DMX
address Next possible start address
for unit n°1
Next possible start address
for unit n°2
Next possible start address
for unit n°3
4 33 33-36 37 41 45
7 33 33-39 40 47 51
10 33 33-42 43 53 63
12 33 33-34 45 55 67
3.6 DMX MODE
To enter the DMX mode, follow these steps:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select the DMX Address and press the ENTER key.
• Press the arrow keys to select the desired value (001-512).
• Press the ENTER key to conrm the setting.
• Press the LEFT button repeatedly to exit the menu and save changes.
4 channels DMX conguration example
ðStatic ðPreset ðR
G
B
RG
RB
GB
RGB
W
ðManual Color ðRð000 - 255
Gð000 - 255
Bð000 - 255
Wð000 - 255

9
TABLEDC
3.7 DMX CONFIGURATION
The TABLED has 5 DMX channel congurations which can be accessed from the control panel.
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Set icon, then press the ENTER button to enter
the next menu.
• Press the UP/DOWN button to scroll through the menu, select Users and press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select User Mode and press ENTER to conrm
your choice.
• Use the UP/DOWN button to select the desired DMX channel conguration (Basic, Standard, Extended),
then press the ENTER button to conrm your choice.
• Press the LEFT button repeatedly to exit the menu and save changes.
The tables on page 12 show the mode of operation and their values DMX.
3.8 WIRELESS CONTROL SETTINGS
To enable wireless control mode, proceed as follows:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Wireless and press ENTER.
• Press the UP/DOWN and LEFT/RIGHT buttons to select the desired value (001-512).
• Press the ENTER key to conrm the setting.
To change the settings of wireless control, proceed as follows:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Set icon, then press the ENTER button to enter
the next menu.
• Press the UP/DOWN button to scroll through the menu, select Wireless Set, and press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to select the option proposed and press the ENTER button to conrm your
choice.
- Receive - Disable/enable the DMX signal cable. Select OFF to deactivate or ON to activate the func-
tion.
- Reset Connect - Reset the wireless connection of the unit. Select OFF to deactivate or ON to activate
the function.
• Press the ENTER button to conrm your choice.
• Press the LEFT button repeatedly to exit the menu and save changes.
3.9 DISPLAY SETTINGS
You can change the following parameters related to the display, following the same procedure:
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Setup icon, then press the ENTER button to
enter the next menu.
• Press UP / DOWN to scroll through the menu, then select UI Set, and press the ENTER button to enter
the next menu.
• Press UP / DOWN to scroll through the menu, and then select one of the following settings for the dis-
play and press the ENTER key to display it.
- Back Light - Backlight display Auto O. This feature allows you to automatically turn o the backlight

TABLEDC
10
after a specied time that you can set using the arrow buttons. To have the display always on select
Always On or set a value of On - 10s - 20s - 30s to turn o the display after the amount of time you
choose.
- Key Lock - Lock keys. With this function, you can lock the buttons on the control panel. If this function
is activated, the keys are automatically locked. To disable or temporarily disable the key lock func-
tion, press the buttons in the following order to regain access to menu commands: UP, DOWN, LEFT,
RIGHT, ENTER. Select ON to activate or OFF to disable.
• Press the ENTER button to conrm your choice.
• Press the LEFT button repeatedly to exit the menu and save changes.
3.10 IR SETUP
To start up the IR recevitor refer to the following steps:
• Press the MENU button so many times until the display shows [IR Setup].
• Press the ENTER button to conrm.
• Press the UP/DOWN button, select one of the programs [ON] or [OFF].
• Press the ENTER button for save the setting.
NOTE - Make sure to point the controller directly at the receiver on the product.3.14 WIRELESS SETTING
Fig.6
FADE
SOUND
SENSIT.
AUTO
MACRO
POWER
STROBESPEEDDIMMERMANUAL
AMBER
UV
RED YELLOW
CYAN
MAGENTA
STATIC
DEEP
ORANGE
LIGHT
ORANGE
SEA
GREEN
AQUA
MARINE
WARM
WHITE
COLD
WHITE
GREEN
BLUE VIOLET PURPLE
WHITE
3.11 LAMP SETTINGS
Reload Default
Select this function to reset the unit to factory settings:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Set icon, then press the ENTER button to enter
the next menu.
• Press the UP/DOWN button to scroll through the menu, select Reload Default and press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to select the favourite recovery mode Basic Reload/Program Reload/Private
Reload/All Reload, then press the ENTER button to conrm.
• Press the UP/DOWN button to select ON or OFF, then press the ENTER button to conrm.
3.12 FIXTURE INFORMATION
To view all the information on the device, proceed as follows:
• Press the ENTER button to access the main menu.

11
TABLEDC
Fig.7
• Press the UP/DOWN button to scroll the menu, select the icon Information, then press the ENTER but-
ton to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, then select one of the following information
and press the ENTER button to display it.
- Fixture Time - Through the Time Information function you can display the operating time of the
projector.
- Version -Through Software Version function you can display the currently installed software version.
• Press the LEFT button repeatedly to exit the menu.

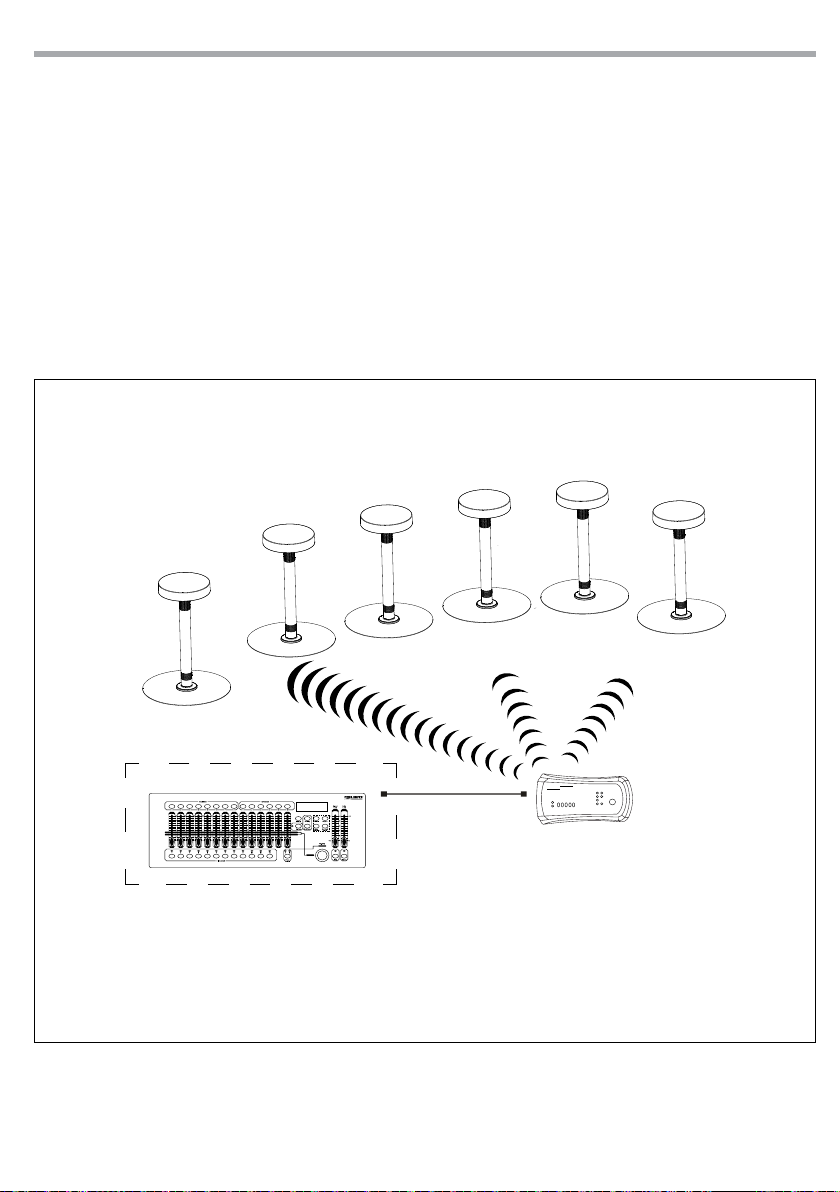

3.13 OPERATION WITH WIFI
This mode allows you to wirelessly connect more TABLED units, all managed through a unit W-DMX tran-
smitter (sold separately).
DMX512 Controller
wireless
solution

TABLEDC
12
3.14 DMX CHANNELS
BASIC
4 Ch
STD
7 Ch
EXT
10 Ch
TABLED
FUNCTION
DMX
Value
111Red
0~100% 000 - 255
222Green
0~100% 000 - 255
333Blue
0~100% 000 - 255
444White
0~100% 000 - 255
5 5 Dimmer 000 - 255
6 6
Strobe
Open
Strobe slow to fast
Open
Random slow to fast
Open
000 - 015
016 - 115
116 - 135
136 - 235
236 - 255
7
Color presets
No Function
R 100% G 0~100% B 0
R 100%~0 G 100% B 0
R 0 G 100% B 0~100%
R 0 G 100%~0 B 100%
R 0~100% G 0 B 100%
R 100% G 0 B 100%~0
R 100% G 0~100% B 0~100%
R 100%~0 G 100%~0 B 100%
R 100% G 100% B 100%
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
000 - 010
011 - 030
031 - 050
051 - 070
071 - 090
091 - 110
111 - 130
131 - 150
151 - 170
171 - 200
201 - 205
206 - 210
211 - 215
216 - 220
221 - 225
226 - 230
231 - 235
236 - 240
241 - 245
246 - 250
251 - 255
8
Eects
NO function
Eect 1
Eect 2
Eect 3
Eect 4
000 - 051
052 - 102
103 - 153
154 - 204
205 - 255

13
TABLEDC
BASIC
4 Ch
STD
7 Ch
EXT
10 Ch FUNCTION DMX Value
9Eect speed
Slow to speed 000 - 255
7 10
Dimmer fade
Preset dimmer speed from display menu
Dimmer snap to fade
000 - 000
001 - 255
ADV
12 Ch FUNCTION DMX Value
1Dimmer
0~100% 000 - 255
2
Strobe
Open
Strobe slow to fast
Open
Random slow to fast
Open
000 - 015
016 - 115
116 - 135
136 - 235
236 - 255
3Dimmer
Dimmer Snap to fade 000 - 255
4Red
0~100% 000 - 255
5Green
0~100% 000 - 255
6Blue
0~100% 000 - 255
7White
0~100% 000 - 255
8
Color presets
No Function
R 100% G 0~100% B 0
R 100%~0 G 100% B 0
R 0 G 100% B 0~100%
R 0 G 100%~0 B 100%
R 0~100% G 0 B 100%
R 100% G 0 B 100%~0
R 100% G 0~100% B 0~100%
R 100%~0 G 100%~0 B 100%
R 100% G 100% B 100%
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
000 - 010
011 - 030
031 - 050
051 - 070
071 - 090
091 - 110
111 - 130
131 - 150
151 - 170
171 - 200
201 - 205
206 - 210
211 - 215
216 - 220
221 - 225
226 - 230
231 - 235

TABLEDC
14
ADV
12 Ch FUNCTION DMX Value
8
Color 8
Color 9
Color 10
Color 11
236 - 240
241 - 245
246 - 250
251 - 255
9
Eects
NO function
Eect 1
Eect 2
Eect 3
Eect 4
000 - 051
052 - 102
103 - 153
154 - 204
205 - 255
10 Eect speed
Slow to speed 000 - 255
11 Crossfade
0~100% 000 - 255
12 CTO on colors
0~100% 000 - 255

15
TABLEDC
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.

TABLEDC
16
Battery Guide
New Lithium Battery Initialisation
Any new xture containing a Lithium battery should be initialised when rst purchased to maximise its battery life.
To do this:
1. Fully charge the unit for a minimum of 5 to 6 hours.
2. Fully discharge, then fully recharge the battery.
3. Repeat this cycle another 2 times for optimum battery life.
Maximizing Battery Performance
1. Lithium batteries perform best when in regular use. Long idle periods will reduce the battery life.
2. Recharge the battery at the earliest opportunity, leaving batteries discharged for long periods will reduce battery life.
3. Store units containing Lithium batteries at cool temperatures. High ambient temperatures signicantly reduce the life
of a Lithium battery.
4. Disconnect power from the unit when charging is complete.
5. Do not use xtures whilst charging.
Long term storage
1. Charge your xture’s battery to around 50%. If you store a xture with a fully discharged battery, it could fall into a
deep discharge state. If you store it fully charged, the battery may lose some capacity, leading to shorter battery life.
2. Power down the device to avoid additional battery use.
3. Place your device in a cool, moisture-free environment that’s less than 32° C (90° F).

REV.04-10/19
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it
