PROLiNK HA-110SA User manual

HD Audio Converter
Incorporates HDMI®technology
HDMI input
HDMI, Optical, Coaxial and 3.5mm audio output
MODEL : HA-110SA
OWNERS MANUAL
1

2
INTRODUCTION
Congratulations on your purchase of the HD Audio Converter.
Your satisfaction is very important to us. Our HA-110SA is designed to
make the use of your HDTV equipment more comfortable.
HA-110SA is a solution for users who use HDMI®product and like
to output audio to an audio system to enjoy High quality sound. Also,
some people have trouble to enjoy 3D and high quality audio at the
same time with their Home Theater System. With HA-110SA the
problem can be solved. HA-110SA separates audio from HDMI to
digital audio output (Optical, Coaxial), so users will not have problem to
watch 3D videos while connecting non-3D amplifier and 3D TV.
The feature designed digital audio output (Optical, Coaxial) makes
users easily share the digital audio of the source devices by connecting
one optical or coaxial audio cable to an audio system which does not
support HDMI connection. Moreover, the feature of supporting analog
audio (R/L) output also helps you enjoy the quality sound more easily.
HA-110SA can support HDMI 3D video format functions; and
compliant with your 3D enable devices. You can enjoy the convenience
of 3D features without interruption.
For the best performance of this unit, please read this manual
carefully and keep it for further information.
FEATURES
HDMI®3D video format supported
Support 1080P HDTV; Support Pixel clock rate up to 225
MHz
HDCP compliant
Support digital S/PDIF audio output (optical, coaxial)
Support analog audio output (R/L)
DTS®HD, Dolby®TrueHD lossless compressed digital audio
compliant (via HDMI)
Gold plated connectors
Two modes selection for audio format setting

WHAT’S IN THE BOX
DC 5V/1A power adaptor
Audio Cable (3.5mm to R/L)
Main Unit
User’s Manual
APPLICATION ILLUSTRATION
1. Connect to an Amplifier
3

2. Connect to Amplifier
(with a HDMI switcher)
※If you want to watch 3D sources, please make sure the sink
device supports the same HDMI 3D video format as your
sources. The 3D image cannot be delivered to a TV which
does not support 3D video format.
4

CONNECTION
Step 1. Connect the HDMI cables from the HD sources devices (or
HDMI switcher) to the input ports of the HA-110SA main unit.
Step 2. Connect the HDMI cable from your HDTV to the output port of
the HA-110SA main unit.
Step 3. Connect Optical, Coaxial cable or 3.5mm audio cable from
Audio System (audio amplifier, Speaker, Sound Bar…) to the
HA-110SA main unit.
Step 4. Set the audio output format to mode A or mode B.
Step 5. Connect the DC 5V/1A power adaptor to the DC jack of
HA-110SA main unit.
Step 6. After you finish the connection, the power indication LED (red)
will be lighted on.
OPERATION

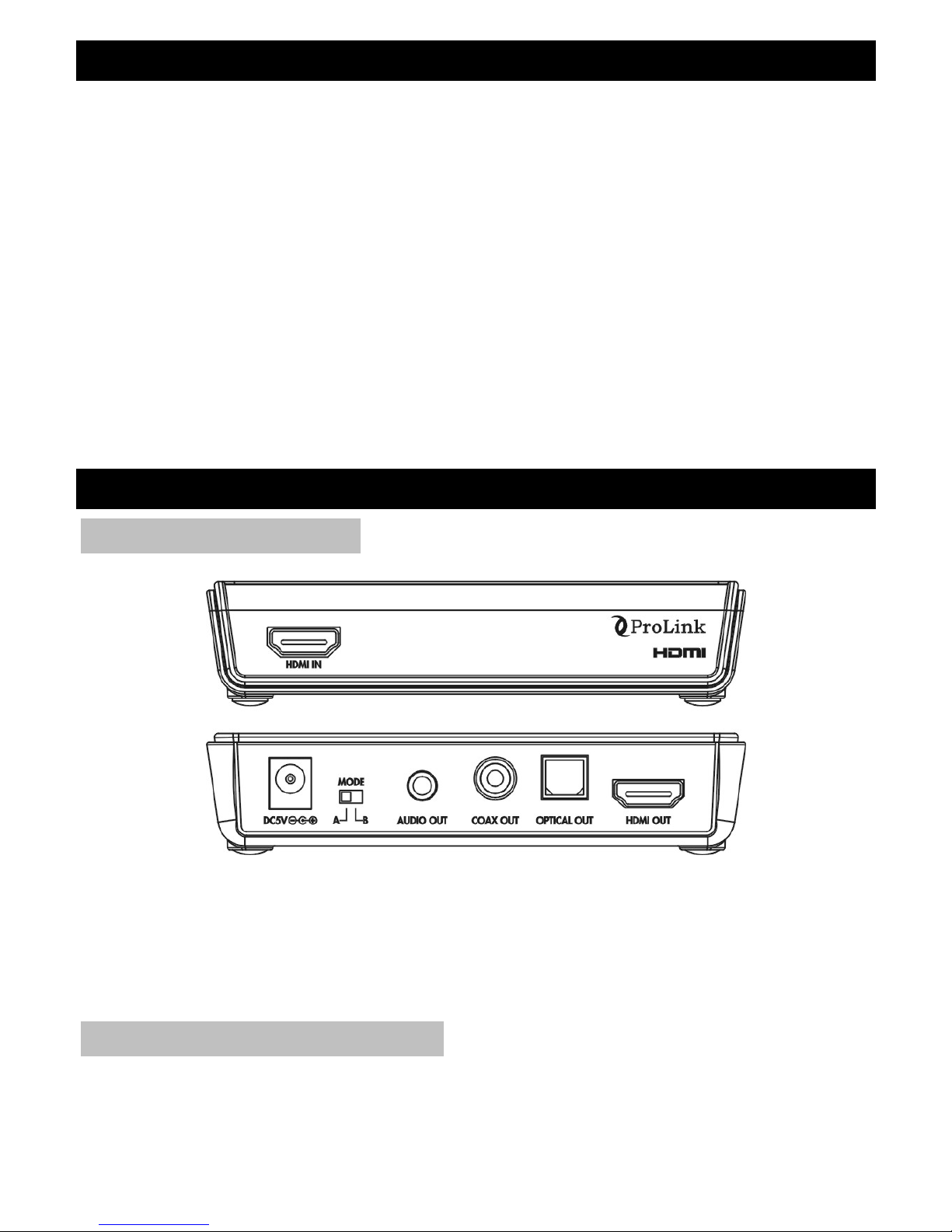

Main Unit Operation
Mode Select Key:
- A: remain TV’s audio signals.
- B: Audio Specified (Dolby Digital 5.1, DTS 5.1, PCM 2CH,
and AAC.)
Specified Mode Operation
5
If source devices do not support the function of Auto
Detection & Auto Adjustment, please set the output audio signal of

6
the source device first, and make sure the setting can be supported by the
sink devices. For example, if user set the source to send out a DTS 5.1CH
(or Dolby 5.1CH) signal, but the sink device can only support up to 2 CH, you
will not have sound output form the sink device.
If source devices support the function of Auto Detection &
Auto Adjustment, the source device will auto adjust the output audio
signal to the optimal standard based on the following different modes. Users
can also set the audio output signal by themselves. Please make sure the
setting can be supported by the sink devices.
HA-110SA Mode Operation
Mode Mode Action
Mode A
Follow TV’s Audio
Signals
※ Factory Setting Mode
In this Mode, output audio signal will follow
the audio format from TV. For example, if
TV’s audio format can only support PCM
2CH, the output audio format of HA-110SA
will be PCM 2CH as well.
Mode B
Audio Specified
(Dolby Digital 5.1, DTS
5.1, and PCM 2CH)
Set the output audio signal as one of the
following audio formats: Dolby Digital 5.1,
DTS 5.1, PCM 2CH or AAC.
For example, if the connected source device
supports AAC audio format output, the
output audio format of the main unit will be
AAC as well.
NOTE:
For audio output format adjustment: (Please refer to the source
device manual.)
1. Check the supported audio format of the feature film. (Stereo,
DTS®5.1, and Dolby®Digital 5.1...etc)
2. Set the audio output format of source device. Ex.
uncompressed PCM or Bit Stream (Dolby®Digital 5.1, DTS®
5.1 ...etc.)
3. Select the output of audio format and language from the main

7
feature menu.
For HD quality audio (Dolby®TrueHD, DTS-HD Master
AudioTM), or other audio formats that need high bandwidth for
audio transmission, please use HDMI connection for the HD
audio transmission.
If the output audio format of source device is not supported by
the sink device (HDTV, Home Theater receiver, Sound Bar
Speaker), you may hear noise form the speakers or you will not
hear any sound from the speakers. When this happen, please
select to MODE A or reset the source device’s output audio
format.
If you want to use a Home Theater System or other speaker
system for audio output, it is recommended to MUTE or Turn
OFF the TV’s Volume.
TROUBLE SHOOTING
1. When there is no picture presented, please:
Make sure the direct connection from the source device to the display
device without the main unit is working.
Check if all connectors are connected well; and check if all cables can
support the transmission speed. High Speed HDMI cables are
recommended.
Check the power of main unit.
2. When there is only picture displayed and without sound:
Check the cable connection to see if it fits properly.
Check your cable to see if it supports video transmission only or it is
damaged.
HDCP may not match very well at first connection; please restart your
main unit.
If connected to an amplifier via 3.5mm audio cable, please set the audio
mode to mode A.
Under Mode B, if the amplifier can not support Dolby Digital 5.1, DTS
5.1, AAC, or PCM 2CH, the amplifier will not have sound.
HA-110SA can not decode digital compressed audio format (Dolby

8
Digital, DTS, and AAC.) into analog 2 Channel audio format (R/L).
When connect the HA-110SA to a speaker via 3.5mm audio cable, please
make sure source device can output 2 Channel audio format (R/L).
3. When resolution could not show in 1080p.
Make sure your sources and displays are fully supporting 1080p.
Make sure your HDMI cables are capable of transmit 1080P video signal.
4. Supported HDMI 3D video format:
Frame packing Side-by-Side (Half) Top-and-Bottom
1920x1080p
@23.98/24Hz
1920x1080i
@59.94/60Hz
1920x1080p
@23.98/24Hz
1280x720p
@59.94/60Hz
1920x1080i
@50Hz
1280x720p
@59.94/60Hz
1280x720p@50Hz 1280x720p@50Hz
5. When 3D content could not be shown on your display
Please make sure your sources and display are 3D supported devices and
also support the same 3D format.
Please check if the Blue-ray player has been set 3D or AUTO play-mode
for video output.
Please make sure the video content is 3D content.
NOTICE
Manufacturer reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written
notice.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
HA-110SA incorporates HDMI®technology.
Dolby is a registered trademark of Dolby Laboratories.
DTS is a registered trademark & the DTS logos and Symbol are
trademarks of DTS, Inc.
PS3 is a trademark of Sony Computer Entertainment Inc.
Xbox 360 is either registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries.
