promethean ActivSoundBar TP1866 User manual

TP1866
Installation and User Guide
SoundBar

Copyright Information
TP1866 Issue 01 © 2014 Promethean Limited. All rights reserved.
Promethean is owner of a number of trademarks in several jurisdictions across the
world. The Promethean products documented in this guide include aspects which
are protected under their respective patent, copyright, design copyright, registered
design and trademark laws.
All other trademarks remain the property of their respective owners.
This guide is distributed online. It may only be reproduced for use within the
institution in which the product is used. For use outside of your institution, no part
of this guide may be reproduced, transmitted, stored in a retrieval system or
translated into any other language without the prior permission of Promethean
Limited.
Please note that the content in this guide is protected under copyright law.
Although every care has been taken in the compilation of this guide, Promethean
Limited accepts no responsibility for errors or omissions, or for damages resulting
from the use of information contained within the following pages.
SoundBar

Welcome 5
Safety Information 5
Environmental Considerations 10
Features 10
Box Contents 10
You Will Need 12
Installation 12
Installation A - Attach ActivSoundBar to ActivBoard Touch 13
Installation B - Attach ActivSoundBar to Wall 15
Setup 17
Activating the Remote Control 17
Replacing the Battery 18
Connections 18
Contents

Controls and Indicators 19
Back Panel 19
Front Panel 20
Remote Control 21
Cleaning 22
Cleaning the Bezel and Remote Control 22
Troubleshooting 22
More Information 24
Technical Support 24
Promethean Planet 24
Compliance Statements 25
United States of America 25
Canada 25
EU 26
Contents

Welcome
Thank you for purchasing an ActivSoundBar from Promethean. The ActivSoundBar
provides a powerful, high-quality sound solution for most classrooms. It is offered as
an option for the Promethean ActivBoard Touch and can either be wall-mounted, or
affixed directly to the top edge of the board.
Safety Information
WARNING: To reduce the risk of fire or electric
shock, do not expose this product
to rain or moisture!
CAUTION
Risk of electric shock do not open
Caution: Toreducethe riskof electricshock, do notremove cover
(or back). No user-serviceable parts inside. Refer servicing
to qualified service personnel.
The lightning flash with
arrow-head symbol,
within an equilateral
triangle, is intended to
alert the user to the
presence of “dangerous
voltage” within the
product’s enclosure that
may be
sufficient to constitute a
risk of electric shock to
persons.
The exclamation point
within a triangle is
intended to alert the
user to the presence of
important operating and
maintenance (servicing)
instructions.
ActivSoundBar Installation and User Guide 5

The installation of this product should be completed by a Promethean Certified
Installer. Use of components not supplied by Promethean or not meeting
minimum specifications may impact performance and affect warranty. Contact your
Promethean partner or visit www.prometheankb.com for more information.
Only use the interchangeable plug or adapter which is compatible with your mains
outlet socket. If you are unsure of the electrical compatibility of your equipment,
please contact Promethean or an authorised Promethean service agent before
attempting to connect the unit to the mains supply.
The product does not contain any user serviceable parts and must not be opened.
If you suspect that the ActivSoundBar is damaged or faulty, you should contact
Promethean or an authorised Promethean service agent for advice.
Inspect the product for physical damage to the casing before use. If damage is
apparent, take care to avoid contact with any potentially live parts.
The ActivSoundBar does not contain any user serviceable parts. You should not
attempt, under any circumstances, to gain access to internal parts of the product.
This product is designed and manufactured to operate within defined design
limits, and misuse may result in electric shock or fire. To prevent the product from
being damaged, the following rules should be observed for the installation, use and
maintenance of the product.
For Promethean Warranty Terms and Conditions, please visit:
www.PrometheanWorld.com/ActivCare
For online Technical Support for all Promethean Products, please visit:
www.PrometheanKB.com
Safety Information
6 ActivSoundBar Installation and User Guide
SoundBar

Safety Information
Read the following safety instructions before operating the
ActivSoundBar.
Keep these instructions in a safe place
for future reference.
• To avoid the risk of electric shock
or component damage, switch off
the power before connecting other
components to the ActivSoundBar.
• Unplug the power cord before cleaning
the ActivSoundBar. Do not use a
liquid or a spray cleaner for cleaning the
product. Do not use abrasive cleaners.
• Always use accessories recommended by
Promethean to ensure compatibility.
• When moving the ActivSoundBar from
an area of low temperature to an area
of high temperature, condensation may
form on the housing. Do not turn on the
ActivSoundBar immediately after this
to avoid causing fire, electric shock or
component damage.
• Do not place the ActivSoundBar on
an unstable cart, stand, or table. If the
ActivSoundBar falls, it can injure a
person and cause serious damage to the
appliance.
• Any heat source should maintain a
distance of at least 5 feet (1.5m) away
from the ActivSoundBar, i.e. radiator,
heater, oven, amplifier etc.
• Do not install the product too close
to anything that produces smoke or
moisture. Operating the product close
to smoke or moisture may cause fire or
electric shock.
• Never push any object into the
ventilation slots of the ActivSoundBar.
• Do not place any objects on the top of
the product. It could short circuit parts
causing a fire or electric shock. Never
spill liquids on the ActivSoundBar.
• The ActivSoundBar should be operated
only from the type of power source
indicated on the label. If you are not sure
of the type of power supplied, consult
Technical Support or your local power
company.
• Do not overload power strips and
extension cords. Overloading can result
in fire or electric shock.
ActivSoundBar Installation and User Guide 7

• The wall socket should be installed near
the equipment and should be easily
accessible.
• Only the marked power source can be
used for the product. Any power source
other than the specified one may cause
fire or electric shock.
• Do not touch the power cord during
thunderstorms. To avoid electric shock,
avoid handling the power cord during
electrical storms.
• Unplug the ActivSoundBar during a
lightning storm or when it will not be
used for a long period of time. This will
protect the unit from damage due to
power surges.
• Do not attempt to repair or service the
product yourself. Opening or removing
the back cover may expose you to high
voltages, the risk of electric shock, and
other hazards. If repair is required, please
contact Technical Support and refer all
servicing to qualified service personnel.
• Keep the product away from moisture.
Do not expose this appliance to rain or
moisture. If water penetrates into the
product, unplug the power cord and
contact Technical Support. Continued
use in this case may result in fire or
electric shock.
• Do not use the product if any
abnormality occurs. If any smoke or
odour becomes apparent, unplug the
power cord and contactTechnical
Support immediately. Do not try to
repair the product yourself.
• Avoid using dropped or damaged
appliances. If the product is dropped
and the housing is damaged, the internal
components may function abnormally.
Unplug the power cord immediately and
contact Technical Support for repair.
Continued use of the product may cause
fire or electric shock.
• Do not install the product in an area with
heavy dust or high humidity. Operating
the product in such environments may
cause fire or electric shock.
• Hold the power connector when
removing the power cable. Pulling the
power cable itself may damage the wires
inside the cable and cause fire or electric
shock. To avoid risk of electric shock, do
not touch the connector with wet hands.
Safety Information
8 ActivSoundBar Installation and User Guide
SoundBar

Warning! Chemical Burn Hazard
This product contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just two hours and can lead to death.
Insert the coin/button cell battery into the remote control in accordance with the
instructions in this guide.
Risk of explosion if battery is replaced with incorrect type.
Incorrect polarity may cause damage or leakage of the battery, operating injury and
contamination of the remote control.
Keep new and used batteries away from children and pets.
If the battery compartment does not close securely, stop using the remote control
and keep it away from children.
If you think the battery might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
If any of the following occurs, please contact Technical Support:
• The power connector fails or frays.
• Liquid sprays, or any object drops, into the ActivSoundBar.
• The ActivSoundBar is exposed to rain or moisture.
• The ActivSoundBar is dropped or damaged in any way.
• The performance of the ActivSoundBar changes substantially.
Safety Information
ActivSoundBar Installation and User Guide 9

Temperature:
• Operating: 5°C to +35°C
• Storage: 0°C to +60°C
Relative Humidity (non condensing):
• Operating and Storage: 40% ~50%
SOURCE
3D
Remote Control
x1 x1
ActivSoundBar
Environmental Considerations
Features
• Built-in high-performance class D amplifier
• 3D surround sound effect
• Can be directly connected to your TV, DVD or other audio device
• Energy saving design
• Low power consumption
• Full-function remote control
• Wall mounting available
• Uses domestic 220V~240V 50~60Hz AC power
Box Contents
10 ActivSoundBar Installation and User Guide
SoundBar

Box Contents
x1
SC-8x1/2” x4
UK, US, EU
x2
DR-6061034
5m (16 ft)
3.5 mm - RCA x1
3m (9.8 ft)
SC-6/32x1/2-UTS x2
x2
DR-6061039
ActivSoundBar Installation and User Guide 11

85
640
4x
2 5
640 0
10 0
857
6400
4x
25
530
6400
100
www.PrometheanWorld.com
SoundBar
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 02/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：[phone]
475 (78”)
634 (88”)
475 (78”)
634 (88”)
Ø = 2.5mm
2mm
TP1866 x1 x1
TP1867
You Will Need
x 2
1
2
Box Contents

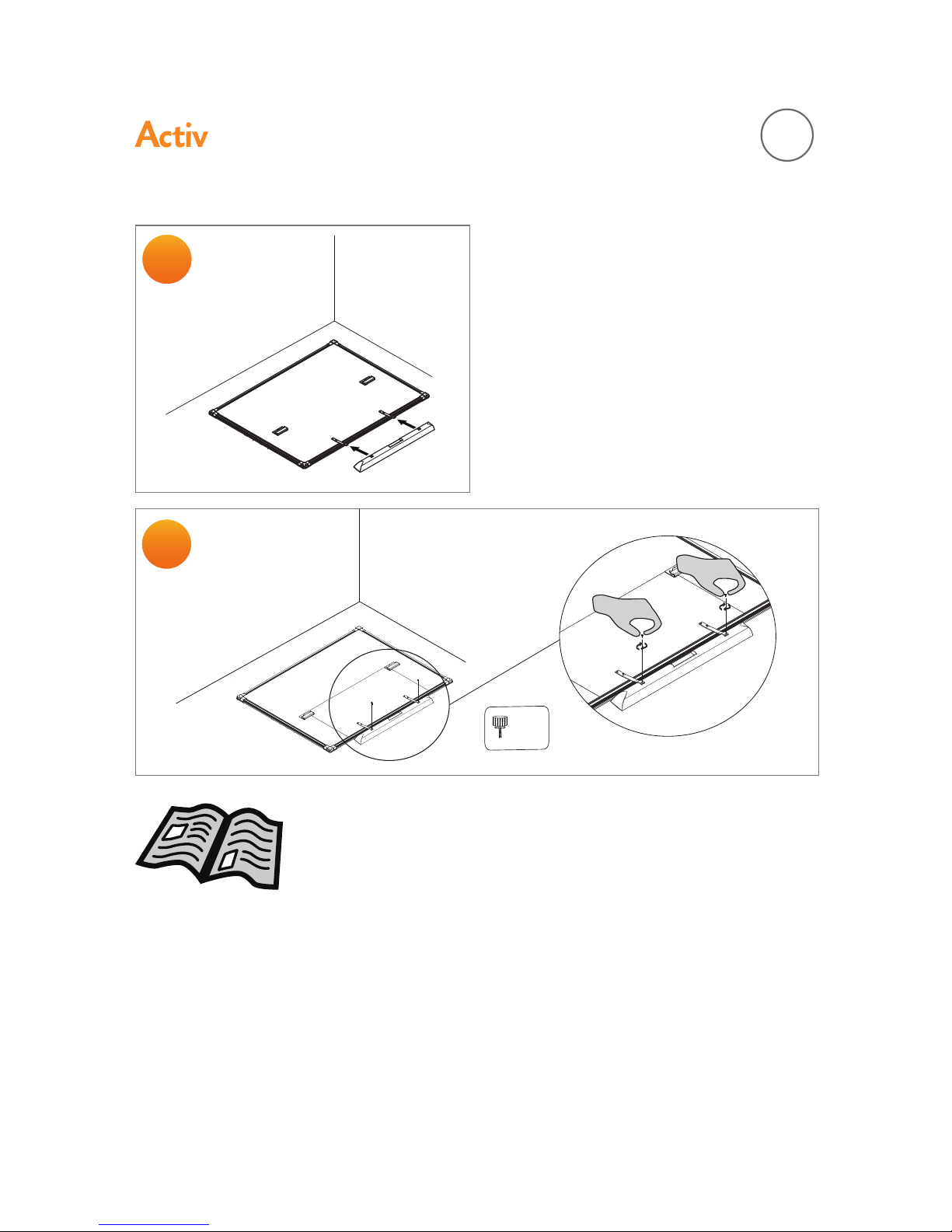

Installation
AB
AB
&
85
640
4x
2 5
640 0
10 0
857
6400
4x
25
530
6400
100
www.PrometheanWorld.com
SoundBar
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 02/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：[phone]
475 (78”)
634 (88”)
475 (78”)
634 (88”)
Ø = 2.5mm
2mm
85
640
4x
2 5
640 0
10 0
857
6400
4x
25
530
6400
100
www.PrometheanWorld.com
SoundBar
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 02/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：[phone]
475 (78”)
634 (88”)
475 (78”)
634 (88”)
Ø = 2.5mm
2mm
496mm (78”)
655mm (88”)
2x Ø5mm
640mm
640mm
www.PrometheanWorld.com
SoundBar
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 02/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：[phone]
≤
≤
90mm
496mm(78”)
655mm(88”)
≤
90mm
LOCATEAROUNDBRACKET LOCATEAROUNDBRACKET
LOCATEUPTOPLASTIC
4xØ2,5
ONLYDRILLTHROUGHBACKSURFACE
DONOTBREAKTHROUGHFRONTSURFACE
CENTRELINEOFBOARD
LOCATE AROUND BRACKET LOCATE AROUND BRACKET
LOCATE UP TO PLASTIC
4x Ø2,5
ONLY DRILL THROUGHBACK SURFACE
DO NOT BREAK THROUGH FRONT SURFACE
CENTRELINE OF BOARD
www.PrometheanWorld.com
SoundBar
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
ActivBoard Touch Drilling Template TP1867 01/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：[phone]
12 ActivSoundBar Installation and User Guide
SoundBar

Installation
A
ONLYDRILLTHROUGH BACK SURFACE
DONOT BREAKTHROUGH FRONT SURFACE
58,7
640,0

2,54x
35,0
640,0
10,0
ALLDIMENSIONS IN mm
58,7
640,0
2,54x
35,0
640,0
10,0
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 01/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
中国
普罗米休斯科技（深圳）有限公司
广东省深圳市宝安区观澜街道凹背社区
桂月路同富裕工业园
电话：
[phone]
237,5(78”)
396(88”)
237,5(78”)
396(88”)
12
3
58,7
640,0
P
2,54x
35,0
640,0
10,0
ALLDIMENSIONS IN mm
58,7
640,0
P
2,54x
35,0
640,0
10,0
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 01/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
₼⦌
㣽処伂↠㠾䱠㔏᧤䂀⧂᧥㦘棟⏻⚇
ㄎ₫䦐䂀⧂ゑ⸬⸘◉屑䈫嫦拢⒈卛䯍◉
㫑㦗恾⚛⹛孤ぴ₩⥼
䟄幬᧶
[phone]
237,5(78”)
396(88”)
237,5(78”)
396(88”)
Promethean
58,7
640,0
P
2,54x
35,0
640,0
10,0
ALL DIMENSIONS IN mm
58,7
640,0
P
2,54x
35,0
640,0
10,0
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specifications are subject to change without notice.
Drilling Guide TP1867 01/14 v1.0
UK
Promethean House
Lower Philips Road
Blackburn
Lancashire
BB1 5TH
T: [phone]
USA
Promethean
1165 Sanctuary Parkway
Suite 400
Alpharetta GA 30004
T: [phone]
SG
Singapore
Science Park II
20 Science Park Road
#02-33 TeleTech Park
Singapore 117674
T: [phone]
₼⦌
㣽処伂↠㠾䱠㔏᧤䂀⧂᧥㦘棟⏻⚇
ㄎ₫䦐䂀⧂ゑ⸬⸘◉屑䈫嫦拢⒈卛䯍◉
㫑㦗恾⚛⹛孤ぴ₩⥼
䟄幬᧶
[phone]
237,5 (78”)
396 (88”)
237,5(78”)
396(88”)
Promethean
Ø = 2.5mm
2mm
x 4
TP1867
A
x 4 SC-8x1/2”
4
DR-6061034 x2
ActivSoundBar Installation and User Guide 13

Installation
5
x 2
6
TP1865 ActivBoard Touch Installation and User Guide
A
14 ActivSoundBar Installation and User Guide
SoundBar

Installation
22kg/48.5lbs
x2
7
8
B
B
x 2 SC-6/32x1/2-UTS
DR-6061039 x2
1
ActivSoundBar Installation and User Guide 15

Installation
TP1867
B
640mm
x2
2
max Ø=5mm
DR-6061039 x2
3
4
16 ActivSoundBar Installation and User Guide
SoundBar

Please read the Safety Information at the start of this
guide before you begin.
Setup
Also note:
• Inserting the battery incorrectly may result in cracking or leakage that may pose a
fire risk or lead to personal injury.
• If the remote control is not used for a long time, remove the battery.
• Keep the remote control away from moisture, sunlight, and high temperatures.
• Dispose of the battery in accordance with local laws and regulations.
Activating the Remote Control
SOURCE
3D
Please remove the battery
Protector before using
ActivSoundBar Installation and User Guide 17

Setup
1. Open battery compartment and remove
battery.
2. Insert one CR2025 lithium battery into the
compartment.
Make sure that you match the (+) and (-)
symbols on the battery with the (+) and (-)
symbols inside the battery compartment.
3. Close the battery cover.
SOURCE
3D
Replacing the Battery
220~240V AC
50/60Hz 0.1A
POWER
ON
OFF
SUBWOOFER
OUTPUT
RCA INPUT
12
3
4
Connections
18 ActivSoundBar Installation and User Guide
SoundBar

Setup
1iPhone/Tablet/Smartphone
(cable not included)
3Subwoofer (not included)
2TV/DVD/CD
4
Power Cable
Controls and Indicators
Back Panel
220~240V AC
50/60Hz 0.1A
POWER
ON
OFF
SUBWOOFER
OUTPUT
RCA INPUT
220~240V AC
50/60Hz 0.1A
POWER
ON
OFF
SUBWOOFER
OUTPUT
RCA INPUT
12345
1Aux Input
2RCA Input
3
Subwoofer Output
4Power Switch
5Power Connector
ActivSoundBar Installation and User Guide 19

Front Panel
1LED
2Standby/Power On
3Increase Volume
4
Decrease Volume
5Select Sound Source
3D Surround Indicator
6
SOURCE
1
2
3
4
5
6
Controls and Indicators
Operation
2Short press to power on/off ActivSoundBar.
3
Short press to increase volume.
Long press to increase volume continuously.
4
Short press to decrease volume.
Long press to decrease volume continuously.
5
SOURCE Short press to switch audio source.
20 ActivSoundBar Installation and User Guide
SoundBar
