prophecy Gofanco PRO-KVMaud2P User manual

PRO-KVMaud2P
2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB
®
Made in Taiwan
User‘s Guide

®
PRO-KVMaud2P
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at [e-mail].
For drivers/manuals download, please go to hp://www.gofanco.com/download.

®
PRO-KVMaud2P
Please read all of these instructions carefully before you use the device. Save this
manual for future reference.
The PRO-KVMaud2P 2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB has
been tested for conformance to safety regulations and requirements, and has
been certied for international use. However, like all electronic equipments, the
PRO-KVMaud2P should be used with care. Please read and follow the safety in-
structions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of
this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed
for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the po-
wer to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................4
4. Package Contents ..................................................................4
5. Specication ......................................................................5
6. Connection Diagram ...............................................................6
7. Panel Description ..................................................................7
8. Hotkey ............................................................................8
9. Notice.............................................................................9
10. Warranty .........................................................................11
3

®
PRO-KVMaud2P
• HDMI 2.0a compliant
• Supports 4K2K@60 4:4:4 8bits, Video bandwidth 18Gbps
• Supports HDR, which is 4K2K@60 4:2:0 10bits
• HDCP 2.2 and 1.4 compliant
• Supports separate line input and output
• Plug and Play without any driver needed
• Supports built-in 4-port USB3.0 HUB to share USB devices
• Supports independent HID keyboard & mouse ports
• Supports hotkeys function
• Supports Dolby Digital PLUS, DTS-HD and Dolby TrueHD audio
• Supports default HDMI EDID and learns the EDID from displays
• Firmware upgradable
3. Features
The PRO-KVMaud2P 2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB provi-
des the most exible and cost eective solution in the market for multiple computer
management at home & oce. The KVM switch can control 2 HDMI USB computers
by one set of console peripherals (keyboard, mouse & monitor). With built-in USB
3.0 hub, users can share USB peripheral devices between connected computers.Be-
sides, this KVM switch also supports HDR and the true 4K2K video.
2. Introduction
4
• 1x PRO-KVMaud2P
• 1x DC 12V 2A power supply
• 1x Rack-mounting ear set
• 1x User Manual
4. Package Contents

®
PRO-KVMaud2P
5.Specications
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 202 x 112 x 37mm [8" x 4.4" x 1.5"]
Package 331 x 162 x 204mm [1' x 6.4" x 8"]
Carton 500 x 432 x 340mm [1'6" x 1'4" x 1'1"]
Weight
Model 720g [1.6 lbs]
Package 1144g [2.5lbs]
Fixedness 1RU rack-mount with ears and Wall hanging holes
Power supply 12V 2A DC
Power consumption 6 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
5
Item Description
Technical
HDMI compliance 4-Port HDMI KVM Switch
HDCP compliance 3D & 4K2K@60Hz
Video bandwidth Up to HDCP 2.2
Video support Single-link 594MHz [18Gbps]
HDMI over ber Up to HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Input TMDS signal 2x HDMI, 2x USB 3.0(type B), 3x 3.5mm phone jack
Input DDC signal 1x HDMI, 4x USB 3.0(type A), 2x USB 1.1(type A), 3x 3.5mm phone jack
ESD protection Type A [19-pin female]
PCB stack-up USB3.0 type A / type B

®
PRO-KVMaud2P
6. Connection Diagram
6

®
PRO-KVMaud2P
1. Port 1-2Selection Push Button: Switch between computers
2. USB 3.0 Hub: Connect to USB devices

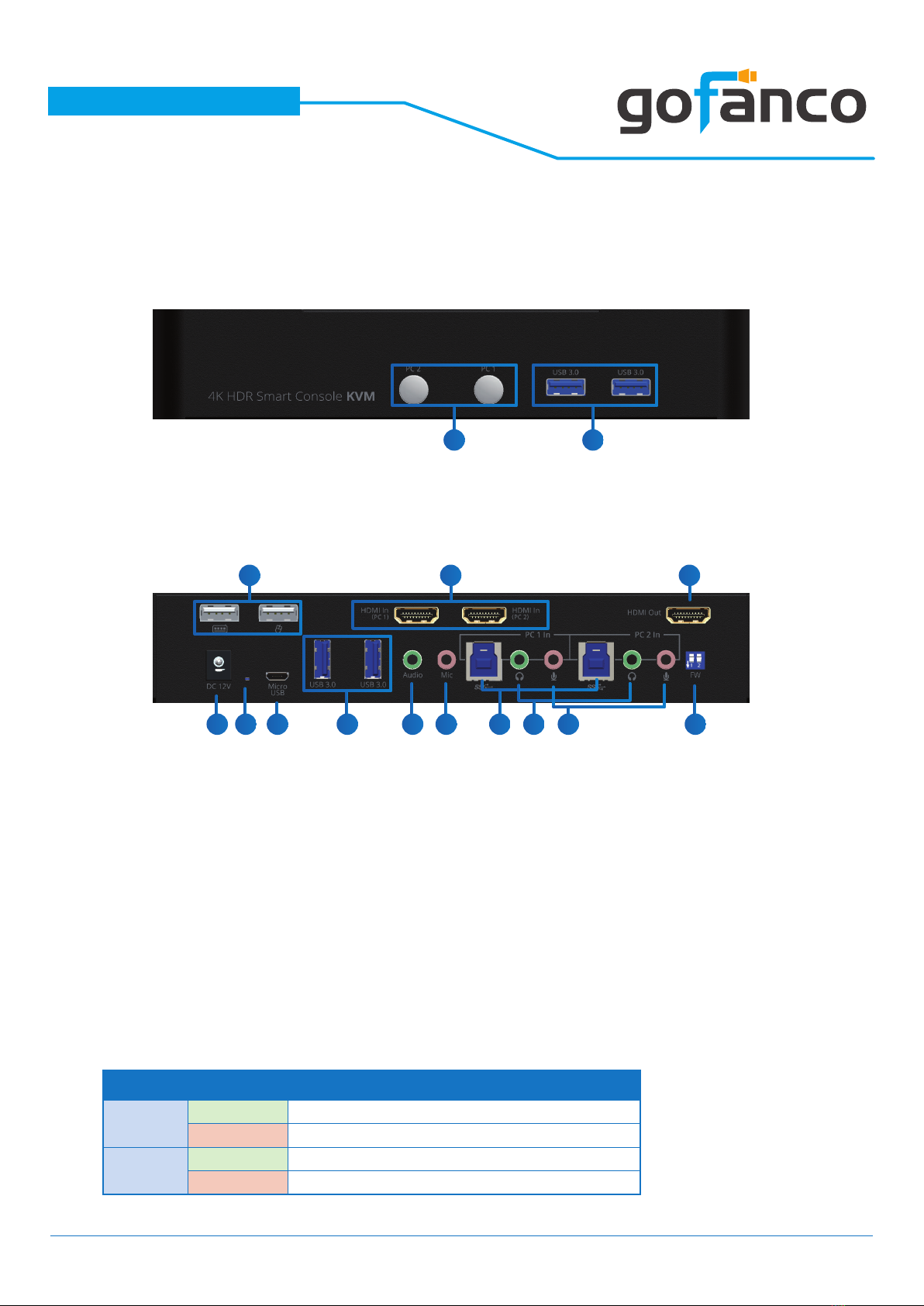

7. Panel Description
3. Console USB Ports: Connect tokeyboard & mouse
4. KVM Video IN 1-2 (HDMI IN 1-2): Connect the HDMI cable to PC
5. Console Video OUT (HDMI OUT): Connect the HDMI cable to a display
6. +12V DC: +12V DC power jack
7. Power Status: Power indicator LED
8. Micro USB: For F/W update
9. USB 3.0 Hub: Connect to USB devices
7
876 9 10 11 12 13 14 15
10. Console Stereo Audio OUT: Connect to analog stereo audio speaker
11. Console Stereo Audio IN: Connect to analog stereo audio source
12. KVM USB 3.0(Type B): Connect the USB cable to PC
13. KVM Stereo Audio IN 1-2: Connect the stereo cable to PC
14. KVM Stereo Audio OUT 1-2: Connect the stereo cable to PC
15. 2-Pin Dip Switch: For F/W update
Front Panel
Rear Panel
3 4 5
Position Description
PIN#1 OFF[]Working mode
ON[]KVM Firmware Update mode
PIN#2 OFF[]Working mode
ON[]MCU Firmware Update mode
21

®
PRO-KVMaud2P
8. Hotkey
Default setting, all of the following commands begin by pressing the [Scroll Lock] key
twice. Please follow the hotkey command listed below for selected operating functions:
8
Hot key Denition
[Scroll Lock] + [Scroll Lock] + [Ctrl] + [Enter] Change [Scroll Lock] [Scroll Lock] to [Ctrl] [Ctrl] *
[Ctrl] + [Ctrl] + [Scroll Lock] + [Enter] Change [Ctrl] [Ctrl] to [Scroll Lock] [Scroll Lock]
[Scroll Lock] + [Scroll Lock] + [NUMBER1~2] +
[Enter] Switch input 1~2 source to output
[Scroll Lock] + [Scroll Lock] + [S] Auto Scan/ Exit Auto Scan mode**
[Scroll Lock] + [Scroll Lock] + [I] + [N] + [Enter] Auto Scan Set [N]: 5~599 ***
[Scroll Lock] + [Scroll Lock] + [+] Auto Scan Interval Add 5 Seconds
[Scroll Lock] + [Scroll Lock] + [-] Auto Scan Interval Subtract 5 Seconds
You can change the default setting to [Ctrl] [Ctrl], if you are using a Mac keyboard or
a keyboard that does not have Scroll Lock key
Auto scan through each channel for quick screen browsing (default = 15 seconds)
You can set the auto scan interval according to the steps. (N = Number, 5~599)
*
**
***

®
PRO-KVMaud2P
9
9. Firmwave update
Firmware update is proceeded through Micro-USB
KVM F/W update
1. Connect the Micro-USB to USB cable between PC and device
2. Set dip switch PIN#1 to ON[] and then power on device
3. Open rmware update software and then select COM Port
4. Click “KVM“ button to open “KVM Firmware Update” windows.
5. Check all items and click each “...“ button to select the le which you want to
write into device.
6. Click the “Burn!“ button to start rmware update
7. After updating, please set the dip switch PIN#1 to OFF[] and power cycle the
device

®
PRO-KVMaud2P
10
MCU F/W update
1. Connect the Micro-USB to USB cable between PC and device
2. Set dip switch PIN#2 to ON[] and then power on device
3. Open rmware update software and then select COM Port
4. Click “MCU“ button to open “Firmware Update MCU” windows.
5. Click “Load File“ button to select the le which you want to write into device.
6. Click the “Start“ button to start rmware update
7. After updating, please set the dip switch PIN#2 to OFF [] and power cycle the
device

®
PRO-KVMaud2P
11
10. Limited Warranty
The SELLER warrants the PRO-KVMaud2P 2-Port HDMI 2.0a/Audio KVM Switch with USB
3.0 HUB free from defects in the material and workmanship for 1 year from the date of
purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace
the unit, provided that the unit has not been subjected to accident, disaster, abuse or
any unauthorized modications including static discharge and power surge. This war-
ranty is oered by the SELLER for its BUYER with direct transaction only. This warranty
is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current
price of parts and labor in eect at the time of repair. Such repairs are warranted for 90
days from the day of reshipment to the BUYER. If the unit is delivered by mail, custo-
mers agree to insure the unit or assume the risk of loss or damage in transit. Under no
circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or tness or merchantability for any particular
purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters
are limited to a 30 day warranty and must be free from any markings, scratches, and
neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be cont-
ained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, speci-
al, or consequential damages resulting from any defect or omission in this manual, even
if advised of the possibility of such damages. Also, the technical information contained
hereinregardingthePRO-KVMaud2Pfeaturesandspecicationsissubjecttochange
without further notice.
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

www.gofanco.com
Thank you for choosing gofanco
®
Jun, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
