milleteknik 4p M User manual

PoE Switch 4p M
PoE switch with battery backup
EN

350-205
Publication date 2022-11-09

Table of Contents
1. About PoE from Milleteknik ................................................................................................. 5
2. How PoE powers devices connected to the power supply ..................................................... 5
3. Component overview PoE M ............................................................................................... 6
4. Wall mounting .................................................................................................................... 6
5. Connection of batteries ....................................................................................................... 7
6. Commissioning - how to start the unit .................................................................................. 8
7. Status indications ............................................................................................................... 8
8. Maintenance ...................................................................................................................... 8
8.1. battery change ........................................................................................................ 8
9. FAQ - PoE ......................................................................................................................... 9
10. ECO product sheet ........................................................................................................... 9
10.1. PoE product images / technical data ....................................................................... 9
10.1.1. Name, article number and e-number ............................................................ 9
10.1.2. About PoE from Milleteknik .......................................................................... 9
10.1.3. Power over Ethernet from Milleteknik ........................................................... 9
10.1.4. Areas of use ............................................................................................. 10
10.1.5. Fixed installation ....................................................................................... 10
10.1.6. Battery types ............................................................................................ 10
10.2. Regulations and certifications ............................................................................... 10
10.2.1. Requirements that the product meets ......................................................... 10
10.3. Expected operating time in the event of a power failure ( with new batteries) ........... 10
10.4. Circuit boards - Technical data ............................................................................. 11
10.4.1. Technical data: CEO 3 .............................................................................. 11
10.4.2. Technical data: PoE card ........................................................................... 12
10.5. Power supply ...................................................................................................... 12
10.5.1. Power supply - Technical Data LRS-150-48 ................................................ 12
10.6. Technical data enclosures .................................................................................... 12
10.6.1. Enclosures - Technical Data M .................................................................. 12
10.7. Link to the latest information ................................................................................. 13
10.8. Warranty, support, country of manufacture and country of origin ............................. 13
10.8.1. Warranty .................................................................................................. 13
10.8.2. Support .................................................................................................... 13
10.8.3. Country of manufacture ............................................................................. 13
10.8.4. Designed and produced by: Milleteknik AB ................................................. 13
10.9. Batteries - recommended, not included ................................................................. 14
10.9.1. Batteries are not included they are sold separately ..................................... 14
10.9.2. 7.2 Ah, 12 V AGM battery ......................................................................... 14
11. Product life cycle, environmental impact and recycling ...................................................... 14
12. Address and contact details ............................................................................................ 14
3

This page is intentionally left blank.

1. ABOUT POE FROM MILLETEKNIK
The series is designed to power PoE devices such as access systems, surveillance cameras and other
equipment that can be operated with Power over Ethernet. Through its function as a battery backup, the
PoE device can continue to be powered in the event of a power failure.
PoE switch 4p M, PoE switch 4p FLX S+ and PoE switch 4p FLX M+ are for security systems where
a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we
call "controlled charging", which is a safety function that means that batteries are not charged with more
than 0.5 A. By controlling the charging of batteries, the lifespan of batteries is significantly extended.

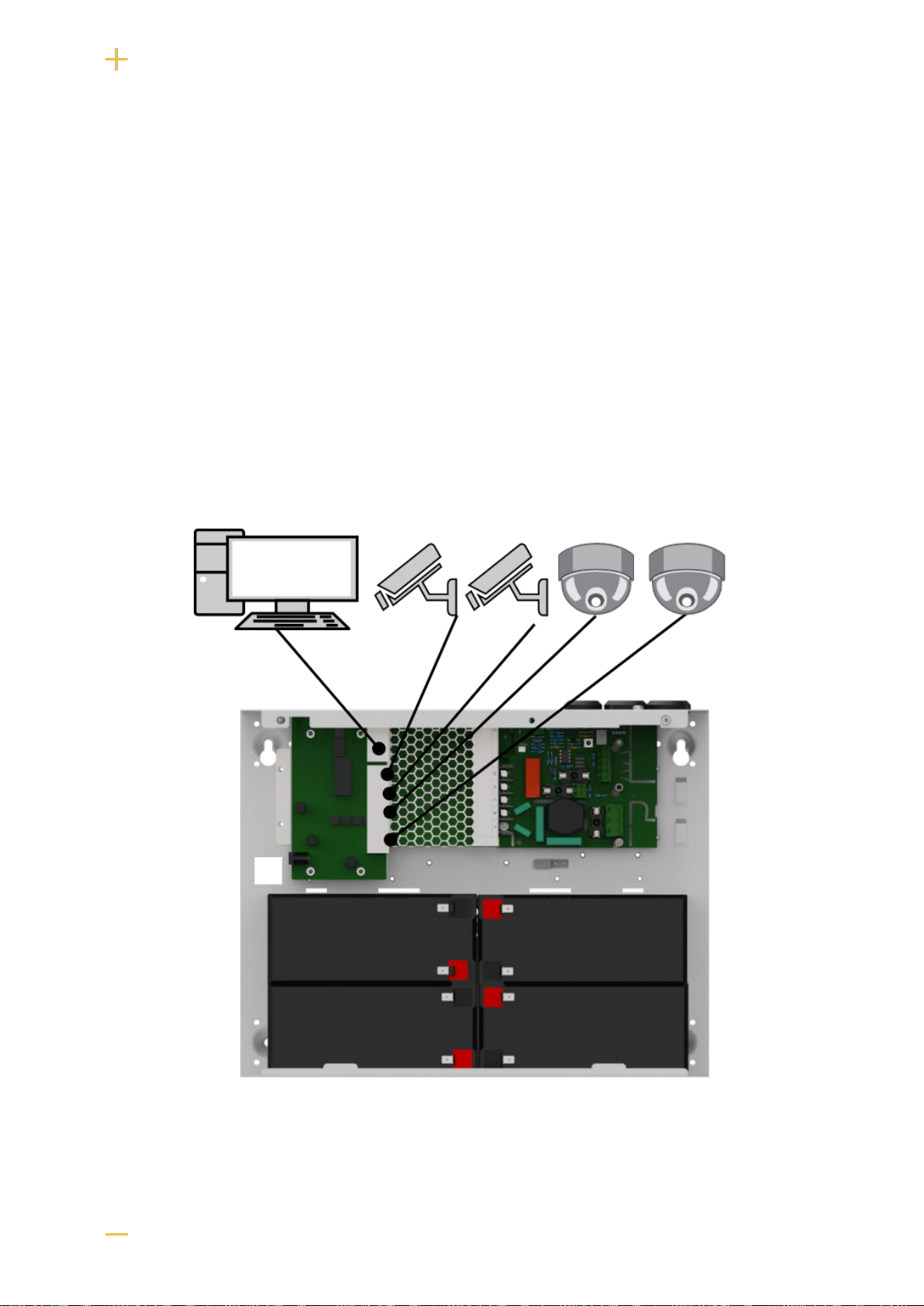

2. HOW POE POWERS DEVICES CONNECTED TO THE
POWER SUPPLY
PoE can power, for example, surveillance cameras.
Connect external devices to be powered via PoE in ports 1-4.
Connect other devices that do not need to be operated with PoE in LAN1-2.
5

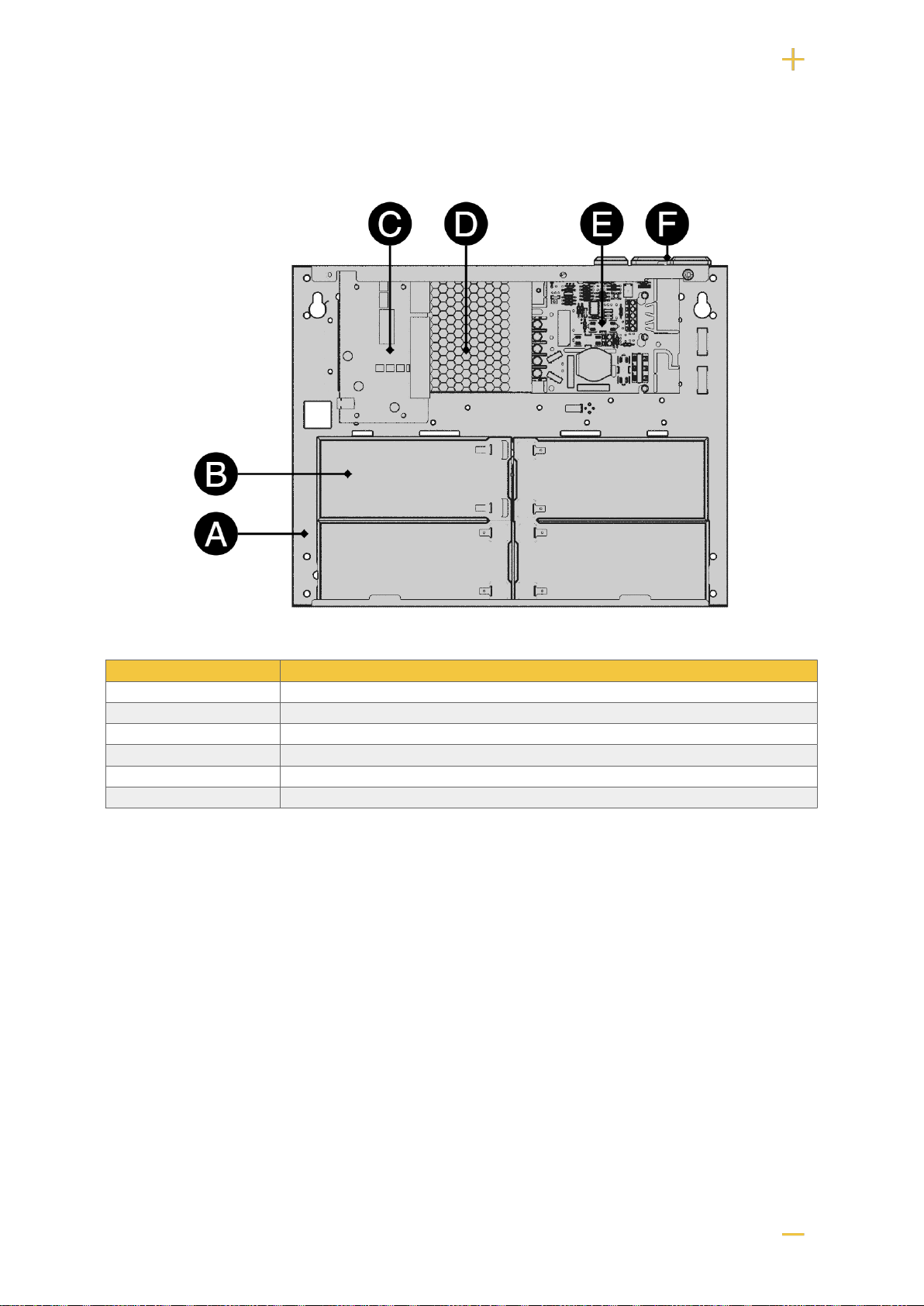

3. COMPONENT OVERVIEW POE M
Table 1. Component overview
Symbol Explanation
A Casing in powder-coated sheet metal.
B Space for batteries.
C PoE switch.
D Power supply unit.
E Motherboard.
F Cable entries.
4. WALL MOUNTING
Use four screws suitable for the wall to set up the cabinet.
The distance between the screw head and the wall should be 1.5–2 mm.
Preferably leave a 100 mm air gap around the unit.
6

5. CONNECTION OF BATTERIES
Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect
wiring.
1. Place the batteries in the cabinet with the battery terminals facing outwards, against the cabinet
door.
2. Connect the battery cable. Red cable on plus and black cable on minus.
• If possible, disconnect mains voltage when replacing the battery.

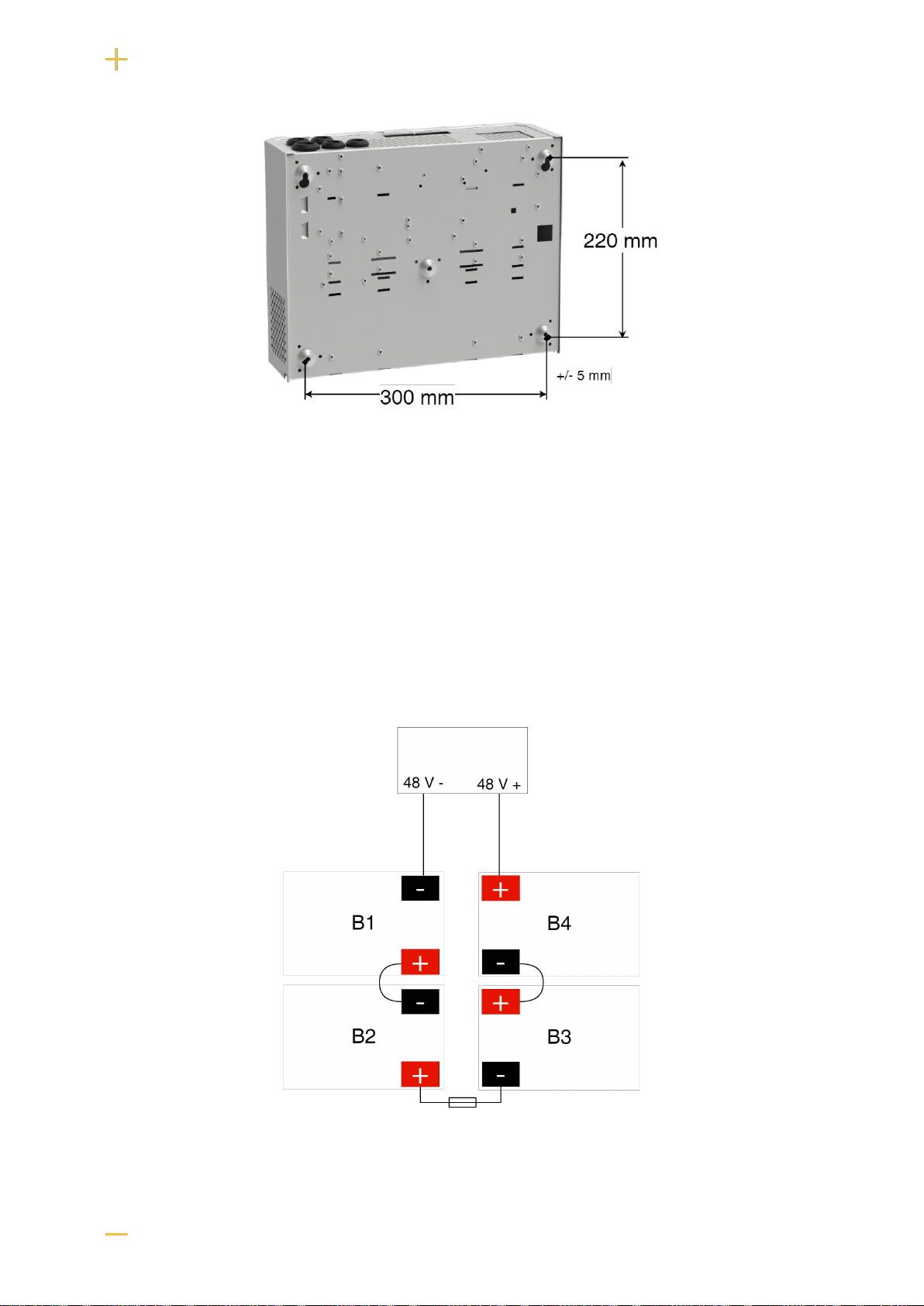

Figure 1. Wiring diagram for batteries in battery backup
Connect the terminals correctly so that you do not damage the equipment.
7

6. COMMISSIONING - HOW TO START THE UNIT
The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid
green light. See front panel for other status indications.
It may take up to 72 hours before the batteries are fully charged.
7. STATUS INDICATIONS
Solid green light: normal operation.
Solid yellow glow: Low battery voltage.
Solid red light: Low battery when the load output fuse is blown.
8. MAINTENANCE
The system with the exception of batteries is maintenance-free when installed in an indoor environment.
8.1. battery change
• If possible, disconnect mains (voltage) when replacing the battery.
• Disconnect battery cables. Note how battery cables are mounted before removing them.
• Remove battery fuse between batteries.
• Insert and fasten the new batteries.
• Connect the battery cables in the same way as before.
• Connect battery fuse between batteries.
• Switch on mains voltage. The indicator LED may not be green (up to 72 hours), until the batteries are
charged.
• Test the system by briefly disconnecting the mains voltage, (= the load is driven by the batteries), and
then switch on the mains voltage again.
8

9. FAQ - POE
10. ECO PRODUCT SHEET
10.1. PoE product images / technical data

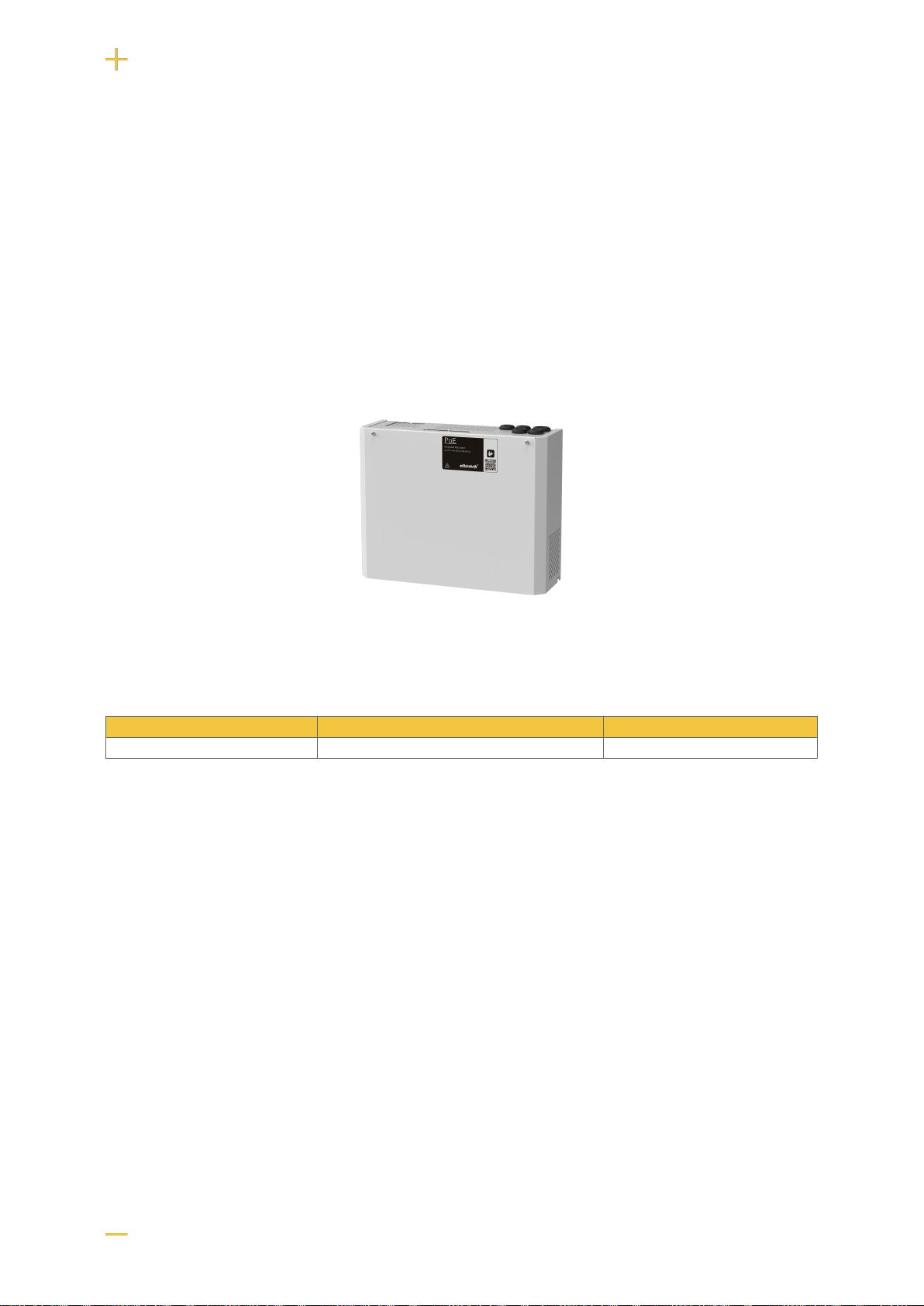

Figure 2. PoE Switch 4p M
PoE switch with 4 PoE ports.
10.1.1. Name, article number and e-number
Name Item number E-number (swe)
PoE switch 4p M ME01C10048P02504PU 5171951
10.1.2. About PoE from Milleteknik
The series is designed to power PoE devices such as access systems, surveillance cameras and other
equipment that can be operated with Power over Ethernet. Through its function as a battery backup, the
PoE device can continue to be powered in the event of a power failure.
PoE switch 4p M, PoE switch 4p FLX S+ and PoE switch 4p FLX M+ are for security systems where
a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we
call "controlled charging", which is a safety function that means that batteries are not charged with more
than 0.5 A. By controlling the charging of batteries, the lifespan of batteries is significantly extended.
10.1.3. Power over Ethernet from Milleteknik
• PoE for security applications with the need for power supply with backup power.
• Proven, reliable technology.
• For fixed installation.
• Swedish made.
9

10.1.4. Areas of use
• Power supply for camera surveillance.
• Security applications powered by PoE that need backup power in the event of a power outage.
10.1.5. Fixed installation
The product is intended for fixed installation. The battery backup must be installed by a qualified
installer.
10.1.6. Battery types
The ECO series can be used with AGM batteries. Do not mix types of batteries, brand or used and new
batteries.
10.2. Regulations and certifications
10.2.1. Requirements that the product meets
EMC: EMC Directive 2014 / 30EU
Electricity: Low voltage directive: 2014/35 / EU
EN 60950-1
PoE: IEEE 802.3af, IEEE 802.3at/30,8 W
CE: CE directive according to: 765/2008
Emission: EN61000-6-: 2001 EN55022: 1998: -A1: 2000, A2: 2003 Klass B, EN61000-3-2: 2001
EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2Class A( 75% Load),EN61000-3-3
Environment REACH Regulation: Directive 1907/2006, WEEE Regulation: Directive 20021961E, RoHS Regulation: Directive
2015/863
10.3. Expected operating time in the event of a power failure ( with
new batteries)
PoE Battery Power
15.4 W Power 30.8 W Power 62 WPower 100 W Power 120 W Power 180W Power 240 W
PoE
switch 4p
M (48 V)
4 pcs
7.2 Ah 18 h 30 min. 8 h 30 min. 3 h 45 min. 2 h 1 h 45 min. - -
10

10.4. Circuit boards - Technical data
10.4.1. Technical data: CEO 3
Table 2. CEO3 V 2.5
Info Explanation
Article title CEO3
Product description CEO 3 is the next generation circuit board for simpler battery backups. Advanced functions that were not
previously possible in simpler battery backups are now available as standard. CEO 3 is a reliable heart in
simpler battery backups with fewer components than before, which reduces the environmental impact.
Measure 120 x 55 mm x 52 mm
Own consumption 32 mA
Fuse on output F1: T2.5A, mains fuse.
F6: F5A, load fuse +, P2:1.
F7: T16A, battery fuse.
Outputs One cargo outlet, fused.
Insurance Load output: + secured.
Alarm via Triggered load securing, potential-free shifting. Conclusion CO / NO. PRO1: Via alarm terminal J13 (NC-
CO). PRO2: Via alarm terminal J13 (NC-CO). PRO2 v3: Via J11 and J12 to motherboard on to the parent
system. PRO 3: Via J11 and J12 to motherboard on to the parent system.
Protection against: Deep discharge, short circuit, overload and overvoltage.
Table 3. Indications
Indicator diode Green Orange RED
(2) / D2 OK Low battery voltage / fuse fault. Low battery voltage with broken fuse on output.
(4) / D11 - Overvoltage. Batteries incorrectly connected.
Table 4. Alarm limits
Alarm limit at low battery voltage 48 V
(5) / JU2 with jumper 50.5 V
(5) / JU 2 without jumper 48 V
The unit is delivered without a jumper on (8) / JU2
Table 5. sum alarm
sum alarm
(8) P2: 3 NO
(8) P2: 4 CO
(8) P2: 5 NC
11

10.4.2. Technical data: PoE card
Prod-
uct Num- ber of
PoE /
LAN
ports
Max
power
per
port
PoE
budget Ether- net type Net- work
ports
Interface Func-
tions Type, injec- tor and
switch
PoE
switch
4p M
4/2 30,8 @
54,6 V
DC
125 W Fast
Ethernet
Mbit
PoE
switch
10 /
100
PoE+
1000Base-T
RJ-45 Auto-ne- gotiation,
Auto-up-
link (auto
MDI/MDI-
X)
Unman-
aged. There
is no soft-
ware inter-
face to con-
trol the
switch.
10.5. Power supply
10.5.1. Power supply - Technical Data LRS-150-48
Info Explanation
Output voltage 54.6 V
Output current 0 A - 3.3 A
Output voltage, ripple 200 mVp-p
Overvoltage 55.2 V - 64.8 V
Voltage recharge, ripple / current limitation Less than 0.6 Vp-p
Efficiency 90%
Current limitation 110% - 140%
Constant voltage +/- 0.5%
Regulatory accuracy * / - 1.0%
Input current (230 V) 1.7 A
Mains voltage frequency 47 Hz- 63 Hz
Mains voltage 230 V AC - 240 V AC
Brand effect 158.4 W
Temperature range -30°C - +70°C
Humidity range 20% - 90% RH non-condensed
The power supply is adapted and calibrated with the battery / hardware of the battery backup. Only power and calibrated power supplies may be used. Contact support when
changing power supplies. Use of power supplies coming from another source may cause damage not covered by the warranty. Warranty is canceled if power supplies (from a
source other than support / designated by support) that are not correctly calibrated are used.
10.6. Technical data enclosures
10.6.1. Enclosures - Technical Data M
Info Explanation
Name M
Enclosure class IP 20
Measure Height: 242 mm, width: 350 mm, depth: 150 mm.
Height units -
Mounting Wall
12

Info Explanation
Ambient temperature + 5 ° C - + 40 ° C. For best battery life: + 15 ° C to + 25 ° C.
Environment Environmental class 1, indoors. 20% ~ 90% relative humidity
Material Powder coated sheet
Color White
Cable entries, number 5
Batteries that fit 2 pcs 12 V 7.2 Ah or
2 pcs 12 V 14 Ah.
4 pcs 12 V 7.2 Ah
10.7. Link to the latest information
Products and software are subject to updates, you will always find the latest information on our website.
PoE series
10.8. Warranty, support, country of manufacture and country of origin
10.8.1. Warranty
The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support
during the warranty period can be reached at suppor[email protected] or telephone, [phone].
Compensation for travel and / or working hours in connection with locating faults, installing repaired or
replaced goods is not included in the warranty. Contact Milleteknik for more information. Milleteknik pro-
vides support during the product's lifetime, however, no later than 10 years after the date of purchase.
Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support
costs may (at Milleteknik's discretion) occour after the warranty period has expired.
10.8.2. Support
Do you need help with installation or connections? Our support phone is available: Monday-Thursday
08: 00-16: 00 and Fridays 08: 00-15: 00. Telephone support is closed between 11: 30-13: 15.
You can also send e-mail, we respond, on weekdays, usually in 24 hours.
Phone: [phone]
SPARE PARTS
Support handles questions about spare parts, see contact information above.
QUESTIONS ABOUT PRODUCT PERFORMANCE?
Contact sales: 46 31-340 02 30, e-mail: [email protected]
10.8.3. Country of manufacture
Country of manufacture / country of origin is Sweden. For more information, contact your seller.
10.8.4. Designed and produced by: Milleteknik AB
Designed and produced by Milleteknik AB
13

10.9. Batteries - recommended, not included
10.9.1. Batteries are not included they are sold separately
Batteries are sold separately.
10.9.2. 7.2 Ah, 12 V AGM battery
Fits in Number of batteries
PoE switch 4p M 4
Battery type V Ah
Maintenance-free AGM, lead-acid battery. 12 V 7.2 Ah
Table 6. 10+ Design life * battery
Article number E-number Article name Terminal Measure.
Height width
depth
Weight per
piece Make
MT113-12V07-01 5230536 UPLUS 12V 7.2Ah
10+ Design Life
battery
Flat pin 6.3
mm 151 x 65 x 100 mm. 2.4 kg UPLUS
* Design Life is the durability this year for unused battery. Environmental factors such as heat and load affect service life. Batteries that
have a durability (+10 Design lLife) of 10+ years usually need to be replaced after 4-5 years.
11. PRODUCT LIFE CYCLE, ENVIRONMENTAL IMPACT
AND RECYCLING
The product is designed and constructed for a long service life, which reduces the environmental
impact. The product's service life depends on, among other things, environmental factors, mainly ambi-
ent temperature, unforeseen load on components such as lightning strikes, external damage, handling
errors, and more. Products are recycled by being handed over to the nearest recycling station or sent
back to the manufacturer. Contact your distributor for more information. Costs that arise in connection
with recycling are not reimbursed.
12. ADDRESS AND CONTACT DETAILS
Milleteknik AB
Ögärdesvägen 8 B
S-433 30 Partille
Sweden
[phone]
[email protected]
www.milleteknik.se
14

This page is intentionally left blank.

This page is intentionally left blank.
