protech PIRAMID XL3 User manual

NT412 / V1.2 / 09.18
PIRAMID XL3
PIRAMID XL3 DUAL-TECHNOLOGY SENSOR
Installation instructions - Pages 1-28
529 VISTA BLVD 89434 SPARKS, NV - USA
Toll Free: 1-800-498-9662 / Phone: [phone] / Fax: [phone] Website: www.protechusa.com E-mail: [email protected]
US

- 1 -
PROTECH PIRAMID XL3
CONTENTS
1 GENERAL.............................................................................................................2
2 DESCRIPTION ......................................................................................................3
3 OPERATION .........................................................................................................4
4 INSTALLATION PRECAUTIONS..........................................................................6
5 INSTALLATION ..................................................................................................10
6 WIRING ...............................................................................................................11
6.1 Wiring PIRAMID XL3 ........................................................................................................... 11
6.2 Maximum length of 12VDC power supply cables................................................................. 12
7 SET-UP ...............................................................................................................12
7.1 Settings PIRAMID XL3......................................................................................................... 12
7.2 Anti-masking alarm.............................................................................................................. 15
7.3 Reading the parameters of the PIRAMID XL3: "READ" Mode............................................. 16
8 SMARTPHONE APPLICATION ..........................................................................17
8.1 Managing settings................................................................................................................ 19
8.2 PIRAMID XL3 settings......................................................................................................... 19
8.3 Real-time Information........................................................................................................... 21
8.4 Event log.............................................................................................................................. 22
9 PERIODIC MAINTENANCE ................................................................................24
10 MAINTENANCE ..................................................................................................24
11 TECHNICAL SPECIFICATIONS .........................................................................25
12 PRODUCT REFERENCES..................................................................................26

- 2 -
PROTECH PIRAMID XL3
1 GENERAL
PIRAMID XL3 is a dual-technology sensor:
•A passive infrared unit composed of a pyroelectric infrared (PIR) sensor that detects
radiation emitted by the human body in the infrared spectrum.
•A Microwave antenna using a 10,510 GHz frequency transmitter and a Doppler Effect
receiver detect changes in the state of the radiation field caused by passage of an object
or body in the lobe created by the antenna.
The detection zone formed by the lobe of the microwave antenna and the beams from the mirror of
the PIR create an invisible detection zone. To trigger an alarm, it is necessary that the object or
intruder pass through the detection zone.
MAIN FEATURES:
•Maximum outdoor range:
SDI-78XL3-A: 98ft x 98ft / 30m x 30m
SDI-78XL3-B: 98ft x 33ft / 30m x 10m
SDI-78XL3-C: 131ft x 19.7ft/ 40m x 6m
SDI-78XL3-D: 131ft x 9.8ft / 40m x 3m
SDI-78XL3-H: 98ft x 85ft / 30m x 26m
SDI-78XL3-H60: 98ft x 46ft / 30m x 14m
SDI-78XL3-H40: 98ft x 23ft / 30m x 7m
SDI-78XL3-H20: 98ft x 9.8ft / 30m x 3m
•Horizontal orientation +/- 90° in 10° increments. Vertical orientation from 0° to -10°
maximum.
•Anti-masking function by infrared Led.

- 3 -
PROTECH PIRAMID XL3
2 DESCRIPTION
PIR Lens
MW antenna cover
Front view Back view
Top view Side view

- 4 -
PROTECH PIRAMID XL3
3 OPERATION
Characteristics of detection zone:
SDI-78XL3-A SDI-78XL3-B
SDI-78XL3-C SDI-78XL3-D
Legend:
PIR detection zone MW detection zone
Side view lens A-Pet
Side view
lens A
Top view
98 ft / 30
m
98 ft / 30 m
Side view lens B-Pet
Side view lens B
Top view
33 ft /
1
0 m
98 ft / 30
m
Side view lens C-Pet
Side view lens C
Top view
19.7 ft / 6 m
131 ft / 40 m
Side view lens D
Top view
9.8 ft
/ 3 m
131 ft / 40 m

- 5 -
PROTECH PIRAMID XL3
SDI-78XL3-H SDI-78XL3-H60
SDI-78XL3-H40 SDI-78XL3-H20
Legend:
PIR detection zone MW detection zone
Side view
85.3 ft / 26
m
98.4 ft / 30 m
Top view
Side view
Top view
45.9 ft / 14
m
98.4 ft / 30 m
Side view
Top view
23 ft / 7
m
98.4 ft / 30 m
Side view
Top view
3
m
98.4 ft / 30 m

- 6 -
PROTECH PIRAMID XL3

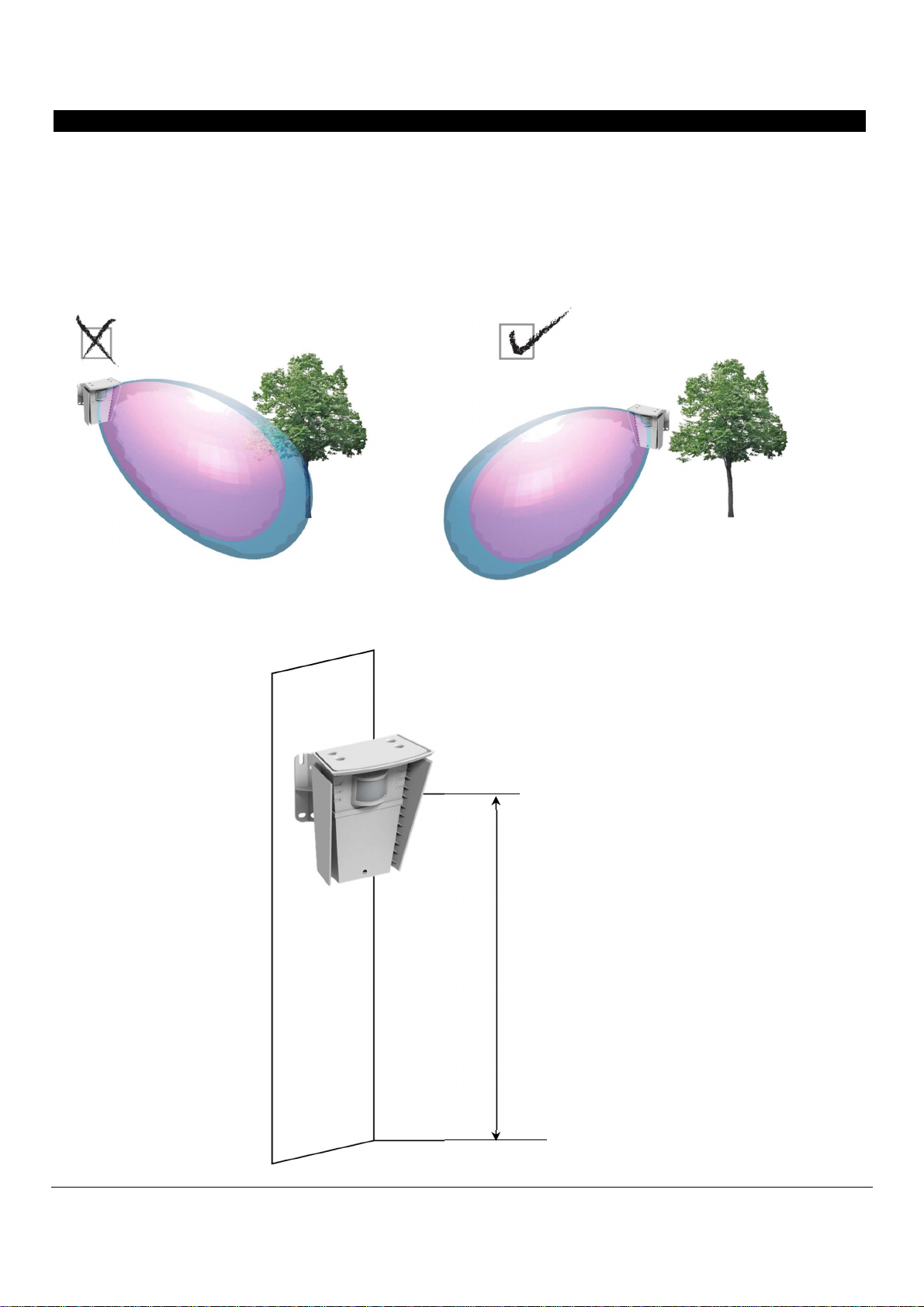

4 INSTALLATION PRECAUTIONS
It is important to follow certain rules to ensure proper installation of the detector:
- ENSURE THAT NO VEGETATION IS FOUND IN THE DETECTION ZONE.
CHECK THAT THE CLOSEST VEGETATION DOES NOT OBSTRUCT THE DETECTION
ZONE IN CASE OF WIND.
- RESPECT THE RECOMMENDED INSTALLATION HEIGHT.
DON’T DO
Installation height must be between
6.6ft and 13ft / 2m and 4m

- 7 -
PROTECH PIRAMID XL3
- INSTALL THE DETECTOR ON A STABLE MOUNTING SURFACE
DON’T mount the detector on a surface
exposed to strong vibrations, such as a fence
with no support or a flimsy metal surface.
DO: M
ount the detector on a wall or solid post
If it is installed on a building with a metal surface,
the support must be vibration-resistant.
- USE AS A MOTION DETECTOR AND NOT AS A PERIMETER DETECTOR
DON’T use the PIRAMID XL3 as a perimeter
detector. For good transverse detection, the
sensitivity must be set to maximum, which risks
increasing the number of unwanted alarms
triggered.
DO: Use the PIRAMID XL3 as an approach
detector (use of A, B or C lenses possible). A
low sensitivity setting enables a reduction of the
number of unwanted alarms triggered.

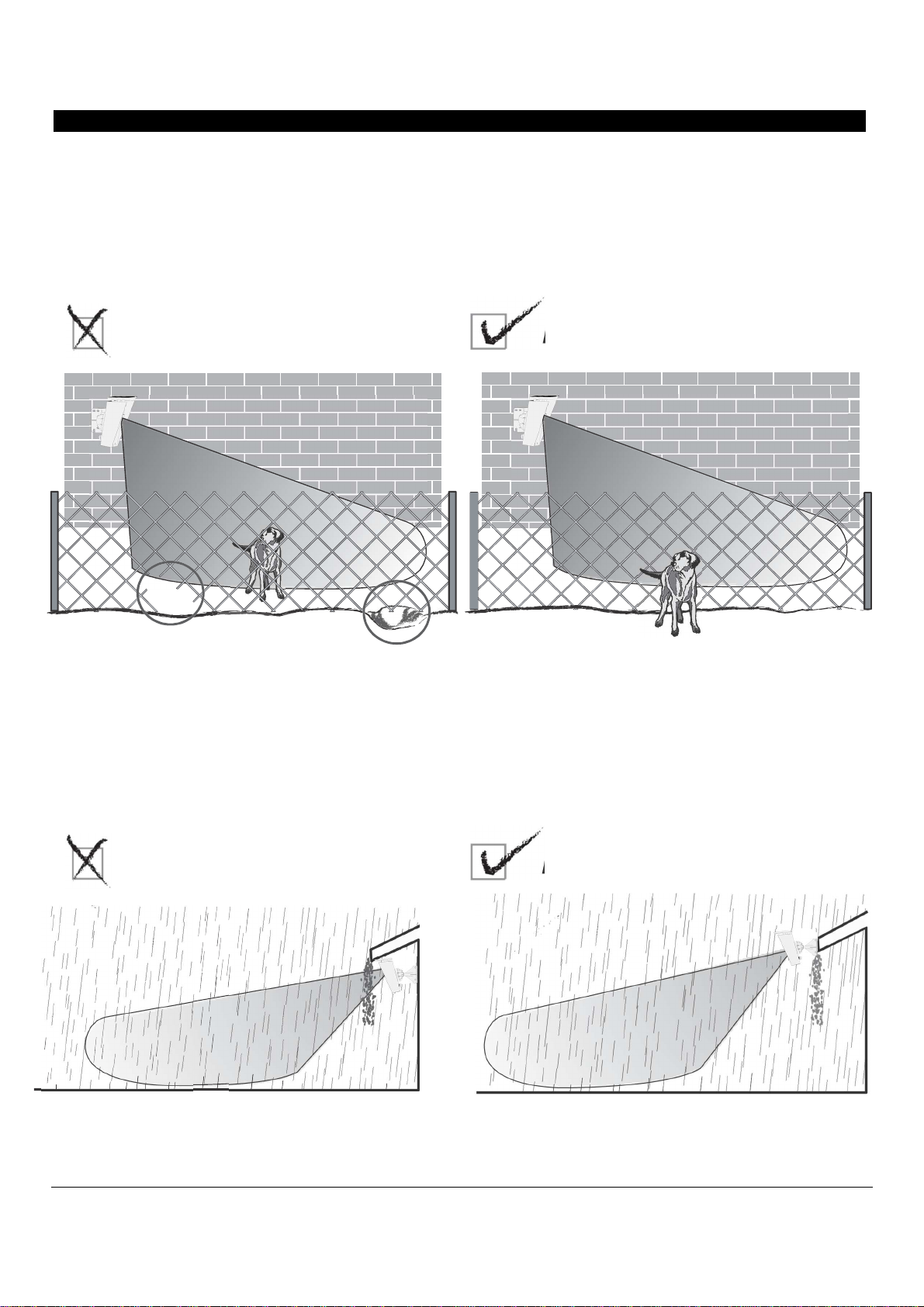

- BE CAREFUL OF WASTE WHICH COULD ATTRACT SMALL ANIMALS AND BIRDS
Vibration-resistant
Support Structure Support non sensible
aux vibrations
BUILDING BUILDING
DON’T DO
Vibration-resistant
Support Structure

- 8 -
PROTECH PIRAMID XL3
DON’T leave any bin in the range of the
detector which could attract small animals and
birds. When they are near to the detector, they
may be identified as larger targets by the
detector.
DO: Place bins away from the range of the
detector.
- BE CAREFUL OF BIRDS WHICH COULD PERCH IN THE RANGE OF THE DETECTOR
DON’T install the detector near to lighting
fixtures or signage. They can
be used as perches
by birds and trigger false alarms.
DO: Select a location which provides the
detector with a range which is free of any
obstacles.
DON’T DO
Rubbish
Rubbish
DON’T DO
