protech PT6 User manual

Security system for Mobile phone
( Android USB 5pin )
6 Ports with a remote control
INSTALLATION MANUAL
(MODEL : PT6)

Security system for Mobile phone
( Android USB 5pin )

2 Introduction
3 Safety information
4 Important safety instruction
5 Checking the parts
6 Details of the control box
7 Details of the remote control
8 Overview of installation procedure
9 Step 1. Mounting the IR sensor
10 Step 2. Assembling & Mounting the cradle
A Assembling the cradle
B Mounting the cradle
C Adjustig for the degree of cradle
11 Step 3. Connecting the charging & security cable Mobile phone
12 Step 4. Installing the control box
13 Step 5. Turn on the controlbox
14 Step 6. Testing the sensor connection
15 Charging & Security system
16 Manufacturer Information
INTRODUCTION
SAFTY INFORMATION
BEFORE INSTALLATION
INSTALLATION
LIMITED WARRANTY & Packaging information
CONTACT INFORMATION
Contents·1
Contents

2·Introduction
Introduction
KEY FEATURES
* This security system kit contains all the materials needed to build an anti-theft/anti-lost
system for a product displayed in an exhibition or retail store.
* The security system prevents a product from being lost or stolen with alarming sounds when
it is separated from the security sensor or when the security cable is cut-off.
* An administrator can turn off the alarming sound conveniently with the remote control of the security system kit
* The security system performs battery-charging and security function at the same time, hence
it can produce a stable and aesthetic exhibition environment.

Safety Warnings·3
Safety Warnings
The below are provisions to maintain safety of the user and prevent damage to property. Please read the provisions thoroughly and
properly use the product.
Warning: The user may be injured or property may be damaged for failure to comply with the provisions.
•Please only use the AC power adapter specified by the manufacturer!
- There is a danger of short circuit and fire.
•Do not spill water or liquid on the product or install in places with water or high humidity!
- There is a danger of short circuit and fire.
- Do not connect to the power supply in a wet condition (if connected, pluck out the power plug), remove the moisture with a dry towel.
•Never disassemble, repair, or remodel the product!
- There is a danger of fire and injury.
•Do not pluck out or touch the power plug and charger/sensor cable line with moist hands!
- There is a danger of electric shock, short circuit, and fire.
•Do not use a damaged power cable or plug, damaged charger/sensor cable, or loose outlet!
- There is a danger of electric shock, short circuit, and fire.
•Do not destroy the AC power cable and charging and security cable by forcefully bending it or by pressing it with a heavy object!
- There is a danger of electric shock, short circuit, and fire.
•Pluck out the power plug immediately if an unusual sound, smell, or smoke is detected, excluding the buzzer sound from the product!
- There is a danger of electric shock, short circuit, and fire.
•Do not touch the power plug, charging and security cable in the event of lightning and thunder!
- There is a danger of electric shock.
•Do not wind the AC power cable, charging and security cable around your neck or body!
- There is a danger of death or serious injury.
•Do not expose the product to fire or other electric heaters!
- There is a danger of fire or damage to the product.
•Do not forcefully bend or pull the cable!
- There is a danger of damage to the product or injury to the user.
•When the cable is disconnected or breaks away, don not touch the cable bare hands, but always wear protective hand gloves!
Safety Warnings: Prohibited activities to prevent electric shock, short circuit, fire, explosion and injury.

4·Inportant Safety Instructions
Important Safety Instructions
Warning: Failure to comply with the provisions may result in injury to the user
or damage to property.
• Do not install in places with water or high humidity!
- There is a danger of short circuit and fire.
• Do not install in unstable or shaky places!
- The equipment falling may cause injury.
- Call the service center if the equipment is damaged due to a fall.
• Do not install in places with high temperature fluctuations!
- Dew formation on the equipment may become the cause of electric shock or fire.
• Do not install in places exposed to direct light or where ventilation is poor!
- Overheating of the equipment or components or malfunctioning may cause fire.
• Do not put the product in or near a heater, microwave, oven, or high-pressure vessels!
- It can become a cause of deformation, destruction, or fire.
• Do not drop the product or inflict outside stimulation!
- There is a danger of incurring damage.
- Damage or malfunction may occur if the product is bent or twisted.
• Only the consumables or special editions such as cradle or charging and security cables designated by the manufacturer must be used!
- Otherwise, the life of the security alarm device may shorten or the product may malfunction.
- It may not be safe for the user to use a consumable or special editions not authorized by the manufacturer.
• Do not stab a security alarm device or basic component in your body, such as eyes or ears, and do not put it in your mouth!
- There is a danger of suffocation or incurring serious injury to your body.
• Always use and keep the product in clean places!
- A large amount of dust may become the cause of malfunctioning of the security alarm device.
The specifications and design of the product may be modified without prior notice for the improvement of product performance.
The below are provisions to maintain safety of the user and prevent damage to property. Please read the
provisions thoroughly and use the product properly.

· Plug gender will be enclosed in the package as correct shape of
each country is being used
· The design of remote controller is subject to change
·There are two types as below.
·These two types can be purchased optionally according to the request of the buyer.
Auxiliary paper: 2EA Adhension tape : 1EA
Checking the parts·5
Before Installation
Carefully unpack the packaging and make sure you’ve received all the parts. Cradle and Charging & Security Cables are optional. So, depending on
your order, the number of them can not be the same as described below.

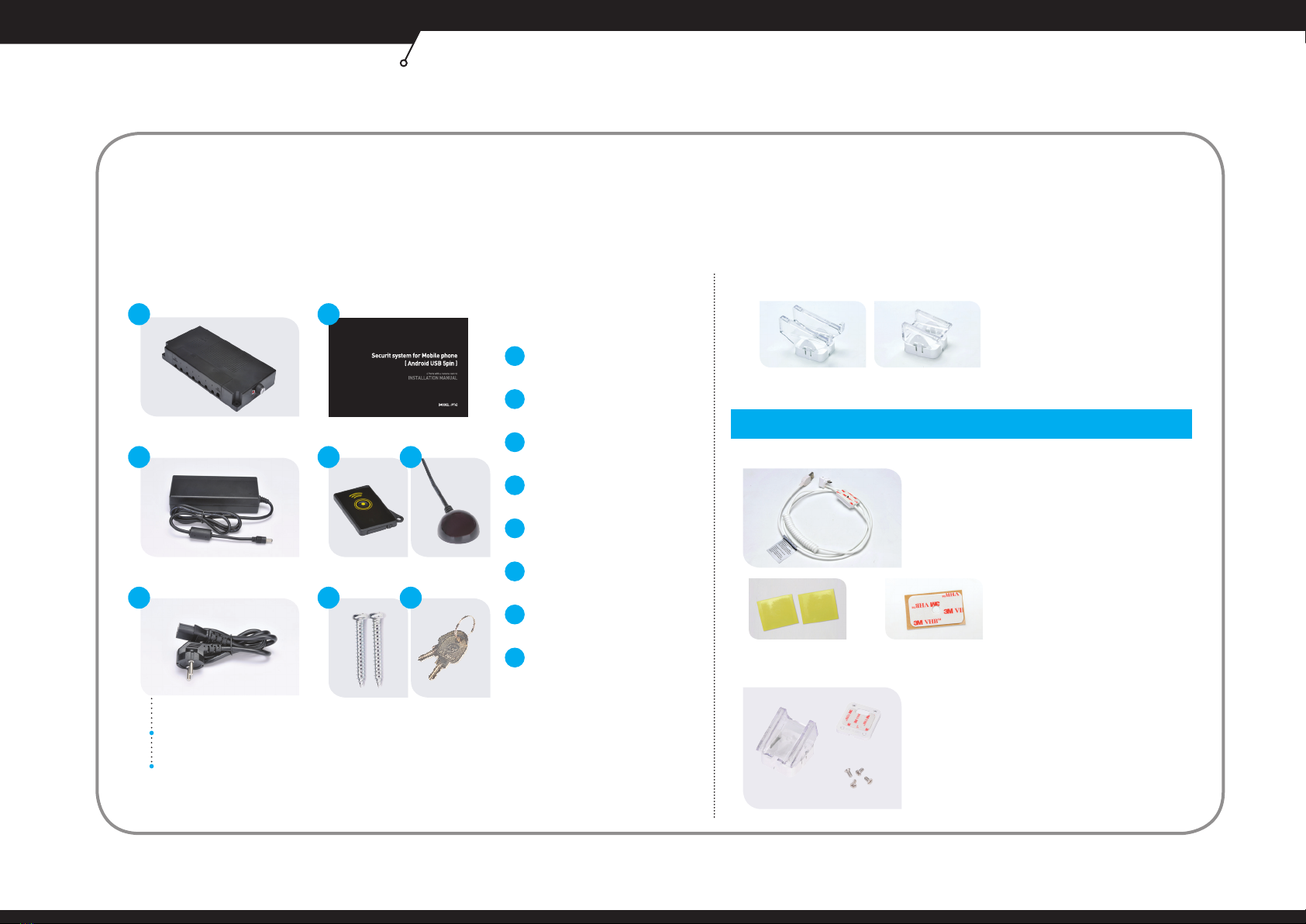

CHECKING THE PARTS
Elective items are changeable upon the request of the buyer
A-1
Charging & security cable (6EA)
Length : 1,300 ±30MM
B-1
Cradle assy. set (6Set)
- Cradle (6EA)
- Bottom lid (6EA)
- 3x8mm Screw (4EA)
Bottom lid
Cradle
Screw
Control box
Instruction manual
AC adaptor
Remote control
IR sensor
Power cable
4.5 X 12mm Screw (2EA)
Key (2EA)
1
3 4 5
86 7
1
2
3
4
5
8
6
7
2

6·Details of the control box
Before Installation

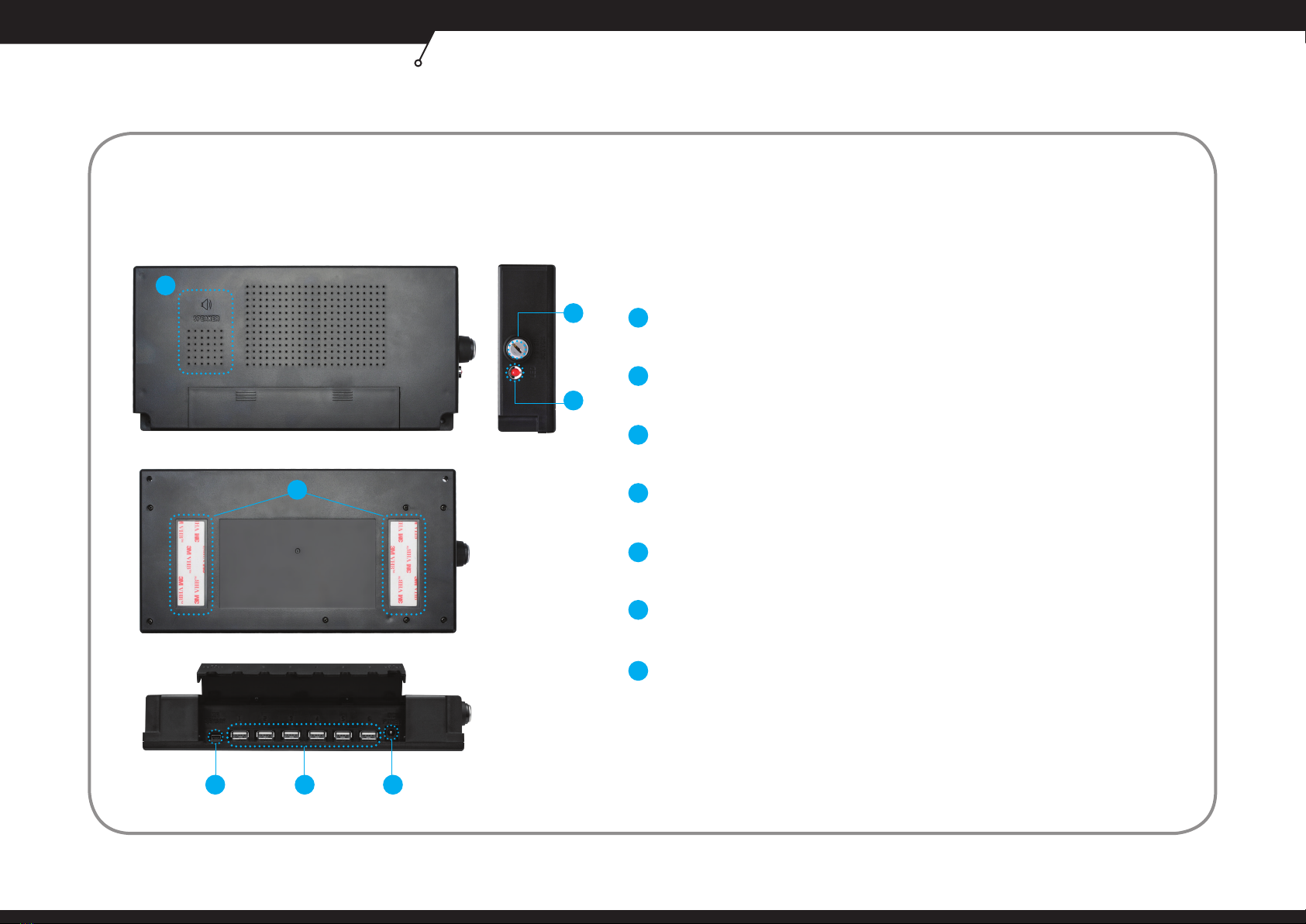

DETAILS OF THE CONTROL BOX
1
2
3
4
5
6
7
Speaker
Sound the alarm when something wrong happens on the security system.
LED lamp
When the power switch is on, red light turns on and DC power is supplied.
Power ON/OFF Key
Turn the key to the "ON" direction
Area for double-sided tape
Attach double-sided tape for mounting the control box
Mini USB port
Plug-in the Mini USB connector of the IR sensor
USB ports
Plug-in the USB connectors of the charging & security cable
Power-in port
Plug-in the power tip of the AC adaptor
1
2
3
4
5 6 7

Details of the control box·7
Before Installation
DETAILS OF THE REMOTE CONTROL
1
Protective film
To operate the remote control, peel off the Protective film
LED indicator
To turn off the alarm through the remote control, when the
alarmoff button is pushed, LED indicator is twinkling
Alarm off button
Turn off the alarm sound of the control box
2
3
1
3
2
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DASPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

8·Overview of installation procedure
Installation
OVERVIEW OF INSTALLATION PROCEDURE
Step 3.
Step 1. Step 2.
Connecting the charging & security cable
Mounting the IR sensor Assembling & mounting the cradle &
Adjusting degree of cradle
Step 4.
Installing the control box
Step 5.
FINISH
Step 6.
Turn on the control box Testing the sensor connection

Mounting the ir sensor·9
Installation

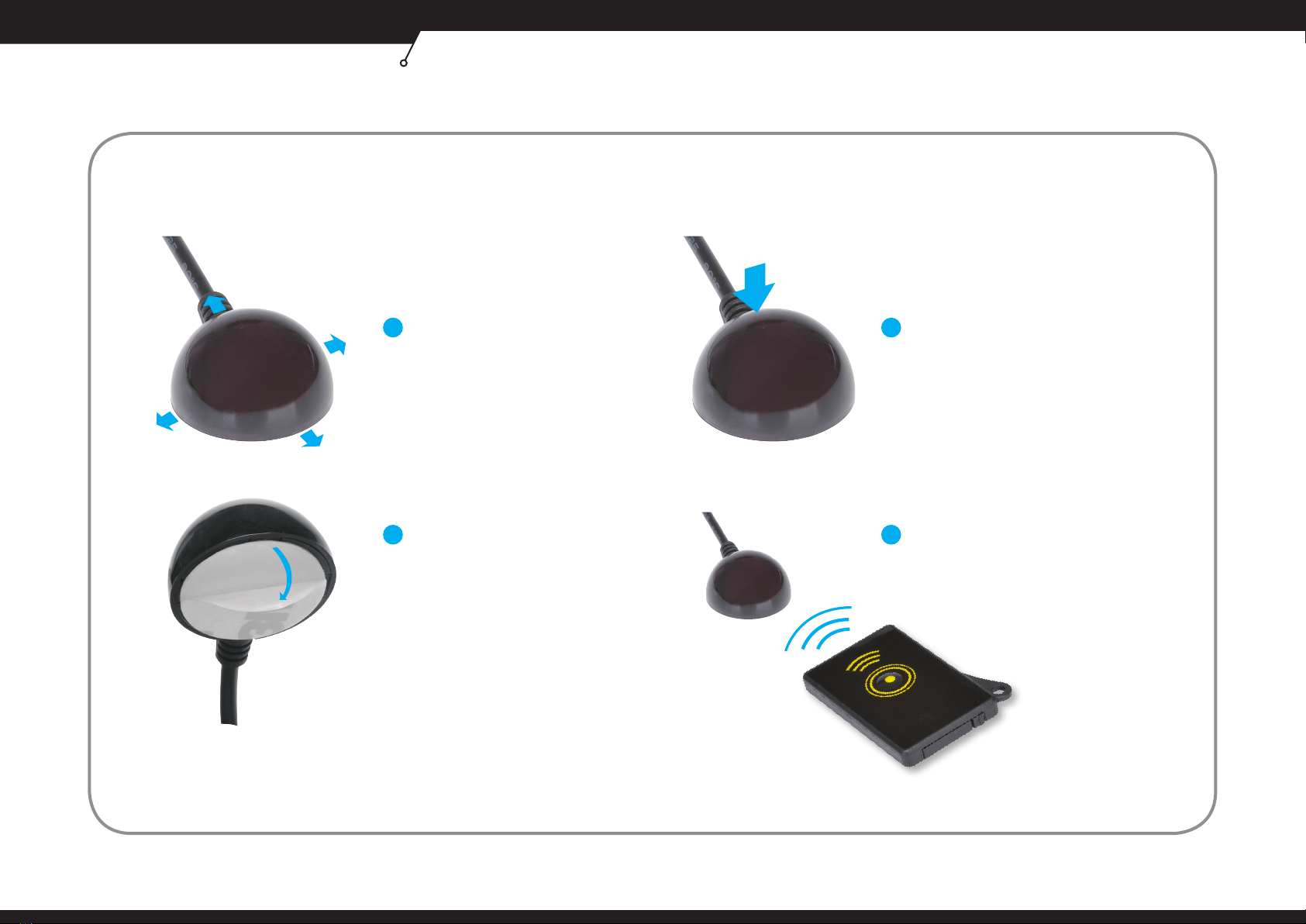

Step 1. MOUNTING THE IR SENSOR
3Press it firmly for the sensor to be
mounted on the table.
4Please do not hinder the IR
sensor so that it can receive the
signal from the remote control.
1Determine where the IR sensor
will be mounted on the table, and
clean the determined surface
thoroughly with a glass cleaner
and a clean towel.
2Peel off the protection film of the
adhesive tape.

10-A·Assembling the cradle
Installation
• To perform the work easily, Place the bottom of cradle facing up wards.
• Charging & Security cable is placed on the middle of the cradle, and push the charging & security cable along the furrow
• After finishing all the installing processes described above, close the bottom lid and fasten the screws.

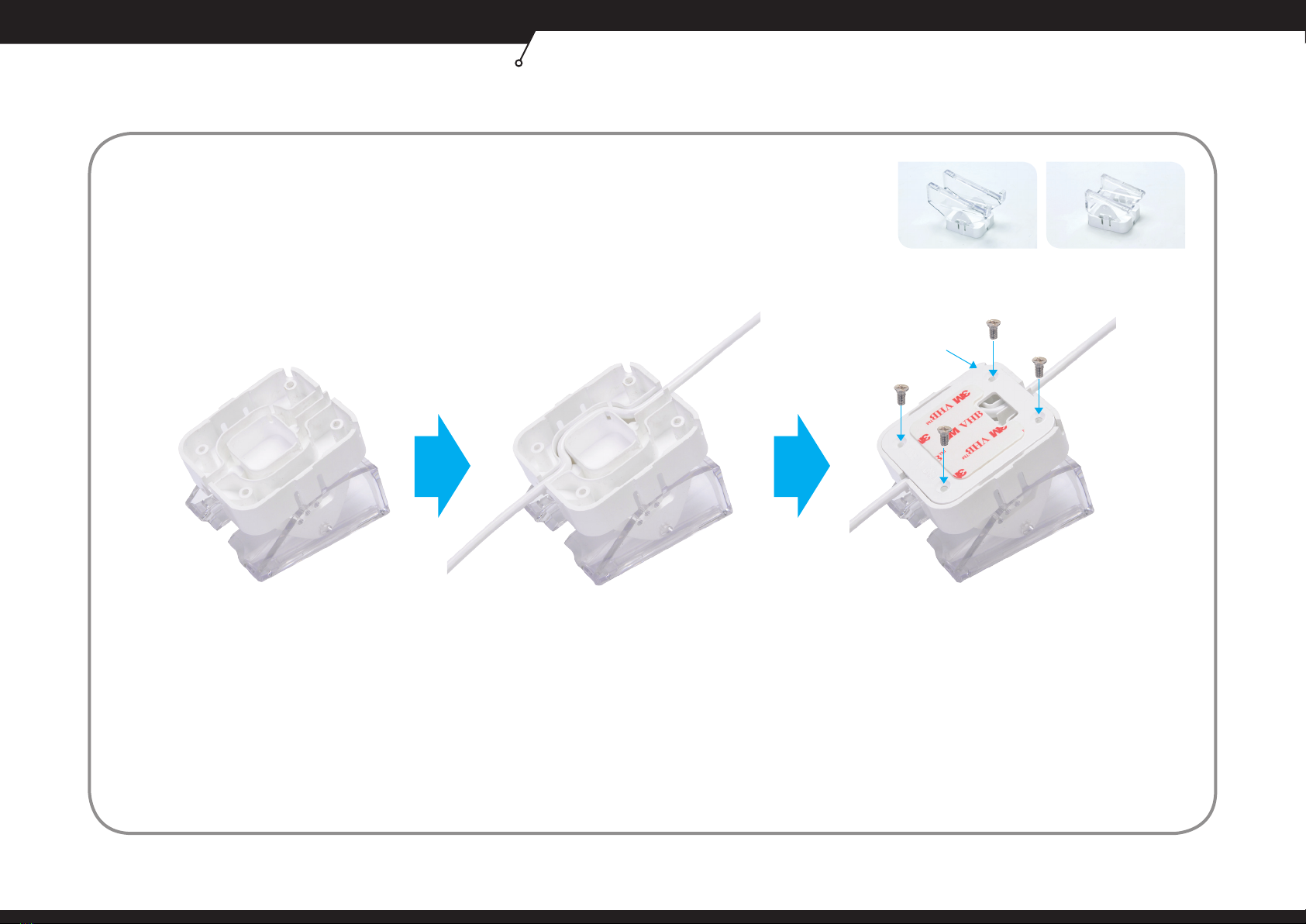

Step 2. ASSEMBLING THE CRADLE
Bottom lid
option1 option2

Mounting the cradle·10-B
Installation

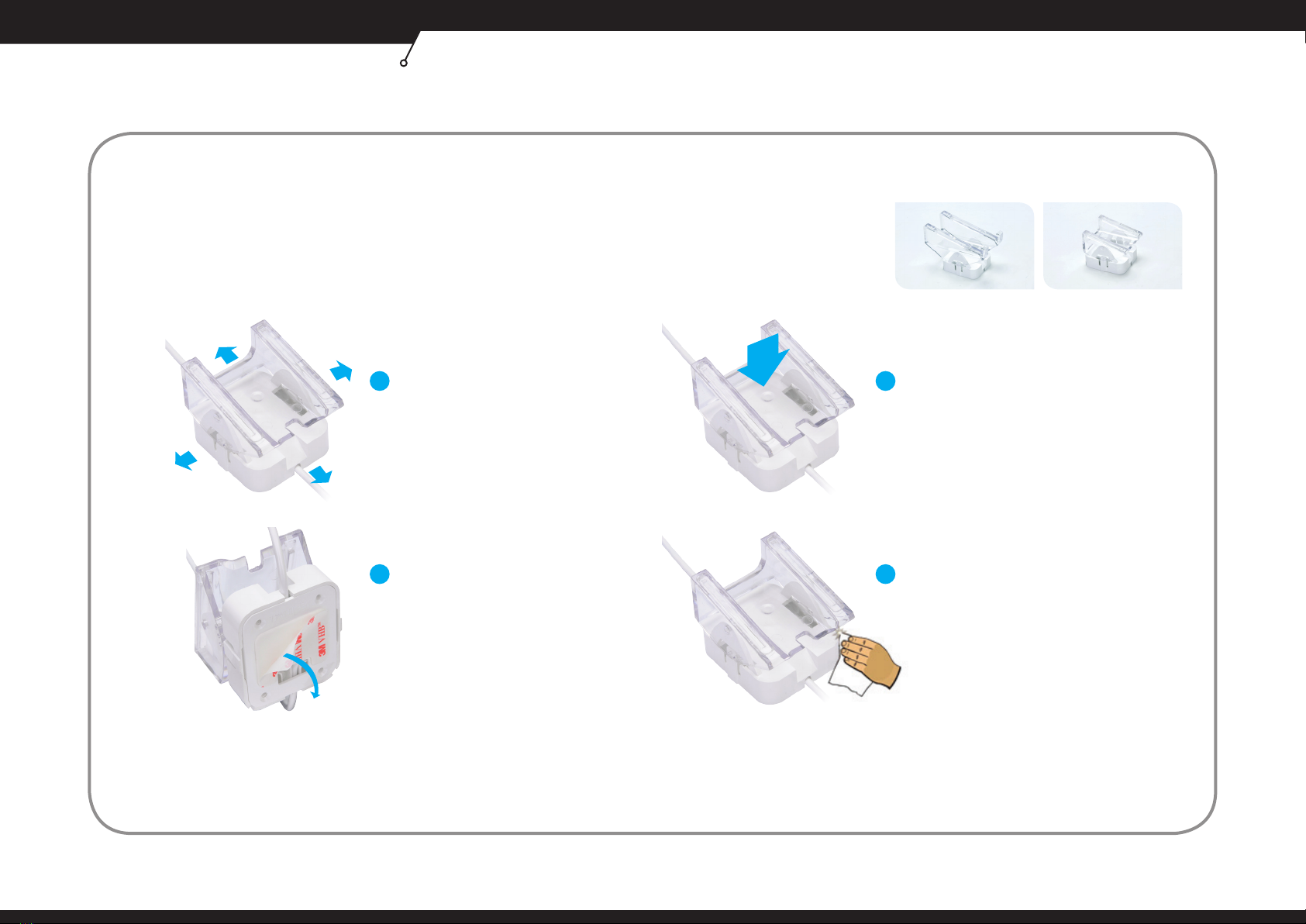

Step 2. MOUNTING THE CRADLE- for MOBILE PHONE
1Determine where the cradle will
be mounted on the table, and
clean the determined surface
thoroughly with a glass cleaner
and a clean towel.
3Press it firmly for the cradle to be
mounted on the table.
2Peel off all the protection films of
the adhesive tapes underneath
the cradle.
4Please wipe off dirt and finger
prints for the best looking of the
transparent material.
option1 option2

10-C·Adjusting for the degree of cradle
Installation
Cradle adjust to the that is the angle most comfortable for you

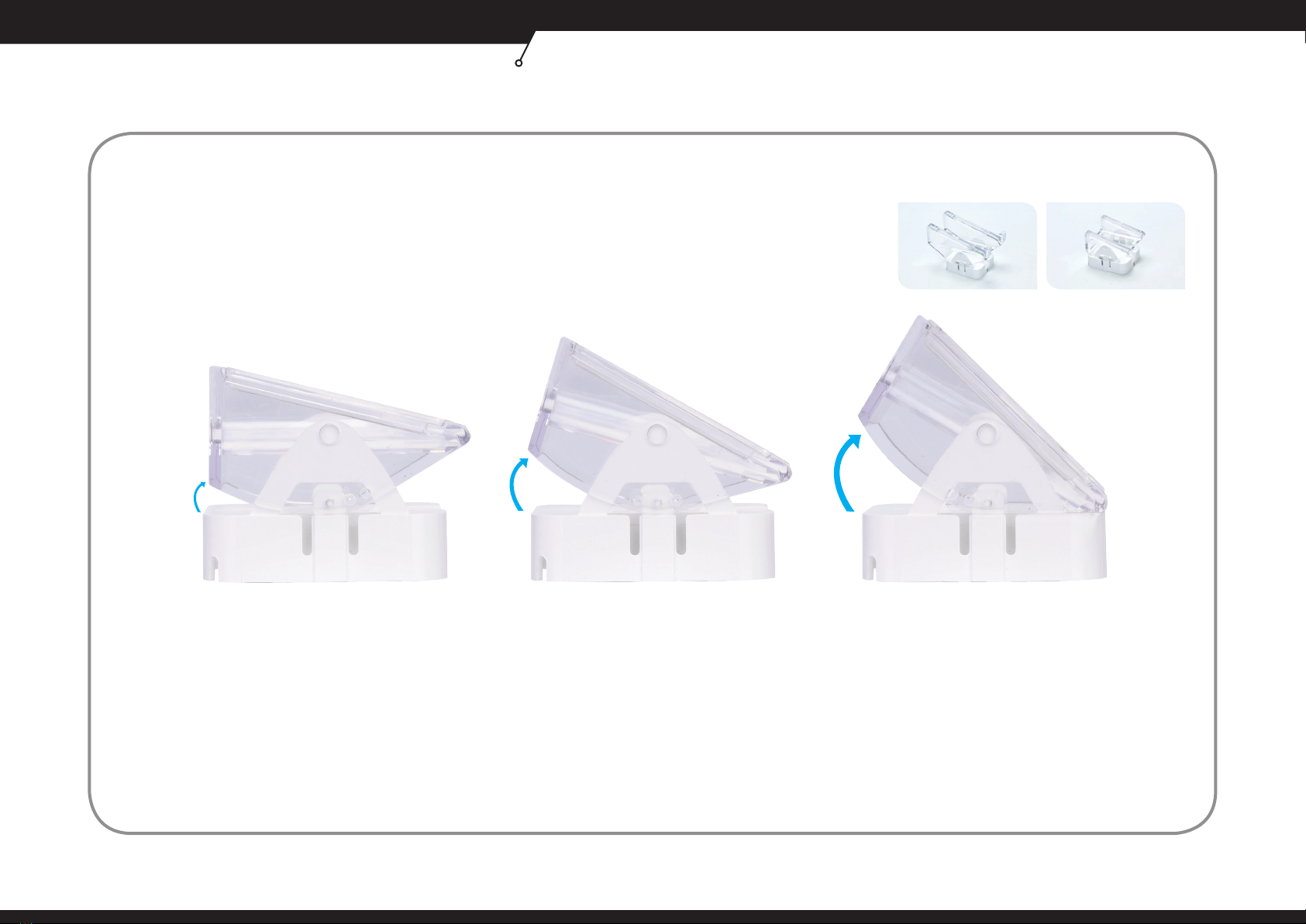

Step 2. ADJUSTING for THE DEGREE OF CRADLE
option1 option2

Connecting the charging & security cable for mobile phone·11
Installation

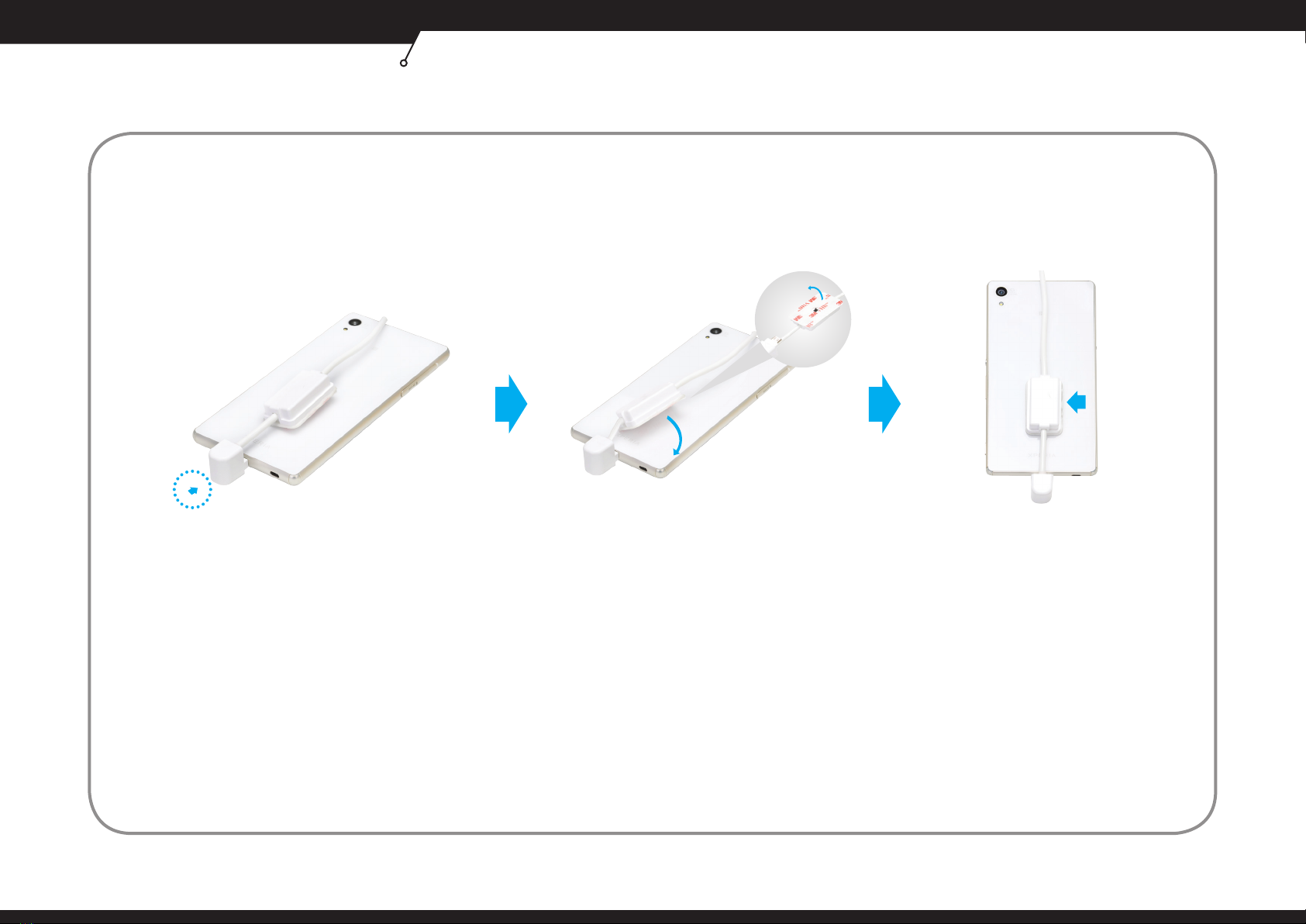

Step 3. CONNECTING THE CHARGING & SECURITY CABLE - for
MOBILE PHONE
Plug the charging & security connector
into the charging port of a mobile phone.
※Position of charging port may vary depending on type
of mobile phone.
Peel off the protection film of the adhesive
tape of the Fixing clamp.
And then, press it firmly for the Fixing
clamp to be mounted on the top position.
※Adhesion of double sided tapes used for Fixing
clamp attachment may vary depending on materials
of adhesion side and bend of surface and adjacent
temperature. Considering the nature of double sided
tapes, normal level of adhesion can be achieved at
least 24 hours after adhesion
After Fixing clamp is mounted,
finish the job for connecting
the charging & security cable
to the mobile phone.
Fixing clamp

12·Installing the control box
Installation
After Fixing clamp is mounted, finish the job for connecting the charging & security cable to the mobile
phone.
And then, Lock the control box on the determined location with two screws (4.5mmx12mm, You need
to prepare a “+” screw driver).
Plug the power tip of the AC
adapter into the power-in port
of the control box, and plug
the power cable into an AC
outlet.
Plug the mini USB connector
of the IR sensor into the mini
USB port of the control box.
Plug the USB connectors of
the charging & security cables
into the USB ports of the
control box. (Up to 6 cables
can be connected at once.)
Close the lid and finish the
installation
Step 4. INSTALLING THE CONTROL BOX

Turn on the control box·13
Installation
Step 5. TURN ON THE CONTROL BOX
Turn the key to the "ON" direction, and check the
LED light on

14·Testing the sensor connection
Installation

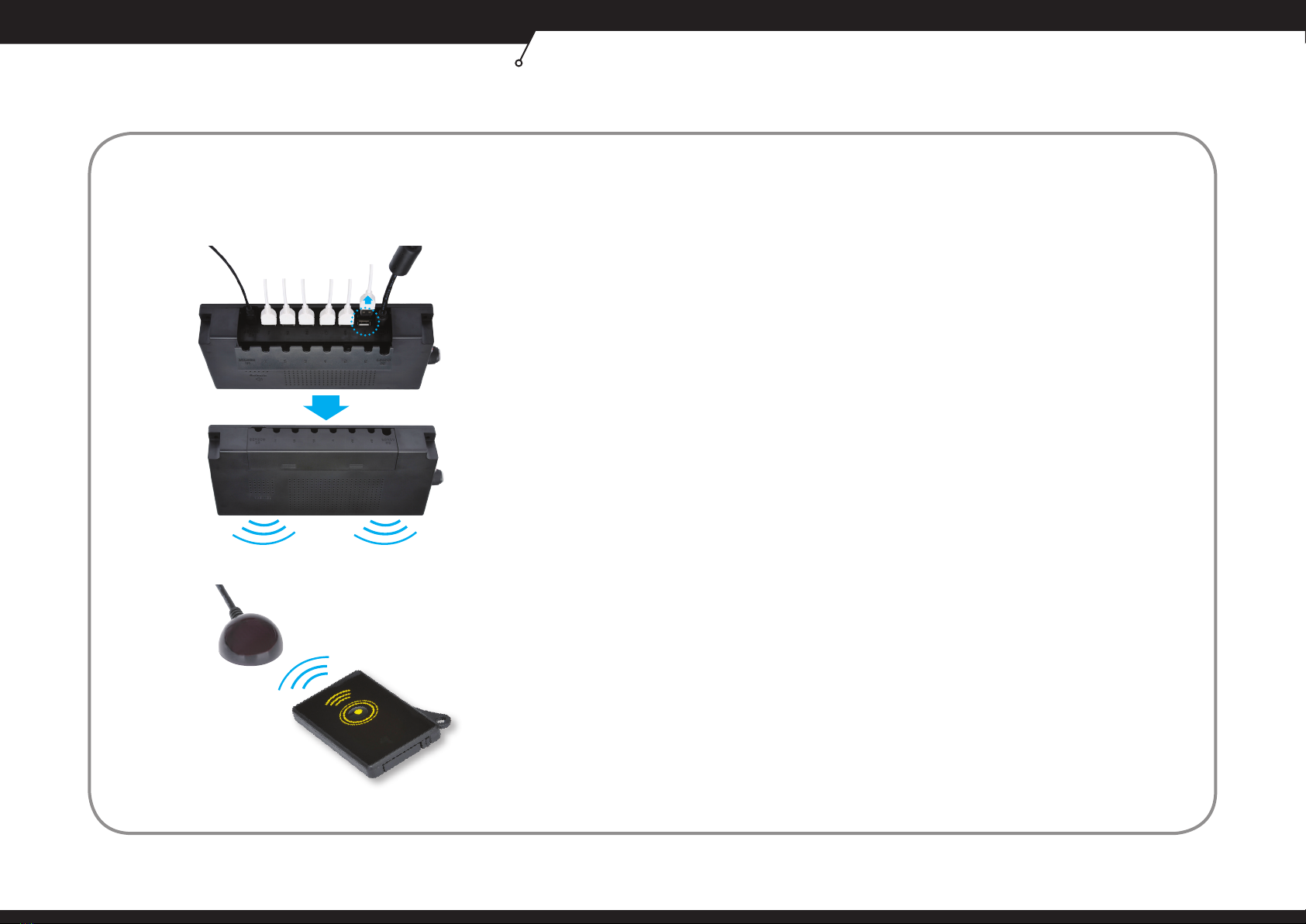

For testing sensor connection, please unplug one of the USB connectors of the
charging & security cables from the USB ports.
If it rings the alarm sound, the connection is successful.
Otherwise, please check the connection, and rework the chapter, “CONNECTING THE
CAHRGING & SECURITY CABLE” of this installation instructions.(refer to page 11)
Push turn off botton of the remote control for turning off Alarm
Beep...Beep Beep...Beep
Step 6. TESTING THE SENSOR CONNECTION

Limited Warranty ·15
Limited Warranty & Packaging information
Charging & Security System
Packaging information
Item
Components Period
Controller Warranty period for one year
AC adaptor Warranty period for one year
Cradle One year for cradle / 8 months for silicon
Charging & security cable Warranty period for 8 months
Remote control Warranty period for one year
IR sensor Warranty period for one year
* In case of user’s fault during the warranty period it is not free of charge.
[Inner box] [Carton box]
108
325
310 570
320
360
Measurement : Length X Width X Height (mm)
(310 X 325 X 108)
Weight per box : 2,969g
Measurement : Length X Width X Height (mm)
(570 X 320 X 360)
Weight per box : 15,910g (Include 5 inner boxes)

Manufacturer Information
Contact Information
PROTECH Co.,Ltd
48, Sosam-ro, Sosa-gu, Bucheon-si Gyeonggi-do, (Seoul 422-233 Korea)
Tel : [phone] Fax : [phone] E-mail : [email protected]
Manufacturer Information·16
