Protege pumps P2000 User manual

External Aquarium Filter/Pump -

P2000

User Manual

[Revision 3.0 January 2018]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

External Aquarium Filter/Pump - P2000

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is important that you read and

understand the instruction manual before

use and keep the manual in a safe place

for future reference. Safety information

presented here is generic in nature – some

advice may not be applicable to every

piece of equipment.

All safety precautions must be observed to

reduce the risk of personal injury when

operating the equipment.

The term “equipment" refers to your

product, be it electrical mains, battery or

petrol engine powered.

IMPORTANT – Handle the equipment

safely and carefully.

BEFORE USE - If you are not familiar with

the safe operation/handling of this

equipment, or are in any way unsure of any

aspect of suitability or correct use it for

your application, you should complete

training conducted by a person or

organization qualified in safe use and

operation of this equipment, including

fuel/electrical handling and safety.

WARNINGS

•Read all safety warnings and all

instructions. Failure to follow warnings

and instructions may result in electric

shock, fire and/or serious injury.

•Never run a combustion engine in

confined areas.

•Do not operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. Engine and

equipment may create sparks or heat

that may ignite vapours, dust etc

•Keep clear of moving parts.

•This equipment may be a potential

source of electric shock if misused.

•Do not operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do not allow others to use the

equipment unless they have read this

manual and are adequately trained.

•When using the equipment, basic

safety precautions detailed here must

always be followed to reduce the risk

of fire, electric shock, personal injury

and material damage.

•When wiring electrically powered

equipment, follow all electrical and

safety codes.

•Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting

equipment.

General Work Area Safety

Work areas should be clean and well it.

Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

Personal Safety

Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

Prevent unintentional starting of the

equipment - ensure equipment and power

source switches are in the OFF position

before connecting or moving the

equipment. Do not carry equipment with

hands/fingers touching any controls.

Remove any tools or other items that are

not a part of the equipment from it before

starting or switching on.

Stay alert and use common sense when

operating equipment. Do not overreach.

Keep proper footing and balance at all

times. Do not use equipment when tired or

under the influence of drugs, alcohol or

medication. This equipment is not intended

for use by persons with reduced physical,

sensory or mental capabilities.

You must wear appropriate protective

equipment when operating, servicing, or

when in the operating area of the

equipment to help protect from serious

injury, including eye injury, inhalation of

toxic fumes, burns, and hearing loss.

Always wear eye protection. Protective

equipment such as respirators, non-skid

safety shoes, hard hat, hearing protection

etc should be used for appropriate

conditions. Other people nearby should

also wear appropriate personal protective

equipment. Do not wear loose clothing or

jewellery, which can be caught in moving

parts. Keep hair and clothing away from

the equipment.

If devices are provided for the connection

of dust extraction and collection facilities,

ensure these are connected and properly

used. Use of dust collection can reduce

dust-related hazards.

General Equipment Use and Care

Do not force the equipment. Use the

correct equipment for your application. The

correct equipment will perform better and

be safer within its design parameters. Do

not use the equipment if the ON/OFF

switch malfunctions – any equipment that

cannot be controlled with the ON/OFF

switch is dangerous and must be repaired.

Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the work

to be performed. Using the equipment for

operations different from those intended

could result in hazardous situations.

Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by an

authorized service centre or technician before

use.

Always keep the equipment and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment, controls

and handles dry and free from dirt, oil and

grease.

Store the equipment out of reach of children

or untrained persons. To avoid burns or fire

hazards, let the equipment cool completely

before transporting or storing. Never place

the equipment in places where there are

flammable materials, combustible gases or

combustible liquids etc.

The equipment is not weather proof, and

should not be stored in direct sunlight, at high

ambient temperatures or locations that are

damp or very humid.

General Service Information

Have the equipment serviced or repaired at

authorized service centres by qualified

personnel only.

Replacement parts must be original

equipment manufacturer (OEM) to help

ensure that equipment safety is maintained.

Do not attempt any maintenance or repair

work not described in this instruction manual.

After use, the equipment and components

may still be hot – allow the equipment to cool

and disconnect spark plugs and/or electrical

power sources and/or batteries from it before

making adjustments, changing accessories or

performing repair or maintenance.

Do not make adjustments while the

equipment is running.

Perform all service related activities under

suitable conditions, such as a workshop etc.

Replace any worn, damaged or missing

warning labels immediately.

Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

External Aquarium Filter/Pump - P2000

Table of Contents

Safety...................................................................................................................................................2

Parts Identification.............................................................................................................................4

Assembling the Water Intake/Drainage Tubes...............................................................................5

Operation ............................................................................................................................................6

Troubleshooting.................................................................................................................................7

Specifications.....................................................................................................................................8

External Aquarium Filter/Pump - P2000

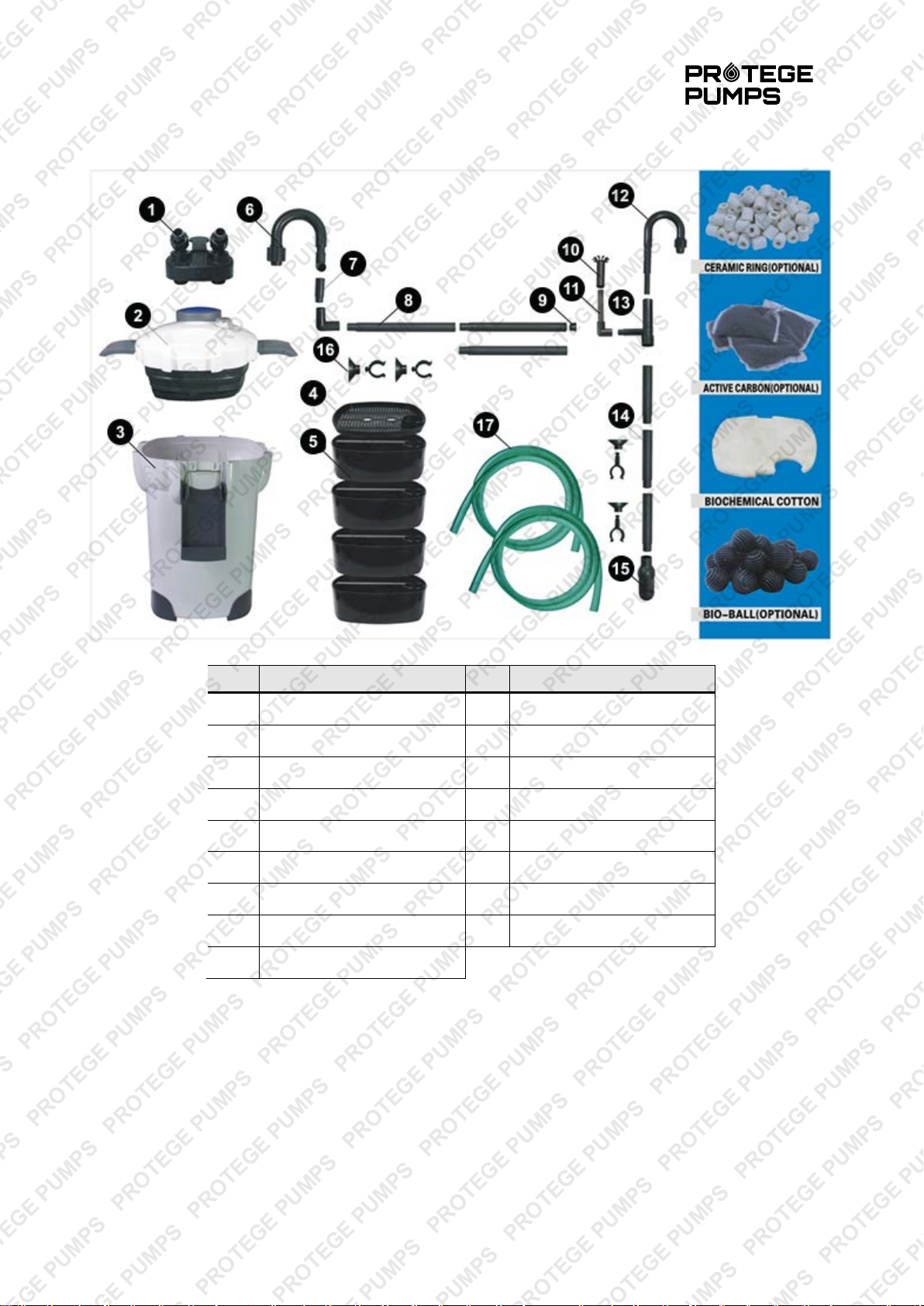

Parts Identification

No. Name No. Name

1 Intake and drainage tubes 10 Dirt/Waste entrance tube

2 Barrelhead 11 Connecting tube

3 Main body 12 Curvy intake tube

4 Draining skep cover 13 Joint of dirt/waste entrance

5 Draining skep 14 Intake tube

6 Curvy drainage tube 15 Intake cover

7 Connecting tube 16 Suction disc

8 Spray tube 17 Pipe

9 Spray tube cover

PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS

External Aquarium Filter/Pump - P2000

Assembling the Water Intake/Drainage Tubes

External Aquarium Filter/Pump - P2000

Operation

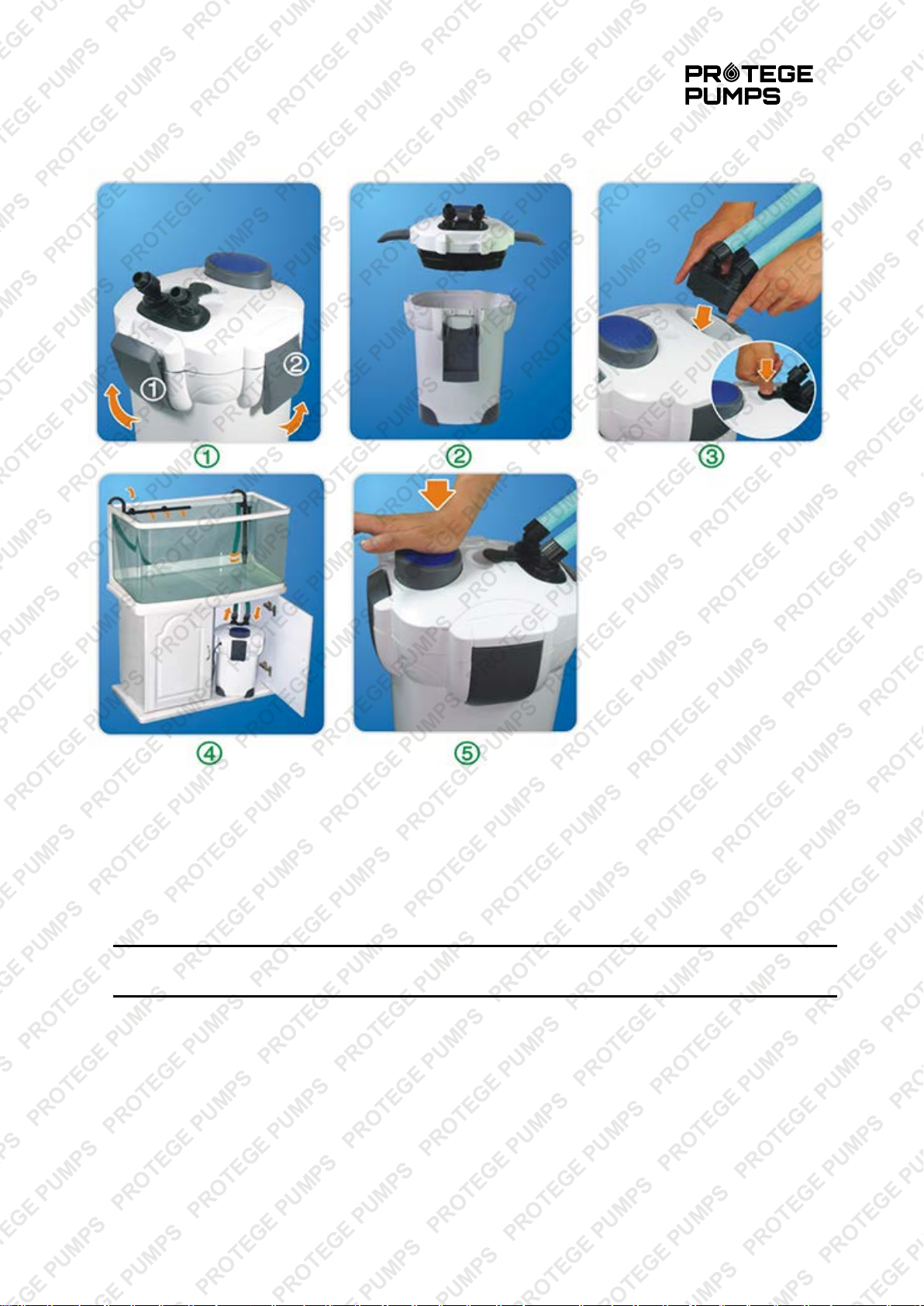

1. Figures 1 and 2: The buckles should be unfastened first, which will separate the main body and the

barrelhead.

2. Figures 1 and 2: Put the draining skeps with the filter medium into the main body. Press the barrelhead

with your hands to combine the main body and the barrelhead. Then, fasten the buckle.

3. Figure 3: Pull the buckle to take out the intake and drainage tubes. After this, the intake and drainage

tubes should be installed and they should be fastened by nuts. Then, put the intake and drainage tubes

back to its former place and press the buckle to secure the intake and drainage tubes.

4. Figure 4: Install the curvy intake and drainage tubes in the aquarium.

NOTE: The curvy tube with the spray tube is the drainage tube; the curvy bar with the dirt/waste

entrance tube is the intake tube.

5. Figure 5: Press the big blue button. It will then rebound. The intake tube will then pump water into the

main body, which pushes the air out of the main body through the drainage tube. When the level of water

in the drainage tube is equal to the level of the water in the aquarium, you can then plug in the filter to

make it work.

External Aquarium Filter/Pump - P2000

Troubleshooting

Problem Cause Solution

Filter does not respond when the

big blue button has been pressed.

The intake and drainage tubes

have not been connected

correctly.

Re-connect the intake and

drainage tubes again; the tube

with the dirt/waste entrance tube

is the intake tube.

The motor is not responding.

The power is off. Turn the power on.

The shaft is broken. Replace the shaft.

The impeller is missing, or the

motor is clogged with foreign

materials such as pebbles, shells,

etc.

Install an impeller or clean out the

drive system

Inhibited water flow.

Hose adapter unit is excessively

dirty. Detach the hose adapter unit and

clean the inside with a brush.

The tubes have not been

connected correctly. Check whether the tubes are

entangled or coiled.

Excessive built-up of dirt/waste in

the tubes.

Clean the insides of the tubes

and the intake and drainage

tubes periodically.

Filtering material is clogged. Remove the filtering material and

wash it with tank water.

Filter emits an unusual sound

when turned on.

Air is entering from the tube

connections. Check whether the tubes are

connected properly.

Air is present in the filter case. With the power on, shake the unit

to help remove the remaining air.

Filter emits an unusual sound

when it is operating.

Insufficient application of

lubrication. Apply ample amounts of

lubrication to all of the O-rings.

Air is present in the filter.

Alternately plug and unplug the

filter 3 – 4 times. Shake the filter

gently to remove the remaining

air.

Damaged impeller/drive magnet

or spindle. Replace the parts (consult with an

authorised dealer or centre).

Decrease in water flow causes

the impeller/drive magnet to

accumulate waste/dirt.

Clean out the impeller and/or the

unit.

External Aquarium Filter/Pump - P2000

Specifications

Flow Rate 1,250 Litres per hour

Voltage 240v AC

Frequency 50Hz

Power 25W

Head-Max output 1.4m (for optimum output this unit should sit

beside or below the tank)

Hose Internal diameter: 19mm

External diameter: 25mm

Length: 1.8m (x2)

Power cable length 1.5m

Bio ball capacity: 30 – 40 (not included)

Product Size (L x W x H) 235 x 235 x 390mm

Note: This unit is suitable for use in an indoor environment only.

External Aquarium Filter/Pump - P2000

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.

Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.

Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.

Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.

The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.

This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.

If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Table of contents

Popular Aquarium manuals by other brands

Oase

Oase BioPlus 50 operating instructions

happet

happet AQUA T 25 user manual

Aqueon

Aqueon ProMag instructions

Deltec

Deltec TC 1000ix operating instructions

Deltec

Deltec CR TwinTech Installation

Tunze

Tunze DOC Skimmer 9460 Instructions for use

ENBION

ENBION TWINSTAR NANO Manual & warranty

Aquadistri

Aquadistri SuperFish AquaVac manual

TMC

TMC REEF-Fill Compact Instructions for installation and use

SR Aquaristik

SR Aquaristik Pro Skim 80 installation instructions

Aquadistri

Aquadistri SuperFish Nano LED user manual

Marineland

Marineland Aquarium LED 18 Installation and Usage

Tunze

Tunze Turbelle 6065 Instructions for use

Amtra

Amtra LAGUNA 30 LED manual

Cubic

Cubic PULSE 160 user guide

Red Sea

Red Sea Reefer-S 850 Assembly manual

AQUA DREAM

AQUA DREAM REEF-450-SILVER Assembly instructions

Innovative Marine

Innovative Marine Nuvo EXT-75 instruction manual

Protege Pumps P2000 User manual

Popular Aquarium manuals by other brands
