Protekt TM 15 User manual

1/5
0000356
TM 15
SAFETY TRIPOD
EN 795/B TS 16415/B
ed. 1/22.01.2020

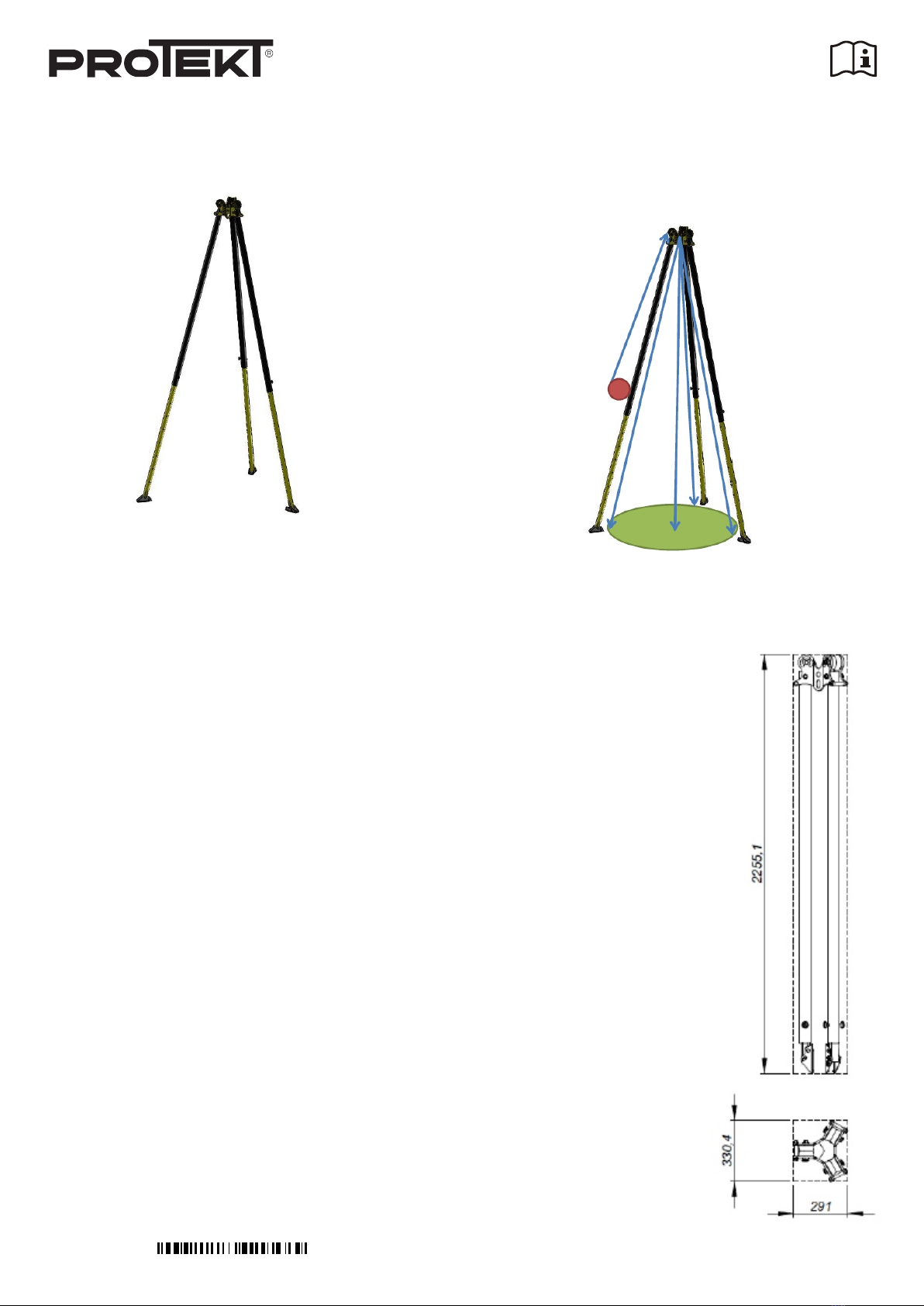

Fig. 1 – General view of device TM15
1. GENERAL DESCRIPTION
Safety tripod TM15 is an anchor point compliant with EN 795/B and document
TS 16415/B and can be used as a component of fall protection equipment.
Tripod TM15 provides protection for up to 3 users at a time.
Tripod TM15 is composed of powder-coated aluminium head, equipped with 3
polyamide rollers with bearings (for work guidance in rescue devices CRW200 /
RUP502-U / RUP503-U / RUP504 / RUP506). The head is fitted with 3 anchor
points located at its side walls. Each of these points can be used as an anchor
point for fall protection equipment. One point is designed to be used by
maximum one user at a time.
The above mentioned rescue devices can be mounted on each of three
aluminium telescopic legs by means of universal holder UTB (AT017-300). Each
telescopic leg is terminated with a foot made of zinc-plated steel, equipped
with rubber pad. Each foot has teeth which penetrate through loose or slippery
ground (soil, sand, grit, ice, snow). Inner leg is locked in outer leg using
automatic pin with locking fins which are released by button in pin holder.
Basic parameters of device:
· Maximum height “under head”: 3.13m
· Minimum height “under head”: 1.97m
· Range of diameters above which tripod can be unfolded: 1.1...1.7m.
2. LOAD LIMIT AND STRENGTH
a) GENERAL INFORMATION
Minimum Breaking Strength (MBS): 21kN.
The device can be loaded vertically downwards within a space limited by legs of
the device.
Maximum load that could be transmitted in service from the device to the
static construction – 10kN.
If the device is used as a part of a fall arrest system, the user must be equipped
with an element limiting maximum dynamic forces applied on user while
arresting a fall to max. 6kN.
b) FOR MATERIAL TRIPODS
installed on the tripod head and/or leg using universal holder UTB (AT017-300):
Working Load Limit (WLL): 1000kg
Safety Factor (SF): 2,1:1.
c) FOR PERSONAL PROTECTIVE EQUIPMENT (PPE) mounted to anchor points
located on the head:
Maximum 3 users at the same time. Whereas one user is connected to one
anchor point.
According to the requirements of EN 795/B and document TS 16415/B strength
of the device is min. 14kN
d) FOR DEVICES FOR PERSONNEL RESCUE
installed on the tripod leg using universal holder UTB (AT017-300):
Working Load Limit (WLL): 200kg
Safety Factor (SF): 10:1.
Work load of rescue device used cannot be greater than 200kg.
Fig. 2 – Permissible directions of loading of anchor point within inner area
determined by tripod legs
3. TRANSPORT AND WEIGHT
Weight of complete device: 28.7kg.
Personal fall protection equipment must be
transported in a package (e.g.: bag made of
moisture-proof textile or foil bag or cases
made of steel or plastic) to protect it against
damage or moisture.
4. MAINTENANCE AND STORAGE
Personal protective equipment should be
cleaned without causing adverse effect on
the materials used in the manufacture of the
equipment. For textile materials (webbings,
ropes) use agents suitable for delicate
fabrics. Can be washed in hands or in a
washing machine. Rinse thoroughly. Wash
textile elements with water only.
- When the equipment becomes wet, either
from being in use or after cleaning, allow it
to dry naturally, and keep it away from
sources of heat. In metallic products
lubricate slightly some mechanical parts
(springs, hinges, pawls, etc.) regularly to
ensure their better operation.
Personal fall protection equipment should
be stored loosely packed in well-ventilated
rooms, protected from direct light, UV
degradation, dust, sharp edges, extreme
temperatures and aggressive chemical
substances.
Fig. 3 – Transport dimensions
READ AND UNDERSTAND INSTRUCTION MANUAL
BEFORE USING THE EQUIPMENT

5. GENERAL DIMENSIONS
Fig. 4 – General dimensions of device – front view
Fig. 5 – General dimensions of device – bottom view
6. TIME OF USAGE
Maximum time of usage of correctly operating devices is unlimited.
The device must be withdrawn from use immediately and destroyed if it has
been used to arrest a fall or there are any doubts concerning its function.
NOTE: Maximum time of usage of the device depends on intensity and
environment of use. If the device is used in heavy conditions, being exposed to
frequent contact with water, sharp edges, corrosive substances, extreme of
temperatures, it may be necessary to withdraw the device after only one use.
7. PERIODIC INSPECTIONS
At least once a year, after every 12 months of use, it is necessary to carry out
periodic detailed inspection of the device.
Periodic inspection may be carried out by a properly qualified and skilled
person.
After 5 years of use, it is recommended that periodic inspections are carried
out by the manufacturer of the equipment or an entity authorised by the
manufacturer to carry out such inspections.
8. MARKING OF DEVICE TM 15
Marking elements:
a) Name/ type of device
b) Model designation of device.
c) Reference number.
d) Number/year/class of European standard.
e) CE mark and number of notified body which supervises the production of the
equipment.
f) Month and year of manufacture.
g) Serial number of device.
h) Attention: read instruction manual.
i) Mark of device's manufacturer or distributor.
j) Maximum number of concurrent users
Fig. 6 – Identity label of device TM 15
Fig. 7 – Location of marking of device AT254
2/5
Fig. 8 – “Next inspection” sticker
“Next inspection” sticker should be affixed near identity label and it is
necessary to mark month and year of the next periodic inspection. Do not use
the device after this date.
Note: Before the first use, mark the date of next inspection (date of first use +
12 months, e.g. first use 01.2013 – mark 01.2014).
“Next inspection” sticker affixed near identity label.
9. INSTALLATION OF TRIPOD
It is recommended that tripod TM 15 is installed by two people.
a) Place the tripod vertically in the lowest position on a level, stable and hard
surface. The legs should be turned outside to the maximum.
Make sure that feet are placed on a hard surface and can bear the load. The
tripod should be placed above opening so that work rope is approximately in
the middle of the opening.
max. 3 x
EN 795:2012/B
TS 16415:2013/B
SAFETY TRIPOD TM-15
Date of manufacture: MM.YYYY
Serial number: 000001
Ref. AT-017
WLL: 1000kg
MBS: 2100kg

b) Optionally attach retractable type fall arrester to side attachment point on
the head.
c) Pull out tripod legs to a desired length and lock them using locking cotter
bolts. Adjust length of legs so the head is located horizontally.
Legs must be of the same length at all times.
d) Automatic pin is equipped with locking fins which are unlocked by button in
the handle. The pin must be pushed in completely in order to lock the fins
correctly.
3/5
e) Correctly locked automatic pin.
f) Secure tripod legs against accidental moving apart with a chain. Chain ends
must be connected with carabiner.
The chain should be well tensioned between tripod legs. If necessary remove
any excess clearance. Instead of chain, special strip (delivered with tripod) can
be used.
g) Optionally it is possible to install steps AT013-300 allowing for easy access to
the device head during installation of work rope. Steps are installed by pushing
cotter bolt in inner leg adjustment holes.
h) For tripod TM15 it is recommended to use at least 4 steps AT013-300.
i) To fold the tripod, remove steps, pull out cotter bolts and fold the legs.

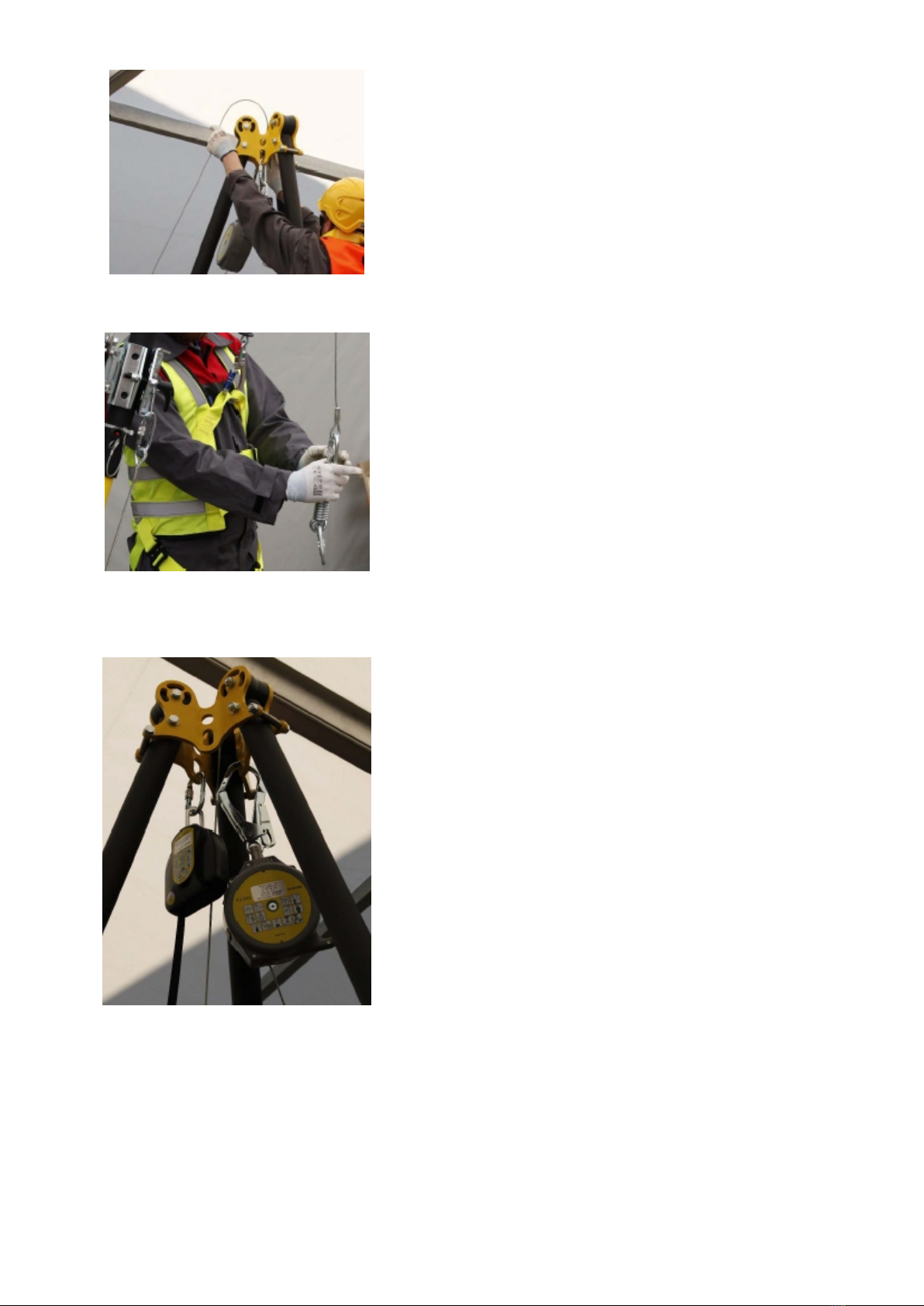

10. INSTALLATION OF WORK ROPE OF DEVICE INSTALLED ON TRIPOD LEG
a) During installation of work rope on the tripod head it is possible to enter the
tripod leg using steps AT013-300. When using steps it is advisable to use
additional devices as retractable type fall arrester.

4/5
b) Pull out adequate work rope length from the device and mount the rope on
roller integrated with the head. Check whether work rope is fitted correctly on
the roller.
c) Attach energy absorber SDW at the end of work rope of rescue devices
RUP502-U, RUP503-U, RUP504, RUP506.
11. INSTALLATION OF PERSONAL PROTECTIVE EQUIPMENT
Personal protective equipment can be connected to anchor points located on
side platens of the head. E.g. CR / WR retractable type fall arresters.
12. INSTALLATION OF UNIVERSAL HOLDER UTB (AT017-300)
See: UTB instruction manual.
13. INSTALLATION OF RESCUE DEVICES
See: UTB instruction manual.
14. ESSENTIAL PRINCIPLES FOR USE OF PERSONAL FALL PROTECTION
EQUIPMENT
·The device must be used in accordance with instruction manuals for personal
fall protection equipment and standards:
EN 361 - for full body harness
EN352-3; EN355; EN360 - for personal fall protection equipment
EN362 - for connectors
EN 795 / TS16415 - for anchor points
· Personal fall protection equipment should be used only by personnel trained
in this respect.
· Personal fall protection equipment must not be used by a person with
medical condition that could affect the safety of the equipment user in normal
and emergency use.
· Draw a rescue plan to be implemented whenever necessary.
· It is forbidden to make any alterations or additions to the equipment without
the manufacturer's prior written consent.
· Any repair shall only be carried out by manufacturer of the equipment or his
certified representative.
· Personal fall protection equipment shall not be used for any purpose other
than intended.
· Personal fall protection equipment provides individual protection and shall be
used by one person only.
· Before each use make sure that all parts of the fall arresting system cooperate
correctly. Periodically examine connections and fitting of components of the
equipment to prevent any accidental loosening or disconnection.
· It is forbidden to use a combination of equipment where function of any one
item is affected by, or interferes with the function of any other.
· Before each use of personal fall protection equipment, a pre-use check
should be carried out to ensure that it is in a serviceable condition and
operates correctly.
· In particular, inspect all accessible elements of the equipment for any
damages, excessive wear, corrosion, abrasion, cutting or improper function. On
individual devices pay particular attention to:
ü In full body harness and work positioning devices: buckles, regulating
elements, attachment points (buckles), webbing, seams, belt loops;
ü In energy absorbers: attachment loops, webbing, seams, housing,
connectors;
ü In lanyards and textile guides: rope, loops, thimbles, connectors, regulating
parts, splices, clamps;
ü In retractable type fall arresters: lanyard or webbing, retractor and locking
mechanism for proper operation, housing, energy absorber, connectors;
ü In guided type fall arresters: body, proper guiding, locking mechanism for
proper operation, rollers, bolts and rivets, connectors, energy absorber;
ü In connectors (snap hooks): load-bearing body, rivets, main pawl, locking
mechanism functionality.
· At least once a year, after each 12 months of use, personal fall protection
equipment must be withdrawn from use to carry out periodic detailed
inspection. Periodic inspection may be carried out by a person who is
responsible for periodic inspections in an organisation and properly trained in
this respect. Periodic inspections can be carried out also by manufacturer of
the equipment or his authorized representative, or an authorized company.
Inspect in detail all accessible elements of the equipment paying attention to
any damages, excessive wear, corrosion, abrasion, cutting or incorrect function
(see the above item.) In some cases, if the fall protection equipment has a
complex design (e.g. fall arresters), periodic inspections may be carried out by
manufacturer of the equipment, or his authorized representative only. After
the periodic inspection, date of the next inspection should be arranged.
· Regular periodic inspections are essential in respect of the equipment
condition and safety of users which is dependant on functionality and durability
of the equipment.
· During periodic inspection it is necessary to check the legibility of all
markings on the equipment (identity label of the device).
· All information on fall protection equipment (name, serial no., date of
purchase and date of first use, name of user, information on repairs and
inspections and withdrawal from use) must be provided in the identity card of
the device. It is responsibility of the user organisation to provide the Identity
Card and to fill in the required details. The Identity Card should be filled in by a
person responsible for fall protection equipment in an organisation. It is
forbidden to use personal fall protection equipment if the Identity Card is not
filled in.
· If the product is re-sold outside the original country of destination the
reseller must provide instructions for use, for maintenance, for periodic
inspection and for repair in language of the country where the product is to be
used.
· Personal fall protection equipment must be withdrawn from use immediately
if any doubts arise in regard of its condition, or proper operation. The device
must not be used until manufacturer of the equipment carries out a detailed
inspection and gives his written consent to use the equipment again.
· Personal protection equipment must be withdrawn from use immediately
and destroyed if it has been used to arrest a fall.
· Full body harness is the only admissible device to be used to support the user
body in personal fall protection equipment.
· In full body harness use only attaching points (buckles, loops) marked with
capital letter “A” to attach a fall protection system.
15. WARRANTY
The manufacturer grants a warranty for 12 months from the date of purchase
of the device. If a defect is found in any part, the warranty and guarantee
period for this part is extended by the time of repairs and effective removal of
the defect found.
The warranty covers:
· Defects in material,

· Structural defects,
· Anti-corrosion coating defects
According to the requirements of EN 365 the anchoring point shall be subject to
periodical inspections carried out at least every 12 months. Periodic inspection
shall be carried out by service point authorized by the Manufacturer located at
the following address:
PROTEKT Grzegorz Łaszkiewicz
ul. Starorudzka 9
93-403 Łódź
or person trained in inspections of such equipment.
A trained person is a person who, based on own specialized education and
adequate experience, has sufficient knowledge in installed protective and
rescue equipment, and is familiarized with applicable OHS regulations,
guidelines and generally acknowledged technical rules to such extent that is
able to assess safety of use and correct application of protection devices.
Before each use of the system check whether date of the next inspection is not
expired. Do not use the device after this date. Before each use of the system
visually check the system for its integrity and technical condition and whether
steel cable is tensioned. If any defect or lack of integrity is found, do not use the
point.
If any doubts arise as for the use of the equipment, please contact the
manufacturer and never repair the equipment on your own!
A system which has been used to arrest a fall must be withdrawn from use
immediately!
The system which has been used to arrest a fall may be admitted for use again
after a detailed inspection is carried out by the manufacturer or an authorised
service point.
Pay particular attention to risks affecting the protective equipment operation or
the user's safety, and in particular to kinks and rope movement on sharp edges,
oscillatory falls, electricity, influence of extreme temperatures, equipment
damage, negative influence of environmental factors, chemical substances and
contamination. Do not modify, repair components of the system or replace
them with non-original spare parts.
Manufacturer:
PROTEKT - Starorudzka 9 - 93-403 Lodz - Poland
tel. [phone] - fax. [phone] - www.protekt.com.pl
Notified body for EU type examination according to PPE Regulation 2016/425:
APAVE SUD EUROPE SAS (no 0082)–CS 60193–F13322 MARSEILLE CEDEX
16 - FRANCE
Notified body for control production:
APAVE SUD EUROPE SAS (no 0082)–CS 60193–F13322 MARSEILLE CEDEX
16 - FRANCE
5/5
IDENTITY CARD
SERIAL/BATCH NUMBER
It is the responsibility of the user organisation to provide the identity card and to fill in the
details required. The identity card should be filled in before the first use by a competent
person, responsible inthe user organization for protective equipment. Any information about
the equipment like periodic inspections, repairs, reasons of equipment's withdrawal from use
shall be noted into the identity card by a competent person in the user organization. The
identity card should be stored during a whole period of equipment utilization. Do not use the
equipment without the identity card.
MODEL AND TYPE OF EQUIPMENT
PERIODIC INSPECTION AND REPAIR HISTORY CARD
REFERENCE NUMBER
DATE OF MANUFACURE
DATE OF FIRST USE
DATE OF PURCHASE
NEXT
INSPECTION
DATE
DATE OF
INSPECTION
REASON FOR
INSPECTION
OR REPAIR
DEFECTS,
CONDITION NOTED
REPAIRS CARRIED OUT
NAME AND SIGNATURE
OF COMPETENT
PERSON
USER NAME
