Protocol Movie-Drone User manual

Movie - DRONE
RADIO CONTROLLED
QUAD-COPTER WITH CAMERA
FEATURING:
1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use.
2. Built-in 6-axis Gyro ensures excellent stability.
3. Modular design for increased ease of maintenance.
4. 360-degree 3-dimensional stunt and tumbling function
5. With Photo/Video
The materials and specifications stated in this instruction manual are for reference only.
TM

Canopy (Top)
Rotor
SCHEMATIC
MOVIE-DRONE
RC QUAD-COPTER WITH CAMERA
Thank you for your purchase of Protocol’s Movie-Drone. You are about to
experience the best of what remote control flight has to offer. We strongly
recommend that you take the time to
read this manual thoroughly. It contains many tips and instructions on how to get
the most out of this aircraft and maintain it for a long life.
As with any aircraft, this is a precision flying machine. Treat it well and enjoy all
the fun it has to offer, flight after flight.
SAFETY AND PRECAUTIONS
1. Keep small parts out of reach of children to avoid accidents.
2. The quad-copter is powerful and fast; accelerate gently to avoid damage and accidents.
3. After flying, disconnect the battery.
4. Keep the battery away from heat sources and / or fire.
5. Keep the quad-copter at a distance of at least 2 meters from yourself, others, and obstacles
to prevent damage.
6. Children should operate the quad-copter only under adult supervision.
7. The remote controller batteries can not be recharged. Do not mix new batteries with old batteries
or mix batteries of different types.
8. Always turn off both the transmitter and quad-copter when not in use.
9. Never attempt to short-circuit the battery terminals or the quad-copter.
1
TM

1. Install batteries carefully.
2. Do not mix old and new batteries.
3. Do not mix different types of batteries.
Remote Control
REMOTE CONTROL KEYPAD AND LCD MANUAL
2
6
6
Left/Right Turn Trim
Throttle – Left/Right Turn
Photo/Video
Lights (Flashing or Steady)
Antenna
Single Flip
Left/Right Banking Trim
Speed (Low, High Flip)
Forward/Backward Trim
Directional Control Stick
(Forward/Reverse, Left/Right Banking)

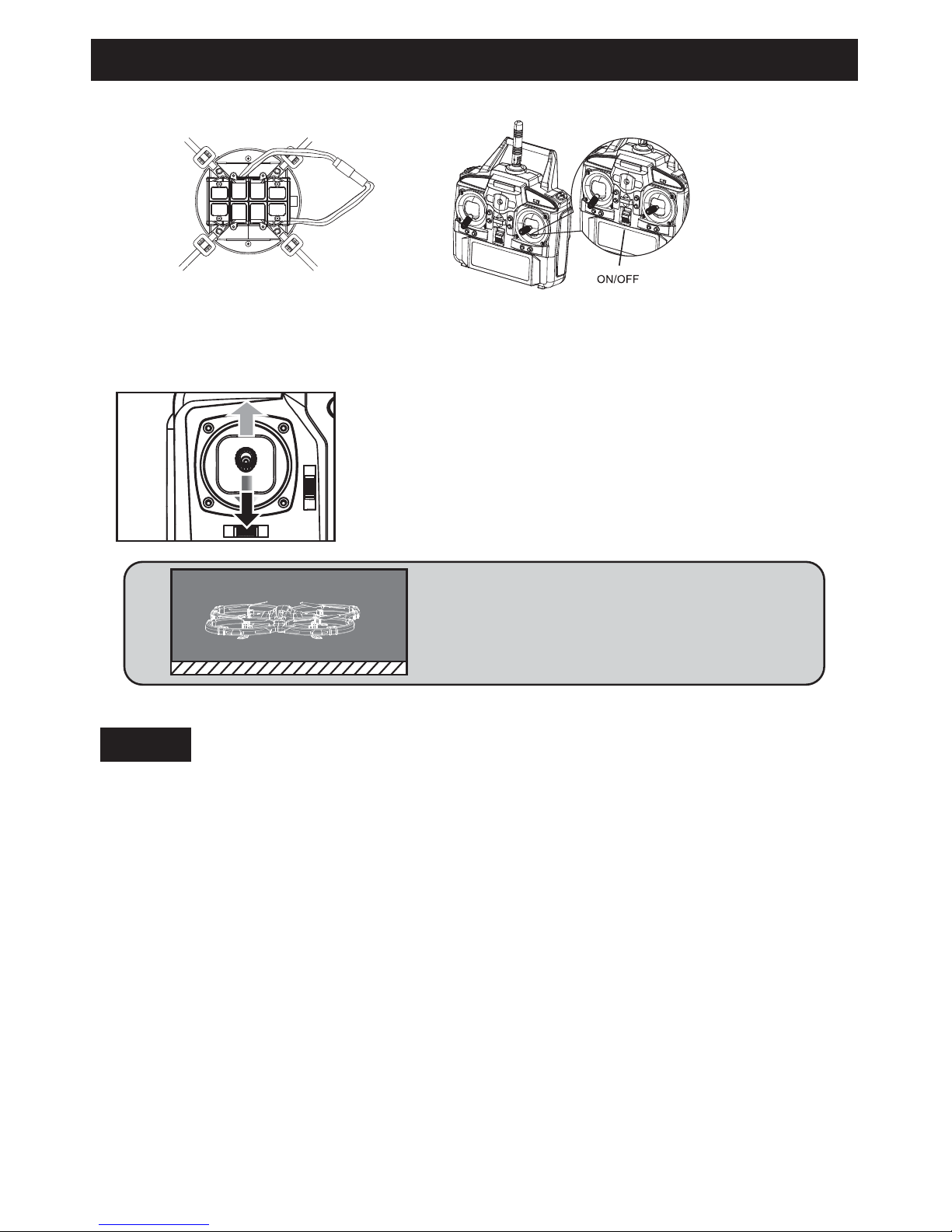

FLYING THE QUADCOPTER
Step 2: Push the ON/OFF
power switch up.
Step 1: Connect the wires
on the quad-copter.
Step 3: Push the throttle lever to the highest position, and
then pull it back to the lowest position. The transmitter
will beep twice. This shows that the quad-copter has synced
with the remote.
Tips: When syncing your quad-copter keep it
in a horizontal position for stable flight.
1. If the Movie-Drone and the remote do not sync after following the checklist, reverse steps
1 and 2 of the process. Turn the remote off and unplug the cable from the Movie-Drone.
Then, turn on the remote first and then plug the cable back into the Movie-Drone to turn it
on. Follow with Step 3.
2. Turn on the controller; if, after 30 seconds, it has not recognized the helicopter, turn off the
controller to retry synchronization.
3. If quad-copter’s LED blinks slowly, it means that it has not recognized the controller; please
restart pre-flight procedure.
4. If the Movie-Drone is unsteady in flight, it may not have been able to calibrate horizontally.
Power down both vehicle and remote and restart pre-flight procedure.
NOTE
3

CHARGING THE QUAD-COPTER BATTERY
1. Disconnect the wires on the
quad-copter.
2. Plug the A/C adapter to a power outlet and
connect the other end into the battery. The
orange indicator light on the box will turn on. The
green indicator will turn on once the battery is
fully charged.
Charging time: approximately 75
minutes --- Flying time: approximately
12 minutes
1. When charging, place product on a dry, well-ventilated surface and keep away from heat
sources.
2. Always use adult supervision while charging.
3. As battery temperature is high immediately after flight, charge after cooling down for
higher efficiency.
4. Do not strike or subject battery to hard impacts or sharp surfaces.
5. Do not use any other charger than that which is supplied with this item.
6. Do not use or leave battery near a heat source such as fire or space heater; exposure to
heat may result in reduced performance or in some cases dangerous conditions.
7. If battery is left in charging state for an extended period of time after being fully charged,
the battery may automatically discharge.
8. Never leave the battery unattended during charging.
CAUTION WHEN CHARGING
4

1. Do not immerse or submerge battery in water; store in a cool, dry location.
2. In order to increase battery longevity, avoid repeat charging and excessive discharging.
3. Charge battery to approximately 55% capacity prior to long-term storage.
4. If battery sees no use for extended periods of time, it is recommended that battery voltage
is kept above 3V. Check monthly and recharge as needed.
5. Do not disassemble battery.
BATTERY REPAIR & MAINTENANCE
The Movie-Drone features 3 speed modes.
Low, High, and Continuous Flip*. Choose the
speed based on flight experience and level of
comfort. Press the speed mode button to adjust
speed.
*Note: The drone will flip continuously in whatever direction the direction control stick is
pointed.
LOW, HIGH, AND FLIP SPEED MODES
OPERATION (MODE 1)
HOVER UP AND DOWN FORWARD AND BACKWARD
Push the throttle up or down, the quad-
copter flies upward or downward.
Push the direction lever up or down, the
quad-copter flies forward or backward.
TURNING LEFT AND RIGHT SIDEWAYS FLIGHT
Pull the throttle left or right, the quad-
copter turns to the left or right.
Pull the direction lever to the left or right,
the quad-copter banks to the left or right.
5
Low, High, Flip

FORWARD/BACKWARD TRIM
When the quad-copter veers
forward/backward unintentionally,
you can correct it by pressing
the trim button in the opposite
direction until it evens out.
When the quad-copter veers to
the left or right side unintentionally,
you can correct it by pressing the
trim button in the opposite direction
until it evens out.
When the quad-copter keeps
spinning left or right unintentionally,
you can correct it by pressing the
trim button in the opposite direction
until it evens out.
TRIM ADJUSTMENT
SIDEWAYS TRIM LEFT/RIGHT TRIM
TROUBLESHOOTING
Symptom Possible Cause Potential Solution
Movie-Drone
does not
respond
Response to
control inputs
intermittent
or erratic
1. Communication between controller and
aircraft was not synchronized during set up
2. Battery power depleted on aircraft,
controller or both.
1. To synchronize, turn on controller, then
turn on aircraft and place it on level
ground. Move throttle stick all the way
forward, then all the way back.
2. Charge aircraft and/or replace
batteries in controller.
1. Controller battery power nearly depleted. 1. Replace batteries in controller.
The
Movie-Drone
will not hover
or strafe
correctly
1. The aircraft was not on level ground
during synchronization.
2. Trim settings are incorrect.
1. Re-synchronize aircraft and controller.
2. Reset the trim buttons on the controller
and re-trim flight controls.
6

4-5m
Once you are familiar with the basics of quad-copter flight, you can try some
advanced maneuvers! At a height of at least 10 feet, press the Single Flip button [on
controller’s right side] then move the right stick in whichever direction desired to
perform a 360-degree flip in that direction.
1. The memory card comes pre-inserted into the camera.
2. Turn the quad-copter on. The light under the camera will glow blue in steady
TIPS ON 3D STUNT & TUMBLING OPERATION
7
CAMERA
mode. If there is a flashing blue and red indicator on the camera, it means the
memory card is not in the camera. Insert the memory card and the red indicator
will turn to blue.

Thank you for your purchase of Protocol’s Movie-Drone.
We know that accidents can sometimes happen and that is why we offer spare parts kits on our
website: ProtocolNY.com.
Shooting Photo/Video
