PT W54285 User manual

OWNER'S MANUAL
WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS
AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO
MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND
WILL VOID WARRANTY.
ROTARY BARREL PUMP,
DEF COMPATABLE
Stock Number W54285
LIMITED WARRANTY
PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These
warranties give specific legal rights. Except where prohibited by local law, the law of the State of Washington
governs all warranties and all exclusions and limitations of warranties and remedies. There may be other rights
which vary from state to state.
PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal
use and service. A defective product may be returned for a free replacement within 90 days from the date of
purchase, provided that product is returned to place of purchase immediately after discovery of defect. After 90
days and up to one year from date of purchase, PERFORMANCE TOOL® will replace at no charge any parts which
our examination shall disclose to be defective and under warranty. These warranties shall be valid only when a sales
receipt showing the date of purchase accompanies the defective product or defective part (s) being returned. For
part (s) after 90 days, please remit your request, postage prepaid to:
PERFORMANCE TOOL, P.O. Box 88259 Tukwila, WA 98138
These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be
replaced under normal use and service. These warranties shall not apply to any product or part which is used for a
purpose for which it is not designed, or which has been repaired or altered in any way so as to affect adversely its
performance or reliability, nor shall these warranties apply to any product or part which has been subject to misuse,
neglect, accident or wear and tear incident to normal use and service.
PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in
connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes no
express or implied warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL® makes
no implied warranty of merchantability and no implied warranty of fitness for any particular purpose, except that for
goods purchased primarily for personal, family or household use and not for commercial or business use,
PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied
warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the
duration, expressly warranted above.
The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in
all cases.
PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in any
manner related to any product, or to the design, use, or any inability to use the product. The sole and exclusive
remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws on
limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the above
limitations may not apply in all cases.
© Copyright 2020 WILMAR CORPORATION, P.O. Box 88259 Tukwila, WA 98138

ASSEMBLY INSTRUCTION
1. Read and understand instruction prior to continuing.
2. Thread the strainer end to 1 piece of the 3 suction of tubing; be sure to us
PTFE tape.
3. Thread the balance of the tubes together depending on your drum depth, use
PTFE tape.
4. Insert the suction pipe into the barrel of the pump. Pay attention to the
markings on the pump labeled inlet and outlet. Pickup tubes go onto the
inlet side of the pump.
5. Slide the bung nut over the suction pipe threaded side down. Use the bolt to
tighten the barrel in place on the suction pipe. This can be adjusted after
placing the pump in the barrel.
6. Slide the handle onto the shaft on the pump body. Tighten together using the
hex bolt.
7. Screw the delivery spout onto the threaded outlet on top of the pump body,
again using the PTFE tape.
NOTE: All connections must be airtight for the pump to create suction and
operate correctly.
1. The overall purity of DEF is critical for the system to function properly. Before
pumping DEF for filling the onboard systems, the pump needs to be flushed.
This is done by dispensing DEF fluid into a portable container. This fluid
should be disposed of in the proper manner in accordance with local
regulations. “Do not return it to the drum or use it in a vehicle.”
2. After pumping the desired amount of fluid, reverse the direction of rotation.
This will return and dispense fluid still in the pump back into the barrel. This
is required because fluid left in the pump will crystallize and cause the pump
to malfunction. Crystallized DEF fluid would contaminate the next fluid
dispensed.
3. If the pump has not been used for an extended length of time, or has had low
usage the pump should be flushed and cleaned. This is critical when
pumping DEF as it can harden and crystallize.
NOTE: If you have used the pump for DEF, use it ONLY for DEF and not other
materials. A sticker has been provided to label the pump once the unit has been used
for DEF. Use de-ionized water to flush the pump.
1. Visual inspection shall be made before each use of the rotary barrel pump,
check for damaged parts, cracked welds or missing parts. Any rotary barrel
pump that appears to be damaged in any way shall be removed from service
immedliately
2. BECAUSE OF THE POTENTIAL HAZARDS ASSOCIATED WITH THE MISUSE
OF EQUIPMENT OF THIS TYPE, NO MODIFICATIONS SHALL BE MADE TO
THE PRODUCT.
3. Cleaning after each use will ensure smooth operation. A variety of chemicals -
MAINTENANCE & INSPECTION
MAINTENANCE & INSPECTION cont:
2 3
Product Dimensions..................................13.5x6.5x5.5in.(34.29x16.51x13.97cm)
Weight...............................................................................1.7Lb (0.77110703 Kilo)
Power........................................................................................................... Manual
SPECIFICATIONS:
Specifications are subject to change without notice.
This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance
and troubleshooting steps described within to ensure your safety and satisfaction. The contents of this
instruction manual are based upon the latest product information available at the time of publication.
The manufacturer reserves the right to make product changes at any time without notice.
SAFETY GUIDELINES / DEFINITIONS
GENERAL INFORMATION
DEF (DIESEL EXHAUST FLUID) - USE
WARNING: Read and understand this entire instruction manual before attempting to assemble, install,
operate or maintain this product. Failure to comply with the instructions may result in serious
personal injury and/or property damage! The following signal words are used to emphasize safety
warnings that must be followed when using this product.
DANGER: Indicates an imminently hazardous
situation that, if not avoided, WILL result in
death or serious injury.
WARNING: Indicates a potentially hazardous
situation that, if not avoided, COULD result in
death or serious injury.
CAUTION: Indicates a potentially hazardous
situation that, if not avoided, MAY result in
minor or moderate injury.
NOTE: Indicates important information, which if
not followed, MAY cause damage to
equipment.
especially combinations of chemicals, are suitable for periodic use. They may
affect the performance for the pump if left to dry and not cleaned. In these cases
cleaning of the pump after each use is mandatory. Other chemicals may harden
or cause the internal parts to swell. This prohibits the pumps operation and
should be avoided unless cleaned after every use. If the pump has not been
used for an extended length of time, or has had low usage the pump should
be flushed and cleaned. This is critical when pumping DEF as it can harden
and crystallize.
The Polyphenylene Rotary Pump was designed to accommodate a wide variety
of chemicals. Pumping applications include fuels, water, acidic solutions,
machine oil, alcohol, DEF, & much more. This pump delivers approximately 7
gallons per 100 revolutions.
NOTE: Always wear safety glasses or goggles when transferring chemicals.
2
5
3
461

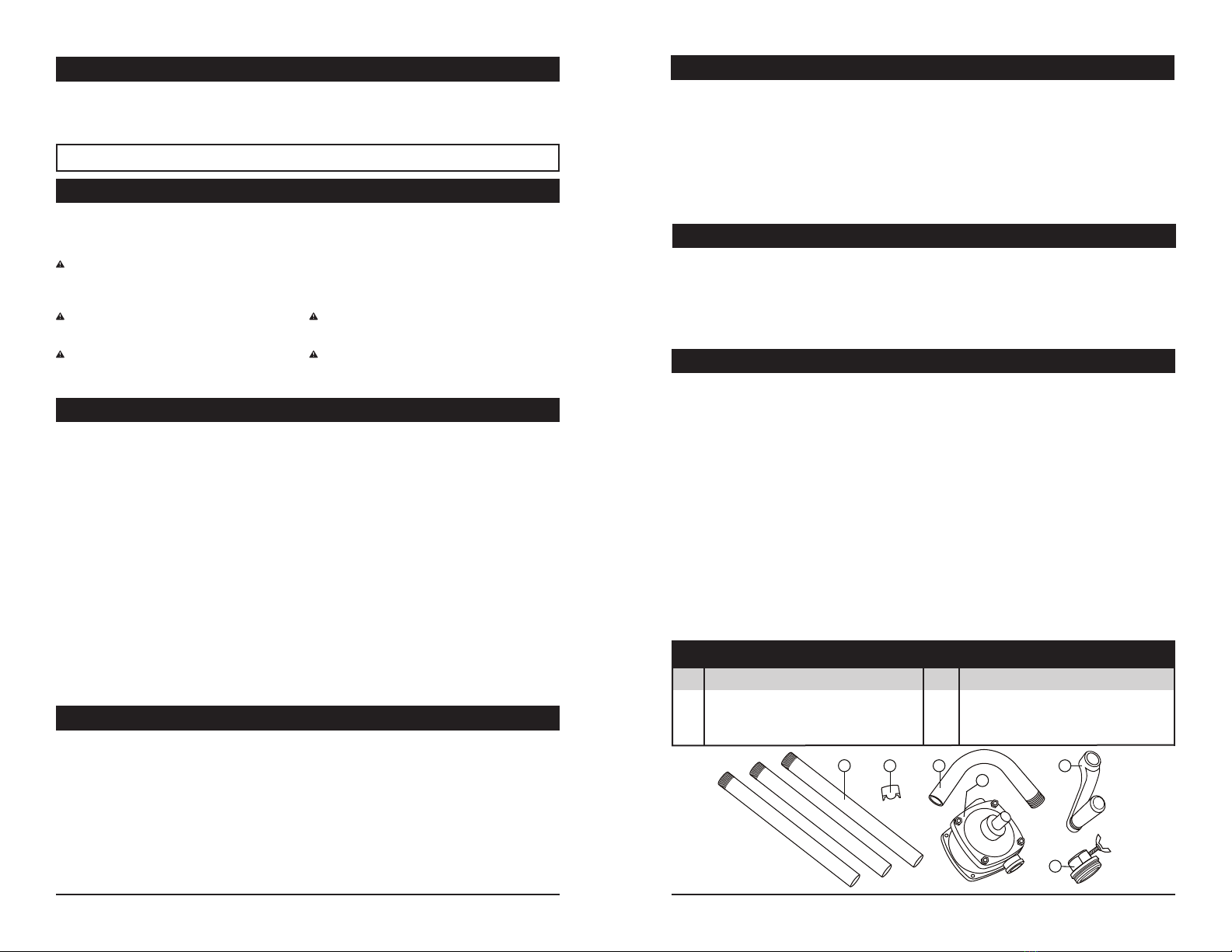

No. Description Qty.
1 Handle......................................1
2 Pump........................................1
3 Delivery spout ..........................1
No. Description..........................Qty.
11 Sunction tubing........................3
12 Bung nut ..................................1
13 Strainer..................................... 1
PARTS LIST
