PTN TPUH411T User manual

Version: TPUH411_2015V1.0 N-
TPUH411
HDBaseT Extender
All Rights Reserved
User Manual

HDBaseT Extender
PTN Electronics Limited
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till September 2015. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2015-9-19.
Trademarks
Product model, PTN and its logo are trademarks of PTN Electronics Limited.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent of PTN Electronics Limited.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDBaseT Extender
PTN Electronics Limited
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDBaseT Extender
PTN Electronics Limited
Table of Contents
1. Introduction.................................................................................................................1
1.1 Introduction to TPUH411 ...................................................................................1
1.2 Features ............................................................................................................1
1.3 Package Contents.............................................................................................1
2. Panel Description........................................................................................................2
2.1 TPUH411T.........................................................................................................2
2.2 TPUH411R ........................................................................................................3
3. System Connection.....................................................................................................5
3.1 Usage Precautions............................................................................................5
3.2 System Diagram................................................................................................5
3.3 Connection Procedure.......................................................................................5
3.4 Application.........................................................................................................6
3.5 Twisted Pair Cable Connection..........................................................................6
4. Specification ...............................................................................................................7
4.1 Supported Resolution........................................................................................8
5. Panel Drawing ............................................................................................................9
6. Troubleshooting & Maintenance ...............................................................................10
7. After-sales Service....................................................................................................11

HDBaseT Extender
PTN Electronics Limited 1
1. Introduction
1.1 Introduction to TPUH411
TPUH411 is a mini-size HDBaseT Extender set consists of transmitter (TPUH411T) and
receiver (TPUH411R). HDBaseT technology is used to transmit high-resolution 1080p/
4k signal from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to
70/40m.Moreover, TPUH411 support CEC, bi-directional RS232&IR control, and
unidirectional PoH function.
1.2 Features
Support Full HD: Delivers high resolution image (1080p@60Hz@48
b/pixels/3D/4Kx2K).
Maximum transmission distance is 70m for 1080p and 40m for 4Kx2K over single
CAT5e/CAT6a cable
High Bandwidth: 10.2Gps.
HDTV Compatible, use HDMI 1.4 and HDCP2.2 compliant.
Support CEC/IR/RS232 passthrough.
Support PoH, the receiver can be powered by transmitter.
Bi-directional RS232/IR control.
Use HDBaseT technology.
LED indicators show work status.
Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be
better and should be well grounded)for good transmission effect.
1.3 Package Contents
1 x TPUH411T
1 x TPUH411R
4 x Mounting ears (Separated from TPUH411)
8 x Plastic cushions
8 x Screws
2 x Power adapter (DC 24V 1.25A)
2 x RS232 cables
1 x User manual
Notes:Please confirm if the product and the accessories are all included, if not, please
contact with the dealers
.

HDBaseT Extender
PTN Electronics Limited 2
2. Panel Description
2.1 TPUH411T
No.
Name
Description
①
LINK
HDBT Link status indicator:
OFF: No Link
GREEN:Link Successful
Blinking GREEN: Link abnormal
②
HDCP
HDCP compliant indicator
OFF: No HDMI traffic (no picture)
GREEN: Traffic with HDCP.
Blinking GREEN: Traffic without HDCP
③
Power
OFF: No power; RED: DC power present.
④
RS232
RS232 connector.
⑤
IR IN
Connect with 5V IR receiver (with carrier) to collect infrared signal,
work with far-end IR OUT port
⑥
IR OUT
Connect with 5V IR Emitter to send infrared signal, work with
far-end IR IN port
⑦
HDMI IN
Connect with HDMI source
⑧
HDBT OUT
Connect to the HDBT IN socket on the TPUH411R via CAT5e/
TX HDCPLINK
RS232
Tx Rx

HDBaseT Extender
PTN Electronics Limited 3
CAT6a cable, support unidirectional PoH.
⑨
DC 24V
Connect with power supply
Pictures shown in this manual are only for reference.
2.2 TPUH411R
No.
Name
Description
①
LINK
HDBT Link status indicator:
OFF: No Link
GREEN:Link Successful
Blinking GREEN: Link abnormal
②
HDCP
HDCP compliant indicator
OFF: No HDMI traffic (no picture)
GREEN: Traffic with HDCP.
Blinking GREEN: Traffic without HDCP
③
Power
OFF: No power; RED: DC power present.
④
RS232
RS232 connector.
⑤
IR IN
Connect with 5V IR receiver (with carrier) to collect infrared signal,
work with far-end IR OUT port
⑥
IR OUT
Connect with 5V IR Emitter to send infrared signal, work with
far-end IR IN port
HDCPLINK
RS232
Tx Rx

HDBaseT Extender
PTN Electronics Limited 4
⑦
HDMI OUT
Connect with HDMI display
⑧
HDBT IN
Connect to the HDBT OUT socket on the TPUH411T via CAT5e/
CAT6a cable.
⑨
DC 24V
Connect with power supply (Not necessary if TPUH411T connects
with power).
Pictures shown in this manual are only for reference.

HDBaseT Extender
PTN Electronics Limited 5
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
4) Use shielded straight-thru CAT5e/CAT6a cable with TIA/EIAT568B terminations for
good transmission effect.
3.2 System Diagram
3.3 Connection Procedure
Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of TPUH411T
with HDMI cable.
Step2.Connect HDBT OUT port of TPUH411T and HDBT IN port of TPUH411R, with
single CAT5e/CAT6a cable.
Step3.Connect HDMI displayer (such as HDTV) to HDMI OUT port of TPUH411R with
HDMI cable.
Step4.Both TPUH411T and TPUH411R have IR IN and OUT. When one end is used as
an IR receiver, the signal sent from the end can only be transmitted via the other
end.
For example: When “IR IN” of TPUH411T connects with an IR receiver, the IR
DVD
HDMI
HDMI
INPUT
RS232
PTNcontrolpanel
Projector
IR Remote
TPUH411T
TPUH411R
CAT5e

HDBaseT Extender
PTN Electronics Limited 6
transmitter must connect to IR OUT of TPUH411R.
Step5.Connect the RS232 port of the devices to be controlled and the receiver or the
transmitter.
Step6.Connect with DC24V power adaptor(s) (One is enough if TPUH411T is
connected with adapter as its PoH function).
3.4 Application
TPUH411 has a good application in various occasions, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.
3.5 Twisted Pair Cable Connection
The twisted pair used in this extender MUST be a straight-through cable.
Notice: Cable connectors
MUST be metal one, the
shielded layer of cable
MUST be connected to the
connector’s metal shell, to
make a better transmission.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

HDBaseT Extender
PTN Electronics Limited 7
4. Specification
Model
Spec
TPUH411T
TPUH411R
Input
Input Signal
1 HDMI,1 IR & 1 RS232
1 IR, 1 RJ-45 & 1 RS232
Input Connector
HDMI female, 3.5mm mini
jack, 3p captive screw
connector
3.5mm mini jack, RJ-45, 3p
captive screw connector
Audio
Digital audio, transmit
through HDMI audio
Digital audio, transmit
through HDMI audio
Output
Output
1 RJ-45, 1 IR, 1 RS232
1 HDMI, 1 IR, 1RS232
Output Connector
RJ-45, 3.5mm mini jack, 3p
captive screw connector
HDMI female, 3.5mm mini
jack, 3p captive screw
connector
General
Resolution Range
640x480@60Hz~4K×2K@30Hz
Transmission Mode
HD Base T
Transmission Distance
1080p 70m
4k 40m
Bandwidth
10.2Gbps
HDMI Standard
Support HDMI2.0 and HDCP2.2
Impedance
75Ω
Temperature
-20 ~ +70℃
Humidity
10% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,
1.25A
Power Consumption
11W
Case Dimension
W115xH16x D84mm
W115xH16x D84mm
Net Weight
150g
150g
NOTE: All nominal levels are at ±10%.

HDBaseT Extender
PTN Electronics Limited 8
4.1 Supported Resolution
Aspect Ratio
Resolution
Refresh Rate
4Kx 2K
4096x2160
30Hz
3840x2160
24/25/30Hz
16:9
1920x1080
60Hz
1600x900
60Hz
1366x768
60Hz
1280x720
60Hz
1024x576
60Hz
16:10
1920x1200
60Hz
1680x1050
60Hz
1360x768
60Hz
1280x800
60Hz
4:3
1600x1200
60/65/70/75/85Hz
1280x1024
60/75/85/96Hz
1024x768
60/70/75/85Hz
800x600
56/60/72/75/85Hz
640x480
60/72/75Hz
Note: TPUH411 supports 4k HDMI signal, please adopt quality HDMI cables compliant
with HDMI2.0 for reliable transmission.

HDBaseT Extender
PTN Electronics Limited 9

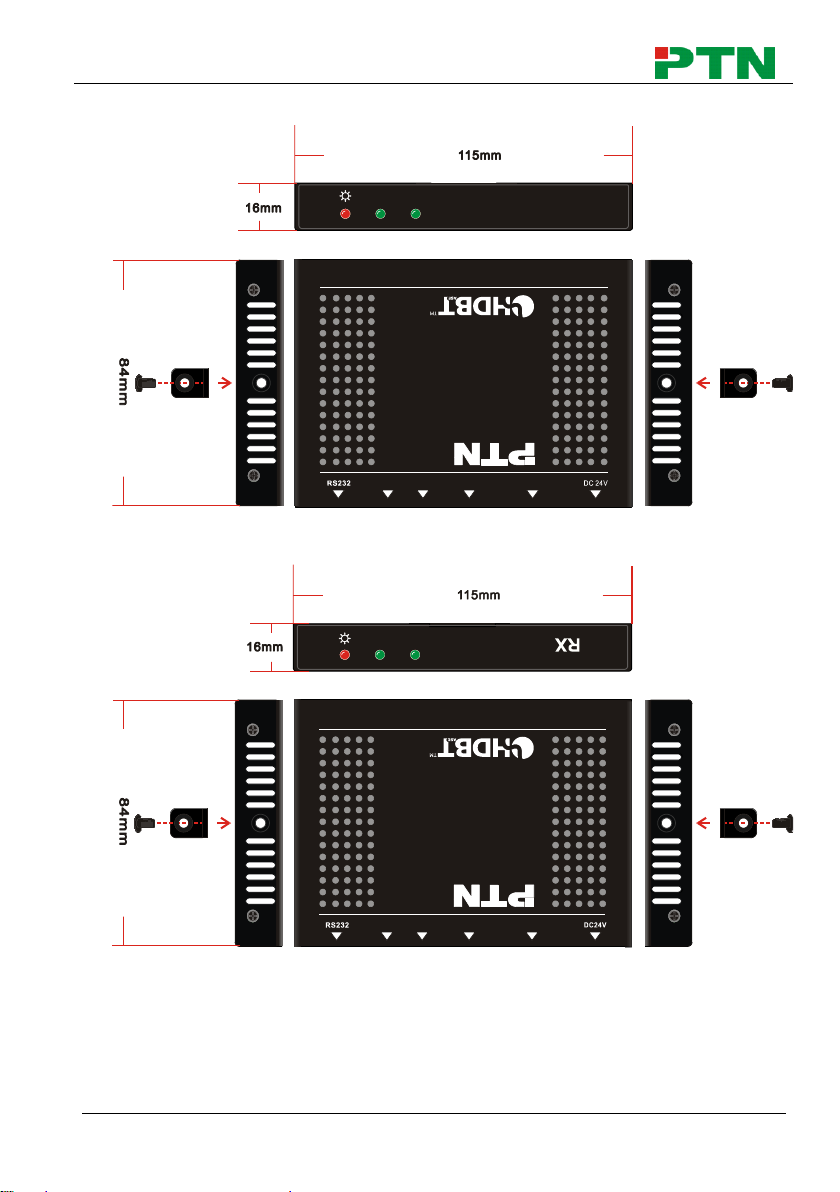

5. Panel Drawing
5-1 TPUH411T
5-2 TPUH411R
TX
HDMIIN
HDBT OUT IROUT
IRIN
TPUH411T
HDCPLINK
RS232
Tx Rx
HDMIOUT
IROUT
IRIN
TPUH411R
HDBT IN
RS232
Tx Rx
HDCPLINK

HDBaseT Extender
PTN Electronics Limited 10
6. Troubleshooting & Maintenance
No image on display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
Ensure that the CAT5e/CAT6a cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of
CAT5e/Cat6 can be used for testing to ensure that the devices are all compatible
and working properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in HDBaseT transmission issues.
Please contact Technical Support of PTN Electronics for a solution to these
issues.
Color lose or poor picture quality:
Ensure that the HDMI cables used for both the source and transmitter and the
receiver and display are properly connected and are of good quality. Test the
HDMI cables directly from a source to display and ensure their picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when connecting
the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

HDBaseT Extender
PTN Electronics Limited 11
7. After-sales Service
If there appear some problems when running the device, please check and deal with the
problems reference to this user manual.Any transport costs are borne by the users
during the warranty.
1) Product Limited Warranty: PTN warrants that its products will be free from defects
in materials and workmanship for three years, which starts from the first day the
product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor or email PTN at: s[email protected].
