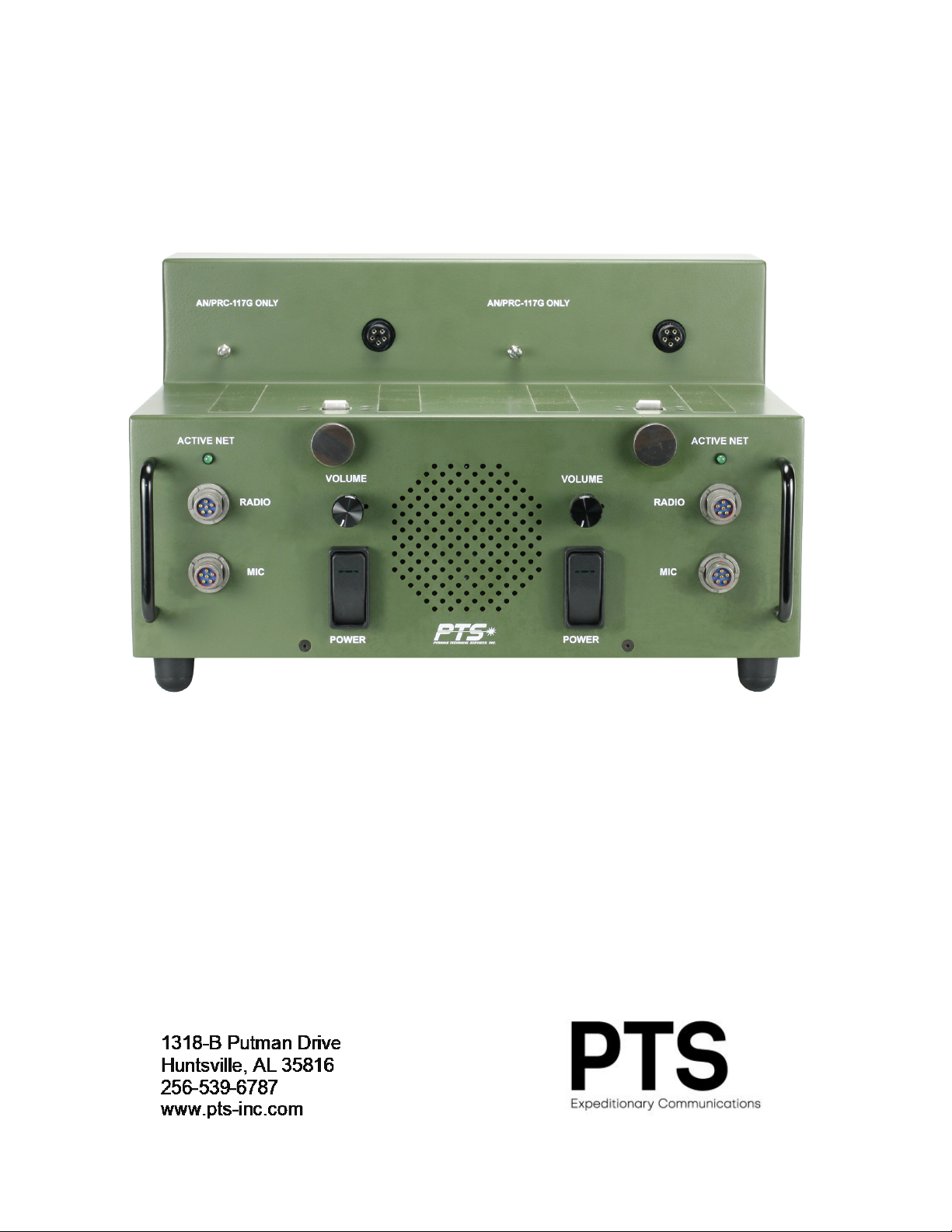

Pts AS0117-HR-117G-MPD User manual

PTS, Inc.
Harris 117G Manpack Dual AC/DC Power Supply
Docking Station (PSDS) Manual
PTS MODEL #: AS0117-HR-117G-MPD
Includes: 2 PTS-H-0003J audio jumper cable, 1 AC 10-foot Power
Cable, 1 Filter Pack, 1 Protective Transit Case, 1 user manual
Compatible with one or two AN/PRC-117G-MP
Document PTS-HR-117G-MPD-2020-10-20
Perkins Technical Services, Inc

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
2
WARNING: TO PREVENT PERSONAL INJURY, DEATH OR
EQUIPMENT DAMAGE DO NOT SHORT-CIRCUIT, DAMAGE, BY-PASS
INTERNAL FUSES OR HANDLE INAPPROPRIATELY THE EXPOSED
HARRIS HIGH VOLTAGE POWER CONNECTORS.
SAFETY INSTRUCTIONS
Warning and important safety instructions appearing in this manual are not designed to
cover all possible conditions and situations that may occur. Common sense, caution
and reasonable care must be exercised when installing, maintaining or operating the
power supply docking station (PSDS).
When using the PSDS basic safety precautions should always be observed
including the following:
Read all instructions prior to installation or use.
To protect against risk of electrical shock, DO NOT immerse the cord, plug or PSDS in
water or other liquids.
To reduce the risk of electrical shock or fire, DO NOT disassemble the PSDS. Repairs
or adjustments to the PSDS must be performed by a qualified technician of PTS.
DO NOT work on electrical equipment alone. Be sure another person qualified to
administer first aid is present.
RF energy is present near the antenna during transmission. During low power operation
maintain at least 30 inches between antenna and personnel during transmission. During
power amplifier operations follow the standard practice of mounting the antenna well
away from the users.
The PSDS is not designed to be operated in a vehicle.
Do not operate the PSDS with a damaged cord, plug or after the PSDS has been
dropped or damaged in any manner. Return the PSDS to PTS for examination, repair
and electrical or mechanical adjustment as required. Call PTS toll free at 1-877-737-
5832 or email [e-mail] for additional instructions or guidance.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
3
Table of Contents
Safety Instructions 2
Power Supply Docking Station (PSDS) Description 4
Specifications 5
Features 5
Physical Dimensions 5
Operational Benefits 5
User Educational Requirements 6
Operation of PSDS with Harris Radios 6
Basic PSDS Set-Up 6
Radio Installation 6
Antenna & Handset Installation, Radio Configuration 6
PSDS Operation 7
PSDS Operational Inputs and Accessories 8
DC Power Operation 8
LS-671 External Speaker Operation 8
Periodic Maintenance 9
Maintenance Safety Notice 9
Air Filter Maintenance 9
Exterior Cleaning 9
System Repair or Return 10
Warranty 11
Administrative 11

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
4
Power Supply Docking Station (PSDS) Description
Perkins Technical Services, Inc. has developed a rugged, lightweight, user-friendly
power supply docking station (PSDS) for tactical radios. The PSDS provides the
capability to operate one or two AN/PRC 117G radios in a continuous and efficient safe
manner.
The PSDS’s unique, lightweight slide-in, slide-out design allows for easy use and
installation. The PSDS has been developed to provide increased flexibility in the use of
Harris 117G and to reduce operation costs resulting from the use of expensive batteries
and/or other power sources. The PSDS worldwide applications include tactical
operation centers, command posts, range operations, field and garrison operation
centers, text and maintenance facilities, training sites, deployment and staging
checkpoints, remote control operations and forward operation bases.
The PSDS provides the user the capability to use the Harris 117G manpack radios
while reducing ARMY power requirements, soldier workload and logistical support
needs.
The PSDS provides the optimum solution for combat support operations requiring
continuous, uninterruptible, reliable communication when AC power is available.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
5
Specifications
Features
Docking positions for two AN/PRC-117G
Worldwide frequency input 47 to 440 Hz
Worldwide AC voltage input 85 to 260 VAC
DC Voltage input 22 to 32 VDC
Fully automatic voltage and frequency selection worldwide, no manual change required
Built-in voltage surge protection
Environmental operating range:
Temperature: -30°C to 50°C
Relative Humidity: 5% to 95%
Two LED “Power-On” rocker switches
Two “Active Network” green LED indicators
Ten foot AC power cord- U.S. (worldwide power cords available)
High fidelity integral speaker (4 inches)
Two volume control knobs (one for each radio)
Supports 2 remote LS-671 speakers (one for each radio)
Rugged, self-contained system packaged in mil-spec transit case
24/7/365 radio operations
Physical Dimensions
(d) 12.5” x (h) 9.9” x (w) 15.8”
(d) 32cm x (h) 25cm x (w) 40cm
PSDS weight: 16lbs, 7.3kg
PSDS + case: 36lbs, 16.3kg
Operational Benefits
Enhanced command and control
Increased flexibility
Increased training opportunities
Reduced logistical burden and costs

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
6
User Educational Requirements
Prior to use of the PSDS, the user should have completed the Harris Operators Course.
The user should have a thorough understanding of Harris operations and a basic
understanding of Harris 117G set-up and configurations.
Operation of PSDS with Harris Radios
SAFETY NOTICE: Power down the radios and ensure the PSDS power switch is in the
off position to installing or connecting radios. Failure to do so can result in electrical
shock.
Basic PSDS Set-Up
Radio Installation
Facing the PSDS take one 117G radio and insert the radio onto the PSDS. Begin by
looking down from the top to align the radio’s rear connector with the PSDS connector.
Once the radio is aligned on to the PSDS, the user needs to be certain the notch on the
underside of the radio is aligned with the clamp, which protrudes up from the PSDS.
Now the radio can be locked in place by turning the thumbscrew counter clockwise to
seat the radio. Repeat this process to mount the radio on the left side.
Antenna & Handset Installation, Radio Configuration
To ensure proper operation in an antenna (not the manpack antenna) must be
connected to the radio or you will experience excessive noise. Connect the antenna
connector to the 117G radio. The user needs to place the antenna 100 feet away from
the PSDS using LMR-400 antenna cable. Attach the appropriate handset. Inspect the
AC power cable for cuts, frays or other damage. If damaged, replace the power cable.
Plug the appropriate power cable into the back of the PSDS and into the AC power
source (grid or generator power, worldwide). You are now ready to perform radio
operations.
Note: The PSDS provides worldwide auto switching power adjustment. As long as the
proper power cable is used for the AC power source, the PSDS will automatically adjust
to the provided input. If the power is “dirty” and experiencing fluctuations, the PSDS will
continually adjust for these changes.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
7
PSDS Operation
Facing the PSDS you will see two “POWER ON-OFF” rocker switches mounted on the
front enclosure. Turn the switches to the on position (they will illuminate) and then turn
on the AN/PRC 117G.
Once the radios have completed self-test the user may program the two radios for
frequency, COMSEC configuration, power mode, etc. per the AN/PRC operations
manual. Under normal conditions each radio would operate using an individual
frequency providing the user with 2 individual radio networks (NET).
The system is now ready to operate. There are individual volume controls for both the
right radio network and the left radio network.
Turn the volume control counterclockwise to the stop. Adjust the volume knobs to
midrange. The radio AN/PRC 117G volume affects the PSDS speaker volume. The
user will need to ensure the radio volume is adequate to drive the PSDS audio circuitry
for proper operation. The user may now turn up one or both radios. The user will note
that there is an ACTIVE NET LED for each NET (right and left side). When transmitting
or receiving the LED for the ACTIVE NET will illuminate green.
The LED provides the user with a visual cue indicating NET activity if the volume is
turned down or if multiple PSDS’s are deployed in a system rack. The LED will allow the
user to see which NET is active.
The audio circuitry is designed for the radio to receive and for the sound to be broadcast
from the internal speaker (you must attach the enclosed PTS-H-0003J audio jumper
cables to the radio connector on the PSDS and the mic connector on the radio for the
internal speaker to work). The system is designed using high fidelity components
providing very high-quality sound. The user can control the volume for the radio
independently allowing for the net to be broadcast though the speaker. The user can
turn down the NET when required using the volume knob.
The user is now ready to experience full radio capability using AC or DC power to
operate the AS0117-HR-117G-MPD communications system.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
8
PSDS Operational Inputs and Accessories
SAFETY NOTICE: Power down the radios and disconnect (unplug) the PSDS power
from the AC power source prior to connecting or configuring any of the following
optional inputs or accessories.
DC Power Operation
The PSDS will also operate using DC power. DC power is provided to the system via
the one standard DC power connectors labeled “DC Input Power” located on the rear of
the PSDS. Any DC source 22-32 volts can be used to operate the system.
Located on the front panel is a DC voltage LED. This amber LED illuminates if the AC
power is lost and the PSDS switches to DC power (when the unit is connected to a DC
power source). At the same time the DC power light illuminates, there is an audible
warning to notify the operator of the power switch. If the power oscillates on and off, the
audible alarm will only sound once. The PSDS will revert to AC power when available.
This switching is performed automatically and seamlessly. Radios, power amplifiers,
LS-671 speakers, TDR’s, etc. will not see any spikes or dropouts in the voltage as the
system changes input power back and forth from AC to DC.
LS-671 External Speaker Operation
The PSDS provides for the use of an external LS-671 for each radio net. There are 2
connectors labeled LS-671 on the back of the PSDS. These connectors allow the user
to use a standard CX-13292 cable and LS-671 speaker. The user plugs the cable into
the PSDS and the LS-671 speaker. One end is marked for the speaker; therefore, care
should be taken to ensure the cable is connected correctly.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
9
Periodic Maintenance
Maintenance Safety Notice
Power down the radios and disconnect (unplug) the PSDS power from any AC or DC
power source prior to the performance of any maintenance actions.
Air Filter Maintenance
On the bottom of the system you will find two fan covers that have filters. Depending on
the environment these filters will need periodic cleaning. Included with the PSDS are
several replacement filters. When replacing the filters, wash the filters removed from the
PSDS in warm soapy water, rinse thoroughly and allow to air dry. Filters should last
indefinitely. The PTS recommended filter cleaning interval is 14 days of continual
operation.
Filter Removal Process
•Turn the system onto its rear/back
•Snap the 2 covers holding the filter assemblies off from the bottom of the chassis
•Remove each filter assembly
•Snap out the filter retainer from the assembly to access the filter for cleaning or
replacement
•After cleaning the dirty filter or replacing worn filters, insert the clean or new filter
in the assembly and snap the retainer back into the filter frame
•Replace the assembly in the PSDS and snap the cover back in place
Exterior Cleaning
The exterior of the PSDS may require cleaning. Disconnect the PSDS from all power
sources. The exterior may be cleaned with a mild, warm water soapy solution. Wipe
with a damp towel and dry with a clean towel. Do not use abrasives or oil-based
cleaners. Particular care should be taken to keep soap, water and debris from getting
into the connectors and power plugs. At no time should the PSDS be immersed in
water or other solutions.
The PSDS connectors and cables should be kept clean and free of dirt, grime and
miscellaneous debris. If required clean connectors with a medium stiff bristle brush and
wipe off dirt. Avoid allowing moisture to contact the pins and receptacles in the
connectors. If moisture does get into the connectors, allow the system to dry thoroughly
prior to use.

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
10
System Repair or Return
If a PSDS malfunctions or becomes nonfunctional the user should notify PTS in
Huntsville, Alabama. Call toll free 1-877-737-5832, commercial 256-539-6787 or contact
via e-mail [e-mail] to receive instructions for return and repair.
Be prepared to discuss and troubleshoot the problem. The PSDS should be available to
facilitate actual troubleshooting. PTS will determine if the PSDS needs to be returned
for repair/replacement.
If PTS determines the PSDS requires return for repair, PTS will assign a Return
Material Authorization (RMA) number. The RMA number should be clearly posted on
the outside of the transit case as well as documented on a note inside the case detailing
the specific problem or malfunction, user name, email, phone number and complete
return address of the sender. Please do not include manuals, filters, cables (unless
specifically requested), radios, power amplifiers, etc. when returning the PSDS.
Label the package/case as follows:
Perkins Technical Services, Inc.
RMA# (contact PTS for RMA assignment)
1318-B Putman Drive
Huntsville, AL 35816
Attention: Repairs

Document PTS-HR-117G-MPD-2020-10-20
PTS, Inc.
11
Warranty
PTS warrants all power supply docking stations and transit cases furnished under
contract are free from defects in material and workmanship and will conform to all
requirements of the contract. The PTS warranty shall be for a period of twelve (12)
months from the date of the receipt by the user.
Any PSDS repaired under warranty shall be subject to the warranty of a new PSDS.
This warranty Shall be equal in duration to that set forth in the preceding paragraph and
shall run from the date of receipt of the repaired or replaced PSDS by the user.
PTS shall not be obligated to repair or replace a PSDS or transit case if they become
damaged through unauthorized maintenance or repair, incorrect operational set-up,
abuse or neglect.
When a PSDS is returned to PTS within the warranty period set above PTS shall bear
the transportation costs to the PTS facility and return.
When a PSDS is returned to PTS after the warranty period set above the user shall
bear the transportation costs to the PTS facility. PTS will bear the return costs.
This warranty excludes all other warranties including the warranties of merchantability
and fitness for a particular purpose.
Warranty repairs are normally accomplished within eight to ten business days of receipt
of PSDS at the PTS facility.
Administrative
Inquiries concerning this manual should be referred to the following address:
Perkins Technical Services, Inc.
Attn: Support
1318-B Putman Drive
Huntsville, AL 35816
Technical difficulties or operational problems with the PTS PSDS may be resolved by
contacting PTS using one of the following:
Toll Free 1-877-737-5832
Commercial 256-539-6787
E-mail [e-mail]
