INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
Warning
• Fira luminaires must be installed by a qualied electrician.
• Installation must be carried out in accordance with local and/or national
electrical installation codes of practice.
• Isolate the mains supply to the driver during installation and whenever subsequently
disconnecting or reconnecting the tting to avoid electric shock.
• Use the correct polarity when wiring, if in any doubt please contact Pulsar.
• Pulsar luminaires are designed for lighting applications and must not be used
for any other purpose.
• Unless authorised by Pulsar, eld repairs of the luminaire will void the warranty.

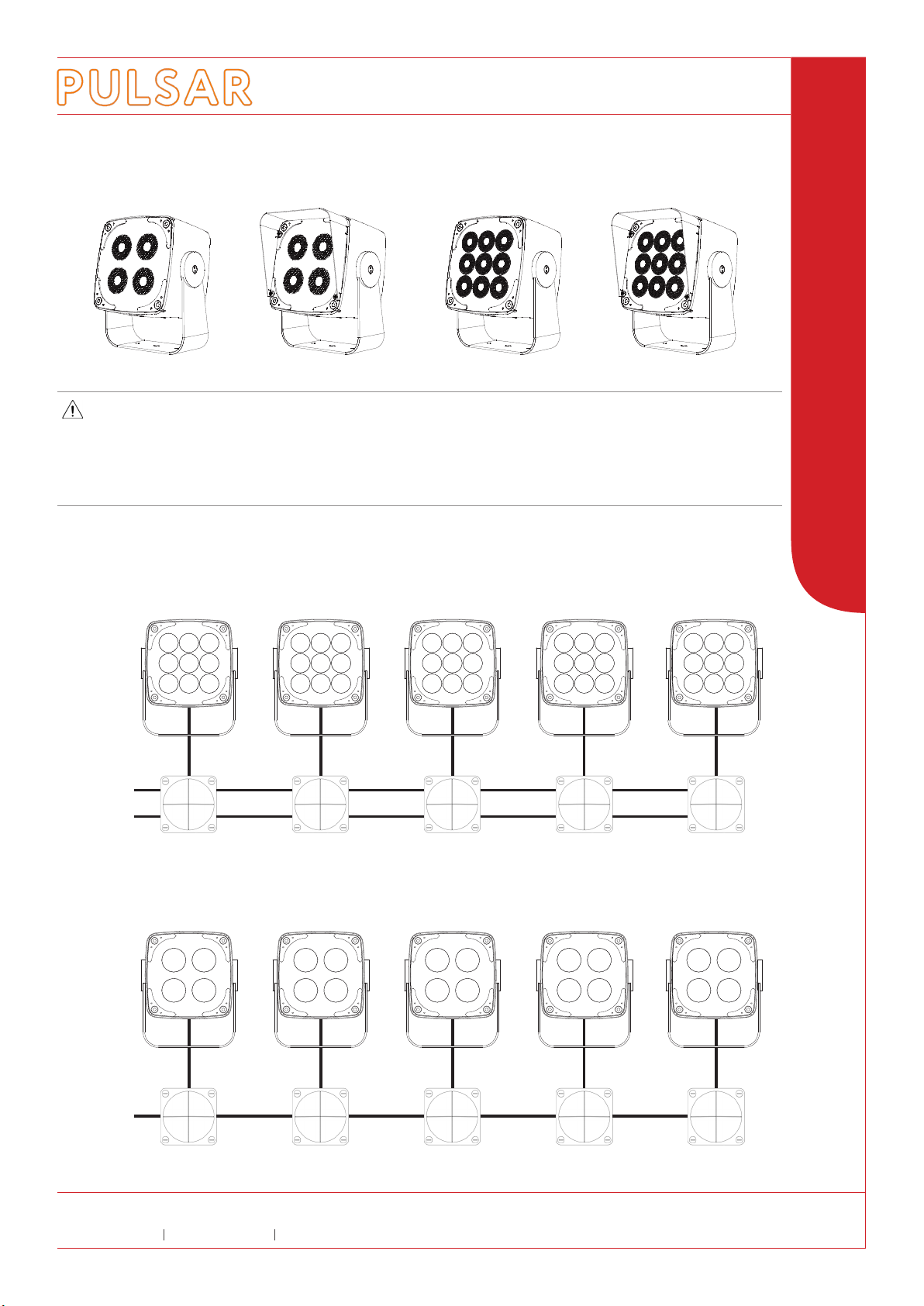

MAINS & DATA CONNECTIONS
DMX In
Power In
QuickLINK+ Cable
- Link - - Link - - Link - - Link -
Power & Data In
- Link - - Link - - Link - - Link -
QuickLINK+ CableQuickLINK+ CableQuickLINK+ Cable QuickLINK+ Cable
Typical Connections (Fira Ultra shown)
LuxCONNECT IP66 Hardwired connection boxes with separate Power & DMX wiring & QuickLINK+ luminaire connections
LuxCONNECT IP66 Hardwired connection boxes with combined Power & DMX wiring & QuickLINK+ luminaire connections
DMX In
Power In
QuickLINK+ Cable
- Link - - Link - - Link - - Link -
QuickLINK+ CableQuickLINK+ CableQuickLINK+ Cable QuickLINK+ Cable
QuickLINK+ Cable QuickLINK+ CableQuickLINK+ CableQuickLINK+ Cable QuickLINK+ CableQuickLINK+ Cable QuickLINK+ CableQuickLINK+ CableQuickLINK+ Cable QuickLINK+ Cable
Typical Connections (Fira Pro shown)
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
2 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
LN
E
N
E
L
N
E
L
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
Jumper J1 in pass- through position
(jumpers connected)
In this position DMX will be passed from input to
output with or without the luminaire in place.
It is not recommended to use the jumpers
in this position if the luminaire is connected
because a single spur DMX line is created
DMX Line termination J2 in enabled position
(jumper connected)
This should be enabled if the luminaire is the
last in the DMX chain
SCREEN
DATA -
DATA +
SCREEN
DATA -
DATA +
SUPPLY IN / THRU 240VAC 20A MAX
J1 DMX PASS THRU J2 DMX TERM
LIVE
NEUTRAL
EARTH
LUMINAIRE
DMX IN/THRU
DMX + WHITE
DMX - GREEN
SCREEN
DMX + RED
DMX - BLUE
SCREEN
-SCR + - SCR
LUMINAIRE
DMX IN/THRU
Power
The power cable should be no greater than 4mm2 and can be either stranded or solid cores.
The maximum current of each cable run should be no greater than 20A continuous.
Before tting the power cable, each cable end should be stripped to between 9 and 11mm before inserting into the connectors.
Ensure connections are made in accordance to the markings on the PCB, failure to do so may result in damage to the luminaire.
DMX
Before tting the DMX cable, each cable end should be stripped to between 8.5 and 9.5mm before inserting into the connector.
Ensure connections are made in accordance to the markings on the PCB, failure to do so may result in incorrect operation or damage to the luminaire.
IMPORTANT: If the insulation rating of the DMX cable is less than the supply voltage then additional protective sleeving should be tted.
DMX Passthrough
When commissioning the installation before the luminaires are connected, or if a luminaire has been removed, the DMX signal can be passed through by repositioning the jumpers (J1)
as indicated within the install box.
Combined Power & DMX input cable Combined Power & DMX through cable
Combined Power & DMX cable with
line mount QuickLINK+ connector
J1 in pass through position J1 in luminaire through position
J2 DMX termination enabled J2 DMX termination disabled
+
110
90
Ø5
Connection box
mounting details
(dimensions in mm)
LuxCONNECT IP66 Hardwired connection enclosure with combined Power & DMX input & QuickLINK+ luminaire connection
-

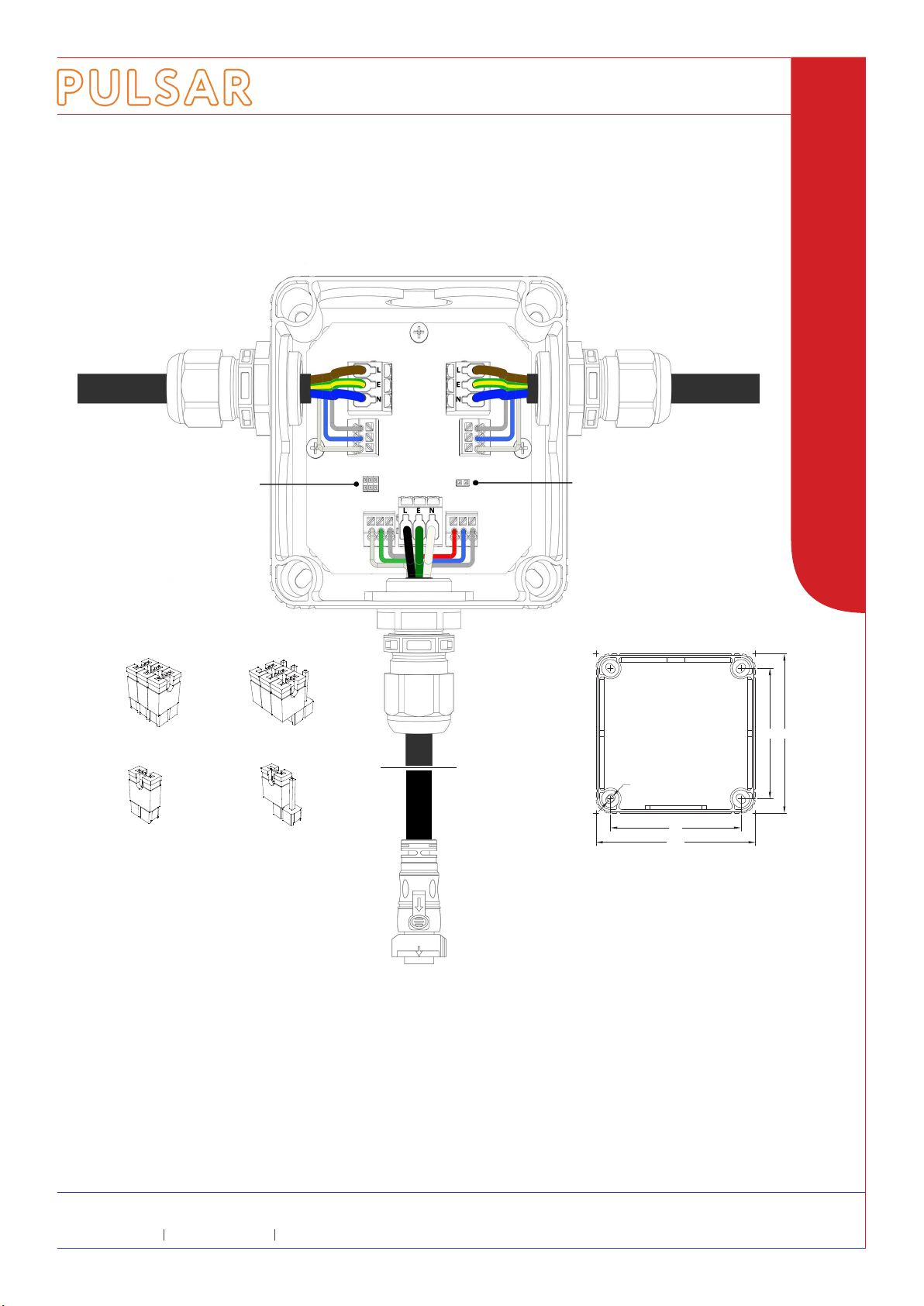

WIRING DETAILS
11090
Depth (including Lid)
65
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
3 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
DMX Channel order
CONTROL
Fira luminaires support DMX512, DMX512:1990, (R2013), ANSI E1.20 – 2010 (DMX with RDM V1.0)
Vivid Colour (VC)
100
50
0%
Channel 1
Red
256
128
0
%Bit
100
50
0%
Channel 2
Green
256
128
0
100
50
0%
Channel 3
Blue
256
128
0
100
50
0%
Channel 4
White
256
128
0
%Bit %Bit %Bit
Tunable White (TW)
100
50
0%
Channel 1
White (1700K)
256
128
0
%Bit
100
50
0%
Channel 2
White (2700K)
256
128
0
100
50
0%
Channel 3
White (5700K)
256
128
0
%Bit %Bit
All DMX512 protocols are supported including E1.11 DMX with RDM.
Other protocols may be supported with future software releases or hardware add-ons.
Single Colour (SC)
100
50
0%
Channel 1
Custom
256
128
0
%Bit
RDM
Start addresses are congured externally via RDM over DMX
The following RDM Parameter I.D’S (PIDS) are supported
Discovery: 0001 – Discovery_Branch_Unique
0002 – Discovery_Mute
0003 – Discovery_Un_mute
Status: 0020 – Queued_Messages
0030 – Status_Messages
0031 – Status_ID_Description
RDM Information: 0050 – Supported_Parameters
Product Information: 0060 – Device_Info
0070 – Product_Detail_ID_List
0080 – Device_Model_Description
0081 – Manufacturer_Label
0082 – Device_Label (Supporting 32 charactors of user text)
00C0 – Software_Version_Label
DMX512 Setup: 00E0 – DMX_Personality
00E1 – DMX_Personality_Description
00F0 – DMX_Start_Address
0120 – Slot_Info
0121 – Slot_Description
Sensors: 0200 – Sensor_Denition
0201 – Sensor_Value
Power/Lamp Settings: 0400 – Device_Hours
Control: 1000 – Identify_Device
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
4 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
HBS Beam Shaping - Fira Pro & Fira Ultra
OPTICAL CONTROL - BEAM SHAPING
Fira luminaires are tted with native HBS (Holographic Beam Shaping lm), when manufactured.
It is possible to change the HBS lm sheets to adjust the beam angle. Standard HBS sheets are available in 20°, 40°, 80°, 10°x60° and 60°x10° adjustment angles
HBS sheets are a standard size to t both the Fira Pro and Fira Ultra.
Changing the HBS
• Position the luminaire on its back with the glass facing in an upward direction.
• Remove the 4 hex bolts (A) that secure the glass mounting brackets, and remove the brackets.
• Carefully remove the front glass taking care to not damage the rubber seal.
• Locate and remove the existing HBS lm.
• Remove the replacement HBS from its packing sleeve (The beam angle description is printed on the lower and right sides)
• Install the new HBS sheet centrally orientated with the Beam Angle legend readable from the front of the luminaire
Note - if the HBS replacement sheets are installed the wrong way around, the beam angle will not change and light output will be signicantly reduced
• Replace the rubber seal into the groove in the main body of the luminaire
• Ret the front glass ensuring that the rubber seal is still located into the groove
• Replace and ret the corner bracket and retighten the screws (A) evenly in sequence.
A
A
A
A
B
Beam Angle Description
Fira Ultra Shown
Beam Angle Description
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
5 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS

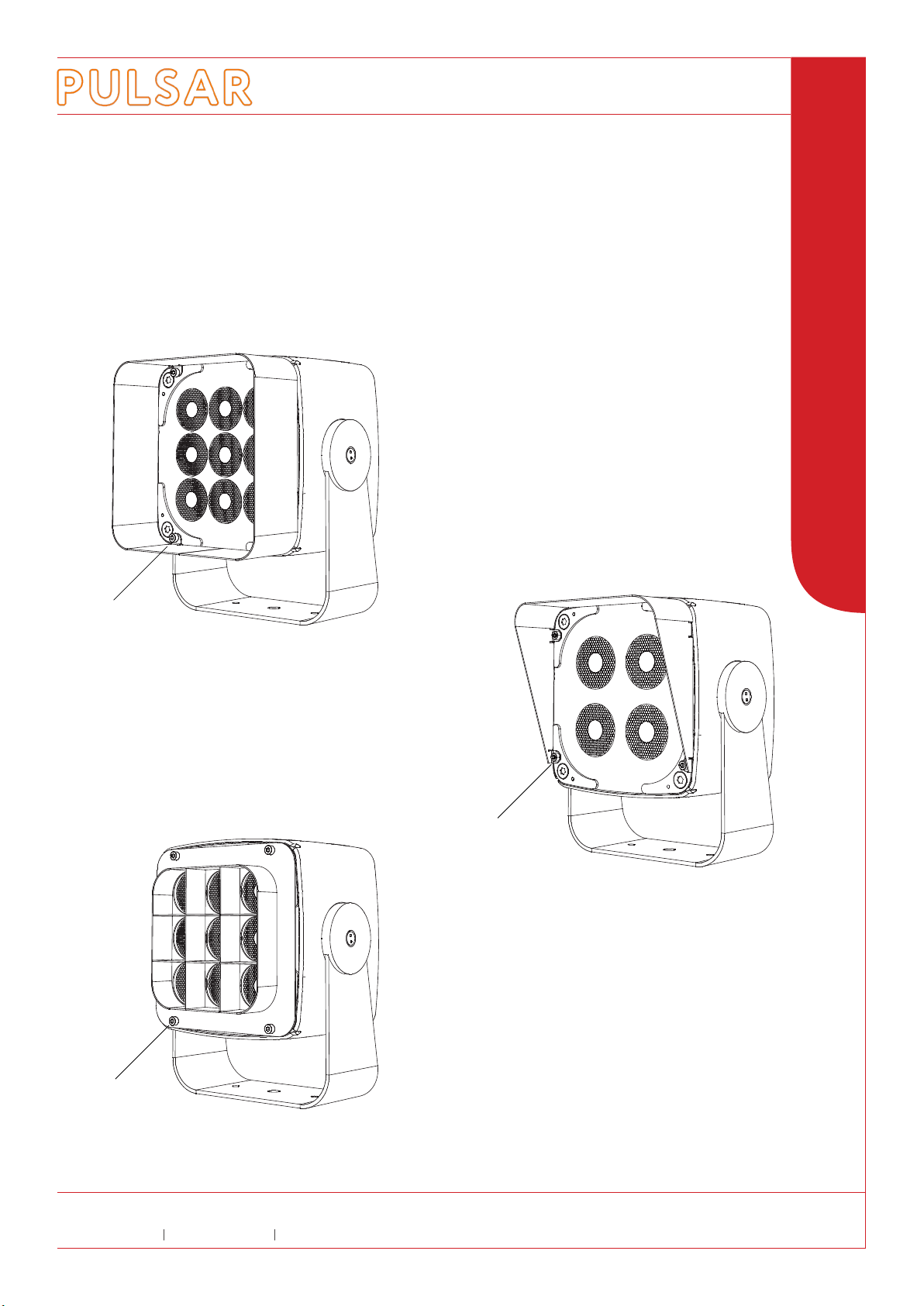

OPTICAL CONTROL - SNOOTS & LOUVRES
Attachments for Glare
3 Attachments are available to reduce light glare from Fira luminaires, these being a 50mm Full Snoot, Half Snoot and Louvre.
Each attachment is tted with the supplied M4 xing screws as shown below.
Fira Ultra with Full Snoot
Fira Ultra with Louvre
Fira Pro with Half Snoot
Fixing Screws
Fixing Screws
Fixing Screws
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
6 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
(All dimensions in mm)
Front view (Fira Ultra) Side view
Rear view
Top view
Weights
Fira Ultra Flood 4.5kgs
Fira Pro Flood 4.4kgs
Dimensions
212mm (H) x 175mm (W) x 106mm (D)
Perspective view (Fira Pro)
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING
MECHANICAL DETAILS - Fira Pro & Fira Ultra

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
7 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
Standard Yoke
Optional Mounting Plate
An optional mounting plate is available, to t the Fira Pro & Fira Ultra
Top view
Top view
Side view
MECHANICAL DETAILS - Fira Pro & Fira Ultra
Hole details
(A) - Clearance for M10 xings
(B) - Clearance for M8 xings
(C) - Clearance for M6 xings
(D) - M10 Stud for Standard Yoke
All dimensions in mm
Torque setting for M6 yoke bolts 3.5 Nm
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING

LUXEOS RANGE
P U L S A R
1 Pembroke Avenue, Waterbeach, Cambridge, CB25 9QP
www.pulsarlight.com [email protected] [phone]
8 of 8
INSTALLATION
7650-FIRA-INST-ALL
FIRA RANGE FLOODS
ADDITIONAL INFORMATION
Standards
Fira Pro & Fira Ultra luminaires comply with the following international and national harmonised standards
Electrical Safety - EN 60598, EN 60598-2-13, EN 61347
EMC - EN 55015, EN 61547
RoHS - EN 50581
Photobiological – EN 62471
WEEE - EN 50419
Protection – IP66 / IK9
Power Requirements
Fira Pro & Fira Ultra 120 -277V AC @ 50/60Hz 30W
Product Weights
Fira Pro 4.4 kgs
Fira Ultra 4.5 kgs
Portable Appliance Testing
Fira Pro & Fira Ultra luminaires may be safely Earth Bond and Insulation tested (500V).
As part of our commitment to continuous improvement PULSAR may change the specications of its products without prior notication or public announcement.
All descriptions, illustrations, drawings and specications in this publication present only general particulars and shall not form part of any contract.
Please visit our website www.pulsarlight.com for the most up to date information.
Warranty
Five years from the date of original purchase.
The warranty covers defects in manufacturing workmanship and materials. It is limited to parts and labour.
The warranty becomes void if the product is :-
A Misused.
B Not used in accordance with the instructions.
C The cable connections are not made according to our instructions if the unit is used in damp or wet environments.
D Repairs are made by unauthorised persons.
E The serial number label has been removed or defaced.
Pulsar’s maximum liability shall not exceed the price paid for the product.
In the unlikely event of a fault occurring, do not use without repair, return the product, with a description of the fault, to your supplier or direct to Pulsar for immediate attention.
Full warranty details are available on request or from our website at www.pulsarlight.com.
QuickLINK+ Cable Colours (Power)
Green Earth - Ground
Black Live Phase
White Neutral
QuickLINK+ Cable Colours (Data in)
White DMX +
Green DMX -
Shield Screen
QuickLINK+ Cable Colours (Data through)
Red DMX +
Blue DMX -
Shield Screen
DMX Cable Colours (Pulsar)
White DMX +
Blue DMX -
Shield Screen
Mains Supply Cable Colours (Harmonised)
Green/Yellow Earth - Ground
Brown Live Phase
Blue Neutral
Fira Pro & Fira Ultra
COMPACT LED FLOODS FOR ARCHITECTURAL LIGHTING
Maintenance
Fira Pro & Fira Ultra luminaires should be regularly tested and inspected, and as part of this checked for the build up of external moss and debris which can reduce the
light output. If cleaning is required, then a mild water based detergent should be used, care should be taken to avoid the use of harsh solvent based cleaning materials as
this could result in damage to the luminaire. Under no circumstances should pressure washers be used for cleaning.
