Pulsar PTG1221SE User manual

www.pulsar-products.com
Warning: The Engine Exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm.
Model No. PTG1221SE
Lawn Mower
OPERATOR’S MANUAL

TABLE OF CONTENTS
Description of Product Parts………………………………………………………………………………………………3
Technical Specifications…………………………………………………………………………………………………...5
Intended use………………………………………..……………………………………………………………………....6
Safety Information…………………………………..……………………………………………………………………...7
Assembly……………………………………………..……………………………………………………………………..11
Adjustment …………………………………………..……………………………………………………………………..15
Operation……………………………………………..……………………………………………………………………..16
Storing and Maintenance…………………………..……………………………………………………………………...20
Troubleshooting ……………………………………..……………………………………………………………………...25
Warranty................................................................................................................................................................26

INTRODUCTION
Date of Purchase:
Model Number:
Serial Number:
How to contact us:
To order parts, receive warranty assistance, or other services inquiries, you can contact us at www.pulsar-products.com
The emissions control system for this lawn mower is compliant with all standards set by the U.S. Agency.
Record the following information bellow for service or warranty assistance.
PULSAR PRODUCTS INC
5721 S. Santa Ana Ave.
Ontario, CA 91761
SAVE THIS MANUAL FOR FUTURE REFERENCE
This manual contains important information regarding safety, operation, and maintenance.
Item Number:
1-866-591-8921
Thank you for purchasing this superior quality lawn mower from Pulsar Products Inc. When operating and
maintaining this product as instructed in this manual, your lawn mower will give you many years of reliable service.

3
DESCRIPTION OF PRODUCT PARTS

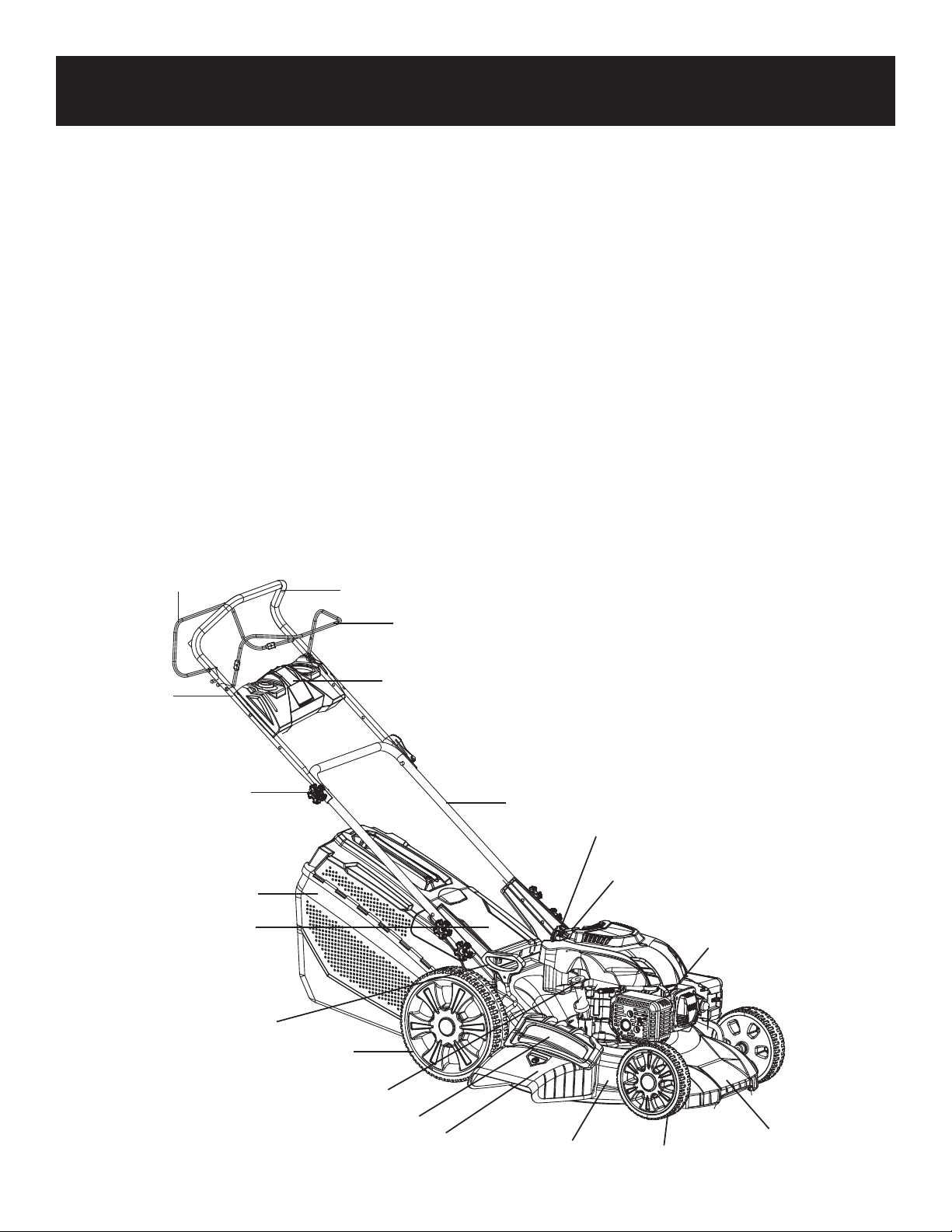

As shown in Fig 1
1. Drive lever (clutch lever)
2. Soft grip
3. Upper handle
4. Brake lever /stop lever
5. Fixing knob with square neck bolt
6. Lower handle
7. Grass bag
8. Fuel tank cap
9. Front decorative cover
10. Height adjusting handle
11. Rear wheel
12. Engine oil cap
13. Side discharge cover
14. Side discharge chute
15. Deck
16. Spark plug boot
17. Pull start
18. Rear discharge cover
19. Front wheel
20. Battery Compartment
Fig 1
1
4
6
2
3
5
18
7
11
12
13
14
15 19
10
8
16
17
9
20

4
DESCRIPTION OF PRODUCT PARTS

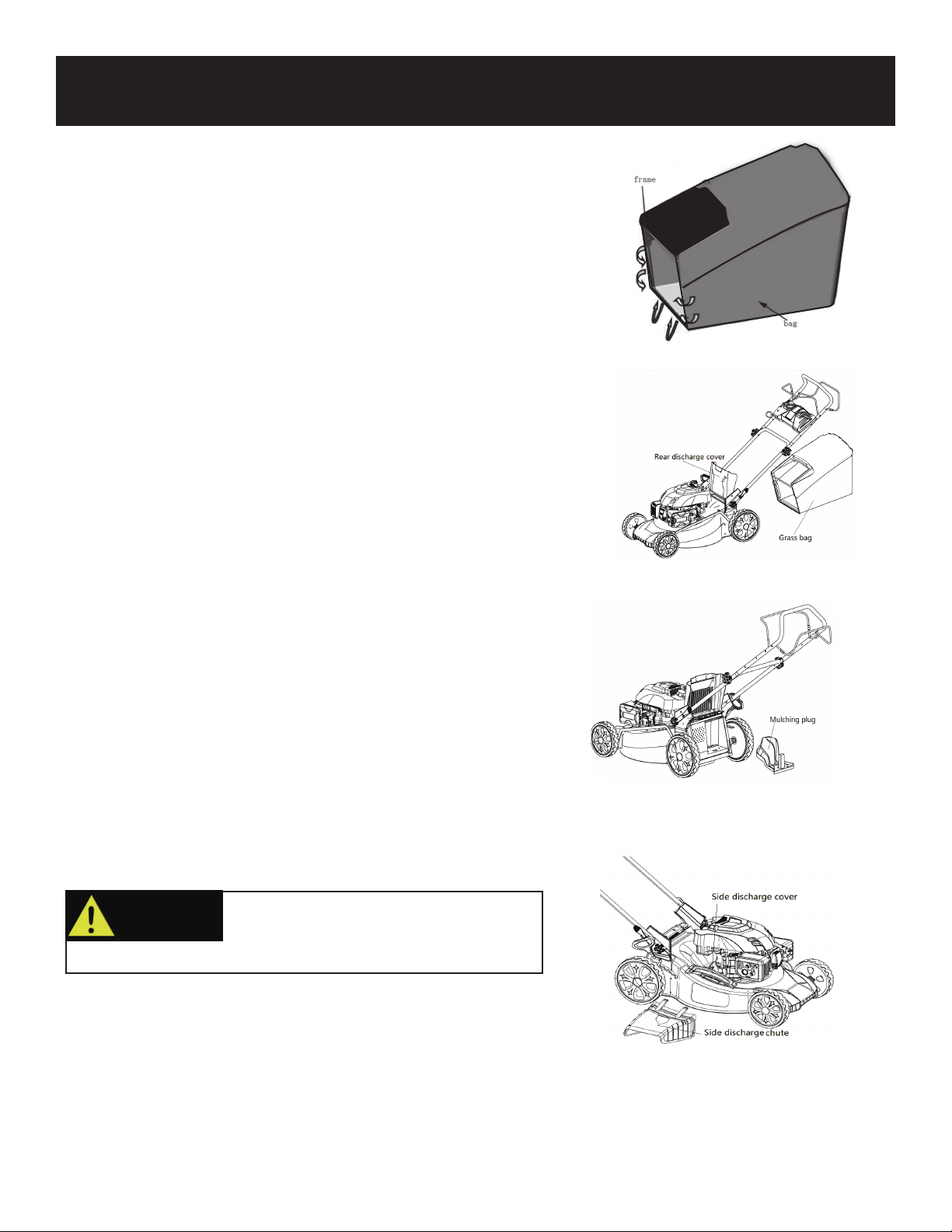

As shown in Fig 2
Carefully remove the machine from its packaging and check that the following parts are complete:
A. Main mower deck (with upper handle and lower handle) 1pc
B. Cable clip 2pc
C. Grass bag assembly
D. Side discharge chute 1pc
E. Manual 1pc
F. Big knob with bolt M6 2 pc
G. Small knob with bolt M6 2 pc
H. Spark Plug Wrench 1pc
I. Plastic mulching plug 1pc (inside the mower)
Fig 2
If any parts are damaged or missing, do not operate this tool until the missing parts are
replaced. Failure to heed this warning could result in serious personal injury.
WARNING!
This item requires a two person lift to remove from the packaging. Make sure that you have
sufficient space to put the lawn mower down. Keep your feet apart so that you have a stable
position, bend at the knees and keep your back straight.
WARNING!
NOTE! Always recycle the packaging in accordance with local recycling laws.
NOTE!

5
TECHNICAL SPECIFICATIONS
Engine Type Single cylinder 4-stroke
Engine displacement 196 CC
Engine max.power 3.8KW/2800 RPM
Engine speed 2800 RPM
Cutting width 21 Inches/530mm
Grass bag capcity 18.5 Gallon/7 0L
Ignition TCL/TORCH
Fuel tank 0.3 Gallons/1.2L
Oil tank 0.6 Quarts/0.6L
Spark type F7RTC
Net weight 95lbs/43KG
Noise Data
Sound pressure level (LPA)* 84dB(A)
Sound power level (LWA)* 98dB(A)
Uncertainty 3dB(A)
Vibration Data
Measure vibration emission value 6.1m/s²
Uncertainty 1.5m/s²
Lithium-Ion Battery
Battery Parameters：DC12V 2000mAh
Lithium ion battery charger: KF62L-12.6V1500-G
Battery charger Parameters: Input AC100〜240V 50〜60Hz 25W
output DC12.6V1.5A

6
INTENDED USE
This gas powered lawn mower has been designed for cutting lawn areas in private house and hobby gardens.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The
user/operator and not the manuafacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our
warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

7
SAFETY INFORMATION
IMPORTANT
Please read these instructions fully before assembling and operating.
Description Of Symbols
Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which
accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a
substitute for proper methods of avoiding accidents.
Warning Symbols On The Machine
WARNING- To reduce the risk of injury,u ser must read instruction manual.
This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this
warning can lead to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution
always apply the recommendations indicated.
Keep by standers away
Beware of sharp blades –remove spark plug before maintenance
Never refuel while the engine is running
Risk of injury. Do not open or remove safety shields while engine is running.

8
SAFETY INFORMATION
Warning Symbols On The Machine
Wearing ear protection, eye protection when operating.
Hot surfaces will burn fingers or palms
Warning! The lawnmower exhaust gas contains toxic substances . Do not run the engine in closed or
poorly ventialted areas.
Guaranteed sound power level
Conforms to relevant safety standards.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check your local authority or retailer for recycling advice.

9
SAFETY INFORMATION
Training
1. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
2. Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict
the age of the operator.
3. Never mow while people, especially children, or pets are nearby.
4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
Preparation
1. While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or
wearing open sandals.
2. Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the
machine.
3. Warning - gasoline is highly flammable.
• Store fuel in containers specifically designed for this purpose.
• Refuel outdoors only and do not smoke while refueling.
• Add fuel before starting the engine. Never remove the cap of the fuel tank or add gas while the engine is running
or when the engine is hot.
• If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid
creating any source of ignition until petrol vapours have dissipated.
• Replace all fuel tank and container caps securely.
4. Replace faulty silencers.
5. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or
damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
6. On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.
Operation
1. Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
2. Mow only in daylight or in good artificial light.
3. Avoid operating the equipment in wet grass, where feasible.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. For wheeled rotary machines, mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Do not mow excessively steep slopes.
9. Use extreme caution when reversing or pulling the lawnmower towards you.
10. Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and
when transporting the lawnmower to and from the area to be mowed.
WARNING! Gasoline is highly flammable.
