PulseAudio DAC-DD User manual

pulseaudio1.com | vanco1.com | 800.626.6445
DIGITAL TO ANALOG
CONVERTER

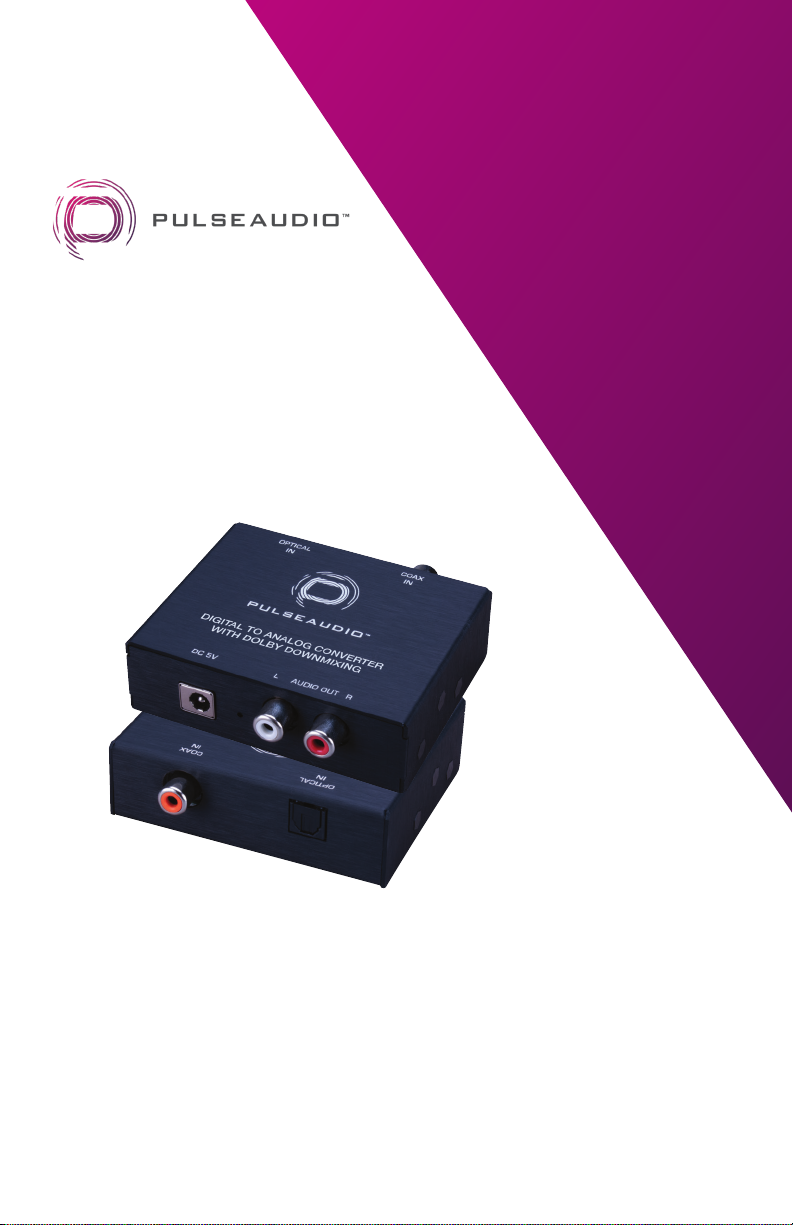

PART NUMBER DAC-DD
CONVERTS DIGITAL COAXIAL OR OPTICAL TO ANALOG AUDIO
VIA DUAL RCA STEREO OUTPUT
WITH DOLBY DOWNMIXING

2
1. Do not install or place this unit
in a built-in cabinet, or other
confined space without adequate
ventilation.
2. To prevent risk of electrical shock
or fire hazard, due to overheating
do not obstruct unit’s ventilation
openings.
3. Do not install near any source of
heat, including other units that
may produce heat.
4. Do not place unit near flames.
5. Only clean unit with a dry cloth.
6. Unplug unit during lightning
storms or when not used for an
extended period of time.
7. Protect the power cord from being
walked on or pinched, particularly
at the plugs.
8. Use unit only with accessories
specified by the manufacturer.
9. Refer all servicing to qualified
personnel.
WARNING
THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE
UNITED STATES TO VERIFY PERFORMANCE PARAMETERS.
Thank you for purchasing this product. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
DEAR CUSTOMER

3
The PulseAudio DAC-DD Digital to Analog Converter with Dolby Downmixing
converts either digital coaxial or optical to analog audio via dual RCA stereo
output. Stereo output signals can then be fed to external devices such as an
audio system, recording device, or powered speakers via standard phono style
(RCA) jacks. Features Dolby Digital downmixing that assures full compatibility
with any playback system without having to downgrade the source, especially
helpful when sending the audio source signal to multiple zones with dierent
formats. With both inputs and outputs for coaxial and optical connections, it
provides the perfect solution for audio conversion applications.
Part # DAC-DD
• Converts digital audio to analog audio with Dolby Digital downmixing
• Decodes connected S/PDIF coaxial or TOSLINK optical digital audio sources to
analog stereo (L/R) audio
• Dolby Digital downmixing assures full compatibility with any stereo playback
system
• Downmixes Dolby 5.1 to PCM
• Ability to switch between coaxial and optical audio input connections
• 24-bit S/PDIF incoming bitstream on left and right channels
• 2-channel LPCM at 32, 44.1, 48, 96 & 192 KHz
• Accepts uncompressed digital audio input source signals
FEATURES
PACKAGE CONTENTS
• DAC-DD Converter
• Power Supply
• Product Manual
Digital to Analog Audio Converter

4
2
1
3
1. Coaxial digital audio input (RCA)
2. Optical digital audio input
NOTE: The DAC-DD will select from whichever digital input is connected. If both digital
inputs are connected simultaneously, then the digital coaxial input will be the default
and will take priority.
1. 5V DC power input
2. Power indicator light: illuminates when powered on
3. Dual RCA Stereo Output
PANEL DESCRIPTIONS
Front Panel
Back Panel
12

5
CONNECT AND OPERATE
Before installation, please make sure all devices you wish to connect have been turned
o
1. Connect the audio source device to the DAC-DD using an appropriate toslink or
coaxial cable
2. Connect the AV Receiver or amplifier to the DAC-DD using dual RCA stereo cable
3. Insert the DC side of 5V power supply into the DAC-DD and then connect the AC
side of the power supply into the wall outlet
4. Verify analog audio output
Amplifier
BluRay®Player
Streaming Box
Toslink Cable Coaxial Cable

6
SAFETY AND NOTICE
The DAC-DD has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all
electronic equipment, the DAC-DD should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit
• Do not attempt to service this unit yourself, except where explained in this manual
• Provide proper ventilation and air circulation and do not use near water
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface
• Use only the power adapter and power cords and connection cables designed for
this unit
• Do not use liquid or aerosol cleaners to clean this unit
• Always unplug the power to the device before cleaning
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing
1-800-626-6445. You can also email technical support issues to techsupport@
vanco1.com. When calling, please have the Model Number, Serial Number
(axed to the bottom of the unit) and Invoice available for reference during
the call. Please read this Instruction Manual prior to calling or installing this
unit, since it will familiarize you with the capabilities of this product and its
proper installation. All active electronic products are 100% inspected and
tested to insure highest product quality and trouble-free installation and
operation. The testing process utilizes the types of high-definition sources and
displays typically installed for entertainment and home theatre applications.
For additional information please visit www.vanco1.com.

7
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the
original purchaser that the equipment it manufactures or sells will be free from
defects in materials and workmanship for a period of two years from the date
of purchase. Should this product, in Vanco’s opinion, prove defective within
this warranty period, Vanco, at its option, will repair or replace this product
without charge. Any defective parts replaced become the property of Vanco.
This warranty does not apply to those products which have been damaged
due to accident, unauthorized alterations, improper repair, modifications,
inadequate maintenance and care, or use in any manner for which the product
was not originally intended.
Items integrated into Vanco products that are made by other manufacturers,
notably computer hard drives and liquid crystal display panels, are limited
to the term of the warranty oered by the respective manufacturers. Such
specific warranties are available upon request to Vanco. A surge protector,
power conditioner unit, or an uninterruptible power supply must be installed in
the electrical circuit to protect against power surges.
If repairs are needed during the warranty period the purchaser will be required
to provide a sales receipt/sales invoice or other acceptable proof of purchase
to the seller of this equipment. The seller will then contact Vanco regarding
warranty repair or replacement.
LIABILITY STATEMENT
Every eort has been made to ensure that this product is free of defects. The
manufacturer of this product cannot be held liable for the use of this hardware
or any direct or indirect consequential damages arising from its use. It is
the responsibility of the user and installer of the hardware to check that it is
suitable for their requirements and that it is installed correctly. All rights are
reserved. No parts of this manual may be reproduced or transmitted by any
form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent
of the publisher. Manufacturer reserves the right to revise any of its hardware
and software following its policy to modify and/or improve its products where
necessary or desirable. This statement does not aect the legal rights of the
user in any way.

506 Kingsland Drive Batavia, Illinois 60510
call: 800.626.6445 | fax: [phone]
visit: www.vanco1.com
Vanco®International
A brand from Learn more at vanco1.com
