PulseAudio PA4KAE-DD User manual

pulseaudio1.com | vanco1.com | 800.626.6445
HDMI® Audio
EXTRACTOR
PART NUMBER PA4KAE-DD
Extracts audio signals from an HDMI source signal
with Dolby/DTS Downmixing

2
1. Do not install or place this unit
in a built-in cabinet, or other
confined space without adequate
ventilation.
2. To prevent risk of electrical shock
or fire hazard, due to overheating
do not obstruct unit’s ventilation
openings.
3. Do not install near any source of
heat, including other units that
may produce heat.
4. Do not place unit near flames.
5. Only clean unit with a dry cloth.
6. Unplug unit during lightning
storms or when not used for an
extended period of time.
7. Protect the power cord from being
walked on or pinched, particularly
at the plugs.
8. Use unit only with accessories
specified by the manufacturer.
9. Refer all servicing to qualified
personnel.
WARNING
THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE
UNITED STATES TO VERIFY PERFORMANCE PARAMETERS.
Thank you for purchasing this product. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
DEAR CUSTOMER

3
The Pulse Audio PA4KAE-DD is an audio extractor which can de-embed or
break out audio from an HDMI 4K HDR signal source without aecting the
HDMI 2.0 output. With both digital and analog audio outputs, the PA4KAE-
DD is a perfect solution for breaking out audio to an external amplifier or
distributed audio system at the source end, or to connect a sound bar at the
display end. In addition, Dolby and DTS formats are able to be downmixed,
so that the source audio signal does not have to be downgraded. Features
optical connection for digital audio output, and RCA connections for analog
audio output. For any audio extraction application where 4K HDR and Dolby/
DTS signals are needed, the PA4KAE-DD is a great solution.
HDMI Audio Extractor with Dolby/DTS Downmixing
Part # PA4KAE-DD
• Extracts audio signals from an HDMI source signal
• Passes 4K@60Hz
• Supports HDR (High Dynamic Range) with Dolby and DTS format passthrough such
as Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
• Includes digital optical audio and RCA analog audio outputs
• HDMI pass-through audio input to HDMI and optical audio output
• Features bitstream audio down-mix to RCA analog output
• Supports 2ch, Dolby Digital 2/5.1ch, DTS 2/5.1ch audio formats for optical output
• Supports CEC pass-through
• Dimensions: 2.9” W x 2.38” D x 0.8” H
FEATURES
PACKAGE CONTENTS
• PA4KAE-DD Audio Extractor
• (1) 5V 1A Power Supply
• Product Manual

4
SPECIFICATIONS
HDMI Compliance .............................................HDMI 2.0b
HDCP Compliance ............................................HDCP 2.2 and HDCP 1.4
Video Resolutions.............................................Up to 4K@60Hz (YUV4:4:4),
4K@30Hz, 1080P@120Hz, and 1080P 3D@60HzSound Channel
Color Space.........................................................RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth.........................................................10-bit, 12-bit
HDMI Audio Formats (Pass-through) .......LPCM 2/5.1/7.1CH, Dolby Digital,
DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos,
DTS:X
Optical Audio Formats ...................................LPCM 2CH, Dolby Digital 2/5.1 ch,
DTS 2/5.1ch
L/R Audio Formats ..........................................Analog Stereo 2ch
ESD Protection...................................................Human body model — ±8kV (air-
gap discharge) & ±4kV (contact discharge)
Inputs.....................................................................1x HDMI Type A [19-pin female]
Outputs.................................................................1x HDMI Type A [19-pin female]; 1x
L/R Audio Out [RCA]; 1x Optical Out [S/PDIF]
Housing.................................................................Metal Enclosure
Color.......................................................................Black
Dimensions ..........................................................2.9” W x 2.38” D x 0.8” H
Weight...................................................................0.3 lbs
Power Supply .....................................................Input: AC100 - 240V 50/60Hz;
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption ........................................1.25W (Max)
Operation Temperature ..................................32 - 104°F / 0 - 40°C
Storage Temperature.......................................-4 - 140°F / -20 - 60°C
Relative Humidity..............................................20 - 90% RH (no condensation)

5

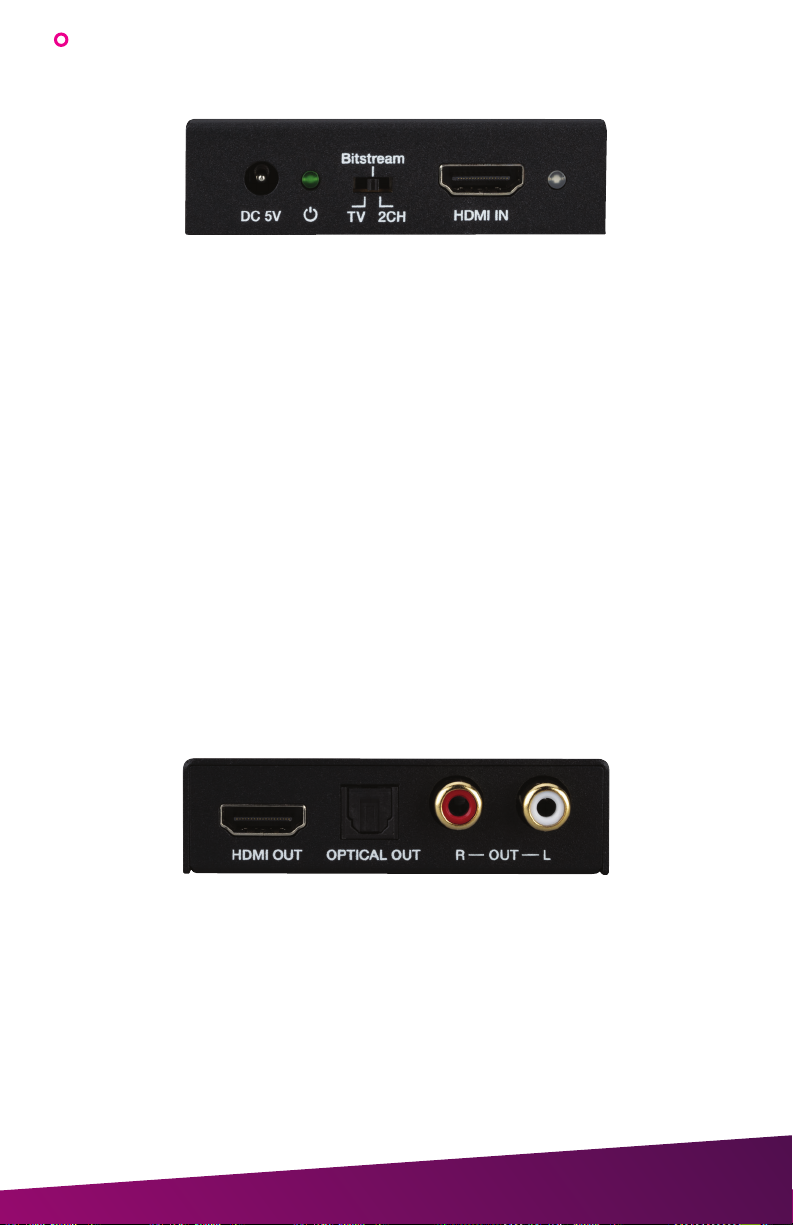

PANEL DESCRIPTIONS
4
3
2
1
FRONT PANEL
1. DC 5V: Connect the included 5v 1A power supply to AC wall outlet for
power
2. Power LED: Power indicator
3. TV/Bitstream/2CH: Manual switch to select between:
Bitstream (multi-channel audio, Dolby, and DTS audio formats)
2CH (stereo PCM audio formats)
TV – this copies EDID from the display if there is an issue with the incorrect
audio format being passed through
4. HDMI IN: Connect an HDMI source
5. Status LED:
Solid Red: Audio source signal is PCM or no signal
Blinking Red: Audio source signal is Dolby
Blinking Green: Audio source signal is DTS
5
3
2
1
1. HDMI OUT: Connect an HDMI display
2. OPTICAL Out: Connect an optical cable to an external amplifier, audio
distribution system, or soundbar
Note: For digital audio formats
3. R/L OUT: Connect an RCA cable or RCA to 3.5mm cable to an external
amplifier, audio distribution system, or soundbar
Note: For analog audio formats
BACK PANEL

6
CONNECT AND OPERATE
1. Connect an HDMI source to the HDMI input
2. Connect an HDMI display to the HDMI
output
3. Select the audio format desired whether it
is 2CH (analog), Bitstream (multi-channel
or digital), or TV to copy EDID from the
display
4. Connect the desired audio output whether
it is optical (digital) out, or RCA (analog)
out to an external amplifier, distributed
audio system, soundbar, etc.
5. Connect the included power supply
At this point check for correct video and audio
formats on the display, and check the audio
extraction ports to ensure they are outputting
the desired format
BluRay
®
Player
HDTV
HDMI
HDMI
Amplifier
SAFETY AND NOTICE
The PA4KAE-DD has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all
electronic equipment, the PA4KAE-DD should be used with care. Please read
and follow the safety instructions to protect yourself from possible injury and
to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for
this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning

7
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing
1-800-626-6445. You can also email technical support issues to techsupport@
vanco1.com. When calling, please have the Model Number, Serial Number
(axed to the bottom of the unit) and Invoice available for reference during
the call. Please read this Instruction Manual prior to calling or installing this
unit, since it will familiarize you with the capabilities of this product and its
proper installation. All active electronic products are 100% inspected and
tested to insure highest product quality and trouble-free installation and
operation. The testing process utilizes the types of high-definition sources and
displays typically installed for entertainment and home theatre applications.
For additional information please visit www.vanco1.com.
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the
original purchaser that the equipment it manufactures or sells will be free from
defects in materials and workmanship for a period of two years from the date
of purchase. Should this product, in Vanco’s opinion, prove defective within
this warranty period, Vanco, at its option, will repair or replace this product
without charge. Any defective parts replaced become the property of Vanco.
This warranty does not apply to those products which have been damaged
due to accident, unauthorized alterations, improper repair, modifications,
inadequate maintenance and care, or use in any manner for which the product
was not originally intended. Items integrated into Vanco products that are
made by other manufacturers, notably computer hard drives and liquid
crystal display panels, are limited to the term of the warranty oered by the
respective manufacturers. Such specific warranties are available upon request
to Vanco. A surge protector, power conditioner unit, or an uninterruptible
power supply must be installed in the electrical circuit to protect against
power surges. If repairs are needed during the warranty period the purchaser
will be required to provide a sales receipt/sales invoice or other acceptable
proof of purchase to the seller of this equipment. The seller will then contact
Vanco regarding warranty repair or replacement.
LIABILITY STATEMENT
Every eort has been made to ensure that this product is free of defects. The
manufacturer of this product cannot be held liable for the use of this hardware
or any direct or indirect consequential damages arising from its use. It is
the responsibility of the user and installer of the hardware to check that it is
suitable for their requirements and that it is installed correctly. All rights are
reserved. No parts of this manual may be reproduced or transmitted by any
form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent
of the publisher. Manufacturer reserves the right to revise any of its hardware
and software following its policy to modify and/or improve its products where
necessary or desirable. This statement does not aect the legal rights of the
user in any way.
