Pumps Australia FAST PRIME WP Series User manual

Pumps Australia PL –Fast Prime
Congratulations on your purchase of another Quality
Product from Pumps Australia PL
WARNING
1. Never operate Petrol or Diesel Engine driven unit in explosive
atmosphere, near combustible materials or where insufficient
ventilation exists.
2. Ensure pump is on secure footing & level surface
3. Observe all safety precautions for the handling of fuel.
4. Never fill the engine while it is running, or after long periods of
operation –let it cool for 30 minutes –Then Re-fuel
5. Use genuine replacement parts only.
6. Do not run pump dry. Always fill pump body with liquid to be
7. Pumped before starting the pump.
PREPARATION FOR OPERATION
1. Inspect unit for shipping damage immediately upon receipt. If
any visible damage exists note damage on shipping docket
before signing. Notify your Distributor immediately of any
damage to the shipment.
2. Read these instructions and power unit instructions until you
are sure you can operate it safely and correctly. If in doubt as
your supervisor
3. Before starting, fill crank-case with oil specified by engine
4. Manufacturer (normally SAE 30) to the level marked on engine
Indicator.
5. Fuel -Use onlyDieselfuel or unleaded gasoline for Petrol
engines.
6. Suction piping. Make sure packing is placed at the seat of
hose coupling and all suction piping lines are perfectly free
from air leaks. Make certain suction line is laid gradually
descending from the pump to source of supply to avoid
possibility of air lock.
7. Always fit strainer to end of suction line. Non return valve is
always helpful but not essential.
8. Do not over tighten hose couplings.
9. Arrange check valve, stop cock or on/off nozzle at delivery
hose end.
OPERATION
1. Removefilling capfromtopofdeliveryoutlet,fillcasingwithfresh
water and refit cap.
2. Open gate valve on delivery line.
3. Open fuel cock, close engine choke, start engine,
4. NB. PA Fast prime pumps are self priming and no additional
priming is required as long as the casing is filled with water and
there are no suction line leaks.
SHUT DOWN PROCEDURE
1. Slow engine then switch to off 'Stop' button.
2. Close fuel cock.
3. Drain pump casing if there is any possibility of freezing,
PUMP OPERATING POINTERS
1. Never run pump dry as this may result in seal damage.
2. Ensure that all hose and pipe connections are airtight,
IMPORTANT; an air leak in the suction line will prevent
priming and will reduce the capacity of the pump.
3. Always place the pump as close to the liquid to be pumped as
possible. Keep all lines as shortand straight as possible, Avoid
sharp bends in hoses. Keep the pump on a level foundation.
4. If flexible hose is laid across a roadwayprotect it with planking,
Instantaneous shut off pressure is applied when a vehicle runs
across an unprotected hose and will cause 'hydraulic shock'.
This can damage and or breakage of pump casing of the
pump and/or the hose.
5. When pumping dirty water or other liquids which may contain
solids always use a pump strainer. If the suction strainer is
likely to clog with dirt and debris do one of the following:
(a) Prepare a bed of stones in which to rest the strainer.
(b) Tie the strainer so that it stays at the bottom of the pit or
excavation.
(c) Tie the strainer inside a basket or bucket to protect it from
slurry,
6. Always flush out the pump at the end of operation if the liquid
being pumped may leave a solid or sticky residue,

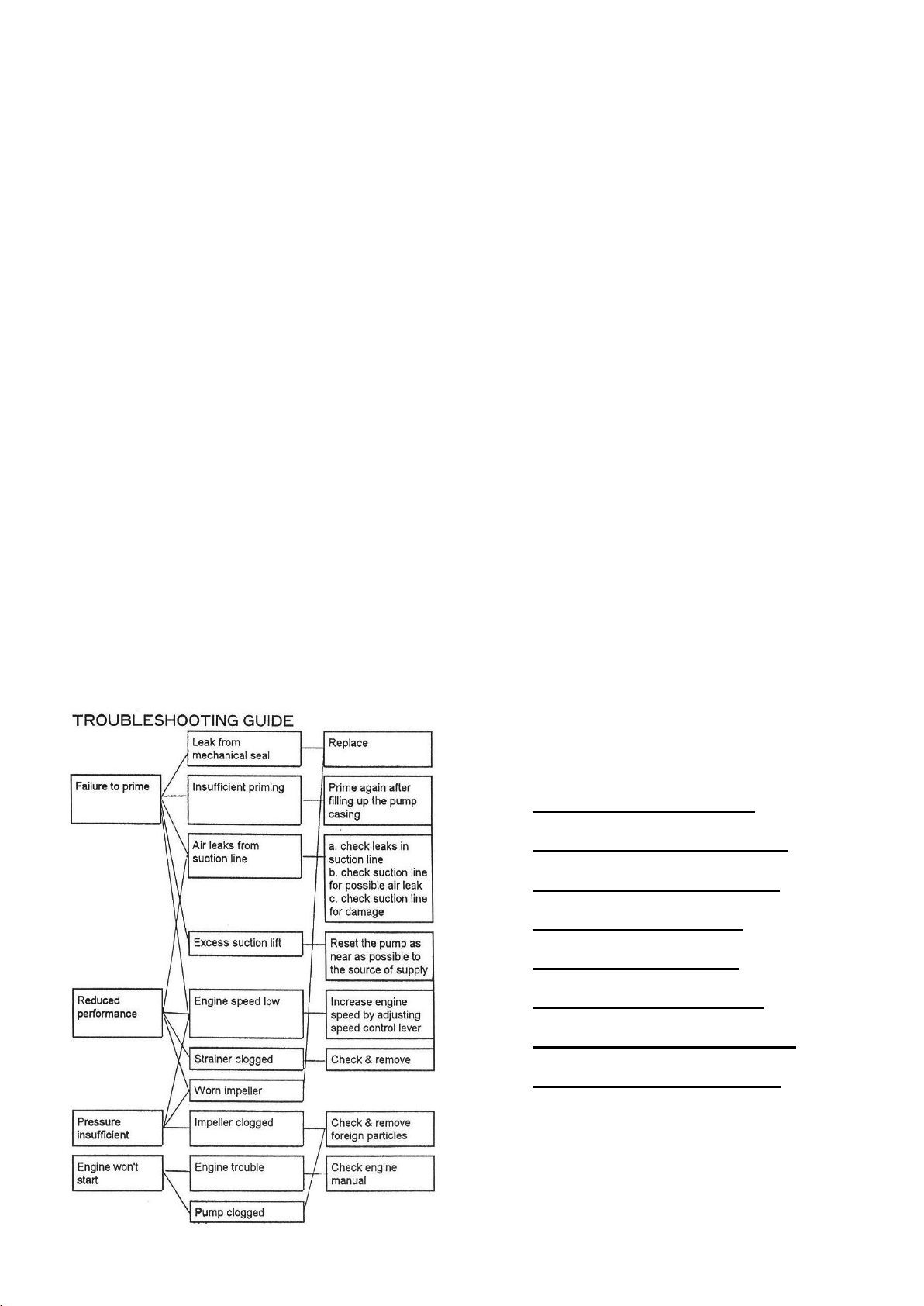

This Guide is compatible with the following
models;
WP Series –Water Transfer
WP10, WP15, WP20, WP30, WP40, WP60
HP Series –High Head Transfer
HP15 & HP15Dual, HP20& HP20Dual, HP30
SHP Series –Super High Head
SHP50, SHP80, SHP100
WB Series –Trash Pumps
WB80, WB100
RX Series –Trash Pumps
RX80, RX100
DFT Series –Diesel Transfer
DFT40,DFT50,DFT60
Nitro Series –Chemical Transfer
Nitro 50, Nitro 80
SU Series –Hydraulic Transfer
SU25, SU40, SU50, SU80, SU100
