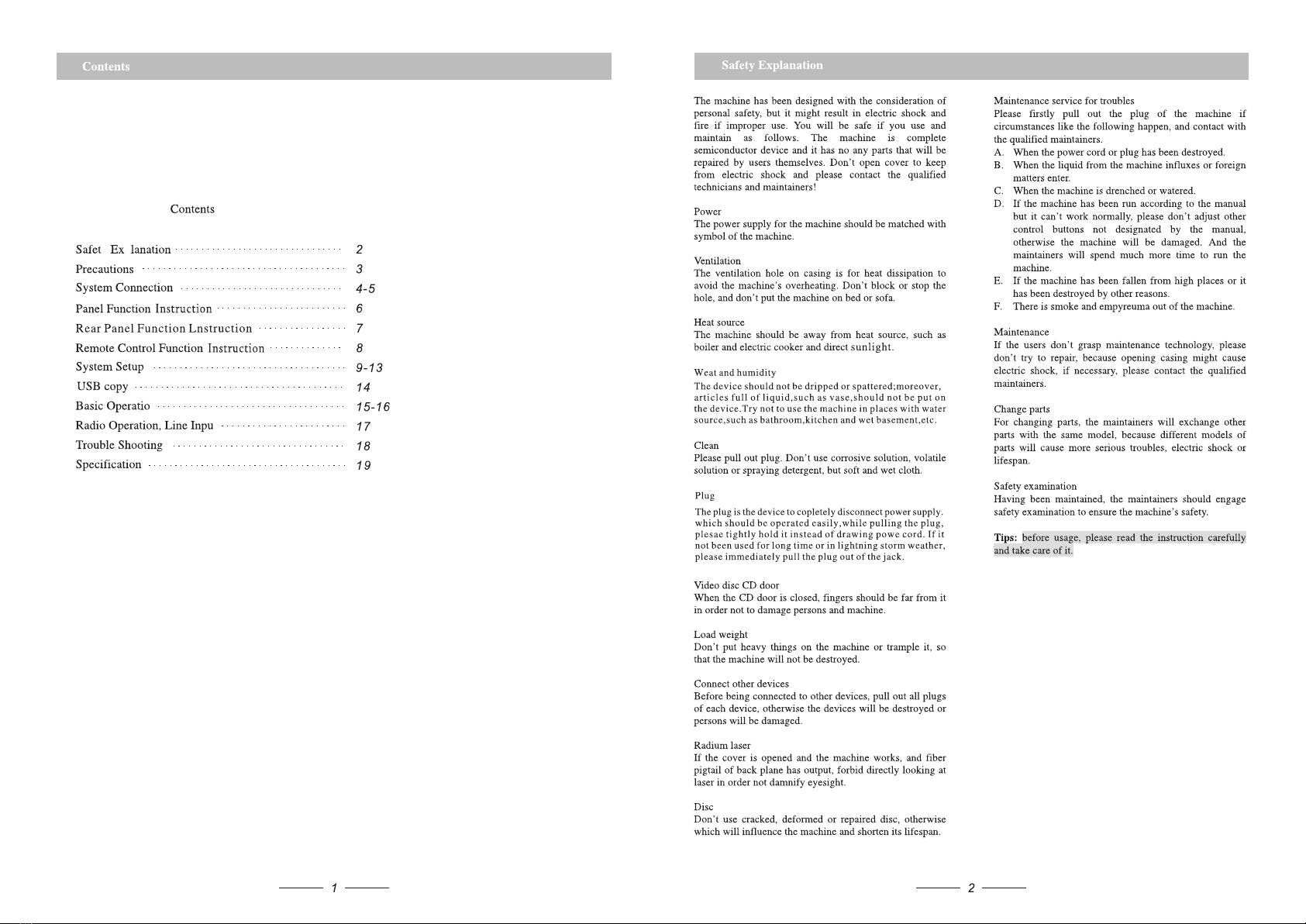

Pure Acoustics PU-50 User manual

PU-50
DVD

S-video output
VID E O O u tpu t O p e rat i o n
Video output
If TV has S-VIDEO input, connect S-video
of machine to S-video input of TV via S-video
connection line, instead of additional video
connection line, and S-video is clearer than
Video
The chromatic aberration output provides Y,
U,V to correspondingly connect to Y,U,V
input ends of TV,Y,U,V output images are
clearer than S-VIDEO image (Y,U,V can be
set in video output selection of the setup menu)
1、When VIDEO of the machine will be connected to TV video, please set Video output mode on the menu to “S-VIDEO”,
and the video component output is invalid or it has non-ideal effect。
2、If TV has S-VIDEO input, S-video of the machine can be connected to TV by S-VIDEO connection line, when using S-VIDEO
connected line, please set Video output mode on the menu to “S-VIDEO”, and the video component output is invalid or
it has non-ideal effect。
3、If TV has video component input,use video component of the machine,for using the video component output, please set the
video output mode on the menu to “Video Component”output, and the S-VIDEO and VIDEO output are invalid or they
have non-ideal effect.
4、If the machine will be connected to TV or power amplifier, please shut the power of each device and pull out the plug before connect.
5、Please directly connect the machine with TV,if it is connected to video device,the picture will be distorted, because of disc
keeps from being copied.
Correspondingly connect audio input channel
of TV or power amplifier to left and right
channels.
Audio output
Note:
Audio output operation

Audio output
HDMI connection line If TV or power amplifier have HDMI input,
please connect HDMI output of the machine
to HDMI input end of TV or power amplifier
via HDMI connection line.
Coaxial output
Coaxial connection line If TV or power amplifier has coaxial decoding
function, please connect coaxial output of the
machine to coaxial input end of TV or power
amplifier via the coaxial connection line.
Note:
1、For output signal of coaxial decoding, the great volume will not produce more difference，it is due to the way of decoding
difference, is a normal phenomenon
2、or coaxial output, please set the audio digital output selection of the setup menu to SPDIF/source code and SPDIF/PCM
source code status,if it is set in SPDIF/close status,no signal output.
Speaker connection instruction:
Note: line connect with the speaker, please be careful,not to short-circuit of bipolar or sheel,or else will be damaged
the system.
Front-panel function instruction:
1. LOGO
2. DVD door
3. “Open/Close” function keys
4. “Play/Pause” function keys
5. Input
6. “Search” function keys
7. “Menu” function keys
8. “Volume” function keys
9. Power
10.“Earphone” function keys
11. SD/MS/MMC
12. Display Space
13. USB Input
14. “Delay” Must Twist
15. “Echo” Must Twist
16. “M.Vol” Must Twist
17. MIC 1
18. MIC 2
19. “M.Treble” Must Twist
20. “M.Bass” Must Twist
INP UT ME NU
FM
DVD R ECEIV ER SYST EM
PU- 50
EARPH ONE SD/MS/MMC
(1) (2) (3) (4) (5) (6) (7) (8)
(9) (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) (20)
SR SLCEN
ANTFM
SW OUT2
SW OUT1 C SL L
RSRSW
5.1 CH AUD IO I NPUT
SW OUT AU X1
AUX2
L
R
FR FL
FRONT SPE KERS （4～8 ）
MODEL NO .: PU- 50
POWER :20 0W
VOLTAGE: ~2 30V /5 0HZ
NAME: DVD R EC EIV ER S YST EM
SL
SR
CEN

Rear panel instruction:
1.“MUTE” function key
2.“OPEN/CLOSE” function key
3.“COPY” function key
4.“SLOW” function key
5.“1~0 digital key
6.“10+ function key
7.“SETUP function key
8.“UP” function key
9. “LEFT”function key
10.“ENTER” function key
11.“TITEL”function key
12.“MENU”function key
13.“STOP” function key
14. “BACK” function key
15.“ADJUST”function key
16.“VOL+”function key
17.“VOL-” function key
18 “AUDIO“ function key
19 “OSD” function key
20 “NEXT/CH+” function key
21 “PREV/CH-“ function key
22.”FWD”functiob key
23. “REV” function key
24. “REPEAT” function key
25 “POWER”function key
26. “SOURCE”conversion function key
27 “GOTO”function key
28 “RANDOM” function key
29 “ZOOM” function key
30 “RIGHT” function key
31 “DOWN” function key
32 “SUBTITEL” function key
33 “ANGLE/DELETE” function key
34 “PLAY/PAUSE” function key
35 “SEARCH” function key
36 “FM” function key
37 “DSP” function key
38 “AUX” function key
39 “RESET” function key
40 “VIDEO” function key
41. “TV system P/N” function key
42 “A-B”function key
SR SLCEN
ANTFM
SW OUT2
SW OUT1 C SL L
RSRSW
5.1 CH AUD IO I NPUT
SW OUT AU X1
AUX2
L
R
FR FL
FRONT SPE KERS （4～8 ）
MODEL NO .: PU- 50
POWER :20 0W
VOLTAGE: ~2 30V /5 0HZ
NAME: DVD R EC EIV ER S YST EM
(1) (2) (3) (4) (5) (6)( 7) ( 8) ( 9) ( 10)
(11) (12) (13) (15) ( 17)
1.Right channel speaker output
2.Left channel speaker output
3.Audio out
4.HDMI output
5.Chromatic aberration signal output
6.Video output
7.S-VIDEO signal output
8.FM Ant
9.AUX 2 Audio input
10.Power input
11 Optical Output.
12. Center-channel Speaker
13. Surround Right Speaker
14. Surround Left Speaker
15. SW out 1
16. SW out 2
17. 5.1CH Audio input
(16) (14)

TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT
TV SYSTEM
VIDEO
HD OUTPUT
TV TYPE
PASSWORD
RATING
DEFAULT

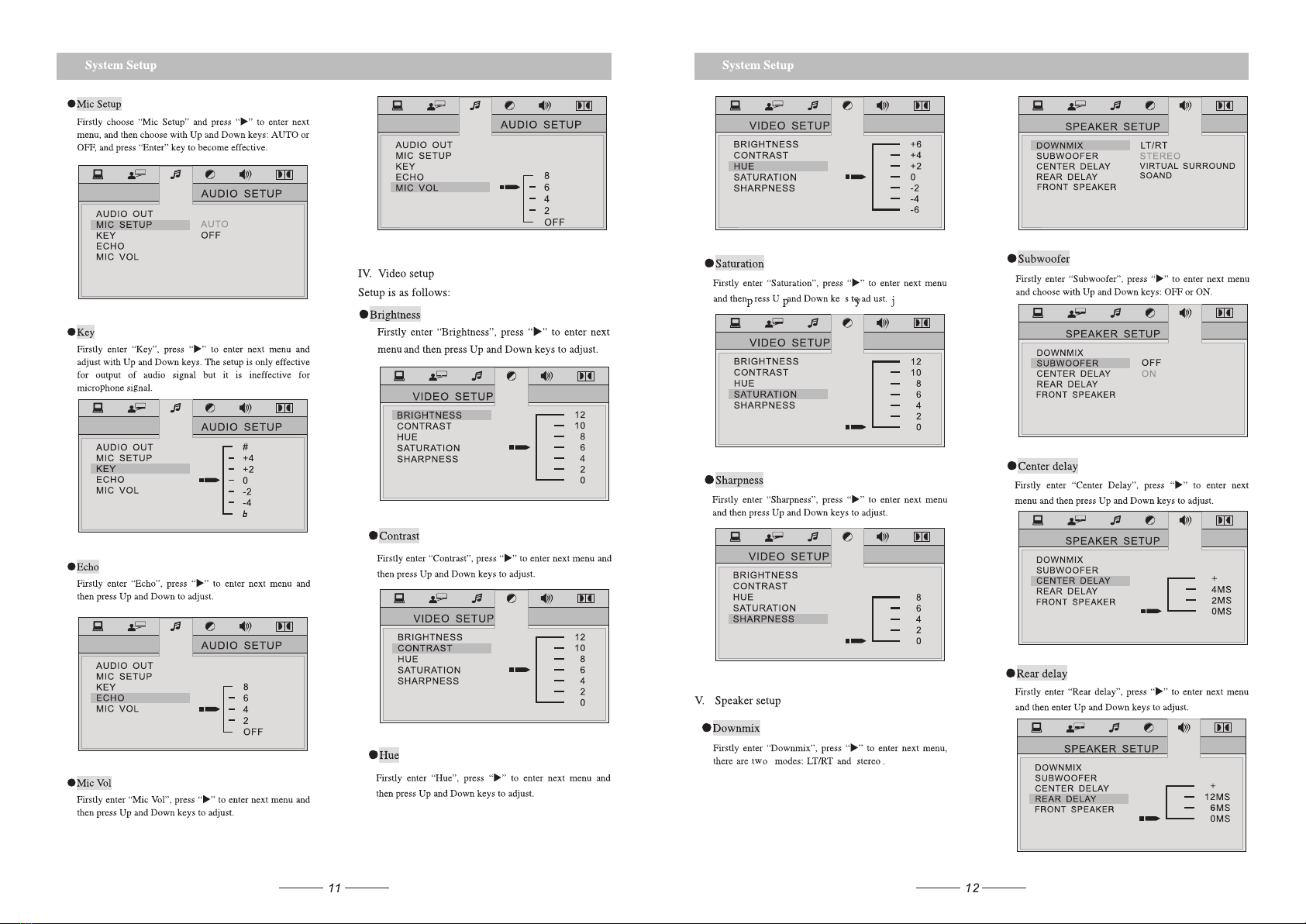

System Setup
Press the“setup”onthe remote sontrol firstly,get into
setup menu sinterfare.the press the remote control of up,
down,left and righf key for seledion press again“tzner”
to wake selecfion to take effeaf exit setup meuu inter
face to press“setup”key.

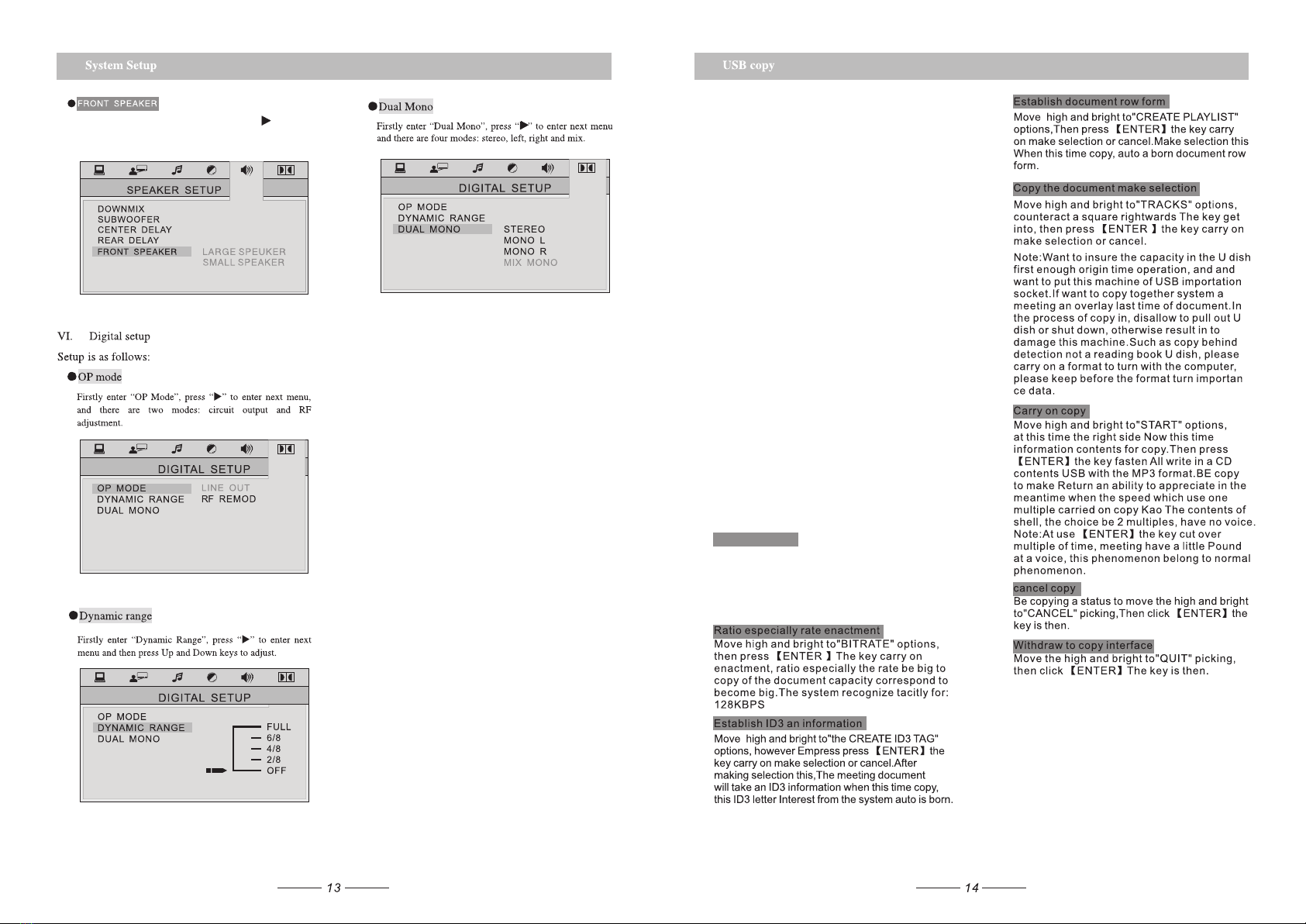

USB/SD copy operation:
●MP3 file copy
While Playing MP3,press “COPY”key on the remote
control and enter copy,the copy music is current playing
music.
Note; firstly make sure the U-DISC is enough space
for current operation and insert to USB slot of the
machine，if copy the music with the same document,
please rename the last music by computer, otherwise
the system will cover last document.During copying,
don't pull out U-disc or shut the machine,otherwise
the machine or U-disc will be damaged.If it doesn't read
U-disc after being copied,the U-disc must be format by
computer,before that,please save importance data.
●MPEG4 file copy
While Playing MP4，under stopping state, choose
the copied music with Up and Down keys and press
“COPY”key of the remote control, and start copying.
Note: firstly make sure the U-DISC is enough space for
current operation and insert to USB slot of the machine，
if cop y th e mu sic with the sam e do cume nt, plea se
re name the las t mu sic by c ompu ter, othe rwis e th e
sy stem wil l co ver last doc umen t. During copying,
don't pull out U-disc or shut the machine, otherwise
the machine or U-disc will be damaged.If it doesn't read
U-disc after being copied,the U-disc must be format by
computer, before that, please save importance data.
●AUDIO CD copy
Press the“frout speaker”options the press“ ”key
get into next further menu use up and down key for
seleofim,large speukr/small speaker.
While playing CD,press COPY” control and enter“
CD RIP interface.
SPEED operation
1.Move the highlight to " SPEED”options and press
“ENTER”key to select.
2. while coping status,the choice “CHANGE SPEED”
options,press “ENTER”key can be convert to copy
of speed.

To adjust the volume of “treble “,medium,”bass”lift
“and right
Press the “MENU”on the panel or the “Adjust”of the
remote control ,it will appear
“TRE””BAS””CEN””SL””SUB”respectively.then to
adjust the volume knob on the panel or the VOL+,
VOL- of remote control ,the operation can be
realized
Treble, bass, center, left surround, right
surround, "the volume control.

3
To press the “INPUT”of the panel or “AUX”on the
remote contorl, It can be inputed audio signal to the
AUX1 group when the LINE1 shows on the display.
Press “INPUT”and “AUX”again ,to input audio
signal when display shows LINE2

200W
