Pure-Wave Quantum 6600 User manual

Quantum 6600
High performance, all outdoor
Mobile WiMAX base stations
PureWave Quantum 6600
Installation Guide v2.1
ING-00701-001 Rev D

PureWave Quantum 6600 Installation Guide v2.1
Page 2
© PureWave™ Networks 2010. All rights reserved. PureWave™ Networks has prepared this manual for
use by PureWave Networks personnel, licensees, customers, and customers of customers. The
information contained herein is the property of PureWave Networks and shall neither be reproduced in
whole nor in art without prior written approval from PureWave Networks.
PureWave Networks reserves the right to make changes without notice to the specifications and
materials contained herein, and shall not be responsible for any damages caused by reliance on the
material presented, including, but not limited to, typographical, arithmetic and listing errors.

PureWave Quantum 6600 Installation Guide v2.1
Page 3
Contents
Contents........................................................................................................................................................ 3
Figures........................................................................................................................................................... 5
Tables............................................................................................................................................................6
Regulatory Notice ......................................................................................................................................... 7
Safety Precautions ........................................................................................................................................ 8
1Preface ..................................................................................................................................................9
1.1 About This Document ................................................................................................................... 9
1.2 Symbols used in this Document.................................................................................................... 9
1.3 Packaging and Components.......................................................................................................... 9
1.4 Locating the Product Serial Number...........................................................................................10
1.5 Obtaining Documentation and Support......................................................................................10
2Base Station Basics.............................................................................................................................. 11
2.1 Physical and Environmental Specifications................................................................................. 11
2.2 Physical and Environmental Specifications................................................................................. 12
2.3 Connectors and Indicators ..........................................................................................................13
3Mounting the Base Station .................................................................................................................15
3.1 Fundamentals .............................................................................................................................15
3.2 The Pole-Mount Kit.....................................................................................................................16
3.2.1 Pole Mount Installation Procedure.....................................................................................17
4Mounting the Antennas......................................................................................................................21
5Connecting the Antennas to the Base Station....................................................................................22
5.1 Installation of Lightning Surge Protectors .................................................................................. 22
5.2 Connecting the Antennas to the Base Station............................................................................24
5.2.1 3x2x2 OmniWave Configuration......................................................................................... 25
6Installing the GPS Antenna..................................................................................................................26
6.1 Selecting and Mounting a GPS Antenna .....................................................................................26
6.2 Connecting the GPS Antenna to the Base Station ......................................................................27
7Connecting Ethernet and Serial Console Cables.................................................................................28

PureWave Quantum 6600 Installation Guide v2.1
Page 4
7.1 The PureWave Basic DC Installation Kit......................................................................................28
7.2 Preparing the Ethernet and Console Cables ...............................................................................29
7.3 Weatherproofing the Ethernet and Console Connections ......................................................... 30
8Connecting DC Power and Ground .....................................................................................................32
8.1 Base Station Single-Point Grounding ..........................................................................................32
8.2 Preparing the DC Power Connector............................................................................................32
Appendix A Connector Weatherproofing............................................................................................... 39
Required Materials .................................................................................................................................39
General Guidelines for Working with Weatherproofing Tape................................................................39
Weatherproofing Procedures .................................................................................................................40
Appendix B Warranty Statements..........................................................................................................43
Hardware ................................................................................................................................................43
Software..................................................................................................................................................43
Additional Conditions..............................................................................................................................44
No Fault Found........................................................................................................................................ 44
Warranty Limitations ..............................................................................................................................44
Warranty Disclaimer ...............................................................................................................................44
Obtaining Warranty Service....................................................................................................................45
Out of Box Failure (OBF) / Dead on Arrival (DOA) ..................................................................................46
Advanced Replacement ..........................................................................................................................46
Assistance................................................................................................................................................47

PureWave Quantum 6600 Installation Guide v2.1
Page 5
Figures
Figure 1: PureWave Quantum 6600 Base Station ..............................................................................11
Figure 2: PureWave Quantum 6600 Base Station Mounted on a Tower..............................................11
Figure 3: Base Station Connectors.....................................................................................................13
Figure 4: Base Station Mounting Holes .............................................................................................15
Figure 5: Example of Mounting Point with Spacing Hardware............................................................15
Figure 6: Example Deployment Consisting of Pole Attached to a Metal Frame ...................................16
Figure 7: Base Station Pole Mount Assembly Diagram.......................................................................18
Figure 8: Base Station Mounting Bracket ..........................................................................................18
Figure 9: Pole Mounting Plates .........................................................................................................19
Figure 10: Base Station Mounting Bracket Alignment........................................................................19
Figure 11: Pole Mount Subassembly .................................................................................................20
Figure 12: Pole-Mounted PureWave 6-Port Antenna Panel................................................................21
Figure 13: PureWave 6-Port Antenna Panel Connectors ....................................................................24
Figure 14: PureWave 3x2x2 Configuration ........................................................................................25
Figure 15: Optional GPS Antenna and Mounting Kit ..........................................................................26
Figure 16: T-567B RJ-45 Connector....................................................................................................30
Figure 17: RJ-45 IP67 Weatherproof Housing Assembly .....................................................................30
Figure 18: Assembled RJ-45 IP67 Weatherproof Housing...................................................................31
Figure 19: IP67 DC Power Connector and Pin Assignments ................................................................33
Figure 20: Crimp and Insertion Tools for the DC Power Connector .....................................................33
Figure 21: Slide connector onto cable before crimping. .....................................................................34
Figure 22: Wire properly inserted into circular socket crimp contact..................................................34
Figure 23: Side and top views of correct crimping technique .............................................................35
Figure 24: Properly completed first crimp .........................................................................................35
Figure 25: Start the second crimp with tool section “A”.....................................................................36
Figure 26: Complete the second crimp with tool section “B”. ............................................................36
Figure 27: Fully completed pin..........................................................................................................36
Figure 28: Pins inserted into DC power connector .............................................................................37
Figure 29: Use needle-nose pliers to push the pins further into the plug. ...........................................37
Figure 30: Use insertion tool to secure the pins in the plug................................................................38
Figure 31: Front view of plug with crimp pins properly inserted.........................................................38
Figure 32: Completed Power Connector Assembly ............................................................................38
Figure 33: Proper Weatherproof Tape Overlap..................................................................................39
Figure 34: Torque Wrench for N-Type Connector ..............................................................................40
Figure 35: First Plastic Tape Layer .....................................................................................................40
Figure 36: First Rubber Tape Layer....................................................................................................41
Figure 37: Wrapping Plastic Tape on Top of the Rubber Tape ............................................................41
Figure 38: Wrapping ¾”Plastic Tape 1” Below Previous Wrap............................................................42

PureWave Quantum 6600 Installation Guide v2.1
Page 6
Tables
Table 1: Quantum Environmental and Mechanical Specifications ......................................................12
Table 2: Base Station LED Description...............................................................................................13
Table 3: Base Station Connector Descriptions ...................................................................................14
Table 4: PureWave Quantum Base Station Pole Mount Kit Contents..................................................17
Table 5: PureWave Quantum Surge Protection Kit Contents..............................................................22
Table 6: PureWave Quantum Surge Protection Kit Specifications.......................................................23
Table 7: PureWave Quantum Basic DC Installation Kit Contents ........................................................28
Table 8: Cat 5e+ Connector Pinout....................................................................................................29
Table 9: Summary of PureWave RMA Conditions and Charges...........................................................46

PureWave Quantum 6600 Installation Guide v2.1
Page 7
Regulatory Notice
This device complies with the FCC limits a class B digital device, pursuant to Part 15 of the FCC Rules. A
complete list of regulatory certifications can be provided by PureWave upon request. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Re-orient or relocate the receiving antenna/s.
•Increase the separation between the equipment and other receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC
regulations.
Changes or modifications not expressly approved in writing by PureWave Networks may void the user's
authority to operate this equipment.
Note: This device must be professionally installed, and the operator and/or the licensed
spectrum holder has the responsibility to comply with FCC regulations.
Note: The contention protocol MUST be turned on and used for the specified band (3.65GHz
- 3.7 GHz) in the specified country or wherever FCC rules and regulations are enforced.
Failure to comply makes the operation of this device illegal.

PureWave Quantum 6600 Installation Guide v2.1
Page 8
Safety Precautions
When installing this equipment, please observe the following precautions to minimize the risk of danger
or personnel injury:
NEVER install equipment if there is a chance of lightning or other adverse weather
conditions.
NEVER install equipment in a wet location unless the equipment is specifically design for wet
locations.
NEVER touch un-insultated wires or terminals unless the wire has been disconnected from
any equipment.
ALWAYS use caution when installing or modifying cables.
ALWAYS disconnect all lines and power connections before servicing or disassembling this
equipment.
ALWAYS assume that all components and assemblies are static sensitive and always follow
local ESD-prevention guidelines to prevent equipment damage.
For any external power supply that provides the power source for the PureWave equipment,
replace any power supply fuse with the same rating or equivalent; otherwise PureWave
Networks cannot not be responsible for any subsequent damage to the equipment.
For performance and safety reasons, only power supplies listed for use with telephone
equipment by a Nationally Recognized Testing Laboratory (NRTL) should be used with
equipment.
ALL wiring external to the product(s) should follow the provisions of the current edition of
the National Electrical Code.
These units contain no user serviceable components. Only authorized service personnel
should service or repair these units. Use only isolated Class 2 Power Source, Rated 48V dc
5.0A Minimum.

PureWave Quantum 6600 Installation Guide v2.1
Page 9
1Preface
1.1 About This Document
This guide is intended for use by a professional installer who performs the physical installation of any
PureWave Quantum 6600 Base Station. It does not cover base station functional setup or operation.
For detailed information about setup and operation of the PureWave Quantum 6600 Base Station,
please refer to the Quantum 6600 User’s Guide.
Always refer to the current set of Release Notes for the most up to date information and a description of
the current features as they relate to the PureWave system. These may be different from the
information contained within this “Installation Guide”.
1.2 Symbols used in this Document
Notes, cautions, and timesavers use these conventions and symbols:
Tip
Means the following will help you solve a problem. The tips information might
not be troubleshooting or even an action, but could be useful information.
Note
Means reader take note. Notes contain helpful suggestions or references to
materials not contained in this manual.
Caution
Means reader be careful. In this situation, you might do something that could
result equipment damage or loss of data.
Warning
This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for
preventing accidents.
1.3 Packaging and Components
Your PureWave Quantum Base Station and accompanying installation kits and hardware have been
packaged into a single box. Some such kits are optional and, if not present, are replaced with empty
boxes to ensure safe and secure shipping. All are listed below:
PureWave Quantum Base Station
PureWave Quantum Basic DC Installation Kit
PureWave Quantum Pole Mounting Kit
PureWave Quantum Surge Protection Kit
GPS Antenna Kit

PureWave Quantum 6600 Installation Guide v2.1
Page 10
If you have purchased a 6-Port Antenna Panel or other antenna(s) from PureWave then it is packaged in
a separate box along with its mounting kit and instructions. Please refer to the instructions provided
with your antenna(s) for proper mounting procedures. Connection of the antennas to the base station
is covered within this guide.
1.4 Locating the Product Serial Number
The product identification information, serial number, and certification information are located on a
label on the side panel of the base station. Please take note of and keep this information for your
records, as it is very important for warranty and support services.
1.5 Obtaining Documentation and Support
All requests for documentation and/or support should be addressed to
Technical Support Department
PureWave Networks, Inc.
2660-C Marine Way
Mountain View, CA 94043
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]

PureWave Quantum 6600 Installation Guide v2.1
Page 11
2Base Station Basics
2.1 Physical and Environmental Specifications
The PureWave Quantum 6600 Base Station (Figure 1) is made up of a single, weather-resistant enclosure
with overall dimensions 17.5” x 16.7” x 5.3” (44cm x 42cm x 13cm). The base station is a single self-
contained unit and has no user-serviceable components.

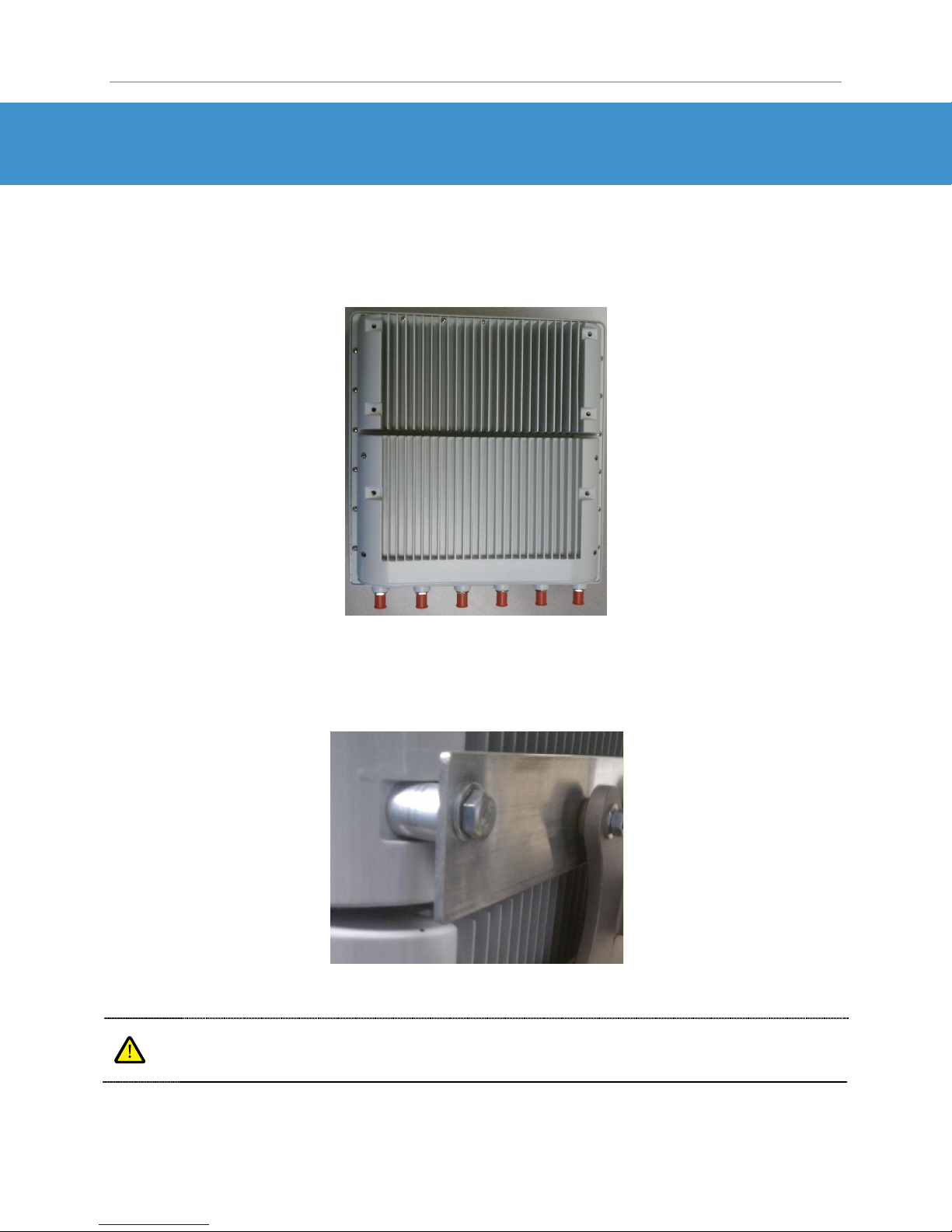

Figure 1: PureWave Quantum 6600 Base Station
The PureWave Quantum Base Station can be installed indoors or outdoors, however the antennas must
always be installed outdoors. Figure 2 shows a PureWave Quantum 6600 base station co-located on a
tower with a PureWave 6-Port Antenna Panel.
Figure 2: PureWave Quantum 6600 Base Station Mounted on a Tower

PureWave Quantum 6600 Installation Guide v2.1
Page 12
2.2 Physical and Environmental Specifications
Table 1 lists the mechanical, electrical, and environmental properties of the PureWave Quantum Base
Station.
Physical & Environmental
Specifications
Dimensions
17.5” x 16.7” x 5.3”
(44cm x 42cm x 13cm)
Weight
32lbs (14.5kg) (does not include mounting hardware)
Power
-48 VDC
150 Watts Max
Temperature
-40C to +55C (ETSI EN 300 019-1.4 Class 4.1E)
Note: An available solar shield is required for ambient
temperatures exceeding +45C with full sun exposure.
Humidity
5-100% non-condensing
Altitude
To 10,000 ft above sea level
Surge Protection
UL497B
Lightning Protection
Min 10kA IEC 6100-4-5 (optional via external kit)
Weatherproofing
IEC IP67
Wind Loading
160Km/hr operation, 200Km/hr survival
Safety and IEC IP
EN 300 019-2-2, GR487, IEC 60529
Vibration and Dust
ETSI EN 300 019-1-4 Class 4.1E
Table 1: Quantum Environmental and Mechanical Specifications

PureWave Quantum 6600 Installation Guide v2.1
Page 13
2.3 Connectors and Indicators
Figure 3 shows the bottom panel of the base station, where all the connectors and indicators are
located.
Figure 3: Base Station Connectors
The base station connector panel contains 3 high-intensity LEDs that are intended to be viewable from
the ground for quick confirmation of the operational state of the base station. Table 2 describes the
function of each LED.
LED
Function
STATUS
Green - BS is up and running normally. No faults detected.
Blinking Red –System booting up, or system is temporarily down.
Solid Red - Fault detected.
Off –LEDs disabled or Power is off. Fault detected if POWER LED is Green, but STATUS LED is Off.
LINK
Solid Green –Connected to an Ethernet switch.
Blinking Green –Ethernet packet activity.
Off –LEDs disabled or no Ethernet activity detected.
POWER
Green –Power is being supplied to the BS.
Off –LEDs disabled or no power is being supplied to the BS.
Table 2: Base Station LED Description

PureWave Quantum 6600 Installation Guide v2.1
Page 14
The function of each base station connector/port is described in Table 3. Note that every present
connector must be terminated according to the instructions in this guide to ensure proper base station
operation.
Table 3: Base Station Connector Descriptions
Connector
Function
POWER
-48VDC power source inputs for the unit.
DC power connector: Fits Tyco P/N 796095-2 connector.
GND
This M5 screw provides a ground connection point to the base station. It is the installer’s
responsibility to ensure that the unit is professionally grounded and complies with all relevant
local codes.
GPS
N-type connector for mandatory external GPS antenna. 3.3V power on center pin.
ETH-1
This Gigabit Ethernet port serves as the data traffic backhaul Interface and also provides for in-
band management of the base station. Note that this port may be physically routed directly to
the operator’s network equipment, or it may be daisy-chained through additional PureWave
Quantum sectors by routing it to another unit’s ETH-2 port.
Cat-5 (RJ-45), Single-Mode Fiber (HartingPull/Han 3 A), and Multi-Mode (LC duplex) Fiber
options are available for the ETH-1 port.
ETH-2
This Gigabit Ethernet port serves as an incoming daisy-chain port from a neighboring sector,
and may be used for out-of-band management of the base station. It may also be used to
connect to an external device, such as a web camera. Daisy-chained traffic is aggregated and
passed through the ETH-1 port.
Cat-5 (RJ-45), Single-Mode Fiber (HartingPull/Han 3 A), and Multi-Mode (LC duplex) Fiber
options are available for the ETH-2 port.
CONSOLE
RJ-45 based RS-232 port for CLI control via a console.
Defaults settings are 38400, 8, None, 1, Xon/Xoff.Xoff
ANT 1-6
N-type Tx / Rx Antenna Ports.

PureWave Quantum 6600 Installation Guide v2.1
Page 15
3Mounting the Base Station
3.1 Fundamentals
The back side of the base station includes 6 metric M8-1.25 threaded mounting holes, as shown in
Figure 4.
Figure 4: Base Station Mounting Holes
Because the mounting holes are recessed, provisions must be made to provide for spacing between the
mounting points and the mounting bracket or surface, as exemplified in Figure 5.
Figure 5: Example of Mounting Point with Spacing Hardware
It is imperative that proper airflow be maintained on all sides of the base station and that all
heat sinks remain unobstructed. In the case of wall or surface mounting a minimum of 2” of
space should be maintained between the base station and mounting surface.

PureWave Quantum 6600 Installation Guide v2.1
Page 16
3.2 The Pole-Mount Kit
The optional PureWave Quantum Base Station Pole Mounting Kit provides all hardware required for
installing the base station on a pole ranging from 2.5-5 inches in diameter. It is important to note that
the use of a pole mount in no way dictates that the base must actually be deployed on top of a long
pole, although in many cases it will in fact be. Alternatively the base station may be conveniently
attached to a short pole, which may then be easily mounted to a metal frame or struts that conform to
the specific deployment using commonly available hardware. An example of this is shown in Figure 6.
Figure 6: Example Deployment Consisting of Pole Attached to a Metal Frame
The PureWave Quantum Base Station Pole Mount Kit has been specifically designed to
handle the weight of the base station. However, it is critical that the full weight of the base
station plus mounting hardware be considered in designing the overall base station mounting
solution.
Fully assembled, the PureWave Quantum Base Station Pole Mount Kit weighs 16lbs (7.3kg).

PureWave Quantum 6600 Installation Guide v2.1
Page 17
If you have ordered the pole mounting kit then it was shipped in the same box as the base station.
Please locate the kit and compare its contents to Table 4.
Item
Quantity
Purpose

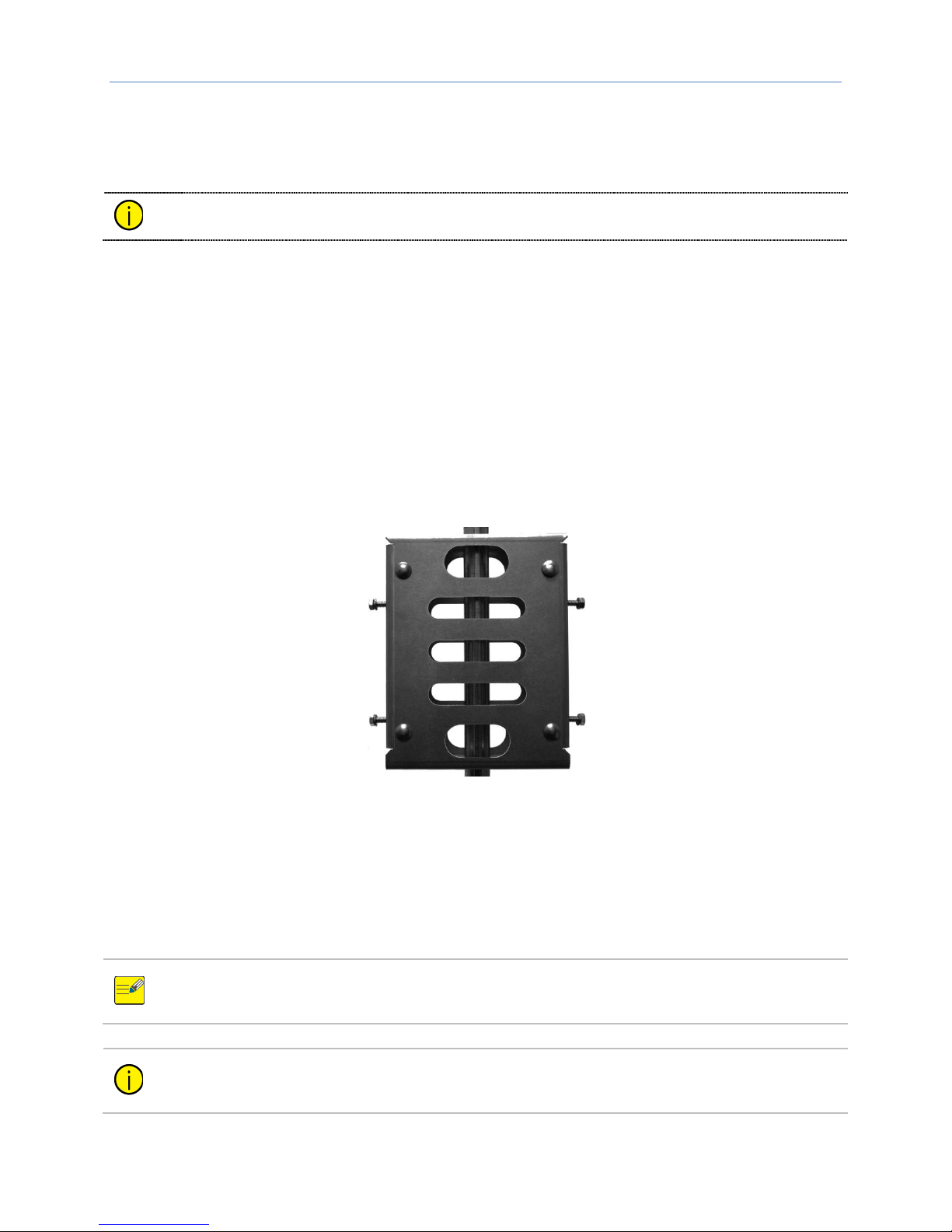

a) Front Pole Mount Plate
1
Grips pole along with back pole mount plate (b). The base
station mounting bracket also connects to this piece.
b) Back Pole Mount Plate
1
Grips pole along with front pole mount plate (a).
c) Base Station Mounting Bracket
1
Attaches to base station mounting holes, as well as to front
pole mount plate (a). A built-in handle facilitates carrying the
base station when attached.
d) Carriage Bolt SAE 3/8-16
Up to 12
Selection of carriage bolts ranging from 6” to 10”, fully or
partially threaded. Select a set of 4 that are appropriate to the
installation, and use with push nut (e), hex nut (g), and washer
(h) to fasten front (a) and back (b) mounting plates to pole.
e) Nylon Pushnut, 3/8
4
Slide onto carriage bolt (d) to prevent it from slipping out of
front mounting plate (a) while fastening hex nut (g) and washer
(h).
f) Nylon Tie Wrap
2
Use to temporarily affix mounting hardware to pole during the
installation process.
g) Hex Nut, SAE 3/8-16
4
Use with carriage bolts (d) and split lock washers (h) as
described.
h) Split Lock Washer, SAE 38
4
Use with carriage bolts (d) and hex nuts(g) as described.
i) Hex Bolt, Metric M8 -1.25 X 16
6
Use with M8 split lock washers (k) to fasten base station
mounting bracket (c) to base station.
j) Hex Bolt, Metric M8 -1.25 X 25
4
Use with M8 split lock washers (k) to fasten base station
mounting bracket (c) to front pole mount plate (a).
k) Split Lock Washer, Metric M8
10
Use with M8 bolts (i, j) as described.
Table 4: PureWave Quantum Base Station Pole Mount Kit Contents
3.2.1 Pole Mount Installation Procedure
Figure 7 illustrates how the entire pole-mounting mechanism connects together and to the base station.
The pole mount mechanism consists of a base station bracket (Figure 8) that attaches to the mounting
points on the back of the base station, and a pair of pole-mount plates (Figure 9) that grip the pole and
to which the base station bracket attaches. Table 4 indicates where each included piece of hardware is
to be used and should be strictly followed to ensure a secure and proper installation.

PureWave Quantum 6600 Installation Guide v2.1
Page 18
Figure 7: Base Station Pole Mount Assembly Diagram
Figure 8: Base Station Mounting Bracket

PureWave Quantum 6600 Installation Guide v2.1
Page 19
Figure 9: Pole Mounting Plates
First mount the Base Station Mounting Bracket (Figure 8: Base Station Mounting Bracket) to the base
station using the provided hardware, as indicated in Table 4. When installing the base station mounting
bracket onto the base station, be sure to align it as shown in Figure 10. Note that the bracket is
designed for upright mounting of the base station; that is, mounting with the connectors facing down.
Tighten the bolts to a torque of 30 in-lbs.
Figure 10: Base Station Mounting Bracket Alignment
The base station bracket may be mounted to the base station ahead of time as it has a built-
in handle that facilitates its transportation and carrying the base station up a tower.
To improve the effectiveness of connector waterproofing and to optimize the base station’s
thermal performance, it is recommended that the base station be mounted in an upright
position, with the connectors at the bottom.
Note that the base station bracket is designed specifically to attach to the 6 recessed
mounting holes on the base station, and hence can be useful in a variety of mounting
scenarios. However, use of this bracket without the pole mounting plates designed
specifically to accompany it is at the sole discretion and responsibility of the customer.
Front Mounting Plate Rear Mounting Plate

PureWave Quantum 6600 Installation Guide v2.1
Page 20
The next step is to mount the front and back pole mount plates (Figure 9) to the pole, using the
provided hardware as indicated in Table 4.
Nylon tie wraps have been provided for convenience to temporarily affix the front mounting
plate to the pole during the installation process.
A selection of carriage bolts has been provided to accommodate a variety of pole diameters. Select a
set of 4 bolts that enable a secure fit to your pole. Insert each carriage bolt through the front mounting
plate and slide a pushnut onto it to temporarily hold it in place. Slide the back mounting plate onto the
carriage bolts, sandwiching the pole in-between, then add lock washers and hex nuts tightened to a
torque of 30 in-lbs.
Insert the four provided M8-1.25x25 hex bolts along with M8 split lock washers into the side holes of the
front pole mounting plate and leave them loose for now. These bolts provide the attachment point for
the base station mounting bracket to the pole mount subassembly. The completed subassembly is
shown in Figure 11.
Figure 11: Pole Mount Subassembly
Finally, using the handle on the base station mounting bracket, lift the base station subassembly onto
the pole mount subassembly and hang it on the four side mounting bolts. Torque the bolts to 30 in-lbs.
For this and other installations in this manual, a suitable anti-corrosion lubricant should be
applied to all exposed metal surfaces. For your convenience a tube of Bostik NEVER-SEEZ®
has been provided in the PureWave Quantum Base Station Basic Installation Kit.
Note that these types of lubricants tend to be “messy” and “sticky” to apply due to the
nature of their intended application. Always read the labels or instructions provided and take
necessary pre-cautions during application.
