OWNER’S MANUAL
Assembly & Operating Instructions
BBT 3.5KW Electric Start
Sine Wave Inverter Generator
MODEL NO. BBT-GEN-3.5KWINV
All manuals and user guides at all-guides.com
all-guides.com

2
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV

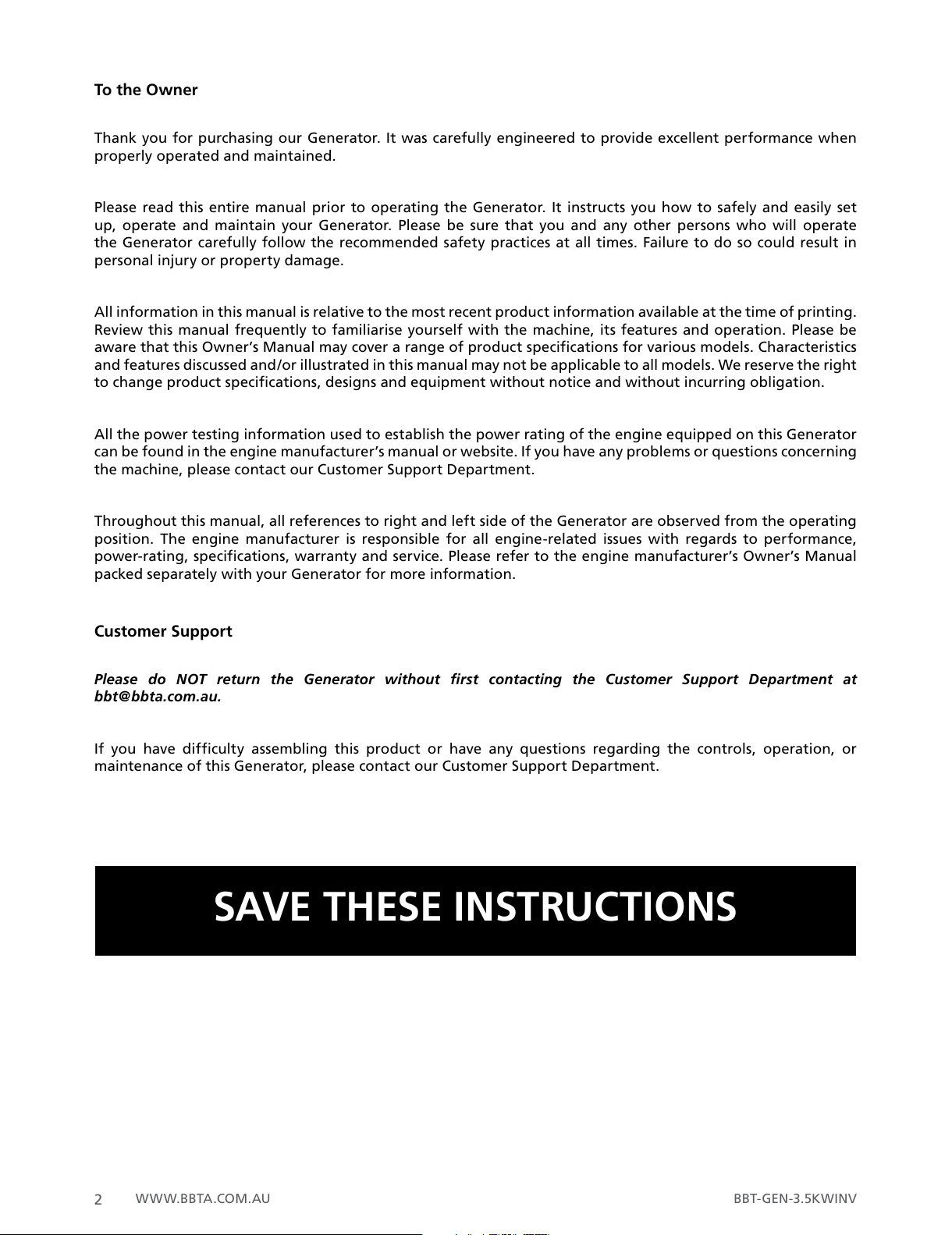

To the Owner
Thank you for purchasing our Generator. It was carefully engineered to provide excellent performance when
properly operated and maintained.
Please read this entire manual prior to operating the Generator. It instructs you how to safely and easily set
up, operate and maintain your Generator. Please be sure that you and any other persons who will operate
the Generator carefully follow the recommended safety practices at all times. Failure to do so could result in
personal injury or property damage.
All information in this manual is relative to the most recent product information available at the time of printing.
Review this manual frequently to familiarise yourself with the machine, its features and operation. Please be
aware that this Owner’s Manual may cover a range of product specifications for various models. Characteristics
and features discussed and/or illustrated in this manual may not be applicable to all models. We reserve the right
to change product specifications, designs and equipment without notice and without incurring obligation.
All the power testing information used to establish the power rating of the engine equipped on this Generator
can be found in the engine manufacturer’s manual or website. If you have any problems or questions concerning
the machine, please contact our Customer Support Department.
Throughout this manual, all references to right and left side of the Generator are observed from the operating
position. The engine manufacturer is responsible for all engine-related issues with regards to performance,
power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s Manual
packed separately with your Generator for more information.
Customer Support
Please do NOT return the Generator without first contacting the Customer Support Department at
[e-mail].
If you have difficulty assembling this product or have any questions regarding the controls, operation, or
maintenance of this Generator, please contact our Customer Support Department.
SAVE THESE INSTRUCTIONS
All manuals and user guides at all-guides.com

3
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV

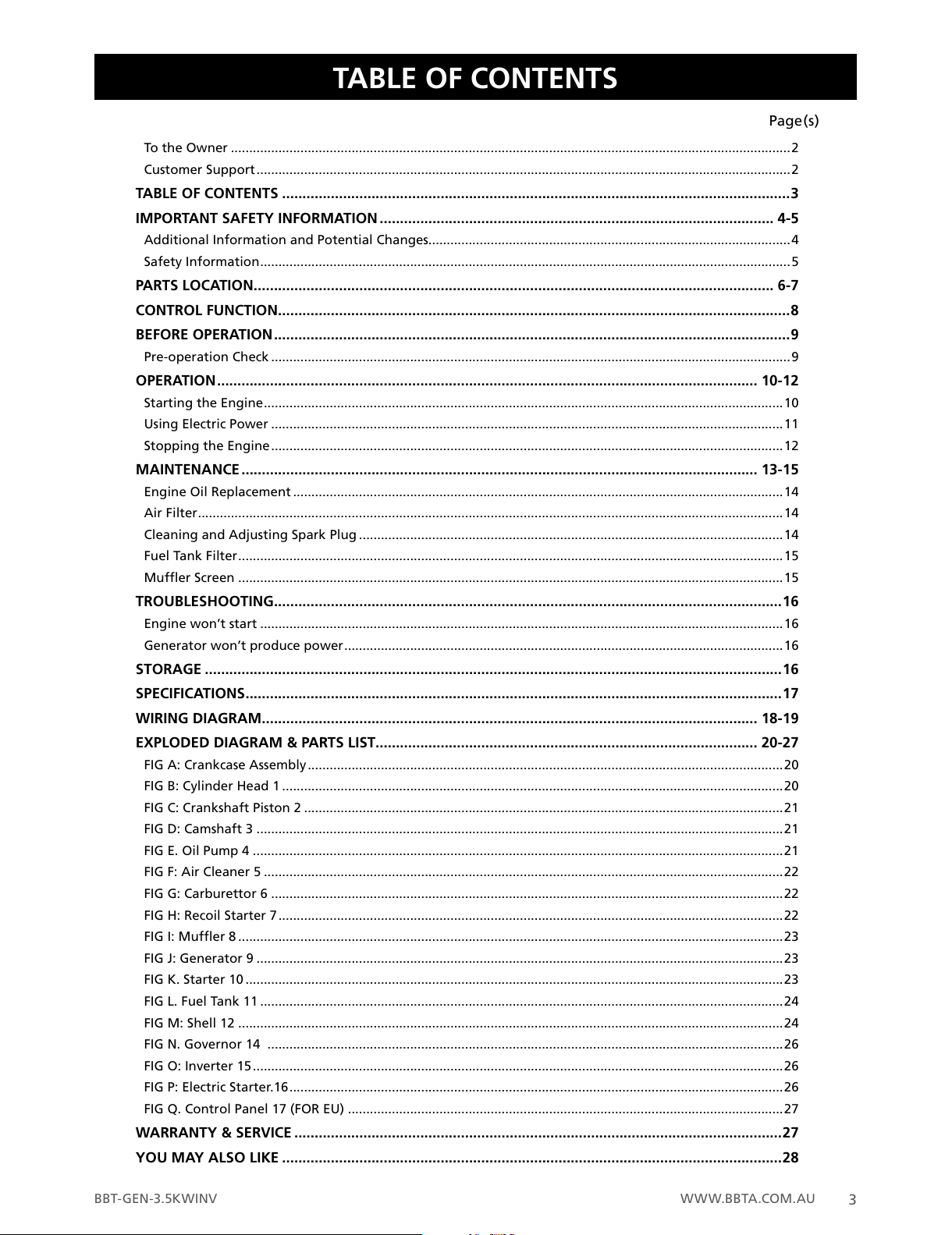

TABLE OF CONTENTS
Page(s)
To the Owner .........................................................................................................................................................2
Customer Support..................................................................................................................................................2
TABLE OF CONTENTS .............................................................................................................................3
IMPORTANT SAFETY INFORMATION ................................................................................................. 4-5
Additional Information and Potential Changes...................................................................................................4
Safety Information.................................................................................................................................................5
PARTS LOCATION................................................................................................................................ 6-7
CONTROL FUNCTION..............................................................................................................................8
BEFORE OPERATION...............................................................................................................................9
Pre-operation Check ..............................................................................................................................................9
OPERATION..................................................................................................................................... 10-12
Starting the Engine..............................................................................................................................................10
Using Electric Power ............................................................................................................................................11
Stopping the Engine............................................................................................................................................12
MAINTENANCE............................................................................................................................... 13-15
Engine Oil Replacement ......................................................................................................................................14
Air Filter................................................................................................................................................................14
Cleaning and Adjusting Spark Plug ....................................................................................................................14
Fuel Tank Filter.....................................................................................................................................................15
Muffler Screen .....................................................................................................................................................15
TROUBLESHOOTING.............................................................................................................................16
Engine won’t start ...............................................................................................................................................16
Generator won’t produce power........................................................................................................................16
STORAGE ..............................................................................................................................................16
SPECIFICATIONS....................................................................................................................................17
WIRING DIAGRAM.......................................................................................................................... 18-19
EXPLODED DIAGRAM & PARTS LIST.............................................................................................. 20-27
FIG A: Crankcase Assembly..................................................................................................................................20
FIG B: Cylinder Head 1 .........................................................................................................................................20
FIG C: Crankshaft Piston 2 ...................................................................................................................................21
FIG D: Camshaft 3 ................................................................................................................................................21
FIG E. Oil Pump 4 .................................................................................................................................................21
FIG F: Air Cleaner 5 ..............................................................................................................................................22
FIG G: Carburettor 6 ............................................................................................................................................22
FIG H: Recoil Starter 7..........................................................................................................................................22
FIG I: Muffler 8 .....................................................................................................................................................23
FIG J: Generator 9 ................................................................................................................................................23
FIG K. Starter 10 ...................................................................................................................................................23
FIG L. Fuel Tank 11 ...............................................................................................................................................24
FIG M: Shell 12 .....................................................................................................................................................24
FIG N. Governor 14 .............................................................................................................................................26
FIG O: Inverter 15.................................................................................................................................................26
FIG P: Electric Starter.16.......................................................................................................................................26
FIG Q. Control Panel 17 (FOR EU) .......................................................................................................................27
WARRANTY & SERVICE ........................................................................................................................27
YOU MAY ALSO LIKE ...........................................................................................................................28
All manuals and user guides at all-guides.com

4
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
IMPORTANT SAFETY INFORMATION
Additional Information and Potential Changes
We reserve the right to discontinue, change, and improve our products at any time without notice or obligation
to the purchaser. The descriptions and sections contained in this manual were in effect at the time of printing.
Equipment described within this manual may be optional. Some illustrations may not be applicable to your
machine.
WARNING: Read and thoroughly understand all instructions in this manual and on the safety decals
before assembling or operating this Generator. Failure to do so may cause serious injury or death.
Do not allow anyone to operate this Generator who has not read this manual. As with all power
equipment, a Generator can be dangerous if assembled or used improperly. Do not operate this
Generator if you have any questions concerning its safe operation. To get answers to any questions,
call our Customer Support Department.
This SAFETY ALERT SYMBOL identifies important safety messages in this manual. Failure to follow
this important safety information may result in serious injury or death.
DANGER! This Generator was built to be operated according to the safe operation practices in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. Failure to observe the following safety instructions could result in serious injury
or death.
The following signals, words and meanings are intended to explain the levels of risk associated with this product.
DANGER indicates a hazardous situation which, if not avoided, will result in serious injury or
death.
WARNING indicates a hazardous situation which, if not avoided, could result in serious injury
or death.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE is important information about the proper use of your Generator. Failure to follow
this instruction could result in damage to your Generator or property.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who have read,
understood and will follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
All manuals and user guides at all-guides.com

5
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY
BEFORE OPERATING THE MACHINE.

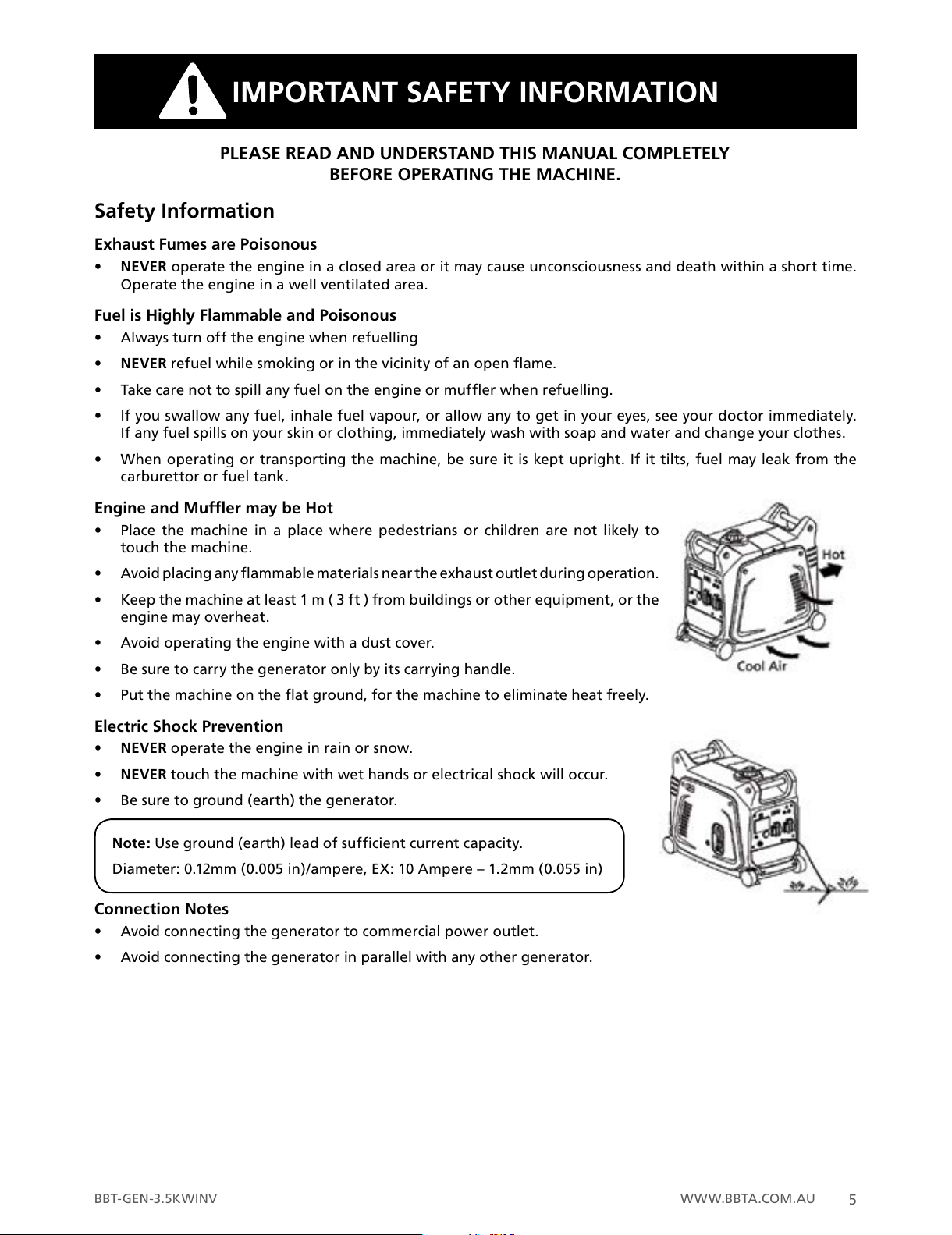

Safety Information
Exhaust Fumes are Poisonous
• NEVER operate the engine in a closed area or it may cause unconsciousness and death within a short time.
Operate the engine in a well ventilated area.
Fuel is Highly Flammable and Poisonous
• Always turn off the engine when refuelling
• NEVER refuel while smoking or in the vicinity of an open flame.
• Take care not to spill any fuel on the engine or muffler when refuelling.
• If you swallow any fuel, inhale fuel vapour, or allow any to get in your eyes, see your doctor immediately.
If any fuel spills on your skin or clothing, immediately wash with soap and water and change your clothes.
• When operating or transporting the machine, be sure it is kept upright. If it tilts, fuel may leak from the
carburettor or fuel tank.
Engine and Muffler may be Hot
• Place the machine in a place where pedestrians or children are not likely to
touch the machine.
• Avoid placing any flammable materials near the exhaust outlet during operation.
• Keep the machine at least 1 m ( 3 ft ) from buildings or other equipment, or the
engine may overheat.
• Avoid operating the engine with a dust cover.
• Be sure to carry the generator only by its carrying handle.
• Put the machine on the flat ground, for the machine to eliminate heat freely.
Electric Shock Prevention
• NEVER operate the engine in rain or snow.
• NEVER touch the machine with wet hands or electrical shock will occur.
• Be sure to ground (earth) the generator.
Connection Notes
• Avoid connecting the generator to commercial power outlet.
• Avoid connecting the generator in parallel with any other generator.
IMPORTANT SAFETY INFORMATION
Note: Use ground (earth) lead of sufficient current capacity.
Diameter: 0.12mm (0.005 in)/ampere, EX: 10 Ampere – 1.2mm (0.055 in)
All manuals and user guides at all-guides.com

6
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV

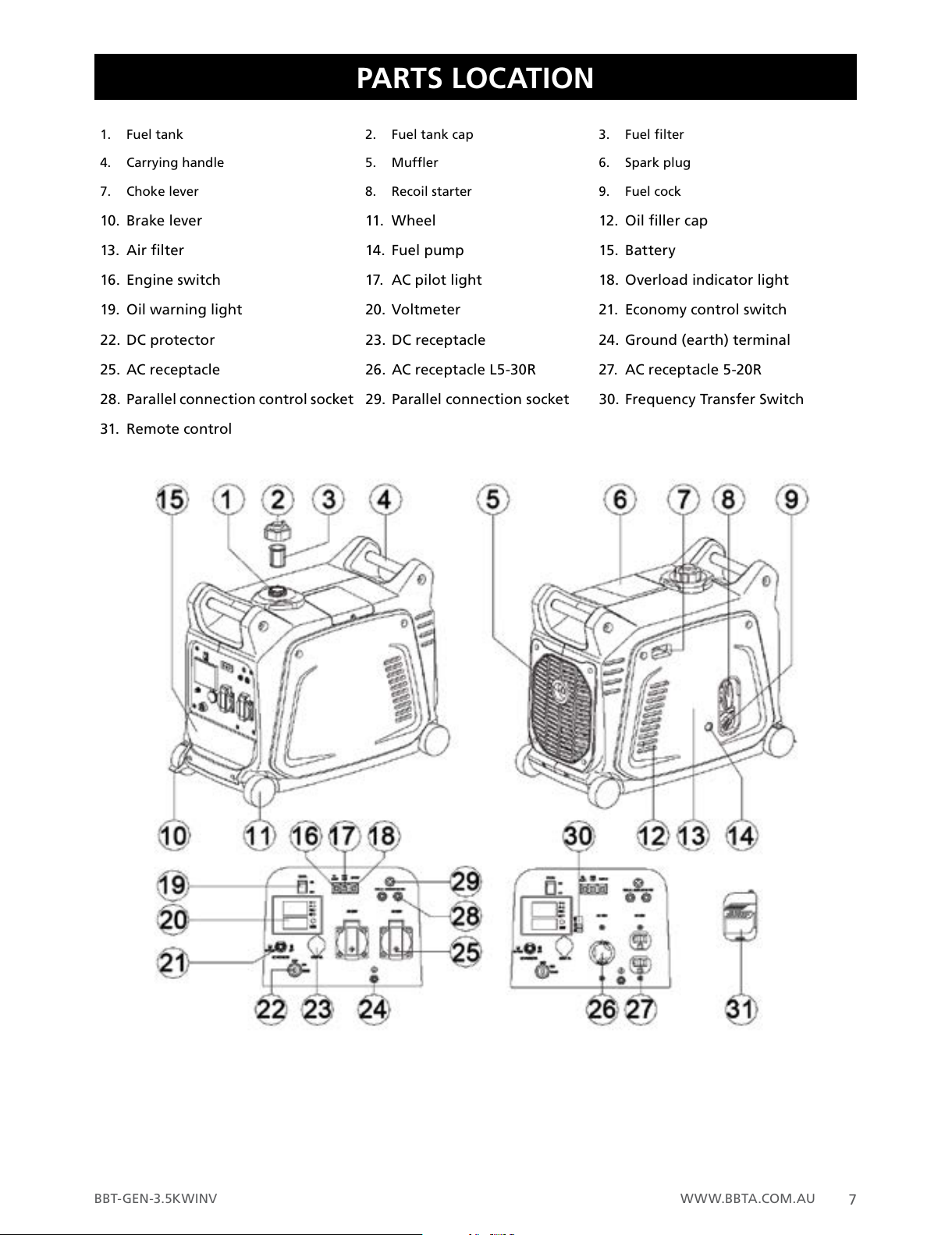

1. Fuel tank 2. Fuel tank cap 3. Fuel filter
4. Carrying handle 5. Muffler 6. Spark plug
7. Choke lever 8. Recoil starter 9. Fuel cock
10. Brake lever 11. Wheel 12. Oil filler cap
13. Air filter 14. Fuel pump 15. Engine switch
16. AC pilot light 17. Overload indicator light 18. Oil warning light
19. Economy control switch 20. Voltmeter 21. DC protector
22. DC receptacle 23. Ground (earth) terminal 24. AC receptacle
25. AC receptacle L5-30R 26. AC receptacle 5-20R 27. Parallel connection control socket
28. Parallel connection socket 29. Frequency Transfer Switch
PARTS LOCATION
All manuals and user guides at all-guides.com
all-guides.com

7
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV
1. Fuel tank 2. Fuel tank cap 3. Fuel filter
4. Carrying handle 5. Muffler 6. Spark plug
7. Choke lever 8. Recoil starter 9. Fuel cock
10. Brake lever 11. Wheel 12. Oil filler cap
13. Air filter 14. Fuel pump 15. Battery
16. Engine switch 17. AC pilot light 18. Overload indicator light
19. Oil warning light 20. Voltmeter 21. Economy control switch
22. DC protector 23. DC receptacle 24. Ground (earth) terminal
25. AC receptacle 26. AC receptacle L5-30R 27. AC receptacle 5-20R
28. Parallel connection control socket 29. Parallel connection socket 30. Frequency Transfer Switch
31. Remote control
PARTS LOCATION
All manuals and user guides at all-guides.com

8
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
Control Function
Oil Warning System
When the oil level falls below the lower level, the engine stops automatically.
Unless you refill with oil, the engine will not start again.
Engine Switch
The engine switch controls the ignition system.
• ‘ON’(run) - Ignition circuit is switched on. The engine can be started.
• ‘STOP’ - Ignition circuit is switched off. The engine will not run.
• ‘START’ - Starting circuit is switched on. The starter motor starts.
Economy Control Switch
When the economy control switch is turned ‘ON’, the economy control unit control
the engine speed according to the connected load. The results are better fuel
connection and less noise.
DC Circuit Protector
The DC circuit protector turns off automatically when the load exceeds the
generator rated output.
Reduce the load to within specified generator rated output if the DC circuit
protector turn off.
Fuel Tank Cap Air Ventknob
The fuel tank cap is provided with an air vent knob to stop fuel flow. The air vent
knob must be turned once clockwise from the closed position. This will allow fuel
to flow to the carburettor and the engine to run.
When the engine is not in use, tighten the air vent knob counter-clockwise until it
is finger-tight to stop fuel flow.
Fuel Cock
The fuel cock is used to supply fuel from the tank to the carburettor.
Remote Control Switch
The remote control switch controls the ignition system
• ‘ON’ - The starter motor starts.
• ‘OFF’ - The engine will not run.
Brake Lever
The function of brake lever is preventing generator moving.
• Brake lever is not working, generator can move.
• Brake lever is working, generator can’t move.
CONTROL FUNCTION
CAUTION
All manuals and user guides at all-guides.com

9
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV

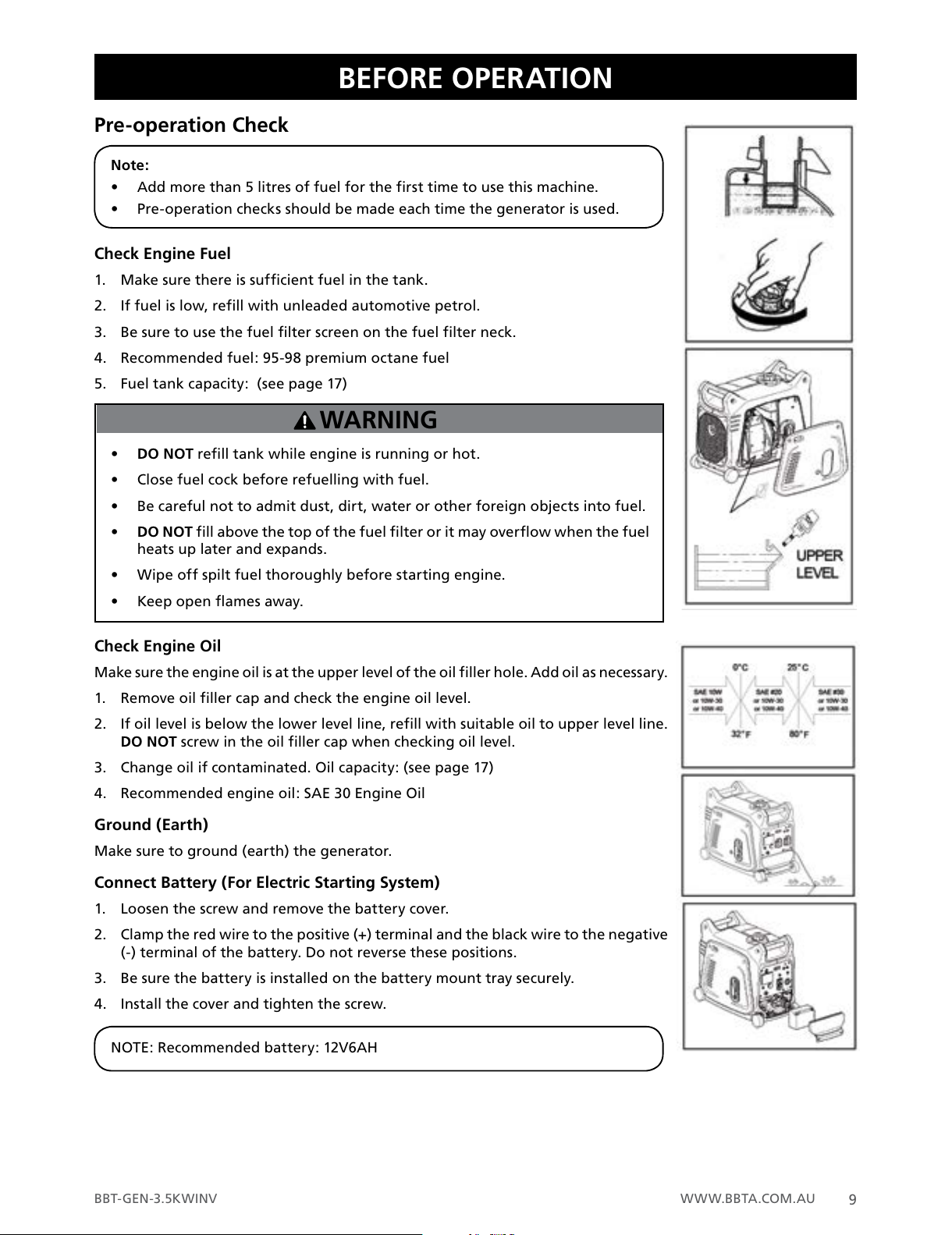

Pre-operation Check
Note:
• Add more than 5 litres of fuel for the first time to use this machine.
• Pre-operation checks should be made each time the generator is used.
Check Engine Fuel
1. Make sure there is sufficient fuel in the tank.
2. If fuel is low, refill with unleaded automotive petrol.
3. Be sure to use the fuel filter screen on the fuel filter neck.
4. Recommended fuel: 95-98 premium octane fuel
5. Fuel tank capacity: (see page 17)
• DO NOT refill tank while engine is running or hot.
• Close fuel cock before refuelling with fuel.
• Be careful not to admit dust, dirt, water or other foreign objects into fuel.
• DO NOT fill above the top of the fuel filter or it may overflow when the fuel
heats up later and expands.
• Wipe off spilt fuel thoroughly before starting engine.
• Keep open flames away.
Check Engine Oil
Make sure the engine oil is at the upper level of the oil filler hole. Add oil as necessary.
1. Remove oil filler cap and check the engine oil level.
2. If oil level is below the lower level line, refill with suitable oil to upper level line.
DO NOT screw in the oil filler cap when checking oil level.
3. Change oil if contaminated. Oil capacity: (see page 17)
4. Recommended engine oil: SAE 30 Engine Oil
Ground (Earth)
Make sure to ground (earth) the generator.
Connect Battery (For Electric Starting System)
1. Loosen the screw and remove the battery cover.
2. Clamp the red wire to the positive (+) terminal and the black wire to the negative
(-) terminal of the battery. Do not reverse these positions.
3. Be sure the battery is installed on the battery mount tray securely.
4. Install the cover and tighten the screw.
NOTE: Recommended battery: 12V6AH
BEFORE OPERATION
WARNING
All manuals and user guides at all-guides.com

10
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
OPERATION
NOTE:
• The generator has been shipped without engine oil. Fill with oil or it will not start.
• DO NOT tilt the generator when adding engine oil. This could result in overfilling and damage to the
engine

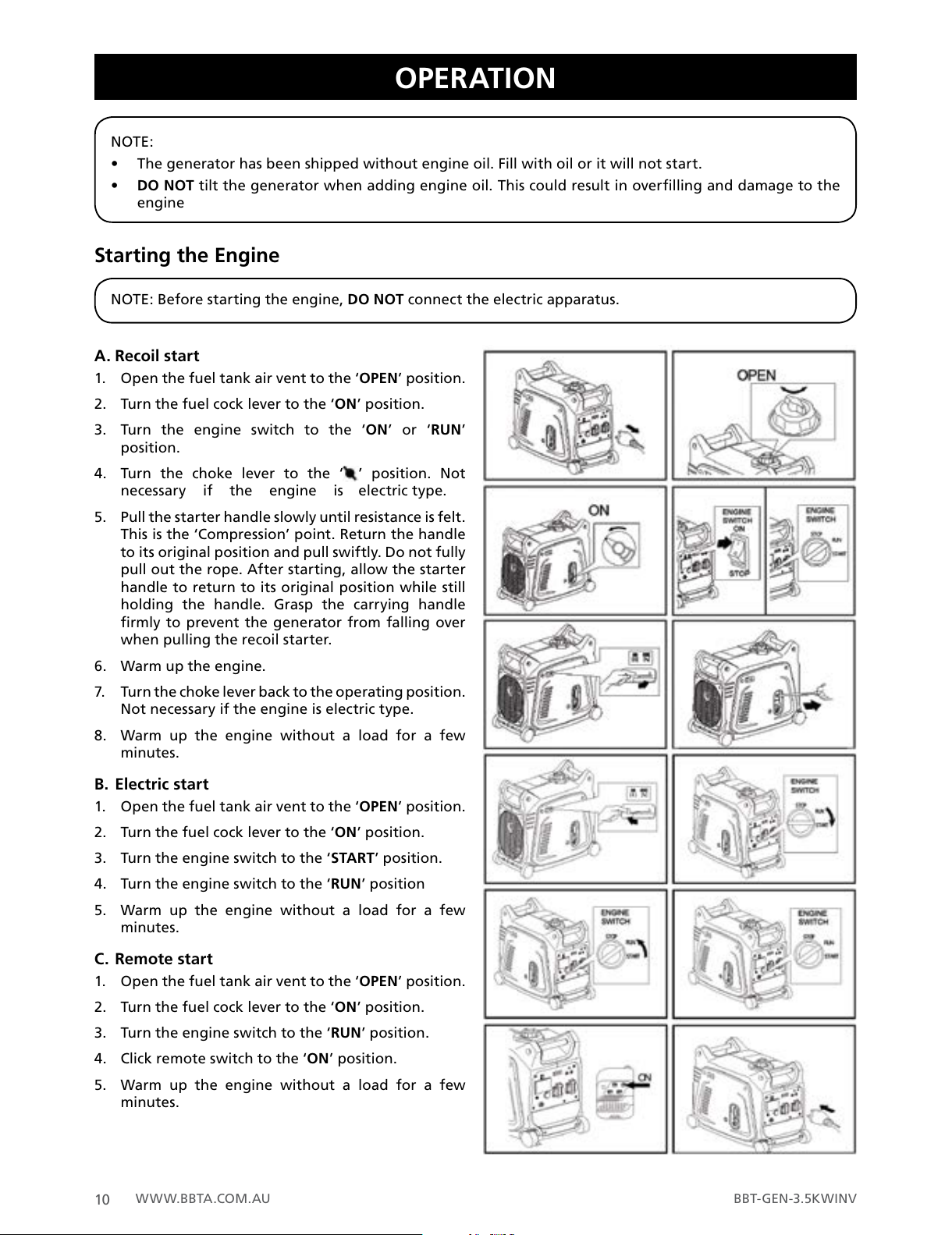

Starting the Engine
NOTE: Before starting the engine, DO NOT connect the electric apparatus.
A. Recoil start
1. Open the fuel tank air vent to the ‘OPEN’ position.
2. Turn the fuel cock lever to the ‘ON’ position.
3. Turn the engine switch to the ‘ON’ or ‘RUN’
position.
4. Turn the choke lever to the ‘ ’ position. Not
necessary if the engine is electric type.
5. Pull the starter handle slowly until resistance is felt.
This is the ‘Compression’ point. Return the handle
to its original position and pull swiftly. Do not fully
pull out the rope. After starting, allow the starter
handle to return to its original position while still
holding the handle. Grasp the carrying handle
firmly to prevent the generator from falling over
when pulling the recoil starter.
6. Warm up the engine.
7. Turn the choke lever back to the operating position.
Not necessary if the engine is electric type.
8. Warm up the engine without a load for a few
minutes.
B. Electric start
1. Open the fuel tank air vent to the ‘OPEN’ position.
2. Turn the fuel cock lever to the ‘ON’ position.
3. Turn the engine switch to the ‘START’ position.
4. Turn the engine switch to the ‘RUN’ position
5. Warm up the engine without a load for a few
minutes.
C. Remote start
1. Open the fuel tank air vent to the ‘OPEN’ position.
2. Turn the fuel cock lever to the ‘ON’ position.
3. Turn the engine switch to the ‘RUN’ position.
4. Click remote switch to the ‘ON’ position.
5. Warm up the engine without a load for a few
minutes.
All manuals and user guides at all-guides.com

11
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV

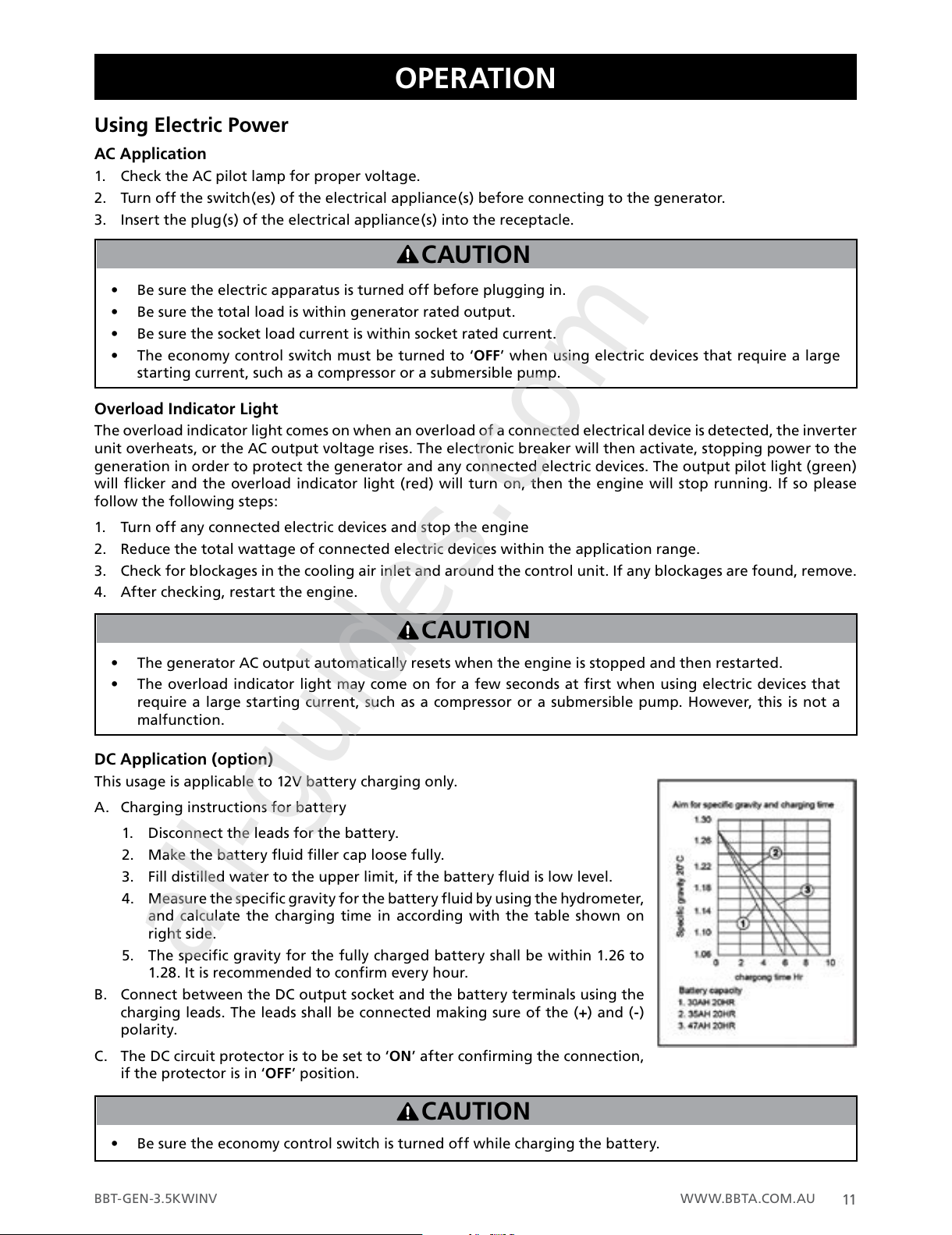

Using Electric Power
AC Application
1. Check the AC pilot lamp for proper voltage.
2. Turn off the switch(es) of the electrical appliance(s) before connecting to the generator.
3. Insert the plug(s) of the electrical appliance(s) into the receptacle.
• Be sure the electric apparatus is turned off before plugging in.
• Be sure the total load is within generator rated output.
• Be sure the socket load current is within socket rated current.
• The economy control switch must be turned to ‘OFF’ when using electric devices that require a large
starting current, such as a compressor or a submersible pump.
Overload Indicator Light
The overload indicator light comes on when an overload of a connected electrical device is detected, the inverter
unit overheats, or the AC output voltage rises. The electronic breaker will then activate, stopping power to the
generation in order to protect the generator and any connected electric devices. The output pilot light (green)
will flicker and the overload indicator light (red) will turn on, then the engine will stop running. If so please
follow the following steps:
1. Turn off any connected electric devices and stop the engine
2. Reduce the total wattage of connected electric devices within the application range.
3. Check for blockages in the cooling air inlet and around the control unit. If any blockages are found, remove.
4. After checking, restart the engine.
• The generator AC output automatically resets when the engine is stopped and then restarted.
• The overload indicator light may come on for a few seconds at first when using electric devices that
require a large starting current, such as a compressor or a submersible pump. However, this is not a
malfunction.
DC Application (option)
This usage is applicable to 12V battery charging only.
A. Charging instructions for battery
1. Disconnect the leads for the battery.
2. Make the battery fluid filler cap loose fully.
3. Fill distilled water to the upper limit, if the battery fluid is low level.
4. Measure the specific gravity for the battery fluid by using the hydrometer,
and calculate the charging time in according with the table shown on
right side.
5. The specific gravity for the fully charged battery shall be within 1.26 to
1.28. It is recommended to confirm every hour.
B. Connect between the DC output socket and the battery terminals using the
charging leads. The leads shall be connected making sure of the (+) and (-)
polarity.
C. The DC circuit protector is to be set to ‘ON’ after confirming the connection,
if the protector is in ‘OFF’ position.
• Be sure the economy control switch is turned off while charging the battery.
OPERATION
CAUTION
CAUTION
CAUTION
All manuals and user guides at all-guides.com
all-guides.com

12
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
OPERATION
Stopping the Engine
1. Turn off the power switch of the electric apparatus
or disconnect any electric devices.
2. Turn the engine switch to ‘STOP’ position. Click
remote switch to the ‘OFF’ position.
3. Turn the fuel cock lever to ‘OFF’.
4. Turn the fuel tank cap air vent knob counter-
clockwise to the ‘CLOSED’ position.
All manuals and user guides at all-guides.com

13
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV

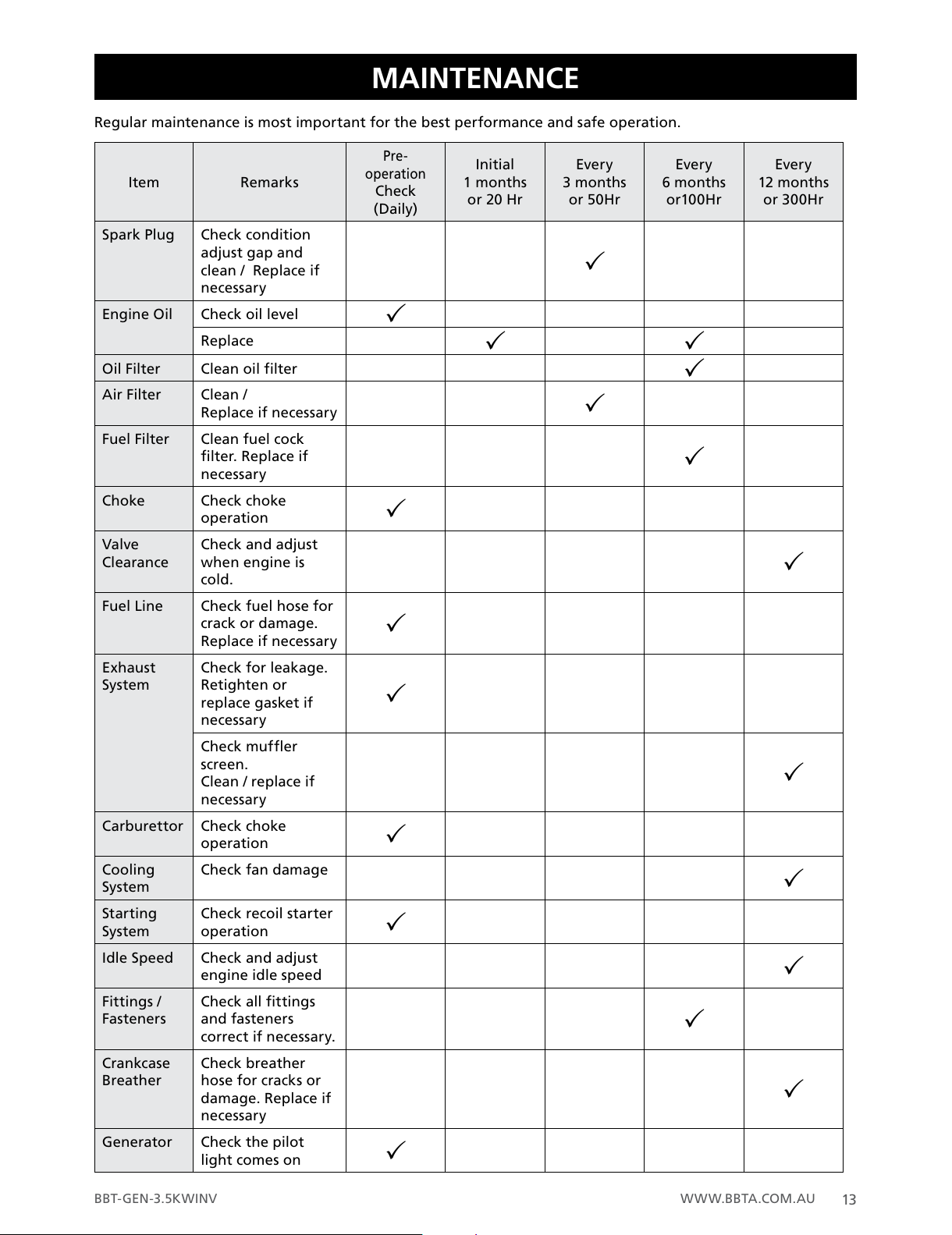

Regular maintenance is most important for the best performance and safe operation.
Item Remarks
Pre-
operation
Check
(Daily)
Initial
1 months
or 20 Hr
Every
3 months
or 50Hr
Every
6 months
or100Hr
Every
12 months
or 300Hr
Spark Plug Check condition
adjust gap and
clean / Replace if
necessary

Engine Oil Check oil level 
Replace  
Oil Filter Clean oil filter 
Air Filter Clean /
Replace if necessary 
Fuel Filter Clean fuel cock
filter. Replace if
necessary 
Choke Check choke
operation 
Valve
Clearance
Check and adjust
when engine is
cold. 
Fuel Line Check fuel hose for
crack or damage.
Replace if necessary 
Exhaust
System
Check for leakage.
Retighten or
replace gasket if
necessary

Check muffler
screen.
Clean / replace if
necessary

Carburettor Check choke
operation 
Cooling
System
Check fan damage 
Starting
System
Check recoil starter
operation 
Idle Speed Check and adjust
engine idle speed 
Fittings /
Fasteners
Check all fittings
and fasteners
correct if necessary. 
Crankcase
Breather
Check breather
hose for cracks or
damage. Replace if
necessary

Generator Check the pilot
light comes on 
MAINTENANCE
All manuals and user guides at all-guides.com

14
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
MAINTENANCE
Engine Oil Replacement
1. Place the machine on a level surface and warm up the engine for several
minutes. Then stop the engine and turn the fuel cock knob to ‘OFF’. Turn the
fuel tank cap air vent knob clockwise.
2. Loosen the screw and remove the cover.
3. Remove the oil filler cap
4. Place an oil pan under the engine. Tilt the generator to drain the oil completely
5. Replace the generator on a level surface.
6. Add engine oil to the upper level.
7. Install the oil filler cap
8. Install the cover and tighten the screw
Recommended engine oil: (see page 17) SAE 30 engine oil
• Be sure no foreign material enters the crankcase.
• DO NOT tilt the generator when adding engine oil. This could result in
overfilling and damage to the engine
• Clean the oil filter every other 100hr.
Air Filter
Maintaining an air cleaner in proper condition is very important. Dirt induced
through improperly installed, improperly serviced, or inadequate elements
damages and wears out engines. Keep the element always clean.
1. Remove the cover.
2. Remove the air filter cover and element.
3. Wash the element in solvent and dry.
4. Oil the element and squeeze out excess oil. The element should be wet but
not dripping.
5. Insert the element into the air filter.
6. Install the cover
The engine should never run without the element; excessive piston and/or
cylinder wear may result.
Cleaning and Adjusting Spark Plug
1. Remove the cover.
2. Check for discolouration and remove the carbon.
3. Check the spark plug type and gap.
4. Install the spark plug.
5. Install the cover
Standard electrode colour: Tan Colour
Standard Spark Plug: CR4HSB (NGK)
Spark Plug Gap: 0.6-0.7 mm (0.024-0.028 in)
CAUTION
CAUTION
All manuals and user guides at all-guides.com

15
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV
MAINTENANCE

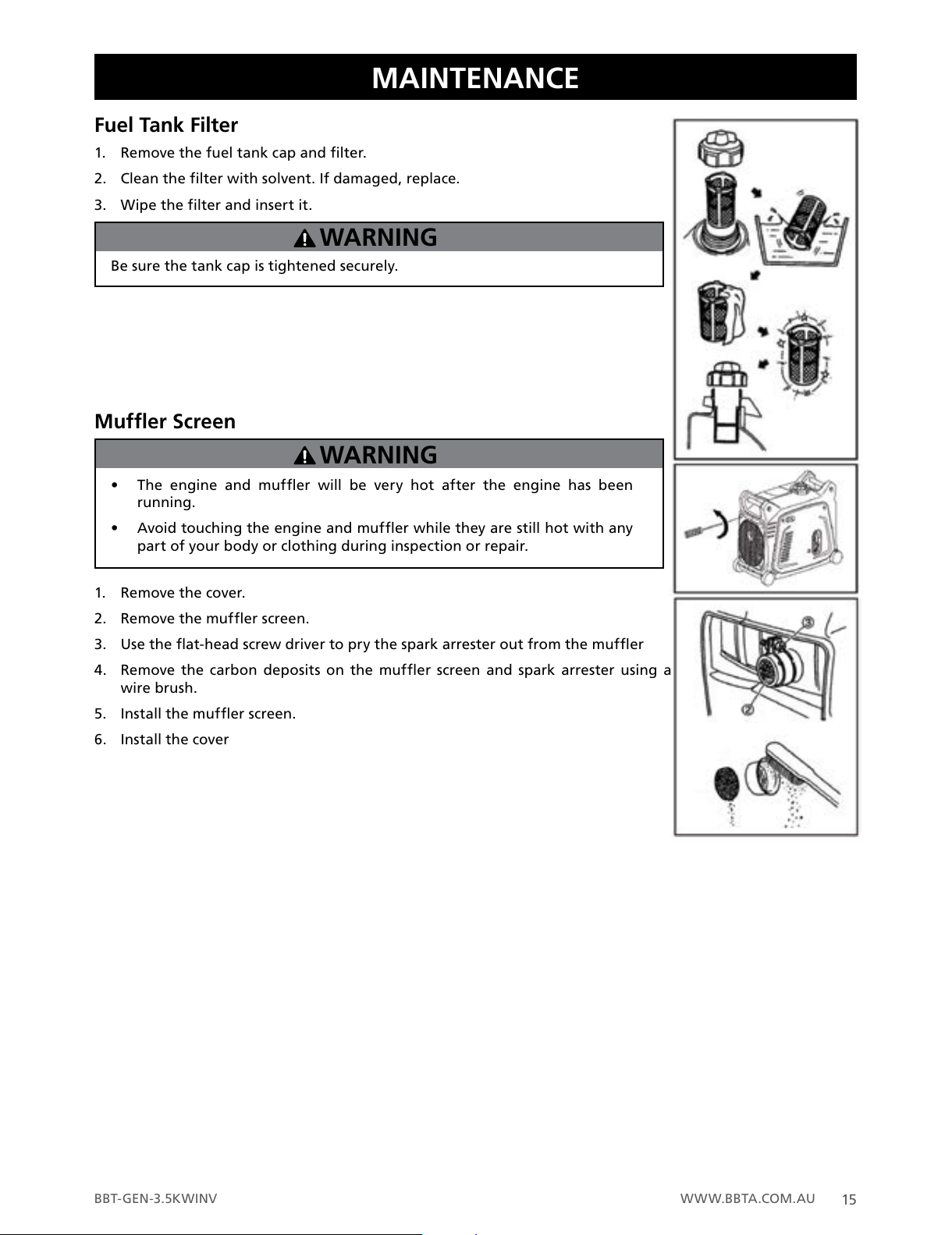

Fuel Tank Filter
1. Remove the fuel tank cap and filter.
2. Clean the filter with solvent. If damaged, replace.
3. Wipe the filter and insert it.
Be sure the tank cap is tightened securely.
Muffler Screen
• The engine and muffler will be very hot after the engine has been
running.
• Avoid touching the engine and muffler while they are still hot with any
part of your body or clothing during inspection or repair.
1. Remove the cover.
2. Remove the muffler screen.
3. Use the flat-head screw driver to pry the spark arrester out from the muffler
4. Remove the carbon deposits on the muffler screen and spark arrester using a
wire brush.
5. Install the muffler screen.
6. Install the cover
WARNING
WARNING
All manuals and user guides at all-guides.com

16
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV

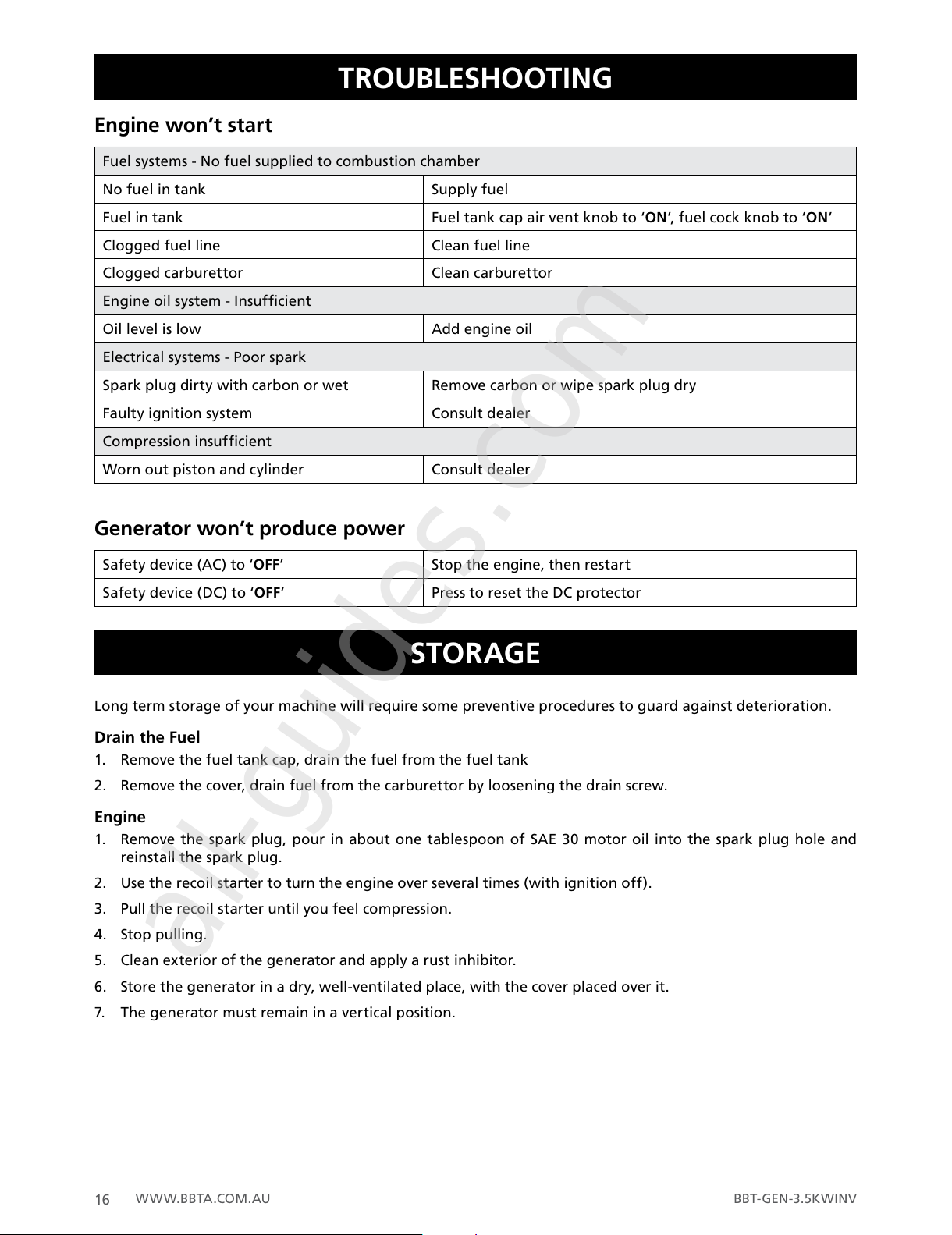

Engine won’t start
Fuel systems - No fuel supplied to combustion chamber
No fuel in tank Supply fuel
Fuel in tank Fuel tank cap air vent knob to ‘ON’, fuel cock knob to ‘ON’
Clogged fuel line Clean fuel line
Clogged carburettor Clean carburettor
Engine oil system - Insufficient
Oil level is low Add engine oil
Electrical systems - Poor spark
Spark plug dirty with carbon or wet Remove carbon or wipe spark plug dry
Faulty ignition system Consult dealer
Compression insufficient
Worn out piston and cylinder Consult dealer
Generator won’t produce power
Safety device (AC) to ‘OFF’ Stop the engine, then restart
Safety device (DC) to ‘OFF’ Press to reset the DC protector
Long term storage of your machine will require some preventive procedures to guard against deterioration.
Drain the Fuel
1. Remove the fuel tank cap, drain the fuel from the fuel tank
2. Remove the cover, drain fuel from the carburettor by loosening the drain screw.
Engine
1. Remove the spark plug, pour in about one tablespoon of SAE 30 motor oil into the spark plug hole and
reinstall the spark plug.
2. Use the recoil starter to turn the engine over several times (with ignition off).
3. Pull the recoil starter until you feel compression.
4. Stop pulling.
5. Clean exterior of the generator and apply a rust inhibitor.
6. Store the generator in a dry, well-ventilated place, with the cover placed over it.
7. The generator must remain in a vertical position.
STORAGE
TROUBLESHOOTING
All manuals and user guides at all-guides.com
all-guides.com

17
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV

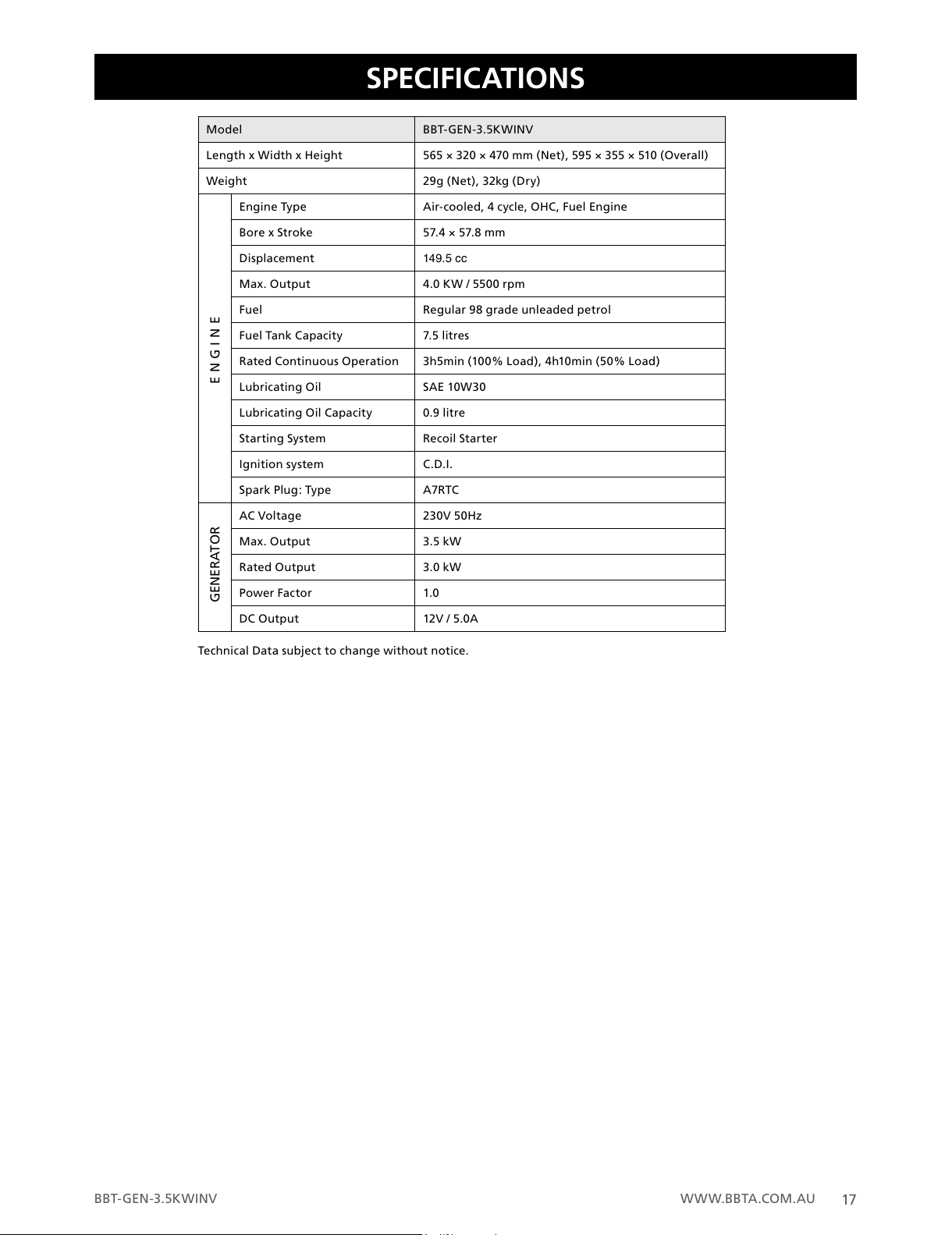

SPECIFICATIONS
Model BBT-GEN-3.5KWINV
Length x Width x Height 565 × 320 × 470 mm (Net), 595 × 355 × 510 (Overall)
Weight 29g (Net), 32kg (Dry)
Engine Type Air-cooled, 4 cycle, OHC, Fuel Engine
Bore x Stroke 57.4 × 57.8 mm
Displacement 149.5 cc
Max. Output 4.0 KW / 5500 rpm
Fuel Regular 98 grade unleaded petrol
Fuel Tank Capacity 7.5 litres
Rated Continuous Operation 3h5min (100% Load), 4h10min (50% Load)
Lubricating Oil SAE 10W30
Lubricating Oil Capacity 0.9 litre
Starting System Recoil Starter
Ignition system C.D.I.
Spark Plug: Type A7RTC
AC Voltage 230V 50Hz
Max. Output 3.5 kW
Rated Output 3.0 kW
Power Factor 1.0
DC Output 12V / 5.0A
Technical Data subject to change without notice.
ENGINEGENERATOR
All manuals and user guides at all-guides.com

18
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV

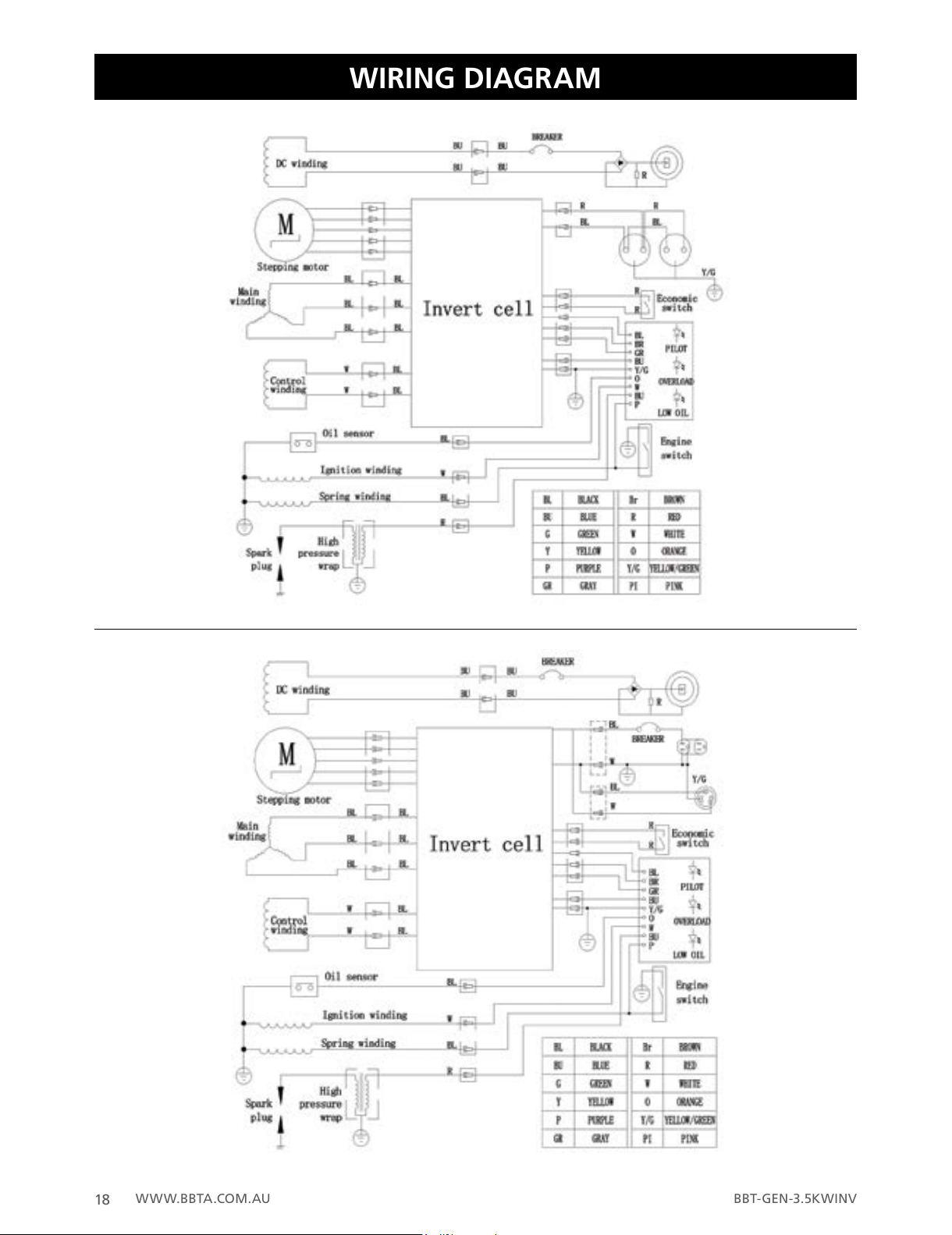

WIRING DIAGRAM
All manuals and user guides at all-guides.com

19
WWW.BBTA.COM.AUBBT-GEN-3.5KWINV
WIRING DIAGRAM
All manuals and user guides at all-guides.com

20
WWW.BBTA.COM.AU BBT-GEN-3.5KWINV
EXPLODED DIAGRAM & PARTS LIST
FIG A: Crankcase Assembly
NO SKU DESCRIPTION QTY
1SP-GEN-3.5KVINV-001 Left Crankcase 1
2SP-GEN-3.5KVINV-002 Pipe Joint 1
3SP-GEN-3.5KVINV-003 Oil Plug Assembly 1
4SP-GEN-3.5KVINV-004 O ring 19*3.55 1
5SP-GEN-3.5KVINV-005 Oil Lever Sensor 1
6SP-GEN-3.5KVINV-006 Tapped Screw ST4.8×10 1
7SP-GEN-3.5KVINV-007 Crankcase Gasket 1
8SP-GEN-3.5KVINV-008 Dowel Pin 10x16 2
9SP-GEN-3.5KVINV-009 Long Stud 8x195 2
10 SP-GEN-3.5KVINV-010 Dowel Pin 8x14 4
11 SP-GEN-3.5KVINV-011 Bolt M6x18 2
12 SP-GEN-3.5KVINV-012 Right Crankcase Component 1
13 SP-GEN-3.5KVINV-013 Oil Filter 1
14 SP-GEN-3.5KVINV-014 Oil Filter Spring 1
15 SP-GEN-3.5KVINV-015 Oil Filter Cover 1
16 SP-GEN-3.5KVINV-016 O-Ring 30.5x3 1
17 SP-GEN-3.5KVINV-017 Long Stud 8x185.5 2
18 SP-GEN-3.5KVINV-018 Right Cover 1
19 SP-GEN-3.5KVINV-019 Right Cover Gasket 1
20 SP-GEN-3.5KVINV-020 Bearing 1
21 SP-GEN-3.5KVINV-021 Oil Seal 19.8×30×5 1
22 SP-GEN-3.5KVINV-022 Hexagon Flange Bolts M6×80 5
23 SP-GEN-3.5KVINV-023 Hexagon Flange Bolts M6×90 2
24 SP-GEN-3.5KVINV-024 Hexagon Flange Bolts M6×28 1
25 SP-GEN-3.5KVINV-025 Hexagon Flange Bolts M6×70 1
26 SP-GEN-3.5KVINV-026 Hexagon Flange Bolts M6×100 1
27 SP-GEN-3.5KVINV-027 Hexagon Flange Bolts M6×50 2
FIG B: Cylinder Head 1
NO SKU DESCRIPTION QTY
1SP-GEN-3.5KVINV-001.1 Cylinder Gasket 1
2SP-GEN-3.5KVINV-002.1 Cylinder Component 1
3SP-GEN-3.5KVINV-003.1 Dowel Pin 10x116 4
4SP-GEN-3.5KVINV-004.1 Cylinder Head Gasket 1
5SP-GEN-3.5KVINV-005.1 Stud Bolt M6x32 2
6SP-GEN-3.5KVINV-006.1 Cylinder Head Component 1
7SP-GEN-3.5KVINV-007.1 Stud Bolt M6x118 2
8SP-GEN-3.5KVINV-008.1 Valve Oil Seal Component 2
9SP-GEN-3.5KVINV-009.1 Hexagon Flange Bolts M6×100 2
10 SP-GEN-3.5KVINV-010.1 Camshaft Holder Seat 1
11 SP-GEN-3.5KVINV-011.1 Copper Washer 8 4
12 SP-GEN-3.5KVINV-012.1 Hexagon Flange Nuts M8 4
13 SP-GEN-3.5KVINV-013.1 Cylinder Head Cover Seal 1
14 SP-GEN-3.5KVINV-014.1 Cylinder Head Cover 1
15 SP-GEN-3.5KVINV-015.1 Pipe Joint 1
16 SP-GEN-3.5KVINV-016.1 Hexagon Flange Bolts M6×25 2
17 SP-GEN-3.5KVINV-017.1 Hexagon Flange Bolts M6×35 2
All manuals and user guides at all-guides.com
