PURE Highway 600 User manual

Highway 600

Introduction
Thank you for choosing the Highway600. This user manual will get you up and
running in no time.
To get the most out of your Highway, download the Pure Goapp on your mobile
device. Read more about the Pure Goapp on page15.
1

Safety
Before you use your Highway, read the following safety instructions.
1. Follow the operating instructions provided and take note of any warnings.
2. If you do not follow the operating instructions provided, it may compromise the safety of your product and this may invalidate the warranty.
3. Only use the supplied 12V power adapter with your product.
4. Do not install your product in a way that may interfere with the safe operation of the vehicle, or affect the deployment of air bags or other safety items. Do not install cables and wires near
the steering wheel.
5. Do not place your product on or near sources of your vehicle's heat or ventilation.
6. Do not use your product in a way that may cause careless driving or improper control of your vehicle.
7. Keep your product dry and only clean with a dry cloth.
8. Do not expose your product to naked flames.
9. Use batteries of the type listed in this user manual, and fit batteries correctly. Dispose of batteries in an environmentally friendly manner. Do not expose batteries to excessive heat or naked
flames.
10. Keep batteries away from children. If the battery compartment does not close securely, do not use the product and keep it away from children. If you think someone has swallowed a battery
or placed a battery inside their body, seek medical attention immediately.
11. Do not use your product in extremely hot or cold temperature.
12. If you need to connect your product to the rear of your vehicle's head unit, remove any power before you start to install your product. When you have safely installed your product, you can
reconnect the power. See your vehicle's owner's manual for more information.
13. Do not use the product if it is damaged.
14. Product repairs should only be carried out by authorised personnel.
Symbols on the product and in the user manual
Potentially serious risk to your personal safety. To avoid possible injury or death, obey all safety notices with this symbol.
Caution. Read the user manual before use.
12V DC
12V DC power supply.
1A
USBsocket rated at 1amp maximum.
Where to switch on or off the product, or put it in standby.
2

3
Introduction 1
Safety 2
Contents 3
Overview 4
What's in the box 4
Controls 5
Display icons 6
Getting started 7
Installing your Highway 7
Where to install your Highway 8
Connecting the microphone to the antenna 9
Positioning the antenna 9
Positioning the microphone 10
Connecting the antenna 11
Installing the wireless controller 12
Switching your Highway on for the first time 13
Switching your Highway on and off 13
Digital radio 14
Listening to digital radio 14
Presets 14
Bluetooth 15
About the Pure Go app 15
Pairing your Highway with a mobile device 15
Listening to audio stored on your mobile device 16
Listening to audio from a music streaming service 16
Making and receiving calls on your Highway 16
Using your mobile device's personal assistant 17
Settings 18
Changing between auxiliary connection and FM
transmission 18
Setting your Highway to enter standby automatically 18
Radio settings 18
Display settings 19
Updating the software 20
Troubleshooting 21
Contents

Overview
What's in the box
Before you get started, check you have everything below.
1 2
3
6
4
7
5
8
9
1Antenna, with magnetic grounding tail attached 6Wireless controller bracket
2DAB film aerial 712V power adapter (dual USB port)
3Wireless controller 8Self-adhesive cable clips
4Two AAA batteries 9Microphone
5Cleaning cloth
4
Restrictions for use - to be used only with items shown on this page and configured/installed/used according to this manual.

Controls
3
2
4
6
7
5
1
1 Select Turn to browse radio stations, songs and menu options. Press to select.
2 Previous / Call Press to skip to the previous song or preset, or answer an incoming call.
3 Power / Back Press to switch your Highway on. Press and hold to put your Highway in standby. Press to go back to the previous screen or
cancel an action.
4 Go Press to stream audio from your music streaming service. Press and hold to identify the current song on the radio and add it to
your supported streaming service.
To use the Go button, install the Pure Go app on a mobile device and connect it to your Highway.
5 Play / Personal
assistant
Press to play or pause songs over Bluetooth, or mute the radio. Press and hold to use the personal assistant on your mobile
device.
6 Home / Presets Press to open the main menu. Press and hold to view your presets.
7 Next / End call Press to skip to the next song or preset, or reject an incoming call.
5

Display icons
The icons below appear on the screen of the wireless controller.
2
BBC R2
3 4
15
1Digital radio mode 4Signal strength of connected mobile device
2Bluetooth mode 5Battery level of connected mobile device
3In a call
6

Getting started
Installing your Highway
Before you can start using your Highway,you need to do the following:
1. Connect the microphone to the antenna.
2. Position the antenna in your vehicle.
3. Position the microphone in your vehicle.
4. Connect the antenna to your vehicle's audio system, either with an auxiliary cable or by FM radio.
5. Install the wireless controller.
6. Switch your Highway on for the first time.
To watch a video showing how to install your Highway, search for 'Highway installation' on YouTube.
Vehicle requirements
lFitted audio system with auxiliary (3.5mm) port or FM receiver.
lStandard 12V negative earth power supply. Your Highway is not suitable for use with a 24V power supply.
Getting the bestDAB signal
As with FMradio, DAB signal coverage changes depending on your location. As you use the Highway in your vehicle, you may travel
through areas where DAB signal coverage is poor. To help get the best DAB signal when coverage is poor or there is a weak signal:
lFollow the installation instructions carefully.
lEnsure the magnetic grounding tail is attached to the antenna.
lUse the supplied 12V power adapter, as other third-party adapters can cause interference.
lSwitch off other devices in your vehicle that aren't in use. Devices such as satellite navigation systems and dashboard cameras
can cause interference.
7

Where to install your Highway
It's important to install your Highway in a safe location in your vehicle.Do not fit any components in locations that may
interfere with safe operation of the vehicle, or affect the deployment of air bags or other safety products.Keep cables and
wires away from the steering wheel.
Where to installthe antenna
We recommend you installthe antenna for your Highway in
the top corner of the windscreen, on the passenger's side of
your vehicle.
Installthe antenna so that it is not within the swept area of
the windscreen. Make sure the antenna and wireless
controller do not obstruct the view of the driver.
If you have a heated windscreen in your vehicle, or the windscreen contains metallic UVfilters, it can cause interference for the DAB
signal.Install the antenna on a part of the windscreen that does not contain heating elements or UV filters.
For more information on where to safely and legally install your Highway in your vehicle, contact your local transport office.
To find local fitters that can install your Highway professionally, visit pure.com/store-locator.
8

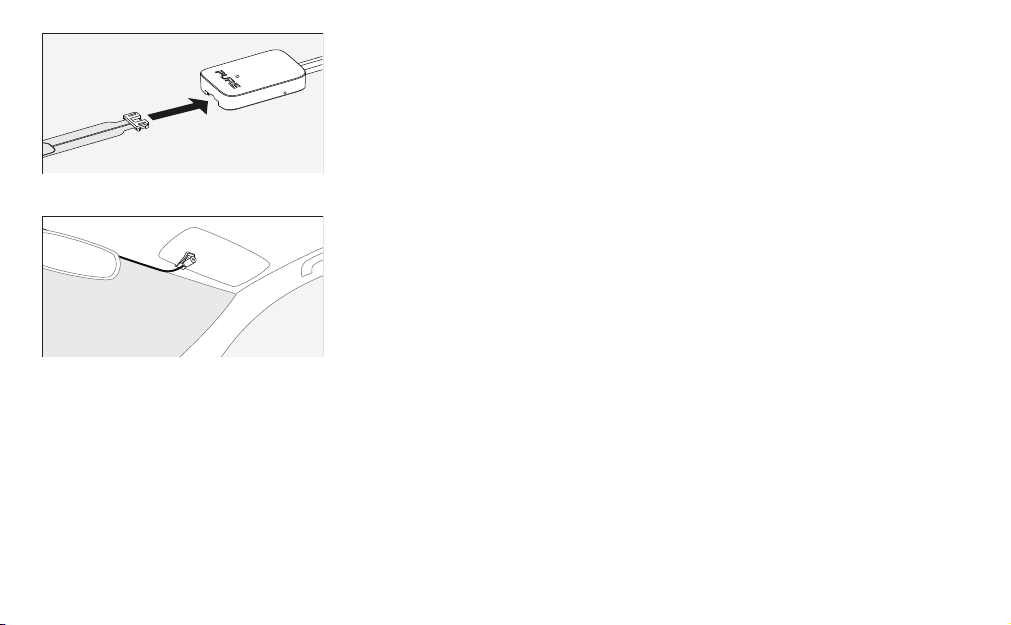

Connecting the microphone to the antenna
1. Insert the microphone connector into the socket at the top of the antenna, until it
clicks into place.
Note: Push the microphone cable in firmly, to ensure it's fully inserted.
2. To keep the microphone cable out of the way while you position the antenna,
temporarily clip the microphone so that it's near the driver's position.For example, clip
the microphone to the driver's sun visor.
Positioning the antenna
1. Choose a position for the antenna, so that it's as high as possible on the windscreen
and at least 4cm from the side of the screen.
Make sure the antenna does not obstruct the view of the driver.
2. Gently pull down the front of the roof liner in your vehicle, until there is a small gap.
3. Push the magnetic grounding tail through the gap,with the silver-coloured magnet
facing upwards. Make sure the magnet touches your vehicle's metal bodywork.
4. Clean the chosen area of the windscreen with a cleaning cloth and wait for it to dry.
5. Unpeel the backing from the antenna and stick the antenna onto your windscreen.
9

6. Insert the DAB film aerial into the slot in the antenna.
7. Gently unpeel the backing from the DAB film aerial and stick the aerial onto your
windscreen. Take care not to fold or twist the aerial.
Positioning the microphone
1. If possible,tuckthe cable into the roof lining,keeping the microphone near the
driver's position. Alternatively, use self-adhesive clips to fix the microphone cable
along the top of your windscreen.
2. Clip the microphone to a suitable location, such as the roof lining or the driver's sun
visor.
10

Connecting the antenna
1. Place the antenna cable so that it follows a path to your vehicle's power socket.
2. If possible,tuck the cable behind the trim down the side of your windscreen.
Alternatively, secure the cable to your windscreen and dashboard with self-adhesive
clips.
3. Gently pull the auxiliary cable from the USBpower cable to separate them.
4. Insert the USB power cable into the supplied 12V power adapter, then insert the
power adapter into your vehicle's power socket.
5. If you're connecting your Highway with an auxiliary cable, insert the cable into your
vehicle's auxiliary socket. If you're connecting your Highway by FM radio, you can
store the auxiliary cable so it's out of the way.
We recommend you connect your Highway with an auxiliary cable to get the best
audio quality.
11

Installing the wireless controller
1. Slide the back cover off of the wireless controller and insert the batteries,then
replace the cover.
2. Choose an area on your vehicle's dashboard where you want to install the wireless
controller. Clean the surface with a cleaning cloth and wait for it to dry.
Make sure the wireless controller does not obstruct the view of the driver.
3. Peel off the backing from the wireless controller bracket and gently stick it onto your
dashboard. Gently press the bracket to ensure it's attached securely.
4. Slide the wireless controller onto the bracket, until it clicks into place.
12

Switching your Highway on for the first time
After you've installed your Highway,switch it on to finish setting it up.
1. Turn on your vehicle’s ignition to make sure the antenna is switched on. After a few seconds,the wireless controller automatically
connects to the antenna. If not, see page21.
2. Turn the Select dial to change the display language, then press the Select dial to choose it.
3. Turn and press the Select dial to choose how to connect your Highway to your vehicle.
•If you've connected your Highway with an auxiliary cable, choose ‘LINEOUT’.
•If you're connecting your Highway by FM radio,choose ‘FMTRANSMIT' and then choose an FM frequency.Ensure a radio
station isn't using the frequency you choose.
Tune your vehicle’s audio system to the same FM frequency your Highway. To easily find the FM frequency in the
future, save it as a preset on your vehicle’s audio system.
After you’ve chosen how to connect your Highway,it starts tuning to digital radio stations. When the autotune is complete, you can
start listening to digital radio.
Switching your Highway on and off
•To switch on your Highway, press .
•To put your Highway in standby and use less power, press and hold .
Note: By default,the antenna automatically enters standby after 4hours, and the screen on the wireless controller dims after
15seconds. Read more about the display brightness on page19.
13

Digital radio
Listening to digital radio
1. Press .
2. Press the Select dial to choose 'DIG. RADIO'.
3. To change to another radio station, turn and press the Select dial.
Presets
You can save up to 20 of your favourite digital radio stations in the presets list.
Storing a radio station as a preset
1. When listening to a radio station, press and hold .
2. Turn the Select dial to choose a preset number. You can overwrite previous radio stations.
3. Press and hold to save the current radio station to the preset number.
Listening to a preset
1. When listening to digital radio, press and hold .
2. Turn and press the Select dial to choose the preset you want to listen to.
To skip to the previous or next preset, press or .
14

Bluetooth
About the Pure Go app
To get the most out of your Highway,download the Pure Go app on your mobile device.The Pure Go app provides the following
features:
Play.Access all of your songs and playlists on your music streaming service.If you use Spotify, a premium subscription is
required.
Identify. If you hear a song you like on a radio station, press and hold to identify the song using the microphone on
your mobile device.The song is then added to a Pure Go playlist on your music streaming service.
Update. The Pure Go app notifies you when a new software update is available and allows you to update your Highway.
Read more about updating the software on page20.
To pair your Highway with the Pure Go app,install the app on your mobile device and then follow the setup instructions in the app.
Pairing your Highway with a mobile device
You can use Bluetooth to wirelessly connect to a mobile device.You can then stream musicfrom your mobile device and make hands-
free calls.
1. Switch on Bluetooth on your mobile device.
2. Press on the wireless controller for your Highway.
3. Turn and press the Select dial to choose 'SETTINGS' > 'BLUETOOTH' > 'PAIR' > 'BTMUSIC'.
4. On your mobile device, choose your Highway from the list of Bluetooth devices and connect to it.
After you've paired a mobile device with your Highway,your Highway automatically connects to it when it's nearby.
To forget a paired mobile device on your Highway, press . Then choose 'SETTINGS'> 'BLUETOOTH' > 'FORGET'. To forget a
paired Pure Go app, remove Pure Go from the list of paired devices on your mobile device.
15

Listening to audio stored on your mobile device
If you connect your Highway to a mobile device using Bluetooth, you can play music that is stored on your mobile device.
1. Press .
2. Turn and press the Select dial to choose 'BTMUSIC'.
3. Turn and press the Select dial to choose a song to play.
4. To skip to the previous or next song, press or . To play and pause the current song, press .
Note: If you see 'BROWSENOT AVAILABLE', your mobile device or the current app does not support browsing.
If you see '+',the item is a folder that contains audio files. Press the Select dial to open the folder.
Listening to audio from a music streaming service
If you use the Pure Go app to connect to your Highway,you can listen to audio from a music streaming service.
1. Press .
2. Turn and press the Select dial to choose an artist, playlist, album or song.
3. To play and pause the current song, press . To skip to the previous or next song, press or .
Making and receiving calls on your Highway
You can make hands-free calls on your Highway, using Bluetooth to connect to your mobile device.If the volume or microphone aren't
working, see page22.
Calling a contact
1. Press .
2. Turn and press the Select dial to choose 'PHONEBOOK'> 'CONTACTS'.
3. Turn the Select dial to find a contact in your contacts list.
4. To callthe contact,press the Select dial.
5. To end the call, press .
To view your callhistory on your Highway, press . Then choose 'PHONEBOOK'and view your dialled, received or missed calls.
16

Answering or rejecting a call
lTo answer an incoming call, press . To end the call, press .
lTo reject an incoming call, press .
Using your mobile device's personal assistant
If you connect your Highway to a mobile device using Bluetooth, you can use it to access your device's personal assistant.
1. Press and hold .
2. When prompted, ask a question to your mobile device's personal assistant.
To cancel your mobile device's personal assistant, press or .
17

Settings
Changing between auxiliary connection and FM transmission
You can choose how your Highway is connected to your vehicle's audio system.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'AUDIOOUT'.
3. Turn and press the Select dial to choose how to connect your Highway to your vehicle.
•If you've connected your Highway with an auxiliary cable, choose ‘LINEOUT’. Then turn and press the Select dial to choose
a gain setting of 'LOW' or 'NORMAL'. If the audio sounds distorted, choose 'LOW'.
•If you're connecting your Highway over FM radio,choose ‘FMTRANSMIT' and then choose an FM frequency. Ensure a
radio station isn't using the frequency you choose.
Setting your Highway to enter standby automatically
By default,your Highway enters standby after 4hours, but you can change the delay.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'AUTOSTANDBY'.
3. Turn and press the Select dial to choose a delay between 1 and 8 hours.
Radio settings
Performing an autotune
If you can't find any digital radio stations, try retuning your Highway.
lTo perform an autotune, press and hold the Select dial when you are in digital radio mode.
Listening to alternative stations when the signal is weak
If the current radio station has a weak signal, your Highway automatically tries to find a stronger signal.
If your Highway can't find a stronger signal for the current radio station,it can automatically tune to a similar radio station when
supported by the broadcaster.
18
