PureEdge Lighting Big Shorty User manual

1: Insert a pin such as a pen into the lamp cover and rotate
counter-clockwise to remove the accessory holder.
Install the Fixture
SAVE THESE INSTRUCTIONS!
- This product is ETL listed.
- This instruction shows a typical installation.
- This product is suitable for dry locations.
- This product is dimmable with an ELV dimmer connected
to the outlet.
IMPORTANT INFORMATION
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: [phone]
www.PureEdgeLighting.com ● [email protected]
© 2016 PureEdge Lighting. All Rights Reserved.
Doc # 904-BSF_02

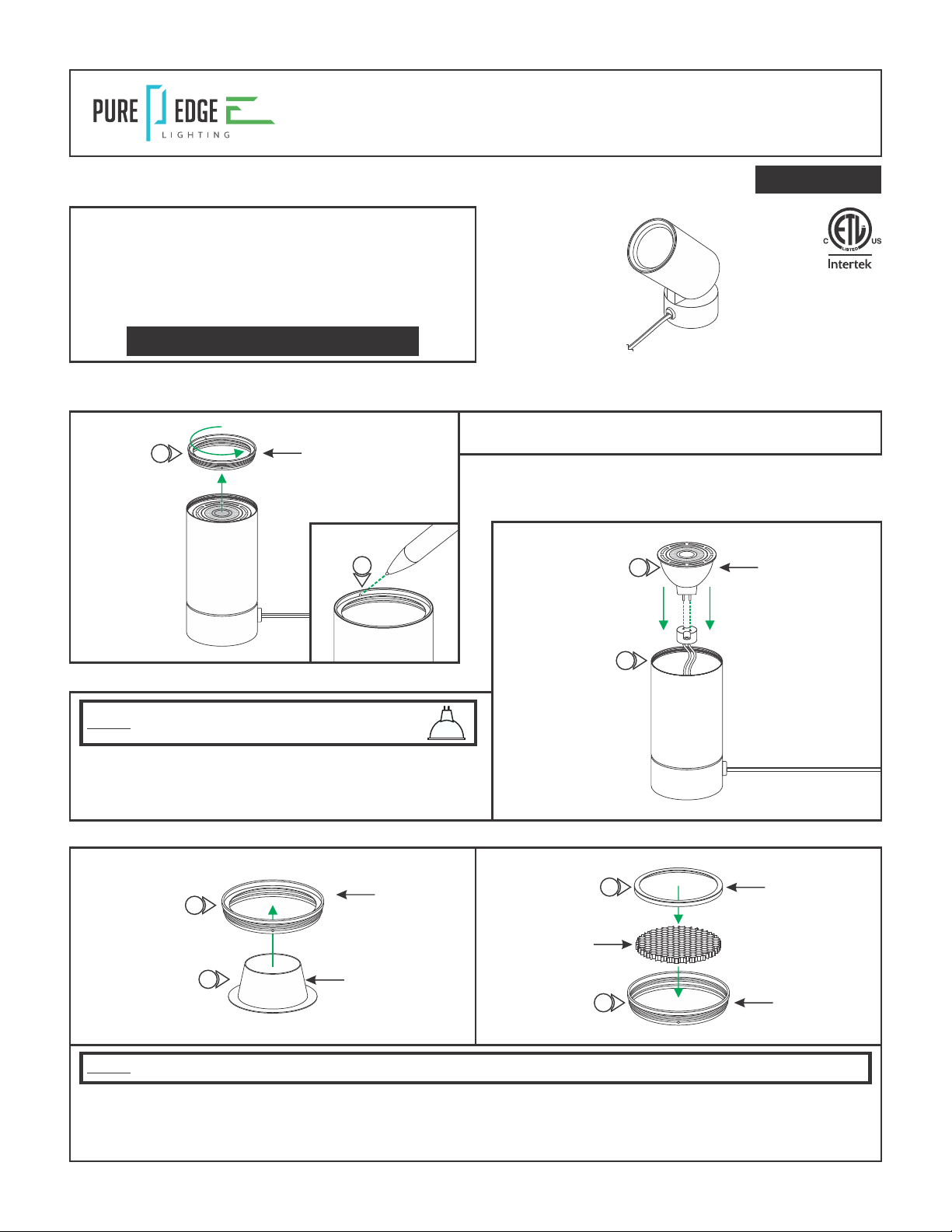

Installation Instructions for Big Shorty
A
1
BSF-MR16-12V-__
2: Align and completely install the LED MR16 lamp pins into the
socket holes.
3: Place the lamp properly inside the fixture.
4: To install the Snoot or Half Snoot, simply place the snoot behind the accessory holder.
5: Unsnap the retaining ring to install an Egg Crate Louver or a lens inside the lamp cover. Snap back the retaining ring to hold
the accessory in place.
C
NOTE: Omit steps 4 and 5 if not using an accessory.
B
ACCESSORY HOLDER
1
1LAMP
2
3
NOTE: Use MAX 9 Watt Type MR16 LED lamp.
ACCESSORY
HOLDER
SNOOT
4
4
RETAINING
RING
EGG CRATE
LOUVER OR
LENS
LAMP COVER
5
5

6: Screw the accessory holder back clockwise to secure in
place.
7: Plug in the power cord into an outlet.
8: Turn on the switch.
9: Adjust the angle of the fixture by rotating the body.
D
E
F
2
8
SWITCH
9
POWER
CORD
ACCESSORY
HOLDER
6
