PureLink HEXA-01 User manual

HEXA-01 Owner’s Manual
HEXA-01
HDMI Audio Extractor with Downmixing
PureLinkTM
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at [e-mail]

PureLink by Dtrovision
2
TABLE OF CONTENTS
Chapter 1. Introduction
1.1 Safety Precautions -------------------------------------------------------------- 3
1.2 Product Introduction -------------------------------------------------------------- 4
1.3 Package Contents -------------------------------------------------------------- 4
Chapter 2. Feature and Specifications
2.1 Features --------------------------------------------------------------------------- 5
2.2 Mechanical Specification ----------------------------------------------------- 6
2.3 Operation and Reliability Specification --------------------------------------- 7
Chapter 3. Installation and Operating Instruction
3.1 Installation Guidelines ------------------------------------------------------------ 8
3.2 Control Settings ----------------------------------------------------------------- 8
3.3 EDID Settings ----------------------------------------------------------------------- 9
3.4 LED Signals ----------------------------------------------------------------------- 9
Chapter 4. Additional Information
4.1 Warranty --------------------------------------------------------------------------- 10
4.2 FCC/CE Statement ---------------------------------------------------------------- 11

PureLink by Dtrovision
3
Chapter 1. Introduction
1.1 Safety Precautions
When using and installing Dtrovision PureLink product, adhere to the following basic safety
precautions.
Read and understand all instructions before using and installing this product.
The safety and operating instructions should be retained for future reference.
Always use the correct external power supply (indicated on the product label) when operating
this unit.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
Mishandling of this product may lead to a fire or explosion hazard.
Do not place any heavy objects or equipment on top of the product.
Keep away from wet, magnetic, and flammable surfaces or substances.
Air vents should be kept clean and unobstructed at all times.
Any external impact may cause damage to the operation of this unit.
Be sure this product is properly grounded (earthed) in order to prevent the risk of electrical
shock.
Turn off and unplug power before adding or removing Input/Output Boards.
Input/Output Boards may be damaged when they are replaced with power turned on.
Use surge protectors and/or AC line conditioners when powering this product.
Only use a fuse(s) with the correct fuse rating in your enclosure.
Make sure the product is on or attached to a stable surface.
If you experience any malfunctioning of product or have any question as to operation of the
product, please contact our customer service center.
PureLinkTM
Tel: [phone]
Email: [e-mail]

PureLink by Dtrovision
4
1.2 Product Introduction
PureLink’s HEXA01 is an audio extractor for HDMI with PCM multi-channel to 2-channel downmixing
capabilities.
* HEXA01 supports downmixing of up to 5.1 channel PCM audio sources. It does not support downmixing of 7.1 channel
PCM audio sources.
The HEXA01 - housed in a compact, portable frame, along with low power consumption – provides a
simple and convenient way to extract audio from an HDMI signal.
1.3 Package Contents
Please make sure all of the following items are included in the package:
1) HEXA01
2) Firmware download cable ( USB to mini USB)
3) DC 12V power supply adapter with an AC cord

PureLink by Dtrovision
5
Chapter 2. Features and Specifications
2.1 Features
Digital and Analog audio support
HDMI Audio extractor with PCM Multi-channel to 2 channel downmixing, and simultaneous HDMI,
analog stereo, and digital S/PDIF outputs.
* HEXA01 supports downmixing of up to 5.1 channel PCM audio sources. It does not support downmixing of 7.1 channel PCM
audio sources.
Balanced or unbalanced analog audio
Equipped with a 5-pin Phoenix Connector port supporting balanced or unbalanced analog stereo audio.
HDMI v1.4, 3D Support
Adopting latest HDMI version 1.4 enables to support 3D, 48-Bit Deep Color and 7.1 Channel Dolby
TruHD & DTS MasterHD
Auto-EDID (EDID Library, Emulation)
PureLink's EDID library and emulation features failsafe EDID capture & storage to provide constant and
continuous EDID for source devices.
HDCP (High-bandwidth Digital Content Protection) Compliant
Field Upgradable
** Integrated Noise-cancellation and Error-correct Logic for both Input and Output port to
prevent any damage caused by Electrical Noise.

PureLink by Dtrovision
6
2.2 Mechanical specification
Specifications
Product Name HEXA01
Data Transfer Rate 2.25 Gbps
Frequency Range 25 – 165 Mhz
Input Signal Single link HDMI
Output Signal Single link HDMI, SPDIF and Stereo audio
Supported Resolution Up to WUXGA(1920X1200) 60Hz
480P~1080i/P
Input Connector Type DC Power Jack,
19-pin Type A HDMI female
Output Connector Type
19-pin Type A HDMI female
S/PDIF coaxial digital audio
5-pin 3.5mm detachable terminal block
Standard HDMI Ver1.4 Compliant with High-bandwidth Digital Content Protection (HDCP) using
DVI and HDMI standards
Power Consumption DC +12V 3A, 36W Max
Dimensions 4.7’’(w) x 4.4’(D)’ x 1.5’’(H) mm
Net Weight 1 lb

PureLink by Dtrovision
7
2.3 Operation and Reliability Specification
*The following settings are recommended in order to maintain optimal performance:
1. Operating Environment
Temperature : 50F ~ 104F (10℃~ 40℃)
Humidity : 10% ~ 80%
Altitude : 3,000m Max.
2. Transit Environment
Temperature : -13F ~ 140F (-25℃~ 60℃)
Humidity : 5% ~ 95%
Altitude : 15,000m Max.
3. Storage Environment
Temperature : -4F ~ -49F (-20℃~ 45℃)
Humidity : 5% ~ 95%
Altitude : 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard

PureLink by Dtrovision
8
Chapter 3. Installation and Operating Instruction
3.1 Installation Guidelines
1) Before installing the HEXA01 audio extractor, turn OFF the source and display devices.
2) Connect the HDMI and/or audio cable.
3) Plug in the adapter to the HEXA01 power jack.
4) Plug the wall mount power supply into the wall outlet.
5) Turn ON the display device.
6) Turn ON the source device.

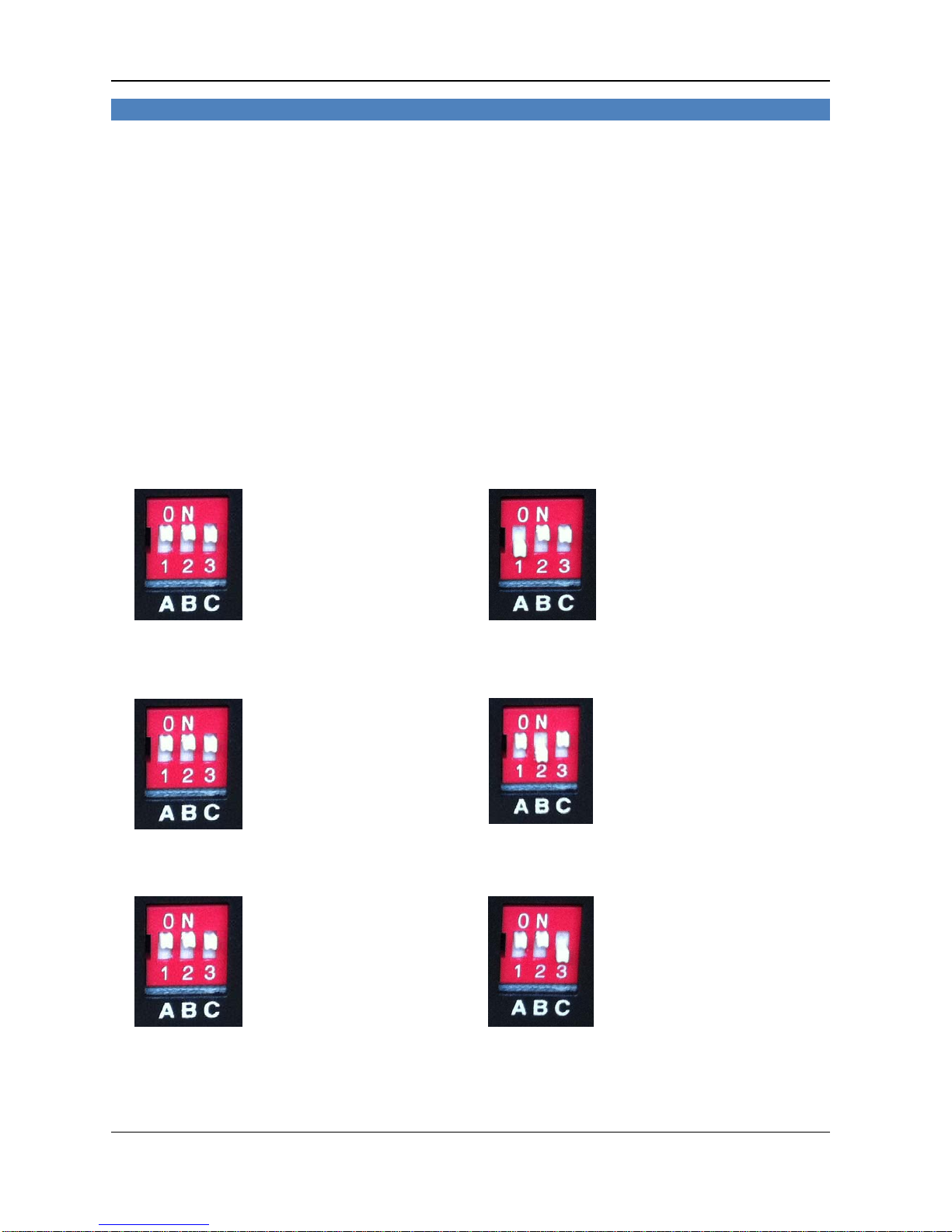

3.2 Control Settings
4.1Switch No.1 : HDMI Audio Output ON/OFF
ON : HDMI Audio Output ON OFF : HDMI Audio Output OFF
4.2Switch No.2 : EDID setting
ON : Internal EDID setting OFF : Display
(connected to HDMI Out)
EDID setting
4.3Switch No.3 : Select Internal EDID (when switch 2 is ON)
ON : Select Multi CH audio EDID OFF : Select 2 CH Audio EDID

PureLink by Dtrovision
9
3.3 EDID Settings
1) Internal EDID setting
Turn ON switch 2. Select settings for switch 3, then press
SAVE to store internal EDID data.
2) Display EDID settings
Turn OFF switch 2, then press SAVE to reset the display
EDID data.
3.4 LED Signals
POWER : Indicates that the power is ON
VIDEO : Indicates video signal input
HDCP : Indicates the video signal’s HDCP compliance
EDID : The LED light will turn ON for 3-4 seconds, indicating that the EDID
settings have been successfully saved.
A blinking LED light indicates that the EDID settings have not been
successfully saved.
BITSTREAM : Indicates that BITSTREAM audio has been detected.)
MULTI CH : Indicates Multi CH Audio signal input
2CH : Indicates 2CH Stereo Audio signal input
DOWN MIX : Indicates when Multi CH Audio is down-mixed out correctly

PureLink by Dtrovision
10
Chapter 4. Additional Information
4.1 Manufacturer’s Warranty (2-Year)
Dtrovision warrants this HEX01 to be free from defects in workmanship and materials,
under normal use and service, for a period of two (2) year from the date of purchase
from Dtrovision or its authorized resellers.
If the product does not operate as warranted during the applicable warranty period,
Dtrovision shall, at its option and expense, execute one of the following as necessary:
1. Repair the defective product or part
2. Deliver to customer and equivalent product or part to replace the defective item
3. Refund to customer the purchase price paid for the defective product
All products that are replaced become the property of Dtrovision, LLC. Replacement
products may be new or reconditioned. Repaired or replacement products or parts
come with a 90-day warranty or the remainder of the warranty period. Dtrovision shall
not be responsible for any software, firmware, information, or memory data loss of
contained in, stored on, or integrated with any products returned to Dtrovision for repair
under warranty.
Customer Service
Any customer service inquiries can be submitted electronically through the Q&A form on
our website at www.purelinkav.com. For immediate assistance please contact us at (201)
488-3232 to reach our customer care or tech support team.

PureLink by Dtrovision
11
4.2 FCC/CE Statement
This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must not accept any interference received, including interference
that may cause undesired operation. This equipment has been tested and found to comply with
the limits for a ClassA digital device, pursuant to part 15 and 2 of FCC Rules and EN
55022/55024/61000-3 for CE certification. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and. if not
installed and used in accordance with the instruction guide, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order to comply with
FCC/CE emission limits. Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to operate the equipment.
4.3 UL Statement
This device has completed a UL Commercial Inspection and Testing Services for the multimode
HDMI cable complied with VW-1 under UL 758. it is validated by the UL file number SV2038 and
project number 04CA05353.
