Puricom CBU-bubu User manual

CB U
-
Misting S ystem
USER MANUAL

TABLE OF CONTENTS
1.INTRODUCTION ............................................................
2.FUNCTION & SPECIFICATION .........................................
3.NOZZLE SPEC. & APPLICATION ......................................
4.ACCESSORIES ................................................................
5.OPERATIONAL INFORMATION & SPEC ...........................
6.BUBU MISTING SYSTEM FLOW CHART ..........................
7.HOW QUICK CONNECTORS WORK ................................
8. INSTALLATION
- A. DIVERTER VALVE ASSEMBLY ..................................
- B. OPTIONAL PREFILTER INSTALLATION ....................
- C. UNIT BODY INSTALLATION ......................................
- D. TIME CONTROL BOX INSTALLATION........................
- E. SPRAY NOZZLE INSTALLATION................................
9. START-UP .........................................................................
10. SPRAY/ INTERVAL TIME SETTING ..................................
11. SPRAY NOZZLE TECHNICAL INFORMATION ..................
12.TROUBLESHOOTING ......................................................
1
2
3
4
5
6
7
8
9
10
12
12
13
13
14
15

1

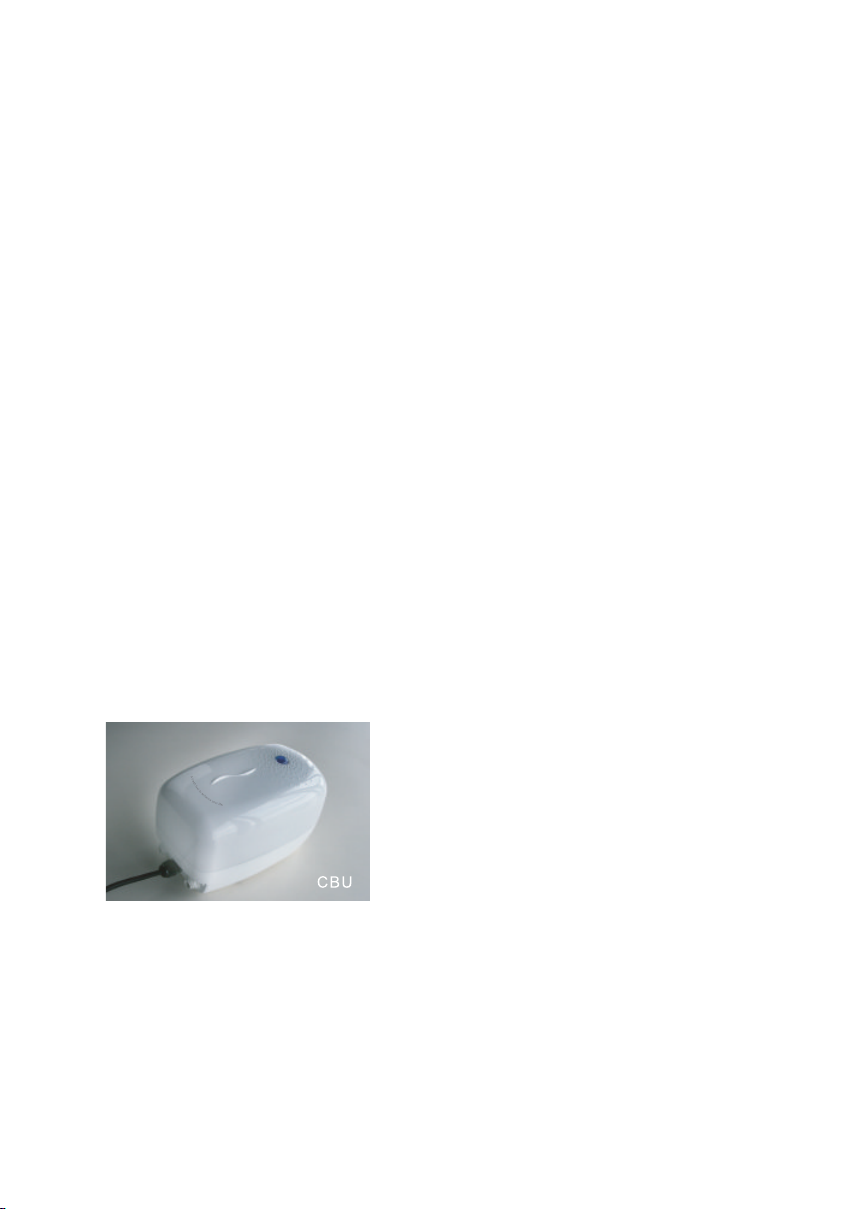

PuricomUSA BUBU misting system is the perfect combination of misting
mechanics and excellent product design. In the blistering summer heat, BUBU
brings you fresh coolness, giving you all the summer joy you deserve.
As the fine mist droplets vaporize, 1cc of water is able to absorb 539 kJ of
energy, thus effectively decreases environmental temperature. BUBU unites
misting mechanics and outstanding Puricom components. It is compact, only
1/8 the size of traditional misting systems. It is environmentally friendly,
quiet and power saving.
BUBU Misting System also gives the following features:
- Patented booster pump, with innovative cooling system. Steady pump
operating temperatures even during continuous use.
- Adjustable misting interval.
- High quality nozzles selected for various usage for maximum cooling effect.
BUBU Misting system is both decorative
and practical, refreshing your environment.

2

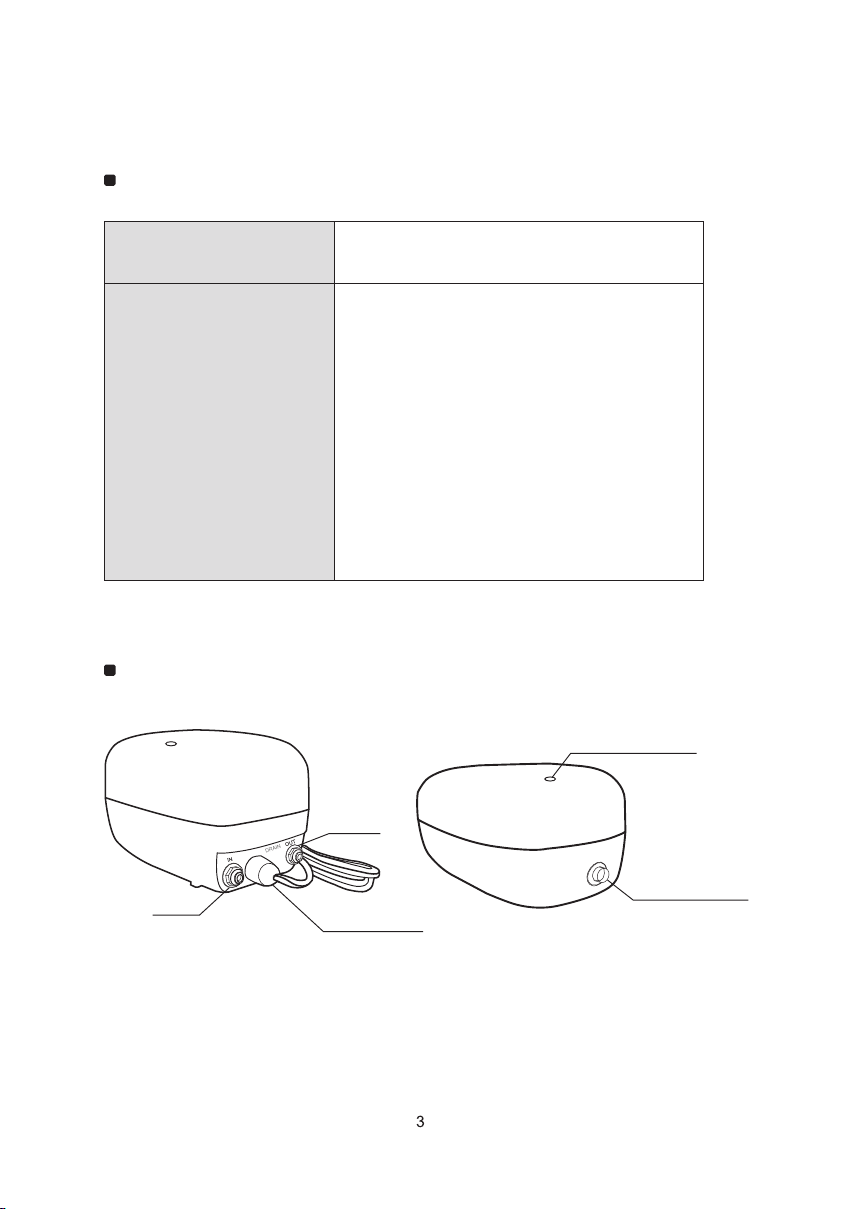

SPECIFICATION
FUNCTION
1. Temperature cooling
The instant vaporization of fine water particles absorbs huge amount of
latent heat and achieves rapid cooling.
2. Environment humidifying
Humidity control helps reduce static electricity and other uncomfortable
environmental conditions.
3. Advertising and special effects
Misting system is an effective method for creating desirable atmosphere
setting and stage effects.
4. Agriculture and horticulture
Ideal for humidity control and greenhouse use.
5. Keeping fresh
Misting helps keep fruit and vegetables fresh and appealing for a longer
period.
6. Odor and dust reduction
The vaporized cool mist absorbs odors, reduces airborne dust.
32 ft.
5 sec voltage detection
every time switched on.
15 pcs.
LxDxH: 10.83
x 6.5 x 6.1in.
AC 110V 220V / 60Hz
CBU
Model Tube
Interval
Spray
-
30
seconds
-
30
seconds
Note
Default
Setting
Power
Size
Nozzle

power switch
pump indicator
outlet
inlet power cord
NOZZLE SPEC. & APPLICATION
PRODUCT DESCRIPTION
No.1 A050400005 0.15mm/0.006”
Interior spaces
Restaurants
Kindergarten
Playground
Fruit and Veg.
Greenhouse
Exhibitions
Spec.
Application
REAR VIEW FRONT VIEW

( ) Optional accessories - Not included:
- Dust, Sand and Hardness reduction prelter.

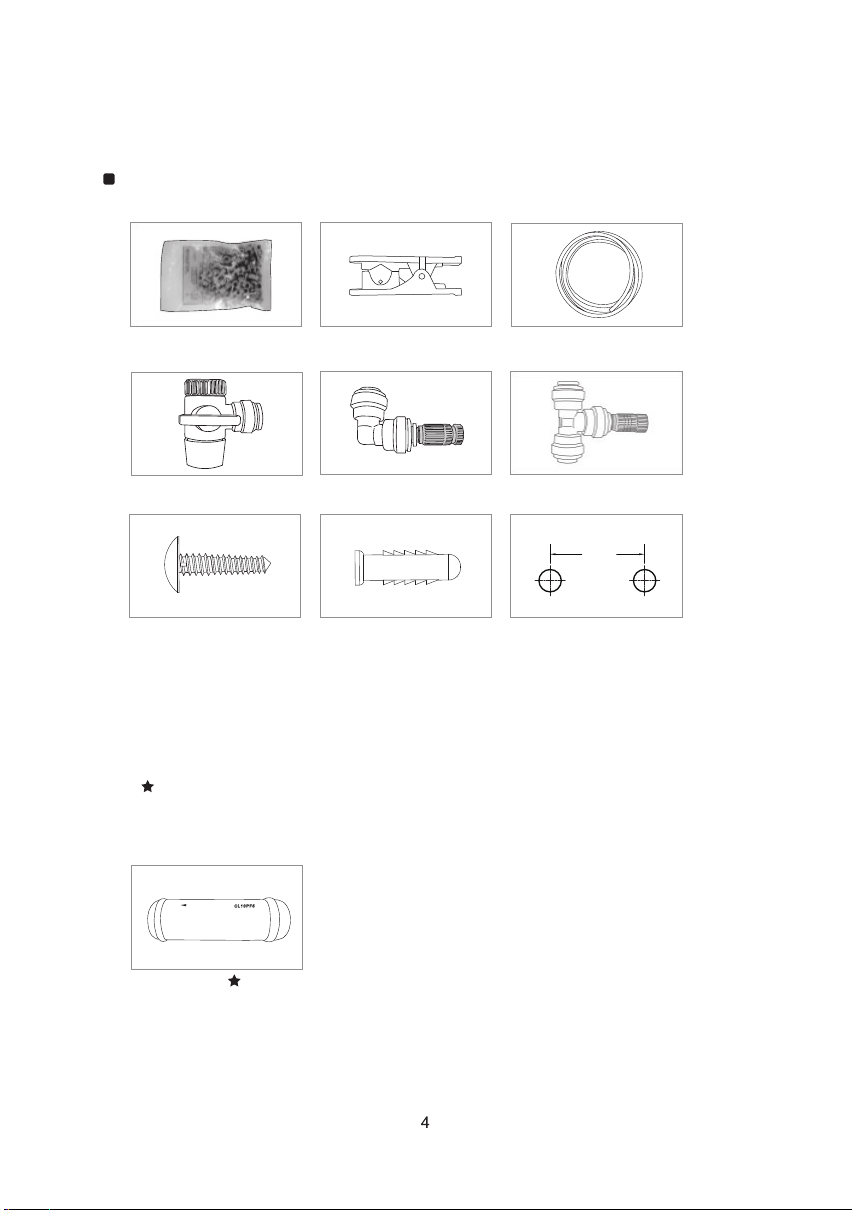

ACCESSORIES
Nail cable clips
(1 packet)
PVC plastic plug
for wall mounting
Screws for wall
mounting
( )
Prefilter
F L O W
CL10PF5
DIRT & SAND
REDUCTION
Tube cutter
Diverter valve Drain valve Metal nozzle
Wall-mount diagram
5.1cm
PE tubing - black,1/4"

5
RangeItem
Inlet water pressure
25 - 50 psi
100 - 150 psi
Pump working pressure
Optimal water temperature
4 - 40 C
OPERATIONAL INFORMATION
OPERATIONAL SPEC.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Make sure power supply conforms with product specification.
Do not place the unit in direct sunlight or damp environments.
Do not use hot water ( > 40 ℃) with the system.
Regular maintenance is prerequisite to ensure product reaches expected
lifespan.
Use an optional prefilter with a problematic water supply such as
presence of sand, sediment or hardness.
Ensure the inlet and outlet tubing is correctly connected.
Install the misting nozzles according to installation guideline for optimal
performance.
The misting system’s pump is under warranty for 1 year.
Pretreated or softened water is recommended to prolong nozzle
lifespan.
Disassembly, remodel or maintenance by non-professional technicians
will void warranty.

6
C
A
B
DE
BUBU MISTING SYSTEM FLOW CHART
Installation Index (Unit A -E)
※
The drain valve releases water present in the system and prevents dripping from occuring when the system is shut off. Please place the drain valve at an appropriate drainage point.

7

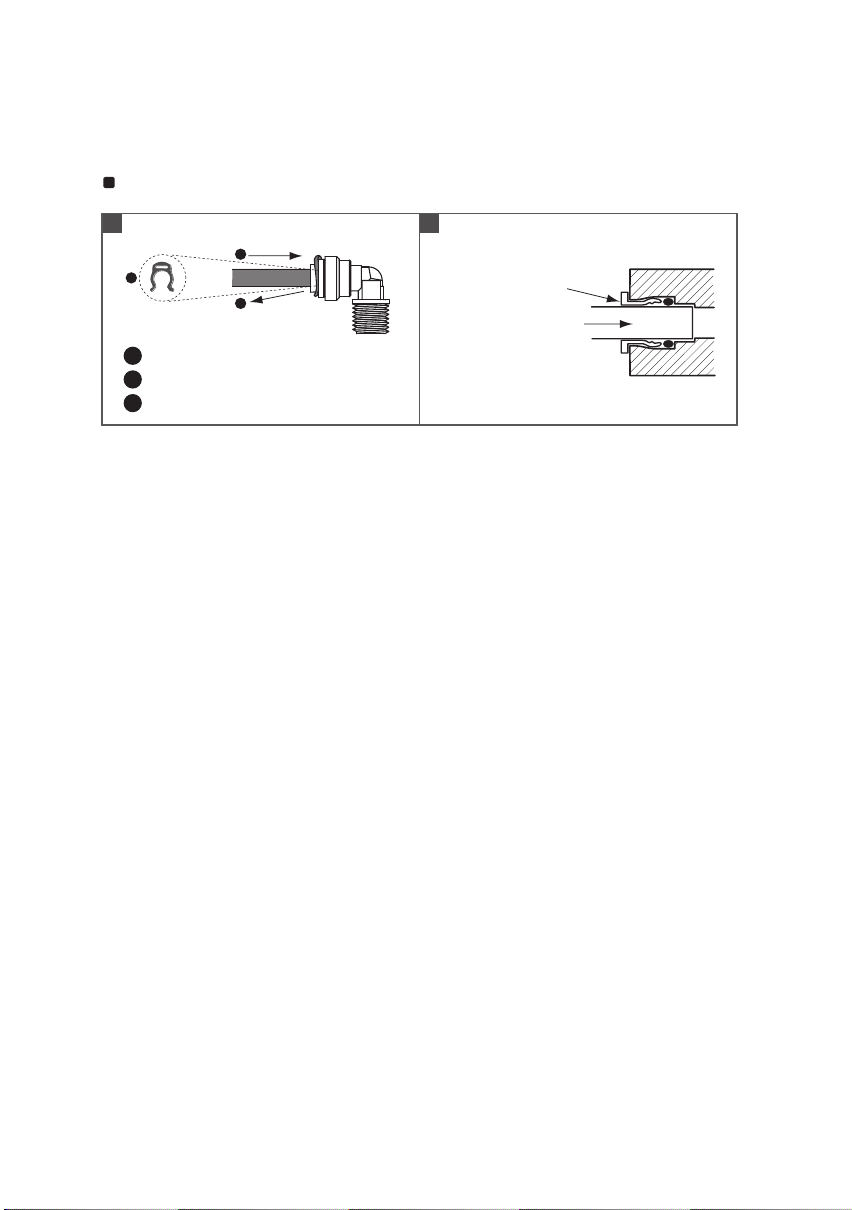

HOW QUICK CONNECTORS WORK
1 2
1. To remove tubing from the connector: Remove the safety clip from
under the collet, push in the collet, and pull the tube out.
2. Installation: Ensure the tube is clean and free of burrs. Push the tube
into the connector until it stops. Pull tube out a little bit, and replace
the safety clip.
Collet (Do not remove)
Insert tubing
Remove safety clip
Push collet in
Pull tube out
1
1
2
3
2
3
To disconnect To connect

8
INSTALLATION (Also refer to p. 6)

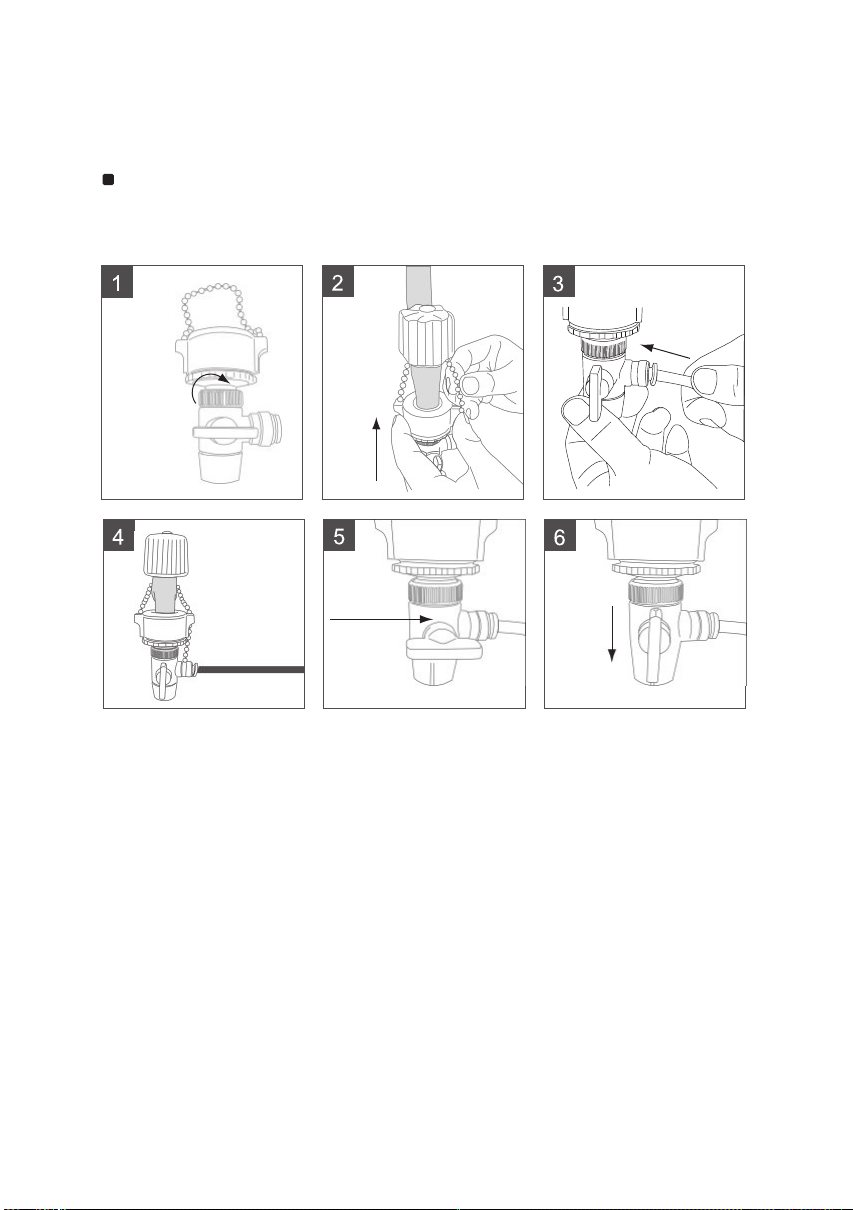

A. Diverter Valve Assembly
nylon tube
connects to
the prelter
push up
Insert
1. Screw the diverter valve onto the optional universal connector with
chain - not included. The diverter valve can be directly
connected to faucet.
2. Push up and lock chain.
3. Insert the nylon tube into the diverter valve.
4. The nylon tube connects diverter valve to prefilter.
5. Turn right to diver water to BUBU misting system.
6. Turn down to divert water to faucet.
Turn down
screw on
Turn right

9
2. Hammer in PVC plugs.
3. Screw the brackets onto the
4.
5. Assemble according to illustration.
6. Place the prefilter in the bracket to

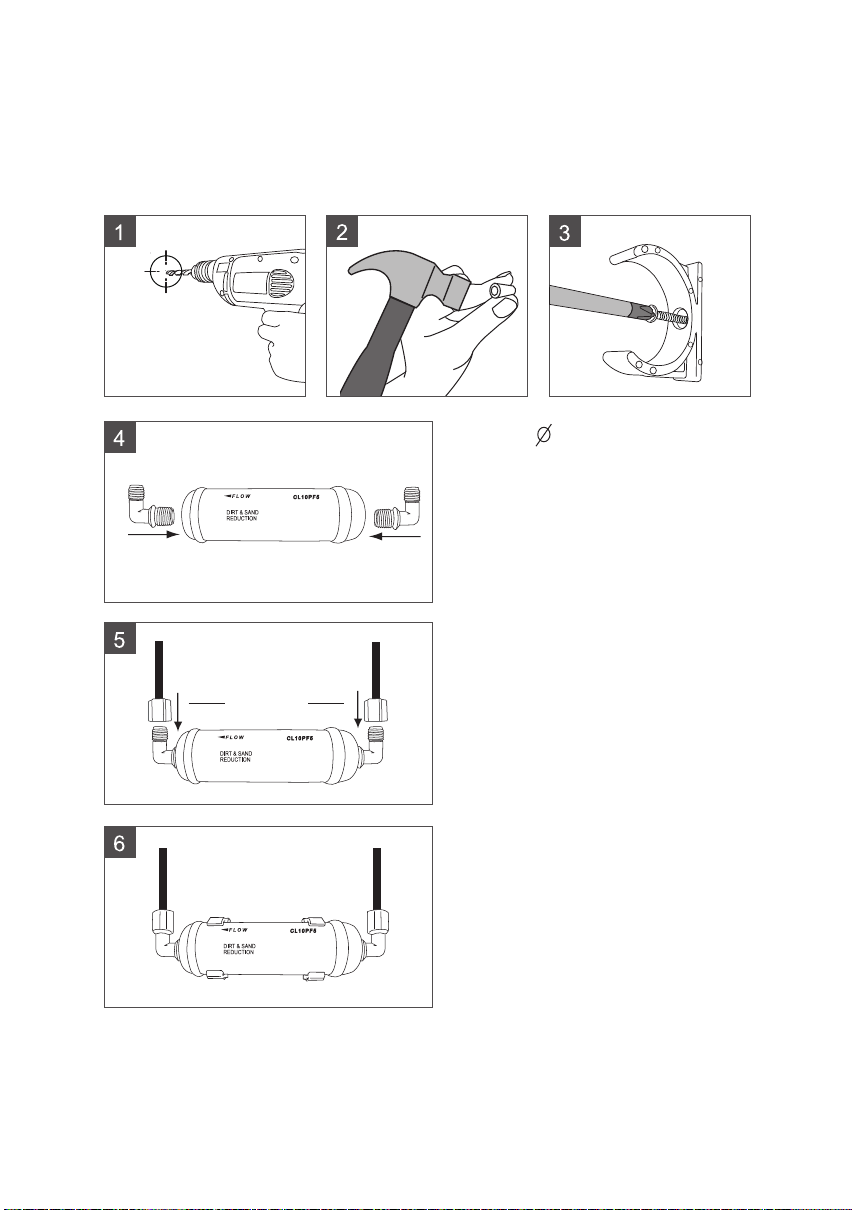

B. Optional Prefilter Installation
screw on screw on
IN
OUT
screw on
1.
complete installation.
Wind seal tape on the elbow
connectors. Note to wind seal
tape in the direction of thread.
Screw the elbow connectors onto
the IN and OUT of prefilter.
Drill a 6mm hole for each
bracket
PVC plugs.

10
4.
1.
2.
3. Hammer in PVC plugs.
C. Unit Body Installation
Use the wall-mount diagram to mark installation
position.
Drill 6mm holes.
Use a screwdriver to screw the screw into the
PVC plug. The screw protrusion must be uniform
(
+
10mm) to avoid damage to unit body.
-

11
5. Hang the BUBU unit body.
6. Connect the outlet PE tube from the prefilter to the inlet of the unit body.
7. Connect a PE tube to the outlet of the unit body.
8. Install a tee connector on the outlet nylon tube of the unit body.
9. The tee connector connects to the nylon tube that joins the spray nozzles,
8 9
connect to the
outlet of the
unit body
connect to the
drain valve
drain valve
adjustable
length
connect to
spray nozzle
connect
to spray
nozzles
and the drain valve. Place the drain valve at an appropriate drainage point.
Adjust the drain tube according to need.

E. Spray Nozzle Installation
12
For optimal effect, space the
nozzles evenly on either side
of the nylon tube.
D. Timer Control Box Installation (for optional)
1. Drill 6mm holes.
2. Hammer in PVC plugs.
3. Use a screwdriver to screw the screw into the PVC plug. The screw protru-
4.
5. Plug in power when all installation steps are complete.
+
sion must be uniform (
-
10mm) to avoid damage to time control box.
Connect the power cords of BUBU unit body and time control box. Hang up
the time control box.

13

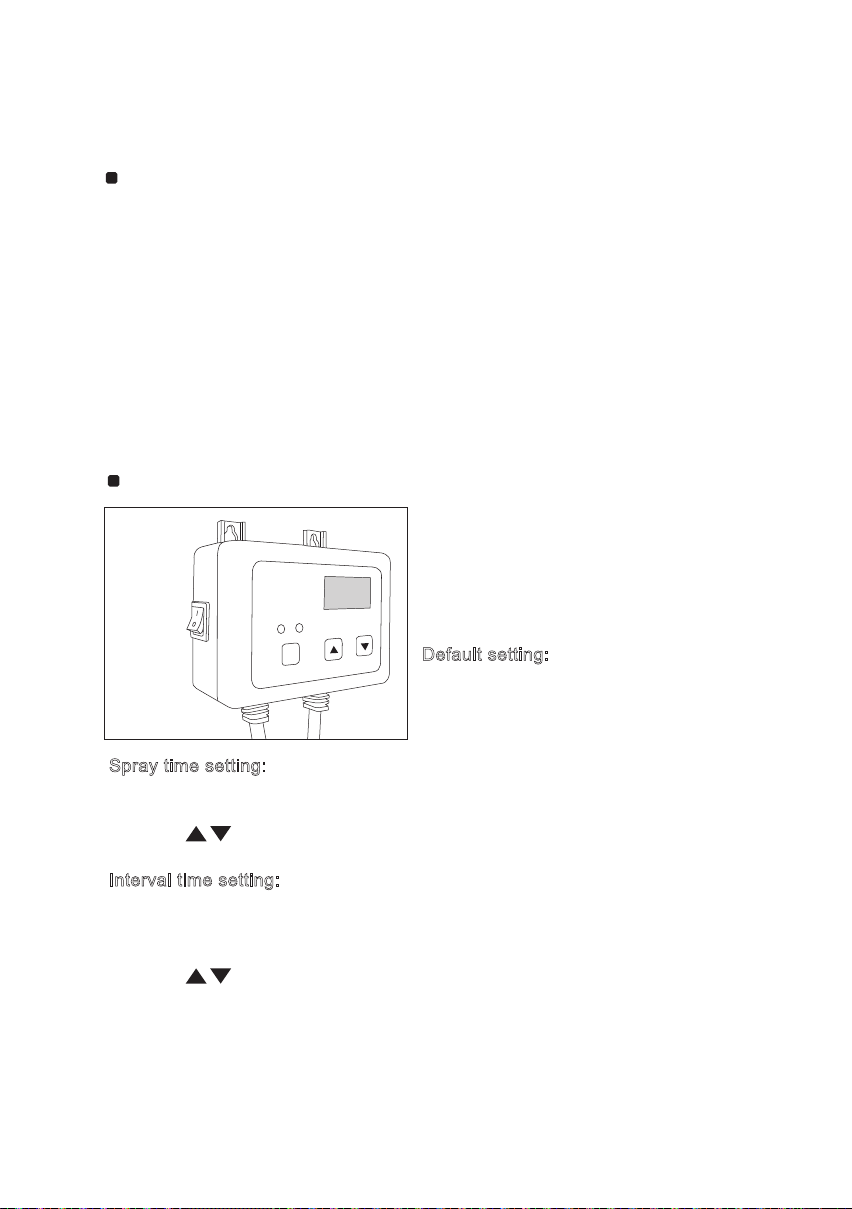

Spray time setting:
1. Press Set and the ‘spray time indicator’ (blue) starts to flash.
2. Press to adjust spray time (unit: seconds).
Plug in and turn on time controller
power switch located on the left side of
the box.
Default setting:
Spray time 30sec. (max. 250 sec. )
Interval time 30sec. (max. 250 sec. )
3 seconds after completing time setting, if no further adjustment is made,
the system will exit setting mode and begin operating with new spray /
interval time.
Interval time setting:
1. Press Set and the ‘interval time indicator’ (green) starts
to flash.
2. Press to adjust spray time (unit: seconds).
3.
1. Turn on the diverter valve.
2. Plug in power.
3. Turn on time control box and BUBU unit body power - ◦
4. Set spray/interval time. See p.13 for spray/ interval time setting.
5. Enjoy BUBU misting system.
6. Do not forget to turn off power, unplug and turn off diverter valve (water
power
switch
START-UP
SPRAY/ INTERVAL TIME SETTING
supply) after use.
Interval
Spray
Set

Nozzle(pcs) 65 7 8 9 1110 12 1513 14
14
A. Spray Nozzle Quantity V.S. Outlet Water Pressure
(Inlet water pressure 20psi)
Nozzles ( pcs )
Outlet water pressure ( psi )
B. Outlet Water Pressure V.S. Nozzle Flow Rate
(Unit: cc/min., Inlet water pressure 20psi)
SPRAY NOZZLE TECHNICAL INFORMATION
165 165 160 160 160 160 160 160 155 155 155
Pressure ( psi )
135
140
145
150
155
160
165
170
5 6 7 8 9 10 11 12 13 14 15
(cc / min.)
0
10
20
30
40
50
60
70
80
100 150 200 250 300
Outlet water 100 150 200 300
20 22 24 26.5 28
250
pressure ( PSI )

TROUBLESHOOTING
*** When all above fails, please contact customer service ***
Visit PuricomUSA.com or call 1-800-803-4551
Email: [e-mail]
Problem Inspection Point Solution
Pump not working
1.Check for blockage in
nozzles and tubes.
2.Check pump output water
pressure.
1.Check for blockage in
prelter.
2.Check pump head cap for
leakage.
3.Check for blockage in
the solenoid valve.
1.Check wiring
1.Check pump outlet
pressure .
2.Check if drain vlave is
functioning.
1.
2.
1.Replace prelter.
2.Contact service center
for pump replacement.
3.Clean the solenoid valve.
1.Install the time control
box as instructed in the
manual.
1. See solution for “insuf-
2.
1.Check if power indicator is
lit.
2.Check if pump indicator is
lit.
1.If not lit, call customer
service.
2.If not lit, call customer
service.
See solution for
“Insufcient pump outlet
pressure”.
Clean or Replace
nozzle and / or tubing.
cient pump outlet
pressure”.
If not functioning, call
customer service.
No water or very
little water coming
out of nozzle
Insufficient pump
outlet pressure
Drain valve is
faulty
Time control box
not working

2019.04
