Purple Ascent Adjustable Base User manual

1
Owne’s Manual
The Purple®Ascent Adjustable Base™

Safety Precautions and Usage Statements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base and Remote Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
King Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pairing the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Syncing Two Bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headboard Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency Battery Backup Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purple® 10 Year Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
TABLE OF CONTENTS
03
07
10
13
15
19
25
27
29
30
31
33
35
36
38

3
Safety
Pecautions
and
Usage
Statements
ATTENTION: IMPORTANT SAFETY DISCLAIMERS
Read the following information before using this product.
Failure to use a surge protection device could compromise
safety or cause product malfunction and could void the
electrical portion of your warranty.

4
TO REDUCE THE RISK OF SHOCK,
BURNS, FIRE OR INJURY
For optimal safety and operation, plug bed
base into a surge protector (not includ-
ed). The bed base should only be plugged
directly into a wall outlet or surge protector
(strongly recommended). Always unplug
the base from the electrical outlet before
servicing any part of the base. To reduce
risk of electric shock, unplug the base be-
fore cleaning. To safely disconnect, ensure
the base is in a at position with all motors
off, and unplug from power source. Keep
the power cord away from heated surfac-
es. Never operate the base when the air
openings are blocked. Keep air openings
free of lint, hair, and the like. Do not drop
or insert any object into any opening. Dis-
continue use of the bed base and contact a
qualied service center if: it has a damaged
cord or plug, it is not working properly, or
it has been dropped into water. Only use
this bed base for its intended use as de-
scribed in this manual. Do not use accesso-
ries/attachments that are not recommended
by the manufacturer. Close supervision is
required when the bed base is used by or
near children, convalescents, disabled per-
sons, or pets. Improper connection of the
equipment can result in the risk of electri-
cal shock, electrical re, or faulty operation
of this bed base. If the plug does not t
your outlet, contact a qualied electrician
to install a suitable outlet. Unauthorized
modication or failure to use a wall outlet
or surge protector could void the electrical
portion of your warranty.
PETS AND CHILDREN
Immediately dispose of all packing mate-
rials as it may pose a smothering risk to
small children and pets. To avoid injury, it
is not advised to allow children and small
SAFETY PRECAUTIONS and USAGE STATEMENTS
pets to play on or under the bed. Children
should not operate the bed base without
adult supervision.
PACEMAKERS
Some products contain neodymium
magnets which may interfere with devices
such as pacemakers, ICDs, and any other
device sensitive to magnetic elds. It is
STRONGLY recommended that owners
of such medical devices consult their phy-
sician prior to using products that contain
neodymium magnets.
IN-HOME USE AND HOSPITAL
STANDARDS
Purple adjustable bed bases are designed
solely for in-home use. This base was not
designed as a hospital bed and is not de-
signed to meet hospital standards. Do not
use this base with tent-type oxygen therapy
equipment or near explosive gases.
ADDITIONAL SAFETY FEATURES
Free release head and foot motors are de-
signed to lower the mattress by retracting
only with gravity, never pulling down-
wards, which minimizes pinch points.
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal
humming sound during operation. This
is normal. During operation, the lift arm
wheels make contact with the platform
support of the base. This contact may
result in metal on metal or metal on plastic
contact. This applies slight tension on
the moving components and resonance is
reduced to a minimum level. If excessive
noise or vibration is experienced, reverse
the movement action (up or down) of the
base with the remote control. This should
realign the base’s activating mechanisms to

5
SAFETY PRECAUTIONS and USAGE STATEMENTS
the proper operational position. In normal
base operation, the wheels, which allow the
bed to maintain its distance from the wall,
will make contact with the steel platform
supports of the base, creating a contact
noise. When entering, exiting, or shifting
weight on the base, this contact noise may
be audible as the wheels make contact.
This is normal.
MATERIALS
Purple adjustable bases are constructed
from various materials including woods,
metals, plastics and fabrics. Tension, pres-
sure, or movement applied to the frame,
platform, or shroud through general use
may create an audible sound.
TOLERANCE
All Purple adjustable foundations, depend-
ing on make and model, are designed and
manufactured to perform and function
within designated quality control param-
eters. Bases are subject to meticulous and
rigorous inspections during the quality
control process to ensure bases will operate
within these standards during normal oper-
ating use. Normal operating use is dened
as the following: Adjustable foundation is
to be operated with a mattress and load.
Testing procedures require lifetime cycle
tests with up to 120 kg distributed load.

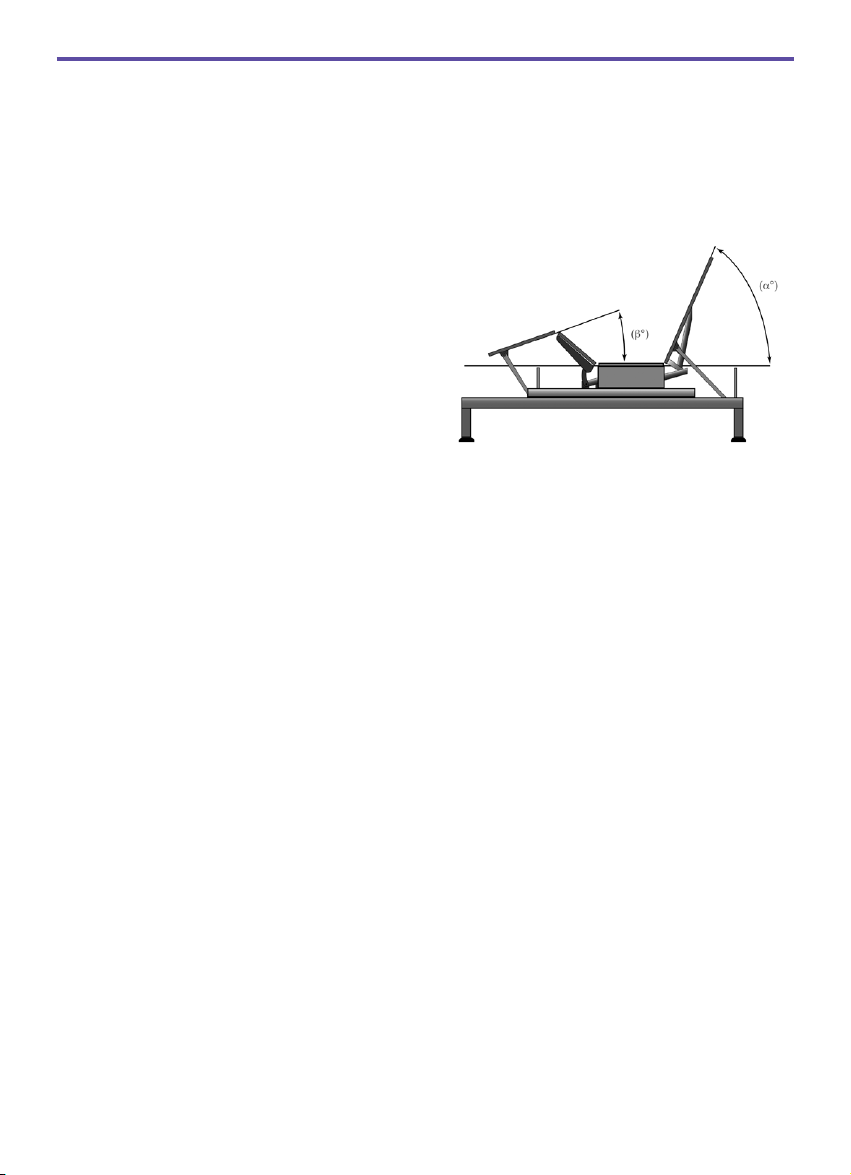

The angle (designated “α” in gure 1) be-
tween the back section and the at section
for various congurations of the mattress
support platform shall be ± 3°, which
translates to a tolerance of up to 1 ½”.
The angle (designated “α” in gure 1)
between the at section and foot section
for various congurations of the mattress
support platform shall be ± 3°, which
translates to a tolerance of up to ¾”.
Any adjustable foundation deemed to
be within these allocated tolerances is
considered to have met the manufacturer’s
quality control standards.
THAT “NEW PRODUCT” SMELL
Some people notice a slight odor to their
new adjustable base – this can come from
our material manufacturing process. This
smell is normal and usually disappears be-
fore the product reaches you. Sometimes,
however, this smell may still be noticeable.
It usually disappears after a few weeks, pro-
viding adequate ventilation of the product
and the environment.
BREAK IN PERIOD
You can speed up the break-in period by
simply using the head/foot adjustment fea-
tures of the bed for activities such as read-
ing or watching TV. The extra movement
will help the adjustable base respond to
weight and temperature changes. Some of
the materials in our adjustable bases such
as the woods, metals, and plastics used in
the platform, frame, and components are
sensitive to moisture content and tem-
perature and may make sounds in colder
environments.
PAIRED OPERATION
When operating a “paired” split base set-
up, there may be a time delay of up to 1.5
seconds between each base's articulation.

6
SAVE THESE INSTRUCTIONS.
FCC Compliance
This equipment has been tested and found
to comply with the limits for a Class B dig-
ital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interfer-
ence to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
Reorient or relocate the receiving
antenna.
Increase the distance between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
•
•
•
•
WEAR AND TEAR
Wear and tear is damage that naturally and
inevitably occurs as a result of normal use
or aging.
FABRIC CARE
To prolong the life of your fabric, protect
from direct sunlight whenever possible.
For spot cleaning, wipe area with a light
damp sponge or vacuum with a soft brush
attachment to remove particles. Keep at a
minimum of 30 cm (12 inches) away from
direct heat sources. For a deeper cleaning,
blot liquid spills with a clean dry cloth.
Wipe with a clean cloth dampened with
warm water. Do not wet excessively. A
soft bristle brush may be used to remove
ingrained soil. Avoid scratching by gentle
brushing. Wipe with a clean cloth damp-
ened with warm water to remove residues.
Dry in shade away from direct heat. If per-
sistent marks remain visible after cleaning,
seek professional advice.
PRODUCT RATINGS
The lift motors are not designed to operate
continuously for more than two minutes
in an 18-minute time period. Attempting
to circumvent or exceed this rating will
shorten the life expectancy of the product
and may void the warranty.
WEIGHT LIMITS
This product is not rated to support
weights in excess of 750 pounds. The
base will structurally support this weight,
provided it is evenly distributed across
the bed base. The adjustable base is not
designed to support or lift this amount in
the head or foot sections alone. Exceeding
this weight restriction could damage the
bed and/or cause injury and will void the
warranty.
SAFETY PRECAUTIONS and USAGE STATEMENTS

7
Pats List

8
PARTS LIST

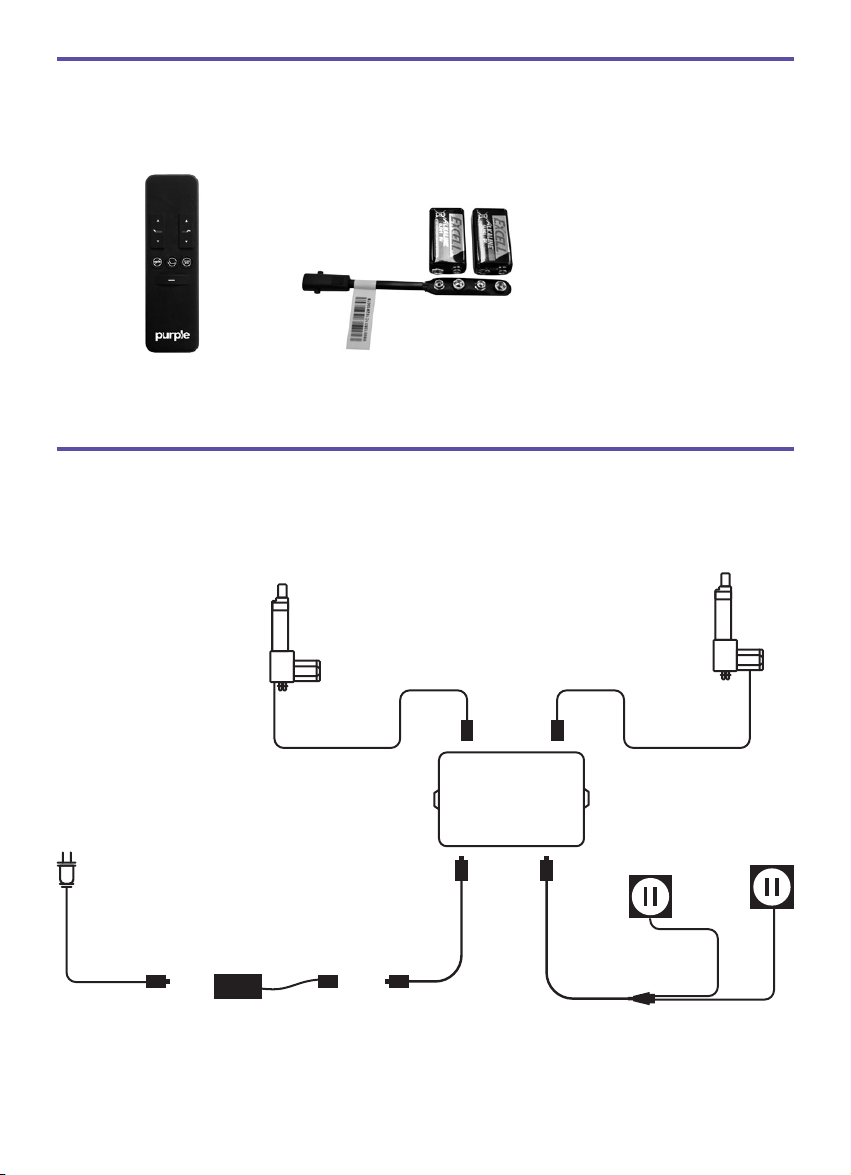

All electronics and components that need to be installed are located in boxes under the base
or attached to the frame.

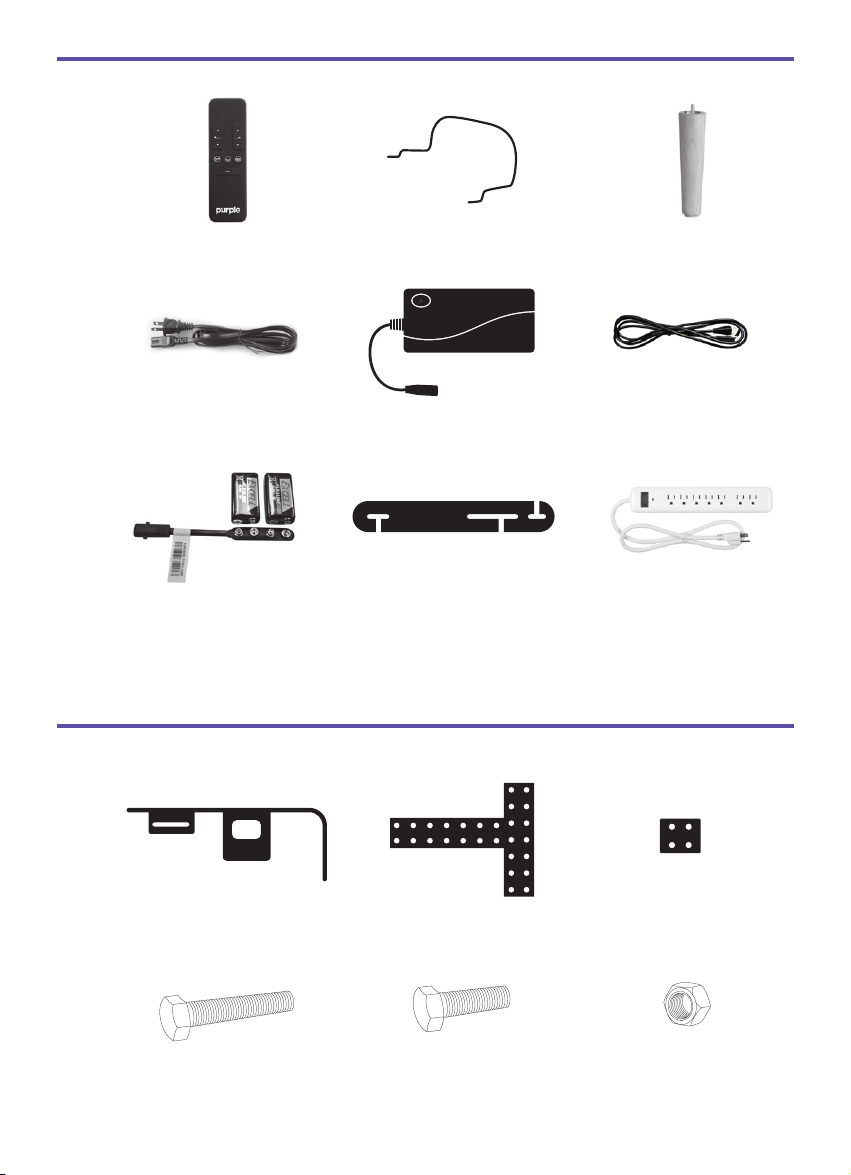

A Wireless Remote Control (1)
B Mattress Retainer Bar (1)*
C Legs (6)
D Power Cord (1)
E Power Supply (1)
F Sync Cord ‡
G Battery Backup Strap (1)
(2) 9V Batteries (not included)
H Connecting Strap‡
Misc Parts (not included):
I Surge Protector
Headboard Bracket Components (Optional):
J Headboard Bracket (2)†
K T-Bracket (2)†
L Spacer (2)†
M Long Bolts (8)†
N Short Bolts (10)†
O Nuts (18)†
* These items are attached to the base for shipping purposes. Carefully remove from
base and set aside.
‡ Only included in Twin XL and Cal King Split bases.
† This is an optional item and can be purchased

9
HEADBOARD BRACKET COMPONENTS (Optional)
A
D
G
J †
M †
B * C
E F ‡
H ‡ I
K † L †
N † O †

10

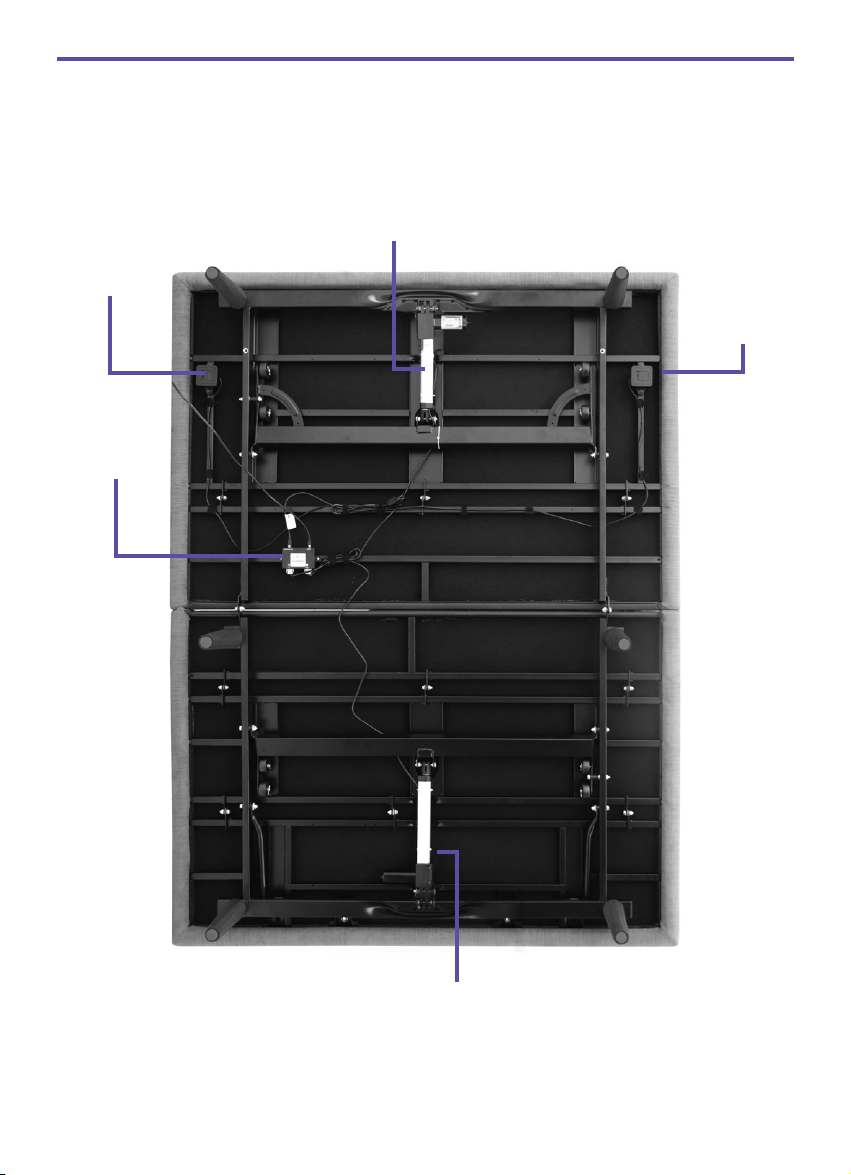

Base and
Remote
Oveview

11
Head
Motor
Control
Box
USB
Ports
USB
Ports
Foot
Motor
BASE

12
Flat Preset
Anti-Snore Preset
Foot DownHead Down
Foot UpHead Up
Zero-G® Preset
Sitting Preset

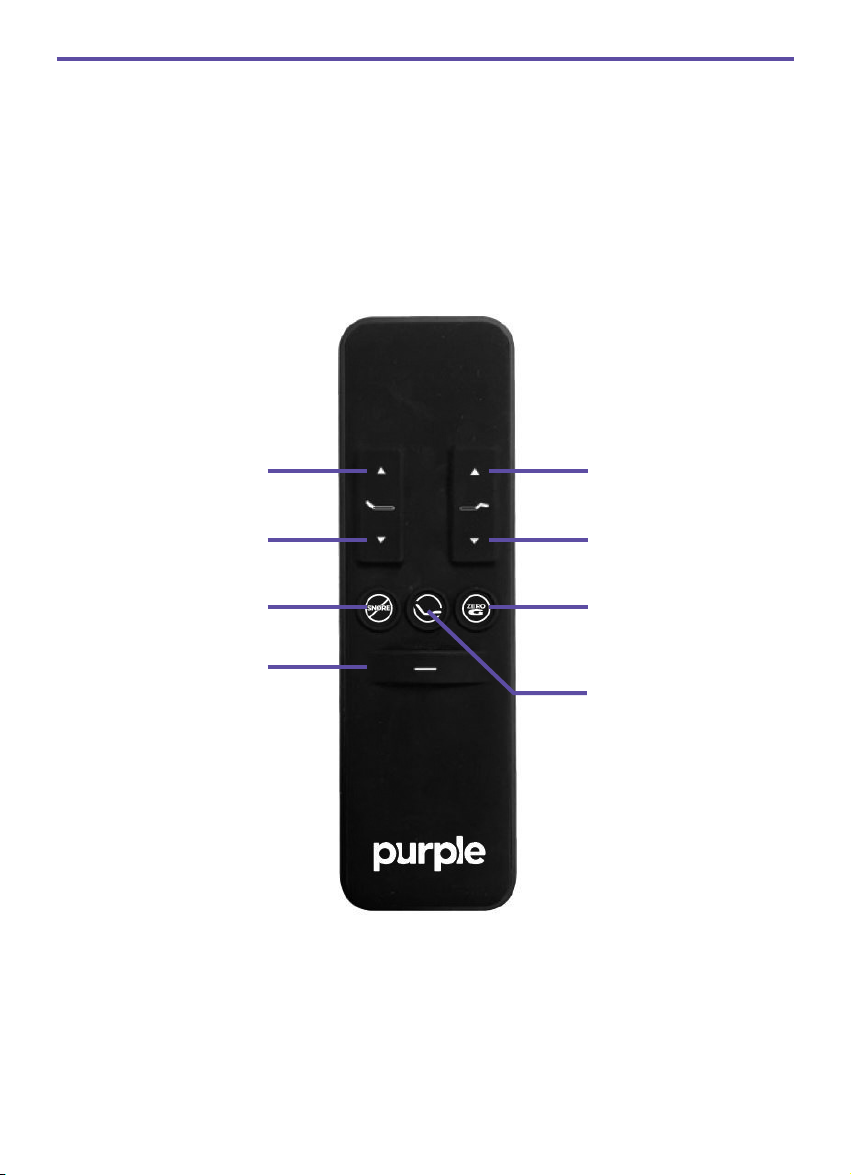

REMOTE

Quick
Refeence
Guide
13

14
POWER
HEADFOOT
MULTIFUNCTION
CONTROL BOX
ELECTRONICS OVERVIEW
Remote Emergency Battery
Backup Strap
Control
Box
USB
Ports
Head Motor Foot Motor
Power Cord
Power Supply Input Cord

15
Installation
Guide
15

16
1
We’ve made the setting up of your Purple Ascent Adjustable
Base as easy as possible so you can begin relaxing in less than 15
minutes! Do not attempt to set up the base by yourself. Always
set up with the help of an additional, able-bodied person.
Remove the binding straps and packing materials, making sure
not to puncture the box with any sharp objects.
INSTALLATION GUIDE
Remove the bed base from the box and
unfold it so that the bottom of the base
is facing upwards.
When removing the bed base from the
box, be cautious of pinch points and
dropping hazards. Use two people to
safely unfold the base.
Remove the twist ties holding the
retainer bar and set the retaining bar
aside

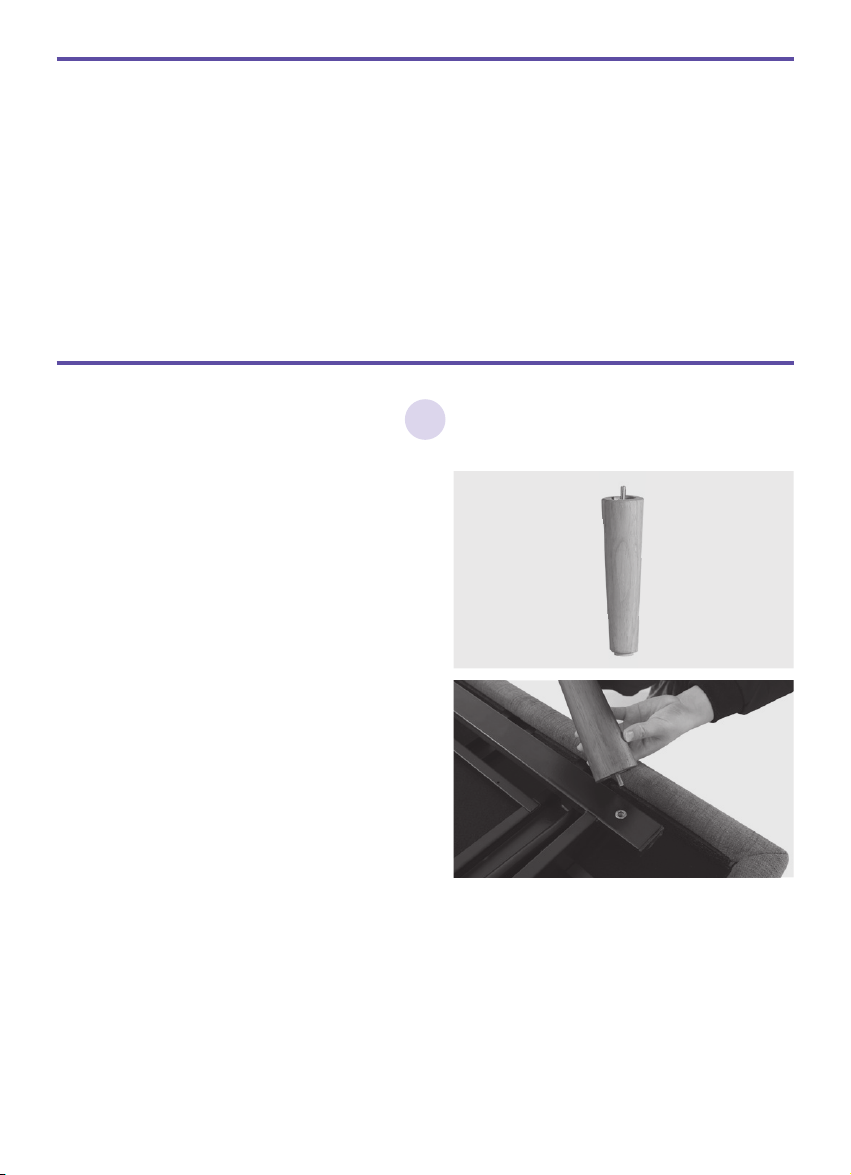

To install the legs, screw the bolt of the
leg into the threaded holes. Tighten by
hand. Repeat on all four corners and on
each side in the middle.
Do not over tighten.
•
•
•

17
If installing a King, see instructions on pages 19-24.
2
INSTALLATION GUIDE

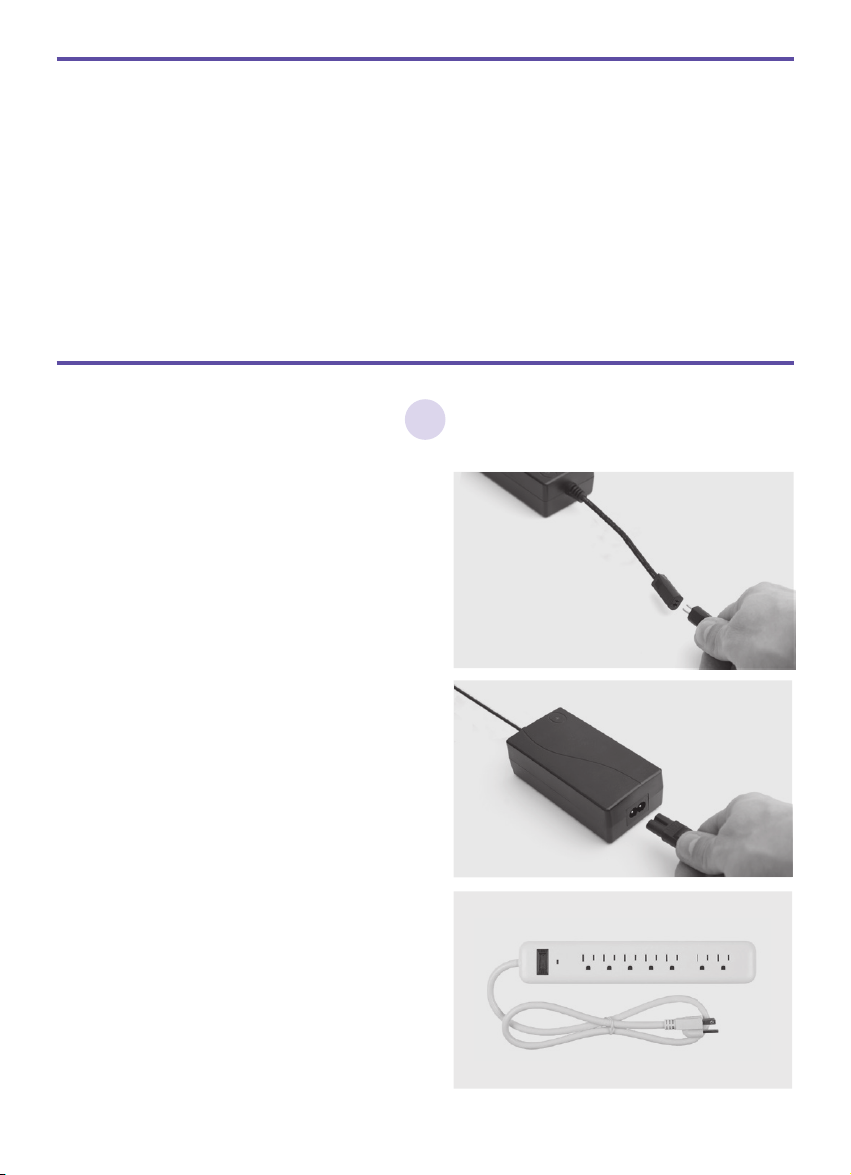

Flip the base & connect the cables.
Uncoil the input cord (connected to
control box’s power port) and plug it
into the power supply.
Carefully ip the base over on to its
legs. Important: Two people are re-
quired to move the bed base. Do not
drag across the oor. Do not rest the
frame on its side as excessive pressure
may damage the legs.
Insert the power cord into the power
supply.
Plug the power cord into a power out-
let. A surge protector is recommended.
Surge protector not included.
•
•
•
•

18
3
Purple has partnered with Ergomotion®on this amazing product.
For technical or warranty support please contact Ergomotion®at
1-888-550-3746.
INSTALLATION GUIDE

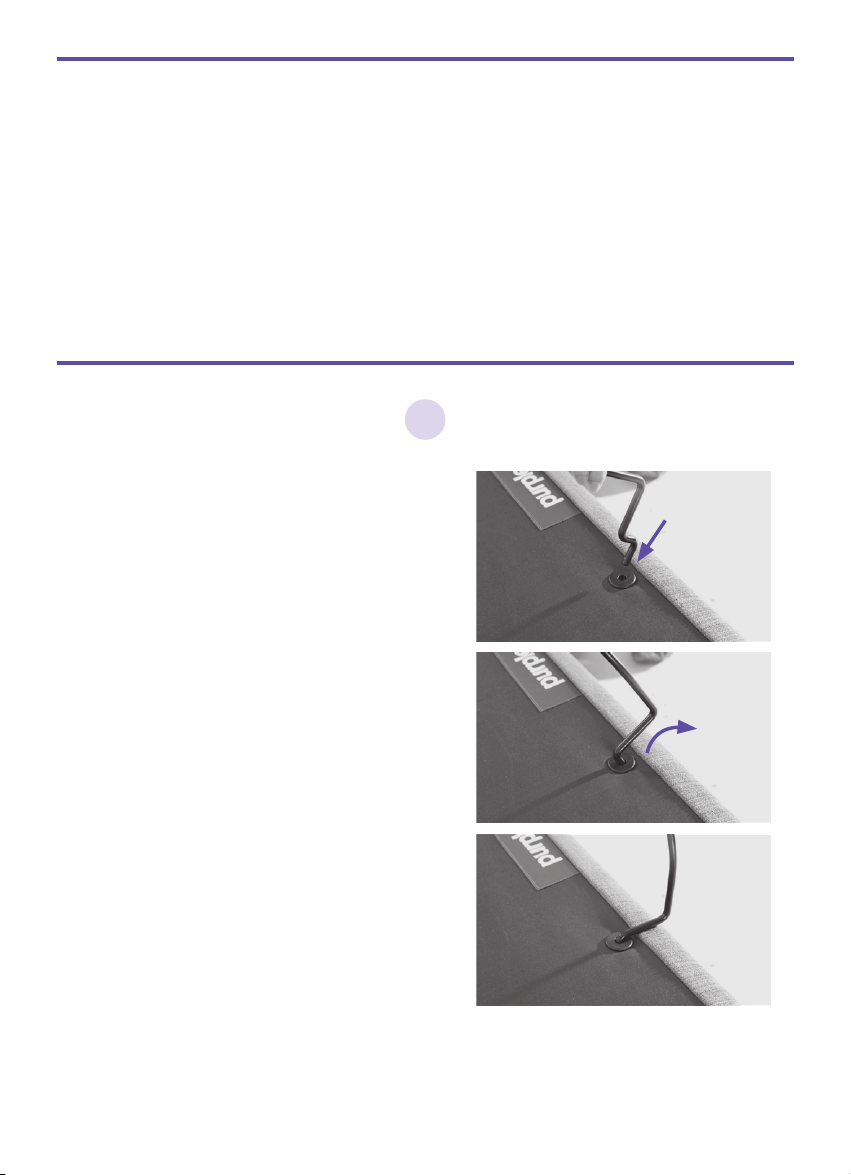

Install mattress retainer bar and test
remote functions.
Place each end of the mattress retainer
bar into the inserts at the foot of the base
and rotate the bar so that it rests on the
edge of the base.
Once plugged into power, and after
putting AAA batteries into the remote,
press the head up and down buttons as
well as the foot up and down buttons
to verify proper setup and function.
Return the bed to a at position before
placing the mattress on top.
If remote does not move the bed, make
sure the bed is plugged in to power. If
it still doesn’t work, review the steps on
page 27 to pair the remote.
Setup is now complete!
•
•
•

1919
King
Installation
Guide

20
1
Short Bolts 
Clevis Pins  Cotter Pins 
Long Bolts 
Washers  Box Wrenches  Legs 
KING INSTALLATION GUIDE
Nuts 
Unfold the base
Always use two people when setting
up, moving, or ipping base.
Unfold the base so that the bottom side is
facing up.
