PUZU PZ-C7 Repair manual

PZ-C7
SCAN TO DOWNLOAD SOFTWARE
OWNER’S MANUAL&INSTALLATION MANUAL
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ И УСТАНОВКЕ

1.INTRODUCTION
Congratulation on purchase of the puzu PZ-C7 DSP Amplifier.This high speed digital signal
processor amplifier was designed in the united states with sound quality that exceeds that
of many conventional class D designs while offering stunnin efficiency.
When installed and configured properly,this PZ-C7 DSP amplifier will bring a new level of
realism and impact to your mobile entertainment system.To get the best performance from your
DSP amplifier PUZU recommends that you have this amplifier installed and configured by an
experienced professional.
2.TABLE OF CONTENTS
Features
Installation Planning and Considerations
General Function
Speaker Wiring Diagrams
Power Connections
Installation
Specifications
3.ABOUT THE MANUAL AND WARRANTY
This manual describes the basic requirements to install PUZU PZ-C7 DSP amplifier.The
installation and configuration of this amplifier can be complex.If you do not possess the
necessary knowledge,experience and/or tools to perform this installation please contact
your location authorized PUZU dealer to arrange for professional installation.Keep all
instructions and your sales receipt for future reference and warranty purpose.
4.WARNING
PUZU products are capable of producing high sound pressure level that can damage your
hearingand make it difficult for the driver to hear other cars or emergency vehicles.PUZU
wants you as a customer for life-please be responsible at all times when enjoying your audio
system.PUZU takes no responsibility for any personal injury,Loss or damage associated with
the use,or miss-use of this product.Please refer to the included warranty statement for details.

FL
OUT
FR
OUT
RL
OUT
RR
OUT
FRONT LEFT OUTPUT WITH POWER FRONT RIGHT OUTPUT WITH POWER
REAL LEFT OUTPUT WITH POWER REAL RIGHT OUTPUT WITH POWER
4CH SPEAKER WITH POWER OUTPUT
2CH SUBWOOFER ONLY SIGNAL OUTPUT
!
OUT
SUB-R SUB-L
USB M OD E/ BY PASS
SUB RIGHT SIGNAL OUTPUT SUB LEFT SIGNAL OUTPUT
Mini USB MODE/BYPASS
MAIN CABLE POWER/BLUETOOTH LIGHT

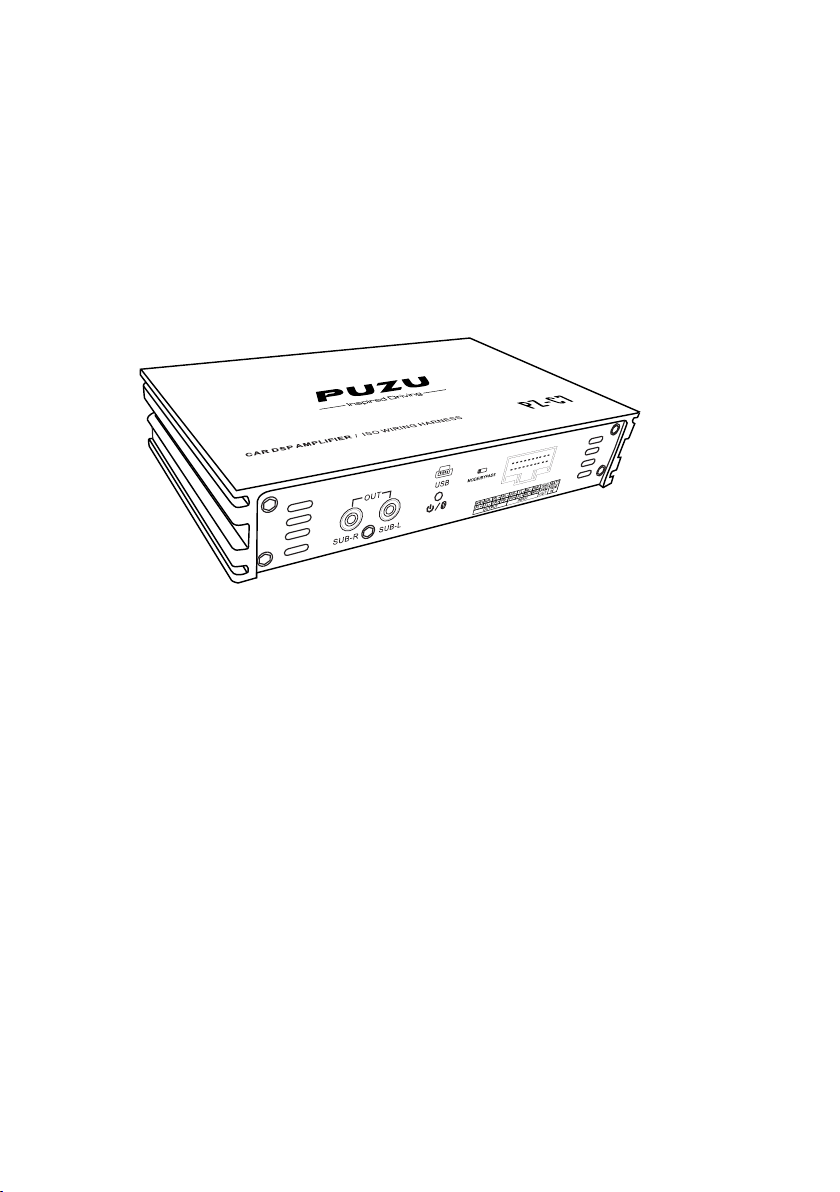

FEATURE
9
1234
5
6 7 8
10
12
34
5
6
78
910
This product is non-destructive audio car modification of new products,exclusive use
of quad-core 32-bit DSP processing chip,nanosecond processing speed;DRC dynamic
music processing;using DSP android and IOS system APP tuning technology.Lossless
installation,easy tuning,take up a small space.
7-Band EQ floating-point high-precision tuning system.
High and low pass filter
Adjustable sound field delay to achieve spatial editing.
Gain control,phase control.
Harmonic function
Limiting function
Built-in Bluetooth,support mobile phone to play loassless music
6 storage modes.
IFYOUNONEEDCONNECTTOANOTHER AMP,THEN NO NEED USE 1234

Port
Output power
Frequency response
T.H.D
S/N
Isolation
Operating voltage
Product Dimension
1 car dedicated interface
6RCA output interface
4X150Watts (MAX) 4X45W(RMS)
20Hz-20KHz
DC12V
170X100X33MM
>90dB
>108dB
<0.01%
SPECIFICATIONS
If specifications were changed without notice,PUZU reserves the right to change
the product at any time and is not obligated to make adjustments accordingly to
the products previously provided.Thank you!
!

FL
OUT
FR
OUT
RL
OUT
RR
OUT
+ +
170MM
33MM
100MM
SIMPLE FAULT ANALYSIS AND TROUBLESHOOTING
The harness connector does
not match the original car
Products in the use of the
process of noise
Work indicator light does
not shine,no sound
The original car host and the
machine can’t get power on
Harness for the car dedicated,please determine your
model and the height of the model,and infrom the local
dealer or agent
Make sure the host cable is properly connected to check
for loosening,After the exclusion is still noise,please
check the ground with the original car CD machhine shell
connection.Still can not be resolved please return to the
local dealer or agent.
Please check if the tail has been properly connected,
check the original car with or without amplifier or modeified amplifier
Check whether the original power cord is connected,
the original car with original car host shell,restore the
original car position
PPRODUCT SIZE

WHAT’S DSP AMPLIFIER
For those people who do not want to change the original car stereo but want to improve
the quality of the original car sound quality customers, this is a very suitable product,
it is provide you a proviate space of platform of stage.
Specialty Software Requirement
The functionality of this product requires the use of PUZU software to set up.Please visit
http://www.puzuaudio.com to download the latest version of PUZU software and supporting
documents.the software only for computer at this moment.
ISO SOCKET (CONNECT TO CAR)
(Can be placed under the storage box or copilot seat)
ISO SOCKET (CONNECT TO CAR RADIO)
CAR RADIO WITH
ISO CABLE
USB
gps
FM/A M
MOD ORIGINAL
HOME
Total wire length:1.5m

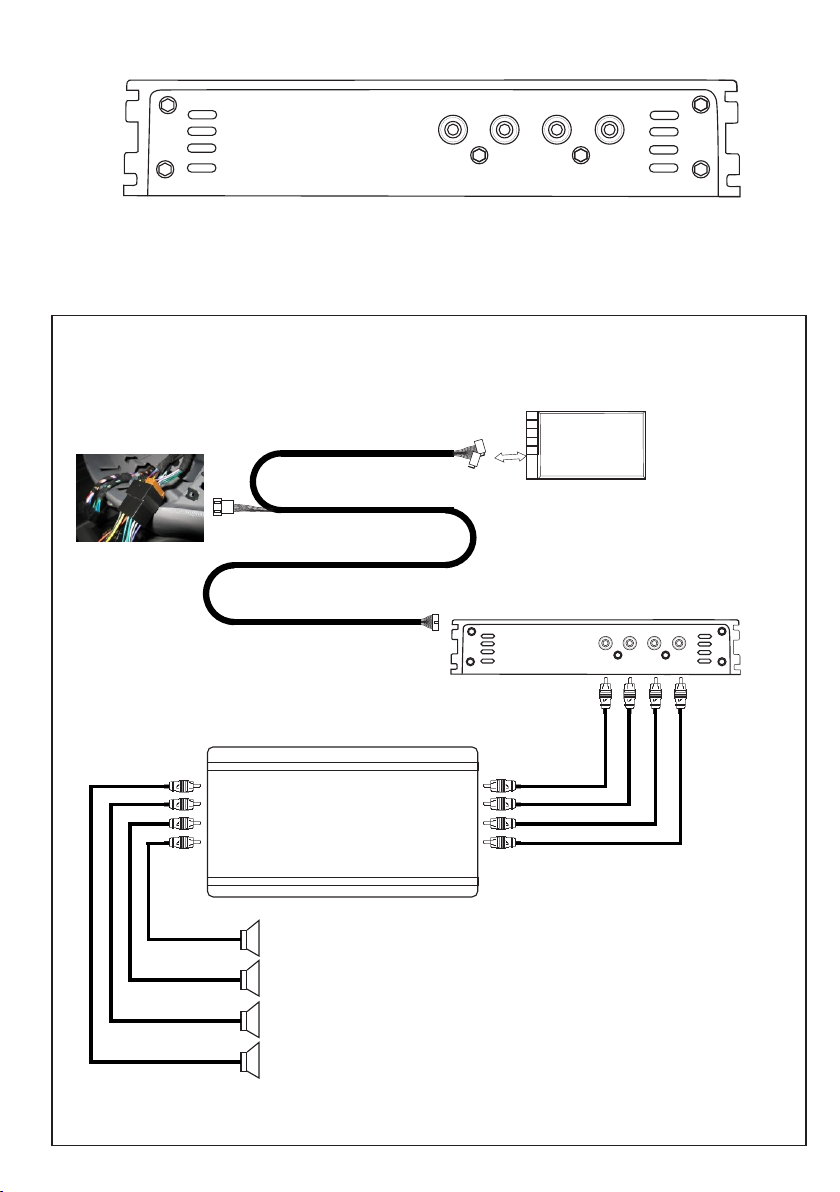

Standard Installation diagram
Car DSP Amplifier means Car digital siginal processor with bulit in Amplifier,It combined
tranditional Amplifier functions and Traditional Digital signal processor functions.DSP
Amplifier is an audio console which can turning audio sound,listening space compesation,
correction,adjustmentat equipment,the same time,it provide over 4X120Watts ouput power,
it can fit for most of peoples’ requirement,While a signal processor can do many things to
affect the sound the user hears, it cannot do everything because the signal processor does
not produce the sound directly. That task falls to the speakers. Even the most capable signal
processor can only deliver the best sound the speakers can create, and low-end speakers are
generally unable to take full advantage of the perfectly balanced clean signal provided by a
high-end signal processor. This is why any prospective purchaser looking to buy a high-end
signal processor should also take the time to make sure their speakers are capable of producing
clean enough sound to take full advantage of it. Otherwise they will have no way
to judge the full effect of the signal processor.it no need complicated wiring connection.It’s
Non-destructive installation.special line socket .the size only around 162X116X45mm,
tiny volume,you can put it in the storage box or copilot seat,easy installation!

FL
OUT
FR
OUT
RL
OUT
RR
OUT
If you car don’t have another Amplifier system,then you no need connect these
RCA ouput terminal,Just use our ISO cable connect to your factory radio and
original car tail line.
If you car with factory amplifier and aftermarket amplifier system,you can connect
the RCA as below,at this time,our C7 only do signal processor job,speaker powered
by your original car amplifier.diagram as below:
FL
OUT
FR
OUT
RL
OUT
RR
OUT
CAR AMPLIFIER
CAR DSP AMP
ISO SOCKET (CONNECT TO CAR RADIO)
CAR RADIO WITH
ISO CABLE
USB
gps
FM/A M
MOD ORIGINAL
HOME
Car tail line
Car speakers (Front left)
Car speakers (Front right)
Car speakers (Rear left)
Car speakers (Rear right)

OUT
SUB-R SUB-L
USB M OD E/ BY PASS
SUB
With Amplifier in the subwoofer
Signal output(No power)
Signal output(No power)
!You can connect to Active subwoofer directly,If your subwoofer is passive,you need another
Amplifier to push the subwoofer,our DSP provide signal output.
OUT
SUB-R SUB-L
USB M OD E/ BY PASS
You can press this button to compare the sound effect of your original car speaker and
after install DSP C7.
MODE/BYPASS

PLANNING YOUR INSTALLATION
It is important that you take the time to read this manual and that you plan your installation
carefully.It is very easy to damage expensive vehicle systems in modern automobiles,Never
assume that you have found appropriate wires without consulting a reliable wiring diagram
or without perfoming signal testing with proper test equipment,if you are uncomfortable or
unfamiliar with reading diagrams or testing signals,please enlist the services of your
authorized PUZU Audio dealer to perform the installtion.
BEFORE USE C7 SOFTWARE YOU NEED TO KNOW BASIC SOUND PARAMTERS AS BELLOW
YOU CAN SET THE CORRESPOND SOUND ELEMENT AS YOU LIKE PERSONLY
piano
guitar
Bass guitar
electric guitar
Electric bass
tambourine
Snare drum
Bass drum
big drum
The range 27.5-48.5Hz affects the frequency, the tone becomes thinner as the
frequency increases; 20-50Hz provides the peak frequency
600-2Khz affect the brightness, enhance the frequency can make the sound color clear
Saxophone
improve 100-300Hz can make the sound much more fullness; enhance 2k-5KHz can
increase the tone performance
60-100Hz bass fullness; 60-1KHz impact intensity, 2.5Khz is plectrum audio
240H is the fullness frequency, 2.5KHz is the brightness frequency; plectrum is 3K-4KHz
80-240Hz is fullness frequency; 600-1Khz impact intensity; 2.5KHz is plectrum audio
200-240Hz is the resonance frequency; 5KHz affect the presence
240Hz affect fullness; 2KHz impact loudness; 5KHz affect plucked audio
60-100Hz is the bass force frequency; 2.5KHz is the percussion sound frequency
60-150Hz is the intensity of frequency; affect fullness
Super bass:20Hz~40Hz,
Bass:40Hz~150Hz,
Midrange to Bass:150Hz~500Hz,
Midrange:500Hz~2KHz,
Midrange toTreble:2KHz~5KHz,
Treble:7KHz~8KHz,
Super Treble:8KHz~10KHz,
!Following parameters is very important for you adjust the software of C7
SOFTWARE OPERATION
!C7 Support computer software and Android APP,you can use your small phone adjust it.
please go to www.puzuaudio.com choose the right language version.C7 android app
support Chinese,English,Spanish,German,French,Russian,Portuguese,computer softare
only support english ,chinese.
C7 also support Iphone system connect it,but it charge around US$6.00 which you can
search it in iphone app store named “C1-BT”

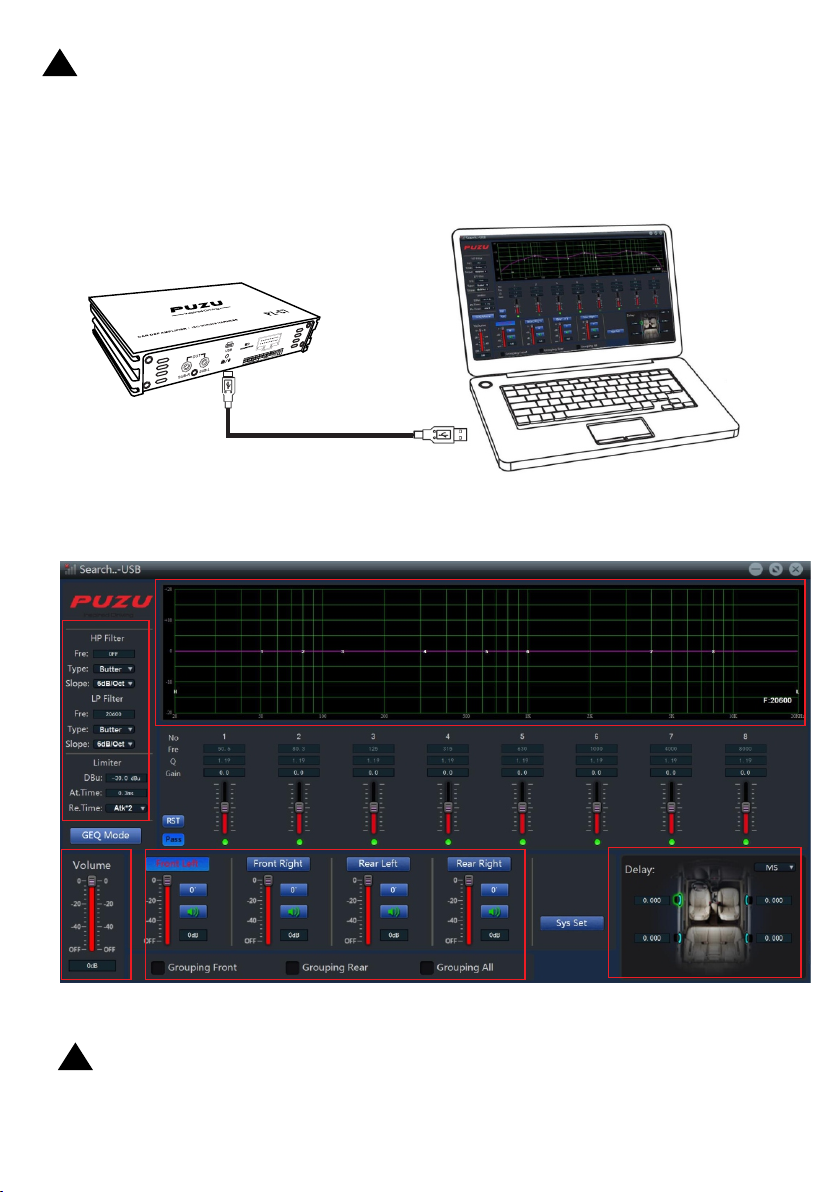

Computer PC-Tool Software
After you download the PC-Tool of PZ-C7,you will see the interface as below:
12
345
1.HP Filer/LP Filter/Limiter Adjust ment 2.EQ curve 3.Volume 4.Channels 5.Time-Delay
!4Channel car speaker adjustment,you can set each channel separately,Grouping Front,
Grouping Rear,Grouping ALL.For detail operation,you can go to www.puzuaudio.com
watch the video.
Mini USB Cable
We highly recommend to set the volumeof your car radio to minimum position during first start-up. Additionally no devices
should be connected to the signal processor until general settings in the DSP C7 PC-Tool software have been made.
Especially if the DSP C7 will be used in fully active applications, a wrong setup can destroy your speakers right away.
!

HP Filter:You can insert Corresponding parameter obtain your prefer
bass effect Usually if you no change original car speakers,then insert
around 50Hz,if you changed the original car speakers.you can try insert
30Hz .You can choose the HP Filter Yype:Butter,Bessel,Link.
Same way as the HP Filter,you can set the LP Filter,you can insert
correspondingparameter obtain your prefer treble effect.Usually if
you no change original car speakers,then insert around 15000Hz,
if you changed the original car speakers.you can try insert 25000Hz
Limiter: usually we do not suggest you adjust this parameters.if you are
professional car audio Installation technician you can try adjust this
parameters.
You can choose PEQ mode or GEQ set the sound curve,if you want to compare the sound effect
before and after,please press the PASS to compare.if you want to set it again,press RST for reset
this interface show the control of each channel speakers,you can choose front left,front right,
Rear right,Rear left speakers,set them separately or set them as component.Grouping front
Grouping Rear,Grouping ALL.
You can set the lanugage by the arrow button (sys set),chinese,english only.

This curve show the band EQ adjustment,you can set 50Hz,100Hz,200Hz,500Hz,1KHz,2KHz
5KHz,10KHz,

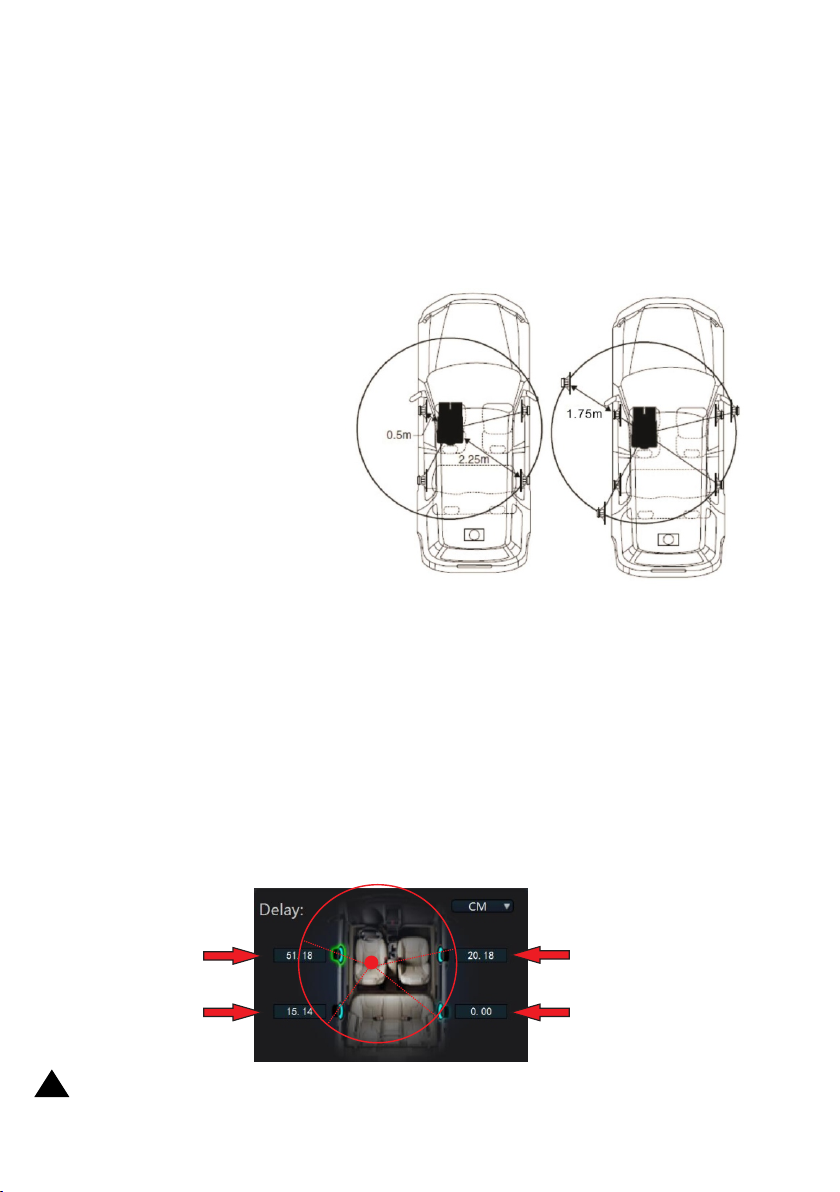

SET DISTANCE AND DELAY
This setting is based on an automatic system
allowing to calculate the time the speaker
sound takes to get to the listener's ear
1.Effect of different frequencies on the tone
Frequency Lower Proper higher
16K-20KHz
12K-16KHz
10K-12KHz
8K-10KHz
6K-8KHz
5K-6KHz
4K-5KHz
4KHz
2K-3KHz
1K-2KHz
800Hz
500-800Hz
300-500Hz
150Hz-300Hz
100-150Hz
60-100Hz
20-60Hz
The tone lacks of
expressiveness Tone expressive and charm Strong sense of instability
Lost luster Golden splashes Hairy, harsh
Boring, tarnished Strong sense of metal Light noise
dull sound is smooth sharp
dim Transparent Tooth sound heavy
vague High definition sharp
the sound is getting far goodsense of loudness the sound is getting close
blurry Good Penetration Cough soundisheavy
hazy Brightness is better rigid
Loose, tone off good sense of transparency Jump sense
Loose
Shrinkage
Empty sense
Soft feeling
thin
Weakness
emptiness Good sense of space Low frequency resonance
sound appears "hoo”
Low frequency resonance
sound appears "hoo”
Turbid “hum”
Fullness increased
Sound intensity feeling good
Voice powergood
The outline of the
sound is good
Strong sense of depth
Strong sense guttural is heavy
The sound protrudes forward
stiff
Phone sound color

Preliminary remarks
Sound moves through the air at a speed of 343 mt/sec (1.125 ft/sec) and at the temperature
of 20°C (68°F). If you know the distance from the sound emission point, you can then calculate
the time sound takes to get to the listener's ear. If you set the distances of the different speakers
in your system, the C7 automatic system will change them into time (ms - milliseconds).
It does not assign the delay (0,0 ms) to the farthest speaker (usually the Subwoofer) while it
assigns progressively growing delays as much as the other speakers position gets closer to
the listening point, in order for all the emission points to reach the listening point at the same time
Original Time Delay effect
SET DISTANCE
It enables the setting of the distance between
a specific speaker and the listening point.
Choose cm (centimetres) or in (inches).
DELAY ms/default It displays the time in
ms (milliseconds) calculated according
to the distance.DELAY ms/fine set
The calculation system of the C7 time
delays also allows for a manual
fine-adjustment.
Preliminary remarks
Fine set and Phase Delay The delay
assignment according to the distance
calculation is theoretical. That is, small
variations need to be applied due to small
errors in distance measurement, due to the back-wave reflections inside the car compartment and,
mainly, due to the speaker phase problem.Two speakers reproducing two areas of frequency one
close to the other (ex. Woofer and Midrange), in their crossing area will simultaneously reproduce,
at attenuated level, the same frequencies.Due to the different nature of the speakers, they will
show a difference in phase that, for a short frequency interval, works like a time delay.By acting
on the “fine set” you can partly also correct problems of Phase Delay.
For example “G” is the rear right car speaker,it’s the farthest distance to your ear. we set this
car speaker as Benchmark point,we need make sure the distance OA=OC=OE=OG,
it means we have to let B~A, F~E. D~C,then the sound of 4 speakers can reach to
your ear at the same time
AC
EG
BD
F
o
AB DC
EF
Unit:CM
G
Please don’t set the paramters as the photo above,it’s only for your reference.Different
car with different space and distance.You can try set like this way.You can also watch the
video on to get more clear operation. www.puzuaudio.com
!

Android Smart Phone APP Operation
After you download the app,install it to your phone,open the software,you will see the
interface
1.Press the interface
PZ-C7
2.Go to the interface 3.Press the bluetooth
button open your phone
BT
4.Choose Yes
5.Press this button open
the Time-Delay interface
you can control FL,FR,
RL,RR 4channnel car
speakers with your prefer
listening position
6.Press this button for
the EQ adjustment,you
can set 7 bands EQ,
7.Press this button is
control speaker sound
open and close.It can
help you more clear
adjust each channel
Time-delay and sound
adjustment.
8.Press the RR setting
you can set the time-
delay show as the photo
same as other 3 speakers.
!Need adjust it slowly
and till you feel right

WARRANTY CARD WWW.PUZUAUDIO.COMWWW.PUZUAUDIO.COM
Dear Customer,
Thank you purchased puzu product.To get yourself familiarize with the features and operation of the system.we suggest
you to read the operating instruction manual provided along with the set.This warranty card is an assurance that you have
purchased the best.Please preserve this card to avail the warranty service during the unlikely even of any problem.
Warranty:
Your puzu car audio system/Accessory is fully guaranteed against manufacturing defect or materal defect for the period of
12(twelve)months from the date of sales.Satisfying the terms&conditions given below.Equipment in the need of services
shoud be refered to the authorized puzu dealer.
Warranty Terms&Conditions:
Warranty will be entertained only when this card and original invoice or the sales receipt(as proof of the date of purchase,
model,serial no.and the dealer’s name is presented together with the product under complaint.
Warranty does not cover damage to puzu equipments caused by accident,misuse,repairs additions and modifications
carried out by unauthorized dealers or if tampered in any other manner.
Warranty will not apply if the type or serial number on the product has been altered deleted,removed or made illegible.
This warranty does not cover the cabinetry and any apperance item,user attached antennas,any damage to recordings
orrecording tapes or disc,damage due to lightning or due to power surges.
This warranty does not cover problem due to improper installation,setup adjustment and signal reception problems
We reserve the right to refuse warranty service if the above terms and conditions are violated.
THIS WARRANTY DOES NOT COVER DAMAGE TO PUZU EQUIPMENT CASUED BY USAGE OF INFERIOR QUALITY
WIRINGKIT/DAMAGED CASSETTE OR CD.

www.puzuaudio.com
WuYi Industrail Zone,HuiZhou GD,CHINA,501600
HUIZHOU SHANGSHUI TECHNOLOGY CO.,LTD
