PX X5 User manual

DV-5200
User’s Manual
Ver.1.0
X5
Crossover Driving Camcorder

- 2 -
Menu
Content page
1. Introduction……………………..………………………………… 3
2. Package Content………………….……………………………… 4
3. User’s Interface…………………………………………………… 5
4. Instructions………………………………………………………… 8
5. About APP………………………………………………………… 15
6. Trouble Shooting…………………….…………………………… 28
7. Specification…………………………………..…………………… 32
8. Notice………………………………..…………………………..… 35

- 3 -
1. Introduction
Thank you for purchasing X5, the Crossover Driving Camcorder. To ensure a
proper usage and your safety, please read this User’s Manual carefully and check if
all the package contents are correct and complete without missing , if any part is
damaged or missing, please contact the agent where you purchased from for help.
Features：
★High Speed Video Processor: Ambarella A7 Chip Core
★High Resolution Record: Super HD 1296P / Full HD 1080P
★WDR technology: Improved and clear photography quality
★FOV: 160 degree wide angle
★WiFi Transmission: For Real-time video transmission
★APP(Android/ iOS): For connection setting/ control/ real-time play
★Built-in Battery: 700mAh lithium battery, allows 1 hr continuous usage.
★Mobile Mode: Easy to carry and use
★G-sensor: Auto start recording when the car is parked and hit.
★Quick event record: One-push operation, protect records from being overwritten.
★Time-lapse photography
★Loop Record/Quick Event Record/ Time-lapse photography/Photo shot

- 4 -
2. Package Content
User’s Manual & Quick Start Guide Enclosed
Main unit 4m USB power cable USB car charger Quick Release Mount Car holder
Bike Holder Magic Tape Holder Diving Kit

- 5 -
3. User’s Interface
1. Main Unit
Mark Name Function
A Lens 6G lens
B Microphone ON/OFF Switch Microphone
C Memory card slot Recommend use 8GB, Class 10 SD Card.
D GPS connector Function Disabled

- 6 -
E Quick Release gap To be fixed to the Quick Release mount
F LCD Display for video, menu, function, system info,
etc.
G Power on/off, Main
Menu
1. Push to power on, 3 sec push to power off
2. In standby mode, push to enter menu mode.
3.Long push 10 second to reboot.
H Speaker Audio output in video playback.
I Quick Event
Record/Enter
1. Dash Cam Mode
In standby mode, push to activate recording;
during recording, push to save 30 seconds
former & later videos by the time you push it.
2. Action Cam Mode
Push to start recording, push again to stop.
J Micro USB port 1. USB power charging
2. Connect to PC to access SD Card
K Micro HDMI output port Video/Audio output to display
※HDMI cable is excluded in the package

- 7 -
2. Holder for car
Mark Name Function
L Top knob Fix into the Quick Release mount
M Global axis knob Adjust mounting angle
N Latch Fix/Loose the Suction Disc
O Suction Disc Attach to windshield

- 8 -
4. Instructions
Name Main option Sub- Menu/ Remark Function
Action Cam Mode
video playback
Playbac
k
Dash Cam Mode
video playback

- 9 -
Return to main menu
Dash
Cam
Mode
Switch to Dash Cam
Mode
3 min loop record
(Default setting)
Action
Cam
Mode
Switch to Action Cam
Mode (Continuous
Recording)
WiFi-Lo
cal
WiFi OFF
(Default setting)

- 10 -
WiFi ON
(Connected in 1 min)
Use APP to setup and
enable Cloud function
(Default setting off)
WiFi-Cl
oud
Cloud connection-
Connecting to AP

- 11 -
Cloud connection-
Connecting to Internet
Cloud connection
completed

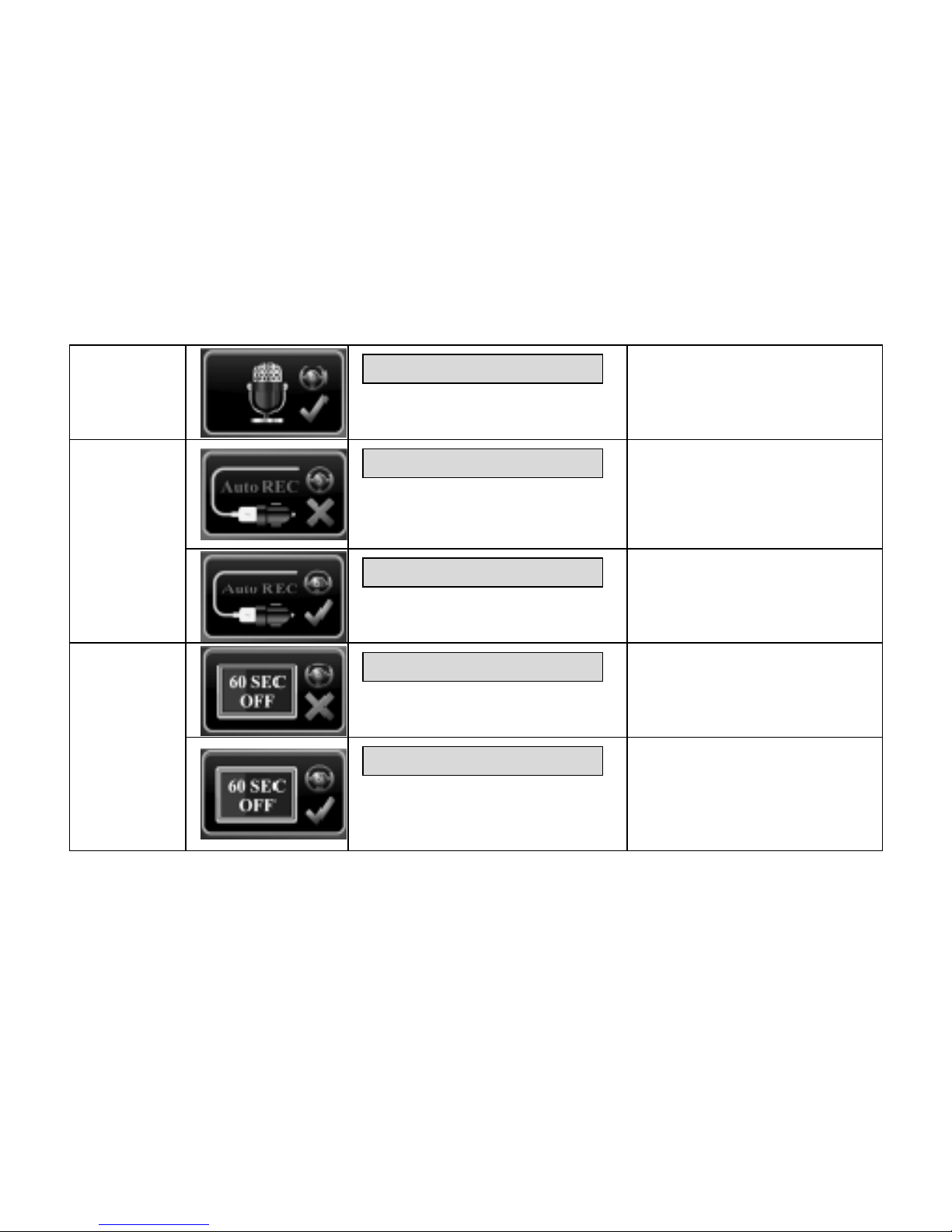

Voice
Record
Dash Cam Mode Only Voice Record OFF

- 12 -
Dash Cam Mode Only Voice Record ON
(Default setting)
Dash Cam Mode Only Auto Record OFF
Auto
Record Dash Cam Mode Only Auto Record ON
(Default setting)
Dash Cam Mode Only Screen Auto Off OFF
(Default setting)
Screen
Auto Off Dash Cam Mode Only Screen Auto Off ON,
LED off after 60 sec
unused

- 13 -
Action Cam Mode
Only
Time-lapse
photography OFF
(Default setting)
Time
Lapse
Action Cam Mode
Only
Capture the images
every 1/2/5/10/30/60
second, then a video
will be produced
automatically.
1. Push Quick Event
Record/Enter Button
to start or stop Time
Lapse photography.

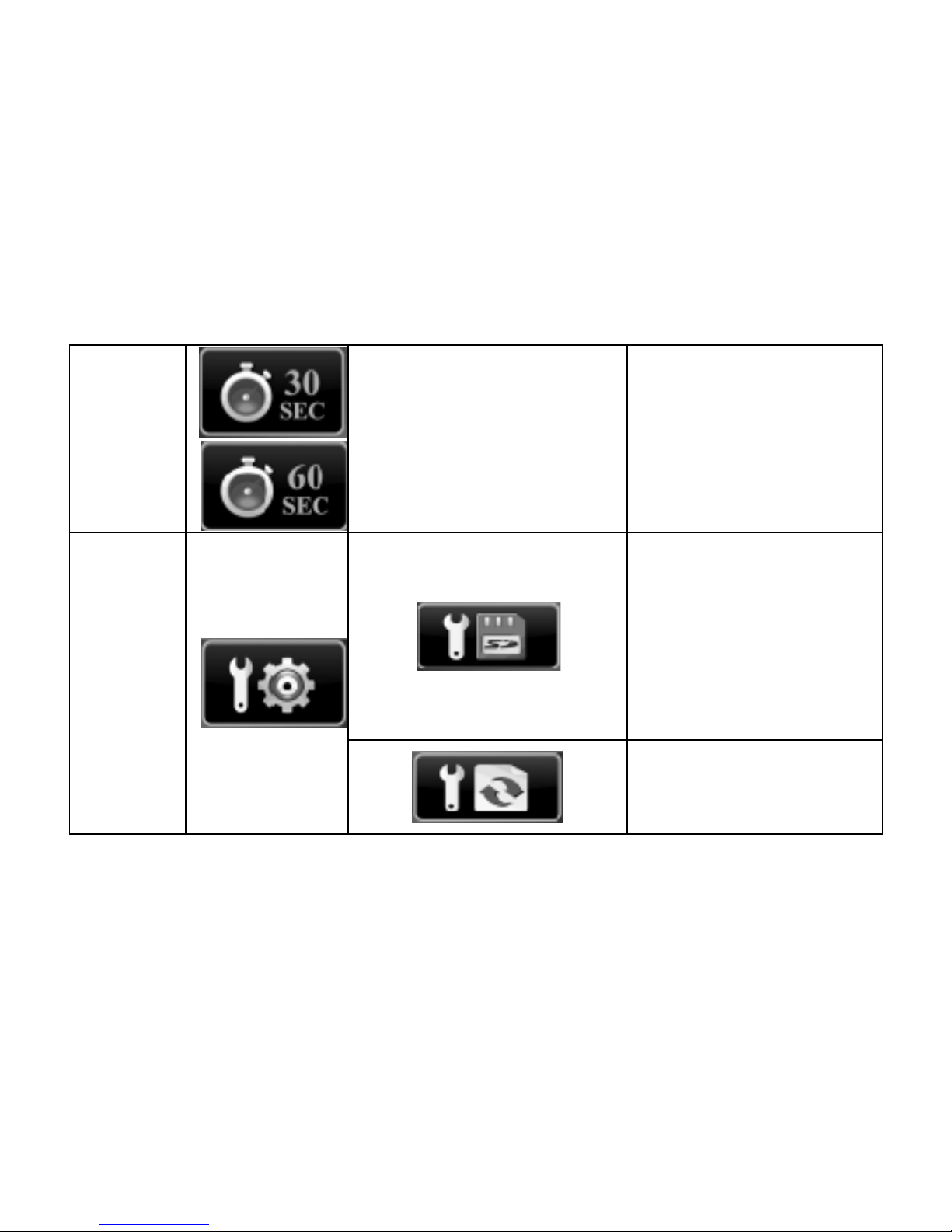

- 14 -
2. A power bank is
recommended for
power supply during
long time usage.
1. Format the SD
Card.
2. Use APP to change
Dash Cam & Action
Cam mode’s storage
capacity ratio.
(Default is 50% for
each mode.)
Setting
Resume to default
setting.

- 15 -
5. About APP
Minimum System Requirement: Android 4.0 / iOS 6.0
X5 equips with basic settings and modes selection, you can add more
functions through APP, below examples are based on Android OS for
your reference.
1. Download APP “PX CAM” from Google
Play Store or Apple APP Store
2. Enable WiFi mode, the connection name
will be shown.
3. Enable WiFi through Smart phone/Tablet

- 16 -
Note: For iOS users, please connect your Smart
phone/Tablet to the X5 with WiFi manually,
first connection will take about 1 min to
complete.
Note: The date/time will be sync
with your smart phone/tablet when
their WiFi is connected with X5.
4. Open APP, tap to select Local or Internet
Remark:
Please Refresh before pairing the device

- 17 -
WiFi-Local Mode
Tap to select the SSID to watch the video and change the settings.
1. Return to main menu
2. Connected Device
3. Status(Dash Cam / Action Cam Mode,
Date, Battery)
4. Video Display
5. Functions (Speak, Reverse, Division,
Save to smart phone, tablet & Record)
6. Mode switch (View、Album、Setup)

- 18 -
1. View
Name Icon Function
Speak
Make a call to X5 via smart
phone/ tablet
Reverse
Reverse the video upside
down, applicable for the
installation on bike/motorbike.
Division
Divide the display into 2 or 4

- 19 -
Save to
smart
phone/tablet
Save screen shot, video to
smart phone/tablet
Resolution:2048*1536(QXGA)
Video Resolution:
856*480(HQ)
Record
Start/stop Recording, the
video will be saved in SD
Card.

- 20 -
2. Album: Recorded video playback (Left: Action Cam Mode, Right:
Dash Cam Mode)
