Pye Video E7A02UD User manual

SERVICE MANUAL
DVD RECORDER
PY90DG
REC/OTRREC MODE
OPEN/CLOSE CHANNEL PREV NEXT STOP PLAY STANDBY-ON
S-VIDEO VIDEO AUDIO
LR

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1
Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
How to Initialize the DVD Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1
Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1
Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1
Lead Identifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18-1
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E7A00SP
SPECIFICATIONS
Notes:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: AC 120 V, 60 Hz
3. Load imp.: 100 kΩ
4. Room ambient: 5 °C ~ 40 °C
Item Conditions Unit Nominal Limit
1. VIDEO
1-1. Video Output 75 Ωload Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 Ωload Vp-p 1.0
C (Chrominance) 75 Ωload Vp-p 0.286
1-3. Component Output
Y (Luminance) 75 Ωload Vp-p 1.0
Cb (U) 75 Ωload Vp-p 0.7
Cr (V) 75 Ωload Vp-p 0.7
2. AUDIO
2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz Hz 4 - 44 k
fs = 48 kHz Hz 4 - 22 k
Audio CD fs = 44.1 kHz Hz 4 - 20 k
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 120
CD dB 120
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 96
2-4. Dynamic Range
DVD-VIDEO LPCM dB 102
CD dB 98
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 95
2-5. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.002
CD % 0.0025
REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.004

1-2-1 R3NLSP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Inside Top of DVD mechanism.

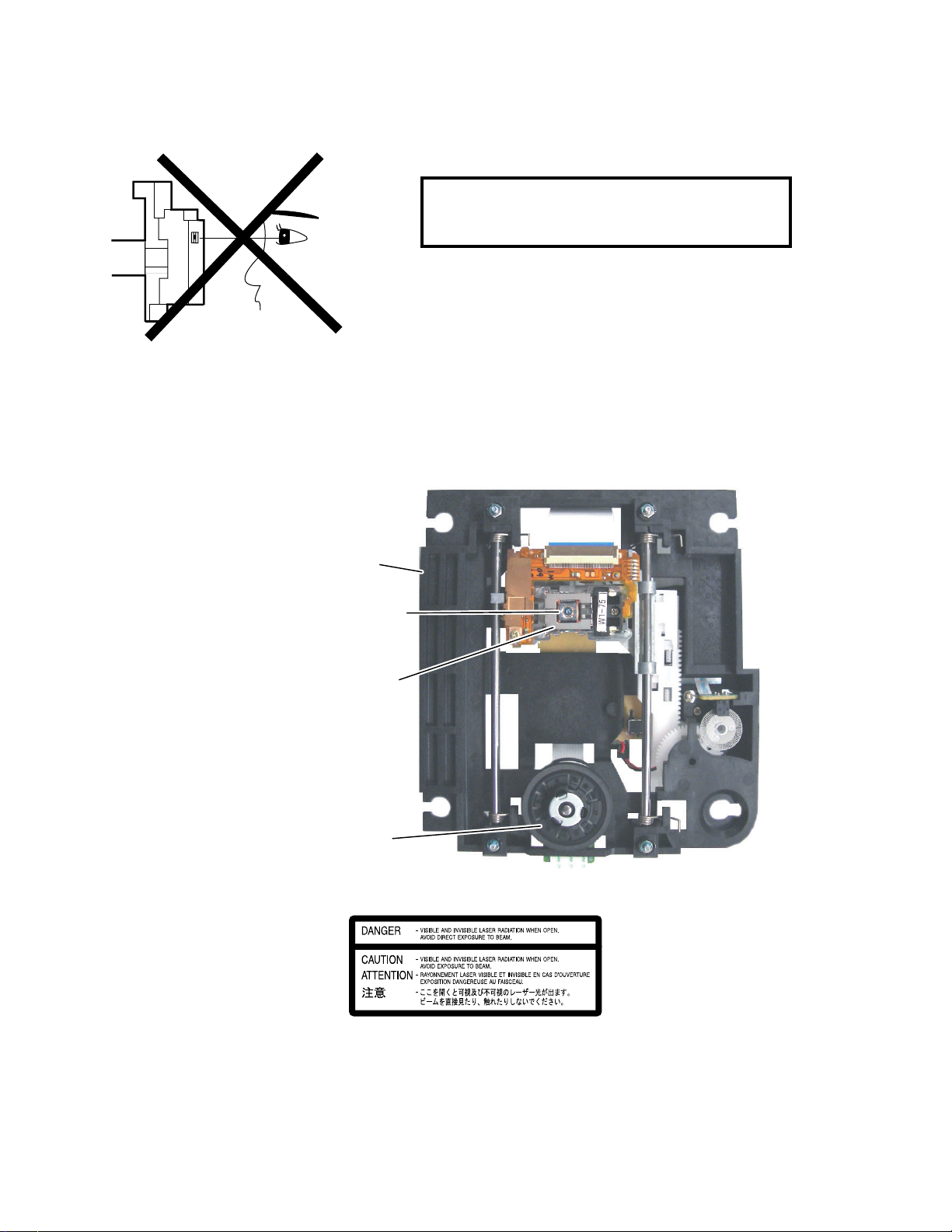

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable

1-3-1 DVDN_ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a #on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/orother
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type
connectors which connect the power cord and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure
1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector.
(Discard it.)
2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.
3) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4) Use a crimping tool to crimp the metal sleeve at
its center. Be sure to crimp fully to the complete
closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVDN_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2 mm (0.126 inches)
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15 µF CAP. & 1.5 kΩRES.
Connected in parallel i ≤0.5 mA Peak Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit

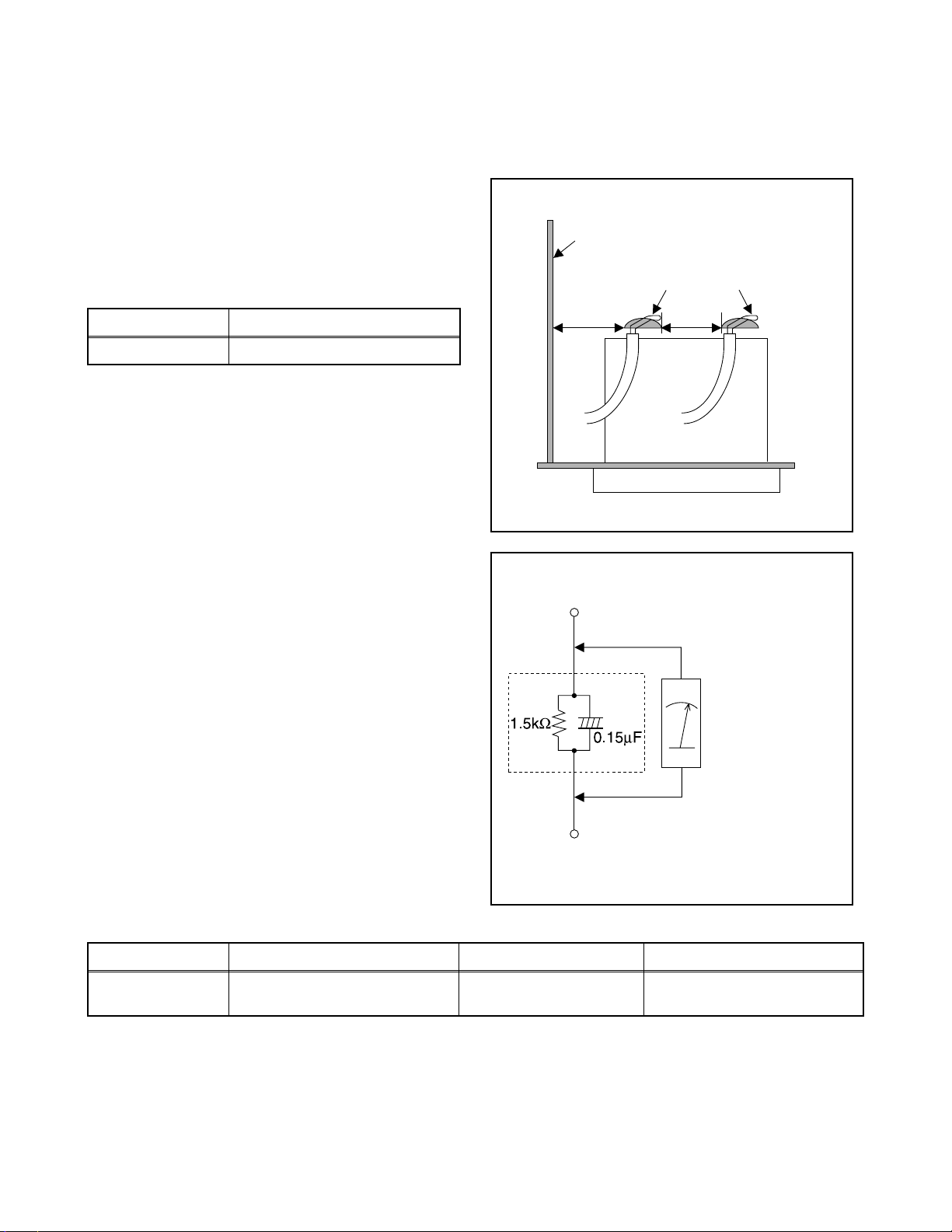

Fig. 1
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
Fig. 2

1-4-1 DVDN_SN
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.

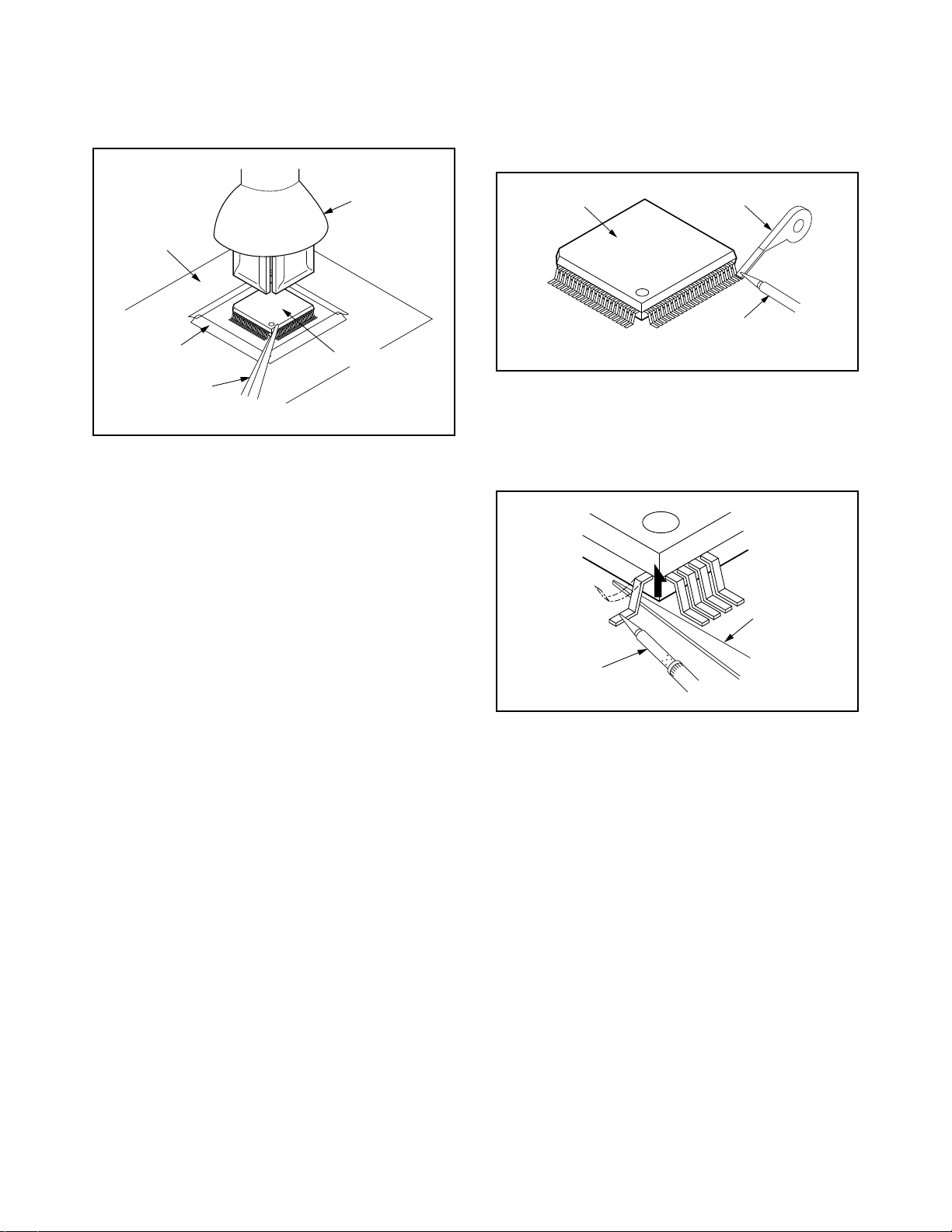

How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 DVDN_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

1-4-3 DVDN_SN
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

1-4-4 DVDN_SN
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

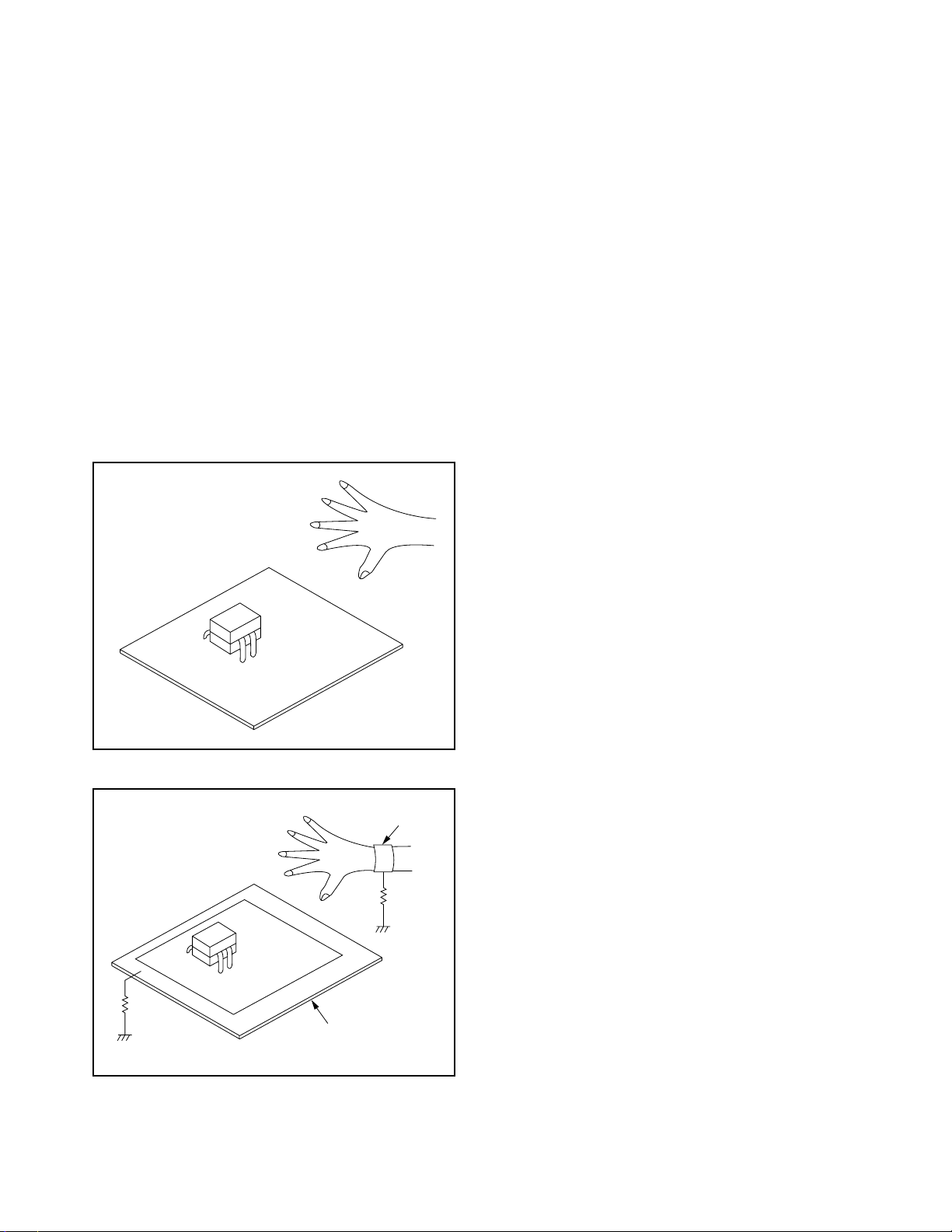

<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 E7A00DC

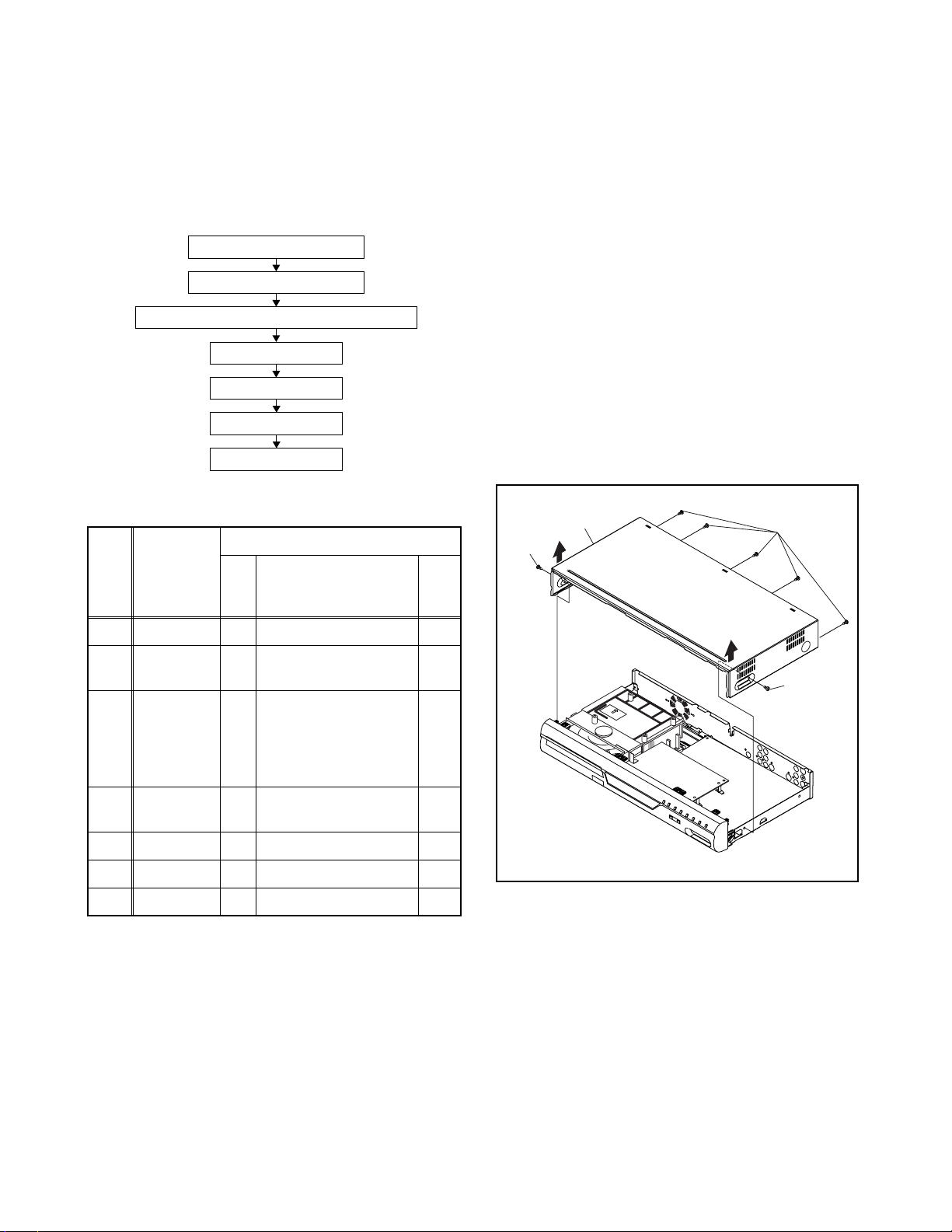

CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
Reference Notes
1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
ID/
Loc.
No. Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder Note
[1] Top Cover D1 7(S-1) ---
[2] Front
Assembly D2 *6(L-1), *3(L-2) 1
[3]
DVD
Mechanism
& DVD Main
CBA
Assembly
D3 4(S-2), *CN101,
*CN701,
LockingCardSpacers,
Main Sheet ---
[4] SW CBA D4 (S-3), S Earth Plate,
Desolder ---
[5] PCB Holder D4 2(S-4) ---
[6] Rear Panel D5 2(S-5), 6(S-6) ---
[7] AV CBA D5 3(S-7) ---
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
[1] Top Cover
[2] Front Assembly
[3] DVD Mechanism & DVD Main CBA Assembly
[4] SW CBA
[5] PCB Holder
[6] Rear Panel
[7] AV CBA
[1]Top Cover
(S-1) (S-1)
(S-1)
Fig. D1

1-5-2 E7A00DC
[2] Front Assembly
(L-1)
(L-1)
(L-2)
(L-1)
Fig. D2
[3] DVD Mechanism
& DVD Main
CBA Assembly
(S-2) (S-2)
Fig. D3
CN101
CN701
Locking
Card
Spacer
Main Sheet
Locking
Card
Spacer
Desolder
[5] PCB Holder
[4] SW CBA
(S-4)
(S-3) S Earth
Plate
Fig. D4
[7] AV CBA
[6] Rear Panel
(S-6)
(S-5)
(S-5)
(S-7)
(S-7)
Fig. D5
Heat Sink
Earth Plate

1-5-3 E7A00DC
3. How to Eject Manually
Note: When rotating the gear, be careful not to damage the gear.
1. Remove the Top Cover.
2. Rotate the gear in the direction of the arrow manually as shown below until the tray descends.
3. Pull the tray out manually and remove a disc.
A
View for A
Rotate this gear in
the direction of the arrow

1-6-1 E7A02INT
HOW TO INITIALIZE THE DVD RECORDER
To put the program back at the factory-default,
initialize the DVD recorder as the following procedure.
1. Turn the DVD recorder on.
2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder into the Version
display mode, press [CM SKIP], [1], [2], and [3]
buttons on the remote control in the order.
Fig. a appears on the screen.
3. Press [OK] button, then the DVD recorder starts
initializing. When the initializing is completed, the
DVD recorder exits the Version display mode and
turns off the power automatically.
* To move into the Normal mode from the
Version display mode, press [RETURN] button
on the remote control instead of [OK] button.
* When [STANDBY-ON] button is pressed
before [OK] button is pressed, the DVD
recorder exits the Version display mode, then
the power turns off.
MODEL NAME : *******
FEVERSION :
BEVERSION :
TTVERSION :
LD ADJUSTMENT :
DISC ADJUSTMENT :
DEFAULT SETTING : ENTER
EXIT : RETURN
R30_005_082
R3F10210S1E
T30015FSU
OK
OK
*1: "*******" differs depending on the models.
*2: Firmware Version differs depending on the
models, and this indication is one example.
Fig. a Version Display Mode Screen
F/W VERSION DISP

1-7-1 E7A02FW
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD recorder into version up mode,
press [CM SKIP], [6], [5], and [4] buttons on the
remote control unit in the order. Then the tray will
open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
3. Load the disc for version up.
Fig. c appears on the screen. The file on the top is
highlighted as the default.
When there is only one file to exist, Step 4 will
start automatically.
4. Select the firmware version pressing arrow
buttons, then press [OK].
Fig. d appears on the screen and Fig. e appears
on the VFD. The DVD recorder starts updating.
About VFD indication of Fig. e:
1) When Fig. d is displayed on the screen, “F-UP”
is displayed on the VFD.
2) When “Firmware Updating... XX% Complete.”
is displayed on the screen, “10210” is displayed
on the VFD.
The appearance shown in (*1) of Fig. d is
described as follows.
5. After updating is finished, the tray opens
automatically.
At this time, no button is available.
6. Pull out the AC code once, then insert it again.
Fig. a Version Up Mode Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Current
F/W version
is displayed.
Firm Update Mode
Please insert a disc.
ver. R3F10210S1E
Fig. b VFD in Version Up Mode
Fig. c Update Disc Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Disc name
is displayed.
Firm Update Mode ver. R3F10210S1E
VOL_200512250934
1 R3F10210S1E
2 R3F10211S1E
3 R3F10212S1E
4 R3F10213S1E
1 / 1
Files included
in the disc are
displayed.
No. Appearance State
1 File Loading... Sending files into the memory
2Firmware Updating...
XX% Complete. Writing new version data
--- Firmware
Update Failure Failed in updating
Fig. d Programming Mode Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Selected
F/W version
is displayed.
Firm Update Mode ver. R3F10210S1E
R3F10210S1E
File Loading...
(*1)
Fig. e VFD in Programming Mode (Example)

1-8-1 E7A00FIS
FUNCTION INDICATOR SYMBOLS
Note: If an error occurs, a message with the error number appears on the screen.
Message Solution Error
No. Error Description Priority
Can not record on this disc. Insert the recordable disc, and ensurethe discstatussatisfies
the recording requirements.
1 An error occurs during data reading. -
2There is no reply for 15 seconds in Test
Unit Ready. -
3Cannot write the data after trying three
times. -
4 An error occurs with OPC. -
5 During recovery in a record. -
6An error occurs even if recovery has been
tried three times. -
7 An error occurs in a format. -
8 It cannot start an encode. -
9NV_PCK/RDI_PCK is not in encoded
data. -
10 Encode Pause condition continued for 10
minutes. -
11 Encode Pause condition continued in
normal REC condition for 10 minutes. -
12 Difference in the address and can not get
StreamID of RDI/VIDEO. -
13 It is a reply that “ATAPI is not readable.” -
14 Cannot write the data after recovering
SMALL VMGI. -
15 Cannot write the data after DVD-R
Reverse Track. -
16 An error occurs in Finalize Close. -
17 An error occurs in Rec Stop Close. -
18 An error occurs in PCA Full (DVD_R). -
19 Safety Stop occurs during editing. -
20 High Speed Disc. 2
21 The disc is not formatted. 5
22 Disc Error has occurred. 3
23 The -R Disc of VR Mode. 6
24 The disc except DVD-R/RW or finalized
DVD-R. 1
This program is not allowed to
be recorded. You cannot record copy prohibited programs. 25 During the Macrovision picture input. 11
26 During the CGMS picture input. 12
Recording Error
You cannot record on this disc as
Power Calibration Area is full.
E35 Error No.
Error message

1-8-2 E7A00FIS
If an error occurs during the timer recording, one of the following error numbers (40 to 42) or the above error
messages (error number: 1 to 39) is displayed on the recording menu after timer recording.
(Once the screen of the program line is exited, the program line for the error will be cleared.)
(No Error Message is displayed for the error No. 40 ~ 42.)
This program is not recordable
in Video mode. Set “DVD-RW Recording Format” to “VR mode”. 27 During the CGMS picture (possible to record once) input. (Video Format Disc) 12
This program is not allowed to
be recorded on this disc. Insert a ver.1.1 CPRM compatible DVD-RW disc. 28 During the CGMS picture (possible to
record once) input. (Disc which is not for
the correspondence to VR Format
CPRM) 12
This disc is protected and not
recordable. Release the disc protect
setting in the Disc Setting
menu. 29 Disc Protected Disc. 7
Disc is full.
(No area for new recording) Insert the recordable disc with enough recording space. 30 No avilable recording space. 5
You cannot record more than
99 titles on one disc.
(The maximum is 99.) Delete unnecessary titles. 31 Its recording capacity has been reached.
(Video Format Disc) 7
32 Its recording capacity has been reached.
(VR Format Disc) 8
You cannot record more than
999 chapters on one disc.
(The maximum is 999.) Delete unnecessary chapter
markers. 33 The 999 chapter has been reached. (VR Format Disc) 9
You cannot record on this disc
as Control Information is full. Delete unnecessary titles. 34 There is not space to record field of control information. 10
You cannot record on the disc
as Power Calibration Area is
full. Insert a new disc. 35 PCA is Full. (in REC start) 4
This disc is already finalized. Release the finalizing for this
disc. 36 It is finalized. (Video Format Disc) 6
Can not record on this disc. Repeat the same operation. 37 Access to Memory Area range outside. - 38 Sector Address is wrong. -
39 BUP writing error of chapter editing. -
Message Solution Error
No. Error Description Priority
Error message is not
displayed.
- Set the timer programming
correctly.
- Set the timer programming
before the start time. 40 - Some portion has not been recorded
because of program overlapping.
- Recording did not start at the start time. -
Turn the power on and set the
clock correctly then set timer
programming again. 41 Power failed -
Insert the recordable disc. 42 No disc when recording -
Message Solution Error
No. Error Description Priority
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
A program with the error number is grayed out and asterisked on the timer programming list.
The speed mode changes
to the error number.
Timer Programming

1-9-1
BLOCK DIAGRAMS
System Control Block Diagram
IC101
(MAIN MICRO CONTROLLER)
IC1501
(SUB MICRO CONTROLLER)
REMOTE
SENSOR
RE2001
1G
7G
~
23 17
~
a
h
i
~
7
14
~
GRID
RESET EV+3.3V
VFD
SEGMENT
FL2001
IC2001
IC1502
AV CBA
DVD MAIN CBA
(VFD DRIVER)
KEY SWITCH KEY SWITCH
CN1502
CN3001
KEY-1 1
1
KEY-2 2
2
SW CBA
16
28
1 2
48 50 49
27
1 2
3
52 53
38 40 39 33 34
22 19 18 20 29
N23
J25
N24
L25
R24
8 9
41
12
14 30
7
1 2
11
27MHz X'TAL
X552
CLK 27 IN
CLK 27 OUT
SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK
RDY
CN701
SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK RDY
CN1101
POW-SW REG-CONT PWSW VIDEO-SW1
AUDIO-MUTE
AUDIO-SW1 AUDIO-SW2
SDA
SCL
X OUT X IN
XC OUT XC IN
RESET
P-DOWN
VCC
FL-SDA
FL-SCL FL-STB
REMOTE
KEY-1 KEY-2
POW-SW REG-CONT PWSW
VIDEO-SW1
SDA
SCL
AUDIO-MUTE
AUDIO-SW1 AUDIO-SW2
TO POWER SUPPLY BLOCK DIAGRAM
TO VIDEO BLOCK DIAGRAM
TO AUDIO BLOCK DIAGRAM
8MHz RESONATOR
X1501
32.768KHz X'TAL
X1502
Q1501
Q1502
C1501
(BACKUP CAPACITOR)
DIN
CLK STB
N1
SCL SDA
TU1701(TUNER UNIT)
10 11
EV+5V
42 VIDEO-SW2
VIDEO-SW2
43 VIDEO-SW3
VIDEO-SW3
44 VIDEO-MUTE
VIDEO-MUTE
N2
44SYS-RESET 11SUB-RXD 33SUB-TXD 55SUB-SCLK 22RDY
IC106
CN101 CN1051
26
1V2CONT
VI+1.2VP-ON+1.2V
30 301V2CONT
+1.2V REGULATOR
T4
SYS-RESET
E7A02BLS

1-9-2
Digital Signal Process Block Diagram
IC101
FRONT-END DIGITAL SIGNAL PROCESS
IC201
RF/ ERROR AMP
IC301
MOTOR DRIVER
MOTOR DRIVER
IC202
OP AMP
IC302
IC104 (FLASH MEMORY)
DVD MAIN CBA
TO VIDEO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM
SPDIF
BCK
DATA
LRCK
MD MC
SCK
MS
BCK
DATA
LRCK
SYSCLK
T2
G4
L4
K1
G3
U1 R3 U2
M25
K26 P24
T3
P2
R1
P3
R2
VIDEO-Y(I/P)
VIDEO-C
VIDEO-Cb/Pb
VIDEO-Cr/Pr
D/A D/A D/A D/A
AUDIO I/F
VIDEO ENCODER
BACK-END DIGITAL SIGNAL PROCESS
VIDEO I/F
FLASH MEMORY
FE ENCODER
TRAY OPEN
IC102 (DDR SDRAM)
DDR SDRAM
CN201
DVD MECHANISM
TILT TRACKING FOCUS
PICK -UP
SLED MOTOR
M
REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL
ENCODER CBA
LPC
CN1001
CN1003
SPINDLE MOTOR
M
CN1002
RELAY CBA
CN301
+3.3V
VIDEO-Y/CVBS
VIDEO-C
IC701 (VIDEO DECODER)
DECODER A/D45-50
Y2, AA4,
AB1-AB4
DECODER A/D39-44
V3, Y3, W1,
Y4, W2, AA3
10 13
AIMS
R26
E7A02BLD

1-9-3
Video Block Diagram
AV CBADVD MAIN CBA
CN701
24 24
VIDEO-Y(I/P)-OUT
22 22
VIDEO-C-OUT
28 28
VIDEO-Cb/Pb-OUT
26 26
VIDEO-Cr/Pr-OUT
10 10
VIDEO-Y/CVBS-IN
88VIDEO-C-IN
VIDEO-Y(I/P) VIDEO-C VIDEO-Cb/Pb VIDEO-Cr/Pr
JK2202 S-VIDEO OUT
CN1101
3 4
2
1
IC1401 (VIDEO DRIVER)
(VIDEO INPUT SELECT)
13
4dB AMP
2dB AMP
LPF DRIVER Y
C1418
C
14
8dB AMP
-6dB DRIVER
IC1301
4dB AMP
2dB AMP
LPF DRIVER
11
4dB AMP
2dB AMP
LPF DRIVER
6
10
4dB AMP
2dB AMP
LPF
MUTE
DRIVER
8
5
VIDEO-OUT
VIDEO-Cb/Pb OUT VIDEO-Y OUT VIDEO-Cr/Pr OUT
JK2201 JK2203
3 1
JK2105 S-VIDEO IN1
3 4
2
1
YC
VIDEO-IN1
JK2106
TU1701 (TUNER UNIT)
15
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
JK2101 S-VIDEO IN2
3 4
2
1
YC
VIDEO-IN2
JK2102
13
19 15
8
10 12
2
21
4
17
BUFFER
Q1303
Q1304
BUFFER
VIDEO-MUTE TO SYSTEM CONTROL
BLOCK DIAGRAM
22 23
VIDEO-SW1
TO SYSTEM CONTROL BLOCK DIAGRAM
VIDEO-SW2
TU-VIDEO
CONTROL LOGIC
REC VIDEO SIGNAL PB VIDEO SIGNAL
MUTE Y2 Y1
LPF LPF
WF1
WF2
WF3
WF4
WF5
VIDEO-Y/CVBS VIDEO-C
FRONT
VIDEO1
VIDEO2
TUNER
MUTE
MUTE C2 C1
REAR
24
VIDEO-SW3
E7A02BLV
