Pyle AnyRun PCLRMU2 User manual

PCLRMU2
This unit is operated by four keys:
MODE / -
RESET / +
SET
EL
FEATURES:
Time
Intelligent Step Filter Function
7 Days Data Memory Record
Target Step Alert Alarm
Exercise Time
Total Distance
Total Calories
User Setting
USB PC Link Interface Program
Low Battery Detection
Energy Saving Function
3D SENSOR FROM USA –
MEASURES YOUR MOVEMENT ACCURATELY

BACK LIGHT
- The 3D technology in the accelerator is an accelerometer sensor
that detects and measures acceleration in walking or running.
- 3D Sensor has intelligent step filter function-steps which only
starts counting when the unit detects continuous movement for
over 10 seconds.
- 3D Sensor allows users to customize to their specific body type for
Walking/Running style.
PERSONAL TRAINER
Thank you for choosing AnyRun as your personal trainer. In order
to make the best use of this device, please read the instruction
manual carefully. Do not discard keep the manual for future
reference.
Important: Please note that the watch is NOT a medical device and
is not to be used as such.
CONTENTS
Getting Start ………………………………………………………………… 2
Using the unit function……………………………...……………………. 2
Mode Flow ………………………………………………………………...... 3
Step Counting Mode……………………………………………………….. 3
Distance Mode...…………………………………………………………….. 4
Calories Burnt Mode ……………………………………………………… 4
Exercise Time Mode …….………………………………………………… 4
Memory Data Mode……………………………………………….……….. 5
Total Mode…………………………………………………………………… 5
User Setting ……………………………………………………………….... 6
Download/Installation PC-Link Program ………………………………8
PC-Link Program Operation………………………………………………. 9
Installing the Battery………………………………………………………. 12
Specification………………………………………………………………….. 13
Caution…………………………………………………………………………13
IMPORTANT!
For energy saving purposes, the watch unit will automatically switch off
if no buttons are pressed for 3 minutes. To turn it on again, press

any keys or sensor receive motion. The pedometer mode will also
be off during transportation for energy saving purposes.
IDEAL PLACEMENT
NORMAL WALKING MEASUREMENT
Before you track the number of steps you take as you go about your
normal daily life, you need to preset the following personal information
before using the unit.
The Units You Want To Use
Your Normal Walking Stride Length
Your Current Weight
Set your Target Distance
MODE FLOW
STEP COUNTING MODE – DISTANCE MODE – CALORIES BURNT
MODE – EXERCISE TIME MODE – MEMORY DATA MODE – TOTAL
MODE
STEP COUNTING MODE
1. Press MODE button until you have reached the STEP data with the
clock.
2. The unit may take a bit of time before it starts to sense that you are

walking. During that time, it will not display a step count. Once the
watch determines that you are walking, it will display your entire
step count from the beginning of your walk, including the steps you
took while the watch was not displaying a step count. This is the
intelligent step filter system to prevent the inclusion of false motion.
3. The step counting data are saved automatically at midnight each
day and all data are cleared to zero. Note that the unit only
maintains the last seven days of data, so the earliest data is deleted
automatically whenever data excess from 8 days is saved. We
recommend user to upload the data to PC weekly.
4. To clear the daily step counting, press and hold Reset/+ button for 3
seconds

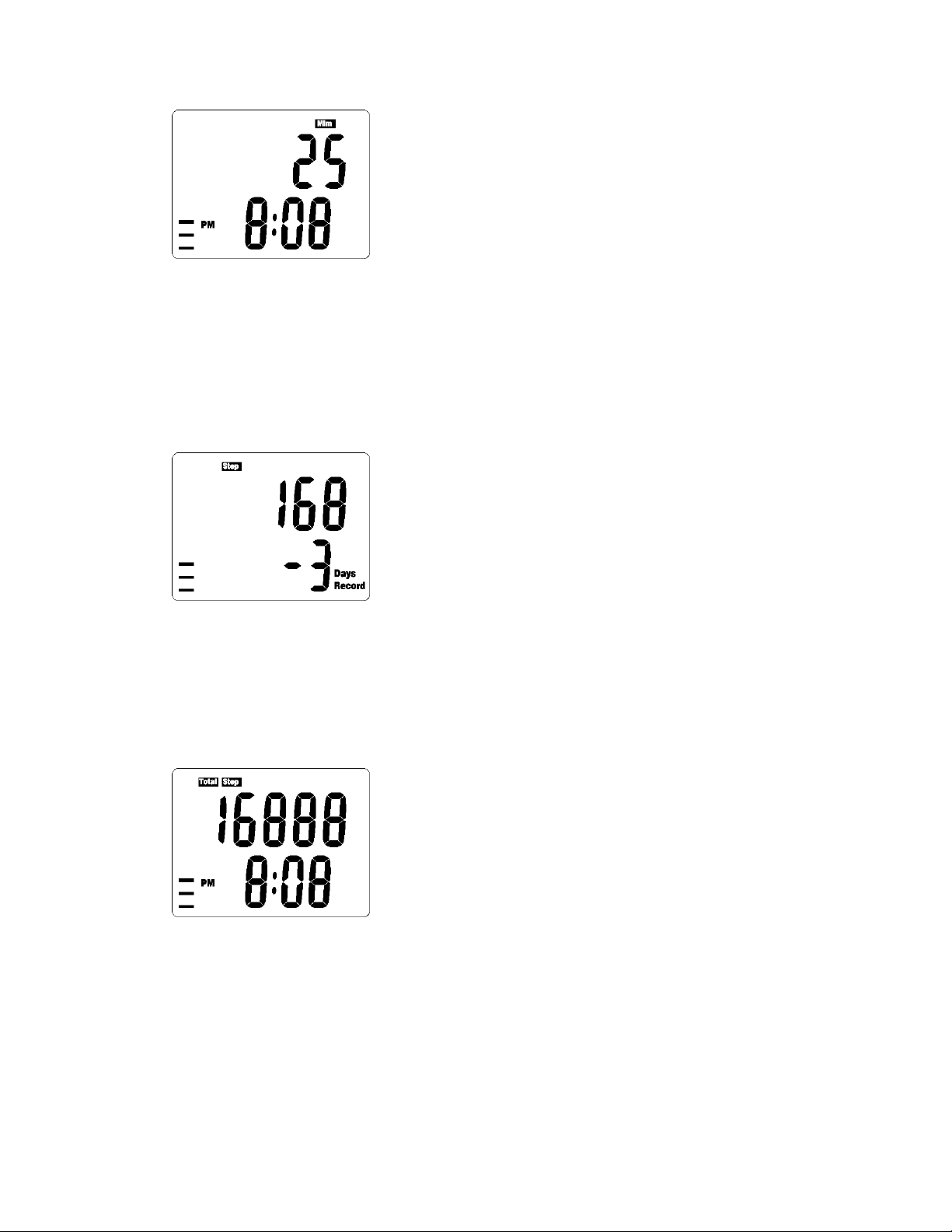

DISTANCE MODE
1. Press the MODE button until you have reached the Distance Mode.
2. To clear the daily distance, press and hold Reset/+ button for 3
seconds
CALORIES BURNT MODE
1. Press the MODE button until you have reached the Calories Burnt
Mode
2. To clear the calories data, press and hold Reset/+ button for 3
seconds
EXERCISE TIME MODE
1. Press the MODE key until you have reached the Exercise Time Mode

2. To clear the exercise time, press and hold Reset/+ button for 3
seconds
Note: Removal of any of the above set of data will remove all the data
for that day.
MEMORY DATA MODE
1. Press the MODE key until you have reached the Memory Data Mode
2. Press Reset/+Set Button to select the date you want to view
3. Press Set Button to view the data : Step – Distance – Calories Burnt –
Exercise Time
TOTAL MODE
1. Press the MODE key until you have reached the Total Mode
2. Press Set Button to view the data : Total Step – Total Distance – Total
Calories Burnt – Total Exercise Time
3. To clear all the data ( include daily step counting & memory data
mode ), press and hold Reset/+ button for 3 seconds

USER SETTING
Time Setting
1. Press the MODE key until you have reached the Step Counting Mode
2. Press and hold Set Button for 3 seconds to set the TIME FORMAT
3. Press MODE/- or RESET/+ button to change the format
4. Press the SET button to enter next setting – HOUR
5. Press MODE/- or RESET/+ button to increment or decrement the
setting data
6. Press the SET button to enter next setting – MINUTE
7. Press MODE/- or RESET/+ button to increment or decrement the
setting data.
8. Press the SET button to enter next setting – UNIT

9. Press MODE/- or RESET/+ button to select CM or INCH
10.Press the SET button to enter next setting – STRIDE LENGTH
11.Press MODE/- or RESET/+ button to increment or decrement the
setting data. (Default:80cm/30”, Range:30-213cm/12”-84”)
12.Press the SET button to enter next setting – WEIGHT
13.Press MODE/- or RESET/+ button to increment or decrement the
setting data. (Default:45kg/100lb, Range:20-227kg/50-500lbs)
14.Press the SET button to enter next setting – TARGET STEP
15.Press MODE/- or RESET/+ button to increment or decrement the
setting data. (Default:5,000 steps, Range:0-99,000 steps)
16. The adjustment should be 1,000 steps for each increment or
decrement, when target is below 1,000 steps, it will become 100
steps for each adjustment
17. There are 10 icons show the percentage of your step to target steps.

When you finished the target steps (100%), the icon will be full of 10
icons and will flash together with a beeping alarm for 30 seconds
Note:
No buttons pressed or held for 60 seconds will automatically trigger the
unit to return to step counting mode.
DOWNLOADING/INSTALLATING PC-LINK PROGRAM
Please visit our website at http://www.anyrun.com/k515m.htm
to download the interface program or from the provided CD
PROGRAM PROVIDES:
Full processing and analysis of your exercise data
History of your personal training data
Graphical analysis of data information
Email data file with Excel Format

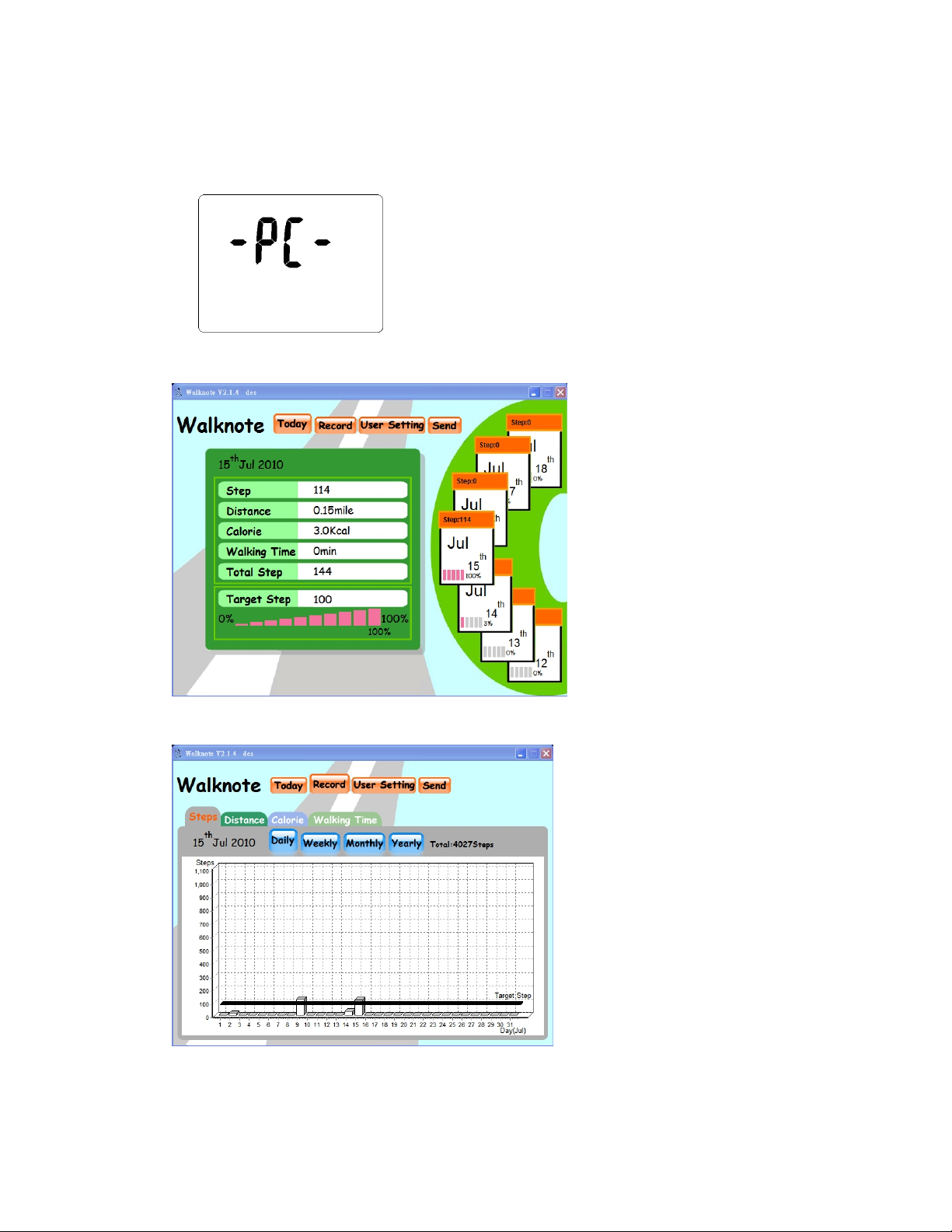

PC-LINK PROGRAM OPERATION

First User:
1. Click “ New “ button to create a new USER NAME and enter your
personal information then save it for confirmation
PC LINK COMMUNICATION

1. Unit will automatically upload the data to PC once plugged into the
computer
2. Login the program and enter to the Main Screen
3. Click any button to select the desired report or data.
Step – Distance – Calories – Exercise Time

4. Press the SEND button to export the excel data file by email.

INSTALLING THE BATTERY
The Watch uses 1 piece CR 2032 batteries. Use only the recommended
batteries.
NOTE: Changing the battery will erase the data in the watch previously
input into the device and you can then/will need to re-set the watch all
over again.
1. The battery compartment is located at the back of the unit
2. To install/replace the battery, unscrew the battery compartment
with the screw driver and simply slide afterwards
3. Take out the old battery and dispose of properly
4. Gently place a new battery into the battery slot of the battery
compartment, make sure that the poles are correctly placed
Screw back the battery compartment, when finished as in the diagram
below
IMPORTANT BATTERY INFORMATION
Battery installation and removed should be performed by an
adult
Use only batteries recommended in this instruction sheet
Be sure to install the batteries with the correct polarity, as
indicated
Remove all batteries when replacing the old batteries with new
batteries
Only batteries of the same and equivalent type as
recommended are to be used
Do not short-circuit the supply terminals

Exhausted batteries should be removed from the product
Non-rechargeable batteries are not to be recharged
Rechargeable batteries are to be removed from the product
before being charged
Rechargeable batteries are only to be charged under adult
supervision
Different types of batteries, new and used batteries are not to
be mixed.
SPECIFICATIONS
Time Format: Hour, Minute, 12/24 hours
Features: Step Counting, Distance, Calories
Consumption, Exercise time
Measurement Range: Calories Consumption: 0-9999.9 kcal
Number of step: 0-99999
Distance:0-999.99 km/999.99 Mile
Exercise Time: 0-23 hr 59 m 59 s 99
Memory Date: 7 Memory Records
CAUTION
Should you encounter any problems with the unit (e.g. malfunctioning
of a parameter, static electricity, interferences within the product or the
need to re-set the device), please press four buttons at the same time to
reset the unit (the unit should not connect with computer). All data
previously input into the device will be erased and you can then/will
need to re-set the unit all over again. Should this fail to correct the
situation, remove the batteries and then put them back into the battery
compartment.
Then follow all the steps mentioned above in order to input the
necessary data once more. The content of this manual is subject in
order to change without further notice. Due to printing limitation, the
displays shown in this manual may differ from the actual display. The
manufacturer and its suppliers hold no responsibility to you or any
other persons for any damage expenses, lost-profits, or any other
claims arisen by using this product. The contents of this manual may
not be reproduced without the permission of the manufacturer.
