Q Garden QGPGC User manual

Poly Garden Cart
Model: QGPGC
(150kg Max. Load Capacity)
SAFETY AND OPERATING MANUAL
SAVE THESE INSTRUCTIONS
ASSEMBLY REQUIRED
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before
use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in
this manual, our policy of continuous improvement determines the right to make
modifications without warning.
Images used are for illustration purposes only
1938148001 08-02-19

Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written
permission from Handy Distribution.
In all cases this copyright notice must remain intact.

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
WHATS INCLUDED
ASSEMBLY
OPERATION
TROUBLE SHOOTING
MAINTENANCE & STORAGE
PARTS DIAGRAM & LIST
WARRANTY
SPECIFICATION
Consistent with our policy of continuous improvement, QGARDEN reserves the right to
change the design and configuration of any of its products without notice or obligation.
Therefore, please treat the text and images in this manual as being for illustrative purposes
only. They may in no case serve as a basis for any legal claim.
ASSEMBLY IS REQUIRED –TWO PEOPLE
This product requires assembly before use. See the “Assembly” section for instructions.
Please check that all parts required for the assembly of this spreader are included. If for any
reason you believe a part for the assembly is missing or damaged, please contact us.
If you require any assistance with regards to the contents or operation of your machine,
please contact us:
TEL: [phone]
EMAIL: [e-mail]
(Monday to Friday 8.00AM TO 5.30PM Excl. Bank Holidays)
Model
QGPGC
Product No.
1938148001
Max. Load Capacity
150kg (330lbs)
Max. Tipping Capacity
100kg (220lbs)
Product Dimensions
L 1150mm x W 515mm x H 970mm
Tub Dimensions
L 940mm x W 515mm x 210mm
Tyres
Pneumatic 10x3 (Not for Highway Use)
Max. Tyre Pressure
25PSI –1.7BAR (Do Not Exceed)
Weight
G.W 17kg –N.W 15kg

IMPORTANT INFORMATION
INTENDED USE
The QGARDEN Poly Garden Cart is designed for use in private gardens and primarily used
around GRASS OR LAWN AREAS, but not in public facilities, parks or sports grounds and not for
agricultural or forestry use. This product is not intended for commercial use.
This is a garden trolley, therefore extended use over abrasive surfaces (e.g. concrete, tarmac
etc.) could cause premature wear on the trolley tyres. Commercial or industrial environments
are not recommended.
Compliance with this manual supplied by the manufacturer is a prerequisite for the proper
usage of the machine. The operating manual contains servicing and maintenance
instructions as well as directions for use.
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are
familiar with the controls and properly operate the machine. Following these instructions can
reduce the risk of personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product.
The operator is responsible for following the warning and safety instructions in this manual
and on the machine. Never use the product unless the components are correctly positioned
and operational.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the
equipment.
Never allow children or people unfamiliar with these instructions to use the product.
Local regulations can restrict the age of the operator.
Keep in mind that the operator or user is responsible for accidents or hazards involving the
machine that occur to other people or their property.
SAFETY SYMBOLS
Safety alert symbol. Used to alert you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
CAUTION
Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.

GENERAL SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the product. Learn its
application and limitations as well as the specific potential hazards. Retain these instructions
for future reference. The operator is responsible for following the warnings & instructions in this
manual and on the product.
DURING OPERATION
•This is a garden cart, therefore extended use over abrasive surfaces (e.g. concrete,
tarmac etc.) could cause premature wear on the trolley tyres.
•Always ensure that your load is evenly distributed over the front and rear axles & four
wheels.
•Tyre inflation must be undertaken with a foot or hand manual inflation device. The tyre
pressures must not exceed 25PSI or 1.7BAR. (DO NO USE ELECTRICAL OR MECHANICAL
INFLATION DEVICES).
•Do not at any time allow anyone to sit or stand on the Trolley.
•Do not allow children to play on, stand upon or climb in the Trolley.
•Always inspect the Cart before use to ensure it is in good working condition.
•Immediately replace or repair damaged or worn parts before using the Cart.
•Always check and tighten hardware and assembled parts before operation.
•Do not exceed the equipment maximum load capacity of 150kg (330lbs), tipping
capacity 100kg (220lbs).
•Do not try to carry loads that make the Cart unstable.
•Avoid large holes and ditches when using the Cart.
•Be careful when operating on steep gradients (hills) the Cart may tip over.
•Always operate at a reduced speed in rough terrain, along creeks, ditches and on
hillsides.
•Do not operate close to creeks, ditches and public roads.
•To avoid personal injury and/or equipment damage DO NOT EXCEED 10 MPH.
•Always use caution when loading and unloading the Cart.
CRUSH AND CUT HAZARDS
•Always keep your hands and feet clear from moving parts while operating the
equipment.
•Always keep the work area clean and clear when operating
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication
that could affect your ability to use it properly. Do not use this machine when you are tired or
distracted from the job at hand. Be aware of what you are doing at all times. Use common
sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep the area around the machine clear of
obstructions, grease, oil, rubbish and other debris which could cause persons to fall onto
moving parts.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing
guards and drive mechanisms. Vibration during use, may cause these to loosen.
Form a habit of checking to see that all other tools/equipment are removed from the
working area before turning it on.
Replace damaged, missing or failed parts before using it. Warning labels carry important
information. Replace any missing or damaged warning labels.

DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which
can be caught in moving parts. Protective electrically non-conductive gloves and non-skid
heavy-duty footwear are highly recommended when working. Wear a face or dust mask if
the operation is dusty. Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety glasses/goggles. Wear
protective hair covering to contain long hair, preventing it from getting caught in machinery.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons away from the machine. If approached, stop the machine
immediately. Do not allow children to handle, climb on or in the machine. Do not at any time
allow anyone to sit or stand on the Cart. Do not allow children to play on, stand upon or
climb in the Cart.
DO NOT OVERREACH
Always keep proper footing and balance when using the machine. Never stand on the
Cart. Serious injury could occur if the machine is tipped or if the moving parts are
unintentionally contacted. Do not store anything above or near the machine, where anyone
might stand on the machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts.
DO NOT FORCE TOOL
Do not exceed the equipment maximum load capacity of 150kg (330lbs) (Tipping capacity
100kg (220lbs).
Always ensure that your load is evenly distributed over the front and rear axles & four wheels.
Do not try to carry loads that make the Cart unstable.
NEVER LEAVE MACHINE MOVING UNATTENDED
Do not leave your machine unattended until it has come to a complete stop.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to
its full & safest performance. When maintaining this machine, only the manufacturer’s original
replacement parts should be used. The use of non-original manufacturer parts may
invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the
country where the machine is used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away
from children and others not qualified to use it.

WHAT IS INCLUDED

ASSEMBLY

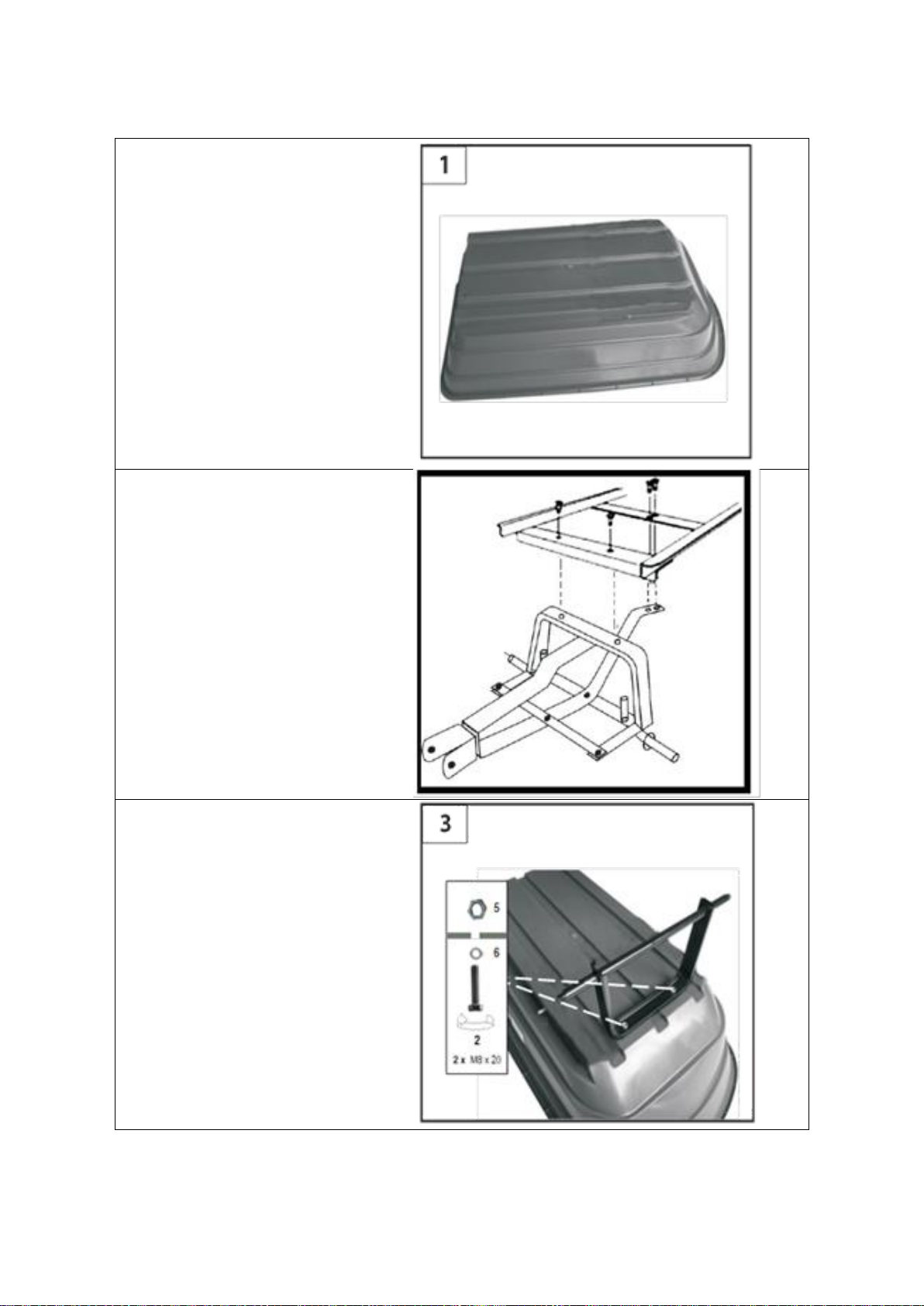

STEP 1
Turn the tub upside down.
STEP 2
Assemble the Front Axle
Bracket to the Front A-Frame,
using 4x M8x20 bolts, 4x M8
nuts and 4x 8mm washers.
STEP 3
Attached the Rear Axle
Bracket to the Tub. Use 2x
M8x20 bolts, 2x M8 nuts & 2x
8mm washers. Ensure the bolt
and washers are fitted inside
the tub.

STEP 4
Place the Left & Right Rear
Axle Braces over the axles of
the Rear Axle Bracket and
secure to the Tub, using 4x
M8x20 bolts, 4x M8 nuts and 4x
8mm washers. Ensure the bolt
and washers are fitted inside
the tub.
STEP 5
Place the Tub in the dump
position. Place the Front Axle
Bracket & A-Frame Assembly
and with the M8x20 bolts, M8
washers and M8 Nut.
The Rear Frame, Front Fram,
Front Axle and Tub should now
be connected.

STEP 6
Attach the Lock to the Tub,
using 4x M8x20 bolts, 4x M8
washer & 4x M8 nut.
STEP 7

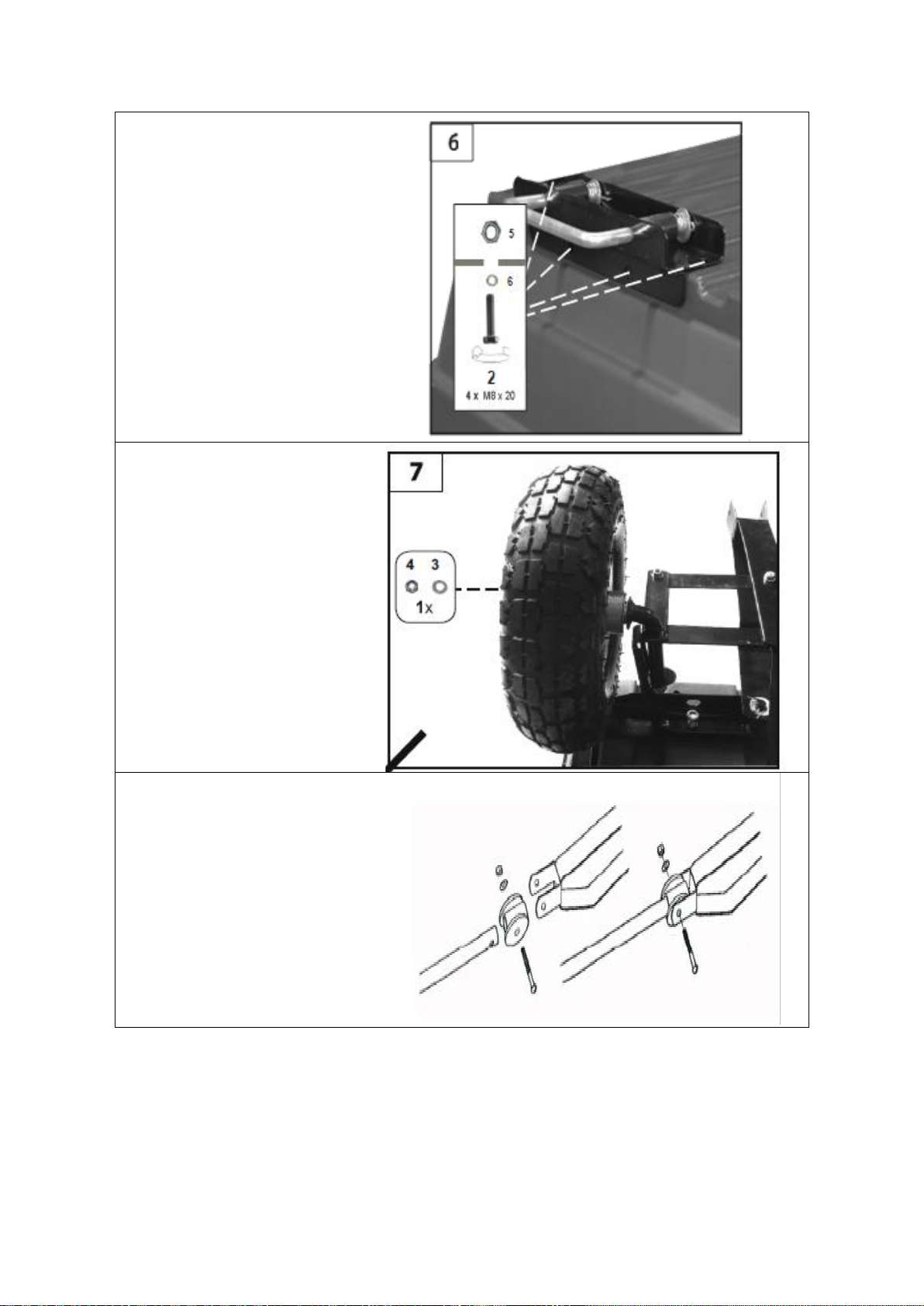

Attach the four wheels to the
four axles. Please the large
M12 washer after the wheel
and secure using the M12 Lock
Nuts
STEP 8
Assemble the Handle to the
Yoke, using the Coupling,
M8x60 Bolt, M8 Lock Nut & M8
washer.

OPERATION
RAISING THE TUB
To opertate the dumping feature, pull the
dumping release handle outward to release
the tub from the locking mechanism. Lift up
the release handle to raise the cart into the
dumping position.
RETURNING THE TUB TO THE BASE
Move the tub back down to the lowered
position. Make sure the dumping release
handle is locked into place when the tub is in
the lowered position
TROUBLESHOOTING
WARNING!
Only perform the steps described in these instructions! All further inspection, maintenance
and repair work must be performed by an authorised service specialist! Contact your local
authorised service dealer if the problem cannot be solved by yourself!
WARNING!
If the product does not perform properly, makes unusual sounds, does not start or stop as
described, or any other irregularity or malfunction occurs, do not attempt to repair the
product by yourself. Please contact customer services or your local authorised service
dealer.
NEED ASSISTANCE
For Spares or Support of your Handy product, please contact us:
Tel: [phone]
Email: [e-mail]
Monday to Friday 8.00am to 5.30pm (excl. Bank Holidays)

MAINTENANCE & STORAGE
WARNING
Improper maintenance & storage of the Trolley may void your warranty.
LUBRICATE
Maintenance spray or multi-purpose grease can be applied to the wheel axle prior to long-
term storage. Oiling is not necessary.
CLEANING
After each use, thoroughly clean material out of the cart.
Rinse/dry inside and outside of the Trolley after each use.
STORING
Never allow material to stay in the hopper for extended periods of time.
Before storing, ensure that the spreader is clean and dry.
Store indoors or in a protected area during severe weather and in the winter months.
CHECK ALL NUTS, BOLTS AND FASTENING
Periodically check all fastenings are tight & secure.
NEVER EXCEED LOAD CAPACITY
To avoid damaging the spreader, never exceed the rated load capacity of 150kg (330lbs) or
tipping capacity of 100kg (220lbs)
TYRES
Ensure the tyre pressures are checked regularly. Tyre inflation must be undertaken with a foot
or hand manual inflation device. The tyre pressures must not exceed 25PSI or 1.7BAR. (DO NO
USE ELECTRICAL OR MECANICAL INFLATION DEVICES).
Incorrect tyre pressures and constant use of the cart on abrasive surfaces can cause
premature wear, which would not be covered under the terms of the manufacturer’s
warranty.
IMPORTANT:
Only use the manufacturer’s original replacement parts. Non-original replacement parts will
invalidate your warranty and may result in a safety hazard or poor operation. Parts are
available by calling 01793 333212.
REPAIRS & SERVICING
Users of this product should only undertake actions described in this manual, unless otherwise
instructed by the manufacturer. All other repairs and servicing should only be undertaken by
an approved service/repair dealer. Your nearest approved service/repair dealer can be
found at www.thehandy.co.uk.
When repairing the product, always use approved replacement parts or those which are
technically identical. Using high quality replacement parts avoid the risk of accidents,
damage to the product and invalidating the manufacturer’s warranty.
Replacement parts lists are supplied in this manual.

PARTS DIAGRAM –QGPGC (1938148001)
PARTS LIST - QGPGC (1938148001)
ITEM
NO
PART NO
DESCRIPTION
QTY
ITEM
NO
PART NO
DESCRIPTION
QTY
1
QG114-1
Tub
1
10
QG114-10
Yoke
1
2
TH140-2
Lock
1
11
QG114-11
Wheel & Tyre
4
3
QG114-3
Front Axle
1
12
TH215-E1-21
M8x60 Bolt
1
4
TH122-13
Coupling
1
13
TH140-14
M8x20 Bolt
16
5
QG114-5
Front Bracket
1
14
QG114-14
M12 Washer
4
6
QG114-6
Rear Axle
1
15
TH215-B2-24
M12 Lock Nut
4
7
QG114-7
L/R Axle Brace
1
16
TH140-19
M8 Washer
17
8
QG114-8
R/R Axle Brace
1
17
TH140-16
M8 Lock Nut
17
9
QG114-9
Handle
1
18
QG114-18
A-Frame
1
4
18

GJ HANDY & CO LTD USER WARRANTY POLICY
Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under
normal usage. The warranty applies to the original purchaser and covers faulty parts and the
labour involved in replacing and repairing those parts, which are of original manufacture.
Period of Warranty
Webb (excludes Electric Handheld, Dynamic, Heritage, Legacy), Webb Pro, Sanli Engine
a) 2 years from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to
normal wear and tear (e.g. but not limited to wheels, tyres, cutter bars, cylinders,
cutting blades, blade boss, belts, cables, nylon line & spool, collection bags, spark
plugs).
e) Engines are supplied with a separate warranty to the machine. The engine
manufacturers warranty statement which will be supplied within the engine instruction
manual. All enquiries and warranty repairs should be discussed with the engine
manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless
normal wear & tear component, which are covered for 30 days).
g) All machines’ must be serviced within the first 12 months from the original date of
purchase to comply with the warranty, failure to do so will invalidate the 2nd year of
the warranty.
All warranty repairs must be undertaken by an authorised service dealer. These dealers have
been accredited by GJ Handy & Co Ltd and agree to only use genuine parts and follow our
repair procedures.
Webb Electric Handheld, Webb Dynamic, Heritage & Legacy, Handy, Mowerland, Q-Garden
a) 1 year from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to
normal wear and tear (e.g. but not limited to wheels, tyres, cutter bars, cylinders,
cutting blades, blade boss, belts, cables, nylon line & spool, collection bags, spark
plugs).
e) Engines are supplied with a separate warranty to the machine. The engine
manufacturers warranty statement which will be supplied within the engine instruction
manual. All enquiries and warranty repairs should be discussed with the engine
manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless
normal wear & tear component, which are covered for 30 days).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have
been accredited by GJ Handy & Co Ltd and agree to only use genuine parts and follow our
repair procedures.

Not covered by this warranty
a) The warranty policy does not cover any depreciation or damages caused by
ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse,
abuse, lack of transportation or accident.
b) The warranty policy does not cover any costs necessary for the standard periodic
maintenance services instructed by the operator’s manual, or service parts
replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades,
seals and other service parts unless it can be proven that the item has evidence of
faulty manufacture.
c) The warranty policy will not cover failure or damage caused as a result of parts or
accessories being modified without the written approval of GJ Handy & Co Ltd.
d) The warranty policy will not cover the unit if non-genuine parts have been fitted and
as a result damage has occurred to the unit.
e) The warranty policy is non-transferable and is only applicable to the original
purchaser.
Disclaimer
This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty
in terms of the merchantability or the fitness for a particular purpose.
No person is authorised to make any warranties, representations or promises, expressed or
implied, on behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this
warranty policy in any way.
Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be
liable in any event or manner whatsoever for incidental or consequential damages or injuries,
including, but not limited to, loss of crops, loss of profit, out of pocket expenses or profits,
rental of substitute equipment or other commercial losses.
General
Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
Failures relating to cutter decks and belts need careful investigation, as the cause may not
always be straightforward. Look for damage to blades and pulleys especially when the
cutter belt or blade boss have snapped or cracked as this could be due to impact damage.
Customers should always refer to the operator/instruction manual when any disputed
problem arises, you will find most areas covered within the manual.

Customer Service Team
Tel: [phone]
(Mon –Fri 8.00am to 5.30pm excl. Bank Holidays)
Email: [e-mail]
Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY
