QA Supplies QA-T5 User manual

QA-T5 OPERATING INSTRUCTIONS
I. Product Overview:
This data logger can be used for temperature recording during the storage and transport
of food, medicine, chemicals and much more. It is widely used in warehousing, cold
storage, refrigerated logistics and laboratories that have a need to track temperature
fluctuations over time.
II. Specifications:
Dimensions: 3.1" x 1.2" x 0.5"
Weight: 30g
III. Technical:
1. Units: °F or °C selectable
2. Range: -22°F to 158°F (-30°C to 70°C)
3. Accuracy: ±0.9°F (-4°F to 104°F) otherwise ±2.0°F
4. Resolution: 0.1°
5. Capacity: 32,000 data points
6. Recording Intervals: 10 seconds to 24 hours (adjustable)
7. Sensor: Internal NTC thermal resistor
8. Comm Interface: Built-in USB
9. IP Rating: IP67 Waterproof
10. Power: CR2032 battery or USB
11. Battery Life: 180 days at room temperature (15 minute interval)
IV. Start Up
1. Download and install the free QA-T5 software and USB driver by following the
prompts and Installation Tips. (software is available at www.QAsupplies.com)
2. Connect the logger to an open USB port and Open the software. The logger will
automatically communicate with the software and upload any data. Exit from the
connection interface if necessary (should not be required on initial use).
3. Click the Parameter Set icon in the tool bar. After choosing the logger settings, click
the "Save Parameter" button (see the help file for details or questions on any setting).
4. Exit from the parameter interface and disconnect the logger.
5. Once all loggers are programmed using steps 1-4, select Exit from the menu bar to
close the QA-T5 software (see below to Start Recording).
V. Data Access:
Recorded data can be easily accessed directly from the logger and this process will NOT
clear the logger or stop the recording process.
1. Connect the logger to a computer through an open USB port, the icon will show
on the logger's LCD.
2. Open the software and the logger will automatically display the recorded data. If not,
click the Upload Data icon in the tool bar.
3. To view the logger settings click the Connection icon in the tool bar. When finished
exit from the connection interface.
4. Select Exit from the menu bar to close the QA-T5 software.
VI. Functions:
The data logger has two buttons. The left button is to start recording and switch between
menu items. The right button is to stop recording and return to the menu.
The data logger display interface includes: Status, Recording Capacity, Time, Date, Max
Temperature, Min Temperature, Upper and Lower Alarm Limits.
If there is no operation for 15 seconds, the data logger will automatically turn off the
display. If the display is turned off, short press the left button to enter the display
interface. Each time the left button is short pressed, it will cycle through the display
interface in the sequence described in the Figures below.
Status Display (Figure 1)
After short pressing the left button, it enters the Status display.
The temperature shown on the screen is the current ambient
temperature.
If the symbol lights up, the data logger is in recording status.
If the symbol flashes, the data logger is in delayed start status.
If the symbol lights up, the data logger has stopped recording.
If neither the or symbols light up, the data logger has been configured.
If the or symbols light up, the measured temperature exceeded an alarm limit.
Recording Capacity Display (Figure 2)
When the "Log" symbol lights up, it indicates the recorded data
capacity. The number shown in the LCD is the amount of currently
recorded temperatures.
Time Display (Figure 3)
The time display interface shows the hour and minute of the data
logger (time format is 24 hours).
Date Display (Figure 4)
The date display interface shows the month (“M”) and day (“D”) of the
data logger.
Max. Temperature (Figure 5)
The maximum temperature measured since the logger started
recording.
Min. Temperature (Figure 6)
The minimum temperature measured since the logger started
recording.
Upper Alarm Limit (Fig. 7) Lower Alarm
Alarm limit values are set by Limit (Fig. 8)
the user in the QA-T5 software.
VII. Operating Instructions:
1. Start Recording: After setting the parameters in the software, the logger has NOT
started recording yet. To Start, Press and Hold the left button for more than four
seconds. Once the symbol lights up, recording has started. If the symbol flashes,
the data logger has a delayed start time. *Resetting and saving parameters in the
software will erase all data. Be sure to save data before setting new parameters.
2. Stop Recording:
The data logger will automatically stop recording when the recording capacity is
full. In the status display, if the symbol lights up, it means recording has stopped.
If "permit stopping by pressing button" is set, press the right button for more than
four seconds and the symbol lights up, which means recording has stopped.
Recording can also be stopped in the software by selecting the Stop Record icon in
the tool bar. *After the data logger stops recording, it cannot be started again by pressing
the left button. It can only be started again by resetting the parameters in the software.
3. Switch Menu Items: By short pressing the left button, the display interface will cycle
to the next item.
4. Return to the Status Display: By short pressing the right button, the logger will
return to the main status display.
5. Alarm Status: During recording, if the measured temperature is higher than the
upper limit, the symbol lights up, indicating an upper alarm. If the measured
temperature is lower than the lower limit, the symbol lights up, indicating a lower
alarm.
6. Recording Interval: This interval is selected in the software. Once the parameter is
set, data will be saved according to the chosen interval. After the interval is selected,
the time length bar automatically calculates the recording time length.
7. Recording Time Length: Describes the total recording time before the memory
reaches its full capacity.
8. Clear The Recorded Data: Data can be cleared through resetting the parameters in
the software or by selecting the Delete Data icon in the tool bar.
9. Inner Clock and Calendar: The date and time are adjusted in the software.
10. Sensor Failure: When there is a sensor failure or the logger goes over the
temperature range, it will display the notifications below.
It will display "Err" in the normal temperature position of the LCD.
There will be a "Sensor error" warning in the software.
11. Battery Level Indication:
*lf the battery level falls below
10%, please replace the battery
immediately!
12. Other Functions:
Recording Time Delay: Set the "start delay time" in software, press the left button
for more than 4 seconds and the symbol flashes, which indicates a delayed start
status. Once recording has started, the symbol stops flashing.
Temperature Unit: °F or °C can be selected in the software
Serial Number / User Information: Logger details or unique identifiers can be set as
needed in the software.
13. QA-T5 Data Management Software:
Provides data analysis functionality and allows data to be view graphically or in tables.
Data can be also be queried, saved, printed or exported as Word, Excel, TXT or PDF
formats. The software is available for Windows and Mac. Windows version supports
XP or above and the Mac version supports OSX 10.5.6 or above. *Both versions of the
software can be downloaded at www.QAsupplies.com.
VIII. Battery Replacement:
Replacing the Batteries
1. Rotate the cover counter-clockwise to the position shown in Figure 10.
2. Remove the battery cover
3. Remove the old battery from the slot
4. Put the new battery into the slot (negative pole down)
5. Replace the cover as shown in Figure 14
6. Rotate the cover clockwise to the position shown in Figure 16
QA Supplies LLC
1185 Pineridge Road
Norfolk, VA 23502 USA
(800) 472-7205
[email protected]
Download a copy of this manual at www.QAsupplies.com

Popular Measuring Instrument manuals by other brands

Anritsu Network Master Series Operation manual

Anritsu

Anritsu Network Master Series Operation manual

Malmbergs LX1010B+ instruction manual

Malmbergs

Malmbergs LX1010B+ instruction manual

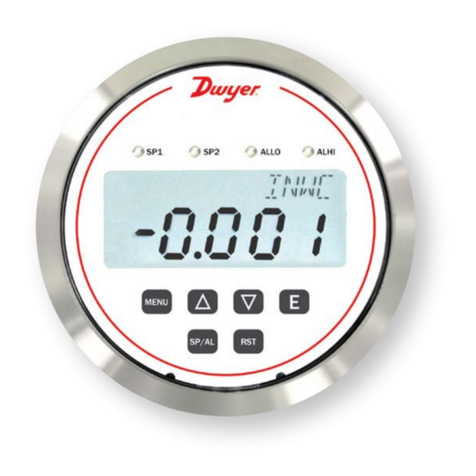

Dwyer Instruments RPME Series Specifications-installation and operating instructions

Dwyer Instruments

Dwyer Instruments RPME Series Specifications-installation and operating instructions

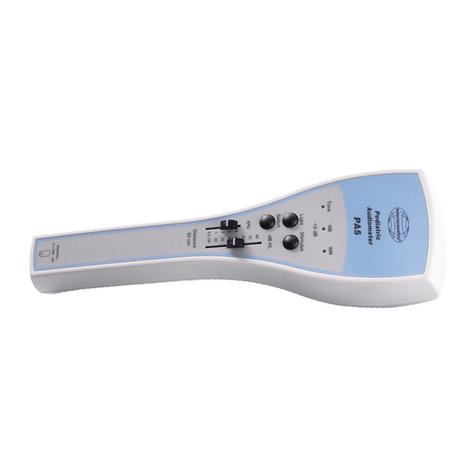

Interacoustics PA5 Instructions for use

Interacoustics

Interacoustics PA5 Instructions for use

Chauvin Arnoux C.A 6511 user manual

Chauvin Arnoux

Chauvin Arnoux C.A 6511 user manual

Endress+Hauser Proline Promass 80 Brief operating instructions

Endress+Hauser

Endress+Hauser Proline Promass 80 Brief operating instructions

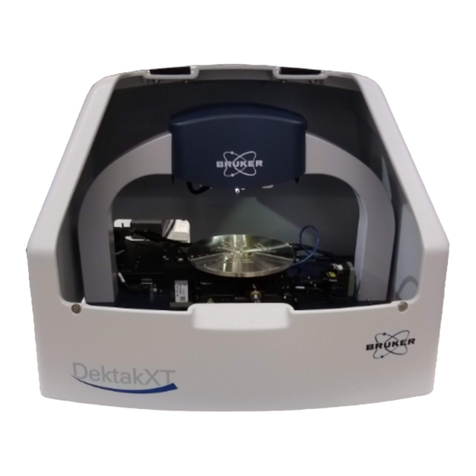

Dektak XT User instructions

Dektak

Dektak XT User instructions

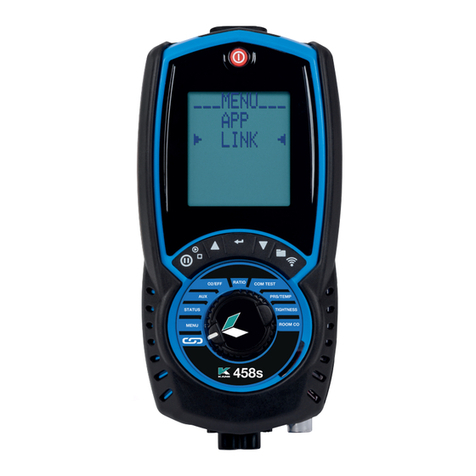

Kane KANE-LINK Quick reference guide

Kane

Kane KANE-LINK Quick reference guide

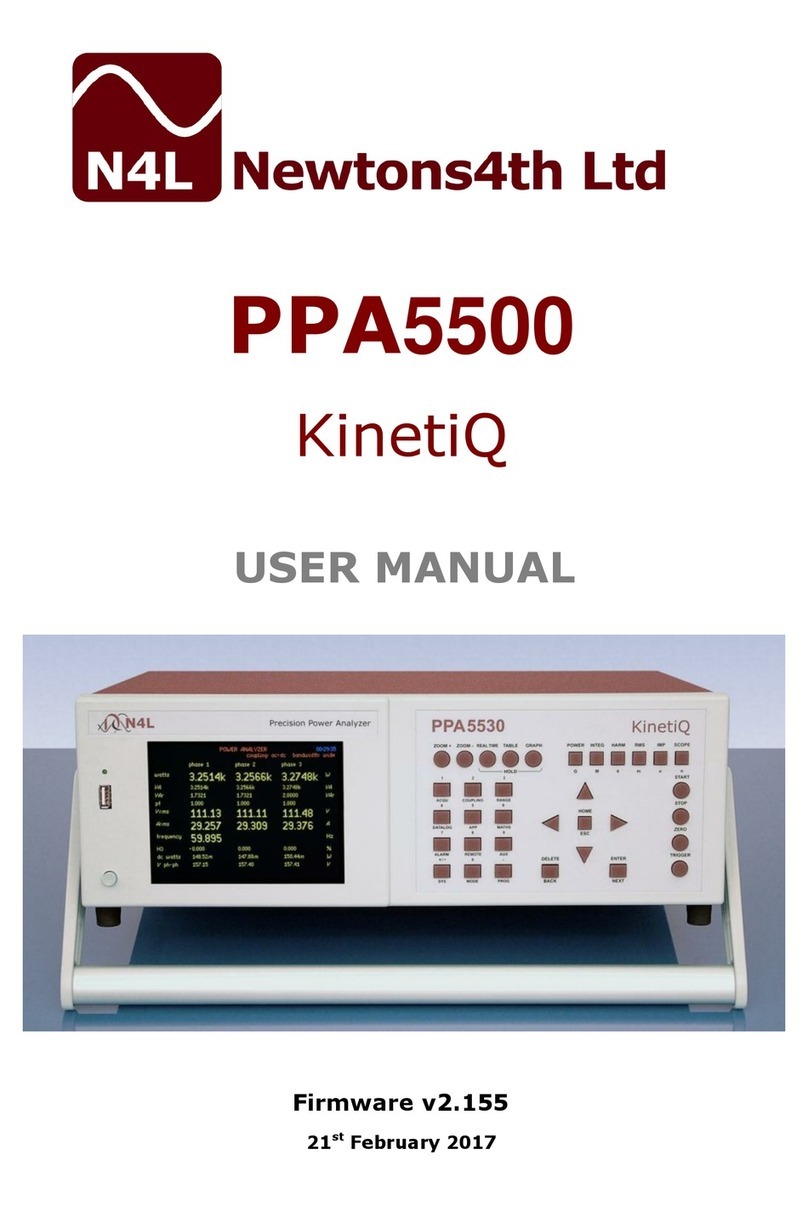

Newtons4th PPA 5500 KinetiQ user manual

Newtons4th

Newtons4th PPA 5500 KinetiQ user manual

Elster EK280 Applications manual

Elster

Elster EK280 Applications manual

Solinst 102 Replacement manual

Solinst

Solinst 102 Replacement manual

RS PRO 877-1791 quick start guide

RS PRO

RS PRO 877-1791 quick start guide

TESTO 417 instruction manual

TESTO

TESTO 417 instruction manual

UEi PET1 instruction manual

UEi

UEi PET1 instruction manual

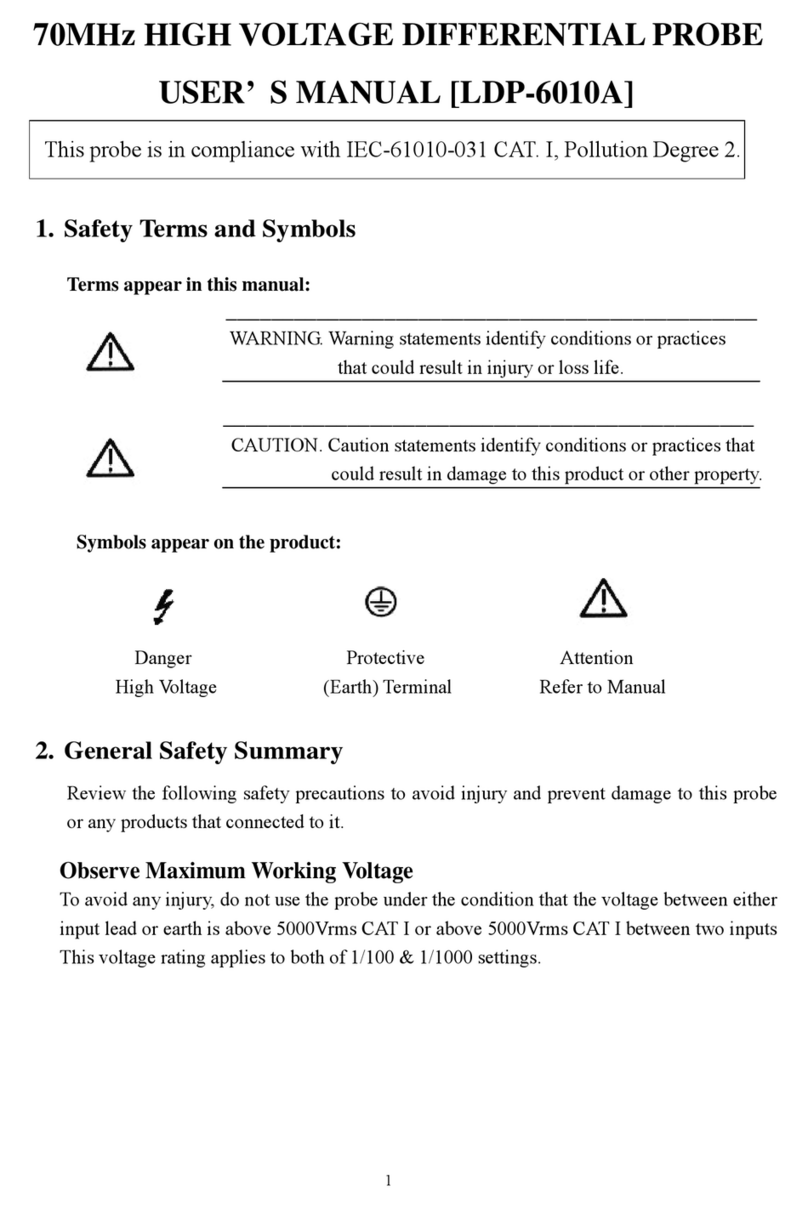

Sapphire Instruments LDP-6010A user manual

Sapphire Instruments

Sapphire Instruments LDP-6010A user manual

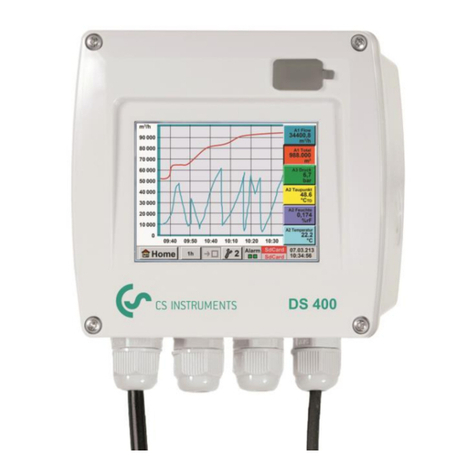

CS Instruments DS400 Installation and operating instructions

CS Instruments

CS Instruments DS400 Installation and operating instructions

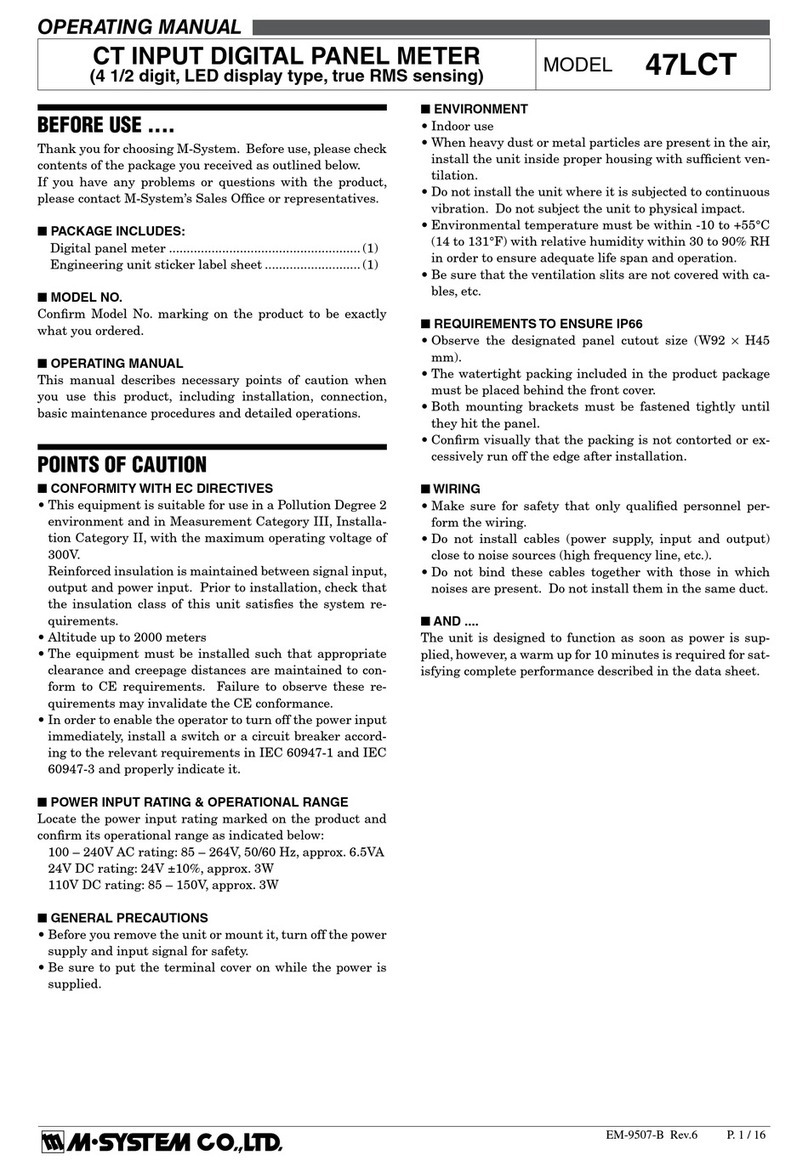

M-system 47LCT operating manual

M-system

M-system 47LCT operating manual

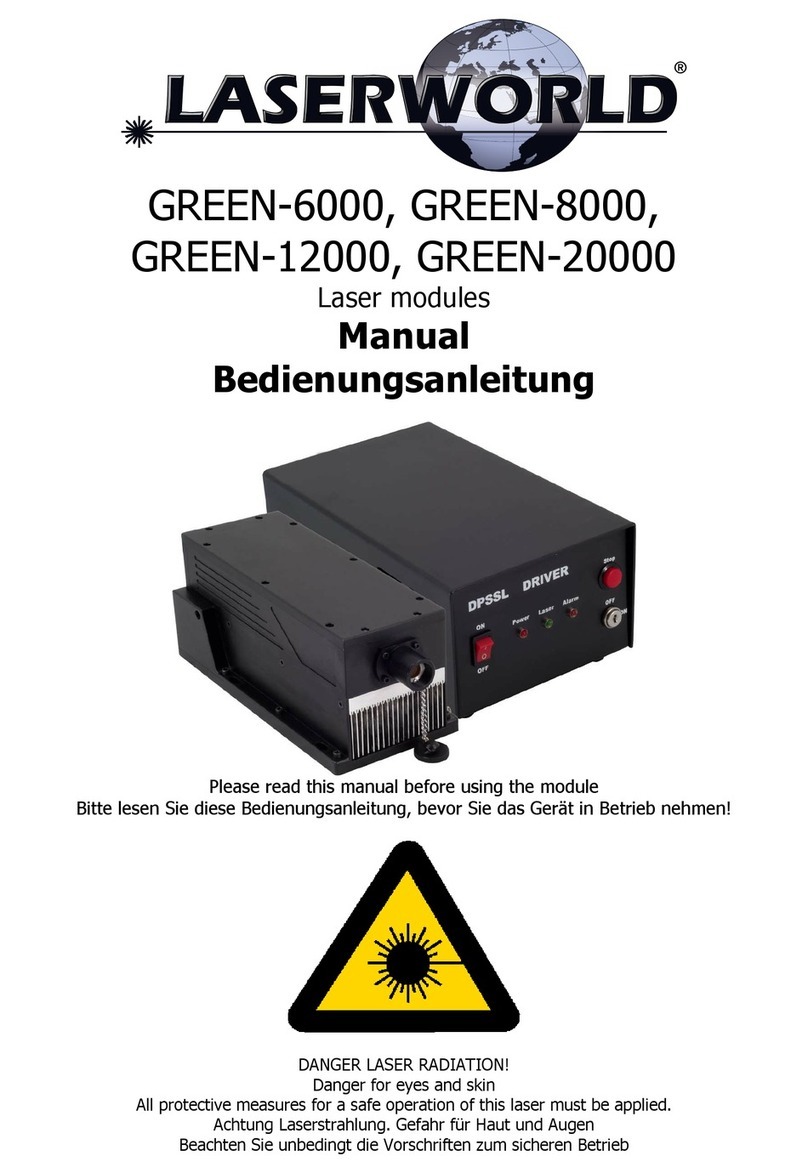

Laserworld GREEN-6000 manual
