QCA Spa Jewel +3 Series User manual

ENJOY
Your QCA Jewel +3 Series Spa
ML 700 Panel
OWNER’S MANUAL
This owner’s manual is for YOU! It will show you how to operate and maintain your very own
spa. We think it is important for you to take a few moments and get acquainted with your new
spa operation. Please keep this manual available for references.
QCA Spas would like to congratulate you on your purchase and we sincerely hope you enjoy
your QCA Spa.
SERIAL NUMBER_____________
18 DIGIT SPA NUMBER__________________
Jewel +3 ML 700 Panel 5.07

TABLE OF CONTENTS
Cleaning the Filter Cartridge..........................................11
Draining the Water .........................................................10
Filter Maintenance ..........................................................11
Hydro-, Turbo-, Air-Max(tm) ............................................9
Hyperthermia Description.................................................3
Initial Start Up...................................................................5
Installation Instructions.....................................................4
115/240v Installations .......................................................4

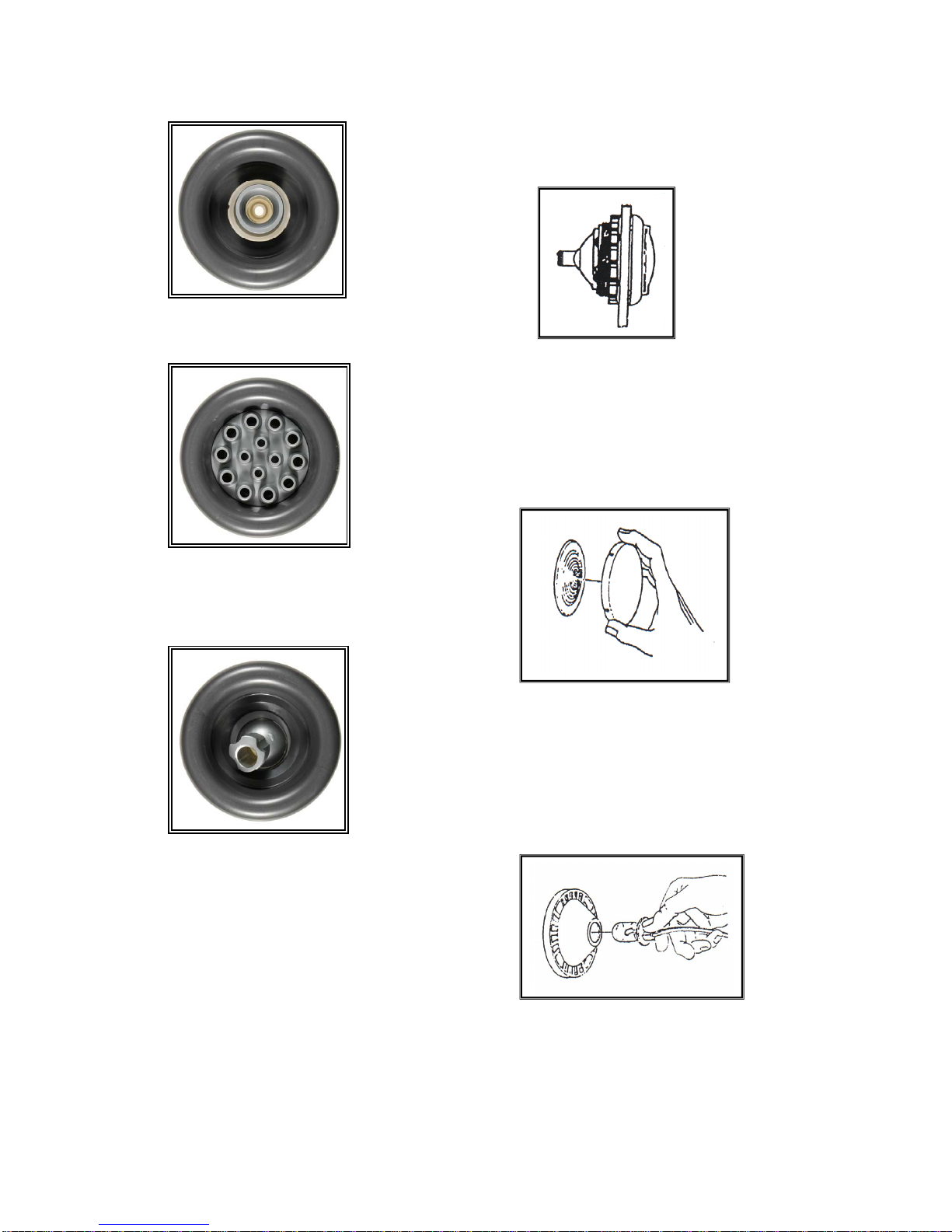

Jets, Jets, Jets.....................................................................9
Prevention of Freezing ..............................................11-12
QCA Majestic Spa Light....................................................9
Refilling your Spa ............................................................10
Removing the Filter Cartridge ........................................11
Sequencer Controller ........................................................8
Spa and Cabinet Maintenance.........................................12
Spa Location ......................................................................4
Spa Side Control................................................................5
Spa Vac Kit ......................................................................10
System Messages............................................................ 7-8
Troubleshooting............................................................. 7-8
UL Instructions ..................................................................3
Vacation Care..................................................................11
Warranty ..........................................................................12
Warranty Card.................................................................13
Water Care Program................................................. 10-11
Winterizing.......................................................................12
2

3
UL INSTRUCTIONS
The instructions you are about to read are required to
be published in your manual by the Underwriters
Laboratories. These instructions are very important
for your safety and QCA would like to encourage you
to read and apply all instructions. Thank you!
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment,
remember to always observe safety precautions,
including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2a. DANGER - To reduce the risk of injury, do not
permit children to use this product unless they are
closely supervised.
2b. WARNING - RISK OF CHILD DROWNING.
Extreme caution must be exercised to prevent
unauthorized access by children. To avoid
accidents, ensure that children cannot use a spa or
hot tub unless they are supervised at all times.
3. Connect to a grounded, grounding type receptacle
only.
4. WARNING - To reduce the risk of electrical
shock, replace a damaged cord immediately.
5. DANGER - To reduce the risk of injury to persons,
do not remove suction fittings.
6. A pressure wire connector is provided on the
inside and outside of the control box inside the unit
to permit connection of a minimum No. 8 AWG
(8.4mm) solid copper bonding conductor between
this point and any metal equipment, metal
enclosures of electrical equipment, metal water
pipe, or conduit within 5 feet (1.5m) of the unit as
needed to comply with local requirements.
7. (All permanently installed units must have a
GFCI) This appliance must have a neutrally
protected ground-fault circuit-interrupter. Before
each use and with the unit operating, push the test
button. The unit should stop operating and the
reset button should appear. Push the reset button.
The unit should now operate normally. If the
interrupter does not perform in this manner, a
ground current is flowing indicating the possibility
of an electric shock. Disconnect the power until
the fault has been identified and corrected.
8. Install to provide drainage of compartment for
electrical components.
9. RISK OF ELECTRIC SHOCK. Install at least 5
feet (1.5m) from all metal surfaces. (A spa may be
installed within 5 feet of metal surfaces if each
metal surface is permanently connected by a
minimum No. 8 AWG (8.4mm) solid copper
conductor attached to the pressure wire connector
on the terminal box that is provided for this
purpose.)
10. DANGER - RISK OF ELECTRICAL SHOCK.
Do not permit any electrical appliance, such as a
light, telephone, radio, or television, within 5 feet
(1.5m) of the spa or hot tub.
11. To reduce the risk of injury:
a. The water in a spa or hot tub should never
exceed 40°C (104°F). Water temperatures
between 38°C (100°F) and 40°C (104°F) are
considered safe for a healthy adult. Lower
water temperatures are recommended for
extended use (exceeding 10-15 minutes) and
for young children.
b. Since excessive water temperatures have a
high potential for causing fetal damage during
the early months of pregnancy, pregnant or
possibly pregnant women should limit spa or
hot tub water temperatures to 38°C (100°F).
c. Before entering a spa or hot tub, the user
should measure the water temperature with an
accurate thermometer since the tolerance of
water temperature-regulating devices may
vary as much as +/-30C (5°F).
d. The use of alcohol, drugs, or medication
before or during spa or hot tub use may lead to
unconsciousness with the possibility of
drowning.
e. Persons suffering from obesity or with a
medical history of heart disease, low or high
blood pressure, circulatory system problems or
diabetes should consult a physician before
using a spa or hot tub.
f. Persons using medication should consult a
physician before using a spa or hot tub since
some medication may induce drowsiness while
other medications may affect heart rate, blood
pressure, and circulation.
12. The electrical supply for this product must
include a suitably rated switch or circuit breaker
to open all ungrounded supply conductors to
comply with section 422-20 of the National
Electrical Code, ANSI/NFPA 70-1987. The
disconnecting means must be readily accessible
to the tub occupant but installed at least 5 feet
(1.5m) from the tub water. For units used in
other than single-family dwellings, a clearly
labeled emergency switch shall be provided as
part of the installation. The switch shall be
readily accessible to the occupants and shall be
installed at least 5 feet (1.52 m) away, adjacent
to, and within sight of the unit.
SAVE THESE NSTRUCTIONS
Just a quick note,
For your own security...Prolonged immersion in water
that is warmer than normal body temperature can result
in a dangerous condition known as HYPERTHERMIA.
The causes, symptoms, and effects of hyperthermia may be
described as follows: Hyperthermia occurs when the
internal temperature of the body reaches a level several
degrees above the normal temperature of 98.60F or 37°
C. The symptoms of hyperthermia include dizziness,
fainting, drowsiness, lethargy, and an increase in the
internal temperature of the body. The effects of
hyperthermia include (1) unawareness of impending
hazard, (2) failure to perceive heat, (3) failure to
recognize the need to exit the spa, (4) physical inability to
exit the spa, (5) fetal damage in pregnant women, and (6)
unconsciousness resulting in a danger of drowning.

WARNING - the use of alcohol, drugs, or medication can
greatly increase the risk of fatal hyperthermia in hot tubs
and spas.
S p a L o c a t i o n
The selection of a site for the installation of your spa
is a very important decision and should be undertaken
keeping several factors in mind.
1. Always check your local codes before installing
your spa. A clear understanding of buildings,
fences, gates, electrical and plumbing guidelines
will be invaluable.
2. Select a location that will compliment your
lifestyle and your home. The spa will become an
integral part of your life and therefore should be
placed advantageously.
3. The position of the spa in relation to surrounding
terrain should be considered. Locating the spa near
or directly under trees not only cuts off the sun
thereby depriving you of natural heat, but also
necessitates the physical removal of leaves and
debris. Airborne dirt and debris may also be
carried into the spa by prevailing winds. In
addition, an uncovered spa with wind blowing
across the top will tend to lower water
temperatures; therefore you may wish to shield
your spa from direct winds.
4. You may wish to consider an indoor installation.
An indoor spa located off of a bedroom or family
room can offer relaxing solitude or enjoyable
gatherings of friends or family. Care should be
taken in providing protection from possible water
damage due to splashing. High humidity levels
relating to the spa can also be a source for damage
and should be planned for in the construction
stage.
5. Your portable spa with a cabinet has been
designed to be self-supporting. Any further
reinforcement or support is not required when
placed upon a sound foundation. In order to
prevent damage to the cabinet and spa be certain
to locate the spa on a solid, level foundation
capable of maintaining the weight of the spa when
filled with water.
6. A base of poured concrete is best for this type of
installation. You may wish to use an existing patio
but if you wish to construct a new base for your
spa, select a level, flat area. After removing the
topsoil, construct a square frame using four 2x4's.
Usually an area ten square foot will suffice. When
the frame has been leveled, pour a 3 1/2" base of
concrete mix into the frame leveling the mix by
stroking across the top with another 2x4. Finish
the top with the cement float. When the slab has
cured remove the 2x4's and landscape as desired.
Note: It is necessary to provide drainage of the
compartment for the electrical components.
7. Install your spa in a location, which allows easy
access to the equipment bay.
8. Before filling with water, be sure the spa is in its
final position and that hoses, tools, etc. are not
under the spa.
Installation Instructions
Electrical-General
Prior to performing any service to the spa package turn
OFF ALL primary electric power at the main circuit
breaker or disconnect panel.
Opening the front cover of the electrical control box can
make all field electrical connections.
All electrical connections to this spa package must be
accomplished by a qualified electrician in accordance with
the National Electric Code or the Canadian Electric Code
and in accordance with any local electrical codes in effect
at the time of installation.
All connections should be made in accordance with the
wiring tab enclosed in the electrical control box.
These spa packages are designed to operate on 60Hz
Alternating Current only, at a voltage of 240 volts.
Spa packages with a 240-volt rating require a three wire
electrical service, plus ground (line 1, line 2, neutral and
ground).
Connections should be made using copper conductors
only. The connecting wire and circuit breakers or fuses
must be sized to accommodate the Total Ampere load as
specified on the equipment module data label.
A bonding lug has been provided on the equipment
module to allow connection to local ground points. To
reduce the risk of electrical shock, a #8 AWG solid copper
bonding wire should be run from this lug to any metal
ladders, water pipes or other metal within 5 feet of the spa.
240 volt Installation
PLEASE NOTE: To Overseas owners
50 Hz, 230-volt units should be wired to
the national code in the country of the
owner’s residence.
Units to be operated at 240 volts must have all electrical
connections accomplished by a qualified electrician in
accordance with the National Electric Code, the Canadian
Electric Code or other local electrical codes in effect at the
time of installation.
Equipment modules installed for 240-volt operation
requires a three wire electrical service, plus ground (line 1,
line 2, neutral and ground). Refer to terminal block
diagram.
Starting the Spa
1. Fill the spa to at least minimum water level (indicated
near the skimmer) before electrical power is turned on.
- Be sure all valves and hose bib, located on power
pack, are closed and all union nuts are tight.
2. Check for plumbing leaks.
3. Be sure all suction valves to the equipment pack are
open.
4. Open return valve with handle in up position.
5. Set filtering cycles according to control panel
instructions.
4

Jewel +3 Series Spas
Initial Start-up
When your spa is first powered up, it will automatically heat and maintain 100°F until you change the set
temperature. In the event of a power failure or during a manual shutdown, the spa will revert to the last set
temperature, mode, and filter cycle before the loss of power once power is restored.
Self Diagnosis/Priming mode of spa takes six minutes. Four minutes after power-up "- -" will appear for two
minutes. Spa is now ready to program.
DO NOT DISTURB during the six-minute self-diagnostic procedure.
SECOND WATER PUMP IS OPTIONAL
Icon Legend
Heat Icon - Indicates different
stages of heating.
f
n bright.
Jets Icon - Spins fast on high-speed
spins slow on low speed.
Blower Icon - Biggest in
highest speed; smallest in
lowest speed.
Fiber-Optic Light Icon – Spins when
the wheel is on; stands still when
wheel is off.
Light Icon - On dim, the
LCD will show the center
circle plus one quarter of the light beams. Half o
the light beams will show on medium brightness,
and all of the light beams will show o
Temp Set (80°F - 104°F / 26.0°C - 40.0°C)
The start-up temperature is set at 100°F/37.5°C.
The last measured temperature is constantly
displayed on the LCD.
Press the “Warm” or “Cool” button once to display
the set temperature. Each time either button is
pressed again, the set temperature will increase or
decrease depending on which button is pressed.
After three seconds, the LCD will automatically
display the last measured spa temperature.
Note that the last measured spa temperature
displayed is current only when the pump has been
running for at least 2 minutes.
Setting the Time
When time hasn’t been programmed, the TIME
icon flashes.
Press Time and then the Mode/Prog button.
Select the hour by pressing the warm or cool
arrows. Each press changes the time by 1 hour.
Select minutes by pressing the Mode/Prog once
again followed by the warm or cool arrows. Each
press changes the time by 1 minute.
Press the Mode/Prog to exit the time setting
procedure and enter the optional filter cycle
programming.
Mode/Prog
This button is used to switch between standard,
economy, and sleep modes. Press “Mode/Prog” to
enter mode programming, press “Cool” to cycle
through to desired mode (LCD flashes until
confirmed), then press “Mode/Prog” to confirm
selection.
Standard mode maintains the desired
temperature. The “STANDARD” icon will display
until the mode is changed.
Economy mode heats the spa to set temperature
only during filter cycles. The “ECONOMY” icon
will display until mode is changed.
Pressing “Jets 1” while in Economy mode puts the
spa in Standard-In-Economy mode, which operates
the same as Standard Mode, then reverts to
Economy Mode automatically after 1 hour.
During this time, a press of the “Mode/Prog”
button will revert to Economy Mode immediately.
Sleep mode heats the spa to within 20°F (11°C) of
the set temperature only during filter cycles. The
“SLEEP” icon will display until mode is changed.
5
