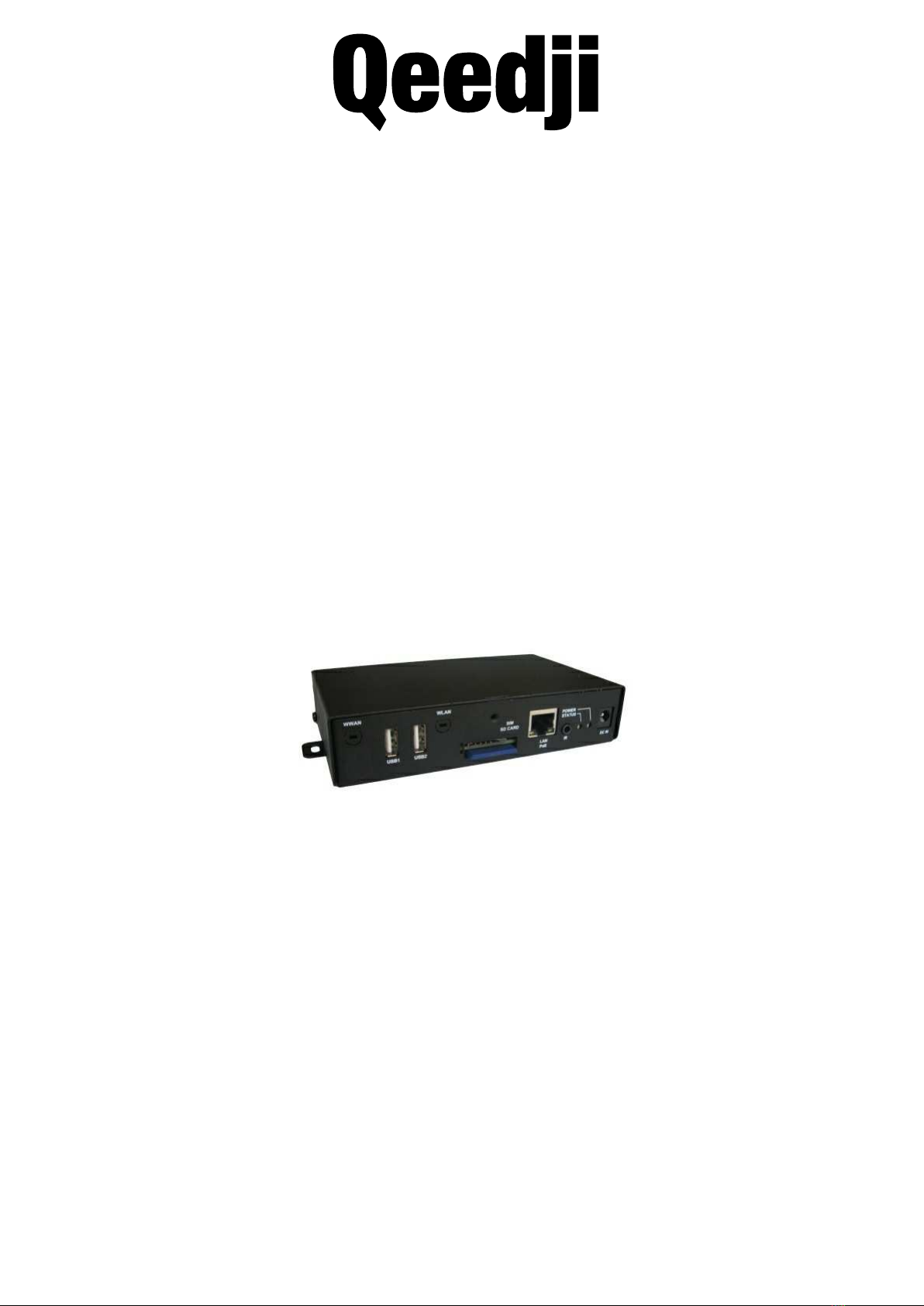

Qeedji SMA300 User manual

User Manual
SMA300
4.12.10 001C
1

Legal Notice
User Manual SMA300 4.12.10 (001C_en)
© 2019 INNES SA
Rights and Responsibilities
All rights reserved. No part of this manual may be reproduced in any form or by any means whatsoever without the written permission of the publisher. The products
and services mentioned in this document may be trademarks and/or trademarks of their respective owners. The publisher and the author do not pretend to these
brands.
Although every precaution has been taken in the preparation of this document, the publisher and the author assumes no responsibility for errors or omissions, or for
damages resulting from the use of the information contained in this document or the use of programs and source code who can accompany it. Under no circumstances
can the publisher and the author be held responsible for any loss of profits or any other commercial prejudice caused or that would have been caused directly or
indirectly by this document.
Product information
The conception and specifications of the product may change without prior notice, and this applies to hardware, embedded software and this guide. Consumable items
accessories may slightly differ than herein described as Qeedji is depending on the evolutions of its suppliers. This document contains confidential information; it can’t
be disclosed to any third parties without prior written authorization of INNES.
Safety instructions
Please read carefully the following instructions before switching the product on: - WARNING! Correct fitting and installation is of the utmost importance. Incorrect fitting
and/or installation may result in personal injury or loss. Qeedji disclaims all liability, of whatever kind, if the product is assembled, fitted and/or installed in an incorrect
manner. - Do not use the product near a water supply. - Do not pour anything on the product, like flammable liquids or material. - Do not expose the product to direct
sun, near a heating source or a dust nor vibrations. - Do not obstruct holes, to be sure that air flows freely around the product. - Switch off the product during a storm. -
Do not open the product in any circumstances.
Guarantee terms
Qeedji products are eligible for a warranty to cover genuine manufacturing defect for 3 years. Product failure occurring as the result of factors that do not constitute
genuine manufacturing defect are not covered under the terms of the warranty and any repairs of this nature would be chargeable. For example: Inappropriate
maintenance action, a non-authorized modification, a not specified environment utilization (see ‘Safety instructions’), or if the product has been damaged after an
impact, a fall, a bad manipulation or a storm consequence, an insufficient protection against heat, moisture or frost. This warranty is not transferrable. In addition, any
repairs carried out by non-authorized personnel will invalidate the warranty.
WEEE Directive
This symbol means that your end of life equipment must not be disposed of with household waste but must be deposited at a collection point for waste electrical and
electronic equipment or to your reseller. This will benefit the environment. In this context, a system for collecting and recycling has been implemented by the European
Union
2

1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.10
Table of Contents
Introduction
Getting Started
LEDs
Connectors
Configuration Web interface
Launch your own App
Technical specifications
Troubleshooting
Conformities
Contacts
3

1.1 Introduction
This manual explains how to setup your device SMA300.
Recommendations and warnings
This device is designed to be used inside a building.
This device is intended to work with the supplied power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If
the AC power cable is damaged, it must be replaced. It is possible to order a replacement mains unit by sending a request to the email address [email protected].
This device is a Class A device. In a residential environment this device may cause radio interference. In this case, the user is asked to take appropriate measures.
When powering the unit from a PoE source, this PoE source must be "Limited Power Source" as defined in EN60950-1: 2006.
Content of the package
Items Functions
Device SMA300 with Gekkota embedded
1 power supply unit 12V Power Supply unit with cable of 1.2m
1 label PSN (Product Serial Number) on the packaging and on the device
1 WLAN antenna To be screwed on the dedicated WLAN locations (provided with the device when it is supporting the WLAN option)
1 WWAN antenna To be screwed on the dedicated WLAN locations (provided with the device when it is supporting the WWAN option)
4

1.2 Getting started with the device
Device front face
1 HDMI output connector
2 Audio connector
Device rear face
3 WWAN antenna slot
4 USB1 2.0 Host connector
5 USB2 2.0 Host connector
6 WLAN antenna slot
7 SIM & SD Card connector
8 LAN PoE RJ45 connector
9 GPIO1/IR connector
10 Status green LED
11 Power supply red LED
12 Power supply connector
Device rear face having the WLAN and WWAN options
3 WWAN antenna scrolling location
6 WLAN antenna scrolling location
Device fixture
4mm
10 mm
159 mm
Device dimensions
SMA300
HDMI OUTAUDIO OUT
1
2
STATUS
POWER
DC IN
USB1 USB2 LAN P oE IR
WLAN
WWAN
SIM/ SD CARD
3
4
5
6
7
8
9
10
11
12
STATUS
POWER
DC IN
USB1 USB2 LAN P oE IR
WLAN
WWAN
SIM/ SD CARD
3
6
5

Labelling
The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on a label which is stuck on the case. Some
additional tags may be present in case of built-in options.
☛ The serial number of the device can be requested in case of technical support.
Model:
00:1C :E 6:02:40:BE
5A rue Pierre Joseph C olin
35000 RENNE S
12V DC
MAC :
600mA
www.qeedji.tech
Input:
SMA300-SD8
FR ANC E
P S N00801-02903 C D3
www.qeedji.tech
3 7 0 0 5 6 8 1 0 5 0 3 8
EAN
MODE L
SMA300-SD8

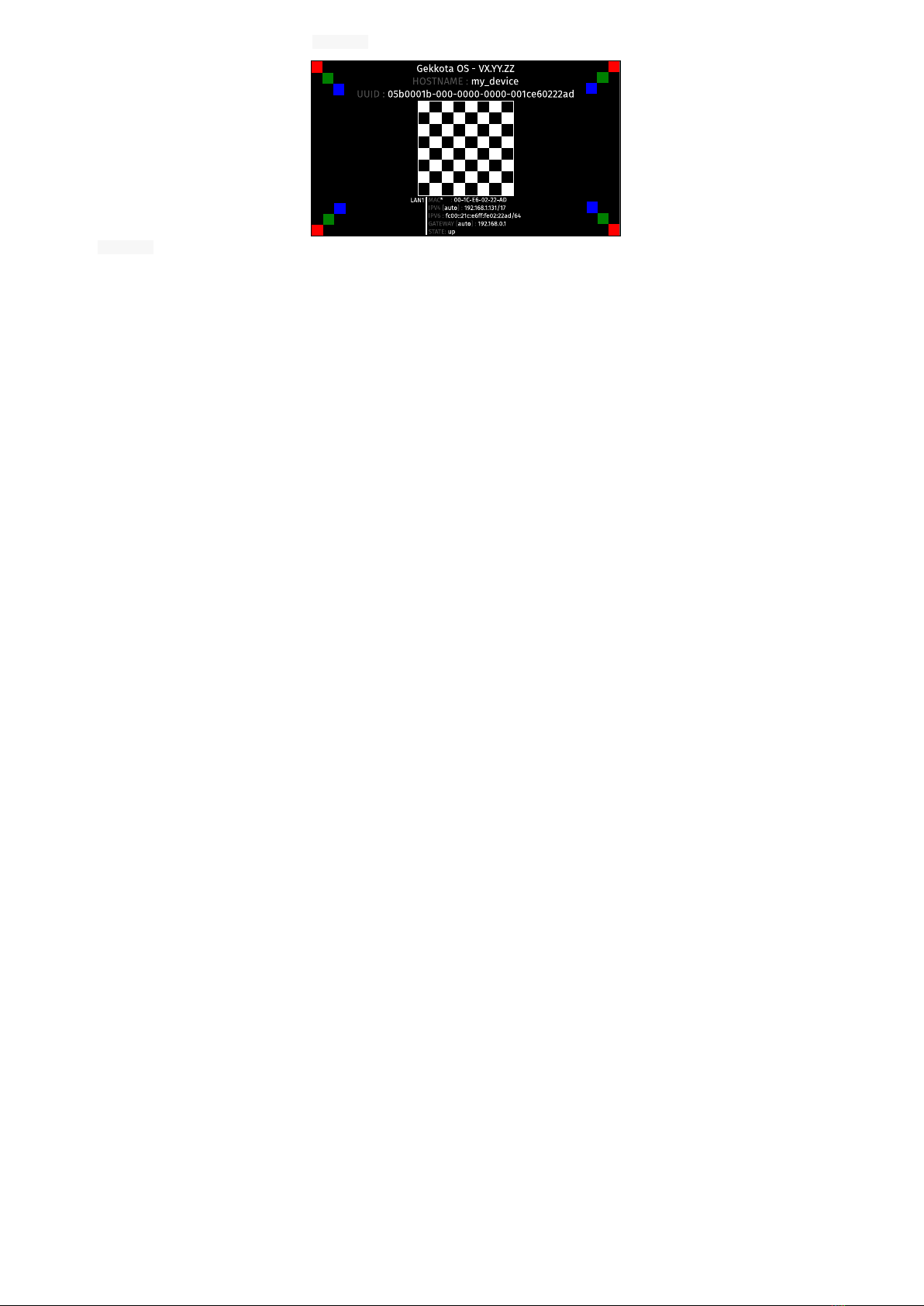

Device start-up step
Testcard
Step 1 (T0=0s)
Device start-up initialisation
Step 2 (T~11s)
Device start-up finalisation
This phase duration is depending on some variable values
(like NTP), some network access duration or some data
checking (check-disk)
Step 3 (T~38s)
Nominal mode
During this step, the device has to play the content.
When firmware upgrade process occured, in
case DNS valid & NTP server inactive, it takes ~4
min 30 s.
>
6

At the factory, the device content set by default is the Test Card . The chart displays important information to assist in the device configuration:


Disable the Test Card by using the WebUI.
If your monitor does support the CEC with its pass-through feature, the test card can be activated or inactivated thanks to the monitor remote control with the key
combination [left, right, left, right] pressed in less than 10 seconds.
7

1.3 LEDs behaviour
LED POWER behaviour (power on device)
State Information
Red OK: Power supplied
Off Error : Power supply issue ¹
LED LAN behaviour (power on device)
State Information
Off There is no network traffic on the Ethernet connector
Blinking The blinking frequency is indicating the data rate on Ethernet connector
LED STATUS behaviour depending on device start-up steps
• Step 1 : Device start-up initialisation
State Information
Green: continuous OK
Always Off Error : Power supply issue ¹
• Step 2 : Device start-up finalisation
State Information
Off OK. This step duration can be from several seconds to several minutes.
Green blinking: 1 second duration flash and periodicity every 2 seconds Error: Boot issue ¹
• Step 3 : Nominal mode
State Information
Green blinking: 1 very short
flash (150 ms) and periodicity
every 4 seconds
OK
Green blinking: 2 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Warning: Fail Soft Mode Level 1
Frequent device reboot detected (for example 4 times in less than ½ hour)
Message is displayed on screen «Fail Soft Mode: waiting for new content ».
The instability has been caused probably by a content media not supported yet by system. Consequently, to prevent any further
reboot, the content has been invalided. The message displayed on screen indicates that a new publication is needed to go ahead. ²
Green blinking: 3 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Warning: Fail Soft Mode Level 2
Frequent device reboot detected (for example 4 times in less than ½ hour)
Content is purged
Message is displayed on screen «Fail Soft Mode: waiting for new content ».
The instability has been caused probably by a content not supported yet by system or a user preference which has been modified.
Consequently, to prevent any further reboot, the content has been invalidated and user preferences (saved before unexpected
reboot) have been restored. The message displayed on screen indicates that a new publication is needed to go ahead. ²
Green blinking: 4 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Warning: Check disk
The device has detected memory corruption on content storage. The media storage is being repaired. This repair step is called
Check-Disk and its duration can be several minutes. During this step, a message “checking the file system of data partition in
progress” is displayed on screen. ³
Green blinking: 5 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Warning: errors on system partition
The user has to connect to device WebUI, go to Maintenance > Tools menu, and press button Format or Repair to solve the
problem. ³
Green blinking: 6 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Warning: a firmware update is pending
During this phase, no content is played on the device, do not switch OFF the device.
Green blinking: 7 very short
and consecutive flashs (150
ms) and periodicity every 4
seconds
Erro: write problem on the storage
For an unknown reason, your storage space isn't usable any more. ³
Off Error. ¹
8

¹ If the problem persists in despite of an appropriate power-supply, contact the technical support.
² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content.
³ If the problem persists after a partition repairing, contact the technical support.
9

1.4 Connectors pin-out
Power supply connector (12VDC-0.6A)
+
DC IN
IR
LAN connector
Ethernet RJ-45 PoE. 10/100 BaseT. It is recommended to use shielded cables.
Audio Jack 3.5mm connector (stereo L+R)
It is recommended to use cables whose length is less than 3 meters.
GND
R
L
HDMI OUT
AUDIO OUT
Jack 3.5mm connector (GPIO1/IR)
321
DC IN
IR
N° Name Write/Read Control
1 Voltage reference 3.3V
2 GPIO1 IN or OUT CPU/GPIO1
3 Ground
Electrical features
Vin min Vin max VOH min VOH max IOH max VOL max IOL max VIH min VIL max
GPIO1 -0.5V 3.8V 3.1V (@ 20uA) 3.3V -100A 0.6V (@ 2mA) 5mA 2.35V 0.8V
The 3.3V pin must not be used as a power supply, but rather as a reference voltage.
It has a rearmable fuse (350mA @ 20°C)
It is not recommended to hotplug/unplug GPIO1 connector, it could provoke a failure of the device.
During boot, the GPIO1 is configured in input during some seconds. And then after the system startup, the GPIO1 is operational.
The GPIO has a pull-up (4.7 KOhms on 3.3V).
Principle schematics for several use cases
Three wires input configuration for GPIO1:
10

Two wires configuration for GPIO1:
Output configuration for GPIO1:
Configuration
GPIO1 connector configuration can be done through system preferences edition with device WebUI or with a configuration script. The GPIO1 configuration part for this
script is described here:
How to configure the Jack 3.5 mm connector:
//Set Jack 3.5 mode infrared
if (aDirection == "disable")
{
Services.prefs.setBoolPref("system.connector.jack35_1.1.io.uart_1.enabled", true);
}
else //Set Jack 3.5 mode GPIO
{
Services.prefs.setBoolPref("system.connector.jack35_1.1.io.uart_1.enabled", false);
}
// Set the Jack 3.5 direction : input or output
if (aDirection == "out")
{
Services.prefs.setBoolPref("innes.app-profile.gpio-input.jack35-gpio_1.jack35_1.*.authorized", false);
Services.prefs.setBoolPref("innes.app-profile.gpio-output.jack35-gpio_1.jack35_1.*.authorized", true);
Services.prefs.setBoolPref("system.connector.jack35_1.1.io.jack35-gpio_1.enabled", true);
}
else if (aDirection == "in")
{
Services.prefs.setBoolPref("innes.app-profile.gpio-input.jack35-gpio_1.jack35_1.*.authorized", true);
Services.prefs.setBoolPref("innes.app-profile.gpio-output.jack35-gpio_1.jack35_1.*.authorized", false);
Services.prefs.setBoolPref("system.connector.jack35_1.1.io.jack35-gpio_1.enabled", true);
}
else if (aDirection == "disable")
{
Services.prefs.setBoolPref("innes.app-profile.gpio-input.jack35-gpio_1.jack35_1.*.authorized", false);
Services.prefs.setBoolPref("innes.app-profile.gpio-output.jack35-gpio_1.jack35_1.*.authorized", false);
Services.prefs.setBoolPref("system.connector.jack35_1.1.io.jack35-gpio_1.enabled", false);
}
3.3V
CPU/GPIO1
SMA300
Switch
Input
2 (Jack)
3 (Jack)
1 (Jack)
PERIPHERAL
CPU/GPIO1
SMA300
Switch or dry loop
Input
2 (Jack)
3 (Jack)
PERIPHERAL
CPU/GPIO4
SMT210
Logic gate, transistor or opto-coupler
Output
Power supply
+-
2 (Jack)
3 (Jack)
PERIPHERAL
11

1.5 Device configuration Web interface
The device SMA300 supports a configuration Web interface. It is available with the URL:
http://<device_IP_addr>/.admin/
The defaut login and password to connect to the device configuration Web interface are:
login: admin
password: admin
The supported Web browsers are : MS-Edge , Google Chrome and Mozilla Firefox .
The LAN factory configuration is the DHCP mode.
These are the main parameters:
Configuration > Administrator :
Login / password
Hostname ,
Identification method ,
⚠ It is recommended to enter a unic Hostname for each device used on your locak network. When using several devices SMA300 spread on several
buildings or on several locations, it is recommended to enter Hostname values having a specific key word reminding the building and the location of the
device (for exmaple: Hall-RD-Paris-1 ). It is recommended to limit the hostname to 15 characters
Configuration > Network :
LAN : DHCP , static IP address , gateway address , subnet mask
WLAN : the menu is valid when the option WLAN is supported on your device
WWAN : the menu is valid when the option WWAN is supported on your device
Configuration > Output :
Screen configuration: Resolution , Mode , Frequency
VESA DPMS
Overscan
Rotation
Activate the sound card
Configuration > App
Local deposit : allows to download an App then to play its content immediately
Supported formats: *tar.gz, *.zip, *.tar, *.tgz
Content: these 2 files need to be present in the archive: manifest.xml , player.html . For further information, contact the technical support
Push WebDAV : the App is published with any WebDAV client then its content is played immediately
Pull WebDAV : allows the device to download an App from a remote WebDAV server. Once the App is downloaded on the device, its content is played
immediately
Pull WebDAV - Xpf Compatibility : allows the device to download an App from a remote WebDAV server. Once the App supporting the xpf compatibility is
downloaded on the device, its content is played immediately.
The Purge the App and Restart the App buttons allow to respectively erase the App and to restart it
Configuration > Servers :
NTP ,
DNS ,
Proxy , ...
Configuration > License : allows to enter the device license.
Configuration > Date & time : allows to set the device Date & time and the time zone .
Configuration > Regionality : allows to set the language of the information messages or the error messages
English ,
Spanish ,
German ,
French .
Maintenance > TestCard : allows to activate/inactivate the configuration testcard. When the TestCard is activated, the content is not played.
Maintenance > Preferences : allows to edit and program the user preferences
Maintenance > Tools
Certificates : allows to load the certificates required to play some specific HTML page or to connect to WebDAV servers with the https scheme
Configuration > Tasks : allows to plan the device power manager
Very Highly optimized :
12

Sound: inactivated ( innes.power-manager.level.max.<>.mute = true)
Screen: in standby ( innes.power-manager.level.max.<>.power-mode = 0)
Volume: 0% ( innes.power-manager.level.max.<>.volume = 0)
Opacity : 100% ( innes.power-manager.level.max.<>.opacity = 100)
Brightness: 0% ( innes.power-manager.level.max.<>.brightness = 0)
Backlight: 0% ( innes.power-manager.level.max.<>.backlight = 0)
Highly optimized ,
Sound: activated ( innes.power-manager.level.max.<>.mute = false)
Screen: On ( innes.power-manager.level.max.<>.power-mode = 1)
Volume: 10% ( innes.power-manager.level.max.<>.volume = 10)
Opacité : 80% ( innes.power-manager.level.max.<>.opacity = 80)
Brightness: 10% ( innes.power-manager.level.max.<>.brightness = 10)
Backlight: 10% ( innes.power-manager.level.max.<>.backlight = 10)
Moyennement optimisé :
Sound: activated ( innes.power-manager.level.max.<>.mute = false)
Screen: On ( innes.power-manager.level.max.<>.power-mode = 1)
Volume: 80% ( innes.power-manager.level.max.<>.volume = 80)
Opacité : 20% ( innes.power-manager.level.max.<>.opacity = 20)
Brightness: 80% ( innes.power-manager.level.max.<>.brightness = 80)
Backlight: 80% ( innes.power-manager.level.max.<>.backlight = 80)
Nominal Mode : default mode when no other power-manager task is running
Sound: activated ( innes.power-manager.level.max.<>.mute = false)
Screen: On ( innes.power-manager.level.max.<>.power-mode = 1)
Volume: 100% ( innes.power-manager.level.max.<>.volume = 100)
Opacity: 0% ( innes.power-manager.level.max.<>.opacity = 0)
Brightness: 100% ( innes.power-manager.level.max.<>.brightness = 100)
Backlight: 100% ( innes.power-manager.level.max.<>.backlight = 100)
Configuration > Variables : allows to affect some variables value to a device. The variables name are:
field1 ,
field2 ,
field3 ,
field4 et
field5 .
The variable value has to contain only characters of the 7bits-ASCII characters table
Configuration > AV Commands : allows to activate the device AV commands to control its monitor through the different connectors:
RS232 DTE : with a serial link (crossed cable)
LAN : with a ethernet connection
HDMI:
DDC/CI sur HDMI out : in this case, the monitor has to support properly the DDC/CI over HDMI
CEC sur HDMI out : in this case, the monitor has to support properly the CEC over HDMI
⚠ These 2 last AV Commands use cases have to be used only if your monitor does support properly the DDC/CI or the CEC. If not, some unexpected monitor behaviour
could be noticed (for example, the monitor could not be able to wake up back at the end of the sleep preriod).
⚠ It is highly recommended that your device SMA300 is on time. When it is possible, synchronize the time & date with a NTP server.
⚠ In case the device does not answer with its IP address, that means that either the device power supply is not plugged, or the Ethernet cable is not plugged, or
the network configuration is not properly set. To work around, if your computer and your local network are supporting the IPV6, you can even connect to the
device with the IPV6 address of your device, helped by your device MAC value written on the sticker at the back of the device, or showed when the TestCard is
activated.
For example, for the MAC address value: ``00-1c-e6-02-1e-45`,
in a Web browser, enter the URL: http://[fc00::21c:e6ff:fe02:1e45]/.admin/
For further information about IPV6, refer to the Network configuration recovery application note.
13

1.6 Publish your own App
Qeedji addin for MS-PowerPoint
If you are using MS-PowerPoint Desktop Edition , you can send your presentation directly to the media player using the add-on Qeedji Publisher for MS-PowerPoint .
Download the addin from the support web page of your device on the Qeedji website.
Open your presentation (.PPTX) or create one.
In the menu Qeedji> Settings\Devices of the MS-PowerPoint ribbon, declare your Qeedji media player.
Then in the Qeedji>Advanced Settings menu, define the default duration of each slide and the background color,
Publish your presentation directly to the media player simply with the button ``Qeedji> Publish```.
Your MS-Powerpoint presentation should now be broadcast on the media player.
For SDK developers, create your own App
Once the application is created, publish it with the media player's web user interface.
In the menu Configuration>App , select the mode Local drop , select your App file, then press the Load App button. The App is then immediately executed by the
media player.
Examples of applications are available here Link to the github SDK-G4 API
Using a third-party software
The third method is to use third-party software such as a CMS to publish your application. For more information, contact your Qeedji dealer.
14

1.7 Technical specifications
Model Manufacturer
SMA300 Qeedji
Processors
CPU Freescale iMX6
GPU Vivante
Peripherals
2x USB 2.0 Host (Low/Full/High Speed)
1x Jack 3.5 configurable in GPIO or Infrared
Storage Information
Internal Flash Memory for OS
SD card Qualified SD cards: SANDISK / SDSDAA-032G / 32 GB, SANDISK / SDSDB-032G-B35 / 32 GB, SANDISK / SDSDAA-008G / 8 GB
Software
eLinux 3.10.17
Middleware Gekkota OS 4.12.10
Audio outputs
Jack 3.5 R+L stereo analog
Embedded with HDMI output
Video output
1x HDMI 1.4
Display resolutions for video output
640x480 60Hz, 800x600 60Hz VESA, 1024x768 60Hz VESA, 1024x768 60Hz XGA, 1024x576 60Hz VESA, 1024x576 50Hz VESA, 1024x600 60Hz
DENSITRON 84-0188-001T, 1280x720 60Hz CEA-861, 1280x720 50Hz CEA-861, 1280x720 60Hz VESA, 1280x720 50Hz VESA, 1280x720 60Hz SMPTE
(720p), 1280x720 50Hz SMPTE (720p), 1280x720 60Hz CEA, 1280x720 50Hz CEA, 1280x720 60Hz SONY, 1280x720 60Hz CGV CPLine AV-HD, 1280x720
60Hz SAMSUNG, 1280x768 60Hz VESA, 1280x768 50Hz VESA, 1280x800 60Hz VESA, 1360x768 50Hz VESA, 1360x768 60Hz VESA, 1376x768 60Hz
VESA, 1376x768 50Hz VESA, 1376x768 60Hz PC, 1920x1080 60Hz CEA-861, 1920x1080 50Hz CEA-861, 1920x1080 60Hz VESA, 1920x1080 50Hz VESA,
1920x1080 60Hz SMPTE (1080p), 1920x1080 50Hz SMPTE (1080p), 1920x1080 60Hz CEA, 1920x1080 50Hz CEA, 1920x540 60Hz VESA, 1920x300 60Hz
VESA, 128x96 60Hz, 112x96 60Hz, 96x96 60Hz,
Network
1x Ethernet 10/100 BaseT PoE
Options Information
GPRS/EDGE/HSDPA
Modem Mini-SIM card (25 mm x 15 mm)
WIFI WIFI 802.11
b/g (WIFI 3)
⚠ when the device PSN is different from 01090-XXXXX. Do use the cipher protocol TKIP (meaning the WLAN parameters: pairwise=TKIP,
group=TKIP, key=psk) when using WPA-PSK keys, or the cipher protocol CCMP (meaning the WLAN parameters: pairwise=CCMP,
group=CCMP, key=psk) for WPA2-PSK keys
WIFI
802.11a/b/g/n
(WIFI 4)
⚠ when the device PSN is 01090-XXXXX. Do use the cipher protocol TKIP (meaning the WLAN parameters: pairwise=TKIP, group=TKIP,
key=psk) when using WPA-PSK keys, or the cipher protocol CCMP (meaning the WLAN parameters: pairwise=CCMP, group=CCMP, key=psk)
for WPA2-PSK keys
15

Power supply
12V DC (600mA)
PoE power (Power Over Ethernet)
Working temperature Storage temperature
+0°C to +35°C -20°C to +60°C
Working humidity Storage humidity
< 80% < 85%
Weight Dimensions (WxHxD)
0,450 Kg 144 x 89 x 29 mm
16

1.8 Troubleshooting
Error while playing a media: message "Content temporarily unavailable <media path/file name> (code <err>)"
Requirement Troubleshooting
code 404 (error code HTTP 404 = file not found)
Publish again the playout on the device after having checked, that:
- the media used is really existing
- your playlist do not refer to obsolete medias
code 403 (error code HTTP 403 = access denied) The remote media is not available
code 401 (error code HTTP 401 = authorization required) The login/password required to play the medias is not correct
code 0 (media not supported at all by your device) Remove the media and publish again ¹
code 1 (an error occurred when the media has been inserted in the
dom) An error occurred when playing the media ²
code 2 (error during viewer activation (play) An error occurred when playing the media ²
code 3 (media repeat error) An error occurred when playing the media ²
code 4 Media not supported by your device. Remove the medias from your playout and publish
again
code 5 (event error on control xhr) Change the media behavior value to try to solve the issue
code 6 (event abort ou timeout sur xhr de control) Change the media behavior value to try to solve the issue
Error while playing a media: message "This content <media path/file name> is not compatible with this device"
Troubleshooting
To solve the issue, remove this not supported media from your playout and publish again. ¹
¹ For further information, read the document gekkota-supported-medias-and-performances.pdf
² For further information, contact [email protected]
17

1.9 Conformities
In conformity with the following European directives:
LVD 2014/35/EU
EMC 2014/30/EU
18

1.10 Contacts
For further information, please contact us at + 33 (0)2 23 20 01 62 or by e-mail:
Technical support: [email protected]
Sales department: [email protected]
FAQ and download at : https://www.qeedji.tech/en/
Qeedji
INNES SA
5A rue pierre Joseph Colin
35700 RENNES
Tel: [phone]
Fax: [phone]
Qeedji
INNES SA
Verbindungsbüro Deutschland
Lebacher Str. 4
66113 Saarbrücken
Tel: [phone]
Fax: [phone]
Mob : [phone]
19
