Qlight STG40 User manual
PB 1
Steady/Flashing LED Tower Lights
STG40/ STG50
STG40/ 50(M)L
-3-110/220 -RAG -LW18
[Model number]
[Layer count]
[Voltage] [Color]
[Mounting option]
| | | | |
• STG40/ 50ML
• STG40/ 50ML-BZ
• STG40/ 50MLF
• STG40/ 50MLF-BZ
• STG40/ 50L
• STG40/ 50L-BZ
• STG40/ 50LF
• STG40/ 50LF-BZ
• 1 Layer
• 2 Layers
• 3 Layers
• 4 Layers
• 5 Layers
• 12-DC12V
• 24-DC24V
• 110/220 - AC110V~220V
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB18 - LW18
- QZ18 - SZ18
- QL18 - SL18
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, and or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, ¿re, electric shock and loss of life.)
Ordering Specications
Please scan the QR code for more
detailed product information.
www.qlight.com
54 65
85dB
5030
2 3
Product Specications
• STG40L
• STG50L
• STG40ML
• STG50ML
Model number
Layer
count
Voltage Current
Certi¿cates
Weight
Color
STG40L
Steady
STG40L-BZ
Steady
/w built-in
buzzer
STG40LF
Steady/
Flashing
STG40LF-BZ
Steady/
Flashing
/w built-in
buzzer
1
DC12V
DC24V
AC110V~220V
0.075A
0.045A
Max.0.040A
0.29kg
0.29kg
0.31kg
R-Red
2
DC12V
DC24V
AC110V~220V
0.150A
0.095A
Max.0.050A
0.33kg
0.33kg
0.36kg
R-Red
G-Green
3
DC12V
DC24V
AC110V~220V
0.225A
0.145A
Max.0.060A
0.38kg
0.38kg
0.40kg
R-Red
A-Amber
G-Green
4
DC12V
DC24V
AC110V~220V
0.300A
0.190A
Max.0.070A
0.45kg
0.45kg
0.47kg
R-Red
A-Amber
G-Green
B-Blue
5
DC12V
DC24V
AC110V~220V
0.375A
0.235A
Max.0.080A
0.51kg
0.51kg
0.53kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number
Layer
count
Voltage Current
Certi¿cates
Weight
Color
STG50L
Steady
STG50L-BZ
Steady
/w built-in
buzzer
STG50LF
Steady/
Flashing
STG50LF-BZ
Steady/Flashing
/w built-in
buzzer
1
DC12V
DC24V
AC110V~220V
0.055A
0.050A
Max.0.040A
0.36kg
0.36kg
0.38kg
R-Red
2
DC12V
DC24V
AC110V~220V
0.110A
0.100A
Max.0.050A
0.43kg
0.43kg
0.45kg
R-Red
G-Green
3
DC12V
DC24V
AC110V~220V
0.165A
0.150A
Max.0.060A
0.53kg
0.53kg
0.55kg
R-Red
A-Amber
G-Green
4
DC12V
DC24V
AC110V~220V
0.220A
0.200A
Max.0.070A
0.59kg
0.59kg
0.61kg
R-Red
A-Amber
G-Green
B-Blue
5
DC12V
DC24V
AC110V~220V
0.275A
0.250A
Max.0.080A
0.67kg
0.67kg
0.69kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number
Layer
count
Voltage Current
Certi¿cates
Weight
Color
STG40ML
Steady
STG40ML-BZ
Steady
/w built-in
buzzer
STG40MLF
Steady/
Flashing
STG40MLF-BZ
Steady/
Flashing
/w built-in
buzzer
1
DC12V
DC24V
AC110V~220V
0.075A
0.045A
Max.0.040A
0.12kg
0.12kg
0.14kg
R-Red
2
DC12V
DC24V
AC110V~220V
0.150A
0.100A
Max.0.050A
0.19kg
0.19kg
0.21kg
R-Red
G-Green
3
DC12V
DC24V
AC110V~220V
0.225A
0.145A
Max.0.060A
0.25kg
0.25kg
0.27kg
R-Red
A-Amber
G-Green
4
DC12V
DC24V
AC110V~220V
0.300A
0.190A
Max.0.070A
0.31kg
0.31kg
0.33kg
R-Red
A-Amber
G-Green
B-Blue
5
DC12V
DC24V
AC110V~220V
0.375A
0.235A
Max.0.080A
0.36kg
0.36kg
0.38kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number
Layer
count
Voltage Current
Certi¿cates
Weight
Color
STG50ML
Steady
STG50ML-BZ
Steady
/w built-in
buzzer
STG50MLF
Steady/
Flashing
STG50MLF-BZ
Steady/Flashing
/w built-in
buzzer
1
DC12V
DC24V
AC110V~220V
0.055A
0.050A
Max.0.040A
0.20kg
0.20kg
0.22kg
R-Red
2
DC12V
DC24V
AC110V~220V
0.110A
0.100A
Max.0.050A
0.28kg
0.28kg
0.30kg
R-Red
G-Green
3
DC12V
DC24V
AC110V~220V
0.165A
0.150A
Max.0.060A
0.36kg
0.36kg
0.38kg
R-Red
A-Amber
G-Green
4
DC12V
DC24V
AC110V~220V
0.220A
0.200A
Max.0.070A
0.45kg
0.45kg
0.47kg
R-Red
A-Amber
G-Green
B-Blue
5
DC12V
DC24V
AC110V~220V
0.265A
0.250A
Max.0.080A
0.53kg
0.53kg
0.55kg
R-Red
A-Amber
G-Green
B-Blue
W-White
• STG40
• STG50
Signal/Audible line current(Per each layer)
Current
DC12V DC24V AC110V~220V
Signal line current
0.075A 0.045A Max.0.040A
Audible line current
0.030A 0.060A Max.0.040A
Signal/Audible line current(Per each layer)
Current
DC12V DC24V AC110V~220V
Signal line current
0.055A 0.050A Max.0.040A
Audible line current
0.030A 0.060A Max.0.040A
※CE Compliant: DC12V, DC24V, UL listed: DC24V
2 3
L1
L2
L3
STG40L : DC
STG40LF : DC
STG40L-BZ : DC
STG40L : AC
STG40LF-BZ : DC
STG40LF : AC
STG40L-BZ : AC
STG40LF-BZ : AC
L1
12
50
12.5
L2
12
92
12.5
L3
12
155
12.5
STG40ML : DC
STG40MLF : DC
STG40ML-BZ : DC
STG40ML : AC
STG40MLF-BZ : DC
STG40MLF : AC
STG40ML-BZ : AC
STG40MLF-BZ : AC
13.53028.5
200 62
28.5
200 104
28.5200 167
13.5
30
13.530
13.5
30
13.5
30
13.530
M18x1.5 THREAD
BUZZER VOLUME
CONTROL LEVER
BUZZER VOLUME
CONTROL LEVER
360°/3-M4 BOLT
PCD 30
M18x1.5 THREAD
BUZZER VOLUME
CONTROL LEVER
BUZZER VOLUME
CONTROL LEVER
Ø14 CABLE ENTRY
Ø14 CABLE ENTRY
360°/3-M4 BOLT
PCD 30
L112
5012.5 13.5
12.5
L2
12
70 13.5
30
30
13.53012.5
L3
12
138
13.530
13.5
30
13.5
30
L1
L2
L3
28.5200 62
28.5
200 82
28.5200 150
STG50L : DC
STG50LF : DC
STG50L-BZ : DC
STG50L : AC
STG50LF-BZ : DC
STG50LF : AC
STG50L-BZ : AC
STG50LF-BZ : AC
STG50ML : DC
STG50MLF : DC
STG50ML-BZ : DC
STG50ML : AC
STG50MLF-BZ : DC
STG50MLF : AC
STG50ML-BZ : AC
STG50MLF-BZ : AC
LAYER
1
2
3
4
5
L1
334
364
394
424
454
L2
376
406
436
466
496
L3
439
469
499
529
559
LAYER
1
2
3
4
5
L1
106
136
166
196
226
L2
148
178
208
238
268
L3
211
241
271
301
331
LAYER
1
2
3
4
5
L1
334
364
394
424
454
L2
354
384
414
444
474
L3
422
452
482
512
542
LAYER
1
2
3
4
5
L1
106
136
166
196
226
L2
126
156
186
216
246
L3
194
224
254
284
314
Ø50
Ø50
Ø50
Ø18 Ø18 Ø18
Ø50
Ø50
Ø50
Ø18 Ø18 Ø18
Ø40
Ø40
Ø40
Ø40
Ø40
Ø40
• STG40(M)L
• STG50(M)L
Dimensions
(Units : mm)
4 5

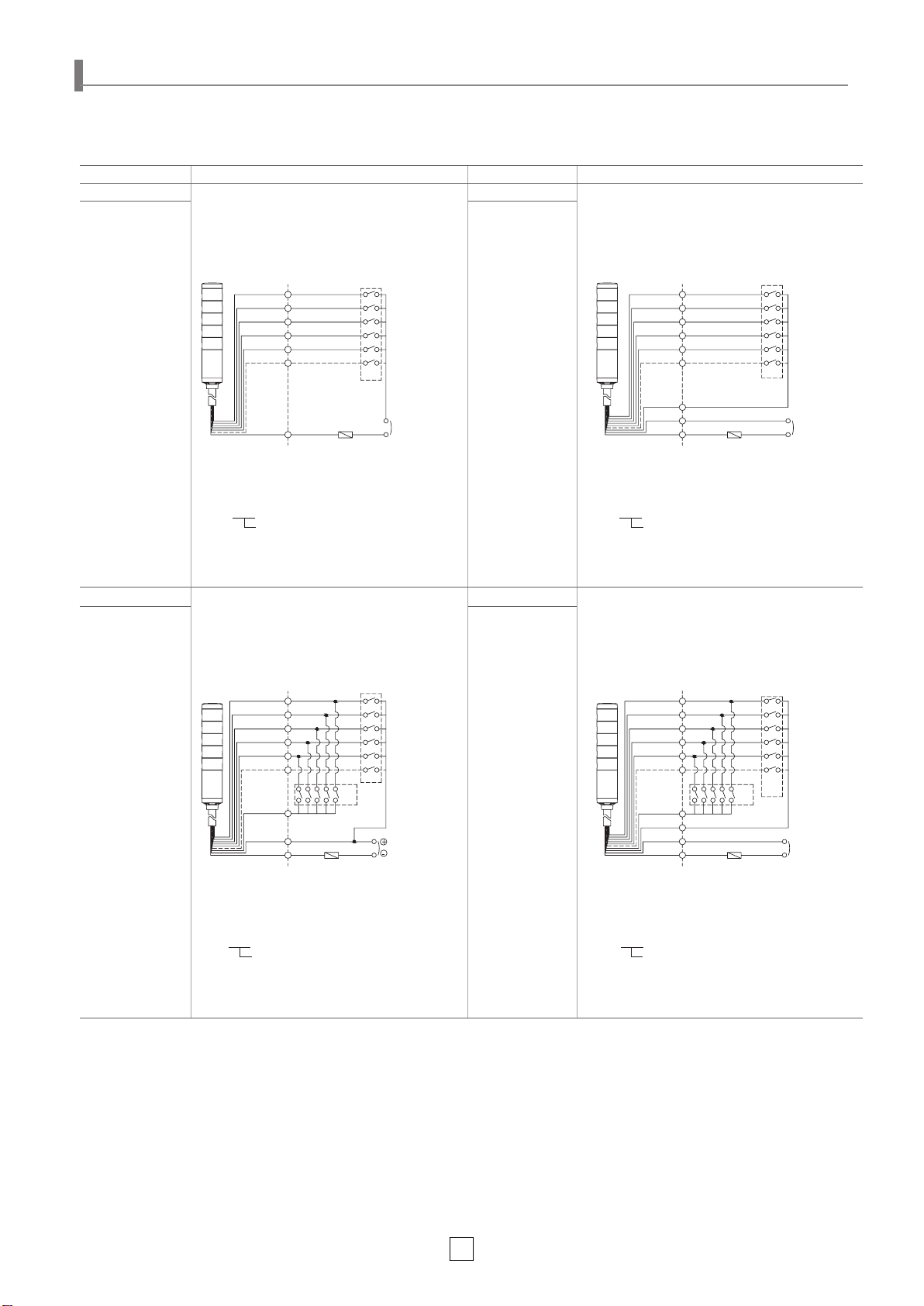

Wiring diagrams Wiring diagrams
DC steady
• STG
□□
(M)L- Refer to this diagram for
buzzer type product
• STG
□□
L
Lens diameter
40(40mm) : STG40(M)L
50(50mm) : STG50(M)L
AC steady
• STG
□□
(M)L- Refer to this diagram for
buzzer type product
• STG
□□
L
Lens diameter
40(40mm) : STG40(M)L
50(50mm) : STG50(M)L
STG40ML
STG40L
STG50ML
STG50L
STG40ML
STG40L
STG50ML
STG50L
DC steady/ashing
• STG
□□
(M)LF - Refer to this diagram for
buzzer type product
• STG
□□
LF
Lens diameter
40(40mm) : STG40(M)LF
50(50mm) : STG50(M)LF
AC steady/ashing
• STG
□□
(M)LF - Refer to this diagram for
buzzer type product
• STG
□□
LF
Lens diameter
40(40mm) : STG40(M)LF
50(50mm) : STG50(M)LF
STG40MLF
STG40LF
STG50MLF
STG50LF
STG40MLF
STG40LF
STG50MLF
STG50LF
• In case of wiring with external contacts, refer to the wiring diagrams below according to your product’s type and voltage setting.
• DC steady type cable speci¿cation : External power/ signal line - UL1007 AWG22(0.3sq) 400mm
• AC steady, AC/DC steady/ashing type cable speci¿cation: External power line - UL1015 AWG18(0.75sq) × 2C 400mm,
External signal line - UL1007 AWG22(0.3sq) 400mm
■
Wiring using external contact
Wiring Instructions
Red
Amber
Green
Blue
White
Brown
Black
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
Red
Amber
Green
Blue
White
Brown
Black
White
Black
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External contact External contact
Power
Fuse Fuse
Steady Steady
Power
Red
Amber
Green
Blue
White
Brown
Black
White
Black
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External contact External contact
Fuse Fuse
Steady
Steady
Flash
Power Power
Common Common
Common
Common Common
Flash
Red
Amber
Green
Blue
White
Brown
Black
Gray
White
Black
4 5

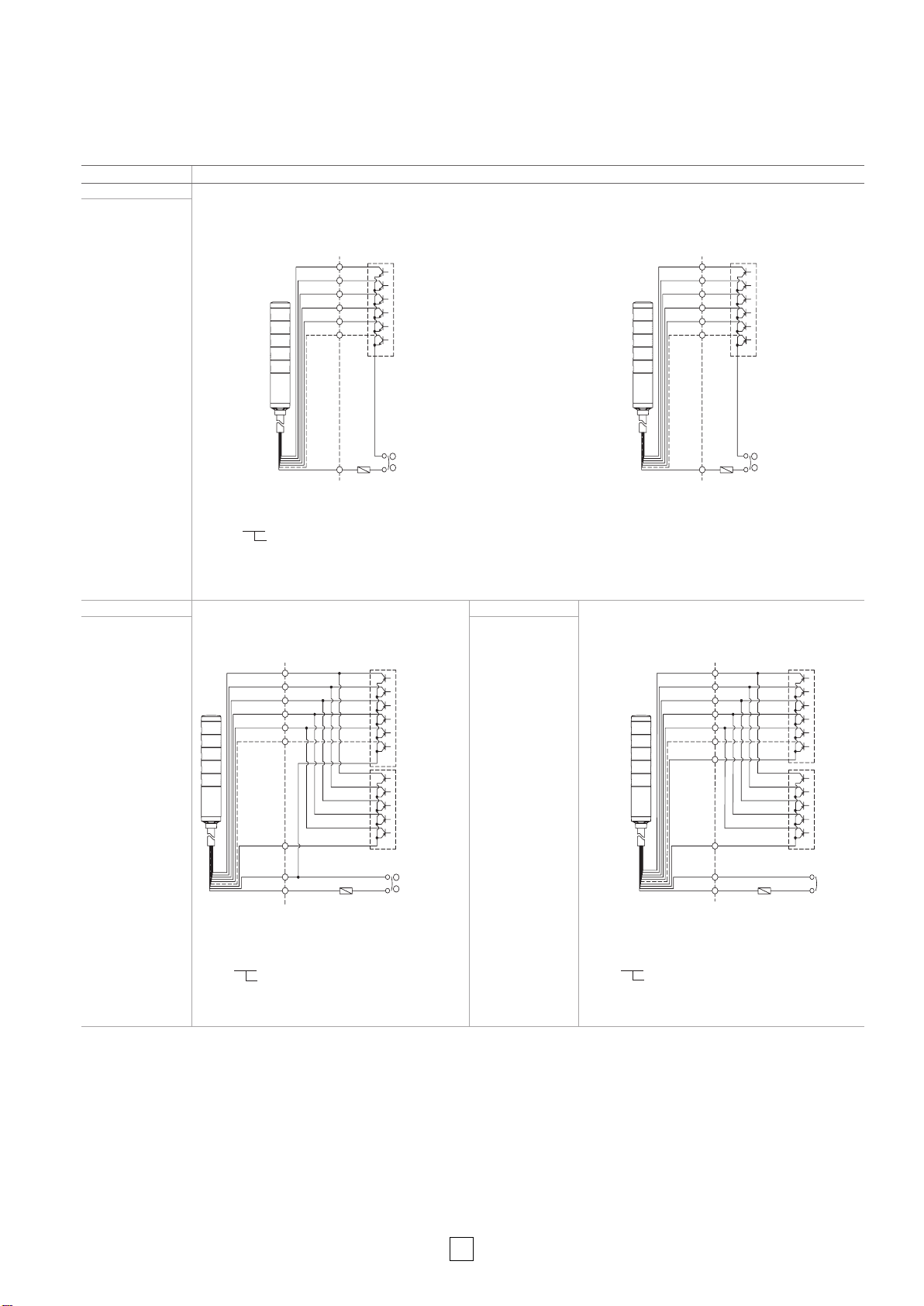

Wiring diagrams
DC steady
• STG
□□
(M)LF - Refer to this diagram for buzzer type product
• STG
□□
L
Lens diameter
40(40mm) : STG40(M)LF
50(50mm) : STG50(M)LF
STG40ML
STG40L
STG50ML
STG50L
DC steady/ashing
• STG
□□
(M)LF - Refer to this diagram for
buzzer type product
• STG
□□
LF
Lens diameter
40(40mm) : STG40(M)LF
50(50mm) : STG50(M)LF
AC steady/ashing
• STG
□□
(M)LF - Refer to this diagram for
buzzer type product
• STG
□□
LF
Lens diameter
40(40mm) : STG40(M)LF
50(50mm) : STG50(M)LF
STG40MLF
STG40LF
STG50MLF
STG50LF
STG40MLF
STG40LF
STG50MLF
STG50LF
• DC steady type cable speci¿cation : External power/ signal line - UL1007 AWG22(0.3sq) 400mm
• AC steady, AC/DC steady/ashing type cable speci¿cation: External power line - UL1015 AWG18(0.75sq) × 2C 400mm,
External signal line - UL1007 AWG22(0.3sq) 400mm
•
When using a transistor, please choose between the NPN or PNP type transistor which best matches the voltage and product type,
then connect them correctly according to the wiring diagrams below.
■
Wiring using transistor
Red
Amber
Green
Blue
White
Brown
Black
Red
Amber
Green
Blue
White
Brown
Black
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External Transistor-NPN
Fuse Fuse
Steady
Steady
Power Power
Red
Amber
Green
Blue
White
Brown
Black
White
Black
Red
Amber
Green
Blue
White
Brown
Gray
Black
White
Black
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
External Transistor-PNP External Transistor-PNPPNP - TransistorPNP - Transistor
Fuse Fuse
Steady Steady
Power Power
Flash Flash
Common Common
Common
Common
1
2
3
4
5
1
2
3
4
5
External Transistor-PNPPNP - TransistorNPN - Transistor
1
2
3
4
5
1
2
3
4
5
6 7
Cover(ABS)
Long bolt
Please ensure that contact points of the two lens kits are
aligned together prior to assembly. Slowly combine the color
LED lens units together at the contact points shown the im-
age above (①,②). Ensure the upper and lower contacts are
seamlessly coupled and then ¿rmly press the units together
to complete assembly.
Lens modules are connected through contact
point of each module. In case the contact point is
damaged, it may cause a contact failure.
※
Cautions
Contact Point
Parts Denition
How to Change Lens Kit
Housing(ABS)
Sound volume lever
Pipe(Al)
Lens(AS)
Installation Environment and Protection Rating
• This product is designed for indoor use with protection rating of IP65(Standard type) or IP54(Buzzer type).
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP65), it may cause malfunction or damage to the product.
• For further information, please visit our website(www.qlight.com).
6 7
PCD 30
3-Ø5 HOLES
Min.Ø5 CABLE ENTRY
Dimensions
STG40 series
STG50 series
TWS45 TWA45
STG40/ 50ML
Buzzer Sound Volume Adjustment Instructions
Mounting Hole Specications
①Machine holes on the mounting surface referring to the
diagram below.
■
STG40ML/ STG50ML -
Direct Mounting Type Model
Buzzer volume is reduced by sliding
the volume control lever to the left
as show in the diagram to the left.
( Min. 65±4dB/m )
Raise/ increase the buzzer volume
by sliding the control lever to the
right as shown in the diagram to
the left.
( Max. 85±4dB/m )
Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installation of mounting brackets.
■
STG40ML/ STG50ML -
Direct Mounting Type Model
②Remove the ange nuts from bolts and place the product
through the mounting surface holes.
③Fasten the ange nuts on the opposite side of the mounting
surface until the product is tightened securely.
Ø12 CABLE ENTRY
4-Ø4.5 HOLES
360°/6-Ø5 HOLES
360°/3-Ø5 HOLES
Ø12
4-Ø4.5 HOLES
60
35
40
66
20
PCD30~40
10
36
60
35
20
04
66
36
PCD30~40
50
84
50
360°/3-Ø5 HOLES
PCD40~50
86
20
10
44
Ø12 CABLE ENTRY
84
50
25
50
86
44
PCD40~50
4-Ø4.5 HOLES
4-Ø4.5 HOLES
360°/6-Ø5 HOLES
Ø12
8
Dimensions
STG40 series
STG50 series
18mm SCREW & NUT LB18
LW18 SZ18
QZ18 SL18
QL18
■ STG40L/ STG50L
-
Pole Mounting Type Model
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø18
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø90
4-Ø6 HOLES
Ø11 CABLE ENTRY
66
45.5
PCD 73
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø18
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø90
4-Ø6 HOLES
Ø11 CABLE ENTRY
66
45.5
PCD 73
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø18
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø90
4-Ø6 HOLES
Ø11 CABLE ENTRY
66
45.5
PCD 73
Product installation direction
■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product.
ㆍELECTRONIC SOUNDER/SIGNAL HORN
Sounder part shall not be facing the sky.
Sounder part shall not be facing the sky.
ㆍBEACON/SIGNALING LIGHT
Power cord inlet part shall not be facing the sky.
Power cord inlet part shall not be facing the sky.
ㆍSIGNAL TOWER LIGHTS
ㆍHEAVY-DUTY & EXPLOSION PROOF SIGNALINGS
※For products with a protection rating of less than IPX4, please install it vertically.
※For products with a protection rating of less than IPX4, please install it vertically.
MEMO
MEMO
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight Overseas Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
China Factory/ Shanghai Sales O-ce | #Room 333 Building B, #11, Lane 450, Zhenda Road, Baoshan District, Shanghai, China
Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - STG40L - 2311A
This manual suits for next models
9
Table of contents
Other Qlight Outdoor Light manuals
Popular Outdoor Light manuals by other brands
Hess
Hess RENO ELEMENTS LP Installation and operating instructions
MGL LICHT
MGL LICHT Spot G100 Mounting instruction
TOOLCRAFT
TOOLCRAFT TO-3597675 operating instructions
Maretti
Maretti QUATRO FLOOR L 410x255 H1410 quick start guide
BEGA
BEGA 84 100 Installation and technical information
Inspire
Inspire Alex DE26711 manual
