Qlight SHDN30 User manual

SHDN30
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ Heavy-duty product of with both sided,high volume phones
which is suitable for heavy cranes and transportation
machinery.
▪ Possible to control volume level by using the built-in volume
controller..
▪ Standard Body Color
: MUNSELL NO. : 7.5BG 7/2
▪ Standard Horn Housing Color : Red
▪ Material : Body - DIECAST AL., Horn Housing-SUS316L
▪ Volume : 113~118dB/1m x 2 ▪ Protection Class : IP56
▪ Operating Temperature : -20℃~50℃
▪ Product Specification
Model
Built-in Sound dB
Rated
Voltage
Voltage/
Current Weight
WS 5 Warning
Sounds 118dB
x2
WP 5 Special
Warning
Sounds
118dB
x2
WM 5 Melodies 118dB
x2
WA 5 Alarms 116dB
x2
SHDN30
WV 3 Voice
Signals
113dB
x2
·DC12V
·DC24V
·AC110V
·
AC220V
·DC12V
/2.140A
·DC24V
/1.860A
·AC110V
/0.252A
·
AC220V
/0.166A
DC
-3.49Kg
AC
-4.21Kg
▪ External View Drawing
Model Built-in
Sound CH Sound Tone dB
WS
5
Warning
Sounds
ch1
ch2
ch3
ch4
ch5
Fire : A-ANG(Wail) Sound
Emergency : WA-U Sound
Ambulance : PI-PO Sound
Machinery Fault : PI-PI Short Interval
Foam Release Alarm : PI~ Continuous
118
dB
x 2
WP
5 Special
Warning
Sounds
ch1
ch2
ch3
ch4
ch5
Fire : A-ANG(Wail) Sound
Abandon Alarm~
Machinery Fault : PI-PI Short Interval
Foam Release Alarm : PI~ Continuous
General Alarm : Long PI after 7 Short PI
118
dB
x 2
WM 5
Melodies
ch1
ch2
ch3
ch4
ch5
Sweet Home
For Elise
Cuckoos Waltz
Piano Sonata
Turkish March
118
dB
x 2
WA 5 Alarms
ch1
ch2
ch3
ch4
ch5
Beep(Intermittent)
Door Chime
Phone Ring Sound
PI-PI-PI- (Short Interval)
Tripping Bead Sound
116
dB
x 2
WV 3 Voice
Signals
ch1
ch2
ch3
Voice Recording & Replay 3 Channels
113
dB
x 2
Refer to above structure drawing together with below drawing and
explanation for right operating.
▪ Make sure terminal plate inside the body of the product.
Remove cover② by loosening cover bolt(M5-4EA)①.
▪ Treat the end of power cable by using “O” or “U” type terminal
for safe wiring.
▪ Connect power cable to terminal plate③.
▪ In case of product using AC voltage, connect the line without
polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
▪ Keep the tightness of power entry⑧ by using water-proof
connector(flexible connector #16 is supplied as a standard
specification) or cable grand.
▪ Product can be damaged by water or dust if the cable entry is
exposed outdoor without airtightening.
▪ Keep the tightness of power entry④ by using water-proof
OPERATING MANUAL
2 Faces Heavy Duty Signal Phone

connector(flexible connector #16 is supplied as a standard
specification) or cable grand.
Product can be damaged by water or dust if the cable entry is
exposed outdoor without airtightening.
■ Wiring for LC(External Contact) Type – Custome Made
▪ In case of LC type which selets sound tone by external
contact, separate signal(sound tone) line come out. Connect
each line as below.
▪ Signal Line : UL1007-NO.22(0.3sq) 400mm

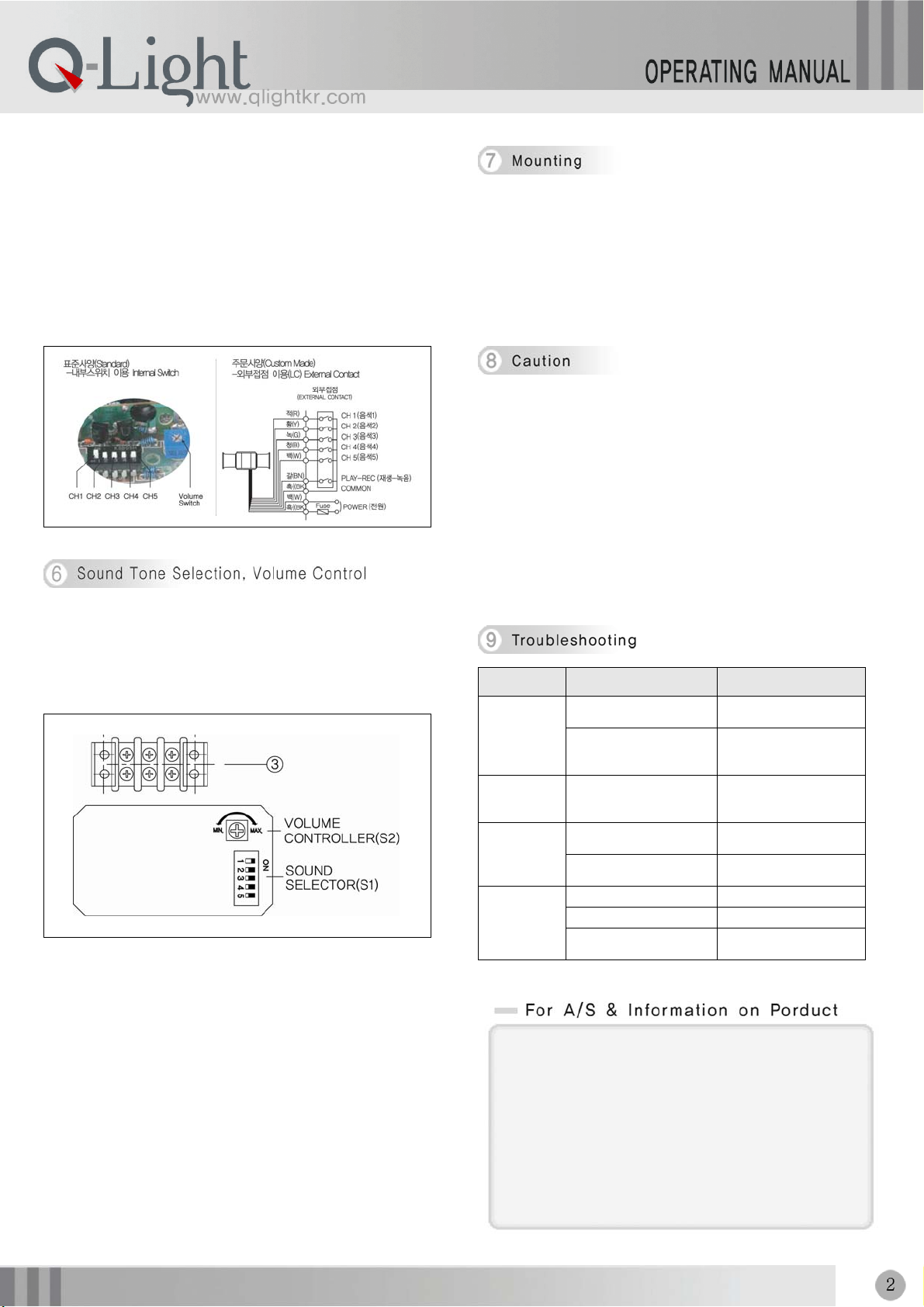

This product has a volume controller and sound tone selection
switch on assembling board for convenient use.
Refer to previous structure drawing,following drawing and
explanation for right operating. In the first,remove cover② by
loosening horn cover bolt① (Please refer to structure drawing)
▪ Sound Tone Selection
5 Warning sound tones are built-in this product. In case of
standard product, select preferable sound tone by using internal
sound tone selection switch(S1).
▪ Volume(dB) Control
Volume controller(S2) is built-in this product. Turn it clockwise
for increasing volume or turn it counterclockwise for decreasing
volume
▪ This product is manufactured for outdoor use. But,install with
vertical direction at a place or machine where exists no big
vibration and no strong impact as long as possible.
▪ Refer to below information and drill necessary mounting holes on
profitable part of the product.
(Make sure PCD from external view drawing.)
▪ Fix the product by using separate mounting bolt(M8-4EA).
▪ This product is explosion-proof, water-proof and anti-corrosion
type. When separate and assemble the product for wiring, repair
or check, keep the airtightnees of the product by tightening each
bolt and nut.
▪ If using voltage is seriously higher or lower than rated voltage, it
can reduce the self-life of the product or can cause a problem
on product operating. Make sure the using voltage does not
exceed +/- 5% of the rated voltage.
▪ If lens or body of the product is contaminated by chemicals such
as thinner, benzene, the product can be damaged, discolored
or deformed. Please be careful.
Situation Main Cause Solution
Supplying Voltage Lower
Than Rated Voltage
Making Sure Using
Voltage
Sound Tone
Deterioration
or Volume
Decreasing
Wrong Selecting Voltage
Selection Switch to 220V
(In Case of AC Type)
Selecting Voltage
Selection Switch to 110V
Higher
Volume(dB)
than Standard
Supplying Voltage Higher
than Rated Voltage
Making Sure Using
Voltage
Short Circuit of Sound Tone
Signal Line Making Sure Wiring
Double Sound
Tone Error on Sound Tone
Selection Switch
Contact Q.Light or Their
Agent
Wrong Wiring Making Sure Wiring
No Power Supply Making Sure Power Supply
No Sound
Problem with Horn Contact Q.Light or Their
Agent
