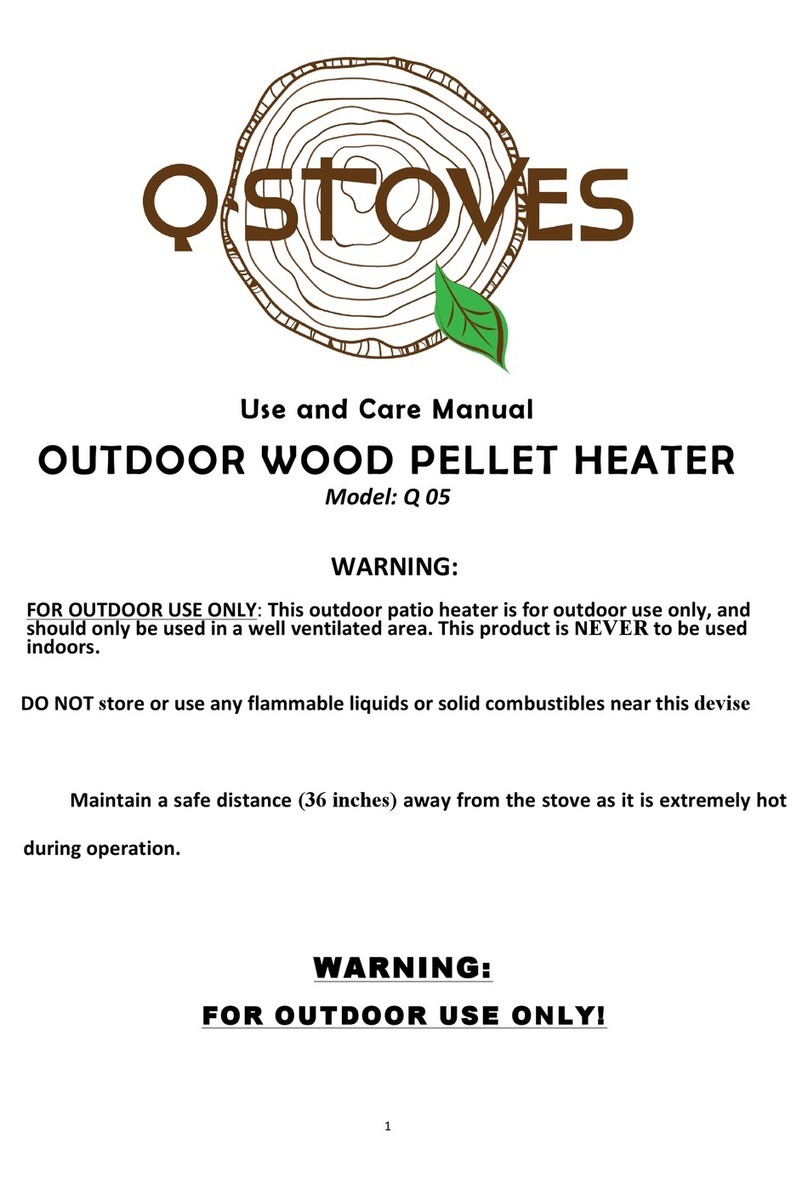

Qstoves Q 05 User manual

1
ASSEMBLY INSTRUCTIONS
OUTDOOR WOOD PELLET HEATER
Model: Q 05
1. Assembly
Note: Partial assembly has been done for you. The assembly of this heater requires basic
mechanical skills. Proper assembly is the responsibility of the purchaser. All service and
repairs should be done by a qualified person.
Tools required for assembly are:
Phillips Screwdriver
pliers
1.1 Unpacking
Carefully remove the all parts from the box. The paint on the stove is not fully cured until
after you fire the unit on its initial firing, so use care when handling painted parts and put
them onto soft surface.
Find and identify the following parts:

2
1.2 Checking Every Part:
Inspect the contents of your new heater for shipping damage or missing pieces or
hardware.
1.3 Installing the feet:
Lean the base of the heater back or lay and its front to thread in the feet to the bottom.

3

4
Assemble the ash drawer
handle by installing 2 screws
and nuts to the tray. Then slide
it into place.
Install the section of chimney on the base of the unit that does not have the damper. Then
install the damper section next. Interlock the stove pipe so they lock into place and are even
at the edges. Fit the longer section to the screened section.

5
Thread the 3 screws through the tabs into the deflector disk. Then attach the long section
of stove pipe to the completed screened section. Place the top stack onto the heater
assembly.
Once the stove pipes are firmly fitted together it is complete.

6
SEE MORE STOVES AND FIREPLACE PRODUCTS, CHECK THE ELECTRONIC
VERSION OWNER’S MANUAL AND INSTALLATION VIDEO, PLEASE VISIT:
WWW.QSTOVES.COM
WEAR PROTECTIVE GLOVES WHEN ASSEMBLING.
CAUTION!
PAINT IS EXTREMELY FRAGILE PRIOR TO CURING.
GENTLY UNWRAP ALL PARTS.
DO NOT SET PAINTED PARTS ON ABRASIVE SURFACES.
Version 5.1
