QTX Light LUX-LD01 User manual

USER MANUAL
LUX-LD01 MINI MOVING HEAD
150.446 manual cover.indd 1 19/9/08 09:49:12

TABLE OF CONTENTS
WHAT IS INCLUDED.......................................................................................................................................... 3
UNPACKING INSTRUCTIONS ........................................................................................................................... 3
AC POWER ...................................................................................................................................................... 3
SAFETY INSTRUCTIONS.................................................................................................................................. 4
1. BEFORE YOU BEGIN.............................................................................................................. 3
2. INTRODUCTION ................................................................................................................... 5
FEATURES....................................................................................................................................................... 5
DMX CHANNEL SUMMARY 13 CHANNEL MODE FOR SPOT................................................................................ 5
DMX CHANNEL SUMMARY 12 CHANNEL MODE FOR WASH............................................................................... 5
DMX CHANNEL SUMMARY 5 CHANNEL MODE FOR SPOT.................................................................................. 6
DMX CHANNEL SUMMARY 4 CHANNEL MODE FOR WASH................................................................................. 6
PRODUCT OVERVIEW ..................................................................................................................................... 6
3. SETUP ................................................................................................................................. 7
FUSE REPLACEMENT....................................................................................................................................... 7
FIXTURE LINKING ............................................................................................................................................ 7
Data Cabling .................................................................................................................................................. 7
DMX Data Cable........................................................................................................................................... 7
Cable Connectors ........................................................................................................................................ 8
3-Pin to 5-Pin Conversion Chart .................................................................................................................... 8
SETTING UP A DMX SERIAL DATA LINK ............................................................................................................. 8
MASTER/SLAVE FIXTURE LINKING................................................................................................................... 9
MOUNTING ...................................................................................................................................................... 9
Orientation .................................................................................................................................................. 9
Rigging ....................................................................................................................................................... 9
4. OPERATING INSTRUCTIONS.................................................................................................10
NAVIGATING THE CONTROL PANEL ................................................................................................................10
MENU MAP......................................................................................................................................................11

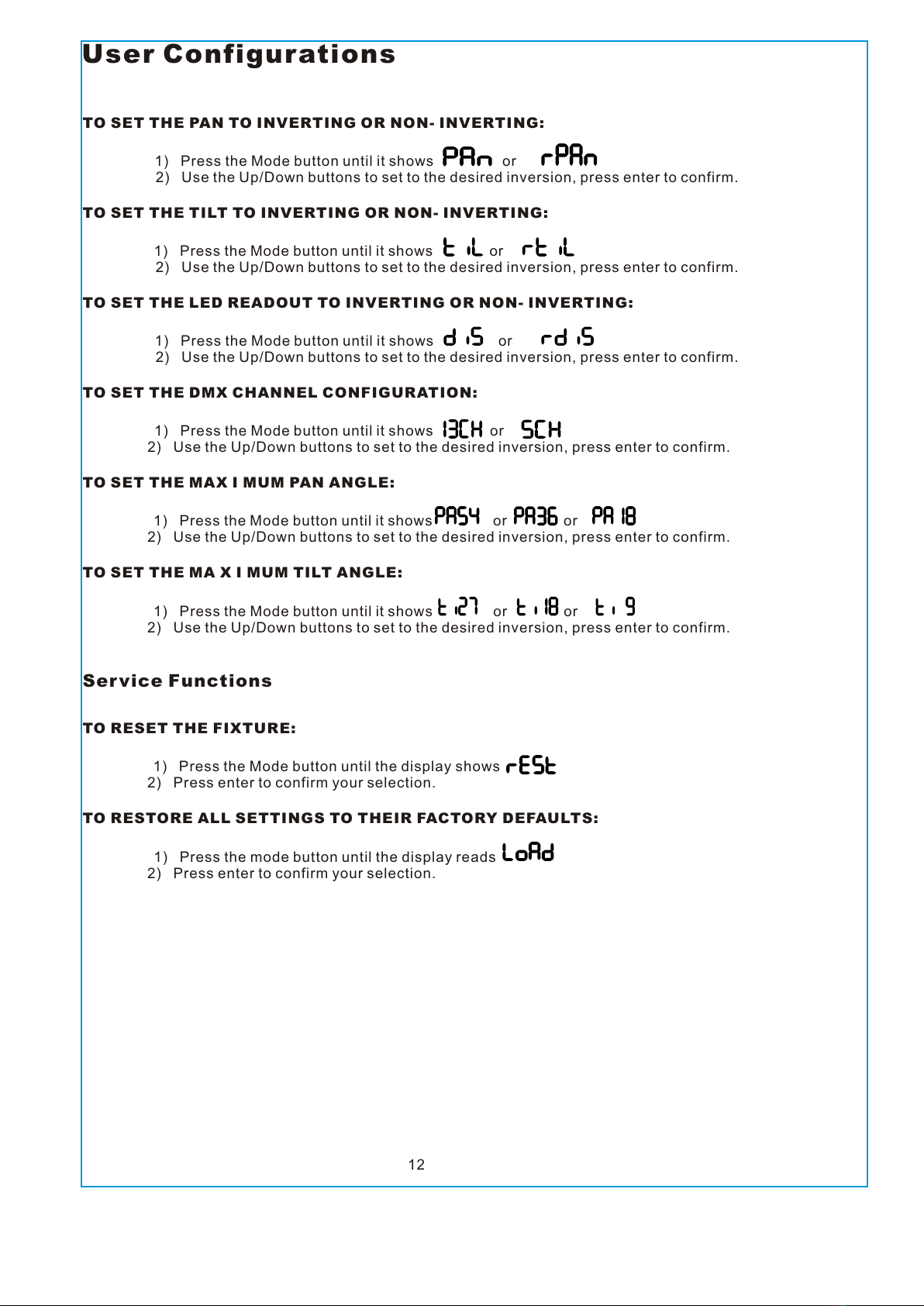

USER CONFIGURATIONS ...............................................................................................................................11
USER CONFIGURATIONS ...............................................................................................................................12
To set the pan to inverting or non-inverting: ...................................................................................................12
To set the tilt to inverting or non-inverting:......................................................................................................12
To set the LED Readout to Inverting or Non-Inverting: ....................................................................................12
To set the DMX channel configuration:..........................................................................................................12
To set the maximum pan angle: ....................................................................................................................12
To set the maximum tilt angle: ......................................................................................................................12
Service Functions ..........................................................................................................................................12
To reset the fixture:......................................................................................................................................12
To restore all settings to their factory defaults: ...............................................................................................12
OPERATION...................................................................................................................................................13
Stand-Alone Mode (Sound-Active, Auto Mode): ................................................................................................13
Master/Slave Mode (Master Sound, Master Auto): .............................................................................................13
DMX Mode ....................................................................................................................................................13

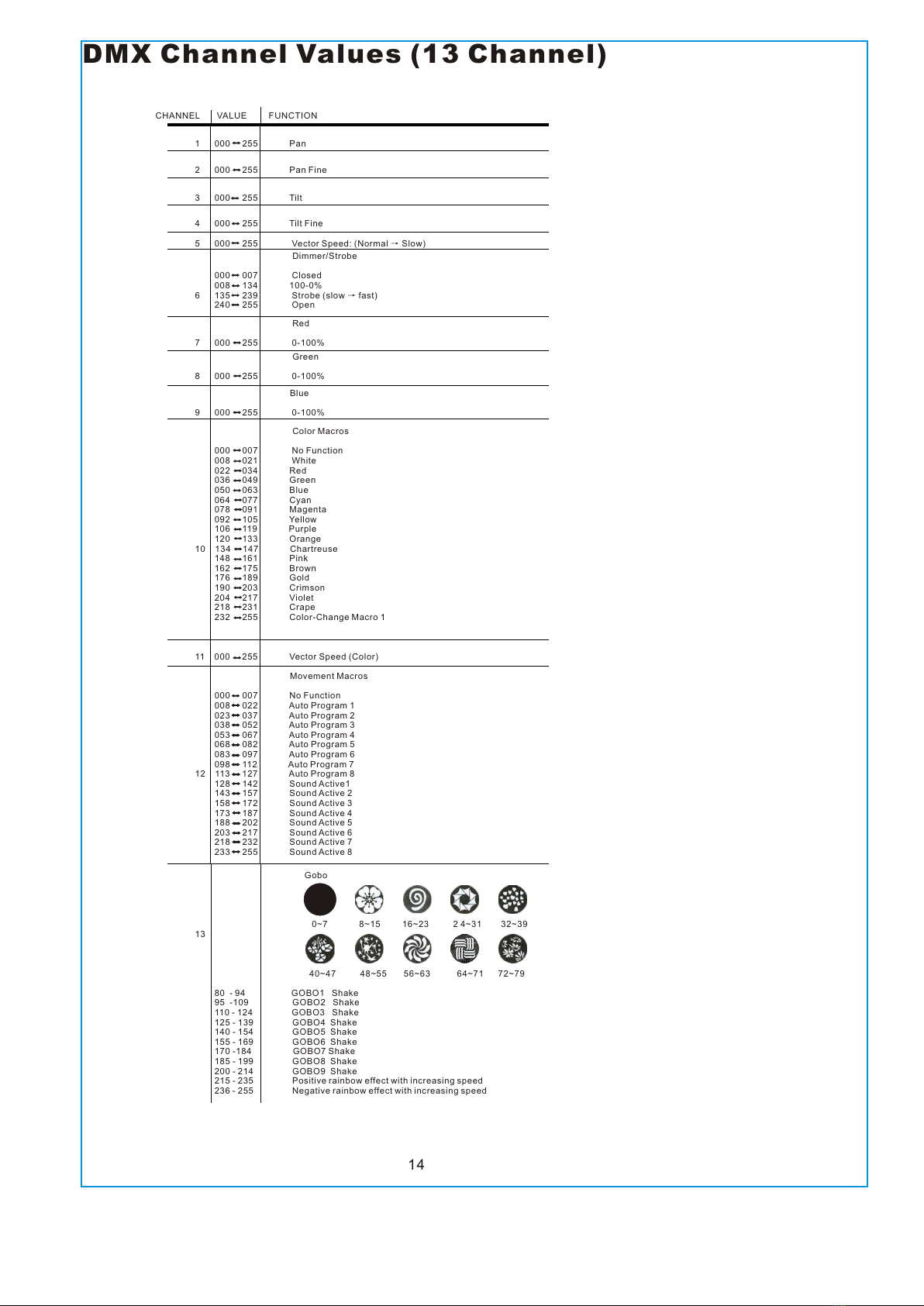

DMX CHANNEL VALUES (13 CHANNEL FOR SPOT) ..........................................................................................14
DMX CHANNEL VALUES (12 CHANNEL FOR WASH) .........................................................................................15
DMX CHANNEL VALUES (5 CHANNEL FOR SPOT) ............................................................................................16
DMX CHANNEL VALUES (4 CHANNEL FOR WASH) ...........................................................................................16
5. APPENDIX...........................................................................................................................17
TECHNICAL SPECIFICATIONS ........................................................................................................................17
2

1 x Macro Spot/wash
User Manual
What is included
1. BEFORE YOU BEGIN
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
AC Power
Figure 1 - AC Voltage Switch
To determine the power requirements for a particular fixture, see the label affixed to the back plate of
the fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating is its average
current draw under normal conditions. All fixtures must be powered directly off a switched circuit and
cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch. Before applying power to a fixture, check that the
source voltage matches the fixture’s requirement. Check the fixture or
device carefully to make sure that if a voltage selection switch exists that it
is set to the correct line voltage you will use.
War ning! Verify that the voltage select switch on your unit matches the
line voltage applied. Damage to your fixture may result if the
line voltage applied does not match the voltage indicated on
the voltage selector switch. All fixtures must be connected to
circuits with a suitable Earth Ground.
Not all fixtures have a voltage
select switch. Please be sure to
connect to the proper voltage.
3

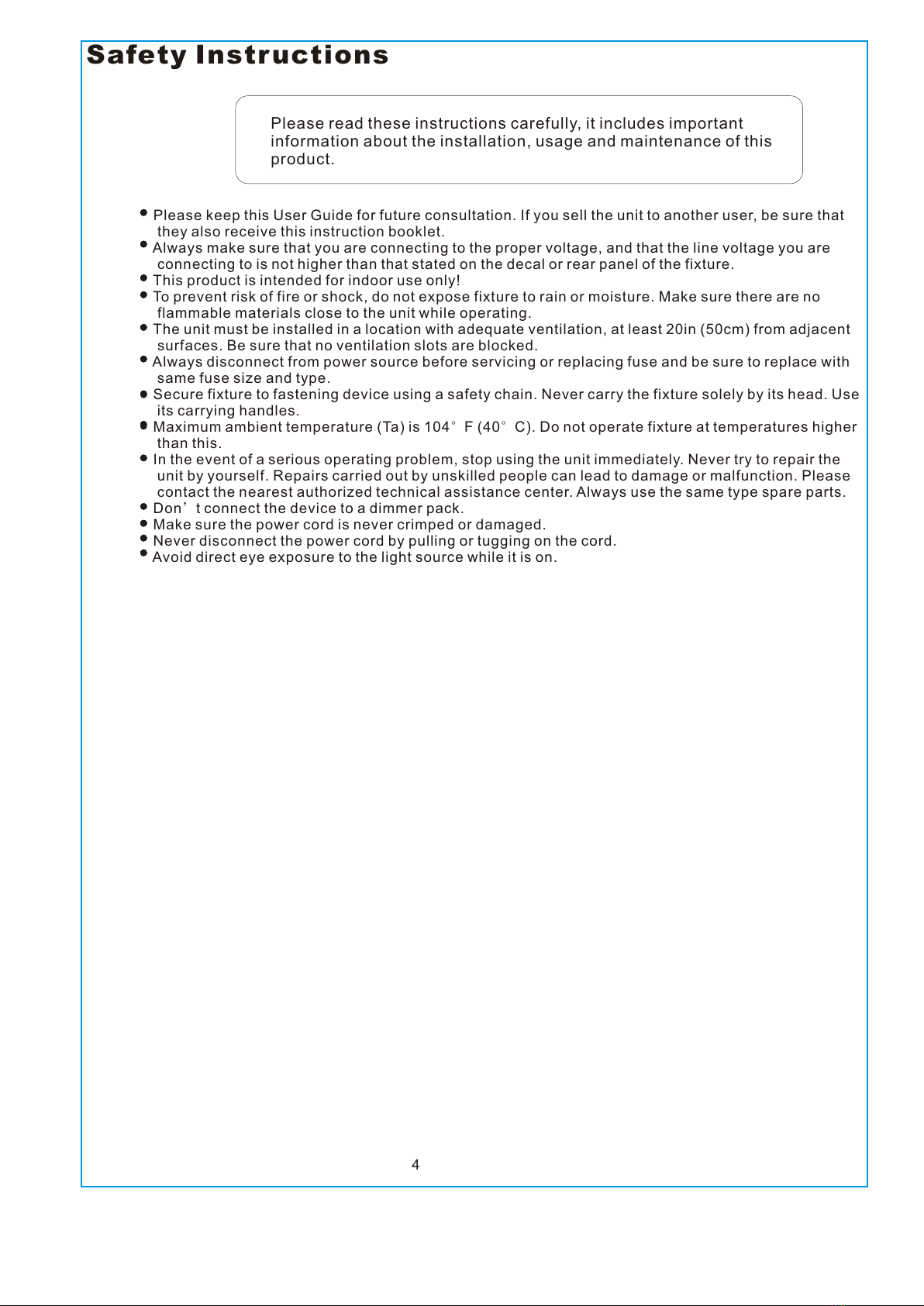

Safety Instructions
Please read these instructions carefully, it includes important
information about the installation, usage and maintenance of this
product.
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.
This product is intended for indoor use only!
To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no
flammable materials close to the unit while operating.
The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing fuse and be sure to replace with
same fuse size and type.
Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use
its carrying handles.
Maximum ambient temperature (Ta) is 104°F (40°C). Do not operate fixture at temperatures higher
than this.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
Don’t connect the device to a dimmer pack.
Make sure the power cord is never crimped or damaged.
Never disconnect the power cord by pulling or tugging on the cord.
Avoid direct eye exposure to the light source while it is on.
4

2. INTRODUCTION
Features
5 or 13-channel DMX-512 LED moving yoke
Pan: 540o / tilt: 270o
RGB color mixing
Gobo wheel
9 gobos + open
Gobo wheel spin effect
Variable electronic strobe
Variable electronic dimmer (0 – 100%)
Vector speed channel for pan/tilt, RGB color mixing and color macros
Built-in movement macros via master/slave or DMX
User-selectable basic or advanced operating modes
User-selectable pan/tilt ranges
Pan: 540°, 360°, 180°
Tilt: 270°, 180°, 90°
Compact and lightweight
LED display menu with invert
Reset to factory settings option
Display auto on/off
Pan/tilt invert option
Fan cooled
DMX Channel Summar y - 13 Channel Mode for Spot
- 12 Channel Mode for Wash
OPTIONAL CONTROLLERS
Easy Controller (CA-9)
ADDITIONAL FEATURES
CONTROL FEATURES
CHANNEL FUNCTION
1 Pan
2 Pan Fine
3 Tilt
4 Tilt Fine
5 Vector Speed (Pan/Tilt)
6 Dimmer/Strobe
7 Red
8 Green
9 Blue
10 Color Macros
11 Vector Speed (Color)
12 Movement Macros
13 Gobo
CHANNEL FUNCTION
1 Pan
2 Pan Fine
3 Tilt
4 Tilt Fine
5 Vector Speed (Pan/Tilt)
6 Dimmer/Strobe
7 Red
8 Green
9 Blue
10 Color Macros
11 Vector Speed (Color)
12 Movement Macros
5

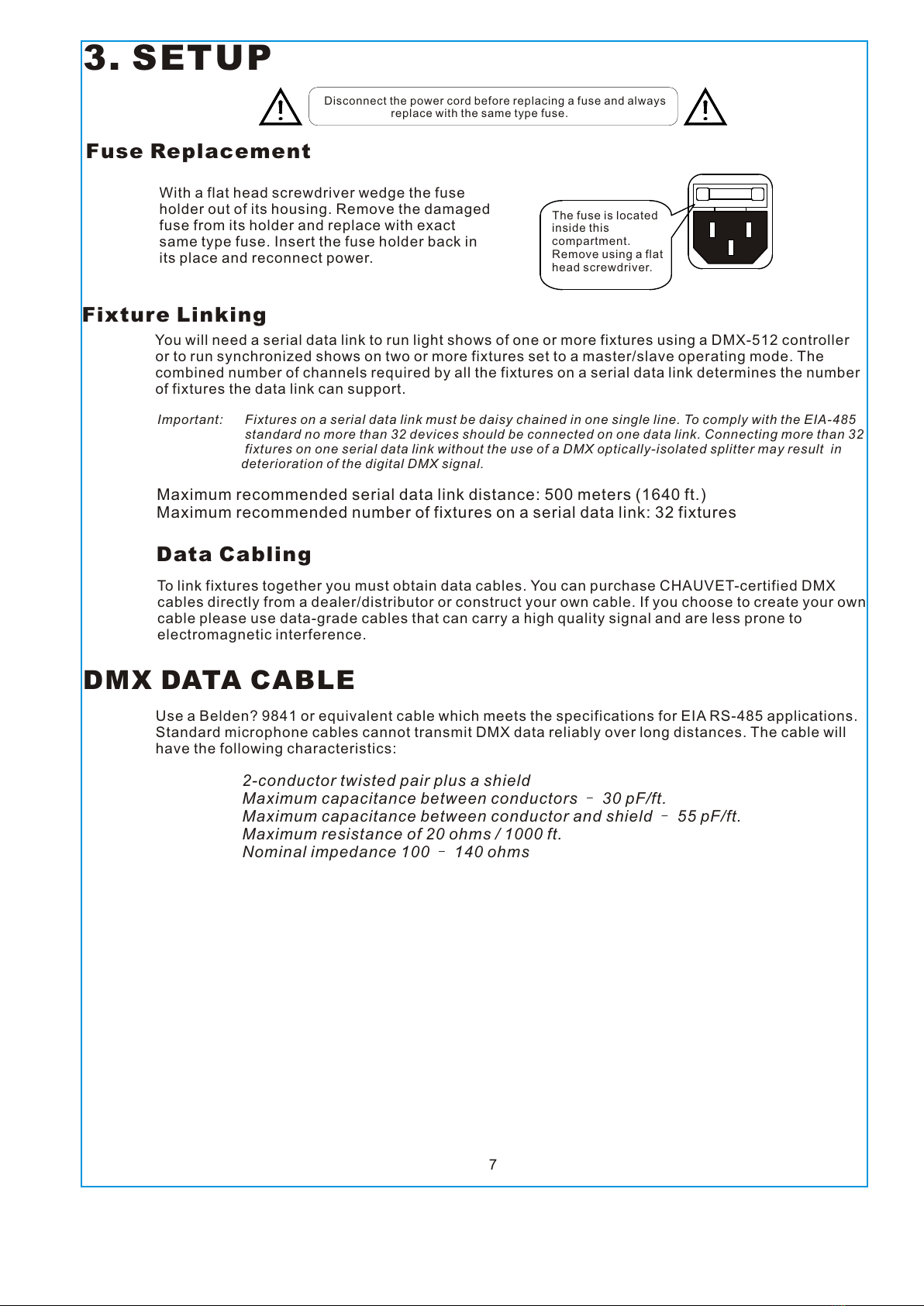

3. SETUP
Disconnect the power cord before replacing a fuse and always
replace with the same type fuse.
Fuse Replacement
With a flat head screwdriver wedge the fuse
holder out of its housing. Remove the damaged
fuse from its holder and replace with exact
same type fuse. Insert the fuse holder back in
its place and reconnect power.
The fuse is located
inside this
compartment.
Remove using a flat
head screwdriver.
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller
or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The
combined number of channels required by all the fixtures on a serial data link determines the number
of fixtures the data link can support.
Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-485
standard no more than 32 devices should be connected on one data link. Connecting more than 32
fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in
deterioration of the digital DMX signal.
Maximum recommended serial data link distance: 500 meters (1640 ft.)
Maximum recommended number of fixtures on a serial data link: 32 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX
cables directly from a dealer/distributor or construct your own cable. If you choose to create your own
cable please use data-grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
DMX DATA CABLE
Use a Belden? 9841 or equivalent cable which meets the specifications for EIA RS-485 applications.
Standard microphone cables cannot transmit DMX data reliably over long distances. The cable will
have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor and shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms
7

It is important never to obstruct the fan or vents pathway. Mount the
fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the
fixture by loosening both knobs and tilting the fixture. After finding the
desired position, retighten both knobs.
When selecting installation location, take into consideration lamp
replacement access and routine maintenance.
Safety cables must always be used.
Never mount in places where the fixture will be exposed to rain, high
humidity, extreme temperature changes or restricted ventilation.
Often, the setup for Master-Slave
and Standalone operation requires
that the first fixture in the chain be
initialized for this purpose via eithe
settings in the control panel or DIP-r
switches. Secondarily, the fixtures
that follow may also require a slave
setting. Please consult the
“Operating Instructions” section in
this manual for complete instructions
for this type of setup and
configuration.
Master/Slave Fixture Linking
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector
of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above to the input of the following fixture and so on
Mounting
ORIENTATION
This fixture may be mounted in any position provided there is adequate room for ventilation.
RIGGING
Hanging Clamp
Note!
Clamp is sold separately.
9

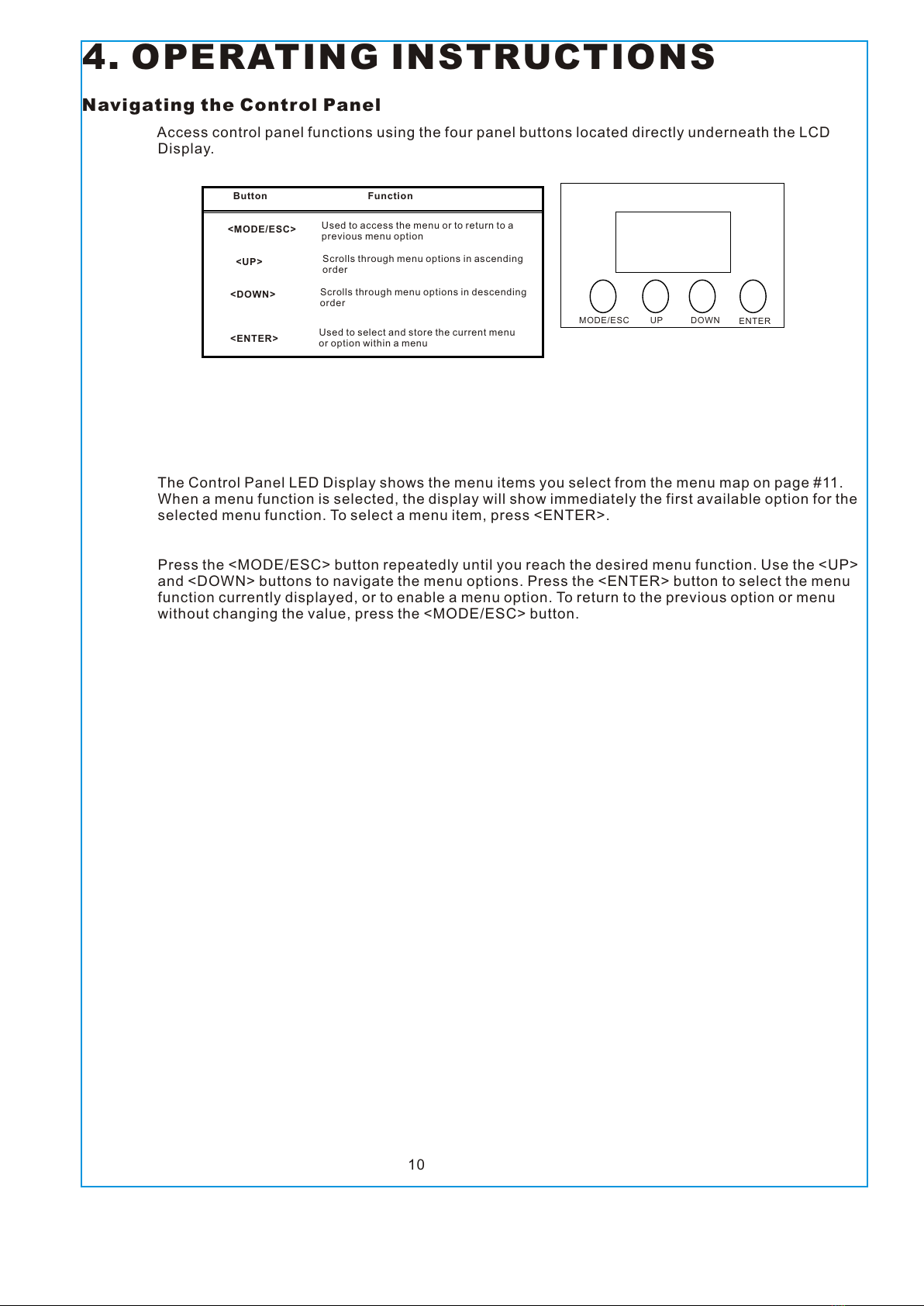

Access control panel functions using the four panel buttons located directly underneath the LCD
Display.
ENTER
MODE/ESC UP DOWN
Used to select and store the current menu
or option within a menu
Button Function
<MODE/ESC>
<UP>
<DOWN>
<ENTER>
Used to access the menu or to return to a
previous menu option
Scrolls through menu options in ascending
order
Scrolls through menu options in descending
order
4. OPERATING INSTRUCTIONS
Navigating the Control Panel
The Control Panel LED Display shows the menu items you select from the menu map on page #11.
When a menu function is selected, the display will show immediately the first available option for the
selected menu function. To select a menu item, press <ENTER>.
Press the <MODE/ESC> button repeatedly until you reach the desired menu function. Use the <UP>
and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu
function currently displayed, or to enable a menu option. To return to the previous option or menu
without changing the value, press the <MODE/ESC> button.
10

Menu Map
Use the <UP>,<DOWN>,
and <ENTER> buttons to
scroll through these menu
items
Wh e n n av i gat i ng t h e men u :
Us e t h e UP b u tto n t o mo v e up.
Us e t h e DO W N but t on t o m ove d o wn .
Us e t h e EN T ER bu t to n t o mov e r ig h t.
Us e t h e MO D E but o n to m o ve le f t, o r
to s c r ol l t hro u gh t h e lef t -m o st
it e m s in t h e men u m ap .
Use the <MODE/ESC>
button to scroll through
these menu items
11

TO SET THE PAN TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE TILT TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE LED READOUT TO INVERTING OR NON- INVERTING:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE DMX CHANNEL CONFIGURATION:
1) Press the Mode button until it shows or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE MAX I MUM PAN ANGLE:
1) Press the Mode button until it shows or or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
TO SET THE MA X I MUM TILT ANGLE:
1) Press the Mode button until it shows or or
2) Use the Up/Down buttons to set to the desired inversion, press enter to confirm.
Ser vice Functions
TO RESET THE FIXTURE:
1) Press the Mode button until the display shows
2) Press enter to confirm your selection.
TO RESTORE ALL SETTINGS TO THEIR FACTORY DEFAULTS:
1) Press the mode button until the display reads
2) Press enter to confirm your selection.
User Configurations
12

or
Stand-Alone Mode (Auto Mode):
This mode allows a single unit to run to a factory installed program in one of two speeds.
1) To set the fixture in auto mode Fast, select . Once confirmed the display reads
2) To set the fixture in auto mode Slow, select Once confirmed the display reads
Master/Slave Mode (Master Sound):
This mode will allow you to link up to 32 units together without a controller.
1) Use standard DMX cables to daisy chain your units together via the DMX connector on the rear
of the units. Proper performance it may be necessary to use a terminator at the last fixture. For
more information about terminators, see page 8.
2) Choose a unit to function as the Master. Select NAFA/NASL or NStS (see below for readout)
depending upon which master mode you require. The master unit must be the first unit in line.
Finally, chain the units together using DMX cable.
Master Auto or
Master Sound becomes when confirmed
3) Select slave function by using the Up/Down keys to reach SLAv in the Master/Auto menu on the
slave units, and they will react in the same as the Master.
Slave becomes when confirmed
DMX Mode
Operation
13
This mode allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with
DMX, please read the DMX Primer on page #19.
1) The default mode for the fixture is DMX, which appears as on the LED Readout.

1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Pan Fine
3 000 255 Tilt
4 000 255 Tilt Fine
5 000 255 Vector Speed: (Normal → Slow)
Dimmer/Strobe
000 007 Closed
008 134 100-0%
6 135 239 Strobe (slow → fast)
240 255 Open
Red
7 000 255 0-100%
Green
8 000 255 0-100%
Blue
9 000 255 0-100%
Color Macros
000 007 No Function
008 021 White
022 034 Red
036 049 Green
050 063 Blue
064 077 Cyan
078 091 Magenta
092 105 Yellow
106 119 Purple
120 133 Orange
10 134 147 Chartreuse
148 161 Pink
162 175 Brown
176 189 Gold
190 203 Crimson
204 217 Violet
218 231 Crape
232 255 Color-Change Macro 1
11 000 255 Vector Speed (Color)
Movement Macros
000 007 No Function
008 022 Auto Program 1
023 037 Auto Program 2
038 052 Auto Program 3
053 067 Auto Program 4
068 082 Auto Program 5
083 097 Auto Program 6
098 112 Auto Program 7
12 113 127 Auto Program 8
128 142 Sound Active1
143 157 Sound Active 2
158 172 Sound Active 3
173 187 Sound Active 4
188 202 Sound Active 5
203 217 Sound Active 6
218 232 Sound Active 7
233 255 Sound Active 8
DMX Channel Values (13 Channel)
14
Gobo
0~7 8~15 16~23 2 4~31 32~39
13
40~47 48~55 56~63 64~71 72~79
80 - 94 GOBO1 Shake
95 -109 GOBO2 Shake
110 - 124 GOBO3 Shake
125 - 139 GOBO4 Shake
140 - 154 GOBO5 Shake
155 - 169 GOBO6 Shake
170 -184 GOBO7 Shake
185 - 199 GOBO8 Shake
200 - 214 GOBO9 Shake
215 - 235 Positive rainbow effect with increasing speed
236 - 255 Negative rainbow effect with increasing speed

1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Pan Fine
3 000 255 Tilt
4 000 255 Tilt Fine
5 000 255 Vector Speed: (Normal → Slow)
Dimmer/Strobe
000 007 Closed
008 134 100-0%
6 135 239 Strobe (slow → fast)
240 255 Open
Red
7 000 255 0-100%
Green
8 000 255 0-100%
Blue
9 000 255 0-100%
Color Macros
000 007 No Function
008 021 White
022 034 Red
036 049 Green
050 063 Blue
064 077 Cyan
078 091 Magenta
092 105 Yellow
106 119 Purple
120 133 Orange
10 134 147 Chartreuse
148 161 Pink
162 175 Brown
176 189 Gold
190 203 Crimson
204 217 Violet
218 231 Crape
232 255 Color-Change Macro 1
11 000 255 Vector Speed (Color)
Movement Macros
000 007 No Function
008 022 Auto Program 1
023 037 Auto Program 2
038 052 Auto Program 3
053 067 Auto Program 4
068 082 Auto Program 5
083 097 Auto Program 6
098 112 Auto Program 7
12 113 127 Auto Program 8
128 142 Sound Active1
143 157 Sound Active 2
158 172 Sound Active 3
173 187 Sound Active 4
188 202 Sound Active 5
203 217 Sound Active 6
218 232 Sound Active 7
233 255 Sound Active 8
DMX Channel Values (12 Channel for Wash)
15

DMX Channel Values (5 Channel for Spot)
1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Tilt
Dimmer/Strobe
000 007 Closed
008 134 100-0%
3 135 239 Strobe (slow → fast)
240 255 Open
Color Macros
000 007 No Function
008 021 White
022 034 Red
036 049 Green
050 063 Blue
064 077 Cyan
078 091 Magenta
092 105 Yellow
106 119 Purple
120 133 Orange
4 134 147 Chartreuse
148 161 Pink
162 175 Brown
176 189 Gold
190 203 Crimson
204 217 Violet
218 231 Crape
232 255 Color-Change Macro 1
Gobo
0~7 8~15 16~23 2 4~31 32~39
5
40~47 48~55 56~63 64~71 72~79
80 - 94 GOBO1 Shake(from slow to fast)
95 -109 GOBO2 Shake(from slow to fast)
110 - 124 GOBO3 Shake(from slow to fast)
125 - 139 GOBO4 Shake(from slow to fast)
140 - 154 GOBO5 Shake(from slow to fast)
155 - 169 GOBO6 Shake(from slow to fast)
170 -184 GOBO7 Shake(from slow to fast)
185 - 199 GOBO8 Shake(from slow to fast)
200 - 214 GOBO9 Shake(from slow to fast)
215 - 235 Positive rainbow effect with increasing speed
236 - 255 Negative rainbow effect with increasing speed
DMX Channel Values (4 Channel for Wash)
1 000 255 Pan
CHANNEL VALUE FUNCTION
2 000 255 Tilt
Dimmer/Strobe
000 007 Closed
008 134 100-0%
3 135 239 Strobe (slow → fast)
240 255 Open
Color Macros
000 007 No Function
008 021 White
022 034 Red
036 049 Green
050 063 Blue
064 077 Cyan
078 091 Magenta
092 105 Yellow
106 119 Purple
120 133 Orange
4 134 147 Chartreuse
148 161 Pink
162 175 Brown
176 189 Gold
190 203 Crimson
204 217 Violet
218 231 Crape
232 255 Color-Change Macro 1
16

Length....................................................................................................................... 6.8 in (173 mm)
Width ........................................................................................................................ 6.8 in (173 mm)
Height ....................................................................................................................... 9.8 in (249 mm)
Weight ........................................................................................................................ 8.3 lbs (3.8 kg)
Switch-selectable power settings ............................................................120V 60Hz AC or 230V 50Hz
Fuse..................................................................................................... 2A 250V
Power Consumption .............................................................................. 68.1W (0.60A) Max at 120V
Inrush Power ........................................................................................ 83.6W (1.41A) inrush at 120V
Power Factor .......................................................... ..............................0.92
LED................................................................................................................ 1, 14W RGB 50,000hrs
Beam Angle ............................................................................................................ 13°
Illuminance at 1M ......................................................... ...........................................100 fc (1,076 lux)
Pan ......................................................................................................................................... 540°
Tilt........................................................................................................................................... 270°
Maximum ambient temperature................................................................................ .....104°F (40°C)
Data input .......................................................................................... locking 3-pin XLR male socket
Data output ........................................................................................ locking 3-pin XLR female socket
Data pin configuration ..........................................................................pin 1 shield, pin 2 (-), pin 3 (+)
Protocols............................................................................................ DMX-512 USITT
DMX Channels ....................................................................................5 or 13
Macro Spot/wash...............................................................................................................spot/wash
Optional Controller ................................................................................................................CA-9
Warranty ........................................................................................................ 2-year limited warranty
Technical Specifications
WEIGHT & DIMENSIONS
POWER
LIGHT SOURCE
PHOTO OPTIC
RANGE
THERMAL
CONTROL & PROGRAMMING
ORDERING INFORMATION
WARRANTY INFORMATION
17
5. APPENDIX
