QUALITYFRY iQ 640 User manual

1en
FES CARROUSEL
EN
iQ 640 MODEL
. U S E R’S M A N UA L .
FIRE EXTINGUISHING SYSTEM (FES)

2QUALITYFRY 2QUALITYFRY
USER
MANUAL
THIS MANUAL REFERS
TO THE FOLLOWING
MODELS:
iQ 640 FES CARROUSEL
PLEASE CAREFULLY
READ THESE
INSTRUCTIONS
FOR THE BEST
PERFORMANCE FROM
YOUR
iQ 640 FES CARROUSEL

3en3
AUDIOVISUAL
USER MANUAL
20 VIDEOS
FIND ALL THE
E X P L A N A T O R Y
VIDEOS ON OUR
YOUTUBE CHANNEL
AND REFER TO IT
AS OFTEN AS
NECESSARY.
iQ 640 FES CARROUSEL

4QUALITYFRY
iQ 640 FES CARROUSEL
See de iQ 640 FES CARROUSEL
OPEN

5en
This document contains private property information protected by intellectual property legislation.
All rights reserved. Photocopying, reproducing or translating
to another language any part whatsoever of this document
without the prior written consent of QUALITYFRY S.L. is
prohibited.
QUALITYFRY S.L. reserves the right to include the
improvements resulting from its ongoing research on this
model, without prior notice.
© 2021 QUALITYFRY S.L., all rights RESERVED.
iQ 640 FES CARROUSEL

General index

7en
1. IMPORTANT GENERAL
INFORMATION
2. WARRANTY, SAFETY AND
INSTALLATION
3. DIAGRAM
4. FIRE EXTINGUISHING SYSTEM
(FES)
5. WHAT TO DO IN CASE OF FIRE
6. DESCRIPTION OF THE
EQUIPMENT
7. HANDLING AND SETTINGS
13
68
24
70
8
82
8. PRODUCT INPUTS
9. PRODUCT OUTPUTS
10. MAINTENANCE iQ 640 FES
CARROUSEL
11. MAINTENANCE FIRE
EXTINGUISHING SYSTEM (FES)
12. FINDING FAULTS AND BASIC
SOLUTIONS
13. DECLARATION OF
CONFORMITY
26
98
38
46
92
56
66

8QUALITYFRY
IMPORTANT GENERAL INFORMATION

9en
This iQ 640 FES CARROUSEL Automatic Fryer instruction manual has been designed for you to be aware of the operations that you
should perform while the machine is in your charge.
The situations that you may encounter have been described for its
optimal operation.
The contents of this instruction manual must be known by all the
people in charge of its operation. This manual must be kept in a
safe place, only being available to authorised personnel and to the
technical personnel who may request it.
Failure to follow the information provided in this document entails
the risk of material damage and potentially serious or fatal injuries to
employees or operators.
IMPORTANT GENERAL INFORMATION

10QUALITYFRY
Regarding equipment safety and responsibilities
This chapter contains all the information you need to use the iQ 640
FES CARROUSEL fryer safely, without endangering yourself or others.
This appliance cannot be used by children or people with limited
physical, sensory or mental capacity, or those lacking experience
and/or knowledge.
Cleaning and maintaining the equipment must not be performed by
children, not even while under adult supervision.
Users are warned that technical maintenance and repairs must be
performed by a technical servicing agent authorized by QUALITYFRY,
using original QUALITYFRY spare parts.
QUALITYFRY is not responsible for any products that have not
been installed, adjusted or handled correctly, without following the
installation instructions provided with the product.
QUALITYFRY has no obligation with respect to any products whose
serial number has been worn away, scratched or removed, or
products that have been changed or repaired using unauthorised
parts or by technical service agents who are not authorised by
IMPORTANT GENERAL INFORMATION

11 en
IMPORTANT GENERAL INFORMATION
QUALITYFRY. To obtain a list of authorised technical service agents,
please consult your supplier.
iQ 640 FES CARROUSEL fryer must only be handled by hand. If the
equipment is damaged by using pointed, sharp, or similar objects, you
will lose the right to a warranty.
To prevent accidents or damage to the equipment, it is essential that
operating sta attend a tutorial and receive instructions on safety
periodically, or as appropriate; these should be given by qualied
sta who are endorsed by QUALITYFRY.
Incorrect installation, maintenance or cleaning, as well as cleaning or
modications to the equipment, can cause damage, wounds or fatal
injuries. Read the instruction manual thoroughly before operating the
equipment.
Cleaning products, as well as matching accessories, can only be
used for the purposes described in this manual. Any other use is
considered incorrect and may be dangerous.

12QUALITYFRY
IMPORTANT GENERAL INFORMATION
Types of warnings
DANGER/WARNING:
Death / serious injury (irreversible).
Imminent/potential danger.
RISK OF BURNS:Serious
injury (reversible). Potential
danger.
ATTENTION: Minor injury
(reversible). Potential danger.
NOTICE: Property damage.
Potential danger
Warnings are categorised according to the following levels of danger:

13 en
WARRANTY, SAFETY AND INSTALLATION
DANGER/WARNING
DO NOT START THE MACHINE WITHOUT
READING THE INSTRUCTION MANUAL
BEFOREHAND
Any installation or repair not carried out by authorised specialists
or with original replacement parts, as well as any modications made
without the prior authorisation of the manufacturer will invalidate the
warranty and exempt the manufacturer of all product liabilities.
What is
covered:
This warranty covers all defects
in workmanship and materials
in all QUALITYFRY fryers and
equipment or parts sold in
Spain, except as excluded
below.
W h O i s
covered:
This warranty only covers the
buyer of QUALITYFRY fryers,
equipment or original parts.
This warranty is non-trans-
ferable. You must have your
original purchase receipt for the
warranty coverage.

14QUALITYFRY
WARRANTY, SAFETY AND INSTALLATION
1-YEAR OR 12-MONTH
WARRANTY:
All equipment has a warranty
period of 12 months from the
invoice date.
HOW TO OBTAIN SERVICE
Get in touch with our authorised manufacturing technical service to
obtain warranty service or call your supplier. You can also visit the
QUALITYFRY website at https://www.qualityfry.com/, click on contact
and ll in the form. In the “Comment” eld, request the desired
service. It is important that you provide the model, series number
of the machine and a description of the problem. Once sent, the
technical service will be in touch with you as soon as possible. You
must keep your sales receipt as proof of the purchase date.
WHAT WE WILL DO:
We will repair the defective
equipment, component or part.
This repair or replacement
will be at the expense of
QUALITYFRY. Service provision
items(travel), labour and
transportation will not be
included in the warranty.

15 en
WARRANTY, SAFETY AND INSTALLATION
WHAT THIS WARRANTY BY QUALITYFRY
DOES NOT COVER:
• Damage caused by misuse, abuse, tampering or accidents.
• Improper or unauthorised repairs.
• Not following the installation procedures, operating instructions
and/or scheduled maintenance procedures as prescribed in your
QUALITYFRY service and owner’s manual.
• Damage due to shipping.
• Removal, changes or damage to the rating plate.
• Changes to the settings and calibrations after thirty (30) days from
the date of installation of the equipment.
• Equipment exported to foreign countries.
• Maintenance items such as gaskets, activated carbon lters, internal
and external nishes, lter kits (funnel, bucket, hose, etc.).
• Service provision items (travel), labour and transportation, which
could occur in cases when Qualityfry deems it appropriate.

16QUALITYFRY
- If, during the warranty period, the client uses this equipment and
installs new or recycled parts which are not directly acquired from
QUALITYFRY or any authorised service provider, the warranty will
be cancelled. Furthermore, QUALITYFRY and its aliates shall not
be liable for any claims, damages or expenses incurred directly or
indirectly by the client, due to the installation of any parts that are
not approved by the manufacturer.
- Installation must comply with all national and regional laws and
regulations and meet the local standards of the corresponding
service companies and local authorities, and other relevant
requirements.
Give the user manuals included in the client documentation with the
QUALITYFRY fryer, if this changes owner.
WARRANTY, SAFETY AND INSTALLATION
Do not store or use gasoline or other ammable liquids or vapours
near this or any other appliances.
WAR NING
DANGER/WARNING

17 en
WARRANTY, SAFETY AND INSTALLATION
Risk of injury due to heavy lifting when loading and unloading the
appliance onto and from transport equipment. Use a fork-lift truck or
a pallet truck.
Do not exceed safety limits to lift and load the appliance. Use
personal protection equipment.
Carefully remove the straps and lid from the fryer’s box. Once the lid
has been removed, remove the polystyrene and the parts located on
top of the fryer (Filter kit - Bucket, funnel, lter and hose) (see Figure
1).
Once the above-mentioned parts have been removed, remove the
outer box to access the machine (see gure 2).

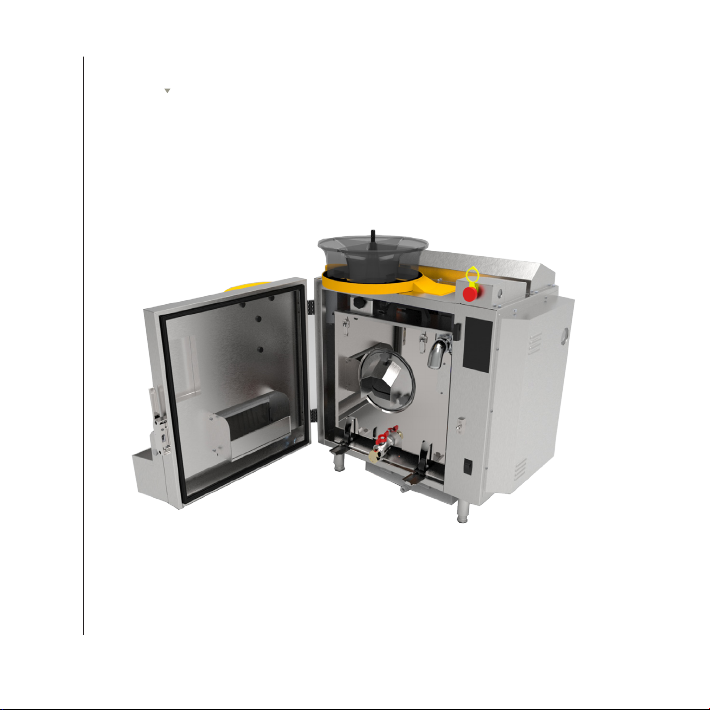

Open the door of the fryer unit and remove the polystyrene
positioners found inside. Next, remove the fryer case by
disconnecting the fryer’s power cable (black angled plug), loosen the
black wheel on the extractor dock located at the top left of the frying
case, then lift the dock and readjust the wheel so that it stays upright.
Source of danger: when moving heavy loads
ATENTION

18QUALITYFRY
WARRANTY, SAFETY AND INSTALLATION
Fig. 1
Fig. 2
Once disconnected and with the extractor dock upright, pull the
handle positioned beneath the unit on the bottom left, and once it
has been pulled, remove the fryer from inside the unit.
Once the fryer case is out of the unit, remove the polystyrene
positioners which are located behind the fryer. Also remove the
additional polystyrene found in the lter box, doing so by opening
the clasps or the two latches located on the metal box on the
right-hand side of the unit; once open, pull o the door, where you
will nd the lters; remove the polystyrene and close the lter box.

19 en
WARRANTY, SAFETY AND INSTALLATION
EXPLANATORY VIDEO
This QR code takes you to video about
setting up the fryer.
Immediately lift the fryer unit onto the work surface where it will be
installed. This should be done by two (2) people, so that the base of
the machine is exposed, allowing it to be worked on easily.
Once the fryer unit is on the work surface, insert the fryer, and lower
the extractor dock over the case so that fumes do not escape while
frying.
Connect the iQ 640 FES CARROUSEL machine to a single phase 20
Amp plug so that you can turn it on and insert 5.5 litres of oil.
You can also see this whole procedure in the following video by
scanning the following QR code “Unpacking and setting-up the
machine”.

20QUALITYFRY
WARRANTY, SAFETY AND INSTALLATION
Source of danger: mechanical parts of the fryer
When installing and using your iQ 640 FES CARROUSEL fryer, you
must take the following precautions:
• Risk of crushing body parts if the machine falls.
- When moving or installing it.
To prevent that, use suitable handling equipment. Move the appliance
slowly and carefully and ensure it does not tip over.
Finally, ensure that your centre of gravity is balanced.
- When placing the appliance on the supporting surface,
you should ensure the following
That the supporting surface is at and level.
That the supporting surface is able to support the weight of the
equipment when in use, as well as the weight of the structure that
supports the machine.
That the structure which supports the equipment (work surface or
bottom frame) is able to support the weight of the appliance when in
use.
