Quantum Data 802 Series User manual

Model 802 Series Quick Start Guide • 1 •
Model 802 Series
Quick Start Guide
®
This Quick Start Guide is designed to help get you up and running
quickly with your generator..
Please see back cover for
complete list of Models
and Options covered by
this manual.
Index Page
AC Power
Requirements 2
MakingConnections 2
ConnectorPinouts 3
Normal Front Panel
Operation 4
SpecialModesand
GenOps Image 5
RestoringNormal
OperatingMode 6
Using Old Format
Naming 6
DigitalFriendlyand
AnalogFriendlyModes 7
CloningDataand
Firmware 8
SpecialSerialPort
Modes 9
SettingGBIP
Address 9
FormatStatus
Display 10
SelfCalibration 10
TemporarilyChanging
VideoSignalTypes 11
TemporarilyChanging
PixelDepth 11
TestingDDC
CompliantMonitors 12
HDCPTesting 13
VGMSoftware 14
VGMFormat Editor 15
VGM Image Editor 15
VGMSequenceEditor
andPlayer 16
DisplayingBMPBit
Mapped Images 17
UploadingNew
Firmware 19
Developingyourown
softwareapps. 19

• 2 • Model 802 Series Quick Start Guide
Making Connections
Notes:
Some connectors shown are only available on some models and/or with certain hardware
option configurations.
The current firmware only fully supports use of the RS-232 and optional GPIB
communications ports and has limited USB support. Version 3.00 of our VGM software
supportsusing the USB port for the bit map download function described on page 17 of
this manual.
I m a g e V ideo Sync O utputs
STEP R G B ACS DCS DSS ON
Format
802
Video
Test
Generator
BNC and Mini-DIN
Test Signal Output
Connectors
HD-15 D-Sub (V A)
Test Signal Output Connector
Digital Video Test Signal Output
LVDS or DVI Connector
S-Video Color TV Composite Color TV Analog Red Video Analog reen Video Analog Blue Video TTL Horiz/Comp Sync TTL Vert Sync
AC Mains Power Inlet (IEC-320 Type) and Power Switch
Voltage Range: 100 - 250 VAC
Frequency: 50 - 60 Hz Sinusoidal
PC Memory
Card Slot
USB RS-232
Computer / ATE Communications Ports
PIB
Special Frame Sync
BNC Connector
*
*
**
*Available as an option on
some models.

Only on Model 802F and
802 .

Model 802 Series Quick Start Guide • 3 •
Making Connections
#niPlangiS#niPlangiS#niPlangiS
1oediVdeRgolanA6dnuorGoediVgolanA11noitcennoCoN
2oediVneerGgolanA7dnuorGoediVgolanA21ataDlaireSDIDE/CDD
3oediVeulBgolanA8dnuorGoediVgolanA31cnySlatnoziroH
4noitcennoCoN9 tuOCDV5+DIDE/CDD41cnySlacitreV
5dnuorGlatigiD01dnuorGlatigiD51kcolCataDDIDE/CDD
VGA Connector Pinout Chart
High Density 15 D-Sub Receptacle on all Models
#niPlangiS#niPlangiS#niPlangiS#niPlangiS
1-2DSDMT9-1DSDMT71-0DSDMT1CdeRgolanA
2+2DSDMT01+1DSDMT81+0DSDMT2CneerGgolanA
3dleihS4/2D11dleihS3/1D91dleihS5/0D3CeulBgolanA
4-4DSDMT21-3DSDMT02-5DSDMT4CcnySziroH
5+4DSDMT31+3DSDMT12+5DSDMT5CdnuorGgolanA
6kcolCCDD41CDV5+22dleihSkcolC
7ataDCDD51dnuorG32+kcolCSDMT
8.nnoCoN61tceteDgulPtoH42-kcolCSDMT
DVI Connector Pinout Chart (DVI Options Only)
#niPlangiS#niPlangiS#niPlangiS#niPlangiS
1M0A01kcolCCDD91P0A82ataDCDD
2M1A11CDV5+CDD02P1A92dnuorGBSU
3M2A21+BSU12P2A03-BSU
4M1kcolC31CDV5+BSU22P1kcolC13dnuorGdleihS
5M3A41M4A32P3A23P4A
6dleihS51M5A42nnoCoN33P5A
7nnoCoN61M6A52nnoCoN43P6A
8nnoCoN71M7A62nnoCoN53P7A
9nnoCoN81M2kcolC72dnuorGCDD63P2kcolC
LVDS Connector Pinout Chart (LVDS Option Only)
S-Video Connector Pinout
Diagram (Units with TV
option Only)
Y (Luminance)
Ground
C (Chrominance)
Ground

• 4 • Model 802 Series Quick Start Guide
Notes:
If the format and image names are shifted to
the left side of the LCD the unit is running in
a user defined Test Sequence mode from the
front panel. Information on creating a Test
Sequence using VGM software is on page
16.
Front Panel Controls and Indicators (Normal Mode)
If there is a combination of two letters and a
number to left of the equal sign in the top row
of the LCD, the unit is in Detailed Status
display mode. Information on setting this
mode and the meaning of the letters and
numbers can be found on page 10.
802
Video
Test
Generator
Image Video Gate
STEP R G B ACS DCS DSS ON
Format
Outputs
Po er On Indicator
Current
Test Image
Horizontal Rate
nearest KHz
Current
Format
Vertical Rate
nearest Hz
LCD Windo Information
Sync Gate
Image/ Step
Button
Draws alternate
versions of test
images
Video Gate
Buttons
Turn individual
video elements
on or off
Sync Gate
Buttons
Turn different
sync types on
and off
Outputs
Button
Turns all
signal outputs
on and off
Format Knob
Selects a video
signal format from
knob list
Image Knob
Selects a test
image (pattern)
from knob list
H31 219=VGA_3
V60 198=SMPTE133
DMT0660 NewSeq
Outline0 S1 H31 D4C=DMT0660
V60 1=Outline0

Model 802 Series Quick Start Guide • 5 •
Special Operating Modes and Functions
Mode _
Remove all modes
Set GPIB Address
Set baud rate to 9600
Enable programmable keypad
Initialize w/factory defaults
Calibrate
Enable Programming
Enable numeric keypad
Clone
Digital friendly mode
Analog friendly mode
Enable status display
Old format library
Hold at power-on _
ACS, DCS, DSS
DCS
R, DCS
R, OUTPUT
ACS, DSS
R, G, B
STEP
R
STEP, OUTPUT
G, B
R, B
STEP, G, B
G
Current status _
–
15
2400,N,8,1,N,N
OFF
–
–
OFF
OFF
–
OFF
OFF
OFF
OFF
Function _
Toggle analog/digital
Rotate video type
Set pixel depth
DDC-based autoconfig
Hold first, press second_
G, B
R, B
R, G
R, ACS
Current status _
Analog
RGB Color
8
FMT: fmt
Special Modes
Special Key Operations
Overview
GenOps Test Image
Front panel button combinations are used to select the generator's optional
operating modes and special functions. Some are only activated at power up
while others are activated once the generator is running. The built-in GenOps
test image shows the current status of all options. The upper portion of the image
lists the modes that can only be changed on power up and the lower portion lists
functions that are selected once the generator is in use. The left hand columns
list the names of the modes or special functions. The center columns list the
required button combinations and the right hand columns indicate the current
status of the mode or function. All of the special modes and functions are de-
scribed on the following pages.

• 6 • Model 802 Series Quick Start Guide
Power up Modes
This section describes special operating modes that can only be selected when
the generator is first powered up. The indicated buttons are held down and then
the unit is powered up. Release the buttons when the LCD displays a message
identifying the selected mode.
Some operating modes will be retained when the unit is turned off and then
powered back on. The only way to deactivate one of these stored modes is to
select an alternate mode, remove all modes, or initialize with factory defaults.

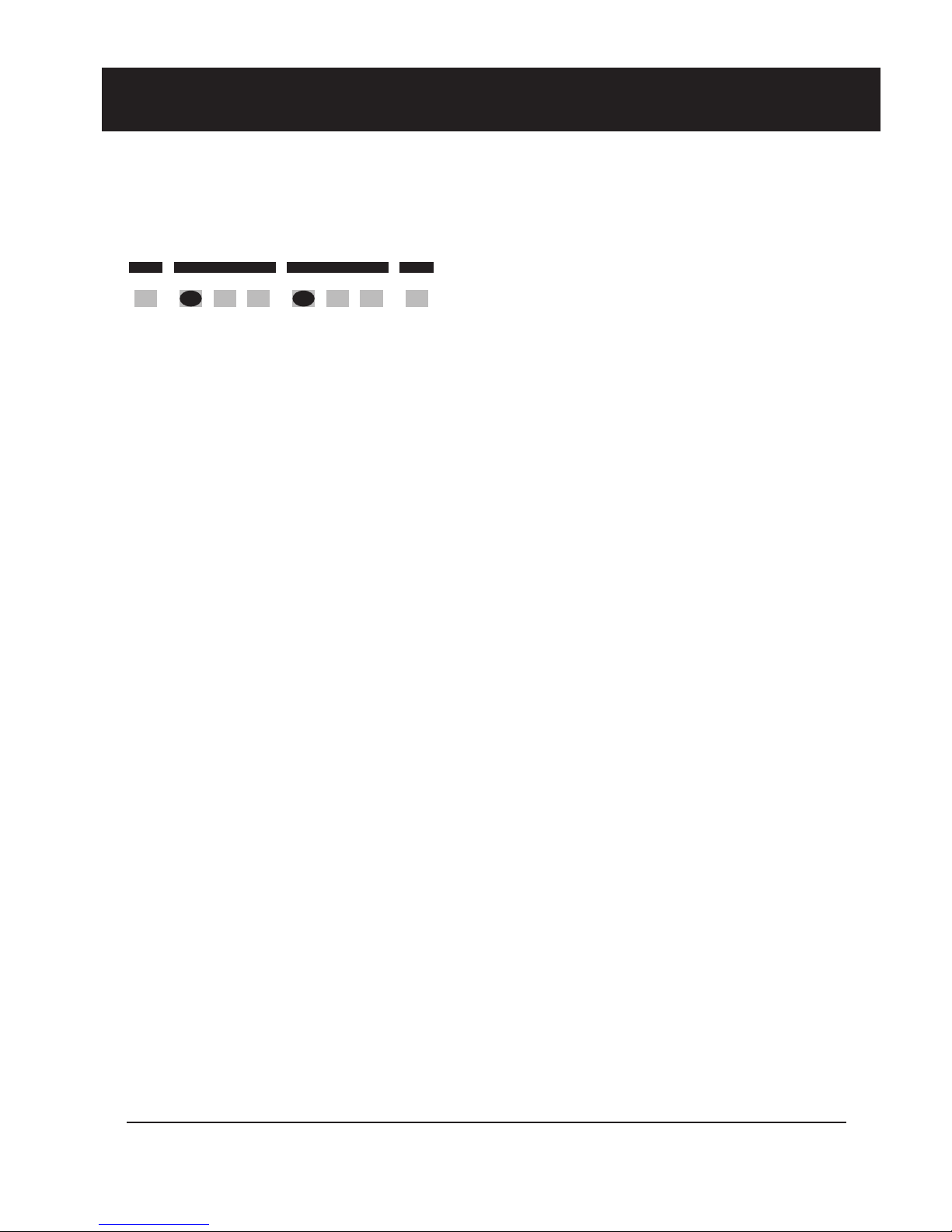

Remove All Modes
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
This button combination resets all
operating modes to factory default
conditions.
This operation does not modify or
delete and user data stored in non-
volatile memory.
Initialize w/Factory Defaults
WARNING: This two step operation
erases all user created data stored in
nonvolatile memory.
Step 1: Power up while holding down
indicated buttons.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Step 2: The LCD will display a confir-
mation request. Press Image STEP to
cancel the operation. Press Outputs
ON to initialize memory.
Use Old Format Names
The built-in library of video format
names has been updated in the
current firmware. Many formats found
in older firmware are renamed to
more closely match nomenclatures
used in the display industry or in the
appropriate standards. You can use
the new names by default or set the
firmware to use the names used by
older firmware.
The use of the older format names is
activated by holding down the indi-
cated button on power up. The setting
will be retained when the unit is
turned off and back on.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
CAUTIONS:
1) Switching to using older names will
delete all user defined video formats
currently stored in the generator.
2) The only way to restore the use of
the new format names is to fully re-
initialize the generator. This will
delete ALL user data stored in the
generator.
Our VGM software application can be
used to back up user data files from
the generator to disk and then restore
them back to the generator.

Model 802 Series Quick Start Guide • 7 •
Power-up Modes
Digital Friendly Mode
This operating mode causes the
generator to override a given format's
analog video output type selection
and output digital video. This mode is
activated by holding down the indi-
cated buttons on power up.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
This mode will be retained when the
unit is turned off and can only be
deactivated by Removing all modes,
Initializing with factory defaults, or
selecting Analog Friendly mode.
Digital Friendly mode only affects
formats loaded using the front panel
Format knob. Formats loaded using
commands via the communications
ports or as part of a Test Sequence
are not affected.
You can still use the Toggle Analog/
Digital function to temporarily switch
a format's video type to analog when
needed.
CAUTION!
Enabling Digital Friendly mode on a
generator without a digital video
option installed will turn off all out-
puts and report Error 2741 (Digital
video type not supported) for every
format loaded with the front panel
knob.
Analog Friendly Mode
This operating mode causes the
generator to override a given format's
digital video output type selection
and output analog video. This mode
is activated by holding down the
indicated buttons on power up.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
This mode will be retained when the
unit is turned off and can only be
deactivated by Removing all modes,
Initializing with factory defaults, or
selecting Digital Friendly mode.
Analog Friendly mode only affects
formats loaded using the front panel
Format knob. Formats loaded using
commands via the communications
ports or as part of a Test Sequence
are not affected.
You can still use the Toggle Analog/
Digital function to temporarily switch
a format's video type to digital when
needed.
CAUTION!
Enabling Analog Friendly mode on a
generator that does not have analog
video hardware installed will turn off
all outputs and report Error 2748
(Analog video type not supported) for
every format loaded with the front
panel knob.

• 8 • Model 802 Series Quick Start Guide
802
Clone (Must be exact same model and firmware)
Cloning allows you to program a generator at your desk using
Quantum Data's VGM software and then easily and quickly
transferring the information to other generators of the same
model. You transfer (clone) the entire block of battery backed
user memory (including video formats, custom test images and test sequences)
from one generator to another using a suitable PC memory card. A Type 1,
Battery Backed RAM PC card with at least 2 MB of storage is required. Flash
or compact type memory cards will not work for cloning.
You can use the Archiver function in our VGM software application to transfer
entire blocks of user data from a generator to disk files and then upload the
blocks of data to other models having similar firmware versions. The Archiver
function also supports converting data blocks created with older firmware to be
compatible to be uploaded to models with newer firmware. The VGM software
also supports saving individual video formats, custom test images and test
sequences to disk and then individually uploading them to other models with
most other firmware versions.
PC Card Slot Location
1. Insert a suitable PC memory card
and power up the generator while
holding down the indicated buttons.
Image Video Gate Outputs
STEP R G B ACS DCS DSS ON
Sync Gate
2. Release the buttons and then
select an operation from the following
choices:
A. Write to the Card
Press the Outputs ON button to write
the generator's contents to the card
and resume normal operation.
B. Read from the Card
Press the Image STEP button to
replace all previously saved user data
stored in the generator's nonvolatile
memory with all the data read in from
the card.
B. Cancel Cloning
Press the ACS button to cancel
cloning without making any changes
and resume normal operation.
Power-up Modes
NOTES:
The PC-Memory card can be safely
inserted or ejected while the genera-
tor is powered up but not actively
reading or writing data.
The LCD will display text error mes-
sages for the following conditions:
1) A memory card is not plugged in
when attempting to read or write.
2) Attempting to write to a write
protected memory card.
3) Attempting to read data that was
created with an incompatible firmware
version or corrupted data.
You can either correct the condition
and use the appropriate Outputs or
Image button selection to continue or
the ACS button to cancel and resume
normal operation with no changes.

Model 802 Series Quick Start Guide • 9 •
Power-up Modes
Serial Port Configuration
The default setting of the RS-232
serial port is 2400 Baud, No Parity, 8
data bits, 1 Stop bit, No Handshaking
(2400, N, 8, 1, N, N) and normal
programming language support. The
following special modes can be
activated by holding down the indi-
cated buttons on power up and will be
retained when the unit is turned off.
Set Baud rate to 9600
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Enables normal programming lan-
guage support at 9600 Baud.
Enable numeric keypad
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Switches protocol to support an
optional Model 8020 numeric keypad.
Enable programmable keypad
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Switches protocol to support an
optional 35 key programmable key-
pad.
Set GPIB Address
Generators that have the GPIB (IEEE-
488) port option installed use two
rotary switches for setting the GPIB
address. These switches are acces-
sible through the ventilation slots as
shown here.
The generator stores its current GPIB
address in nonvolatile memory. A
normal power-up will not update the
memory to any new switch settings.
The GPIB address is normally read
from the switches into memory by
holding down the indicated button on
power up.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Notes:
The current GPIB address is stored in
system memory and displayed during
power-up.
The GPIB address switches are also
read into memory if the generator
goes through a full re-initialization for
any reason.
The IEEE-488 configuration descrip-
tion of the generator is:
SH1AH1T6TEØLEØSR1RL1PPØDC1DT1CØ

• 10 • Model 802 Series Quick Start Guide
Enable Status Display
This mode replaces the Format Knob
List index number to the left of the
format name on the LCD with three
characters that show the status of the
selected format. It also replaces the
Image Knob List index number to the
left of the image name on the LCD
with image version number.
This mode is activated by holding
down the indicated buttons on power
up.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Power-up Modes
Left Character
AAnalog Video Format
DDigital Video Format
Center Digit
44 Bits-per-pixel Depth
88 Bits-per-pixel Depth
Right Character
MMonochrome Video
CRGB Color Video
YColor Difference Mode
Note: The Format test image shows
full details of all parameters of a
format.
H31 D4C=DMT0660
V60 1=OutlineO
Calibrate
The generator has built-in hardware
for calibrating the signal levels of the
analog video outputs. No extra
hardware or test equipment is re-
quired. However, you may obtain
slightly better results if three 75 ohm
terminators are connected to one set
of the Red, Green and Blue outputs.
The self calibration operation is
initiated by holding down the indi-
cated buttons on power up.
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
The LCD will show a calibration
progress report. Any calibration error
messages may indicate a hardware
problem that requires repair of the
generator. The generator will con-
tinue to function but may have signal
level errors in or more analog out-
puts.

Model 802 Series Quick Start Guide • 11 •
Special Key Functions
This section describes special operating functions that can be selected once the
generator is operating. These functions operate by holding down one of the
indicated buttons while pressing and releasing the other button. If the primary
gating function of the held button is inadvertently toggled during the operation,
press the button a second time to restore the gating status.
Toggle Analog / Digital Video
Type
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Toggles between matching analog
and digital video outputs for the
current video format. Error 2741
indicates that a matching digital type
is not supported and Error 2748
indicates that a matching analog
video type is not supported
Rotate Video Color Type
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Cycles between RGB color and
Monochrome video for formats saved
with RGB color for the video type.
Cycles between Color Difference,
RGB color and Monochrome video for
formats saved with Color Difference
for the video type.
Set Pixel Depth
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Toggles between pixel depths of 8
bits-per-pixel (up to 256 colors or
shades of gray on the screen at one
time) and 4 bits-per-pixel (up to 16
colors or shades of gray)
Error 2074 indicates the generator
hardware configuration does not
support the selected pixel depth.
NOTES:
Enabling Status Display mode, as
described on the opposite page will
allow you to see a format's video type
settings and pixel depth.
Loading another format or reloading
the same format will reset the video
types and pixel depth to the format's
stored settings.

• 12 • Model 802 Series Quick Start Guide
Special Key Functions
DDC Based
Autoconfiguration
Image Outputs
STEP R G B ACS DCS DSS ON
Video Gate Sync Gate
Creates a new format knob list based
on video format information stored in
the EDID structure of a VESA® DDC
compliant monitor attached to the
VGA or digital video connector. The
generator builds the list by first
selecting VESA standard formats
from generator's built-in library. The
selection is based on the standard
formats bits set in the EDID structure.
If the EDID structure indicates the
monitor has a non-VESA preferred
video format, a new video format is
created based on the preferred format
parameters. The created format's
name starts with the three character
manufacturer's ID code in the EDID
structure and ends with a number
based on the number of active lines
and refresh rate. The format is saved
in user memory and added to the new
knob list.
The newly created knob list is given a
three character name that matches
the manufacture's ID code and the list
is saved in user memory. Any previ-
ously created knob list with the same
name is overwritten with the new list.
The generator will then start using
the newly created format knob list.
If the generator is powered down in
this configuration, it will continue to
use the DDC configured format knob
list on power up.
Pressing the DDC autoconfiguration
button combination while using an
autoconfigured knob list will always
switch to the format knob list named
"fmt" (factory default list). Pressing
the DDC auto-configuration button
combination a second time will trigger
a new DDC autoconfiguration cycle.
NOTES:
The function will report Error 9491
(DDC Not Available) on the front
panel LCD if valid DDC data can not
be obtained for any reason.
The EdidData test image shows a
monitor's EDID information.
The bottom line of the GenOps test
image shows the name of the format
knob list currently in use. The factory
default format knob list is named fmt.

Model 802 Series Quick Start Guide • 13 •
High-bandwidth Digital Copy Protection (HDCP) Testing
Video generators with optional DVI digital video outputs contain the required
firmware and hardware to support the Intel® Corporation based HDCP down-
stream protocol. This permits the generator to act as an HDCP signal source for
testing HDCP compliant Digital Video displays. The standard firmware includes
HDCP Test Keys at no additional charge. Please contact your Quantum Data
sales representative if you wish to purchase generators with an optional HDCP
Production Key.
Test Method
HDCP testing with Test Keys uses the HdcpA1B1, HdcpA1B2, HdcpA2B1 and
HdcpA2B2 test images. The last four characters in the image name identify
which set of Test Keys are used. The HdcpProd image uses the optional produc-
tion key. You need to make sure you are using a suitable digital video format for
the given display under test and that it can correctly show other test images in a
stable manner before using the HDCP test image.
The HDCP image consists of a screen of text displayed on the unit under test as
shown below. When first selected, the test image is output without any HDCP
encryption. The text lists the automatic sequencing through the internal and
external HDCP communications authentication process with a "Pass" or "Fail"
indication at the end of each step.
STEP 1: Reset receiver: gate off transmitter clk and data -
STEP 2: Reset the transmitter and its HDCP engine -
STEP 3: Read and verify the receiver KSV -
STEP 4: Write receiver KSV to transmitter -
STEP 5: At transmitter generate An -
STEP 6: Write An to the receiver -
STEP 7: Write the transmitter KSV to the receiver -
STEP 8: Load the transmitter secret keys -
STEP 9: Read and compare transmitter Ri with receiver Ri -
STEP 10: Generate authentication -
STEP 11: Transmitting encrypted data
Steps 1 and 2 are internal generator setup operations and should always pass.
Once downstream authentication steps 3 through 10 pass, the test image will be
output using HDCP encrypted video. The entire process repeats if step 9 Fails or
if a monitor is disconnected and reconnected to the generator. Selecting another
digital video format will restart the HDCP authentication process. Selecting a
different test image stops HDCP encryption of the digital signals.
Once the authentication is passed, the connection will be reauthenticated every
128 fields of video. The current reauthentication status is shown with additional
text in the lower portion of the test image.
Additional information about HDCP may be found on the World Wide Web at:
http://www.digital-cp.com/

• 14 • Model 802 Series Quick Start Guide
Using a Computer for Control and Programming
Video Generator Manager (VGM)
The VGM software package
provides a graphical user
interface that allows you to
program our Bench Top, ISA
card and PCI card Model 801
and 802 Series video genera-
tors. You can also use the
software to control the
generator instead of using
the front panel controls. The
current version of the VGM
runs on Microsoft® Win-
dows® 95/98/NT/2000. The
software also allows you to
save copies of custom
formats, images and sequences on the computer's disk drive. These files can
then be uploaded into other Quantum Data video generators.
A copy of the VGM software is included on the CD-ROM that comes with each
generator sold. The software is also available as a free download from the Tech
Support area of our Web site at www.quantumdata.com. The software installation
includes on-line help and there is additional documentation in the form of
Adobe® Acrobat® PDF files on the CD-ROM.

Model 802 Series Quick Start Guide • 15 •
VGM Format Editor
The current firmware in the Model 802 Series
includes over 200 video formats that match the
video and sync signals used by a wide variety of
computers and imaging systems. You can store
additional video formats in the generator's
nonvolatile user memory.
The format editor in VGM provides an easy to
use interface that allows you to quickly define the
signal types and timing for your video format.
You can create your own video format using any of the generator's built in for-
mats or a format that you have previously created as a starting point. The editor
also allows you to create a new format using a default template as a starting
point. The edited formats can then be saved in the generator's battery backed
memory and selected with the front panel knob.
Although you can use any of the built-in formats as a starting point for your own
format, you can not save the format using the same name as any of the built-in
formats.
VGM Image Editor
The custom image editor in VGM provides a simple
graphic interface that allows you to quickly set up
custom test images. You build up the images using the
provided drawing primitives such as dots, lines, tri-
angles, rectangles and ovals. You can also add text
and more complex primitives such as full screen
crosshatches with user defined line spacing. These
custom images can then be saved in the generator's
battery backed memory and selected with the front
panel knob.
The built-in test images can not be edited or used as a starting point for a custom
test image. The Model 802's built-in test images use a different method of draw-
ing than used for custom images.
Using a Computer for Control and Programming

• 16 • Model 802 Series Quick Start Guide
VGM Sequence Editor
Testing of a given model display may
require repeated use of several differ-
ent formats and images in a specific
order. A sequence lets you pair up
formats and images to form a single
test step. Your create and organize
the steps to match your test procedure
for a particular display. The 802F and 802G let you manually step forward and
backward through such a sequence, or the sequence can continuously cycle
through all the steps, stopping for an individually defined time at each step. This
mode is useful for burn-in testing or for running displays at trade shows.
More than one sequence can be stored in the generator's nonvolatile memory.
The number of sequences you can store depends on the sum total of the number
of steps in each sequence. A total of about 1280 - 1500 steps can be saved,
depending on how many separate sequences are used.
VGM Sequence Player
Once you have created and stored a sequence stored in the
generator, you run it using the VGM software Sequence Player.
A future version of the generator firmware may permit an opera-
tor to chose and run a stored sequence directly from the front
panel of the generator.
Using a Computer for Control and Programming

Model 802 Series Quick Start Guide • 17 •
Instructions for Bitmap Picture Download:
The bit map download function in VGM allows you to display, using the video
generator, an image stored as a BMP file by your computer. The bit map is
transferred directly to the video memory and the color information in the file is
transferred directly to the color lookup table memory. Selecting another test
image or video format will clear the displayed bit-mapped image. There is no way
to store the BMP file in the generator's user memory.
NOTE: The bit map download operation does not clear the current displayed test
image. It will only over write the portion of active video that matches the size and
offset of the downloaded image. The download operation will modify the color
lookup table values. This may cause the color to change on other portions of the
screen. If you want to start with a blank screen, you should first display the
“raster” test image.
1. Requirements to download a bit mapped image file to a generator:
- The target generator firmware must
support the bit map download function.
- The bit mapped image file must be stored
on the computer as an uncompressed .BMP
file.
- VGM must have communications open
with the target generator
2. Select Tools -> Image Download from the
Main VGM Screen. This will open the Image
Download Utility Screen shown here.
3. Select the target generator from the pull-
down ”Select a Generator” list. The active
video dimensions (in pixels) of the current
video format being produced by the genera-
tor will be shown in the Screen Dimensions”
area of the Image Download screen.
4. You must check the "Serial Option / Use
Ymodem" check box when downloading the
image via a serial port connection. If you do not put a check in the box, the
software will attempt to use a USB connection for the download. The software
may stop responding if the box is not checked and there is no USB connection to
the generator.
Using a Computer for Control and Programming

• 18 • Model 802 Series Quick Start Guide
5. You can either type the full path to the
bit mapped file you wish to download or
click on the “Browse” button. The browse
button opens a standard MS-Windows
“Open File” dialog box. You can then
navigate to the desired file and open it.
6. If you selected a valid BMP file, its
dimensions will be indicated in the Image
Dimensions area as shown here.
7. You can choose to offset where the downloaded image will be displayed in the
active video area. By default the image is drawn start in the top left corner. You
can enter horizontal (X) and vertical (Y) offsets of the top left corner of the
downloaded images relative to the top left corner of active video.
NOTE: The bit map download operation does not clear the current displayed test
image. It will only overwrite the portion of active video that matches the size and
offset of the downloaded image. The download operation will modify the color
lookup table values. This may cause the color to change on other portions of the
screen
8. An “OK” message will appear in the status message bar at bottom of the
screen if everything is ready for the download to begin. The “Download” button
will also be available (not grayed).
9. Click the “Download” button and wait for the image to download and display.
Very large bitmap files can take several minutes to load. A message box showing
the current download status will be open during the download. There is no way to
stop the download process without closing the whole VGM application.
Using a Computer for Control and Programming

Model 802 Series Quick Start Guide • 19 •
Updating Generator Firmware
All Model 802 generators can be reprogrammed with new operating system
firmware using VGM software. A working copy of the firmware must be in the
generator to install new firmware. Please refer to the VGM documentation and
help file for information on how to install new firmware.
Information on the latest firmware version numbers and file download links can
be found on our web site at:
http://www.quantumdata.com/downloads/
Advanced Programming Methods
All current Models in our 801 and 802 series support a command and query
language that allows you to develop your own software application to operate and
program the generator. Sample executable and source code files are available
from Quantum Data that you can use as a starting point for your application.
Please refer to the Programmer's Manual files on the Software and Documenta-
tion CD-ROM
Using a Computer for Control and Programming

• 20 • Model 802 Series Quick Start Guide
"Model 802 Series Quick Start
Guide"
Part # 68-00193 Rev. D
(23-October-2001)
Entire contents
Copyright ©2001
by Quantum Data, Inc.
All rights reserved.
The information contained in this docu-
ment is provided for use by our cus-
tomers and may not be incorporated
into other products or publications with-
out the expressed written consent of
Quantum Data. Information furnished
by Quantum Data is believed to be
accurate and reliable. However, no re-
sponsibility is assumed by Quantum
Data for its use.
Quantum Data reserves the right to
make changes at any time and with-
out notice to its products to improve
performance, reliability, manufacturing
methods, and (or) marketability.
Quantum Data, Inc.
2111 Big Timber Rd.
Elgin, IL 60123-1100
U.S.A.
Phone: [phone]
Fax: [phone]
Toll Free Support in the
USA
Phone: [phone]
Internet Connections
World Wide Web Site:
http://www.quantumdata.com
Sales E-mail:
[email protected]
Customer Service E-mail:
[email protected]
Technical Support E-mail:
[email protected]
®
This manual for use with the following Models of Quantum Data Video
Generators:
802B, 802F, 802G
The following hardware options are covered:
- GPIB Communications Port
- NTSC/PAL TV Outputs (CVSB and S-Video)
- Single Link DVI Serial Digital Video Outputs
- Single/Dual Link DVI Serial Digital Video Outputs
- Low Voltage Serial Digital (LVDS) Video Outputs
Information based on the following generator firmware versions:
802F: Version 7.07250000
802B: Version 7.07750000
802G: Version 7.07850000
VGM screen captures and VGM documentation based on:
VGM Version 3.00
