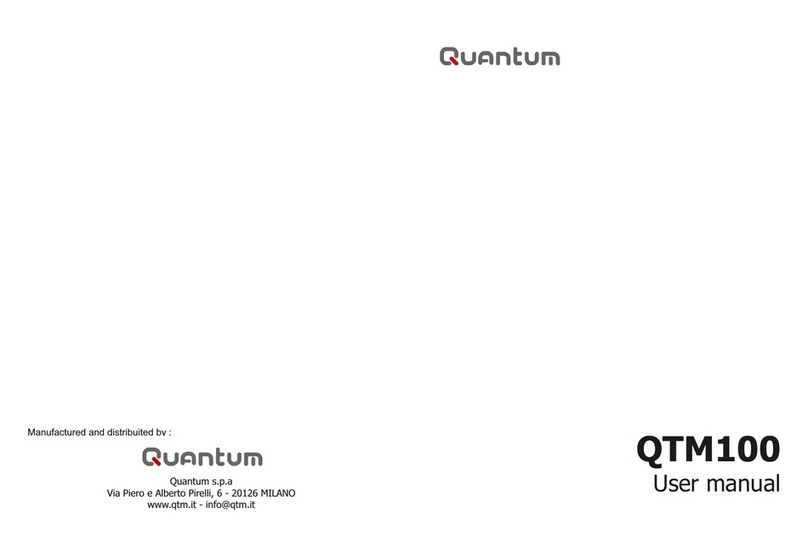

Quantum QTM100 User manual

QTM100
User manual
Manufactured and distribuited by :
Quantum s.p.a
Via Piero e Alberto Pirelli, 6 - 20126 MILANO
www.qtm.it - inf[email protected]
All manuals and user guides at all-guides.com
all-guides.com

2
Index
27
Warranty
Dear customer,
thank you for choosing our product, which has been designed and manufactured to the highest quality standards.
• The product is covered by a warranty, for a period of 24 months, which is testified from a delivery document indi-
cating the date of purchase of the product and the dealer’s name.
• The customer is entitled to the rights provided for by Legislative Decree n° 24/2002
• The warranty covers the replacement or the repair operation of all the parts found to have manufacturing
defects.
• The warranty does not cover:
› failures caused by carelessness or transport.
› failures caused by installation not in accordance with the instructions
› failures caused by improper, incorrect or not in accordance with the instructions, use of the device
• The manufacturer firm cannot be held responsible for accidental damages to persons, pets, or things, as a con-
sequence of non-conformity with all the precautions furnished with the instructions manual.
› In the event you require service, during the warranty period, you should fill in and show the present cer-
tificate, together with a valid receipt issued by the dealer, showing the date of purchase of the prod-
uct.
WARRANTY VOUCHER
Model .........................
N° matriculation .........................
Defect found ...........................................................................
Purchaser firm
Date _ _ / _ _ / _ _ .............................
To return correctly filled in together with the purchase receipt.
DEALER’S STAMP AND SIGN
Warranty
MEDIAET
S
MEDIAET
S
EQUIPMENT
Each box contains:
 RECEIVER QTM 100
‚ REMOTE CONTROL
ƒ MEDIASET PREMIUM RECHARGEABLE CARD
„ REMOTE INFRARED SENSOR
… POWER CAR CABLE
† CAR LIGHTER CABLE*
‡ USER MANUAL
‚
„
ƒ

…†
* included in QTM 100C model
Warning pag. 3
Precautions and safety pag. 4
Remote control pag. 5
Front Panel pag. 6
Rear Panel pag. 7
First Use pag. 8
Daily Use pag. 10
Menu pag. 12
Settings pag. 13
Tv List pag. 15
Pay-Tv pag. 16
Diagnostics pag. 17
Audio/Video Switching pag. 18
Installation pag. 20
Installazions and Connections pag. 21
Technical features pag. 25
Warning pag. 26
Warranty pag. 27
All manuals and user guides at all-guides.com

CAUTION
This symbol means impor-
tant instructions. Failure to heed
them can result in serious injury or
death
Warning
26
QTM100 complies with:
UN-ECE: homologation N° E24 10R-020235
DiGiTVi: specifications D-Book ver.1.0 -
june 2004 and following updatings
where available
TÜV: the product suits TÜV norms and the
quality certificate n° 951001196
CAUTION:
Your receiver is supplied with an operating
system and some programs.
Furthermore, while using it, you could have
downloaded other softwares (for ex. Games).
You should undertake not to use improperly
any of these types of software or parts of them.
Improper use means: duplication, distribution,
tampering. In other words, that the only
allowed usage is the one described in this user
manual.
Warning
U S E T H E C O R R E C T A M P E R E
R A T I N G W H E N R E P L A C IN G
FUSES
Failure to do so may result in fire or
electric shock
H A L T U S E I F A P R O B L E M
APPEARS
D O N O T O P E R A T E A N Y Failure to do so may cause personal
FUNCTION THAT TAKES YOUR injury or damage to the product.
ATTENTION AWAY FROM SAFELY
DO NOT USE OLD BATTERIES
DRIVING YOUR VEHICLE
When inserting batteries in the
Any function that requires your
remote control, be sure to observe
prolonged attention should only be
proper polarity as instructed. Rupture
performed after coming to a
or chemical leakage from the battery
complete stop.
may cause malfunctioning, break or
Always stop your vehicle in a safe
injury.
location before performing these
functions. Failure to do so may result
in an accident.
USE THIS PRODUCT FOR MOBILE
12/24 Vcc APPLICATIONS AND
NEGATIVE GROUND
Any misuse that diverts from the
designed application may result in
fire, electric shock or other injury.
DO NOT DISASSEMBLE OR ALTER
THE UNIT
Doing so may result in accidents or
injuries.
!!
3
!
All manuals and user guides at all-guides.com

Technical features
4
PRECAUTIONS
TEMPERATURE
Be sure the temperature inside the
vehicle is between +45°C and 0°C
before turning your unit on.
FUSE REPLACEMENT SAFETY
The replacement of the fuses must
be of the same amperage. If one VIDEO OUTPUT
fuse blows more than once, care- In order to ensure vehicle safety,
fully check all electrical connections the driver’s side screen must be con-
to prevent short circuitries. Also nected to the front video output con-
have your vehicle’ s voltage regula- nector. This will ensure the driver
tor checked. won’t be able to watch Tv while the
vehicle is moving, if the handbrake
MAINTENANCE wire is properly connected. The
If yo u have pr ob lem s, d o n ot driver will be able to watch Tv once
attempt to repair the unit yourself. the handbrake is pulled. The rear
Require assistance at the nearest passenger screens, connected to
retailer or service station. the rear video output connectors,
do not fall under this restriction.
INSTALL LOCATION
Install in dry, safe locations, away
from dangers and humidity.
INSTALLATION PRECAUTIONS
Use only in cars with a 12/24 Vcc
negative ground.
Before co nne ct ing th e devi ce
remove the negative terminal from
the battery to prevent short circuits.
Do not use bolts or nuts related to
any safety system (airbag, etc.), To
make ground connection.
25
Mobile DVB-T signal reception
Autotracking channels search
Compatibility with Mediaset PREMIUM Card
Compatibility with La7 CartaPiù Card
MultiCA System (NagraVision, Irdeto, Conax)
Favourite Channels List
Update software in local / On Air
2 audio/video input for DVD/CD
3 video output for three separated monitor
1 audio stereo output
Audio/video digital quality
Easy and fast plug-and-play installation
DVB-T
Network Interface Module - DVB-T COFDM
Dual-RF Diversity with Anti-Doppler Enhancement
DVB / MPEG2 Transport and De-Multiplexing
ISO/IEC 13818-1 MPEG-2 Transport Stream Compliance
Nordig II and ETS 300 744 DVB-T Full Compliance
Full 47~860 MHz Frequency Range for VHF and UHF
OFDM Demodulation 2K and 8K FFT for SFN and MFN
Symbol Rates : up to 34 MS/s
Automatic Adjacent-Channel Interface Cancellation
Supports QPSK and 16/64QAM Constellations
Supports 1/4, 1/8, 1/16, 1/32 Guard Interval
Supports FEC Decoding : 1/2, 2/3, 3/4, 5/6, and 7/8
Supports Reed-Solomon (204,188) ETS 300 477
Video Decoding and OSD
ISO/IEC 13818-2 MPEG-2 Video MP@ML Compliance
ISO/IEC 11172-2 MPEG-1 Video Compliance
Resolution: 720x576 for PAL
16:9/4:3, 3:2 Letterbox and Pan/Scan
65K Colour OSD
Audio Decoding
ISO/IEC 13818-3 MPEG-2 Audio Compliance
ISO/IEC 11172-3 MPEG-1 Audio Compliance
Stereo / MTS
Front Panel
Smart Card reader
Power-On / lock LED’s
IR sensor (QTM100C)
IR Remote Connector
Power LED
Car Power Connector 12/24V
External Power Supply Connector (QTM100C)
Rear Panel
Antenna-In : F-type x 2
Stereo Audio Input (RCA) x 2
Composite Video Input (RCA) x 2
Stereo Audio Output (RCA) x 1
Mono Audio Output (RCA) x 1
Composite Video Output (RCA) x 3
Safety and Reliability
Operation temperature : -5 C ~ +55 C
Storage temperature : -45 C ~ +85 C
Comsuptions
0.94 A in full operation powering two antennas
0.65 A in stand by
500 microA when off (car key off)
Mechanical Specification
Dimensions (WxDxH): 275mm x 140mm x 42mm
Precautions and Safety !
CAUTION
WATCHING TV WHILE
DRIVING MAY RESULT IN SERIOUS
ACCIDENTS, INJURIES OR DEATH!
!
All manuals and user guides at all-guides.com

Remote Control
5
SCAN A/V
OK
P+
PV+
CHANNEL
1 2 3
456
78
0
9
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@ ? ! . a b c
g h i j k l m n o
p q r s t u v
_ + *
w x y z
d e f
-TV/RADIO - YELLOW
to switch over the Tv/Radio list
or to navigate the interactive
applications
SCAN
to start autoscan
-
OK
to select a function or to
confirm the selection
LIST
to view channels list
-
P+/-
zapping channels
-
UP BUTTON
to view info programme or
navigation button
RIGHT BUTTON
navigation or volume adjuster
button
EXIT
to exit from the selected
option
-
0…9
alpha/numerical button
-
BACK
to return to the previous page
(where available)
-
MUTE
to switch on/off the audio
input
-RED, BLUE, GREEN
to navigate the interactive
applications
DOWN BUTTON
navigation button
LEFT BUTTON
navigation or volume adjuster
button
-
-POWER
To switch on/off the unit
-A/V
to select audio/video inputs
24
v TECHNICAL FEATURES
Operation frequencies: 174 - 230 (band III)
470 - 862 (bands IV - V)
Gain: 14 ± 2 dB
Cable type: coaxial 75 ohm
Cable lenght: 5 m
Connector: type F
Power: 12 Vcc
Consumption: 25mA min - 35 mA max
Temperature range : - 40° <> +85° C
Protection class: IP40
Size (L x B x H): 28 x 2,5 x 1,5 cm
ANTENNA
i
Installation and Connections
All manuals and user guides at all-guides.com

Front Panel
6
i
Smart Card
POWER
LED OFFON
 JACK CONNECTOR - AUX POWER ** † IR SENSOR
Input connector to feed the unit with an Infrared receiver led of the remote control
externa 12/24 Vcc 1A power pack. CAUTION:
While using this input, do NOT feed the unit ‡STAND-BY LED
with the ‚ CAR POWER connector Stand-by led:
ON= receiver on stand-by
OFF = receiver switched on
‚6 POLES CONNECTOR - CAR POWER*
Input connector to power and control the ˆ SMART CARD READER SLOT
unit. For the connection’s specifications read
page 8 Smart card input for pay-per-view application
ƒON-OFF SWITCH **
* only with QTM100K model
General switch. The switch set is shown by ** only with QTM100C model
the „ POWER LED
„ POWER LED
Tension signal led
… Rj11 CONNECTOR
Multifunction connector for the remote
control sensor
23
TV ANTENNAS
active antennas
(DVB-T).
vINSTALLATION GUIDELINES
•

‚ ƒ
•
•
,
•
•
Use only , amplified with adequate gain,
directly powered by the F antenna connector (ANT IN 1 e 2)
and suitable to the reception of the Digital Terrestrial signal
Quantum Antennas, linked together with QTM100
receiver, have been manufactured in order to optimize the
system's functioning.
WARNING: do not provide external power in case of
use of different brand antennas, not to occur in
doing so may result in product damages and in
decay of warranty's terms.
Be sure to position the two antennas as far away and
opposing from each other as possible. For example,
place the first antenna on the right side of the wind
screen of the vehicle and the second one on the left
side of the rear window or on the left rear vent wing .
Antennas must be installed as far away from the metal
parts (vehicle's roof or vertical borders of the wind
screen/rear vent wing) as possible.
The bonnet or the boot (depending on the vehicle) can
influence whether positive or negative - the signal
reception. It's recommend to experiment where to place
the antennas whether on the higher or the lower part of
the window. The higher part usually guarantees more
protection from noises caused by motorcycles and
scooters.
Handle with care the coaxial cable setting in order to
avoid damages due to vibration or crushing.
Be sure that the connections have been correctly set and
check the screwing of the connectors. Signal reception's
problems are often caused by incorrect assembly.
Œ

Ž
Installation and Connections
All manuals and user guides at all-guides.com
all-guides.com

Rear Panel
7
i
frontrear 1rear 2
A/V IN 1
R
R
L
L
V
V
A/V IN 2
ANT IN
AUDIO OUT
R LM
VIDEO OUT
 RCA L/R AUDIO OUTPUT - Stereo ˆ ANTENNA INPUT - ANT IN-2
First Tv antenna input
‚RCA VIDEO OUTPUT - Front
‰ ANTENNA INPUT - ANT IN-1
Video output to connect to the front
monitor’s video input. Warning, the signal’s Second Tv antenna input
view is possible only once the handbrake is
pulled N.B.: Use only active antennas, that must be 12
Vcc powered and supplied by an adequate
ƒ RCA VIDEO OUTPUT - Rear 1 gain
Video output to connect to a rear monitor’s
ATTENZIONE: 12Vcc tension is always
video input. Signal view is not bound,
on at F (ANT1 and ANT 2) connectors to
teherefore it is always available
power the antennas.
„RCA VIDEO OUTPUT - Rear 2 For a correct installation we advice to
Video output to connect to a rear monitor’s use the fitting Quantum antennas
video input. Signal view is not bound,
teherefore it is always available
…RCA AUDIO OUTPUT - Mono
† AUDIO/VIDEO INPUT- A/V IN 2
Audio/Video inputs to connect an auxiliary
unit in (for ex. ) The input activation can be
selected by remote control
.
‡ AUDIO/VIDEO INPUT- A/V IN 1
Audio/Video inputs to connect an auxiliary
unit (for ex. Dvd player, rear camera, etc.)
The input activation can be selected by
remote control.
NB: video outputs and inputs according to PA
standard
22
Frontrear 1rear 2
A/V IN 1
R
R
L
L
V
V
A/V IN 2
ANT IN
AUDIO OUT
R LM
VIDEO OUT
REAR PANEL
AUXILIARY SOURCE
(for ex. DVD player, etc.)
AUXILIARY SOURCE
(for ex. DVD player, etc.)
FRONT
ANTENNA 1
REAR REAR
AUDIO
STEREO
AUDIO
MONO
ANTENNA 2
WARNING:
Tension is always on (12Vcc) at the
connectors F (ANT 1 and ANT 2) to
power the antennas. DO NOT POWER
A NTENNAS W I T H D I F F E R E N T
VOLTAGE
Installation and Connections
All manuals and user guides at all-guides.com

8
Be sure that every connection has been correctly set, as
shown on the diagram at page 22.
Turn the unit on, taking on the ON position the switch on
the front panel, if located
on the front panel is green, is red:
the receiver is on stand-by, press the button on
he remote control
on the front panel is green, led is
switched off:
after a few seconds frame will be shown on the screen
to start the
It's possible to stop the by pressing EXIT but-
ton. Frame will be shown on the screen. Press
button to confirm the scan stop or the button
to resume it.
press button to store the channels in the TV
LIST. The first channel in the up-to-date TV LIST
will be shown on the screen.
If at the end of the frame will be shown
on the screen, check the connections and the
installation parameters of the receiver, then press
in sequence buttons to re-
launch the scanning.
The two led on the front panel are both switched off:
Check the connections and begin the getting started
operations again.
v Getting started
• POWER LED led ( )
[ ]
t
• POWER LED ( )

› press [OK] button channels tuning pro-
cess.
tuning
‚[OK]
[EXIT]
At the end of the tuning frameƒ will be shown on the
screen.
› [OK]
tuning „
[EXIT], [SCAN] e [OK]
•
First Use
21
1
4
6
3
GND
KEY(white) - Ignition lead
Connect to an accessory terminal in the fuse
block controlled by the car ignition key
(+12V=ON)
‚GROUND(black) - Power lead (-)
Connect to the battery negative pole (car
chassis)
ƒBRAKE (blue) - Parking brake control
lead
Connect to parking brake or chassis of the car
(output video engaged)
„+12/24V (red) - Power lead (+)
Connect to a live terminal in the fuse block
connecting to the car battery
…GROUND (black) - Power lead (-)
Connect to the battery negative pole (car
chassis)
†AUX +12V (grey) - Power output lead
for accessory parts
Connect to the device to feed (12V/30 mA
max). The device is supplied with power
when it is switched on.
FRONT PANEL
Ricevitore infrarosso
 • KEY- White
‚ • MASSA Black
ƒ • BRAKE - Blue
„ • IN +12/24V - Red
… • MASSA - Black
† • AUX +12V - Grey
Installation and Connections
TUNING
[OK] to start search - [EXIT] to quit
TUNING
No services found - [EXIT] to quit
0%
TV
0
RADIO
0
50% 100%
TUNING
[OK] to stop - [EXIT] to continue
0%
TV
12
TV
TV
TV
TV
RADIO
RADIO
RADIO
2
50% 100%
TUNING
[OK] to save - [EXIT] to quit
0%
TV
44
TV 1
TV 2
TV 3
TV 4
RADIO 1
RADIO 2
RADIO 3
RADIO 4
RADIO
3
50% 100%
All manuals and user guides at all-guides.com

First Use
9
v Autotracking and Autosearch
These innovative functions make the receiver's daily use
easier.
They have the purpose to select a channel by the remote
control and to show it without starting a tuning manual
searching, in case of frequencies changing during the
transmissions.
To optimize Autotracking and Autosearch functions it's
necessary to follow carefully the instructions:
1.Start an autoscan by pressing [SCAN] button:
to tune the available channels in that specific area 
2.Create a favourite TV LISTE:
to organize in sequence your own favourite channels ‚
3.To access (/enter?) favourite TV LIST:
and to select it as a default setting ƒ
If the auto scan does not allow to tune all the favourite
channels, start again the operations described at the point
1 and 2 in an other geographic area.
WARNING: channels marked with this signal (both in
red), are momentarily not available because of no net
coverage „.
WARNING: channels marked with this signal (both in
red), are momentarily not available because of no net
coverage .„
20
WARNING
MAKE THE CORRECT CONNECTIONS
Failure to make the proper connections
may result in product damage
USE ONLY IN CARS WITH A 12 / 24
Vcc NEGATIVE GROUND
HAVE THE INSTALLATION DONE BY Failure to do so may result in fire, electric
QUALIFIED PERSONNEL shock or other injury
The installation and wiring of this unit
require special technical skills and expe- BEFORE WIRING DISCONNECT THE
riences. To ensure safety always have C A BLE FRO M THE NEGA T IVE (-)
the installation done by experts BATTERY TERMINALS
Failure to do so may result in electric
USE SPECIFIED ACCESSORY PARTS shock or injury due to electrical shorts
Be sure to use only the specified acces-
sory parts. Use of other than designed DO NOT SPLICE INTO ELECTRICAL
accessory parts may damage this unit or CABLES
cause an incorrect functioning of the Never cut away cable insulation to supply
appliance power to other equipment. Doing so will
exceed the current carrying capacity of
ARRANGE THE WIRING CORRECTLY the wire and result in fire or electric shock
Route the electrical and audio/video
cables and wiring away from moving DO NOT USE BOLTS OR NUTS IN THE
parts or sharp or pointed edges. This BRAKE OR STEERING SYSTEM TO
will prevent crimping and damage to the MAKE GROUND CONNECTIONS
wiring. If wiring passes through hole in Bolts or nuts used for the brake or steer-
metal, use a rubber grommet to prevent ing systems (or any other safety-related
the wire-s insulation from being cut by system), or tanks should NEVER be used
the metal edge of the hole for installations or ground connections
DO NOT INSTALL IN LOCATIONS DO NOT INSTALL IN LOCATIONS
WITH HIGH MOISTURE OR DUST WHICH MIGHT HINDER VEHICLE
Avoid installing the unit in locations with O P E R A T I O N , SU C H AS T H E
high incidence of moisture or dust. STEERING WHEEL OR GEARSHIFT
Moisture or dust that penetrates into Doing so may obstruct forward vision or
this unit may result in product failure hamper movement etc., and result in seri-
ous accident
Installation
1
ATTENZIONE:
Before installing the device
read carefully what follows
!
FAVOURITE TV
1 Channel TV
2 Channel TV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
TV LIST
[GREEN] to change list
TUNING
[OK] to start search - [EXIT] to quit
TV LIST
ADD FAVOURITE: [OK] to confirm - [EXIT] to quit
SETTINGS PAY-TVDIAGNOSTICS
CREATE SORT DEL.CHAN DEL.LIST
FAVOURITE TV
TV LIST
1 Channel TV
2 Channel TV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
[GREEN] to change list
1
1
All manuals and user guides at all-guides.com

10
v How to turn the receiver on
Use the [ ] button on the remote control to turn the
receiver on/off
v How to select a channel
A Tv or Radio channel can be selected by three different
modes:
• DIRECT: select the desired channel by using the number
buttons…
• ZAPPING: select the desired channel by using the
up/down buttons[5] e [6]‡ and press [OK]ƒ to con-
firm the selection.
This mode allows the show of the information columnˆ
before showing the channel, witch will be shown only
after confirming the selection by pressing [OK]ƒ.
• ZAPPING DIRETTO: press [P+] e [P-]† to browse the
channels that will be immediately shown without using
the [OK] button.
Daily use
15 Channel TV
Title programme
TV 12:17
12:00 12:45
““
SCAN A/V
OK
P+
PV+
CHANNEL
1 2 3
456
78
0
9
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@ ? ! . ab c
g h i jk l m n o
p q r s t u v
_ + *
w x y z
d e f

‚
… ƒ„†
‡
19
Audio/Video Switching
1. A/V IN and OUT SWITCHING
Imagine/figure to connect one device (videogame
console) in A/V IN1 input, and a second one (dvd player)
in A/V In2 input. The decoder can be set in three
different modes that lead to the following
configurations:
QTM100 on STAND-BY
FRONT Monitor: signal from AV IN2
REARMonitors ‚: No signal
QTM 100 on TV
FRONT Monitorƒ: TV signal tuned by QTM 100
REAR Monitors„: TV signal tuned by QTM 100
QTM 100 on MIX1 (press [A/V])
FRONT Monitor…: signal from AV In2
REAR Monitors†: signal AV IN1
Audio comes from the device in AV In1
QTM 100 on MIX2 (press A/V again):
FRONT Monitor‡: signal from AV In2
REAR Monitorsˆ: Tv signal
Audio signal comes from TV
‡‡
ˆˆ
……
††
ƒƒ
„„
‚‚

IN GENERAL, depending on the decoder mode set, we can see that:
• When the vehicle is stopped and the handbrake is pulled, FRONT monitor can receive the signal coming from TV
Or from the device in AV IN2,
• Whether the vehicle is stopped or on the go REAR monitors can receive the signal coming from TV or from the
device in AV In1.
All manuals and user guides at all-guides.com

Daily use
11
v How to select a channel in a
TV/Radio List
• Press [LIST] to show the Tv List
› press [GREEN]‚ to select alternatively whether the
general TV LIST , or the FAVOURITE TV LIST if pre-
viously installed [see MENU]
• Press [TV/RADIO]ƒ (yellow) to show the RADIO LIST
› press the same button to select alternatively the
Radio List or the previously selected TV LIST
• Select the desired channel according to one of the
three mode previously delineated
WARNING: channels marked with this signal (both in
red), are momentarily not available because of no net
coverage ˆ
v How to adjust the volume level
The volume level can be adjusted by using the [VOL+] e
[VOL-]„ buttons
v Mute
• Press [MUTE]… button to switch on/off the audio
output
v How to view info programme
• Press [info]† to view the short informations about
the selected programme
• Press [BLU]‡ to get detailed informations.
v How to select the language setting
To select the desired language in case of multilanguage
programmes follow the instructions:
• Press [info]† + [GREEN]‚ and select the desired
language by using the up/down[5] [6]† buttons
FAVOURITE TV
1 Channel TV
2 Channel TV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
7 Channel TV
TV LIST
[GREEN] to change list
““
18
Audio/Video Switching
v Audio/video Inputs
Ithe receiver allows the user to connect two auxiliary
devices (for ex. Videogame console, Dvd player, etc..) Into
the audio/video input (AV In1 e In2) and to select them by
the remote control.
1. How to select audio/video inputs:
Switch the receiver on the Tv signal and proceed as follow
to select the desired input:
• Press [A/V]
Frame 2‚ and, after a few seconds, signal on A/V IN1
[MIX 1] input will be shown on the screen
• Press [A/V] again
Frame 3ƒ and, after a few seconds, signal on A/V IN2
[MIX 2] input will be shown on the screen.
• Press [A/V] again
Frame 4 „ and, after a few seconds, TV signal [TV]
will be shown on the screen.
WARNING: As a prescriptive measure, in order to
make safe the transported appliances, signal's
view on the FRONT monitor is possible only when
the handbrake is pulled

ŽŽ

3 3
SCAN A/V
LIST
P+ info

MIX 1
MIX 2
TV
1
1
1
SCAN A/V
OK
P+
PV+
CHANNEL
1 2 3
456
78
0
9
EXIT
BACK MUTE
LIST
info
MENU
TV
RADIO
@ ? ! . ab c
g h i jk l m n o
p q r s t u v
_ + *
w x y z
d e f

‡
‚
…ƒ
†
„
TV
RADIO
‡
All manuals and user guides at all-guides.com
all-guides.com

12
Menu
v MENU
The main MENU‡ is the starting point to explore the
functions of the appliance. Navigating through it enables
to personalize some functions according to the needs of
the specific user
Sub-menus:
• SETTINGS
• DIAGNOSTICS
• PAY-TV
• TV LIST
Iv How to show the Menu
Per visualizzare il menu procedere come segue:
• Turn the monitor on
• Turn the receiver on by pressing the [ ] button on the
remote control 
• Press [MENU]‚
SCAN A/V
OK
P+
PV+
CHANNEL
EXIT
info
MENU
ƒ
„ 
LIST
‚…
17
v DIAGNOSTICS
The receiver has two different levels of diagnostics:
• SIGNAL LEVEL
• RECEIVER DATA
s How to view the DIAGNOSTICS:
• press [MENU];
• select DIAGNOSTICS by using [3] [4]‚ buttons
• press [OK]ƒ to confirm the selection or [EXIT]… to can-
cel it.
SCAN A/V
OK
P+
PV+
CHANNEL
EXIT
info
MENU
‚ƒ„
LIST
…
Menu - DIAGNOSTICS
SETTINGS
Receiver settings: [OK] to confirm - [EXIT] to quit
DIAGNOSTICS TV LISTPAY-TV
’’
DIAGNOSTICS
Signal and receiver: [OK] to confirm - [EXIT] to quit
PAY-TV SETTINGS TV LIST
All manuals and user guides at all-guides.com

16
v PAY-TV
Set Top Box together with a Smart Card (to insert into the
decoder) enables the user to watch two kinds of
conditioned access-contents:
• the viewer can accede to all the services against pay-
ment of a pay-tv subscription (standard pay-tv)
• the viewer purchases a single event (to watch whenever
he wants or, in special cases, only once). The purchase is
possible by buying a package of credits.
If the tv programme is not for free a format including all the
price and payment informations will be shown on the
screen
s How to accede to the pay-tv services:
• press [MENU]
• select PAY-TV and press [OK]ƒ to confirm
• select the specific conditioned access by using
[5][6]„ buttons
• press [OK]ƒ to confirm or [EXIT]… to cancel the selec-
tion
PAY-TV
PAY-TV management: [OK] to confirm - [EXIT] to quit
TV LIST DIAGNOSTICSSETTINGS
SCAN A/V
OK
P+
PV+
CHANNEL
EXIT
info
MENU
‚ƒ„
LIST
…
Menu - SETTINGS
13
SETTINGS
[OK] to confirm - [EXIT] to quit
DIAGNOSTICS TV LISTPAY-TV
RECEIVER RESTORE CLOCK
’’
TV out 4/3 pan & scan
Timer sleep 03h
Menu language ita
SCAN A/V
OK
P+
PV+
CHANNEL
EXIT
info
MENU
‚ƒ„
LIST
…
Menu - PAY-TV
SETTINGS
Receiver settings: [OK] to confirm - [EXIT] to quit
DIAGNOSTICS TV LISTPAY-TV
’’
v SETTINGS
In this sub-menu you can see the parameters related to:
• RECEIVER
• RESTORE
• CLOCK
WARNING: Do not change accidentally the parameters not
to run into the incorrect functioning of the appliance.
Default settingss are normally correct for standard
installations and they are recallable through the RESTORE
function w
v How to navigate the Settings Menu
• press [MENU]‚ to view the main menu on the screen
• select SETTINGS by using [3] [4]ƒ buttons.
• press OK to enter this sub-menu and then press it again
till you get the required item
• select the desired function first by using[3] [4]ƒ and
then [5] [6]„ buttons
• press [OK]„ to confirm the selection and to move to
the next function or [EXIT]… to cancel the selection
All manuals and user guides at all-guides.com

14
Menu - SETTINGS
w RECEIVER†
• TV OUT
The traditional tv screen is set to 4:3. If you have a
screen supporting 16:9 tv-out, you can select this
mode‡ where available.
• MENU LANGUAGE
To select the menu language
• POWER-OFF TIMER [only with QTM100C mode]l
To adjust the switch-off time
.
w RESTORE‡
This function enables the user to reset the input data
among these data categories:
• RECEIVER PARAMETERS
To reset settings, system and installation parameters
• CHANNELS LIST
To delete all the channels lists
• SOFTWARE UPDATE
To update the receiver software
WARNING: This process must be carried out by
experts.
[During the updating be sure to select OTA (user
process) if the update program originate from tv
programmes, or to select COM (experts process)]
It’s possible to make a complete data’s restore by selecting
the items all at once.
w CLOCKˆ
The receiver's clock will be automatically updated through
the tv signal. It's possible, if desired, to change the time
zone, set at Greenwich one by default.
Menu - TV LIST
15
v How to manage the Favourite Tv List
It's possible to create a personal favourite Tv List.
TV LIST, recallable through[LIST], and RADIO LIST,
recallable through [TV/RADIO] include all the tuned
channels, so they are not allowed to be personalized
1. How to create the Favourite Tv List:
• press [MENU]‚
• select TV LIST and press [OK]„ to confirm
• select CREATE and press [OK]„ to confirm
• browse the list in sequential mode by using
[5][6]… buttons, or in groups of six channels all at
once by using [3][4]ƒ buttons and select the
channel
• press [OK]„ to confirm the selection. A tick signal ü
will be shown next to the selected channel‡
• If you want to cancel the selection press [OK]„ again
and the tick signal ü will be deleted
2. How to delete a channel from the
Favourite Tv List:
Follow the same procedure as shown at the point 1 and
replace CREATE with DEL.CHAN.
3. How to sort the Favourite Tv List:
• press [MENU]‚
• select TV LIST and press [OK]„to confirm
• select SORT LIST and press [OK]„to confirm
• browse the list in sequential mode by using [5][6]…
buttons or in groups of six channels all at once by
using [3][4]ƒ buttons and select the channel you
want to move
• browse the liste in the same way and click on the
position where you want to move the selected channel.
A tick signal3will be shown next to the selected
channel
• press [OK]„ to confirm the new position of
the channelˆ
4. How to delete the Favourite Tv List:
Follow the same procedure as shown at the point 1 and
replace CREATE with DEL.LIST
SETTINGS DIAGNOSTICS
TV LIST PAY-TV
CLOCK RECEIVER RESTORE
““““
SETTINGS
[OK] to confirm - [EXIT] to quit
DIAGNOSTICS TV LISTPAY-TV
RECEIVER RESTORE CLOCK
TV out 4/3 pan & scan
Menu language ita
††
SETTINGS
[OK] to confirm - [EXIT] to quit
DIAGNOSTICS TV LISTPAY-TV
RESTORE CLOCK RECEIVER
Receiver Data ON
Channel List OFF
Software OFF
Download
’’
‚†
SCAN A/V
OK
P+
PV+
CHANNEL
EXIT
info
MENU
ƒ„…
LIST
TV LIST
[EXIT to quit and save
SETTINGS PAY-TVDIAGNOSTICS
CREATE SORT LIST DEL.CHAN DEL.LIST
’’
1 Channel TV
2 Channel TV
3 Channel TV
4 Channel TV
5 Channel TV
6 Channel TV
ü ü
ü ü
[EXIT] to quit and save
1 Channel TV 01
2 Channel TV 02
3 Channel TV 03
4 Channel TV 04
5 Channel TV 05
6 Channel TV 06
3 3
4 4
TV LIST SETTINGS PAY-TVDIAGNOSTICS
SORT DEL.CHAN DEL.LIST CREATE
““““
[OK] to confirm - [EXIT] to quit
Local time 11:23
Greenwich time 09:23
Offset +-01:00
All manuals and user guides at all-guides.com
