QubicaAMF XLi EDGE Series Guide

Pinspotter
with the
Optical Durabin
and the
Service & Parts Manual
These original instructions for the XLi EDGE Pinspotter were
written in English.
QubicaAMF Worldwide
8100 AMF Dr.
Mechanicsville, VA 23111
Domestic 866-460-QAMF (7263) / International [phone]
Fax [phone]
XLi EDGE Pinspotter Service & Parts Manual - P/N 400-088-120-02 Rev. A
XLiEDGE Pinspotter Manual Set - P/N 610-088-500-02 Rev. A

Document Number: 088-001-703 Rev. A
Original Document in English
EU DECLARATION OF CONFORMITY IN ACCORDANCE WITH COUNCIL DIRECTIVES
We hereby declare that the machinery described below complies with the essential machine health and safety
requirements of Council Directives 2006/42/EC and the electromagnetic compatibility requirements of Council Directives
2004/108/EC on the approximation of the laws of the Member States.
Conforming Machinery:
XLi EDGE Pinspotter with SmartGuard Safety System
Type/Function:
Bowling Pinspotter
Model Number:
612-088-105CE11 (Lane Pair)
612-088-106CE11/612-088-107CE11 (Single)
Serial Number(s):
Manufacturer:
QubicaAMF Worldwide, LLC
8100 AMF Dr.
Mechanicsville, VA 23111 USA
Authorized Representative:
Ronald Wood
SVP International Sales and Service
QubicaAMF BV
Hongkongstraat 63
3047 BR Rotterdam The Netherlands
Conforms with Harmonized Standards:
IEC60204-1:2010, EN61000-6-4:2007, EN55011, EN61000-4-2: 2005, EN61000-
4-3:2006, EN61000-4-4:2004, EN61000-4-5:2005: EN61000-4-6:2007,
EN61000-4-11:2004, EN61000-4-2:1995+A1:1999+A2:2001
Date of Issue:
Place of Issue:
8100 AMF Dr.
Mechanicsville, VA USA
Signed:
Signatory:
Ronald Wood
SVP International Sales and Service
QubicaAMF BV
Hongkongstraat 63
3047 BR Rotterdam The Netherlands

XLi EDGE Automatic Pinspotter
Service & Parts Manual
Part Number 400-088-120-02, Rev. A
Summary of Changes
Change No.
ECR No.
Rev. A 16-0293
List of Effective Pages
Page
Change No.
Effective Date
All
Original
10/4/2016

CONTENTS
SECTION 1 - Introduction
1.1 How To Use This Manual.............................................................................1-1
1.2 Manual Layout..............................................................................................1-1
1.3 Maintenance DVD........................................................................................1-2
1.4 QubicaAMF Bowling Products, Inc...............................................................1-2
1.5 QubicaAMF’s Commitment To Quality .........................................................1-3
SECTION 2 - Safety
2.1 General Safety Guidelines and Symbols......................................................2-1
2.2 Safety Procedures and Precautions.............................................................2-4
2.3 Safety Guards and Labels............................................................................2-5
SECTION 3 - Basic Pinspotter Operation
3.1 Pinspotter Mechanical Operation .................................................................3-1
3.2 Pinspotter Electrical Operation.....................................................................3-7
3.3 Electrical Drawings and Ratings...................................................................3-17
3.4 Pin Distributor...............................................................................................3-17
3.5 Positive Ball Lift (PBL)..................................................................................3-17
3.6 Chassis ........................................................................................................3-17
3.7 Motors & Gearboxes ....................................................................................3-17
3.8 EDGE Performance Lift................................................................................3-18
3.9 Pin Sensing Camera ....................................................................................3-18
3.10 Manager’s Control Unit.................................................................................3-18
3.11 Radaray XLi.................................................................................................3-18

SECTION 4 - Service & Maintenance
4.1 Service Tools...............................................................................................4.1-1
4.2 Machine Adjustments................................................................................... 4.2-1
4.3 Lubrication...................................................................................................4.3-1
4.4 Preventive Maintenance ..............................................................................4.4-1
4.5 Maintenance Procedures............................................................................. 4.5-1
4.6 Troubleshooting...........................................................................................4.6-1
SECTION 5 - Parts
5.0 Drawings and Part Numbers........................................................................ 5-1
Part Number Index....................................................................................... 5-67
ATTACHMENTS -
Attachment A - Wiring Diagram
Attachment B - Distributor Manual
Attachment C - Positive Ball Lift Manual
Attachment D - Chassis Manual
Attachment E - Motor & Gearbox Manual
Attachment F - EDGE Performance Lift Manual
Attachment G - Camera Manual
Attachment H - MCU Manual
Attachment I- Radaray XLiManual

Section 1.
Introduction
Contents
1.1 How to Use This Manual........................................................................................ 1-1
1.2 Manual Layout ...................................................................................................... 1-1
1.3 Maintenance DVD ................................................................................................. 1-2
1.4 QubicaAMF Worldwide ......................................................................................... 1-2
1.5 QubicaAMF’s Commitment to Quality ................................................................... 1-3

Section 1.
Introduction
400-088-120-02 Page 1-1 Rev. Date: 10/2016
1.0 Introduction
1.1 How to Use This Manual
This manual set is provided for use by trained and authorized bowling center mechanics in
conjunction with the adjustment and maintenance of QubicaAMF XLiEDGE pinspotters, including
the EDGE Performance Lift, the XLi EDGE Pin Distributor, the Positive Ball Lift (PBL) and Light Ball
Sensor (LBS), the XLiChassis, and associated equipment. This pinspotter manual does not cover
the installation of the pinspotter or associated equipment.
Several manuals are included in this manual set. These manuals may provide instructions for the
installation of the associated equipment related to repair or replacement. Refer to the
attachments at the back of the manual for information specific to this equipment.
Refer to Section 2, Safety, before proceeding with machine maintenance.
1.2 Manual Layout
The QubicaAMF XLiEDGE Pinspotter Service and Parts Manual is divided into individual sections by
the section tabs. Each section contains its own Table of Contents to help the user find a topic
within that section. Several sections include subsection tabs for quick reference. The complete
Table of Contents for all sections is provided at the beginning of this manual, a Parts Section Table
of Contents is located at the beginning of Section 5.0, and a replacement part number index can be
found at the end of Section 5.0.
Section Tab Subsection Tab
Section 1 - Introduction 1.1 How To Use This Manual
1.2 Manual Layout
1.3 Maintenance DVD
1.4 QubicaAMF Bowling Products, Inc.
1.5 QubicaAMF Bowling’s Commitment to Quality
Section 2 - Safety 2.1 General Safety Guidelines
2.2 Safety Procedures & Precautions
2.3 Safety Guards & Labels
Section 3 - Operation 3.1 Pinspotter Mechanical Operation
3.2 Pinspotter Electrical Operation
Section 4 - Service & Maintenance 4.1 Service Tools
4.2 Adjustments
4.3 Lubrication
4.4 Preventive Maintenance
4.5 Maintenance Procedures
4.6 Troubleshooting

XLi EDGE QubicaAMF Pinspotter
Section 1 Page 1-2 Rev. Date: 10/2016
Section 5 - Parts 5.0 Part Numbers & Drawings Parts Index
Attachment A - XLiEDGE Pinspotter Controller System Wiring Diagram
Attachment B - XLi EDGE Pinspotter Pin Distributor Manual
Attachment C - Positive Ball Lift (PBL) Manual
Attachment D - XLiControl Chassis Manual
Attachment E - XLi EDGE Pinspotter Motor & Gearbox Manual
Attachment F - EDGE Performance Lift Manual
Attachment G - AccuCam 3000 Camera Manual, QV-3000 Camera Manual
Attachment H - XLiManager’s Control Unit (MCU) Manual
Attachment I –Radaray XLi Foul Detector Manual
1.3 Maintenance DVD
Attached to the inside of the front cover of this manual set is a DVD that contains
animations of various maintenance and adjustment procedures. These animations are
provided as a supplement to the written procedures contained in this manual. Reading
the instructions is important to performing the activity safely and correctly, but a visual
rendition minimizes translation errors, adds clarity, and makes the activity easier to
understand.
The DVD contains animations in the PAL and NTSC video standards. NTSC is the
standard used in North America and much of South America. The PAL standard is used
in most other countries. Both standards are included to make the animations available
to as many customers as possible.
1.4 QubicaAMF Worldwide
QubicaAMF (formerly AMF) was founded in New York in 1900 as the American Machine and
Foundry Co., Inc. AMF's first product was automated machinery for the tobacco industry.
In 1936, the pinspotter was invented by Fred Schmidt in his garage in Pear River, New York.
AMF hired him in 1938 allowing him to perfect his invention. The war delayed production,
but in 1946 the pinspotter made its first public debut at the World's Fair. In 1951, the
pinspotter went into production and revolutionized tenpin bowling.
In 1946, AMF introduces "pindilator", the first automatic pinspotting machine, at the
ABC Tournament in Buffalo, New York, and the first automated pinspotter to be
installed and used by bowlers in an ABC Championship in Fort Worth, Texas.
In 1986, AMF Bowling was acquired from AMF Incorporated by a group of Richmond,
Virginia, investors.

Section 1.
Introduction
400-088-120-02 Page 1-3 Rev. Date: 10/2016
IN 1988, AMF relocated their Corporate Headquarters, engineering offices, R&D lab, and
manufacturing facilities to their current location, a new 375,000 square foot, 70 acre
facility in Mechanicsville, Virginia.
In 2004, AMF Bowling Worldwide, Inc. was acquired by the investment group of Code,
Hennessy, & Simmons, LLC.
In 2005, AMF Bowling Products and Qubica, an Italian manufacturer of a variety of
bowling products, merged to form QubicaAMF Worldwide.
QubicaAMF Bowling, Inc Corporate Headquarters Richmond, Virginia
The company has manufacturing facilities in Lowville, New York, which manufactures
bowling pins and lanes
QubicaAMF is also a world leader in the manufacture and sale of bowling products, with
a global market presence in more than 50 countries.
1.5 QubicaAMF’s Commitment to Quality
When you make a commitment to QubicaAMF, QubicaAMF makes a commitment to
you. A commitment to see that you get the very best. The best equipment, the best
engineering, the best technology, and the best customer service and technical support
in the industry. By having all of these disciplines under one roof, QubicaAMF is uniquely
positioned to provide the finest in products and services to the bowling industry.
QubicaAMF’s commitment to their customers doesn’t stop after the sale. QubicaAMF
strives to provide their customers with pinspotters that, with proper maintenance, will
provide you with years of trouble-free operation. In the event that help is needed,
QubicaAMF is ready to serve you. For customer service or technical support from within
the United States call 1-866-460-7263, or from outside of the U.S. call 1-804-569-1000.

XLi EDGE QubicaAMF Pinspotter
Section 1 Page 1-4 Rev. Date: 10/2016
This Page Intentionally Left Blank

Section 2.
Safety
Contents
2.1 General Safety Guidelines and Symbols ................................................................ 2-1
2.2 Safety Procedures and Precautions....................................................................... 2-4
2.3 Safety Guards ...................................................................................................... 2-5

Section 2.
Safety
400-088-120-02 Page 2-1 Rev. Date: 10/2016
2.1 General Safety Guidelines and Symbols
QubicaAMF feels strongly about its commitment to safety. Proper service and repair are
important to the safety of the mechanic as well as the safe, reliable operation of the
pinspotters.
Please read, understand, and follow all of the recommended safety procedures presented in
this manual.
The service procedures recommended and described in this technical manual are effective
methods of performing service and repair. Some of these procedures require the use of tools
specially designed for this purpose.
Properly trained personnel should be present whenever maintenance is being performed
on a pinspotter.
No unauthorized personnel should be allowed in the pit area.
Keep in mind that the XLiEDGE QubicaAMF pinspotter performs a series of mechanical
motions and electrical actions during each cycle, and that SEVERE BODILY INJURY OR
DEATH could result should personnel enter the machine when power is on. When
working in a pinspotter, it is recommended that power also be turned off on adjacent
machines.
Remember that safety must remain your first priority at all times.
The sound pressure level (LpA) in the area of the control chassis (operator’s station)
during bowling activities is in excess of 80 dBA. Hearing protection is recommended.
Safety goggles, ear protection, and steel-toed shoes are recommended whenever any
work is being performed on a pinspotter.
Wearing loose clothing or jewelry is NOT RECOMMENDED when operating or
maintaining the machinery.
Do not attempt to clear pin jams with a pin hook without first turning off power to the
pinspotter.
It is important to note that this manual contains various symbols and wording that provide
information that must be carefully followed in order to reduce the risk of personal injury
during service or repair, or that warn of the possibility that improper service or repair may
damage the pinspotter or render it unsafe.
Additionally, the XLi EDGE QubicaAMF pinspotter has a number of built-in features and
components as well as various warning labels that are designed to minimize and warn against
the risks associated with this equipment. Heed all warnings and do not defeat the safety
features that come with your pinspotters. Never place the machine into service with any of
the guards removed. Some of the warning labels you may observe on the pinspotter are
shown on the following pages.

XLi EDGE QubicaAMF Pinspotter
Section 2 Page 2-2 Rev. Date: 10/2016

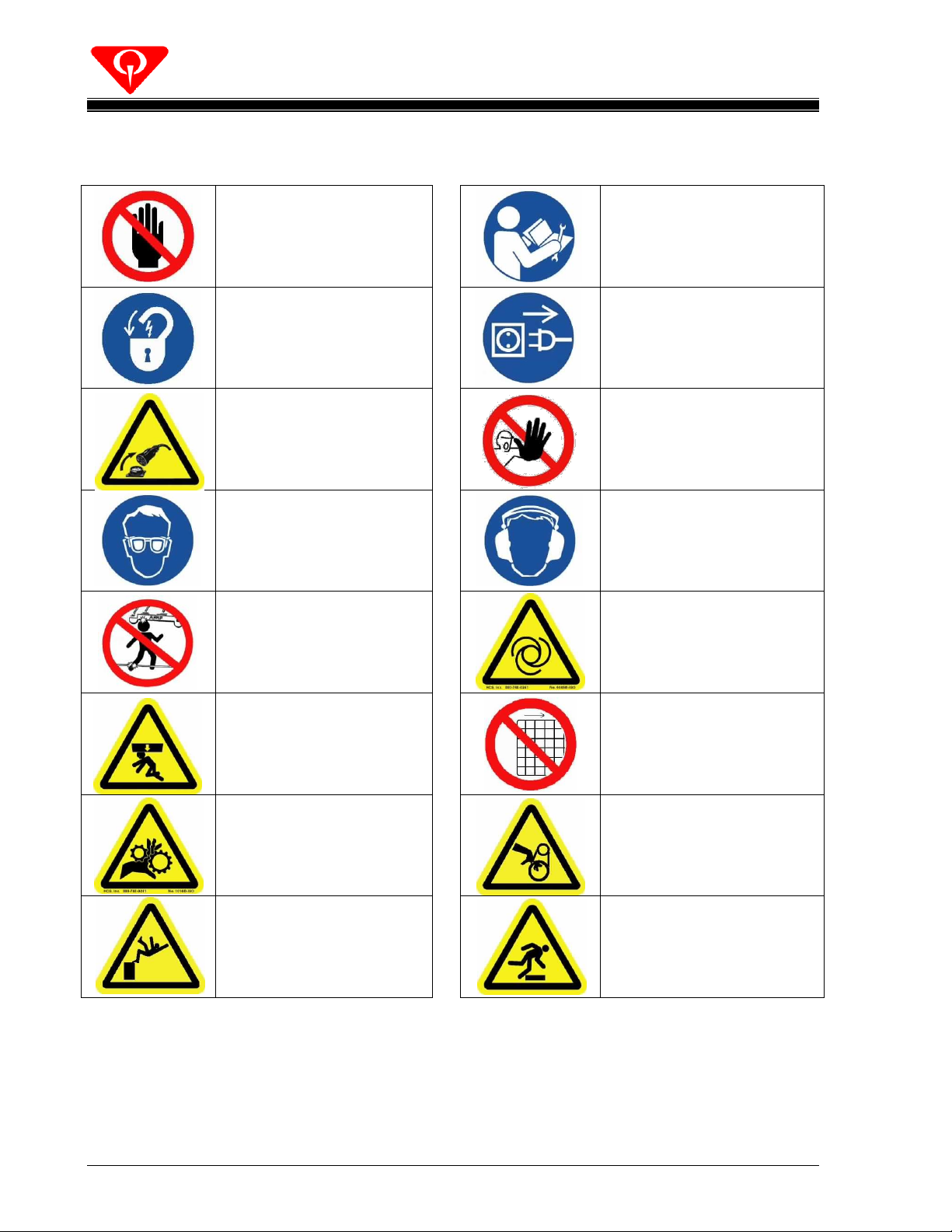

This symbol means STOP, DO
NOT PROCEED, and is a
warning that hazards could
exist. It is often followed by
other symbols.
This symbol means that the
mechanic should read,
understand, and follow the
technical manual before
servicing the machine.
This symbol indicates a
LOCKOUT/TAGOUT point for
performing maintenance.
This symbol reminds the user to
remove main power from the
machine prior to performing
maintenance.
This symbol warns the
mechanic to unplug the motor
before servicing.
This symbol indicates STOP! NO
ACCESS FOR UNAUTHORIZED
PERSONS. Service should be
performed by authorized,
trained personnel only.
This symbol indicates that eye
protection is required.
This symbol indicates that
hearing protection is required.
This symbol is a warning
against breaking a photo eye
beam, which will cause the
machine to cycle.
This symbol indicates that the
machine may start or cycle
automatically without warning.
This symbol states that a
crushing hazard exists.
This symbol is a warning against
operating the equipment with
the guards removed.
This symbol denotes that an
entanglement hazard
associated with gears exists.
This symbol denotes that an
entanglement hazard associated
with belts and pulleys exists.
This symbol warns that a falling
hazard exists.
This symbol warns that a
tripping hazard exists.

Section 2.
Safety
400-088-120-02 Page 2-3 Rev. Date: 10/2016

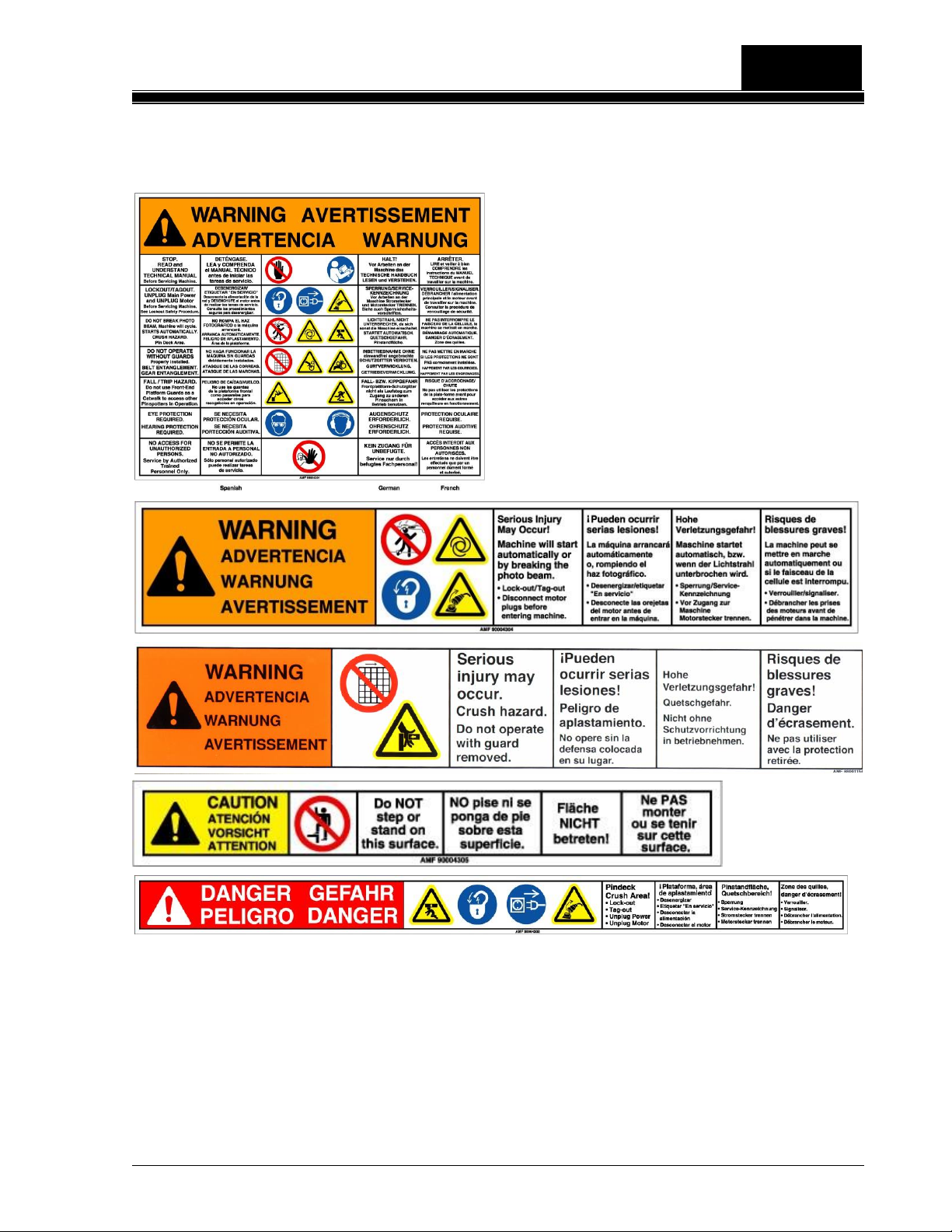

The symbols on the previous page may be displayed as follows:
It is also important to understand that the use of these symbols is not all-inclusive because it is
impossible to warn of all the possible hazardous consequences that might result from failure to
follow these instructions.

XLi EDGE QubicaAMF Pinspotter
Section 2 Page 2-4 Rev. Date: 10/2016
2.2 Safety Procedures and Precautions
1. PLACE THE SWEEP IN THE 1ST GUARD POSITION AND DISCONNECT THE POWER PLUG
before working on any pinspotter equipment and before entering any portion of a
pinspotter. FOR ENTRY INTO A PINSPOTTER, THE ADJACENT (PAIRED) PINSPOTTER MUST
BE ISOLATED IN THE SAME MANNER AS THE PINSPOTTER BEING ACCESSED. Follow your
center’s established lock-out and tag-out procedures.
A lock-out device should be placed over the power connector to prevent power from
being applied to the machine during maintenance or repair. Refer to Figure 2-1 for
machine power connector locations.
For pinspotter installations equipped with the XLi EDGE SmartGuard™ Safety System,
refer to the XLi EDGE SmartGuard™ Safety System Manual, 400-088-092, for specific
information relating to electrical isolation requirements when entering the machine.
2. Be sure all safety guards are securely in place before operating a pinspotter.
3. Wait a minimum of 60 seconds after disconnecting the power plug before opening the
chassis or contacting any electrically charged pinspotter components.
4. NEVER alter pinspotter safety mechanisms or wiring.

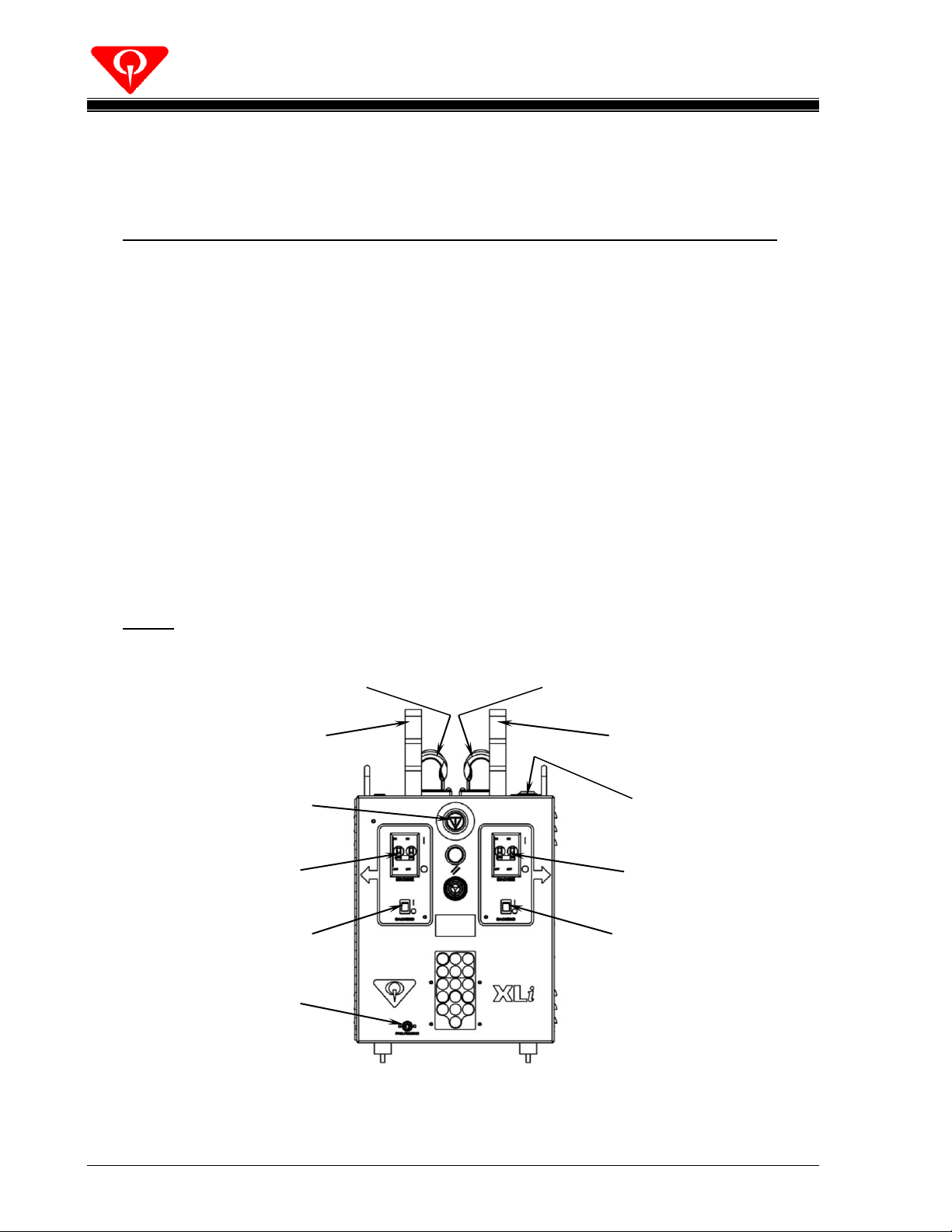

Figure 2-1
Program Port
EVEN Machine
Back End Motor
Switch
EVEN Machine
Power Breaker
ODD Machine
Power Breaker
ODD Machine
Back End Motor
Switch
Odd Machine Power
(Mains) Connection
Even Machine Power
(Mains) Connection
Odd Machine
Light Tower
Chassis Logic
Power Connection
Even Machine
Light Tower
Emergency Stop
Pushbutton
