A5505 Screen House Pro Vehicle Connector Full Instructions
General Use
This product is not a toy and should never be used by children. Please ensure children are
supervised at all times.
• Please keep these instructions, the sales receipt and, if possible, the carton along with all the inner
packaging in case it is needed in the future.
• Please read the instruction manual carefully before using the product.
• This product is not intended to be used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instructions concerning the use of the product by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for any damage or
injury caused by the product.
• The Screen House Pro connector is used as a connection between the Quest Leisure Screen House
Pro and your vehicle, it is used outside and can be aected by the weather. We always recommend
using all the pegging points and storm straps all of the time.
!
Thank you
for purchasing this product. At Quest we take every care to ensure that the product fulls
your expectations. We hope you enjoy using this product
Quest manual download site
The quest manual download site can be found at the url below or the QR code
to the left
http://www.questleisure.com/manuals.

Page: 2
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 3
A5505 Screen House Pro Vehicle Connector Full Instructions
Storage
To help keep your product looking newer for longer and prolong the life and use of the product, we
recommend that the product is covered when not in use.
If the product is not going to be used for an extended period (such as a winter period) we
recommend that it is carefully folded away and stored in a clean, dry and free from damp location.
Care and Cleaning Instructions
Never use and harsh or abrasive cleaners or brushes when cleaning this product as the frame and
fabric may be damaged when doing so.
Never fold and put the product away when wet as this can trap water in the product, which can
lead to mould and mildew build up.
• Fabric : We recommend, letting the fabric dry and then brushing the dirt off with a soft brush. if
there are marks left then we recommend using warm clean water to remove any remaining marks.
If this does not remove the marks then use a dedicated tent and awning cleaner for the fabric
• Once cleaned allow the product to dry naturally before folding away and storing.
• IMportant Note : If you have used a dedicated tent and awning cleaner to clean the product you
will have to use a re-proofer as well. this is due to the cleaner will have potentially damaged the
coating of the fabric, which helps protect the fabric from the suns rays. By re-proofing the fabric
(by using a dedicated awning and tent re-proofer) you are re-applying this protective layer.
• Frame : First allow any dirt to dry and brush with a soft brush to remove loose dirt. Once this is
done wipe the frame down with warm clean water and a soft cloth. Once cleaned allow to dry
naturally before storing away.
Wear, Tear and Usage
The connector is used outdoors and thus will be subject to standard wear and tear caused by the
weather and other external influences. This section lists some, but not all of the standard wear and
tear you may get with your screen house.
• Fading : With all polyester materials used outdoors some fading or colour changing will occur.
This will change depending upon how often you use it, how long it is up when you use it, what the
weather is like when you use it and other external influences such as shade etc. This fading only
affects the look of the material and does not affect the performance of the screen house. It is a
natural process and cannot be avoided. Fading can be improved by using a proofing spray as
listed in the maintenance section below.
continued on next page
Storage , Care and Cleaning, Usage
Details on how to look after your product.

Page: 4
A5505 Screen House Pro Vehicle Connector Full Instructions
Usage, Wear and Tear
details on the usage, wear and tear for your product
Wear, Tear and Usage
Continued from previous page.
• Colour changing : Similar to fading, all polyester materials used outdoors may be affected by
colour changing. This is down to the amount of sun they receive whilst out, the atmospheric
conditions at the time and other external factors. Colour changing is only cosmetic and does
not affect the performance of your screen house.
• U.V. Degradation : Over time all polyester materials will break down and become brittle. This
is down to the effect the sun has on the material. Your screen house is protected against this
with its advanced U.V. coating, but this protection does break down over time. The time it
takes will completely depend upon the weather conditions when used, such as the suns heat,
cloud cover, shade and others. This is a natural process that cannot be stopped, but you
can protect against it by regular cleaning and re-proofing (listed in the care and cleaning
instructions).
• Condensation : Condensation is a natural process where moisture from the ground is
drawn up and collects on the roof or sides or your screen house. Whilst this is kept to a very
minimum thanks to the mesh side on your screen house, you may still get some on the roof
during certain conditions. This will be made worse if you use the optional side walls and keep
these side walls closed as they prevent air flow and can increase condensation.
• Waterproofing : Whilst the roof on this screen house is waterproof the screen house itself
is not water tight. The sides on the screen house are not waterproof, even when using the
optional side walls the screen house is not water tight. In the event of rain, some water
may well get into the screen house. Over time the waterproof coating of the material
can deteriorate. This can be repaired by the use of a re-proofing spray as listed in the
maintenance section of the instructions.
• Weathering : The waterproof nature of the screen house roof may be affected by a process
called weathering. Weathering is a process where the Screen House may seem to leak when
first used in the rain. When you sew a seam into any material you make a hole in the material
and then put a thread of cotton though this hole. Obviously this hole will leak water initially.
The weathering process is around the cotton thread. When the cotton thread gets wet it
expands and fills the hole made when the material was sewn together. When the cotton
thread then drys is shrinks back, but never to the same size it was initially. This process
happens a few times and eventually the thread stops expanding and shrinking, but will have
sealed the hole up. This whole process is called weathering and is the final process that
makes your Screen House roof waterproof.

Page: 4
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 5
A5505 Screen House Pro Vehicle Connector Full Instructions

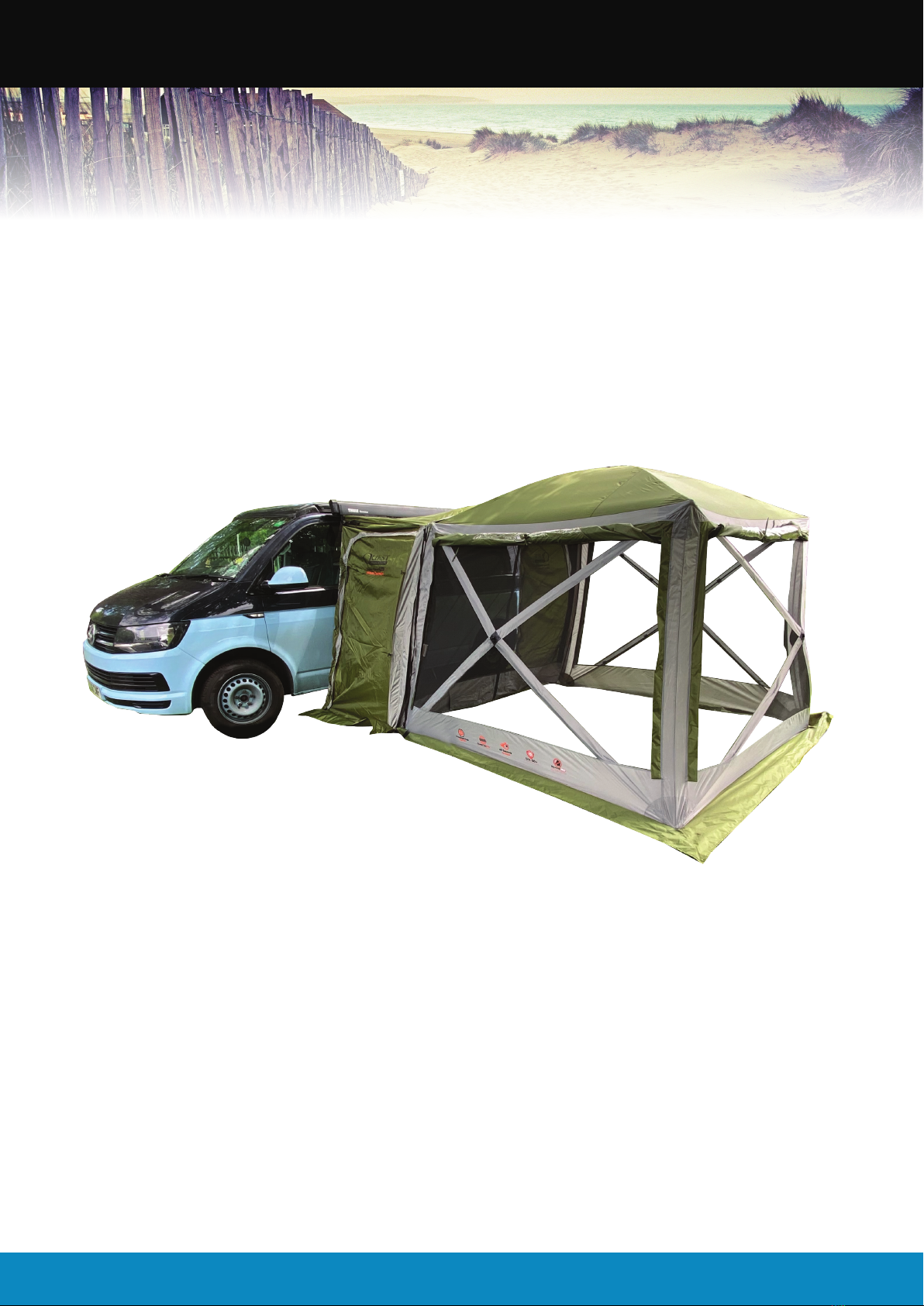

Fitting - Connecting the tunnel
How to t the vehicle connector.
To t your vehicle connector, you rst t the connector to your screen house and then the connector
to your vehicle. Our recommended way is listed below.
Attaching the connector to the Screen House
• First locate the dual zips on the outer edge of the connector. If you are connecting it to a Screen
House 4 Pro then remove the adapter zip on the connector as this is only used when connecting to a
Screen House 6 pro.
• If you are connecting it to a Screen House 4 Pro you use the inner of the two zips. For a Screen House
6 Pro you connect it to the adapter zip on the outer zip.
• Once the connector is fulled zipped on, you then connect the connector to your vehicle.
Connecting to your Vehicle
• Next move the Screen House and connector to your vehicle and connect the connector, using the
method of your choice. See the connection methods listed on the following pages for more details on
the options you have.
• IMPORTANT : If you are connecting to a Screen House 4 pro then make sure the roof zips are open
(unzipped) as these are open for the Screen House 4 pro and closed when using with the Screen
House 6 pro.
• Once connected you put the tunnel pole in place and peg.
Tunnel Pole and Pegging
• Next you put the tunnel pole in place. The connector comes with two poles. The longer of the two is
used with the Screen House 4 pro and the shorter of the two poles is used with the Screen House 6
pro.
• Put the pole together and place in the tunnel. There is a pocket for the pole at the bottom of each
side of the tunnel.
• When the pole is in place ensure the Velcro tie backs are all in place as this holds the pole in place
and forms the curved roof to push rain water o.
• Next peg the rear oor pegging point of the tunnel just underneath your vehicle. We have found that
if you are connecting it to a VW transporter with a roll out canopy on, we recommend pegging the
right hand side just in front of the vehicle and not underneath it as this allows a small gap to ensure
if your sliding side door is opened too quickly it does not damage the vehicle connector.
• Then pull the Screen House away from the vehicle until the tunnel sides and roof become tight. This
is then the correct position to peg the tunnel and Screen House.
• The last stage is adjusting the tunnel to the best t possible.
continued overleaf

Page: 6
A5505 Screen House Pro Vehicle Connector Full Instructions
Fitting - Adjusting the tunnel
How to t the vehicle connector.
Adjusting the tunnel
• Once pegged you can adjust the tunnel to get the best t possible. These steps are optional, but it
is always best practice to get the tunnel as tight as possible.
• Start with the elastic cord located at the bottom rear of both sides of the tunnel. Pull the elastic
cord as tight as possible and then push the 'rued' fabric all the way to the top of the tunnel. The
rued fabric should push all the way up so it is above the door on the side of the tunnel.
• Next you can use the two straps shown in image 1 below. These straps can be adjusted to help
gather any excess fabric up, or simply to hold the rued fabric you pushed up from using the
elastic cord. Once complete it should look like image 2 below.
•
Adjusting the tunnel additional option
• We have found that some people also like to peg the connection tunnel on the opposite side of
their vehicle to pull it against the vehicle even more (usually when the tunnel is attached to a roll
out canopy as shown in images 2 and 3 below). To do this simply tie a guy line (not supplied) to the
webbing loop located by the base of the upright strap (shown as guy1 on image 1 below), then pass
the guy line through the webbing loop located at the top of the tunnel (shown as guy2 on image 1
below).
• Then pull the guy line over the top of your vehicle and peg it into the ground on the opposite side of
your vehicle (as shown in image 4).
• This will then pull the fabric up and towards your vehicle as
shown in image 3 below.
image 4image 3image 2
image 1
guy1
guy2

Page: 6
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 7
A5505 Screen House Pro Vehicle Connector Full Instructions
Fitting - Connection methods
How to t the vehicle connector.
Connection Methods
You can connect to your vehicle using various dierent methods. Some of which are listed below, but
they are all optional. It is best to try a few dierent methods and nd out which is best for you as
each method has its advantages and disadvantages.
Beading
• You can use the beading on the vehicle connector to connect to your vehicle. Your connector has
two beadings (4 and 6mm) on it. Simply slide the correct size beading (depends upon the channel
on your vehicle) into the channel on your vehicle, or wind out canopy etc. and you are ready to go.
Guy Lines
• Another option is to use the two pegging points located on either end of the connector. The guy line
on these points are thrown over your van and pegged onto the rear side of the vehicle, pulling the
connector against the van.
Drive Away Kits
• Another option to connect your tunnel to your vehicle is via a drive away kit. These are optional and
have to be purchased separately. There are two types, a standard version and a magnetic version,
but both are used in the same way.
• Magnetic Drive Away Kit
• One option to connect your connector to your vehicle is a magnetic drive away kit. These are optional
and have to be purchased separately. They are used to connect to your vehicle when you do not
have any other method (such as a VW camper van). To use a magnetic drive away kit :
• Take the gure of eight connectors (there will be more than one section) from the magnetic drive
away kit and slide them onto the beading on your connector.
• Then slide the magnetic drive away kit into the other side of the gure of eight.
• Then you can place the magnetic side of the drive away kit to the side of your vehicle.
TIP: Whilst the magnetic drive away kit will hold the tunnel to your vehicle, it will not support the tunnel in moderate
to high winds (we have found this during testing of many dierent brands of magnetic drive away kits), so we also
recommend that if you are using a magnetic drive away kit we still use the two guy lines at the ends of the tunnel
(similar to the ‘Guy Line’ solution above) to secure the tunnel to the vehicle, in conjunction with the magnetic drive
away kit.
continued overleaf

Page: 8
A5505 Screen House Pro Vehicle Connector Full Instructions
Connection Methods (continued from previous page)
You can connect to your vehicle using various dierent methods. Some of which are listed below, but
they are all optional. It is best to try a few dierent methods and nd out which is best for you as
each method has its advantages and disadvantages.
Standard Drive away kit
• A standard drive away kit is an optional piece of equipment (purchased separately) that allows you
to disconnect your connector from a channel or wind out canopy without the need to un-peg your
screen house. Drive away kits come in two dierent sizes : 4 and 6mm. You choose the size closest to
the size of the channel on your vehicle or roll out canopy. Please consult the instructions that came
with your canopy/channel to nd our which one you need. To use a drive away kit :
• Take the long double beaded webbing strap from your drive away kit out and slide this into your wind
out canopy or channel.
• Then take the gure of eight section(s) from the kit and feed these onto the other side of the webbing
strap.
• You can then feed the channel on the connector into the other side of the gure of eight sections
which connects your screen house vehicle connector to your vehicle.
TIP : Some drive away kits can be cut down to size, which can make it cleaner and easier to t the drive away kit as
they can be cut down to exactly the same size as you require, removing any excess which can get in the way. Please
consult the instructions/details that came with your drive away kit to conrm this before cutting.
Fitting - Connection methods
How to t the vehicle connector.

Page: 8
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 9
A5505 Screen House Pro Vehicle Connector Full Instructions
Warranty : 12 Months (1 Year) warranty.
Warranty Claim
• In the unlikely event of a warranty claim, you must contact your retailer.
• If you have not registered your product, rst ll out the registration form overleaf and take this with
you when you go to your retailer.
• Take the product to your retailer that you purchased it from along with your proof of purchase and
explain the issue with the retailer.
• The retailer will then check the product and get in touch with the wholesaler or manufacturer.
• The retailer will keep you informed of the progress of the claim.
• The wholesaler or manufacturer will not (unless under special circumstances) get in touch with you
as all information will be passed back directly to the retailer.
Warranty Information
• This product comes with a full 12 month manufacturers defect warranty and covers any manufacturers
defects for one (1) year from the date of the original purchase. It does not cover any damage occurred
though:
• The product falling, being dropped, scratched or damaged in any way.
• The product has been technically changed by the owner or another third party
• Improper use of the product.
• Normal wear and tear - which includes (but is not limited to): colour fading, wearing, stretching.
• Weather damage - which includes (but is not limited to) U.V. degradation and colour changing.
• The aected part will be replaced or repaired (manufacturers option) if they are found to be defective
within the one (1) year time frame.
• The warranty will be void if the product has been subject to neglect, misuse, improper installation,
misapplication, alteration or accident including, but not limited to, improper installation, maintenance
or use of unauthorised parts or attachments.
• Damage caused by not following the instruction manual in full will invalidate the warranty, if this
results in consequential damages, Quest will not be liable for these damages or any costs incurred
due to these damages.
• Quest will not be liable for material damage or personal injury caused by improper use or if the
safety instructions are not properly executed in full.
• All claims must be made though the retailer you purchased the product from and not direct with the
wholesaler or manufacturer.
• Warranty claims cannot be honoured without an original dated receipt and or proof of purchase.
• By executing repairs the original warranty period of one (1) year will not be extended, nor the right to
a complied new warranty. This warranty is only legal on European soil.
• This warranty does not overrule the European directive 2011/83/EU.
• This product may not be amended or changed.
Warranty
Details on the warranty that comes with your product.

Page: 10
A5505 Screen House Pro Vehicle Connector Full Instructions
For a full list and details visit : www.questleisure.com
Single person pitch and in less than 60 seconds
We have designed and built the Screen House to be erected by a single person. Everything about it, is catered to
ensure that it can be done by one person. We test the Screen House ourselves to ensure that it can be erected by a
single person. We even use our own office staff and members of the general public to test it as well. On top of this we
time it ourselves and have proven time and time again that it can be erected by a single person in under one minute,
so we give it both the single person pitch and 60 seconds to erect logos.
Quest Tec210 fabric
This is a modern, middleweight performance fabric. It is stronger and will last longer than its cheaper rivals. It has a
high performance U.V. coating giving it the 50+ rating. It is also waterproof, whilst keeping the weight down making
it easier to use. • Fabric Density: 210D • Waterproof rating : 2,000mm Hydrostatic Head.
U.V. 50 Plus
The Screen House has a U.V. rating of 50+, the highest available. This gives you excellent protection from the sun,
especially important when the screen house is being used as a shelter for the younger ones.
Premium Hub System
We are on our 5th generation of premium hub system. This is the centre of the Screen House frame system and
its single most important part. Our premium hub is simply stronger and more reliable than anyone else’s. It is also
repairable if anything should happen to it, ensuring piece of mind for years to come.
The best example of just how well made our screen houses are is that we use our screen house demonstrator for at
least two years. During those two years it is goes though approximately 15 years worth of usage as it goes up, down,
up down all day long during shows and more. At the end of those two years they are still working fine and replaced
only as logos and features are added.
NO Chill Pro Mesh
The Screen House uses our No-chill PRO premium mesh. This mesh not only allows great views, but stops the wind
chill factor allowing it to feel cooler in the sun than standard fabrics, but also warmer in the wind than its cheaper
rivals. It is also stronger, lasts longer and is less prone to snags and marks than the others.
Screen HousesScreen Houses
The original one person, one minute shelter, and still the best.
We have been producing the Screen House for over 7 years, longer than any others. In
that time we have been improving the Screen House all the time and it means that it is
the best, quickest, strongest and longer lasting than its rivals. Some of the innovation and
changes cannot simply be seen, but together make our Screen House perform better
and last longer than the others.
No-Chill PRO
Premium quality mesh
Great views, no wind chill
U.V. 50+
Protection from the Sun
Single
Person Pitch
So easy, it only takes
one to pitch
Premium Hub
System
60 Seconds
To Erect

Page: 10
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 11
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No 120053 Screen House 4
The original Screen House 4. Called a 4 as it has 4 sides, this can easily be erected by a single person in
under a minute. Full mesh sides built in to stop insects and combat wind chill, but allow air flow. Cooler
in the sun and warmer in the wind, its the perfect quick up shelter.
The premium build quality and premium features elevates this from its rivals The hub system is extremely
durable, the fabric is UV coated to help protect you and the screen hose from the suns rays and the
frame is made from solid fibreglass to give it a premium feel and performance.
For a full list and details visit : www.questleisure.com

Page: 12
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No 120051 Screen House 6
The original Screen House 6. It is the larger cousin of the Screen House 4 and has 6 sides, but can still
easily be erected by a single person in under a minute. Full mesh sides built in to stop insects and
combat wind chill, but allow air flow. Cooler in the sun and warmer in the wind, its the perfect quick up
shelter.
The premium build quality and premium features elevates this from its rivals The hub system is extremely
durable, the fabric is UV coated to help protect you and the screen hose from the suns rays and the
frame is made from solid fibreglass to give it a premium feel and performance.
For a full list and details visit : www.questleisure.com

Page: 12
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 13
A5505 Screen House Pro Vehicle Connector Full Instructions

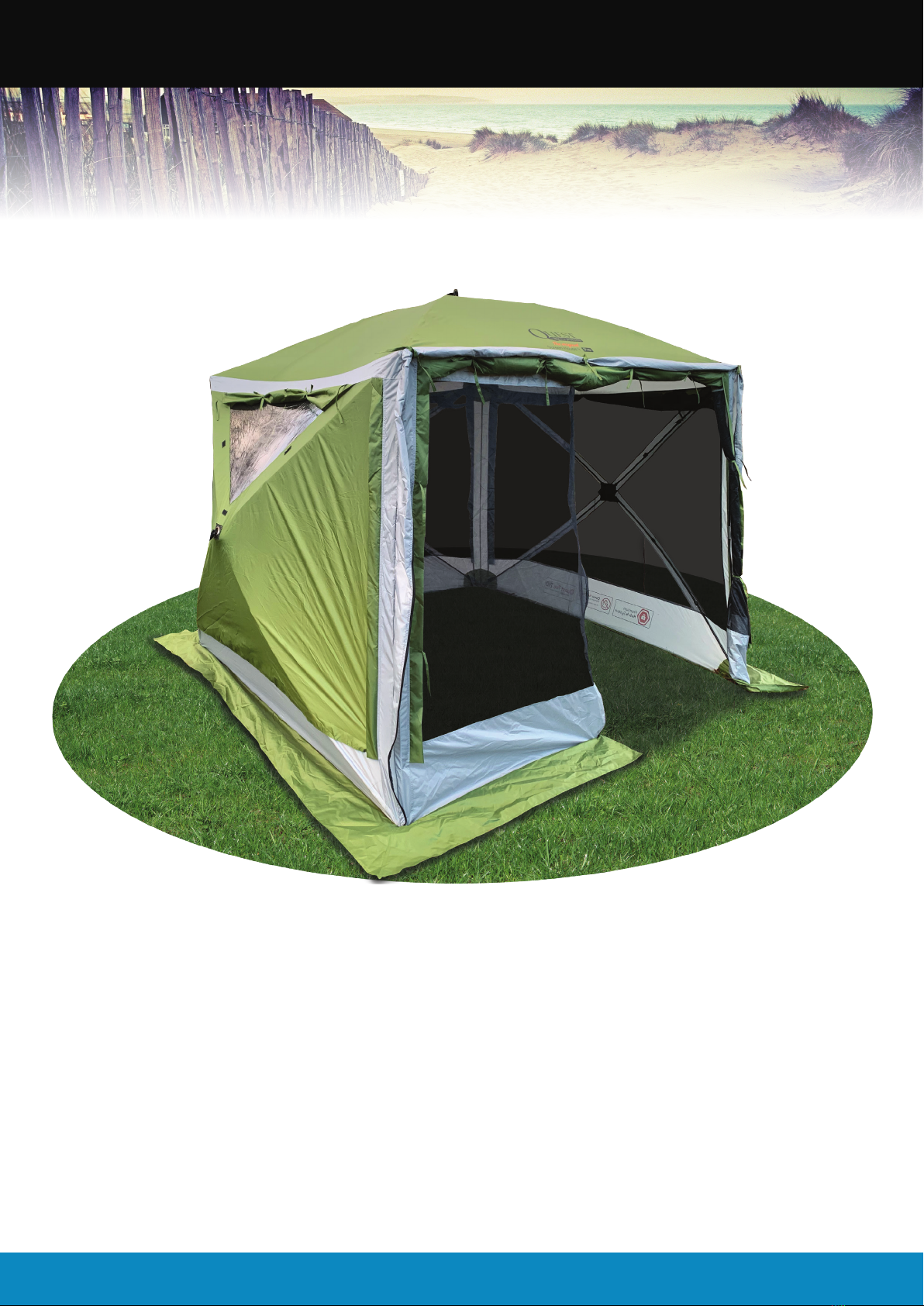

Cat No A3000 Screen House 4 Pro
Based on the Screen House 4, the PRO version takes it two steps further. Firstly it has all the same
features as the Screen House 4 and is just as easy to erect, but then it adds :
• Zipped in full sides. These zip down and cover the built in mesh sides with a complete fabric side. The
sides also have windows on each side with an external blind.
• Accessory Zip. The pro model has an accessory zip around the front door allowing you to add various
accessories onto your Screen House.
For a full list and details visit : www.questleisure.com

Page: 14
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No A3005 Screen House 6 Pro
Based on the Screen House 6, the PRO version takes it three steps further. Firstly it has all the same
features as the Screen House 6 and is just as easy to erect, but then it adds :
• Additional Door. The pro version of the Screen House 6 has two doors, allowing you two ways in or out.
Zipped in full sides. These zip down and cover the built in mesh sides with a complete fabric side. The
sides also have windows on each side with an external blind.
• Accessory Zip. The pro model has an accessory zip around the front door allowing you to add various
accessories onto your Screen House, or even zip up to five of them together
For a full list and details visit : www.questleisure.com

Page: 14
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 15
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No A5503 Screen House Mini
The Screen House mini, is as its names implies a mini version of the Screen House. Using the same
premium hub system and a smaller frame it is still extremely easy to use and pitch, it can easily be
erected by a single person in under a minute. The smaller size of the mini also means a smaller and
lighter pack size, but when pitched the mini is 140cm high, so easily high enough to sit under. Vents
around the bottom of the unit allow air flow and the windows in the top allow extra visibility , or can be
closed with the external blinds when not required. Complete with a built in PE floor.
Perfect for the beach, festivals, parties at the park, fishing and more.
For a full list and details visit : www.questleisure.com

Page: 16
A5505 Screen House Pro Vehicle Connector Full Instructions

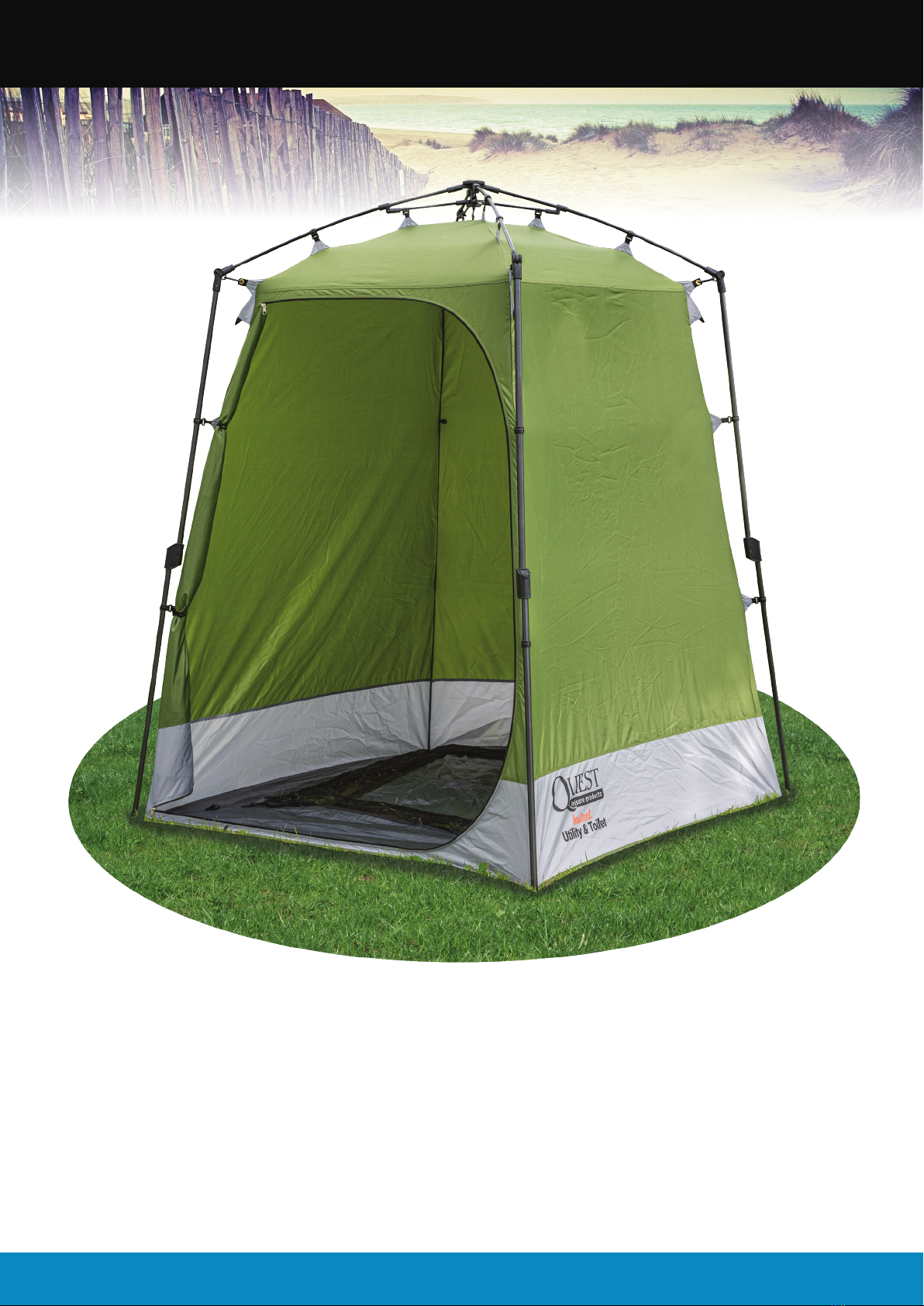

Cat No 120010 Instant Utility , Toilet and Shower
Whilst not strictly a Screen House the Instant Utility is another extremely easy unit to pitch. This uses the
excellent zero tension frame, which again means there is nothing to put together, nothing to inflate and
nothing to tension. You simply take it out of the bag, unfold the frame and extend the legs and you are
ready to go.
The unit comes with a shower shelf so it can be used as a shower unit if required and the floor can be
toggled out of the way, which is an excellent idea if its being used as a shower or toilet.
Quick and easy to use, it is an excellent piece of kit to have at hand for that extra little space when
required.
For a full list and details visit : www.questleisure.com

Page: 16
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 17
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No 120054G (Screen House 4) : 120052G (Screen House 6) Side Walls
Adds privacy and extra protection to your Screen House (4 and 6 only). They simply clip into each corner
and velcro in place. Sold in pairs, so you can just cover a couple of sides, or every side if you wish, they
can be placed over the doorway as well if required.
They can even be used in conjunction with the optional canopy pole kit to create a sun canopy area to
the side of the Screen House if required.
Accessories
A few little extras to add to your product.
For a full list and details visit : www.questleisure.com

Page: 18
A5505 Screen House Pro Vehicle Connector Full Instructions

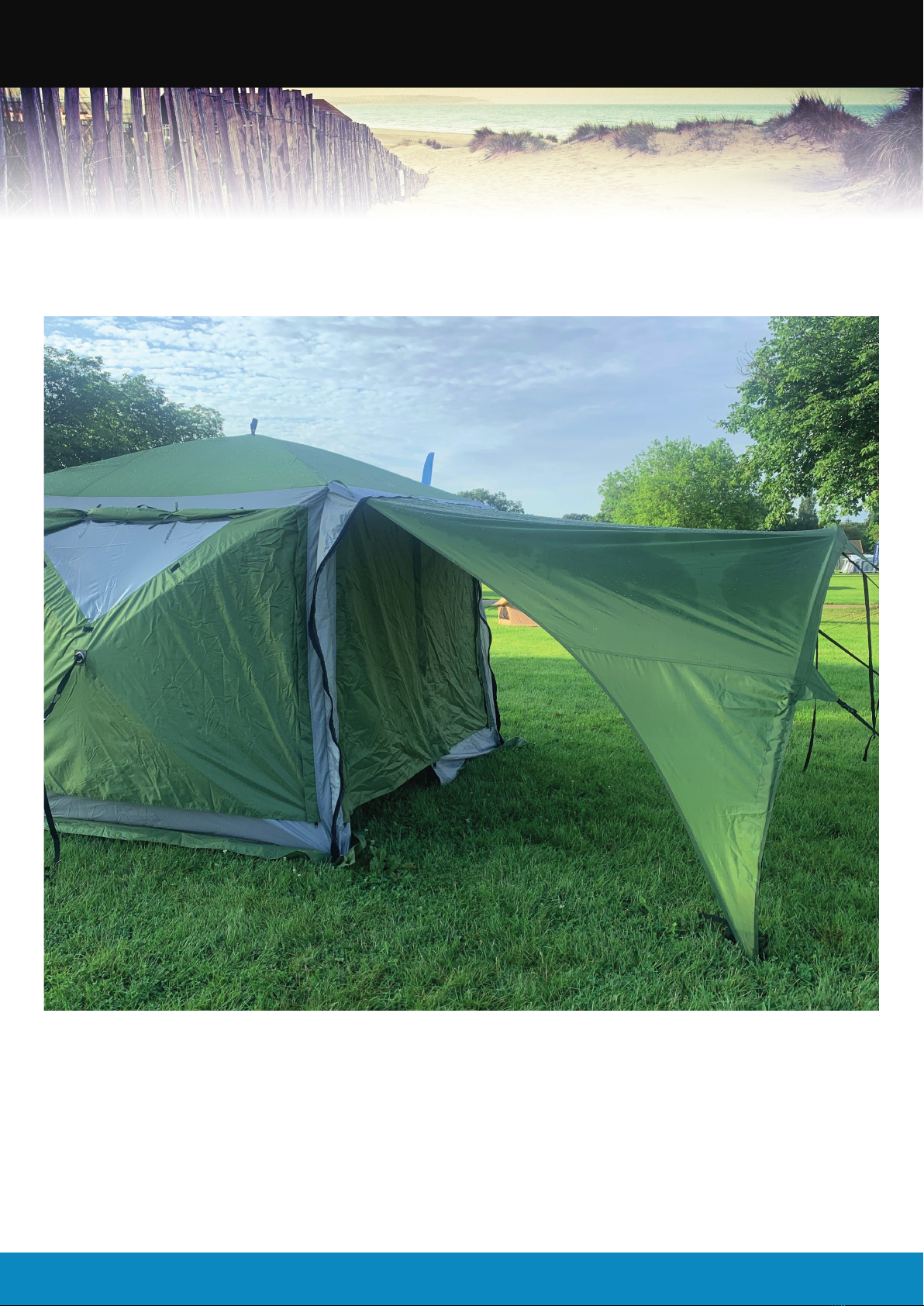

Cat No A5504 Screen House Pro Canopy
This is an accessory for your Screen House pro (fits both 4 and 6). It is a large canopy that simply zips
onto the front of your Screen House and gives you a large covered area to the front of your Screen
House..
It uses one pole at the front and comes complete with webbing straps and pegs to ensure a secure pitch.
Accessories
A few little extras to add to your product.
For a full list and details visit : www.questleisure.com

Page: 18
A5505 Screen House Pro Vehicle Connector Full Instructions
Page: 19
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No A5505 Screen House Pro Vehicle Connector
This is an accessory for your the Screen House Pro (4 and 6). Again this simply zips onto the front of your
Screen House pro and allows you to connect your screen house pro to your vehicle.
Doors to the left and right allow access in and out from either side and the connector comes with a roof
pole to give water run off in the roof and double beading (both 4 and 6mm) to allow direct fitting to
canopies, or awning channel.
It can be connected to vehicles, or canopies between 180 and 210cm in height. As it zips on and off it
does not need a drive away kit when used on a motor home or camper.
Accessories
A few little extras to add to your product.
For a full list and details visit : www.questleisure.com

Page: 20
A5505 Screen House Pro Vehicle Connector Full Instructions
Cat No A5510 Screen Shield (1 panel)
This is an additional panel/windbreak for your Screen House pro (fits both 4 and 6). The Screen Shield is
available in 1 panel or 3 panel lengths and zips directly to your screen house pro, or it can be used on its
own (when used with at least 1 Screen Shield (3 panel)).
It uses the same premium hub and frame system as your Screen House making it extremely easy to erect
and gives you a great protected and private area to the front of your screen house.
Accessories
A few little extras to add to your product.
Screen Shield (1 panel)
shown attached to Screen
Shield (3 panel)
For a full list and details visit : www.questleisure.com
