QuietCool RM ES-2200 User manual

Installation Manual
To ensure proper installation, read carefully all of this manual
prior to installing the fan
Model
RM ES-1100
RM ES-2200
“The natural choice for energy savings”

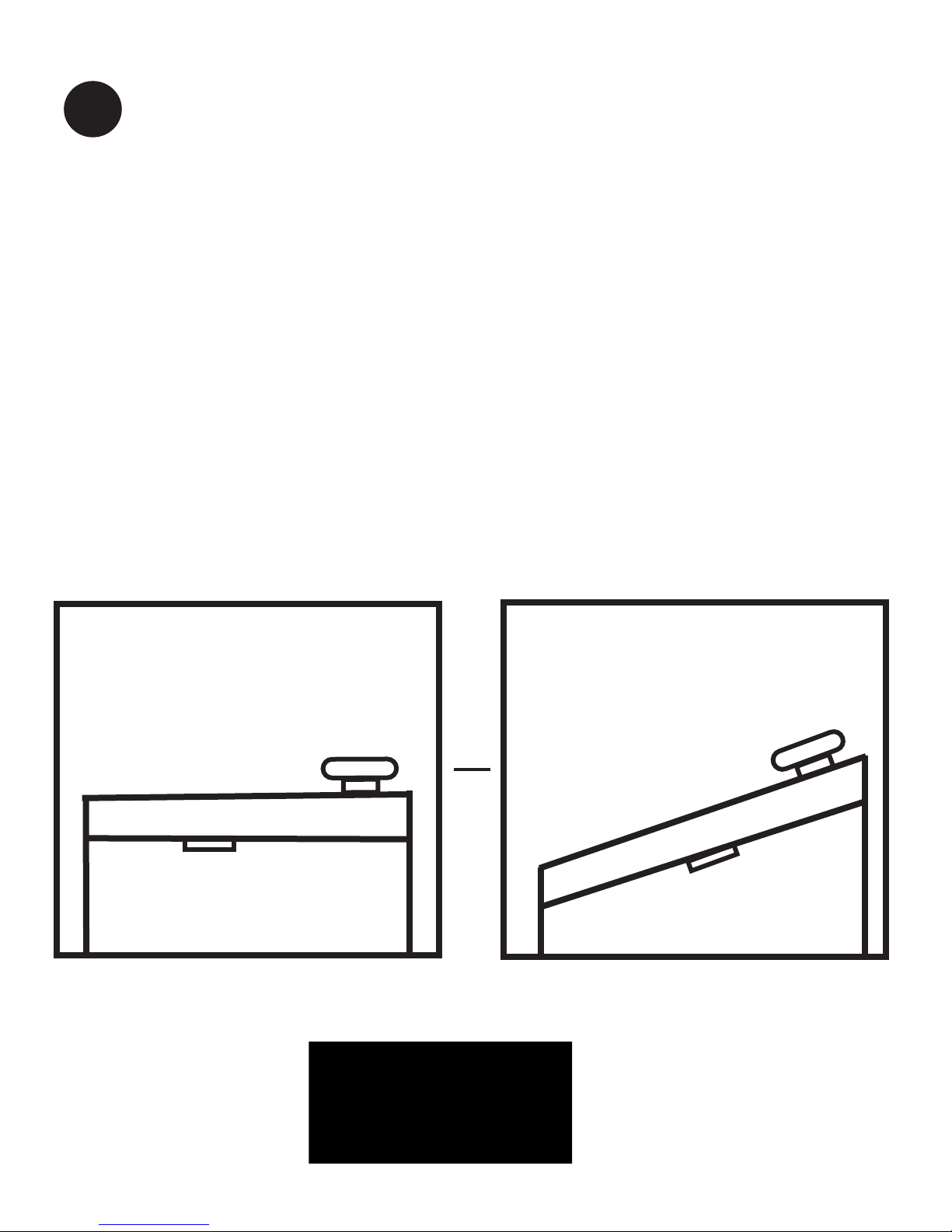

QuietCool Roof Mount Fan installation instructions
For commercial buildings with acoustical drop ceilings.
(Minimum of 20” attic clearance required for these installations)
OR
Min. 20”
clearance
Ceiling
Slight Pitch Roof
Attic
Ceiling Grille
Roof Mount Fan
Installation for standard homes, manufactured homes and modular oces.
Ducted SYSTEM
Components required for installation
Roof Mount Fan
Find location Cut out roof Route power Install fan Install controls
Install duct,
ceiling box & grille
OR
Min. 20”
clearance
Ceiling
Flat Roof
Attic
Ceiling Grille
Roof Mount Fan
Duct, Ceiling Box & Damper Grille Kit
Flat Roof Slight Pitch Roof
Installation overview
After determining where the fan(s) are going to be installed, make sure the ceiling box / grille has at least a minimum of
14 ¼” between the rafters or joists using an electronic stud nder.
IMPORTANT - Make sure you have at least 20” of clearance between ceiling and roof.
Cut out ceiling at 14 ¼” x 14 ¼“ square for the RM ES-1100 or 14 1/4” x 18 1/4“ for the RM ES-2200 prior to cutting out roof.
Recheck location of the interior ceiling box placement. You can drill a small hole through the roof to help locate
placement of roof cut out. Make sure the duct is going to be long enough to join roof fan and ceiling box. Make your
cut through the roof at 14 ¼” x 14 ¼“ square for the RM ES-1100 or 16 1/4” x 16 1/4” for the RM ES-2200 .
Run electrical wiring to roof cut-out and make connections to fan(s). Attach duct to fan and then place roof mount unit
in cut out section. Fasten to roof with appropriate fasteners. Flash in fan curb using appropriate weatherproong
method and materials based on roof type. Install preferred controls.
Hard Wire or Remote Controls

QuietCool Roof Mount Fan installation instructions
Ceiling
Slight Pitch Roof
Rafter
Ceiling Grille
Roof Mount Fan
Installation for standard at ceiling or cathederal ceiling homes.
FLAT or CATHEDERAL CEILINGS
Components required for installation
Roof Mount Fan
Find location Cut out roof Route power Install fan Install controls
Install Grill &
Damper Kit
OR
Ceiling
Flat Roof
Rafter or Joist
Ceiling Grille
Roof Mount Fan
Damper Grille Kit
Flat Roof Slight Pitch Roof
Installation overview
After determining where the fan(s) are going to be installed, make sure the ceiling box / grille has at least a minimum of
14 ¼” between the rafters or joists for the RM ES-1100 or 16 1/4” for the RM ES-2200 using an electronic stud nder.
Make your cut through the roof at 14 ¼” x 14 ¼“ square for the RM ES-1100 or 16 1/4” x 16 1/4”for the RM ES-2200 .
Run electrical wiring to roof cut-out and make connections to fan(s). Attach duct to fan and then place roof mount unit
in cut out section. Fasten to roof with appropriate fasteners. Flash in fan or fan curb using appropriate weatherproong
method and materials based on roof type. Install preferred controls.
Hard Wire or Remote Controls
Space between rafters is used as duct
Space between rafters is used as duct

QuietCool Roof Mount Fan installation instructions
For commercial buildings with acoustical drop ceilings.
OR
Ceiling
Slight Pitch Roof
Attic
Roof Mount Fan
Installation for standard homes, manufactured homes and modular oces.
ATTIC FAN - ROOF MOUNT
Components required for installation
Roof Mount Fan
Find location Cut out roof Route power Install fan Install controls
OR
Ceiling
Flat Roof
Attic
Roof Mount Fan
Flat Roof Slight Pitch Roof
Installation overview
Make your cut through the roof at 14 ¼” x 14 ¼“ square for the RM ES-1100 or 16 1/4” x 16 1/4” for the RM ES-2200 .
Run electrical wiring to roof cut-out and make connections to fan(s). Attach duct to fan and then place roof mount unit
in cut out section. Fasten to roof with appropriate fasteners. Flash in fan curb using appropriate weatherproong
method and materials based on roof type. Install preferred controls.
Hard Wire or Remote Controls

10 Year Limited Warranty – QC ES Line QC Attic, Garage, & Roof Fans
QC Manufacturing Inc. extends this warranty to the original purchaser of the following QC AFG ES-
1500, GA ES-1500, GX ES-1100, RM ES-1100 (CRB, FLT, SLP), RM ES-2200 (CRB, FLT, SLP)----
installed and used in a residence under normal conditions within the United States:
A. Ten year coverage applies to the QuietCool motor fan assembly. At our option we will repair
or replace any part of the assembly should it fail to operate during the first ten years from
the date of original purchase.
B. One year coverage for all other components including grills, housings, controls and
accessories furnished by QC Manufacturing Inc. At our option we will repair or replace
any part which fails as a result of defective material or workmanship during the first year
from the original date of purchase.
C. This warranty does not cover any of the following:
1. Incidental or consequential damage resulting from the operation of our equipment or
any malfunction thereof.
2. Cost of service calls to diagnose the cause of problems or the labor charge to
un-install any components.
3. Product failure or damage due to faulty installation, abuse, misuse, unauthorized
alteration to factory specs, lack of maintenance, or transportation damage.
4. Shipping or postage for warranty claims.
D. To obtain service under this warranty, contact the dealer where you purchased the
equipment. If you are unable to find or reach your dealer, contact Customer Service
at QC Manufacturing Inc., at the address below.
E. Please register your product(s) for warranty on line at www.QuietCoolSystems.
This warranty is the only warranty extended by QC Manufacturing Inc. to purchasers or suppliers of our equipment. QC Manufacturing Inc. disclaims all other
warranties, express or implied, that arise by operation of the law.
Product Information
QC Serial # QC Serial #
QC Serial # QC Serial #
Product Registration: Please register your product on line at www.QuietCoolSystems.com/register.html. Be sure to keep a copy of this warranty form for
future reference and submit proof of purchase with any warranty claim. QC Manufacturing, Inc. will not process any warranty claim without proof of
purchase from an authorized QuietCool dealer. Where consumer may have additional warranty rights in accordance with federal and state law, such rights
shall supersede those stated herein."
Rev.3.15.13
