QVIA z970 WD User manual

※ GUI or functions in the manual may differ depending on the software version.
※ This model has a format-free feature. However, some settings of memory card can be restricted.
(e.g. recording length time, image quality and etc.)
※ This model has a format-free feature. However, past video clips can be played back through general media players depending on file size.
※ This model has a format-free feature. However memory card efficiency can be decreased.
※ The Qvia application can be found on the Google Play Store and the App Store.
※ The Qvia application can be used with Android 4.0 or later, iOS 5.0 or later.
※ Qvia Application can be different in actual depending on version or model.
※ Wi-Fi connection could be interrupted depending on wireless environment and/or type of smartphone.
※ Recorded videos will be saved as ‘Normal video quality’ when Wi-Fi is connected.
※ Image may get blur due to temperature environment or vibration.
※ Audio noise may occur due to motor noise while zoom is moving.
※ Image can be blur due to focus correction if there is strong impact excessed 1.5G.
※ Image can be blur if auto-focus correction is done regularly.
User’s Guide
ver. 1
z970 WD

Thank you for purchasing QVIA dash camera.
This manual has been prepared based on the z970 WD model.
There may be some technical & editorial errors and omissions.
You can download the latest and updated manual & firmware at our website www.qvia1.com.
▒ Read carefully before using this product ▒
▒
Scope of guarantee and responsibility ▒
※This product is an equipment for recording image and sound to provide visual proof of a car accident, but we do not guarantee that it will
record all accident images and sounds.
※We will not be held responsible for any damages due to a malfunction of this product, damage caused by data loss or other damages related
with this product.
※In general, the memory card lifespan is about 6 months and there may be data loss due to static electricity or external voltage.
For this reason, it is highly recommended to copy and save important data to other media (hard disk, CD, portable memory etc.).
※This product model has a format-free feature. However, the memory card(s) may obtain corrupt images (image recording omissions,
image cuts, frame change omissions, & other recording defects) due to a decrease in reading/writing speed. For the best results, please use
Qvia genuine SD cards and format periodically (once a month for 8G SD and microSD cards).
※This product is a supplementary device to record the driving image. Please use this device to check driving image for reference purpose.
It may not be recorded depending on the driving condition.
※This manual should be reviewed and retained for future reference.
※Qrontech reserves all rights to this manual in accordance with the copyright law.
※Content of this manual is subject to change without notice to ensure quality control.
※Differences in device functionally may differ depending on firmware.
※This product was designed as an accessory for safe driving, in the event of an accident, all responsibility is borne by the vehicle operator.
Please use this product responsibly.
※We will not be held responsible for any damages related to engine output if user records in parking mode without a portable auxiliary battery.

CONTENTS
Instructions For Use
1-1. Cautions in use
1-2. Installation
1-3. GPS
1-4. Memory card
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
4
6
6
7
Package & Part Name
3-1. Package guide
3-2. Name & function of each part
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥
10
11
Installation
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥
‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥
4-1. Precations
4-2. Installation Steps
4-3. Continuous Power Cable Installation

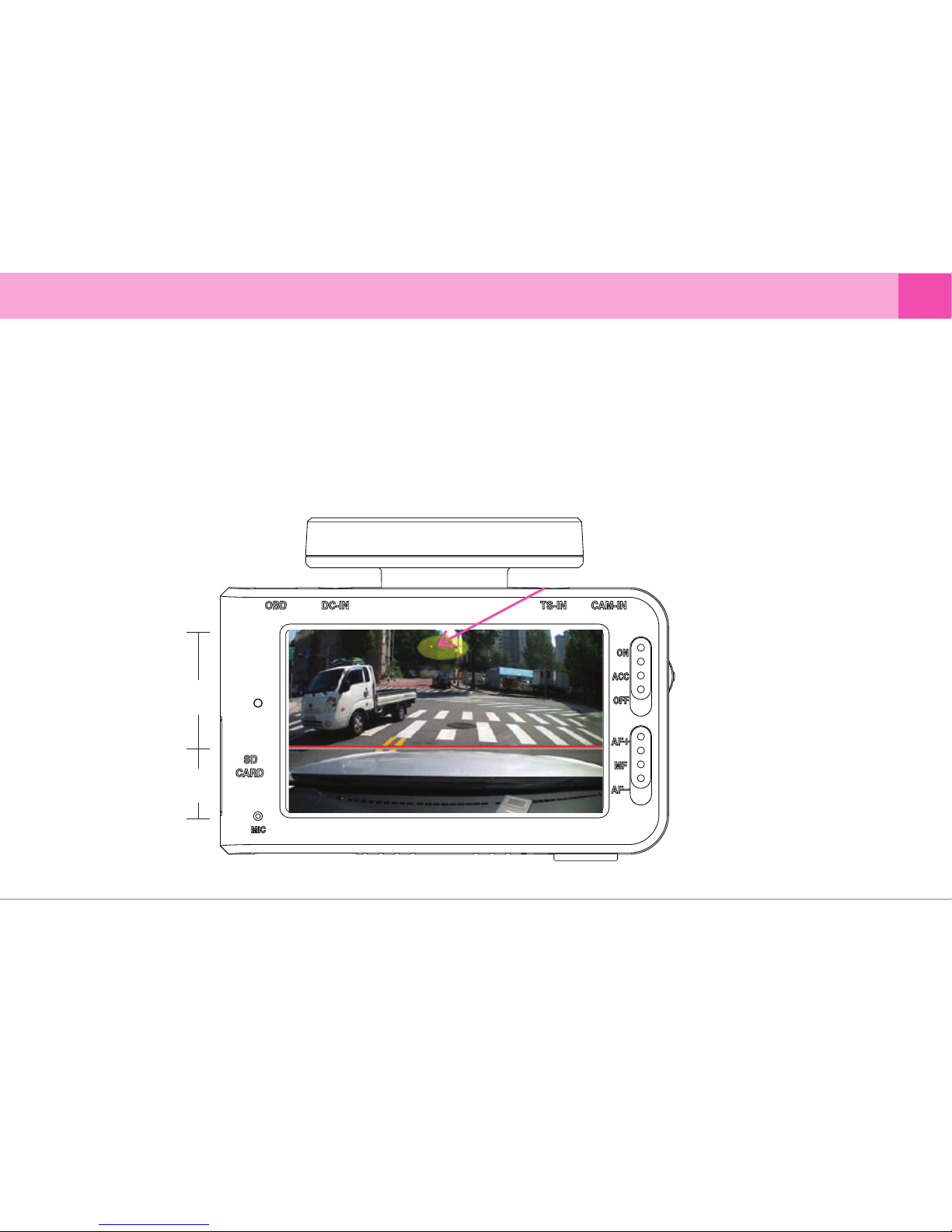

4-4. Installation Angle Recommendation
4-5. Memory Card Usage
13
13
15
16
17
Features ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 8
1.
2.
3.
4.
Product Usage
5-1. Standard Operation Guide
5-2. Operating Dash Camera
5-3. Play Recorded Videos
5-4. Real time Video
5-5. Configuration
5-6. Formatting Memory Card
5-7. Time Setting
5-8. Manual
5-9. OBD II
5-10. Zoom Operation Scenario
5-11. Starting Application
5-12. Interworking Application
5-13. Operating Application
5-14. Upgrading the Application Firmware
5-15. Viewer
‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
17
20
22
23
24
31
32
32
33
34
35
35
36
39
40
5.
Specification and Customer Service
6-1. Product specification
6-2. Quality Assurance
‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
44
45
48
6.
# Appendix

1. Instructions For Use
4 ... DASH CAM
▒ 1-1. Device Precautions ▒
1. Do not expose device to direct sunlight or cold weather for extended periods of time.
Device exposure to direct sunlight and extreme temperatures may damage to the device.
2. Do not dismantle or alter the product.
Do not disassemble, modify, or attempt to repair the device. Any alterations to the device can void the manufacturer’s warranty.
3. Do not dismantle or alter the device accessories.
Modifying or cutting power cable can lead to damages to a dash cam or a car. We are not reponsible for any damages occurred due to this.
4. Do not allow liquid to come into contact with device.
Please note this device is not waterproof and exposure to liquid and foreign substances may cause a device malfunction, short circuit, and/or fire.
Use caution when cleaning the device and clean with a soft and dry cloth.
5. Do not expose the device to heavy impacts.
Excessive impacts to this device can cause a malfunction. Handle the product with care.
6. Only use manufacture approved power cable and accessories.
Any damages or loss to device/vehicle as a result of accessory incompatibility will not be covered under manufactures warranty.
7. Do not operate the device for extended periods of time while the vehicle is not running.
Excessive use of the device while vehicle is off can cause drainage to the vehicle’s battery.
8. Video quality may vary depending on extreme lighting conditions.
Quality is subject to alterations in extreme dark/light areas and conditions. Most notability when entering/exiting a tunnel or parking garage.
9. Data may not be recorded if accident is lower than a predetermined threshold.
In extreme cases, the device may not record data during an accident due to possible low impact forces. In addition, a high force impact may
disrupt power to the device and data may be lost.
10.When cleaning the lens, beware that the zoom-motor may be damaged if the lens is moved by excessive force. When adjusting or cleaning
the lens, make sure to power down the device first.

User's Manual ... 5
11.
12.
Do not disconnect the power source while the device is turned-on.
Disconnecting the power source may cause the device to malfunction. Please use only the recommended voltage for power connection.
Please reset the installation angle of the dash camera if AE operation malfunctions.
The device can only be connected via Wi-Fi one device at a time.
13.
Some PCs may not support Viewer or there may be some disconnections in voice/image depending on the PC’s specifications.
14.
AE operations at night may vary depending on vehicle (black, red) low light reflection.
16.
15.
There may be frame omissions due to rapid AE operational changes in low light areas. Please reset the installation angle of the device if AE
operation malfunction.
Video quality may be subject to noise when recording in poor lighting environments.
In the event of a sudden frame change or switching between parking & driving modes, there may be a loss of data.
Motion detectors may malfunction in the event of an extreme increase/decrease to the surrounding lighting conditions of the vehicle.
The motion detection function may not operate properly in environments with poor lighting conditions due to noise and vehicle security LED(s).
The left/right side image quality of this device may vary due to characteristics of the wide-angle lens.
Image quality may display ‘flickers’ of light due to traffic and street light.
17.
18.
19.
20.
This product supports OBD Ⅱ, but users are recommended to inquire of distributor or customer center about applicable vehicle, model and
More information before use. (Software/hardware modification).
21.
22.
23.
Please ensure all accessories are connected to device(s) to avoid data loss.
24
For playback of recorded videos using Wi-Fi, the reception may vary according to the data transfer rate and the smartphone.25.
The range of Wi-Fi reception may vary.26.
The lens may displace if excessive force is applied to it, which would cause a loss of focus. Please handle your device with care.27.
Due to the characteristics of the lens, vignetting may occur when filming in the maximum viewing angle.28.
Do not continue to use this device if a malfunction is apparent, Please contact our C/S center or your local distributor with any questions
and/or concerns about this product.
29.
We will not be held responsible for any damages related to engine output if user records in parking mode without a portable auxiliary battery.

▒ 1-2. Installation ▒
▒
1-3. GPS ▒
1. There is error range of over 15min a normal commercial GPS. There may be situations where GPS signals cannot be received depending on the
environment such as buildings, underground, trees which make the error range bigger.
2. It may take some time to receive first GPS signal after power is on depending on the weather or other factors.
3. External devices (electronic, toll device) and window tinting may affect GPS reception.
4. The speed may vary (range of 1-30 km/h) depending on the reception area when stopping the car.
5. GPS information may be lost when switching off the dash cam.
6. Time errors can occur with a dash cam without GPS.
6 ... DASH CAM
1. Keep device clear of clutter.
Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality.
2. Ensure camera lens is clean at all times.
3. Do not attempt to operate or install the device while driving.
For your safety, do not attempt to operate or install the device while driving to avoid a traffic accident.
4. Please keep the device securely mounted at all times.
Improper attach of dash cam can cause malfunction of product or product falling which can lead to breakdown or driving inturruption.
5. Image quality can be blur or distorted in a car with a dark tinting.
6. Install this product at the point furthest away from the antenna or receiver as possible.
The electromagnetic waves produced by the device may distort receiving sensitivity.
7. Since this product uses a wide-angle lens and a UV filter, vignetting may occur in some areas
(A+1, A+0, A+E, A-4, A-5, A-6, M0 And M1).

▒ 1-4. Memory Card ▒
1. Do not remove the memory card by force while the product is in recording mode.
Be sure to turn off the product before removing the memory card. Removing the memory card during the device is on may damage the video file or
cause an operation error of the memory card.
2. Formatting SD card and microSD once a month at minimum (8G) is recommended.
Repetitive writing and deleting by dash cam can cause damage to memory card and files. Accordingly, periodic formatting can prevent memory card or
files from such damage. In addition, longest lifespan of memory card is 6 months and the company is not responsible for recording errors that take place
due to prolonged use of memory card whose lifespan expires.
4. Handle with care to insert and remove memory card to avoid burn injuries.
The memory card operates at very high temperatures, so you must be careful of handling the card.
3. Use memory cards supplied by our company.
We shall not be responsible for any problems caused by using memory cards not provided by us.
5. Operating temperatures may vary depending on the performance of memory cards.
6. Be sure to backup your recorded videos using an extra storage device. (PC, external HDD, etc.).
A backup of the memory card data using an external storage device may prevent the loss of important data.
7. Be sure to format the SD card when changing mode setting through Lukas viewer.
8.
9.
10.
After memory card formatting, existing settings will be applied to the dash cam. No firmare or configuretion file is required.
As the latest set value is saved on dash cam, it is automatically applied to memory card.
Please use device to format. You can format the memory cards respectively using the formatting menu of the front camera.
Be sure to insert microSD card into the product.
11.Do not insert the microSD card into the SD card slot using the microSD card adaptor. It may cause malfunction or damages.
12.This product model has a format-free feature. Malfunctions may occur if unsupported files are copied, moved or deleted from the memory card(s).
13.When formatting on a PC, we recommend that users use full format rather than quick format option.
Without microSD card, event recordings are not saved.
User's Manual ... 7

▶Supports a variety of recording functions
Distortion-free recording with wide angle lens▶
▶3.5inch LCD(480X272) + Full Touch
Equipped with car battery discharge prevention function
▶
▶
Front view dash cam : CMOS Sony Exmor R IMX291 Full HD dedicated sensor
Rear view dash cam : CMOS Sony Exmor IMX322 Full HD dedicated sensor
Multi-booting support
Leakage current 100uA or less
Supports a variety of recording functions
Supports largest memory capacity of 1,024G
Supports voice guidance in 20 languages (English, Korean, Russian, Chinese, French, Spanish, Arabic, Japanese, Thai, Vietnamese, German,
Mogolian, Turkish, Italian, Hindi, Czech, Cantonese, Portuguese, Bahasa Indonesia, Bahasa Melayu)
- Continuous recording: generates recording files at three-minute interval continuously
- Event recording: records before/after impact occurs for 30 seconds in total
- Dual Slot (SD + microSD). Dual Save (Always+Event / Motion+Event)
▶
Supports dual security LED
▶
Supports Integrated GPS (optional)
▶
Stores 2 million driving information data
▶
▶
2. Features
8 ... DASH CAM
▶Supports Wi-Fi (802.11b/g/n (2.4~2.4835GHz))
Front view : 1920X1080p Full HD recording, max. 30fps
diagonal(approx. 139°~43°), effective angle: horizontal (approx. 107°), vertical (approx. 56°)
Rear view : 1920X1080p Full HD recording, max. 24fps
diagonal(approx. 130°), effective angle: horizontal (approx. 105°), vertical (approx. 54°)

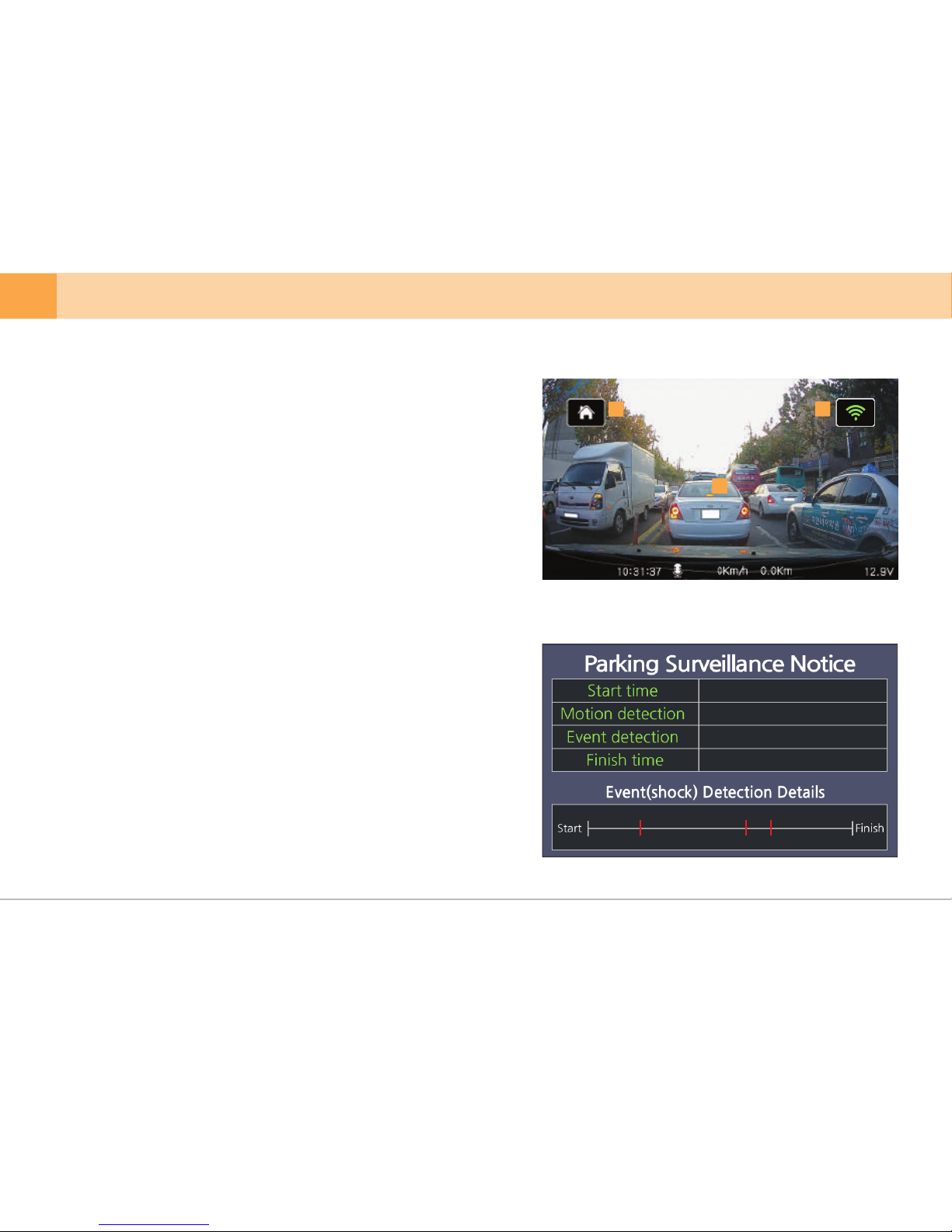

Parking alert function
Catalogues the number of motion events detected during parking mode recording (optional in configuration setting)
▶
▶Built-in super cap
An internal battery replacement is not necessary due to a built-in semi-permanent super capacitor which will write all files onto the SD card(s)
before device powers down completely
▶Direct memory card format
Able to format the memory card(s) directly from the device (refer to 31 page)
▶Built-in microphone
Records audio simultaneously
▶Firmware upgrade support
Firmware will be upgraded for improvement of product function and error correction
▶Video playback
Video can be viewed from the PC & Mac dedicated Viewers or on the LCD screen of the camera
▶Configuration setting available
User is able to configure the device settings and a variety of functions including customized situation-specific recording, and the weekly car day
alarm directly from the dedicated viewer or by using the device configuration menu
User's Manual ... 9
UV filter(optional)
▶
Operating temperature: -20℃~ 70℃(-4℉~158℉) (highest temp. in LCD type)
▶
Detachable fixed/rotating mounts
▶
No electric curtain interruption by minimizing height of rear view camera
▶
Supports OBD II (optional)
▶

3. Components
▒ 3-1. Package Guide ▒
10 ... DASH CAM
Hard wire power cable Front/rear connection cable
(5m)
microSD card adapter SD CardUser's Manual
Cigar cable (optional)
Rear view camera
adhesive tape
OBD II (optional)
Fixed type bracket set
Rotating type bracket set
(optional)
Front Camera
(microSD card 8GB )
- Please handle device components with care.
- Product package is subject to change depending on models and types (Hard wire power cable is not included in OBD type model).
- Be sure to use original package components.
- Do not use microSD card adaptor in the dash cam or it may malfunction.
UV Filter (Optional)
※ GUI or functions in the manual may differ depending on the software version.
※ This model has a format-free feature. However, some settings of memory card can be restricted.
(e.g. recording length time, image quality and etc.)
※ This model has a format-free feature. However, past video clips can be played back through general media players depending on file size.
※ This model has a format-free feature. However memory card efficiency can be decreased.
※ The Qvia application can be found on the Google Play Store and the App Store.
※ The Qvia application can be used with Android 4.0 or later, iOS 5.0 or later.
※ Qvia Application can be different in actual depending on version or model.
※ Wi-Fi connection could be interrupted depending on wireless environment and/or type of smartphone.
※ Recorded videos will be saved as ‘Normal video quality’ when Wi-Fi is connected.
※ Image may get blur due to temperature environment or vibration.
※ Audio noise may occur due to motor noise while zoom is moving.
※ Image can be blur due to focus correction if there is strong impact excessed 1.5G.
※ Image can be blur if auto-focus correction is done regularly.
User’s Guide
ver. 1
z970 WD
LOCK
Insert microSD CARD
Adapter

▒ 3-2. Name & Functions of Each Part ▒
User's Guide ... 11
Function
1
Allows rear view camera to be mounted to vehicle
2
Display dash cam operation status, give warning
3
Rear view cable connection terminal
4
Name
Rear Stand
Security LED
Cable Connection
Camera Lens Video signal input
3
1
2
4
Name Function
1
Installed into vehicle & receives GPS info(only applies to device with GPS stand)
2
3
4
5
7
6
9
10
8
12
13
11
14
16
17
18
19
Stand & GPS(Built-In)
15
Video signal input (CMOS Digital Sensor)
Used to protect lens through UV protection filter and lengthen sensor
Camera Lens
UV Filter(Option)
AF+, AF-, MF switch
Focus Switch
Voice signal input
Displays driving video and video being recorded. Set configuration settings
Display dash cam operation status etc.
Dash cam power supply switch
Used to insert/separate microSD card
Used to insert/separate SD card
Used to control zoom in and out in the MF mode.
Used to manual record, if necessary
(and create a video file covering 30 seconds in the event folder).
Product name & product serial number
Rear camera input connection
OBD connection (Only for OBD type)
Turn signal input connection (Only for ADAS model)
MIC
LCD & Touch
Wi-Fi Dongle connetionWi-Fi
Operation Status LED
Power Switch
microSD Slot
SD Slot
Zoom In-Out Switch
Emergency Recording
S/N Label
CAM-IN
OBD
DC-IN
Speaker Audio signal output
Security LED Displays dash cam operating status, gives warning
Supply power to dash cam through power connection
TS-IN
1
7
2
12
13
5
8 9 10 11
4
14 17
3
15
6
16
19
18

4. Installation
▒ 4-1. Pre cautions ▒
▒ 4-2. Installation Steps ▒
1 2
Put on two-sided adhesive tape on front/rear stand of the device.
Make sure Wi-Fi dongle is inserted into main device.
12 ... DASH CAM
※ Before installation, park your vehicle on a flat surface and an area with normal light exposure.
Turn off the engine and remove the key from the ignition. (Be sure parking brake is ON)
※ Pick a spot for the device around the rear view mirror not blocking the driver's view.
※ Do not install the device with the lens facing upwards or it may cause a GPS and/or an event malfunction.
(With no GPS detection, keeps recording in event mode).
※ Clean the windshield area where the dash cam will be installed.
※ Adjust camera lens angle to show still image(car bonnet) on approx. 40% of the recording screen.
- If the lens is installed too low, it blocks traffic signs, keeping you from seeing exact information. When the lens is installed too high,
the screen looks dark overall due to the bright sky.
Select a place not blocking the driver's view, install front camera onto
the windshield around the rear view mirror.
Do the same with the rear camera onto rear windshield.
※ Detaching and reattaching the adhesive tape causes the tape to
lose its stickiness.
①
②

▒ 4-2. Installation Steps ▒
※ Do not insert the microSD card into the SD card slot using the microSD
card adaptor. It may cause malfunction or damages.
3 4
Insert SD card and microSD card into front camera. After connecting power cable to the front camera, arrange and
the hide power cable along A filler.
※ If you do not insert microSD, event files are not saved.
56
Connect front camera and rear camera with front/rear
connection cable.
After installation, turn on the engine first and then the power switch on
(ACC or ON) of dash cam. Check normal working status in the LCD screen.
User's Manual ... 13
※ Dash cam is rebooted when the rear camera connection cable gets
plugged or unplugged in the main body.
※ Dash cam does not work properly if the rear connection cable is not firmly
connected to the rear camera.
※ Please ensure rear connection cable is connected/disconnected when
the device power is off. Otherwise, damage to the device may occur
LOCK
8GB

▒ 4-3. Power Cable Hardwiring ▒
1 2
3 4
Locate the vehicle fuse box and
fuse diagram. Identify the fuses
which have power/no power while
the vehicle engine is off.
※ Use fuse tongs to conveniently
insert and remove individual fuses.
Identify a fuse that has no power
(e.g. cigarette lighter, audio etc.) to
connect with the red ACC wire and
insert it back to fuse box.
※ Location of ACC power supply
may differ depending on the vehicle.
※ Please connect to output side,
or a fire could occur.
Identify a fuse that has power
(e.g. emergency lamp, indoor
lamp, tall lamp etc.) to connect
with the yellow B+ wire and insert
it back to fuse box.
※ Location of B+ may differ depending
on the vehicle.
※ Please connect to output side,
or a fire could occur.
Connect the black GND terminal to a
grounding source
(e.g. metal component)
14 ... DASH CAM
Connection failure may occur if cable is improperly hard-wired. We recommend that users use dual fuse holders as
seen in the adjacent photo.
※

▒ 4-4. Camera Angle ▒
▶
▶
Users can adjust preferred viewing angle easily while viewing the LCD screen.
Adjust camera lens angle to display vehicle hood (bonnet) on approx. 40% of the LCD screen as shown below.
※ Too low of a lens angle may hide traffic lights & too high of a lens angle may darken video quality.
Traffic Lights
Moving
60%
Still
40%
User's Manual ... 15

▒ 4-5. Memory Card Usage ▒
-Video is recorded at 3-minute interval for continuous recording, 30-second interval for motion and event recording.
-The number of files and usage time below is when setting continuous recording to 70%, motion recording to 30%.
※ Front and rear motion detection files are stored separately.
※ Number of files and storage time may differ more or less during actual use.
※ Total recording time is calculated by considering front/rear view video as one video.
(Videos are saved after they are separated into front/rear view)
16 ... DASH CAM
1. SD card usage time
2. microSD card usage time (event recording)
16G
Continuous recording
Total usage time Total no. of files Total usage time
30 / Approx. 1h 30min Approx. 3h 110 Approx. 55min
60 / Approx. 3h Approx. 6h 224 Approx. 1h 52min
120 / Approx. 6h Approx. 12h 448 Approx. 3h 44min
249 / Approx. 12h 27min
30 / Approx. 1h 30min
60 / Approx. 3h
120 / Approx. 6h
249 / Approx. 12h 27min Approx. 24h 54min 911
No. of files for front view No. of files for rear view
8G 14 / Approx. 42min Approx. 1h 24min 53 Approx. 26min 30sec14 / Approx. 42min
Approx. 7h 35min 30sec
Motion detection recording
32G
64G
128G
No. of files for front view
Total usage time
No. of files for rear view
8G 16G 32G 64G 128G
107 214 450 900 1,800
107 214 450 900 1,800
Approx. 54min Approx. 1h 47min Approx. 3h 45min Approx. 7h 30min Approx. 15h

DC-IN OBD
ON
ACC
OFF
SD/
MICRO SD
5. Product Usage
▒ 5-1. Standard Operation Guide ▒
User's Manual ... 17
1. Start & Stop Recording
- ON : supports recording during driving/parking (operates up to set voltage or time during parking)
- ACC : supports recording during driving (dash cam begins to operate when the engine is on and it stops operating when engine is off)
- OFF : power not supplied to dash cam
※ Check if memory card is in the device before turning the device on.
※ When booting proceeds after power is supplied, Qvia logo will be showed up on LCD screen.
※ After dash cam is booted, it will start recording after voice message “Drive safely”.
2. Standard Recording Mode
Folder
Storage Medium
Continuous Recording
SD card
AlwaysMovie
3min
always
Record continuously
while driving
Event Recording
SD card/microSD card
AlwaysMovie / EventMovie
30sec
always + event / event
- Record when impact takes
place during driving or parking
- Able to set G-sensor sensitivity
SD card
MotionMovie
30sec
parking
- Recordings when motion is
detected with selection motion
detection function.
- Able to set motion detection
sensitivity
Motion Detection Recording
microSD card
EventMovie
30sec
event
Record whenever you
need to by pressing
emergency recording
button
Emergency Recording
Storage Duration
Video
Characteristics
You can set power safety function conveniently by manipulating power switch on dash cam.
※ If there is a microSD card inserted, videos from event recordings are saved onto the microSD card in the EventMovie folder.
Continuous recordings will be saved in the AlwaysMovie folder of the SD card.
※ If there is no microSD card inserted, video from event recordings will not be saved. Only videos from continuous recording will be saved onto the SD card.

18 ... DASH CAM
Front LED Status
Rear LED Status
Blue LED stays on continuously Red LED blinks fast
Blue LED stays on continuously Blue LED blinks fastBlue LED blinks slowly
Blue LED blinks slowly
Event/Motion taking PlaceDuring Recording while ParkingDuring Continuous Recording
- Check video now playing :
3. Video Playback
you can see the video now playing in real time after you boot dash cam.
Dash Cam LCD : When you touch real-time video button on main menu, you can check video being recorded.
APP : When you touch ‘Qvia View’ button on Qvia APP, you can check video being recorded. (When Wi-Fi is connected)
- Check recorded video : Dash Cam LCD : When you touch video playback button on main menu, you can watch recorded video.
APP : When you touch ‘Internal Storage’ button on Qvia APP, you can check recorded video.
PC : You can see on other players and Qvia dedicated viewer by connecting SD card/microSD card to PC.
- Continuous recording :
6. Recording during driving
recorded for 30 seconds in total - 10 seconds before/20 seconds after impact occurs - and saved in EventMovie folder.
※ Emergency recording cannot operate during event recording and event recording does not operate during emergency recording.
※“Always”is displayed in lower part of the screen when the recorded video by continuous recording is playing.
Continuous Recording (always) Continuous Recording (always) Continuous Recording (always)
※ You can set LED to On/Off on Configuration setting > additional function or APP/Viewer Setting. When LED is off, security LED does not operate.
- Event recording :
when pressing emergency recording button for approx. 1 second, recording proceeds immediately with sound effect
for 30 seconds and is saved in EventMovie folder.
- Emergency recording :
save video recorded during driving at 3-minute interval in AlwaysMovie folder
4. Security LED operation
SD Card :
Event triggered
microSD Card: 10sec 20sec
Event triggered
10sec 20sec
Event triggered
10sec 20sec
※ Dash cam will be off after Blue LED blinks fast, when device is entering ‘Power safety mode’ by voltage setting or time.
5. Operating status LED operation
Red LED blinks fast
Event/Motion taking Place
Blue LED
blinks slowly
ACC OFF
Blue LED blinks fast
Entering power safety mode
Red LED blinks slowly
During Recording while Parking
Blue LED stays
on continuously
During Continuous Recording

User's Manual ... 19
6. Recording During Parking
-
Parking mode is active when the device power is ON.
7. Driving Information Check
-
Qvia dash cam can record up to approximately 2 million driving information points onto the microSD card. After you have set the storage intervals
for driving information on the configurations settings, the desired data points will then be saved at every programed interval.
Note that recording and the device itself will terminate power if the vehicles’ battery drops below a predetermined voltage.※
- Recording in parking mode :
When converting from continuous, event, or manual recording mode to parking mode, each recorded file is terminate and converted into
parking mode. For this reason, video loss can occur.
※
-
When selecting ‘Use motion detection’ in the configuration settings, video will be recorded for 30 seconds in total when motion is detected 10 seconds
before / 20 seconds after. Files will be saved in the Motion Movie folder.
Motion recording may continue according to changes in the environment, the sensitivity must be set to in accordance with your parking
environment (E.g. When parking in an alley or underground, frequent movements may interfere with motion recording if set on a high sensitivity.).
※
Motion detection or frame omission may occur depending on surrounding environment.※
-
How to change to parking mode :
Automatic conversation to parking mode can be programed in the “Configuration Setting > Basic Functions”
of the Qvia viewer or on the Qvia mobile app: “Qvia Setting > Basic Functions”.
The device can be programed with a set time to initiate the ‘auto-conversation to parking mode’ function.
When the device converts to parking mode, a voice segment (“Switched to parking mode”) is announced.
“Motion” LED segment will be displayed on lower part of the screen when saved video playing.
※
As recoding stops and converts to parking or driving mode, less than 5 seconds of video may be lost.※
Recording time during parking mode may vary depending on the vehicles’ battery voltage.※
Motion detection may fail when the vehicle is in extreme lighting conditions.※
RED LED will blink while motion recording is active.※
You can set the motion detection function on the Qvia Viewer :“Configuration Setting > Motion Detection”or directly from the Qvia App :
“Qvia Setting > Motion Detection”.
※
For efficient memory management only the rear/front camera that detects the motion will activate.※

2016.04.07 21:57:00
37
3
2016.04.08 11:57:00
2016.04.08 21:57:00 2016.04.08 11:57:00
2016.04.07 [A]
※After starting the car engine and turning on the power button on right to
Dash cam, the Dash cam power will be on. When booting is complete
Dash cam will be automatically converted to recording during driving status
and real-time video will be shown on LCD screen.
1. Live View : video being recorded by camera is displayed on LCD screen.
2. Home (main menu) : touching the home button on upper right, main menu
appears.
-Screen conversion :
by touching the screen when rear view camera is
connected, it can be converted from front view ▶
rear view ▶ Reverse rear L/R ▶ front/rear view
left & right ▶ front/rear view up & down ▶
front/rear view PIP screen ▶ rear/front PIP.
When rear view camera is not connected, only front view
screen is displayed. (Dash cam will be re-booted when
rear view camera connection cable is
separated/connected during recording.)
▒ 5-2. Device Start ▒
1
2
20 ... DASH CAM
3
4.
Parking Surveillance Notice :
display the number of motion detection and event that take place during parking.
※ number of motion detection is displayed separately for front and rear view.
※ as event detection is recorded simultaneously for front and rear view,
the number of event detection is displayed together.
It shows Wi-Fi connection status and on/off the Wi-Fi
※ Green icon : Wi-Fi ON / Grey Icon: Wi-Fi off
※ By touching the Wi-Fi Icon, you can on/off the Wi-Fi
3. Wi-Fi :
