Racine Railroad Products 910088 Operating instructions

910088
1-inch Hydraulic Impact Wrench
1955 Norwood Court
Mount Pleasant, WI 53403
Phone: [phone]
Email: [email protected]
racinerailroad.com
Unit 3 Hartington Industrial Estate
Chesterfield Derbyshire, S43 3YF
Phone: [phone]
Email: [email protected]
racinerailroad.co.uk
1-inch Hydraulic Impact Wrench
910088
Operating and Maintenance Manual

910088
1-inch Hydraulic Impact Wrench
1955 Norwood Court
Mount Pleasant, WI 53403
Phone: [phone]
Email: [email protected]
racinerailroad.com
Unit 3 Hartington Industrial Estate
Chesterfield Derbyshire, S43 3YF
Phone: [phone]
Email: [email protected]
racinerailroad.co.uk
1-inch Hydraulic Impact Wrench
910088
Record of Changes
No.
Date
Description of Changes
Rev 1
10.2018
Branding Updates
Rev 2
1.2019
Added Common Spare Parts List
Rev 2.1
1.2023
Update manual layout –no part changes
Rev 2.2
3.2023
Update Footer and Contact Information
Update Parts and Service page with contact information

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 3of 25
Table of Contents
Section 1: Overview and Safety....................................................................................................................5
1-Inch Impact Wrench Overview...................................................................................................................5
Environmental Protection..............................................................................................................................6
Safety Information.........................................................................................................................................6
Safety Terms .............................................................................................................................................6
Machine Use and Safety Precautions .......................................................................................................7
Section 2: Specifications and Installation......................................................................................................8
Specifications................................................................................................................................................8
Hydraulic Fluid Requirements ...................................................................................................................9
Installation Instructions................................................................................................................................10
Hose Requirements ....................................................................................................................................10
Hose Types .............................................................................................................................................10
Hydraulic Hose Recommendation...........................................................................................................11
Hydraulic Fluid Recommendation ...........................................................................................................12
Tool Connecting Procedures...................................................................................................................12
Disconnecting Hoses...............................................................................................................................13
Section 3: Tool Operation ...........................................................................................................................13
Personal Protective Equipment ...........................................................................................................13
Operating Instructions.................................................................................................................................14
Impact Extension Handle Mounting Instructions- Tee Handle................................................................16
Section 4: Maintenance...............................................................................................................................17
Troubleshooting ..........................................................................................................................................18
Section 5: Parts and Service Support.........................................................................................................20
Technical Support & Service...................................................................................................................20
Common Spare Parts..................................................................................................................................21
Assembly View and Parts List.....................................................................................................................21
Section 6: Warranty Terms and Conditions ................................................................................................25

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 4of 25
This page was intentionally left blank.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 5of 25

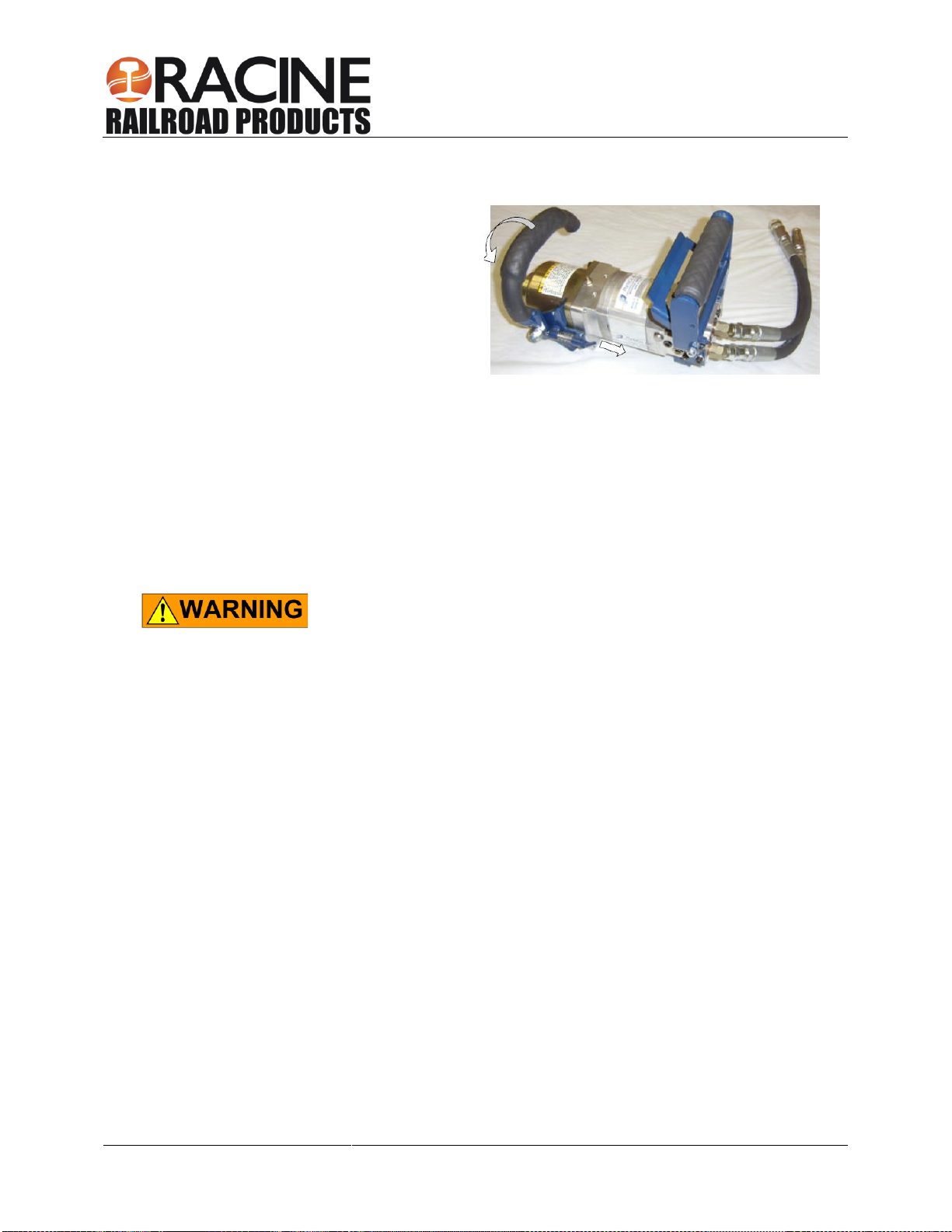

Section 1: Overview and Safety
1-Inch Impact Wrench Overview
The Racine Railroad’s 1-Inch Impact Wrench is designed to tighten and loosen bolts.
The Impact Wrench requires a flow of 10 GPM (38 LPM) at 2000 psi (138 bar) for best performance. Use
this tool on an open center hydraulic system only with a maximum pressure of 2150 psi (148.3 bar). The
impact wrench uses a 1-inch (25 mm) square drive and requires high impact sockets.
Do not use this machine for other than its intended purpose.
Please read these instructions when using this tool, which can only be used for the specified purpose.
This instruction manual should be kept throughout the life of the tool.
The operator of this tool should:
•Have access to this operation instruction.
•Read and understand this operation instruction.
Note: Information in this document is subject to change without notice.
Note: The handles are insulated to reduce vibration which increases operator comfort.
The impact wrench can have a stand-up handle added to it for operating from the standing
position.
An additional handle kit can be added to the
impact wrench to position a handle directly
across from the main operating handle.
This handle is used for vertical applications also.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 6of 25
Environmental Protection
Comply with relevant national waste disposal laws and regulations. Waste electronic
devices cannot be treated as household waste.
Equipment, accessories, and packaging shall be recyclable.
Do not throw the discarded equipment in trash cans.
Safety Information
For safe installation and operation of this equipment, carefully read and understand the contents of this
manual. Improper operation, handling, or maintenance can result in equipment damage and personal
injury.
Only trained and authorized personnel should be allowed to operate this machine. In addition, all
personnel at the worksite should be aware of the safety concerns and their individual responsibilities prior
to working this machine.
Please read and comply with all the safety precautions in this manual before operating this machine.
Your safety is at risk.
Safety Terms
DANGER indicates a hazardous operating procedure, practice, or
condition. If the hazardous situation is not avoided death or
serious injury will occur.
WARNING indicates a hazardous operating procedure, practice, or
condition. If the hazardous situation is not avoided death or
serious injury could occur.
CAUTION indicates a potentially hazardous operating procedure,
practice, or condition. If the hazardous situation is not moderate or
minor injury could occur.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 7of 25
Machine Use and Safety Precautions
Failure to follow safety precautions when operating this equipment can
result in serious injury or death to the operator or other persons in the
area.
Observe the following precautions whenever you are operating, working
on or near this equipment.
Do not use this machine for other than its intended purpose.
Do not make any modifications without authorization or written approval from Racine Railroad Products.
Replace all Racine Railroad Products and OEM parts with genuine Racine Railroad Products and OEM
parts. Using non-OEM parts may compromise the safety of the machine.
Do not wear loose clothing, jewelry, radio belts, etc., when operating, working on or near this equipment.
They can be caught in moving parts and may result in severe injury.
Always wear appropriate personal protective clothing when operating this equipment: e.g., orange safety
vest, hard hat, safety glasses with side shields, hearing protection, steel-toed safety boots, leather gloves,
dust respirator, etc.
Always lift heavy objects with the knees and legs, not the arms and back.
Always keep hands, arms, feet, head, clothing, etc., out of the operating area and away from all rotating
or moving components when operating, working on or near this machine.
Always make sure that all guards, covers, belts, hoses, and operating components are in good working
order and that all controls are in the appropriate position before starting the engine.
Always make sure that all safety equipment installed properly and are in good working order. Do not
operate the machine until unsafe conditions have been corrected.
Always operate in a well-ventilated area and make sure that the air filters, air filter covers, and muffler
are in good condition.
Always keep the machine clean and free of debris. Operate the machine in a safe and responsible
manner. Exercise caution when fueling, working on or near rotating or moving components, hot
components, and fuel systems. Be aware of potential fire hazards and prevent sparks, exhaust, etc., from
starting fires on the machine and/or work area.
Always comply with all instructions provided on any decals or placards installed on the machine and with
any relevant amplifying information provided in this manual or other general operating procedures.
Always disconnect the power source and make sure that all controls are in a safe position and install all
appropriate locking and safety devices before doing any of the following:
•Lubricating
•Adjusting
•Installing Tooling
•Making Repairs
•Performing Service

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 8of 25
Section 2: Specifications and Installation
Specifications
Flow Range................................5-10 GPM / 20-38 LPM
Max Pressure.............................2000 psi / 140 bar
Length ........................................14.25 in. / 36.8 cm
Width..........................................7.0 in. / 17.8 cm
Height.........................................8.75 in. / 22.2 cm
Weight (Dry)...............................26-lbs /11.77 kg
Drive Size...................................1-inch (25 mm) square
Torque........................................2600 ft/lbs / 3536 NM
The Impact Wrench is operated from an enclosed
style handle.
A. On the handle is a trigger that is used to operate
the impact wrench.
On some models a trigger lock prevents
accidental operation of the tool
B. A forward handle provides for two-handed
operation for better control.
This handle can be rotated 180-degrees for use in
vertical applications.
C. Hose whips move the hydraulic couplers away for operator’s hands making the tool easy to handle.
D. The manifold features a push button to reverse the direction of rotation. The driver is a 1-inch square
drive.
E. A grease zerk allows lubrication of the internal impact components without disassembling the tool.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 9of 25
Hydraulic Fluid Requirements
Viscosity (Fluid Thickness)
USA
Metric
50 F 450 SSU Max
10 C 95 Centistokes
100 F 130-200 SSU
38 C 27-42 C.S.
140 F 85 SSU Min.
60 C 16.5 C.S., Min.
Pour Point................................................10 ºF /-23 ºC Minimum (for cold startup)
Viscosity Index (ASTM D 2220)..............140 Minimum
Demulsibility (ASTM D-1401)..................30 Minutes Maximum
Flash Point (ASTM D-92)........................340 ºF / 171 ºC Minimum
Rust Inhibition (ASTM D-665 A & B).......Pass
Oxidation (ASTM D943)..........................1000 Hours Minimum
Pump West Test (ASTM D2882) ............60 mg Maximum
Recommend Hydraulic Fluids
Inspect hoses for cuts, crushing, leaks, or abrasion,
which may be a safety hazard or reduce fluid flows.
The following fluids work well over a wide temperature
range at startup, allow moisture to settle out, and resist
biological growth likely in cool operating hydraulic
circuits.
Others that meet or exceeds the specifications of these
fluids may also be used.
Type
Hydraulic fluid
Amsoil
AWH ISO 32
Chevron
Rando HD Premium Oil MV ISO VG 32
Rando HDZ ISO 32
Gulf
Harmony AW ISO Multi-Grade 32
Mobil
DTE Oil Excel 32
Shell
Shell Tellus S2 VX 32
Sunoco
Sunvis 1032 HVI Hydraulic Oil
Coupler Recommendation
3/8-inch (9 mm) flat face HTMA couplers rated at 2500 psi (175 bar) working pressure. Threads are to
match fittings used on hoses or fittings used as adapters.
Bolt Size
Torque
#10-32
38 in. lbs
¼-20
76 in. lbs
5/16-18
13 ft lbs
3/8-16
23 ft lbs

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 10 of 25
Installation Instructions
Unpacking Instructions
Upon receiving your Impact Wrench promptly remove it from the shipping container. Always keep top
side of container up. Inspect unit for damage which may have incurred during shipping and report it to
carrier for claim.
Tool Preparations
The impact wrench is ready for use after unpacking and no special preparation is required. If the tool
is used in cold weather, preheat the hydraulic fluid by running power source at low engine speed.
Fluid temperature should be at or above 50 °F/10 °C (400-ssu / 82 centistoke) before use, when
using recommended fluids. Using too thick of fluid may result in tool damage.
Testing
Never stick foreign objects, fingers, or other extremities into
moving mechanism. Failure to follow these instructions may lead to
severe personal injury or tool damage.
Before operating the Impact Wrench, it is important to inspect the trigger linkage mechanism for
obstructions. Make sure all sockets are securely mounted. Follow all safety precautions when
inspecting tool.
•Connect the tool to the power source.
•Hold the impact by the handles resting it on the ground.
•When the trigger is pulled, the socket should rotate.
•Release the trigger and allow the socket to stop rotating.
•Press the button to reverse the rotation and check that the tool rotates in both directions.
When operating the Impact Wrench do not change the rotation
without letting the socket stop rotating completely. Be sure to
follow all safety guidelines.
Hose Requirements
It is not often necessary or advisable to use long hoses. All hoses must have an oil resistant inner surface
and an abrasion resistant outer surface. Each hose must have male pipe ends for most application.
Longer hoses can be used when necessary but can affect the operation of the tool due to resistance in
the hose.
If small diameter or long hoses are used, or if restrictive fittings are connected to the supply and return
ports, the pressure required to push the fluid through the system and back to the tank will be higher. This
will reduce tool power.
Important: Oil should always flow from the male coupler through the female coupler.
Note: The pressure increases in uncoupled hoses left in the sun. This may make them difficult to
connect. When possible after use, connect the free ends of the operating hoses together.
Hose Types

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 11 of 25
Hydraulic hose types authorized for use with the tool are:
1. Labeled and certified non-conductive.
•This is the only hose authorized for use near electrical conductors.
•Constructed of thermoplastic or synthetic rubber inner tube, synthetic fiber braid reinforcement,
and weather resistant thermoplastic or synthetic rubber cover.
2. Wire braided (conductive)
•This hose is conductive and must never be used near electrical conductors.
•Constructed of synthetic rubber inner tube, single or double wire braid reinforcement, and
weather resistant synthetic rubber cover
3. Fiber braided (not certified or labeled non-conductive)
•This hose is conductive and must never be used near electrical conductors.
•Constructed of thermoplastic or synthetic rubber inner tube, synthetic fiber braid reinforcement,
and weather resistant thermoplastic or synthetic rubber cover.
The rated working pressure of the hydraulic hose must be at least 175 bar (2500 psi).
Hydraulic Hose Recommendation
Hydraulic Hose Recommendation
Flow Per Circuit
Length Each Hose
Use
Inside Diameter
SAE Spec Hose
(Wire Braid)
SAE Spec Hose
(Fiber Braid)
GPM
LPM
Feet
Meter
Inch
MM
5 to 8
19 to 30
To 50
To 15
Both
1/2
13
SAE 100R1-8
100R7-8
5 to 8
19 to 30
51 to 100
15 to 30
Both
5/8
16
SAE 100R2-10
SAE 100R8-10
5 to 8
19 to 30
100 to 300
30 to 90
Pressure
Return
5/8
3/4
16
19
SAE 100R2-10
SAE 100R1-12
SAE 100R8-10
SAE 100R7-12
9 to 12
34 to 45
To 50
To 15
Both
5/8
16
SAE 100R2-10
SAE 100R8-10
9 v 12
34 to 45
51 to 100
15 to 30
Pressure
Return
5/8
3/4
16
19
SAE 100R2-10
SAE 100R3-12
SAE 100R8-10
SAE 100R7-12
9 to 12
24 to 45
100 to 200
30 to 60
Pressure
Return
3/4
1
19
25.4
SAE 100R2-12
SAE 100R1-16
SAE 100R8-12
SAE100R7-16
The rated working pressure of the hydraulic hose must be at least 2500 psi / 173 bar.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 12 of 25
Hydraulic Fluid Recommendation
Inspect hoses for cuts, crushing, leaks, or abrasion,
which may be a safety hazard or reduce fluid flows.
The following fluids work well over a wide temperature
range at startup, allow moisture to settle out, and resist
biological growth likely in cool operating hydraulic
circuits.
Others that meet or exceeds the specifications of these
fluids may also be used.
Type
Hydraulic fluid
Amsoil
AWH ISO 32
Chevron
Rando HD Premium Oil MV ISO VG 32
Rando HDZ ISO 32
Gulf
Harmony AW ISO Multi-Grade 32
Mobil
DTE Oil Excel 32
Schaeffer
Dilex Supreme Hydraulic Fluid w/
Dynavis ISO 46.
Shell
Shell Tellus S2 VX 32
Sunoco
Sunvis 1032 HVI Hydraulic Oil
Tool Connecting Procedures
1. Stop the engine before connecting the tool and or hoses to the power unit, and when switching hoses
or tools.
2. Turn the hydraulic on/off valve to the off position before starting the engine.
Make sure all hoses are connected for correct flow direction to and from the tool being used.
When routing hose in the work area, position them where personnel will not be at risk of tripping over
them where vehicles can run over the hoses. Do not lay hose over sharp objects.
Pressurized fluid escaping from a damaged hose can penetrate the
skin and be injected in the body causing injury or death.
Do not pull on hoses to drag the power unit or tool.
Connecting Hoses
1. Wipe quick couplers with a clean lint free cloth before connecting them.
2. Depressurize the system.
3. Allow system and hydraulic fluid to cool if too hot to handle.
4. Securely connect the return (tank “R”) hose from the power source to the tool.
5. Securely connect the supply (pressure “P”) hose from the power source to the tool.
It is recommended that you connect the return hoses first and disconnect last to minimize or avoid
trapping pressure within the tool.
When connecting the quick couplers, the flow should run from male coupler to the female coupler.
The female coupler on the tool is the inlet. Quick couplers are marked with a flow direction arrow.
Pressurized fluid escaping from a damaged hose can penetrate the
skin and be injected in the body causing injury or death.
Do not pull on hoses to drag the power unit or tool.
Note: When possible, connect the free ends of uncoupled hoses to prevent build up in the hoses. The
sun can also increase pressure in the hoses and make connecting them difficult.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 13 of 25
Disconnecting Hoses
1. Stop the hydraulic power source.
2. Depressurize the system.
3. Allow system and hydraulic fluid to cool.
4. Disconnect the supply (pressure) hose to the power source (pressure port) from the tool (IN port).
5. Disconnect the return (tank) hose to the hydraulic power source (return port) from the tool (OUT port).
6. To prevent contamination, always install dust caps over the hydraulic ports of the tool when
disconnected.
Section 3: Tool Operation
Personal Protective Equipment
Before operating this machine, make sure that all general safety precautions are observed,
and that proper personal protective clothing is worn as described below.
At a minimum, operators should wear the following Personal Protective Equipment:
1. Safety Glasses
2. Hearing Protection
3. Hard Hat
4. High Visibility Safety Vest
5. Leather Work Gloves
6. Steel Toed Safety Shoes

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 14 of 25
Operating Instructions
The forward handle rotates 180° for use in a
vertical application.
To rotate the handle, pull the tee handle locking pin
back, rotate handle and make sure the locking pin
secures it in place before using the tool.
A grease zerk allows lubrication of the internal
impact components without disassembling the tool.
Connecting Hoses
6. Wipe quick couplers with a clean lint free cloth before connecting them.
7. Connect hoses from power source to the tool.
It is recommended that you connect the return hoses first and disconnect last to minimize or avoid
trapping pressure within the tool.
8. When connecting the quick couplers, the flow should run from male coupler to the female coupler.
The female coupler on the tool is the inlet. Quick couplers are marked with a flow direction arrow.
Pressurized fluid escaping from a damaged hose can penetrate the
skin and be injected in the body causing injury or death.
Do not pull on hoses to drag the power unit or tool.
Note: When possible, connect the free ends of uncoupled hoses to prevent build up in the hoses. The
sun can also increase pressure in the hoses and make connecting them difficult.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 15 of 25
Tool Operation
1. Position the socket end over the bolt to be
installed or removed.
Use only sockets rated for impact use.
Sockets not designed to be used with
impacts can break apart causing injury to
operator or bystanders.
2. Shift the spool to the direction of rotation
desired, when holding the tool with the trigger
in the right hand pushing the spool to the right
for clockwise rotation.
Pushing the spool to the left rotates the socket
counter-clockwise.
3. Hold the tool securely with both hands, pull the
trigger lock, and pull the trigger.
4. To stop the driver, release the trigger.
•When the nut contacts the surface of the material being fastened, limit impact time to 10 seconds.
•Excessive wear will occur to the hammer mechanism due to the heat buildup if allowed to impact
for extended periods.
Do not shift the spool while the tool is operating, damage to
internal components may occur.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 16 of 25
Impact Extension Handle Mounting Instructions- Tee Handle
1. Attach the anchor eye to the impact wrench using the two
1/4" bolts and two lock washers provided.
2. While holding the trigger lock on the impact wrench
against the handle, position the Tee Handle assemble
over the impact handle.
3. Position the brace arm as shown, lower the braces so that
all the holes are aligned with the anchor eye, and insert
retaining pin [C 5/16" (7.8 mm) diameter].
4. Locate the retainer clip.
5. Pull back on the handle to align the upper holes in the
handle pole and the holes in brace arm.
6. Insert a 1/4" (6.35 mm) pin into the hole as illustrated.
7. Align trigger linkage with the hole in the end of the ON /
OFF spool lever.
8. Insert a 1/4" (6.35 mm) pin through the holes to connect
the linkage.
Locate the retainer clip
Removing the Upright Handle
1. Remove the pin and the pin at the trigger linkage
2. Pull the handle assembly off the impact's handle.
3. Replace the clips in the Tee Extension Handle for storage.
Removal of the anchor eye is not required.
Cold Weather Operation
Hydraulic fluids are thicker in cold weather; therefore, run the engine at low idle lone enough to bring
the fluid temperature up to minimum of 50 °F /10 °C or until the top of the hydraulic tank feels warm,
before operating tool.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 17 of 25
Section 4: Maintenance
It is highly recommended to practice regular check-ups and maintenance in accordance with the usage
frequency to keep your tool in better condition and reduces total run ning costs.
Complete disassembly of the Impact Wrench is not recommended. Return to Racine Railroad for repairs.
All maintenance must be done with the tool disconnected from a
power source.
•Wipe all external surfaces after each use with a clean, lint free cloth to remove surface contaminants
from the tool.
•To extend the life of the handle padding, do not allow sharp edges or foreign objects to rub on the
padding.
•Store all tools in an enclosed area to prevent weather from contaminating their systems.
Daily
1. Wipe all tool surfaces, fittings, and couplings free of grease, dirt, and foreign materials.
Do not attempt to locate hydraulic leaks by feeling around hoses
and fittings with your hands. Pinhole leaks can penetrate the skin.
2. Inspect the tool, hydraulic system, hoses, and fittings for signs of leaks, cracks, wear, and/or damage.
Replace if necessary.
3. To prevent contamination, always install dust caps over the hydraulic ports when disconnected.
Weekly
1. Grease the impact mechanism using the grease zerk located on top of the motor adapter plate.
2. Apply 2 to 3 strokes (approximately 4 cc /ml) from a standard grease gun using a suitable grease.
Grease leakage from around the square drive is common after lubrication and during hard use. Wipe
the grease off to prevent it from splattering all over.
Note: Do not attempt to repair this product. Only properly trained personnel should perform any
maintenance service, and or repair to this tool.
Monthly
1. Perform a detailed inspection of the systems hoses, and fittings according to the hydraulic hose
operator’s manual and as stated in SAE standard j1273, May 1989 or latest revision.
Replace the hoses and/or fittings if necessary.
Semi-annually
1. Remove the impact head (Item 41) and clean the grease off the impact components.
2. Remove the grease from the impact housing.
3. Before assembly, check for damage and replace any components in poor condition. Mount the impact
head (Item 41) to the motor adapter plate (Item 40) after placing the assembled hammer mechanism
in the impact head.
4. Make sure all the shims (Item 44) are in position before mounting the impact head. There may be
more than one shim. After assembly, apply 100 strokes of grease (133 cc / ml) to the lubricating zerk.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 18 of 25
Storage Preparation
The tool should be stored in a cool, dry environment which is not subjected to rapid temperature
changes.
The recommended operating temperature of the machine is between -4 ºF and 104 ºF
[-20 ºC and 40 ºC].
Apply anti-rust oil on the surface of the machine and keep it in a ventilated, dry, corrosive, gas-free
environment.
•Cover male and female hose whips.
•Store in the upright position.
•Secure tool to prevent it from being knocked over.
•Store the Impact Wrench on a smooth level surface.
Troubleshooting
The following chart can be used as a guide to correct any problem you may experience with the tool.
To determine the problem in operation of the lag driver always check that the hydraulic power source is
supplying the correct hydraulic flow and pressure to the tool as listed in the table. Be sure you are using
an accurate flow meter. Check the flow with the hydraulic fluid temperature at least 80 °F / 27 °C.
Note: Stop and depressurize the hydraulic system before connecting or disconnecting a tool.
Failure to follow these instructions can lead to severe personal injury. Read and follow the
instructions in this manual for the proper way to connect and disconnect tools from the hydraulic
systems.
Problem
Cause
Possible Solution
Tool will not run or runs slow.
Power source.
Check power source flows and
pressure (5-10 gpm / 20-38 lpm
at 1500-2000 psi / 100-140 bar).
Coupler or hose.
Check for /remove obstruction.
Directional spool not fully shifted.
Shift spool to either position.
If after impact mechanism has
been serviced.
Check that all shims have been
placed back between the impact
head and adapter. Run impact to
circulate grease.
Mechanical failure.
Disassemble tool and check for
damage.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 19 of 25
Troubleshooting Continued
Problem
Cause
Possible Solution
Poor impact performance.
Pressure and return hoses
reversed.
Correct for proper flow direction.
Worn impact components.
Disassemble front half of impact
and check for damaged or
severely worn parts.
Incorrect grease.
Remove and clean impact head
(see maintenance section for
procedures).
Lubricated bolt head.
Remove grease and lubricate
threads only.
Improper socket or adapters.
Check socket and limit adapters
to as few as possible.
Cold hydraulic fluid.
Allow power source to warm up.
Trigger hard to pull.
Back pressure too high.
Should not exceed 250 psi / 17
Bar and 10 gpm / 38 lpm.
Dirty spool.
Remove and clean spool and
replace O-rings and backups.
Control linkage.
Inspect linkage between trigger
and valve spool.
Hydraulic fluid leaks between
motor and manifold block.
Damaged seal.
Disassemble tool and replace
seal.
Hydraulic fluid leaks between
adapter and motor.
Damaged shaft seal.
Split tool between adapter and
motor and replace seal.
Hydraulic fluid leaks from control
spools.
Damaged seals.
Replace all O-rings and backups
on leaking spool.
Grease leaks between impact
head and adapter.
Loose fasteners.
Tighten bolts.
Grease leaks around impact
drive shaft.
Heavy duty use.
Normal due to heat buildup.
Impact mechanism over greased.
Wipe clean until grease stops
leaking, adjust greasing
maintenance to match duty cycle.
Grease leaks around impact
drive shaft when cold.
Anvil bushing worn.
Replace anvil bushing.

910088
1-inch Hydraulic Impact Wrench
racinerailroad.com
racinerailroad.co.uk
3.2023 Rev 2.3
Original Instructions
Page 20 of 25
Section 5: Parts and Service Support
Technical Support & Service
Telephone and web-based technical support is available for current production models through our
Technical Service Department. Service Manuals and limited technical support may be available for
models that are no longer in production.
Telephone and E-mail Technical Support
Telephone and e-mail technical support is available on normal U.S. business days from 8:00 AM to 5:00
PM U.S. Central Time Zone (GMT +6 (+5 Daylight Savings Time)).
1955 Norwood Court
Mount Pleasant, WI 53403
Phone: [phone]
Email: [e-mail]
racinerailroad.com
Unit 3 Hartington Industrial Estate
Chesterfield Derbyshire, S43 3YF
Phone: [phone]
Email: [e-mail]
racinerailroad.co.uk
Non-Warranty Technical or Field Service Support
Depending upon the circumstances and availability of technical service personnel, we may provide
technical assistance and/or field service support, at the customer's expense, to assist in the correction of
non-warranty related problems. Contact our Technical Service Department to coordinate Non-Warranty
Technical or Field Service Support.
Warranty Technical or Field Service Support
Depending upon the circumstances and availability of technical service personnel, we may provide
technical assistance and/or field service support, at no charge to the customer, to assist in the correction
of warranty related problems. Contact our Technical Service Department to coordinate Warranty
Technical or Field Service Support.
Warranty Parts & Service
Warranty parts and service are coordinated through our Technical Service Department.
Warranty Parts Claims
Material claimed to be defective must be returned to our factory for evaluation. Defective materials will be
replaced, or your account will be credited if replacement materials have already been purchased. Please
contact our Technical Service Department at the address provided below if you have any questions or
problems.
Warranty Service Support
Depending upon the circumstances and availability of technical service personnel, we may provide
technical assistance and/or field service support, at no charge to the customer, to assist in the correction
of warranty related problems. Contact our Technical Service Department at the address provided below
to coordinate Warranty Technical or Field Service Support.
